KSM153PSCL0

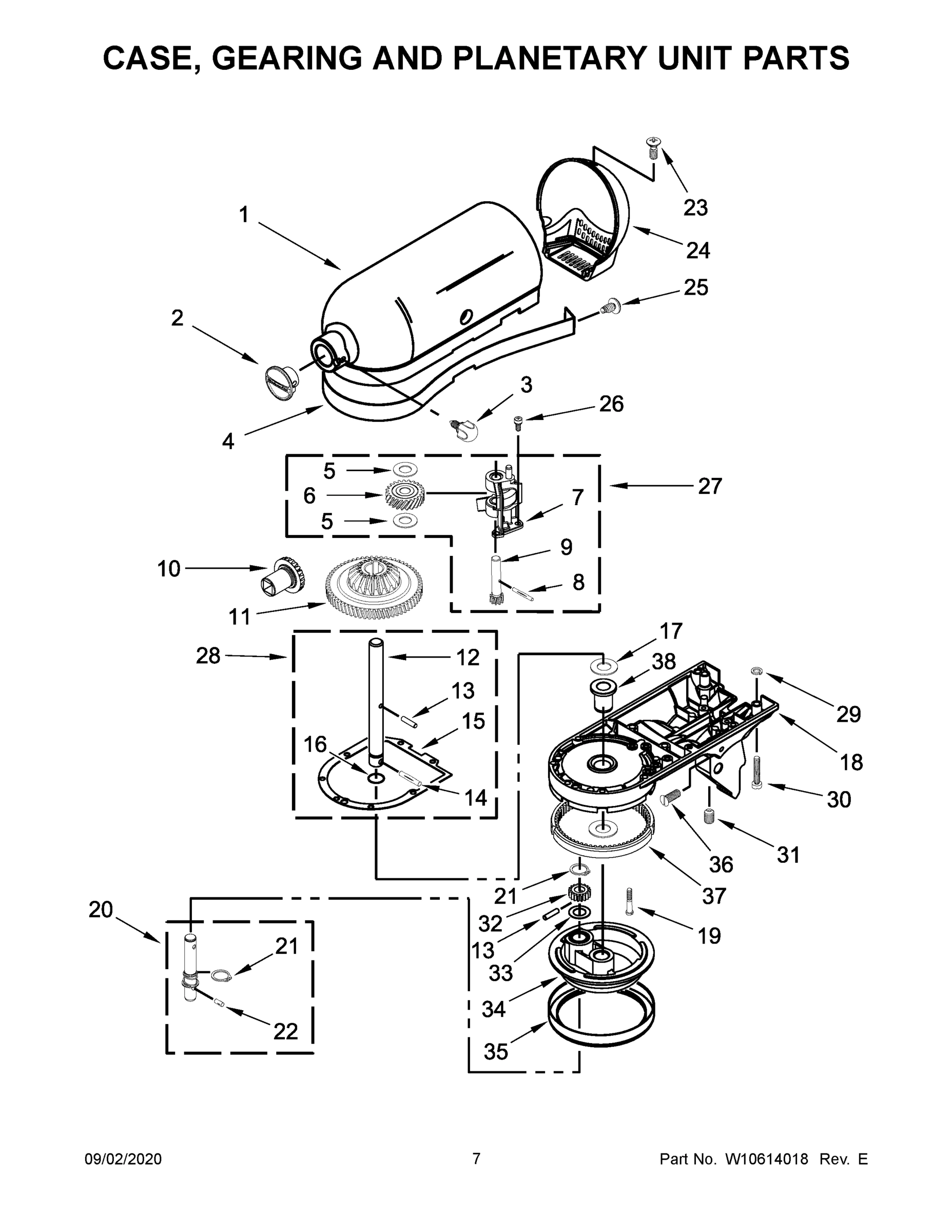

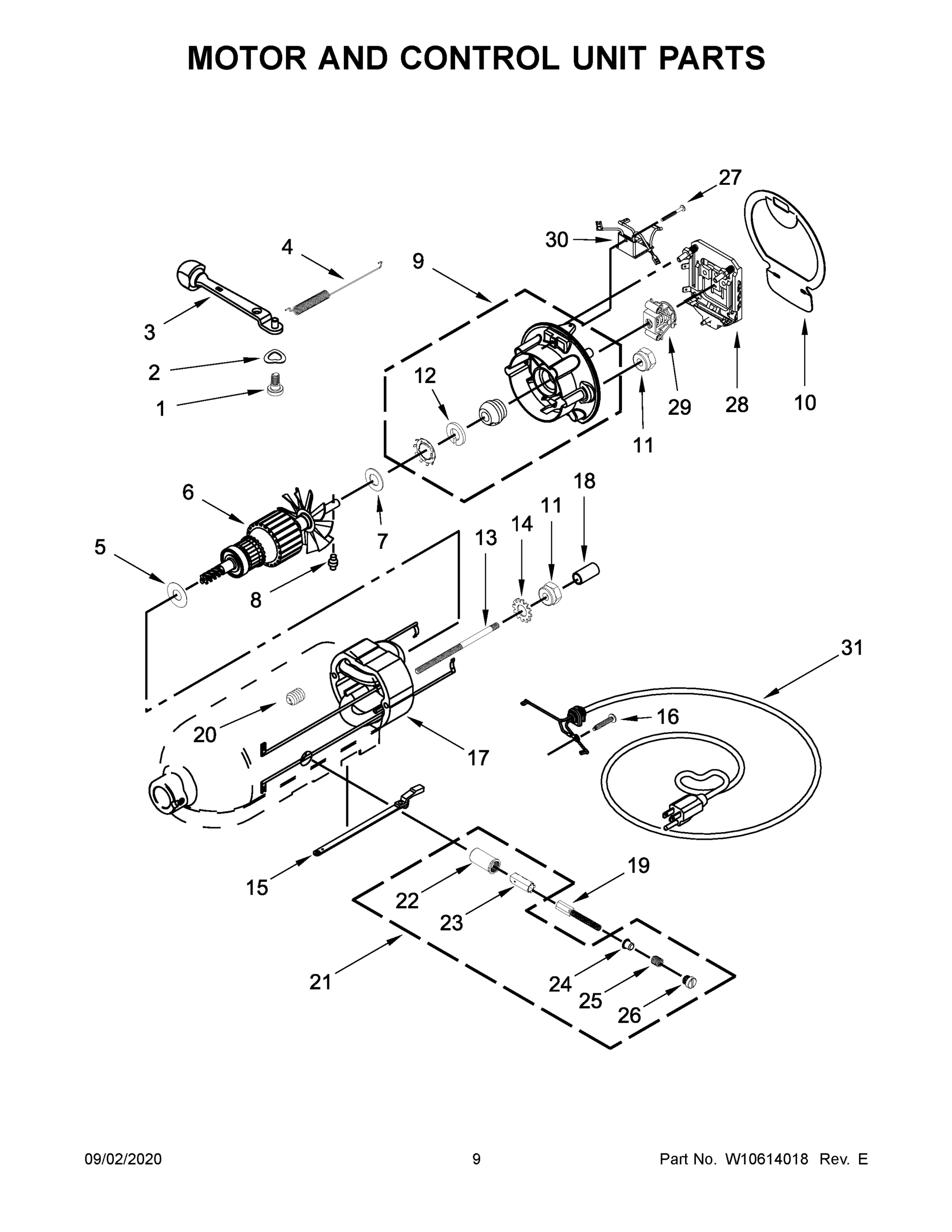

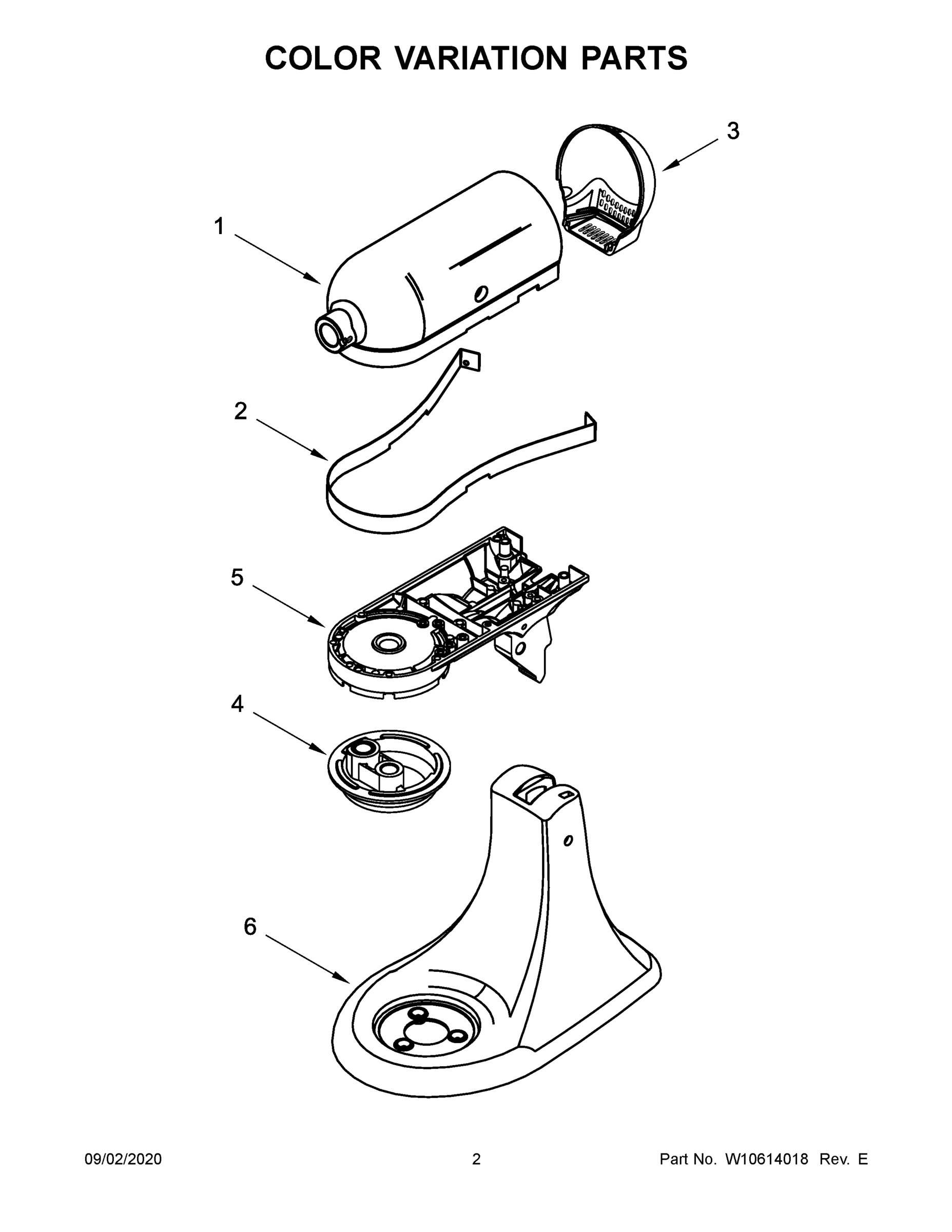

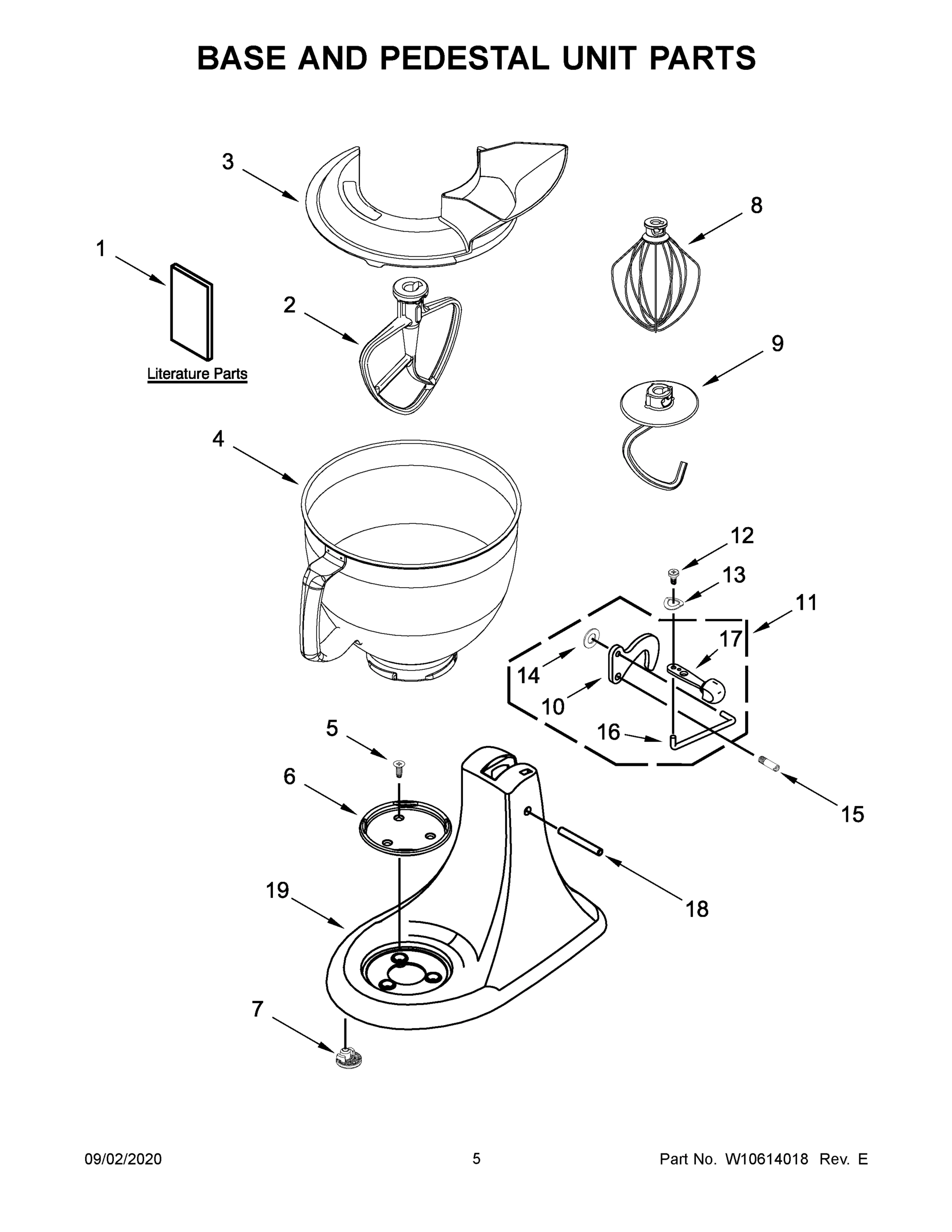

Model KSM153PSCL0 – Common Parts & Diagrams

Common parts from model KSM153PSCL0

9704025 Whirlpool Housing

9704025 Whirlpool Housing Out of Stock WPL 9704025 $103.63

HOUSING

HOUSING Out of Stock WPL W11672793 $107.33

WPW10672617 Whirlpool Stand Mixer Flat Beater

WPW10672617 Whirlpool Stand Mixer Flat Beater In Stock WPL WPW10672617 $19.35

240253-14 Whirlpool Cover

240253-14 Whirlpool Cover Out of Stock WPL 240253-14 $47.97

9704029 Whirlpool Cover

9704029 Whirlpool Cover Out of Stock WPL 9704029 $49.05

WP240253-1 Whirlpool Cover

WP240253-1 Whirlpool Cover Out of Stock WPL WP240253-1 $20.86

WP9709194 Whirlpool Thumb Screw Black

WP9709194 Whirlpool Thumb Screw Black In Stock WPL WP9709194 $18.53

WP9709276 Whirlpool Speed Control Lever

WP9709276 Whirlpool Speed Control Lever In Stock WPL WP9709276 $3.69

240286-10 Whirlpool Planetary

240286-10 Whirlpool Planetary Out of Stock WPL 240286-10 $45.54

W11084831 Whirlpool Planetary

W11084831 Whirlpool Planetary Out of Stock WPL W11084831 $26.48

W11199173 Whirlpool Planetary

W11199173 Whirlpool Planetary Out of Stock WPL W11199173 $31.09

WP240286-1 Whirlpool Planetary

WP240286-1 Whirlpool Planetary Out of Stock WPL WP240286-1 $23.91

WP3183680 Whirlpool Spring

WP3183680 Whirlpool Spring Out of Stock WPL WP3183680 $4.28

W10861717 Whirlpool Gearcase

W10861717 Whirlpool Gearcase Out of Stock WPL W10861717 $111.81

WPW10112253 Whirlpool Gear

WPW10112253 Whirlpool Gear In Stock WPL WPW10112253 $12.43

WPW10191926 Whirlpool Screw Cap

WPW10191926 Whirlpool Screw Cap In Stock WPL WPW10191926 $15.96

W11082541 Whirlpool Bearing

W11082541 Whirlpool Bearing In Stock WPL W11082541 $13.00

WP9709707 Whirlpool Foot

WP9709707 Whirlpool Foot In Stock WPL WP9709707 $4.28

WP16998 Whirlpool Stud Drive

WP16998 Whirlpool Stud Drive Out of Stock WPL WP16998 $4.28

WP9704329 Whirlpool Wire Whip

WP9704329 Whirlpool Wire Whip In Stock WPL WP9704329 $26.36

WP9705444 Whirlpool Pin Groove

WP9705444 Whirlpool Pin Groove In Stock WPL WP9705444 $4.28

WP240210-2 Whirlpool Gear-Worm

WP240210-2 Whirlpool Gear-Worm In Stock WPL WP240210-2 $10.26

WP3180526 Whirlpool Bearing Bracket

WP3180526 Whirlpool Bearing Bracket In Stock WPL WP3180526 $18.35

WPW10674618 Whirlpool Dough Hook

WPW10674618 Whirlpool Dough Hook In Stock WPL WPW10674618 $19.24

WP240775-1 Whirlpool Endcap Seal

WP240775-1 Whirlpool Endcap Seal In Stock WPL WP240775-1 $4.28

WPW10131078 Whirlpool Nut

WPW10131078 Whirlpool Nut Out of Stock WPL WPW10131078 $4.28

W11170663 Whirlpool Washer

W11170663 Whirlpool Washer Out of Stock WPL W11170663 $4.28

WP9705443 Whirlpool Pin Groove

WP9705443 Whirlpool Pin Groove Out of Stock WPL WP9705443 $4.28

WP4162324 Whirlpool Case Gasket

WP4162324 Whirlpool Case Gasket In Stock WPL WP4162324 $14.59

WP67500-55 Whirlpool O-Ring

WP67500-55 Whirlpool O-Ring Out of Stock WPL WP67500-55 $4.28

W10870869 Whirlpool Field Assembly

W10870869 Whirlpool Field Assembly Out of Stock WPL W10870869 $59.00

WP9709280 Whirlpool Latch Lever

WP9709280 Whirlpool Latch Lever Out of Stock WPL WP9709280 $4.28

WP16910 Whirlpool Dowel Pin

WP16910 Whirlpool Dowel Pin In Stock WPL WP16910 $4.28

WPW10380496 Whirlpool Stand Mixer Motor Brush

WPW10380496 Whirlpool Stand Mixer Motor Brush In Stock WPL WPW10380496 $6.13

WP243368 Whirlpool Shaft Agitator

WP243368 Whirlpool Shaft Agitator Out of Stock WPL WP243368 $15.28

4162546 Whirlpool Brush Holder

4162546 Whirlpool Brush Holder In Stock WPL 4162546 $22.71

WP9703438 Whirlpool Snap Retaining Ring

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $3.19

INSERT

INSERT Out of Stock WPL W11656718 $5.02

WP241877 Whirlpool Screw

WP241877 Whirlpool Screw Out of Stock WPL WP241877 $4.28

WP116287 Whirlpool Cap-Spring

WP116287 Whirlpool Cap-Spring Out of Stock WPL WP116287 $4.28

Whirlpool Stand Mixer Brush Holder Cap,Black

Whirlpool Stand Mixer Brush Holder Cap,Black Out of Stock WPL WP3184212 $4.28

WP240309-2 Whirlpool Stand Mixer Worm Drive P

WP240309-2 Whirlpool Stand Mixer Worm Drive P In Stock WPL WP240309-2 $25.14

4160474 Whirlpool Shaft Control

4160474 Whirlpool Shaft Control Out of Stock WPL 4160474 $27.82

WPW10119326 Whirlpool Speed Control

WPW10119326 Whirlpool Speed Control In Stock WPL WPW10119326 $12.09

WPW10330804 Whirlpool Speed Governor

WPW10330804 Whirlpool Speed Governor In Stock WPL WPW10330804 $13.57

WPW10325124 Whirlpool Board PHAS

WPW10325124 Whirlpool Board PHAS In Stock WPL WPW10325124 $15.28

W11545825 Whirlpool Power Cord

W11545825 Whirlpool Power Cord In Stock WPL W11545825 $12.08

WP3400203 Whirlpool Screw

WP3400203 Whirlpool Screw Out of Stock WPL WP3400203 $4.28

WP9706090 Whirlpool Washer

WP9706090 Whirlpool Washer In Stock WPL WP9706090 $4.28

WP240285 Whirlpool Drip Ring

WP240285 Whirlpool Drip Ring In Stock WPL WP240285 $7.87

WP16897 Whirlpool Bearing

WP16897 Whirlpool Bearing In Stock WPL WP16897 $4.28
