Whirlpool KSM105GBCBU0 SMALL APPLIANCE, STAND MIXER, TILT HEAD, 5 QT

1

WP110679 Whirlpool Screw Backorder WPL WP110679 $4.53

View on Model

1C

9704025 Whirlpool Housing Assembly Backorder WPL 9704025 $109.84

View on Model

2

WP116241 Whirlpool Washer Backorder WPL WP116241 $4.53

View on Model

3

WP9709194 Whirlpool Black Thumb Screw In Stock WPL WP9709194 $19.64

View on Model

3

WP9709276 Whirlpool Speed Control Lever In Stock WPL WP9709276 $3.70

View on Model

3C

9704029 Whirlpool Cover Assembly Backorder WPL 9704029 $51.98

View on Model

4

WP3183680 Whirlpool Spring Backorder WPL WP3183680 $4.76

View on Model

4B

PLANETARY (EMPIRE RED) WPL 24028623 Contact Us For Availability

View on Model

4C

9706670 Whirlpool Planetary Backorder WPL 9706670 $49.02

View on Model

5

WP9704324 Whirlpool Washer In Stock WPL WP9704324 $4.53

View on Model

5

LOWER GEARCASE (COBALT BLUE) WPL 24035031 Contact Us For Availability

View on Model

5A

W10476775 Whirlpool Gearcase Backorder WPL W10476775 $66.23

View on Model

5B

LOWER GEARCASE (EMPIRE RED) WPL 24035084 Contact Us For Availability

View on Model

5C

9706662 Whirlpool Gearcase Assembly Backorder WPL 9706662 $70.34

View on Model

6

PEDESTL Backorder WPL 3179263 $98.33

View on Model

6

W11133634 Whirlpool Armature In Stock WPL W11133634 $79.40

View on Model

6

WPW10112253 Whirlpool Gear Assembly In Stock WPL WPW10112253 $9.93

View on Model

6

WPW10191926 Whirlpool Cap Screw In Stock WPL WPW10191926 $17.78

View on Model

6A

PEDESTAL W/FEET (CRYSTAL BLUE) WPL W10488414 Contact Us For Availability

View on Model

6B

W11131262 Whirlpool Pedestal Backorder WPL W11131262 $97.67

View on Model

6C

PEDESTL Backorder WPL 9706684 $101.55

View on Model

7

W11082541 Whirlpool Bearing In Stock WPL W11082541 $13.77

View on Model

7

W11233557 Whirlpool Washer Backorder WPL W11233557 $4.67

View on Model

7

WP9709707 Whirlpool Foot In Stock WPL WP9709707 $4.53

View on Model

8

WP16998 Whirlpool Drive Stud Backorder WPL WP16998 $4.53

View on Model

8

WP9704329 Whirlpool Wire Whip In Stock WPL WP9704329 $29.36

View on Model

8

WP9705444 Whirlpool Pin Groove In Stock WPL WP9705444 $4.76

View on Model

9

W11316221 Whirlpool Stand Mixer Dough Hook Backorder WPL W11316221 $37.19

View on Model

9

WP3180526 Whirlpool Bearing Bracket In Stock WPL WP3180526 $20.43

View on Model

10

W11192794 Whirlpool HUB Gear In Stock WPL W11192794 $39.61

View on Model

10

SEAL, END WPL 2407751 Contact Us For Availability

View on Model

11

WPW10131078 Whirlpool Nut Assembly Backorder WPL WPW10131078 $4.53

View on Model

12

WASHER, FELT WPL 3180238 Contact Us For Availability

View on Model

13

W10851015 Whirlpool Stat Screw Backorder WPL W10851015 $4.53

View on Model

14

W11170663 Whirlpool Washer Backorder WPL W11170663 $4.53

View on Model

14

WP9705443 Whirlpool Pin Groove Backorder WPL WP9705443 $4.76

View on Model

15

WP4162324 Whirlpool Case Gasket In Stock WPL WP4162324 $11.04

View on Model

15

LINK, SPEED AND CAM ASSEMBLY WPL 3184176 Contact Us For Availability

View on Model

16

WP240205 Whirlpool Spring In Stock WPL WP240205 $4.53

View on Model

17

W10870869 Whirlpool Field Assembly Backorder WPL W10870869 $62.53

View on Model

17

WP9709280 Whirlpool Latch Lever In Stock WPL WP9709280 $4.53

View on Model

18

W11210996 Whirlpool Sleeve Backorder WPL W11210996 $4.53

View on Model

18

WP16910 Whirlpool Dowel Pin In Stock WPL WP16910 $4.53

View on Model

19

WPW10380496 Whirlpool Stand Mixer Motor Brush In Stock WPL WPW10380496 $4.68

View on Model

20

W11176201 Whirlpool Screw Backorder WPL W11176201 $4.53

View on Model

20

WP243368 Whirlpool Agitator Shaft Backorder WPL WP243368 $16.19

View on Model

21

4162546 Whirlpool Brush Holder In Stock WPL 4162546 $24.08

View on Model

21

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $3.48

View on Model

22

WP3179908 Whirlpool Brush Holder Backorder WPL WP3179908 $4.76

View on Model

23

W11656718 Whirlpool Insert In Stock WPL W11656718 $5.59

View on Model

23

WP241877 Whirlpool Screw Backorder WPL WP241877 $4.53

View on Model

24

WP116286 Whirlpool Spring Cap Backorder WPL WP116286 $4.53

View on Model

25

WP116287 Whirlpool Spring Cap Backorder WPL WP116287 $4.53

View on Model

26

WP3184212 Whirlpool Stand Mixer Black Brush H Backorder WPL WP3184212 $4.76

View on Model

27

W11084238 Whirlpool Screw Assembly Backorder WPL W11084238 $4.53

View on Model

28

4160474 Whirlpool Control Shaft Backorder WPL 4160474 $29.50

View on Model

28

WPW10119326 Whirlpool Speed Control In Stock WPL WPW10119326 $12.44

View on Model

29

WPW10330804 Whirlpool Speed Governor In Stock WPL WPW10330804 $17.55

View on Model

30

WPW10325124 Whirlpool Phase Board In Stock WPL WPW10325124 $19.48

View on Model

31

W11545825 Whirlpool Power Cord In Stock WPL W11545825 $14.88

View on Model

31

WP3400203 Whirlpool Screw Backorder WPL WP3400203 $4.53

View on Model

32

SCREW Backorder WPL 3184609 $27.56

View on Model

32

W11133645 Whirlpool Pinion Gear Backorder WPL W11133645 $4.85

View on Model

33

WP9706090 Whirlpool Washer In Stock WPL WP9706090 $4.53

View on Model

35

WP240285 Whirlpool Drip Ring In Stock WPL WP240285 $8.78

View on Model

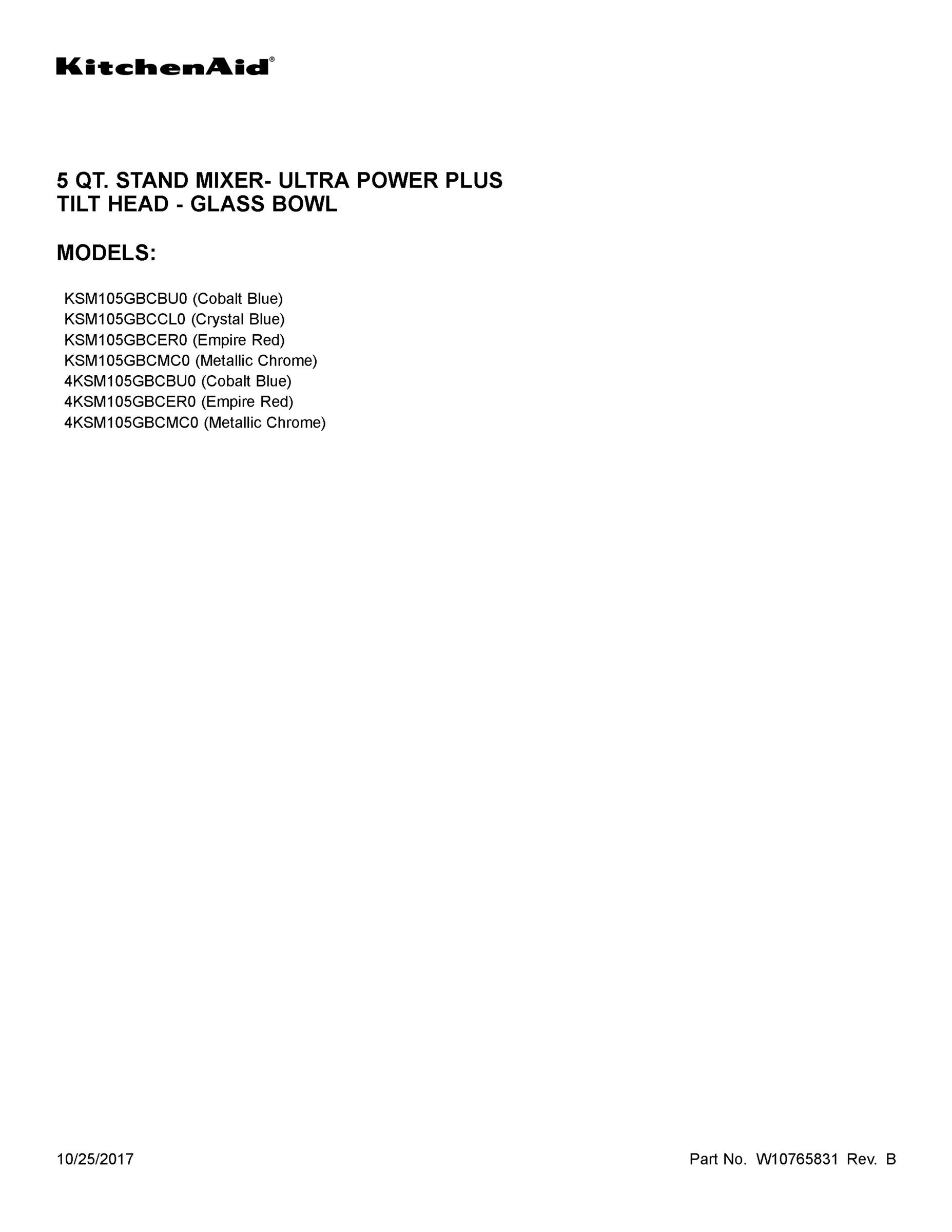

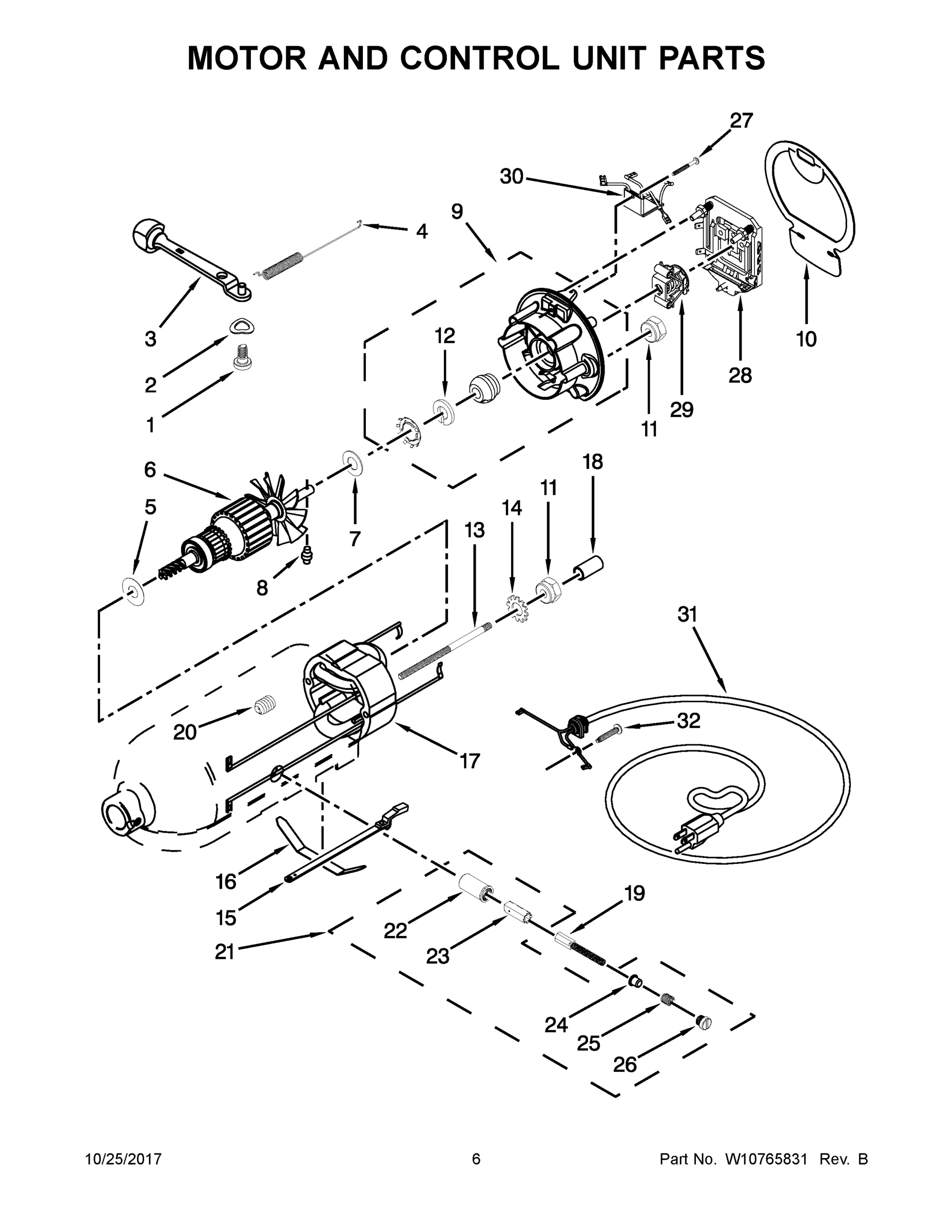

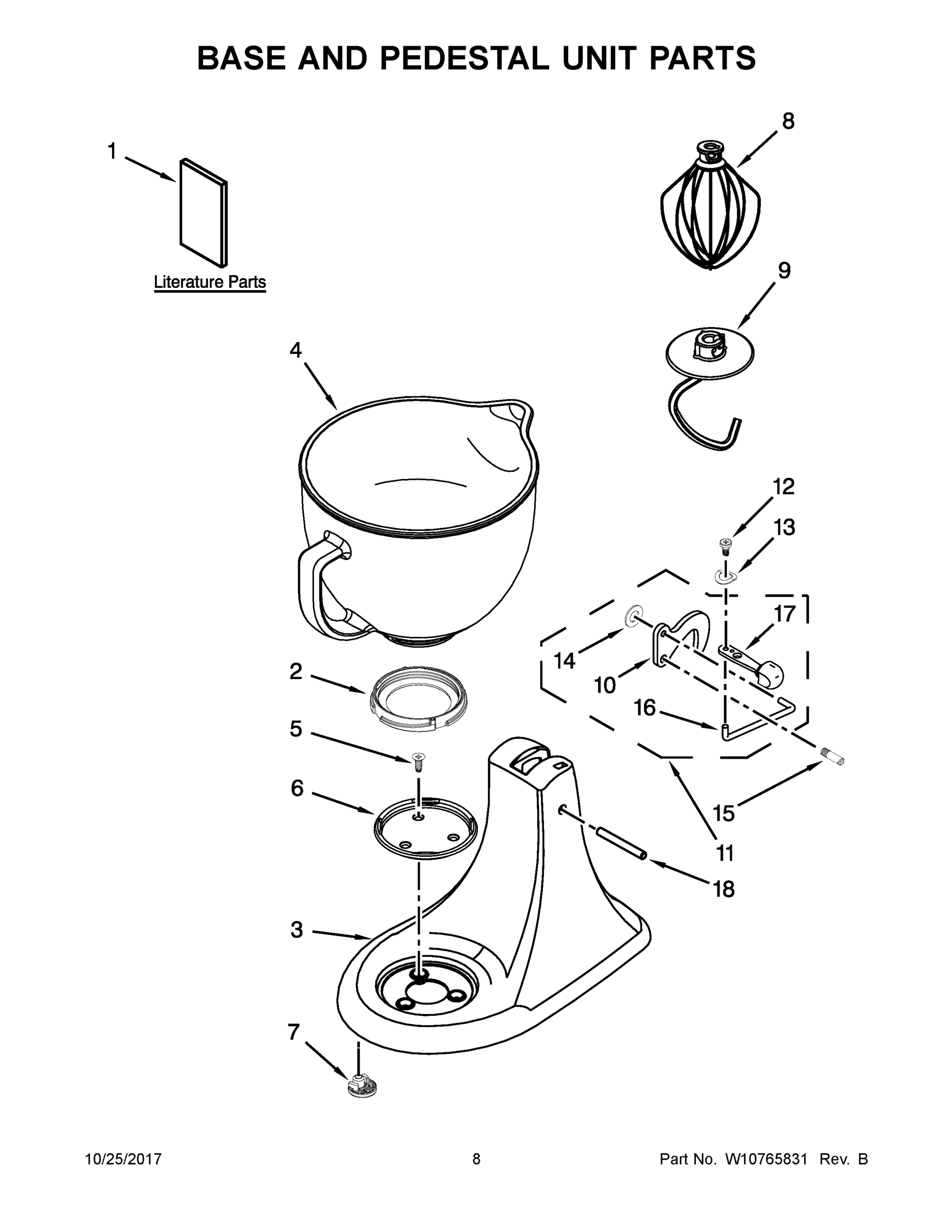

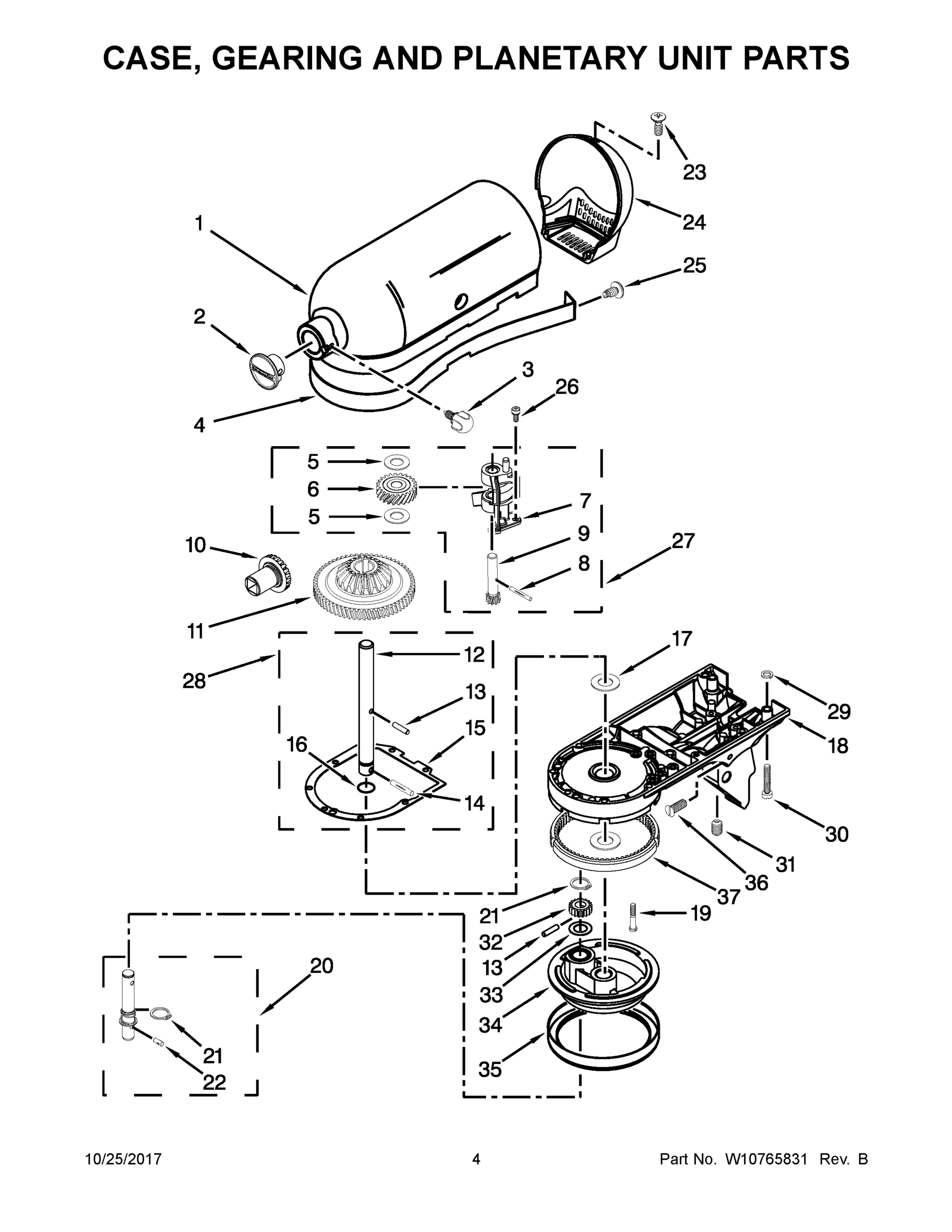

Model Whirlpool KSM105GBCBU0 SMALL APPLIANCE, STAND MIXER, TILT HEAD, 5 QT – Common Parts & Diagrams

Common parts from model Whirlpool KSM105GBCBU0 SMALL APPLIANCE, STAND MIXER, TILT HEAD, 5 QT
