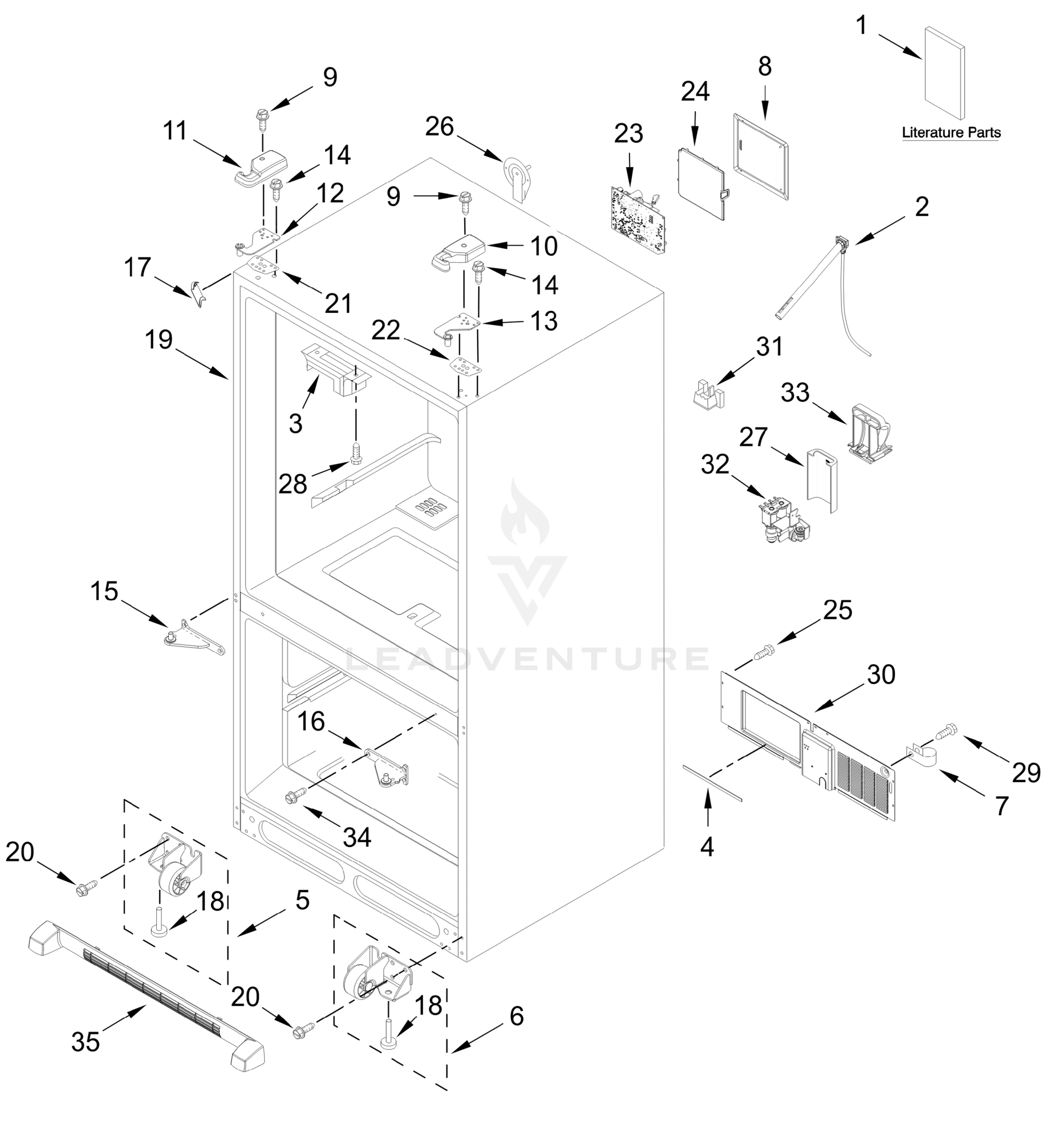

Model Whirlpool KRFC136SPS00 – Common Parts &amp; Diagrams

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $31.53

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $10.73

NLA:TOUCH-UP Backorder WPL W10917540 $10.38

W11504415 Whirlpool Refrigerator Coupler In Stock WPL W11504415 $16.24

W11504416 Whirlpool Refrigerator Coupler In Stock WPL W11504416 $17.28

W11504423 Whirlpool Refrigerator Coupler In Stock WPL W11504423 $25.99

W11504431 Whirlpool Microwave Coupler In Stock WPL W11504431 $16.89

W11504432 Whirlpool Refrigerator Coupler In Stock WPL W11504432 $23.67

W11504445 Whirlpool Refrigerator Coupler In Stock WPL W11504445 $18.46

W11504447 Whirlpool Refrigerator Coupler In Stock WPL W11504447 $28.00

W11506621 Whirlpool Refrigerator Coupler In Stock WPL W11506621 $13.65

W11506623 Whirlpool Refrigerator Coupler In Stock WPL W11506623 $13.65

W11506635 Whirlpool Refrigerator Valve Couple In Stock WPL W11506635 $24.56

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $20.12

1

Shelf, Glass (Full Width) WPL W11758633 Contact Us For Availability

2

W10464764 Whirlpool Refrigerator Housing Backorder WPL W10464764 $72.66

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $68.74

2

Pan Assembly, Crisper WPL W11784541 Contact Us For Availability

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.84

3

W11712701 Whirlpool Overlay Backorder WPL W11712701 $122.55

3

W11727651 Whirlpool Plate Assembly Backorder WPL W11727651 $66.10

3

Support, Crisper Frame WPL W11705308 Contact Us For Availability

4

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $4.99

4

W10840922 Whirlpool Refrigerator Knob Backorder WPL W10840922 $55.43

4

W11416469 Whirlpool Refrigerator Housing Backorder WPL W11416469 $145.61

5

WPW10350564 Whirlpool Refrigerator Freezer Ca In Stock WPL WPW10350564 $74.01

5

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $61.52

5

Brace, Crisper Support WPL W11700717 Contact Us For Availability

6

W10215666 Whirlpool Refrigerator Screw Backorder WPL W10215666 $5.85

6

TUBE Backorder WPL W11689475 $42.16

6

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $60.88

7

W10157765 Whirlpool Refrigerator Deflector Backorder WPL W10157765 $58.43

7

W11449276 Whirlpool Handle Support In Stock WPL W11449276 $11.74

7

W11708428 Whirlpool Wire Harness Backorder WPL W11708428 $75.00

7

Crisper Roller Assembly WPL W11606482 Contact Us For Availability

8

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $75.11

8

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $17.48

8

W10443023 Whirlpool Refrigerator Housing Backorder WPL W10443023 $73.84

8

W10830162 Whirlpool Refrigerator Right Hand D In Stock WPL W10830162 $203.45

8

WPW10655368 Whirlpool Refrigerator Drip Pan In Stock WPL WPW10655368 $95.29

9

W10829281 Whirlpool Refrigerator Screw In Stock WPL W10829281 $7.98

9

Pan Assembly, Utility WPL W11784542 Contact Us For Availability

10

W10149389 Whirlpool Refrigerator Handle Backorder WPL W10149389 $58.43

10

W11547652 Whirlpool Refrigerator Heater In Stock WPL W11547652 $74.09

W11727809 Whirlpool Evaporator Cover Backorder WPL W11727809 $54.77

WPW10337648 Whirlpool Refrigerator Cover Backorder WPL WPW10337648 $13.72

Shelf Assembly, Stationary WPL W11611160 Contact Us For Availability

Strap, Bale WPL W11629200 Contact Us For Availability

12

W11125514 Whirlpool Refrigerator Freezer Bin Backorder WPL W11125514 $80.94

12

W11524472 Whirlpool Refrigerator Start Device In Stock WPL W11524472 $21.11

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $53.87

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $71.86

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $4.82

WPW10330994 Whirlpool Refrigerator Bracket Backorder WPL WPW10330994 $102.33

Shelf Assembly, Nesting WPL W11776631 Contact Us For Availability

14

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $5.99

14

WPW10330995 Whirlpool Refrigerator Bracket Backorder WPL WPW10330995 $210.63

14

Assembly, Pan Center Support WPL W11694397 Contact Us For Availability

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $14.02

WPW10594329 Whirlpool Control Damper In Stock WPL WPW10594329 $145.17

Clip, Evaporator Motor WPL 13058002 Contact Us For Availability

Adapter, Side (Right Hand) WPL W11694396 Contact Us For Availability

12996601 Whirlpool Refrigerator Bushing Clip Backorder WPL 12996601 $8.89

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $17.32

Adapter, Side (Left Hand) WPL W11694395 Contact Us For Availability

Screw WPL 12992101 Contact Us For Availability

17

W11173556 Whirlpool Refrigerator Shaft Backorder WPL W11173556 $17.99

17

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $4.82

17

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $5.99

W11677725 Whirlpool Refrigerator Guide Backorder WPL W11677725 $14.02

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $9.41

Side Support Flange WPL W10840918 Contact Us For Availability

Condenser WPL W11597885 Contact Us For Availability

19

W10281329 Whirlpool Clamp In Stock WPL W10281329 $8.39

19

W10847999 Whirlpool Refrigerator Screw Backorder WPL W10847999 $8.89

20

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $11.22

20

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $33.38

20

Frame, Crisper WPL W11700893 Contact Us For Availability

12999501 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999501 $64.97

W10854958 Whirlpool Refrigerator Screw Backorder WPL W10854958 $4.80

W11268538 Whirlpool Refrigerator Basket Backorder WPL W11268538 $114.12

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

WPW10284692 Whirlpool Refrigerator Bracket Backorder WPL WPW10284692 $76.74

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $65.67

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $18.89

W11598433 Whirlpool Refrigerator Evaporator R In Stock WPL W11598433 $190.94

WPW10284693 Whirlpool Mounting Bracket Backorder WPL WPW10284693 $76.65

23

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $8.01

23

WPW10317076-includeCORE Whirlpool WPW10317076 Backorder WPL WPW10317076-includeCORE $330.86

23

Ladder, Side WPL WPW10569182 No Longer Available

24

W11226688 Whirlpool Refrigerator Cover Backorder WPL W11226688 $54.05

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $73.72

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.97

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $31.89

W11380964 Whirlpool Clip Assembly Backorder WPL W11380964 $12.99

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.89

WPW10474716 Whirlpool Refrigerator Gear Backorder WPL WPW10474716 $19.61

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $12.01

W11690896 Whirlpool Thermistor In Stock WPL W11690896 $24.15

HARNS-WIRE Backorder WPL W11752088 $62.16

WPW10474715 Whirlpool Refrigerator Gear Backorder WPL WPW10474715 $19.79

27

W10208593 Whirlpool Refrigerator Valve Cover In Stock WPL W10208593 $9.90

27

W10348259 Whirlpool Refrigerator Bracket Asse Backorder WPL W10348259 $56.54

27

W11109499 Whirlpool Refrigerator Tube In Stock WPL W11109499 $25.05

28

W10348260 Whirlpool Refrigerator Bracket Backorder WPL W10348260 $56.53

28

W11686820 Whirlpool Compressor In Stock WPL W11686820 $255.62

29

Clip, Evaporator WPL 10623002 Contact Us For Availability

30

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $4.82

30

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $12.13

30

WPW10211855 Whirlpool Refrigerator Back Cover Backorder WPL WPW10211855 $127.74

31

W11556315 Whirlpool Shroud In Stock WPL W11556315 $47.99

32

W10236396 Whirlpool Refrigerator Strap In Stock WPL W10236396 $13.74

33

W10619951 Whirlpool Drain Tube with Grommet In Stock WPL W10619951 $29.99

33

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $18.80

34

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $10.64

34

WPW10277025 Whirlpool Refrigerator Housing Backorder WPL WPW10277025 $81.80

35

W10815863 Whirlpool Clip Backorder WPL W10815863 $26.58

35

WPW10534155 Whirlpool Refrigerator Gray Kickp In Stock WPL WPW10534155 $86.85
