Model Whirlpool KHMS2050SBT0 MICROWAVE HOOD COMBINATION – Common Parts &amp; Diagrams

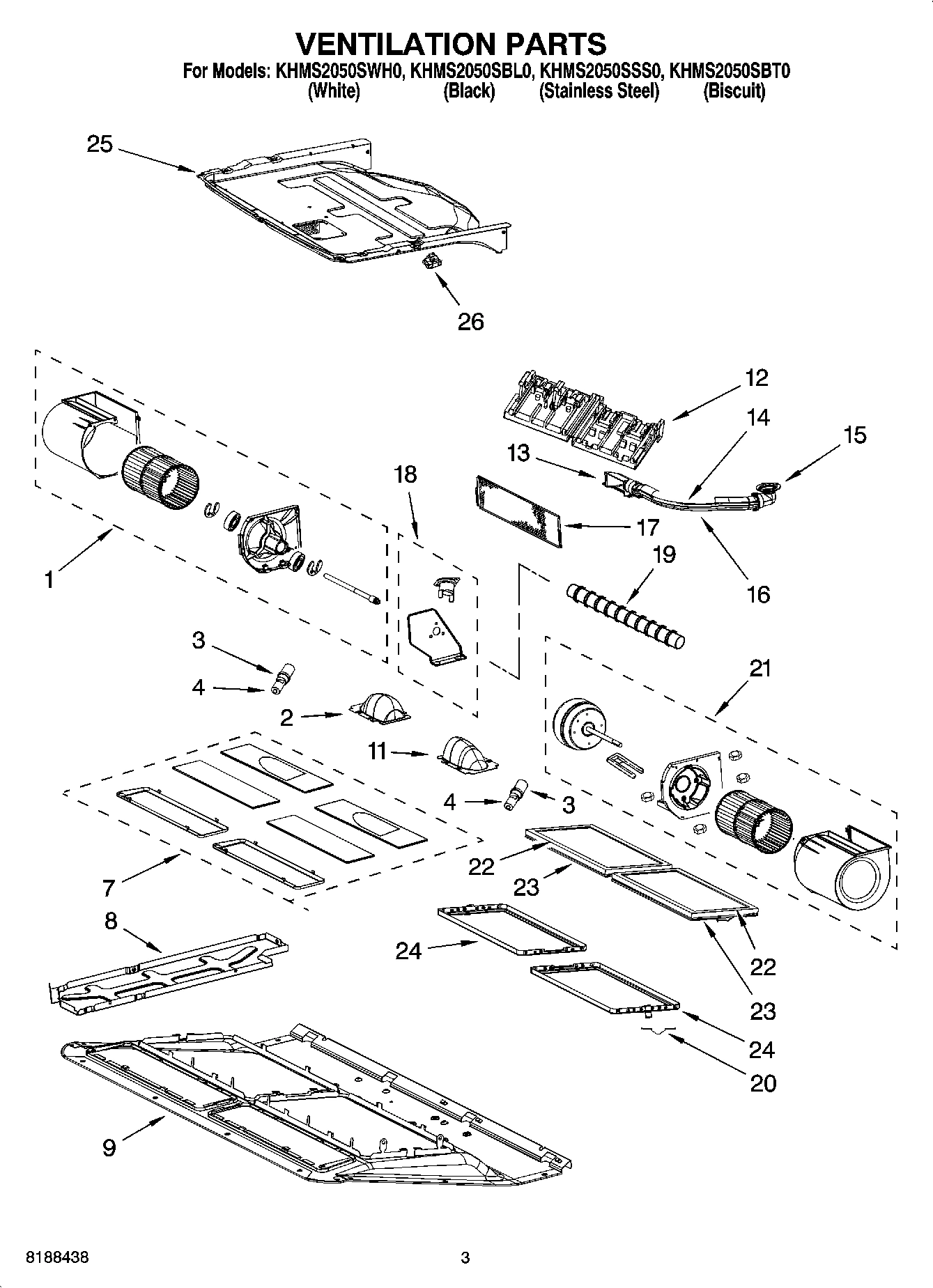

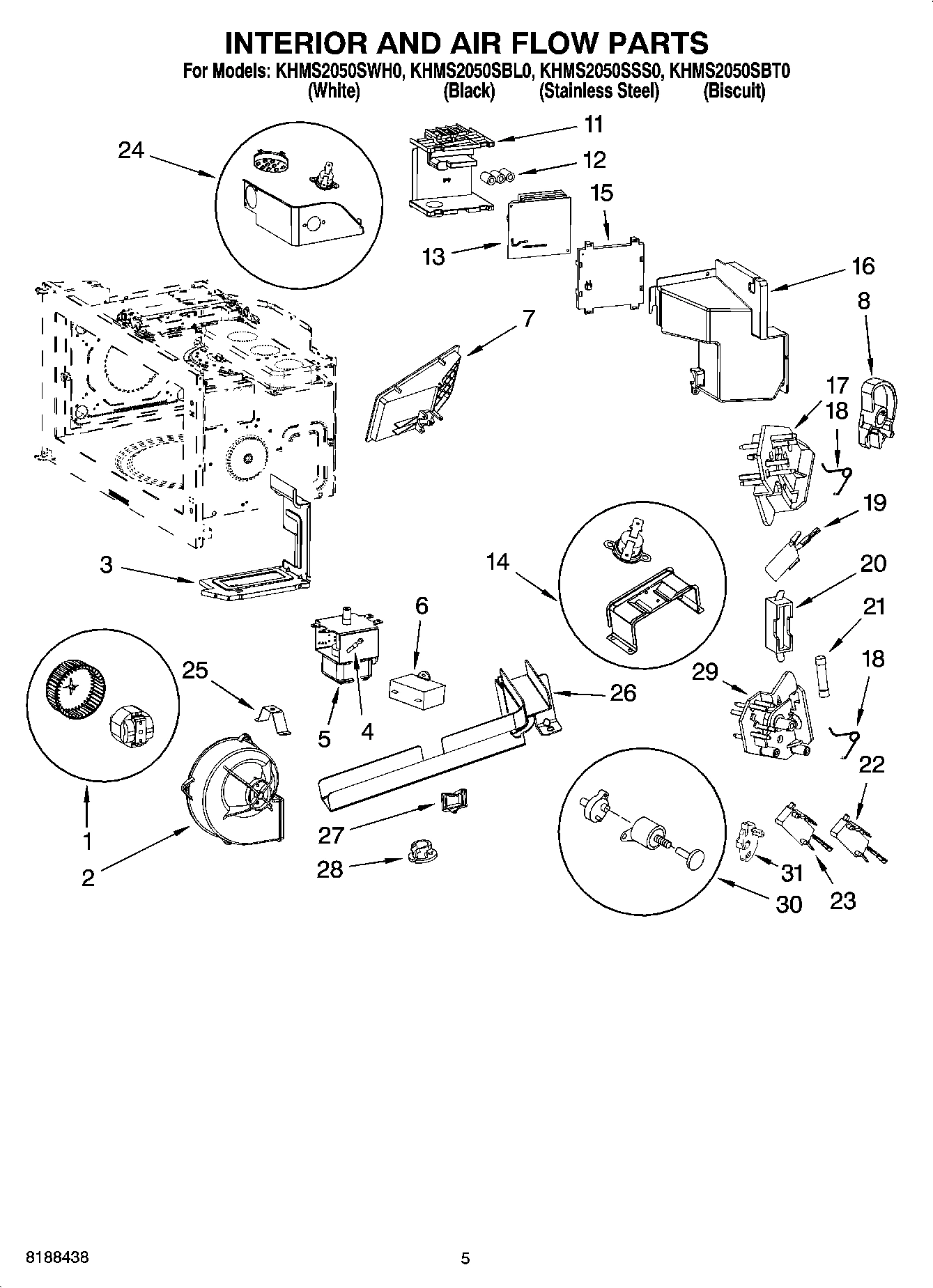

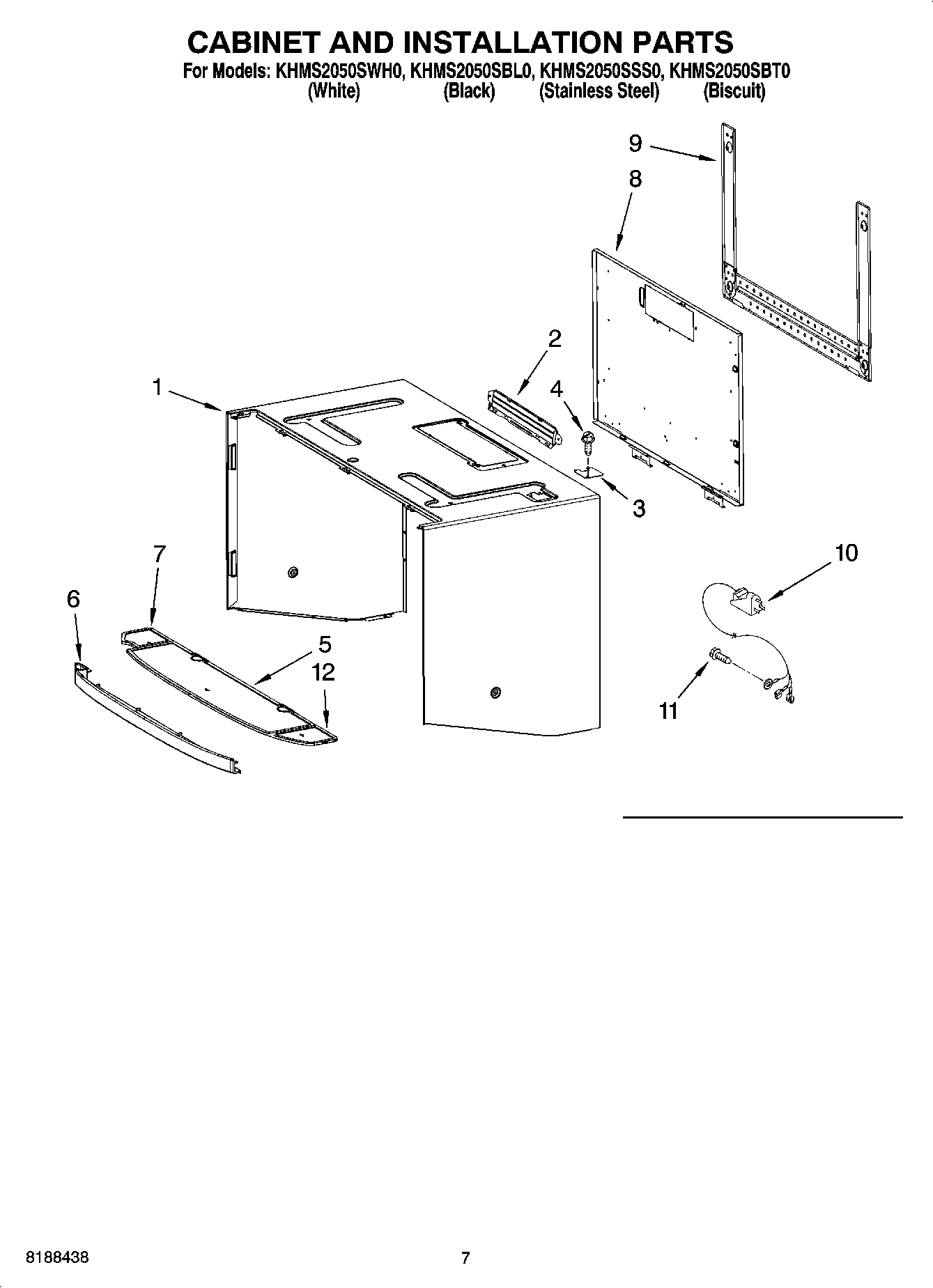

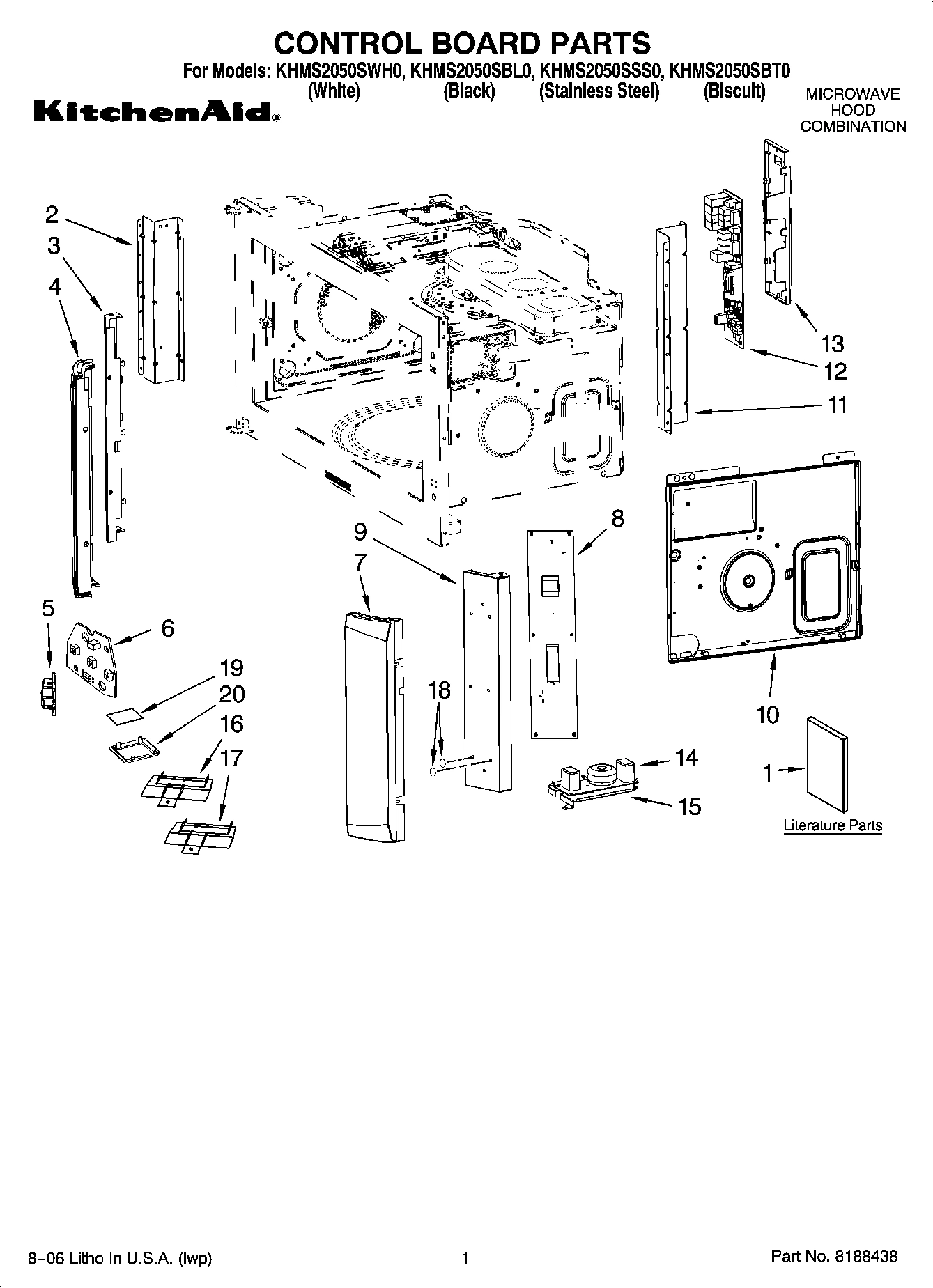

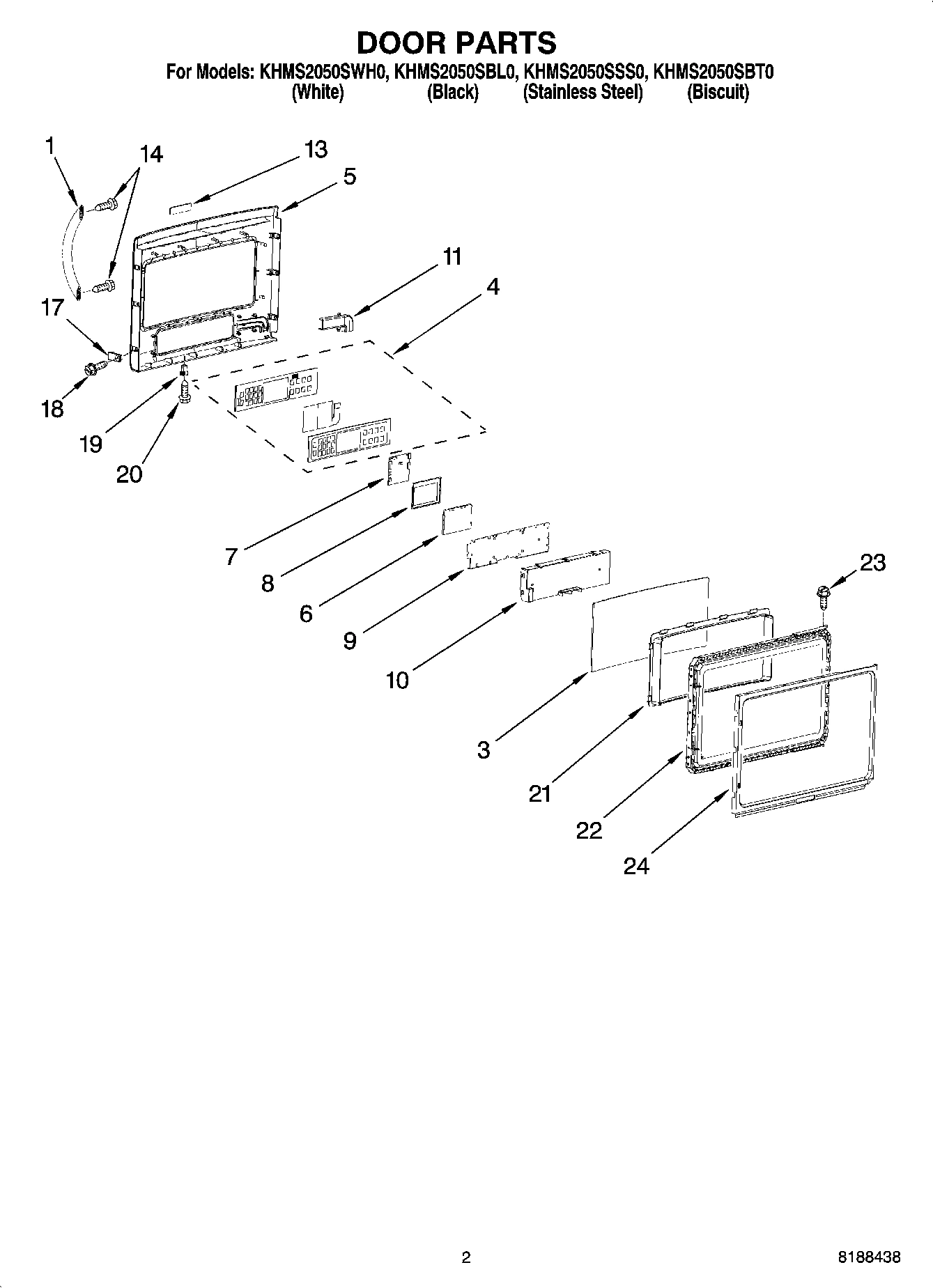

1

W10110267 Whirlpool Microwave Door Handle Backorder WPL W10110267 $179.81

1

Handle (Stainless Steel) WPL 8206504 Contact Us For Availability

1

Housing, Blower (Left) WPL 8206092 Contact Us For Availability

1

Handle (White) WPL 8206501 Contact Us For Availability

1

Handle (Biscuit) WPL 8206503 Contact Us For Availability

2

W10843943 Whirlpool Microwave Vent Damper In Stock WPL W10843943 $61.99

2

Reflector, Lamp WPL 8184194 Contact Us For Availability

2

Housing, Fan WPL 8206076 Contact Us For Availability

3

Plate, Divider WPL 8206077 Contact Us For Availability

4

8204670 Whirlpool Microwave Halogen Lamp 10W In Stock WPL 8204670 $11.99

4

W10115577 Whirlpool Microwave Sensor Backorder WPL W10115577 $105.64

4

W10143958 Whirlpool Microwave Light Socket Ho Backorder WPL W10143958 $6.12

4

Control Panel WPL 8206635 Contact Us For Availability

4

Side Panel, Left (Biscuit) WPL 8206480 Contact Us For Availability

4

Side Panel, Left (Stainless Steel) WPL 8206481 Contact Us For Availability

5

8206079 Whirlpool Microwave Magnetron In Stock WPL 8206079 $220.00

5

Button (Stainless Steel) WPL 8206485 Contact Us For Availability

5

Outer Door Frame (White) WPL 8206518 Contact Us For Availability

5

Button (Biscuit) WPL 8206484 Contact Us For Availability

5

Holder, Lamp WPL W10113781 Contact Us For Availability

5

Button (White) WPL 8206482 Contact Us For Availability

5

Button (Black) WPL 8206483 Contact Us For Availability

6

WPW10403040-includeCORE Whirlpool WPW10403040 Backorder WPL WPW10403040-includeCORE $215.66

6

Motor, Capacitor WPL 8206080 Contact Us For Availability

6

Deflector, Air WPL 8205980 Contact Us For Availability

6

Support, Vent Screen (White) WPL 8206011 Contact Us For Availability

6

Support, Vent Screen (Universal Silver) WPL 8206016 Contact Us For Availability

7

Vent Screen (Left) WPL 8206207 Contact Us For Availability

7

Side Panel, Right (White) WPL 8206489 Contact Us For Availability

7

Side Panel, Right (Black) WPL 8206490 Contact Us For Availability

7

Side Panel, Right (Biscuit) WPL 8206491 Contact Us For Availability

7

Side Panel, Right (Stainless Steel) WPL 8206492 Contact Us For Availability

7

Frame, Glass (Left) WPL W10113788 Contact Us For Availability

7

Frame, Glass (Right) WPL W10113789 Contact Us For Availability

7

Housing, Valve WPL 8206081 Contact Us For Availability

8

CAM PLATE, UPPER WPL W10113786 Contact Us For Availability

8

Control Board, (Relay) WPL 8206608 Contact Us For Availability

8

Plate, Separator (Left) WPL 8206097 Contact Us For Availability

9

Cntrl Panel Plate WPL 8206511 Contact Us For Availability

9

Plate, Protection (Right) WPL 8206061 Contact Us For Availability

9

Plate, Bottom WPL 8206497 Contact Us For Availability

10

Cntrl Panel Cover WPL 8206512 Contact Us For Availability

10

Plate, Chassis WPL W10113785 Contact Us For Availability

4393836 Whirlpool Microwave Screw Backorder WPL 4393836 $6.28

Reflector, Lamp WPL 8184132 Contact Us For Availability

Support, Cavity (Right) WPL 8206065 Contact Us For Availability

Cover, Inverter WPL 8206085 Contact Us For Availability

WP8206493 Whirlpool Microwave Electronic Cont In Stock WPL WP8206493 $186.83

Installation, Hardware WPL 8205979 Contact Us For Availability

Vent Screen (Right) WPL 8206206 Contact Us For Availability

Cover, Terminal WPL 8206103 Contact Us For Availability

Ferrite Ring WPL 8206086 Contact Us For Availability

8205992 Whirlpool Microwave Cook Tray Backorder WPL 8205992 $73.24

W10217711 Whirlpool Microwave Inverter In Stock WPL W10217711 $265.70

Holder, Microcomputer WPL 8206053 Contact Us For Availability

Diffuser WPL 8206104 Contact Us For Availability

8206035 Whirlpool Microwave Thermostat In Stock WPL 8206035 $83.98

Ring, Turntable WPL 8206222 Contact Us For Availability

AC Line Filter WPL 8206062 Contact Us For Availability

Cover, Duct WPL 8206105 Contact Us For Availability

8205994 Whirlpool Microwave Support Backorder WPL 8205994 $23.45

Holder, Inverter WPL 8206089 Contact Us For Availability

Holder, Filter WPL 8206060 Contact Us For Availability

Connector, Duct WPL 8206106 Contact Us For Availability

16

Air Guide, Magnetron WPL 8206494 Contact Us For Availability

16

Resistor (50W) WPL W10113782 Contact Us For Availability

16

Holder, Duct WPL 8206107 Contact Us For Availability

8205572 Whirlpool Microwave Interlock In Stock WPL 8205572 $4.82

8206525 Whirlpool Microwave Spacer Backorder WPL 8206525 $4.82

W10113783 Whirlpool Microwave Resistor Backorder WPL W10113783 $71.45

Spacer, Side (6) (White) WPL 8206522 Contact Us For Availability

Spacer, Side (6) (Black) WPL 8206523 Contact Us For Availability

SHIELD WPL 8206498 Contact Us For Availability

18

Spring, Interlock WPL 8206091 Contact Us For Availability

18

Support & Base Thermostat Assy WPL 8206212 Contact Us For Availability

18

Spacer (6) WPL W10113784 Contact Us For Availability

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $52.99

Connector Shaft WPL 8206263 Contact Us For Availability

Spacer, Bottom (2) WPL 8206178 Contact Us For Availability

Glass, Lamp WPL 8169499 Contact Us For Availability

4393832 Whirlpool Microwave Screw Backorder WPL 4393832 $8.89

SPRING WPL 8206499 Contact Us For Availability

Frame, Glass WPL 8169646 Contact Us For Availability

Holder, Fuse WPL 8184312 Contact Us For Availability

21

W11707984 Whirlpool Thermal Fuse In Stock WPL W11707984 $23.93

21

Housing, Blower (Right) WPL 8206112 Contact Us For Availability

22

W10120840A Whirlpool Microwave Microwave Vent In Stock WPL W10120840A $12.68

22

W10269458 Whirlpool Microwave Door Switch In Stock WPL W10269458 $19.87

22

Door Plate Assy WPL W10112215 Contact Us For Availability

23

W10120839A Whirlpool Oven Microwave Range Ven In Stock WPL W10120839A $14.59

23

W10211974 Whirlpool Microwave Door Interlock In Stock WPL W10211974 $28.99

23

Hinge Screw WPL 8206181 Contact Us For Availability

24

Humidity Sensor & Thermostat Assy WPL 8206026 No Longer Available

24

Spring, Hook WPL W10113792 Contact Us For Availability

24

Dr Innr Frm Assy WPL 8206531 Contact Us For Availability

25

Lid, Lamp WPL 8206476 Contact Us For Availability

25

Air Guide, Center Hood WPL 8206020 Contact Us For Availability

25

Support, Air Guide WPL 8206031 Contact Us For Availability

26

W10596040 Whirlpool Microwave Nut In Stock WPL W10596040 $6.45

26

Protector, Wire WPL 8206477 Contact Us For Availability

27

Clip, Saddle WPL 8206037 Contact Us For Availability

28

8206038 Whirlpool Clip Assembly Backorder WPL 8206038 $11.15

29

8206209 Whirlpool Microwave Interlock Switch Backorder WPL 8206209 $4.82

30

Piston Assembly WPL 8206210 Contact Us For Availability

31

Cam Plate (Lower) WPL W10113787 Contact Us For Availability
