Model Whirlpool KGST307HBT9 COOKTOP – Common Parts & Diagrams

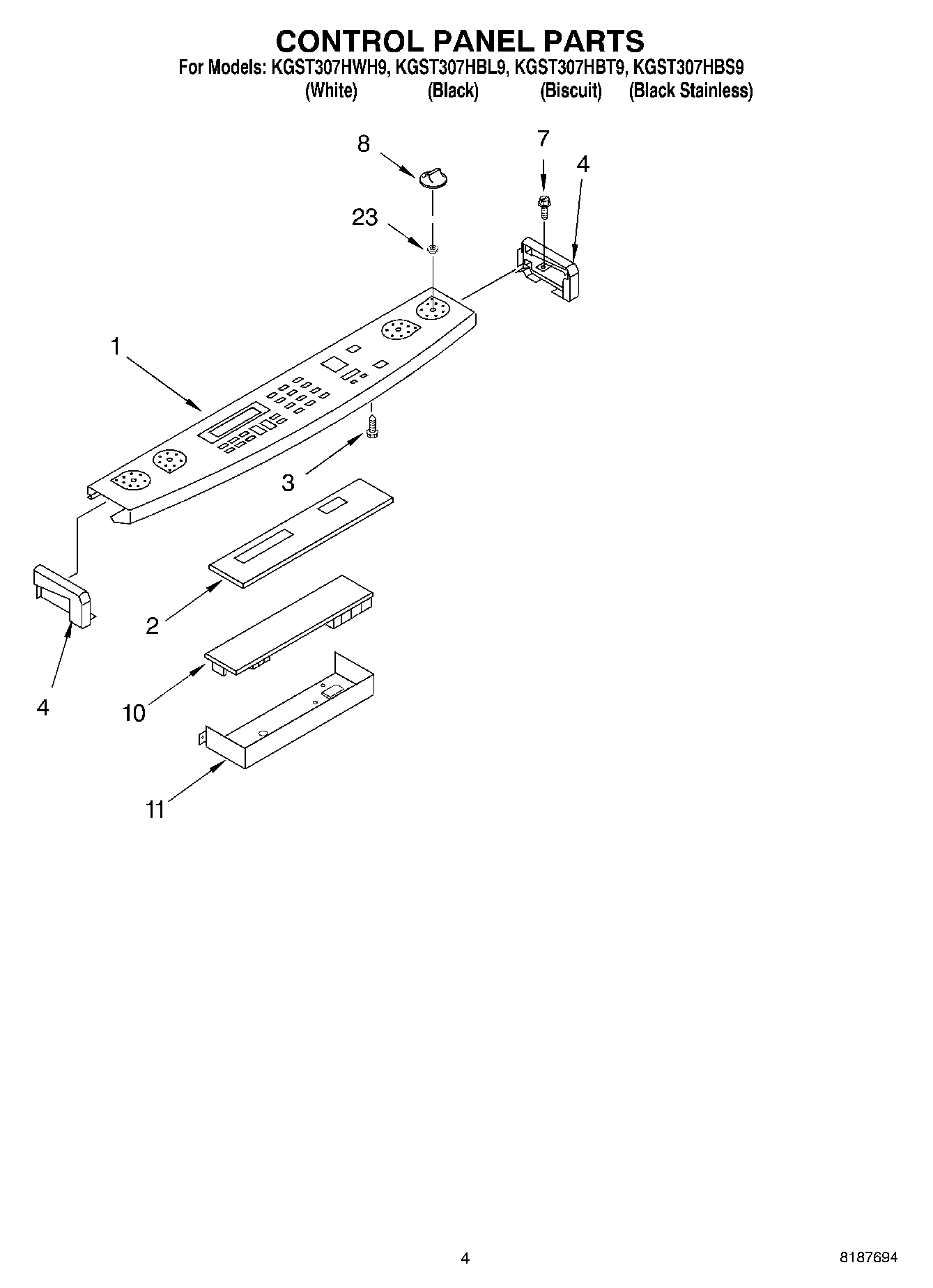

03 - CONTROL PANEL
05 - OVEN CHASSIS

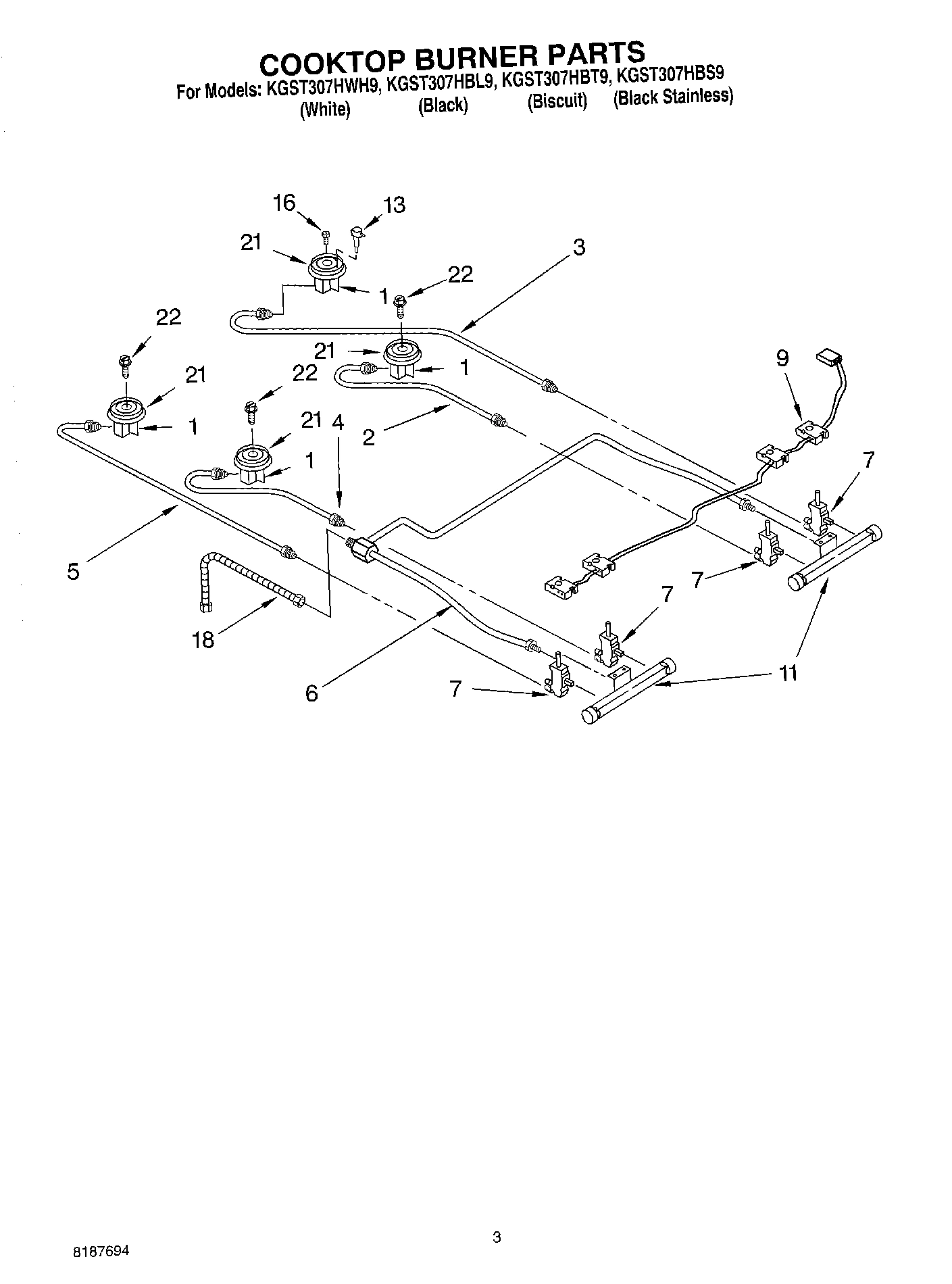

02 - COOKTOP BURNER

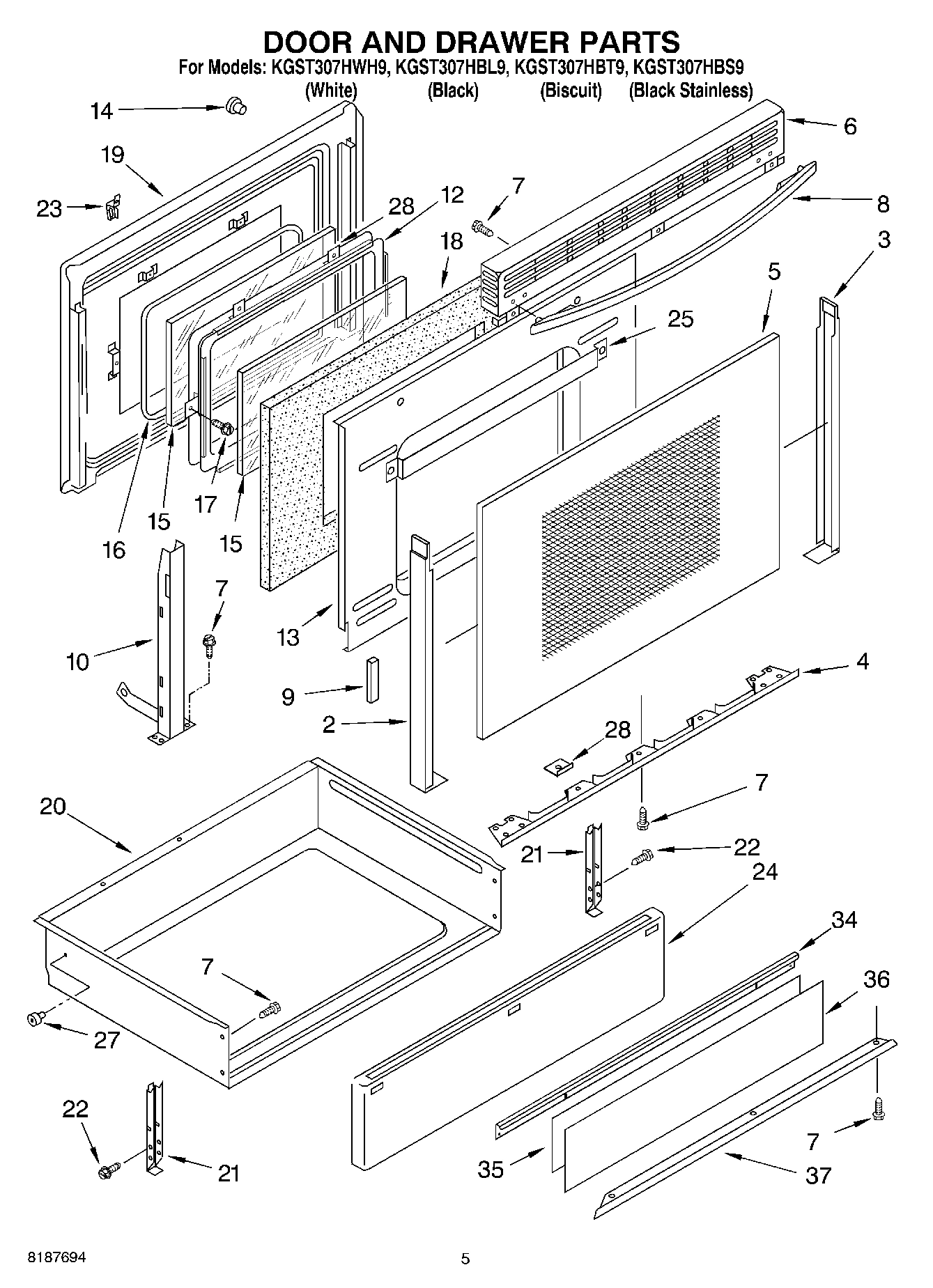

04 - DOOR AND DRAWER

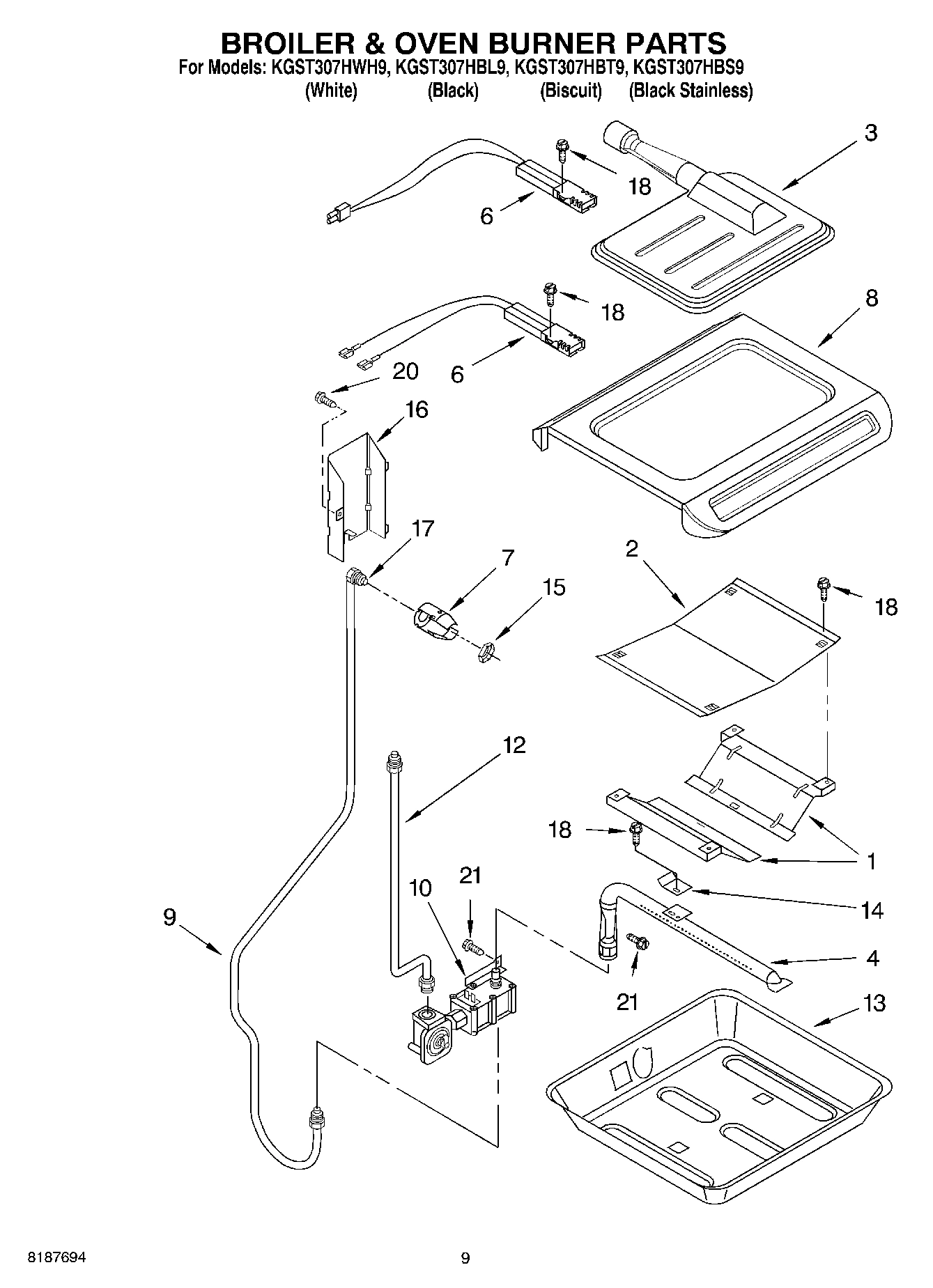

06 - BROILER AND OVEN BURNER

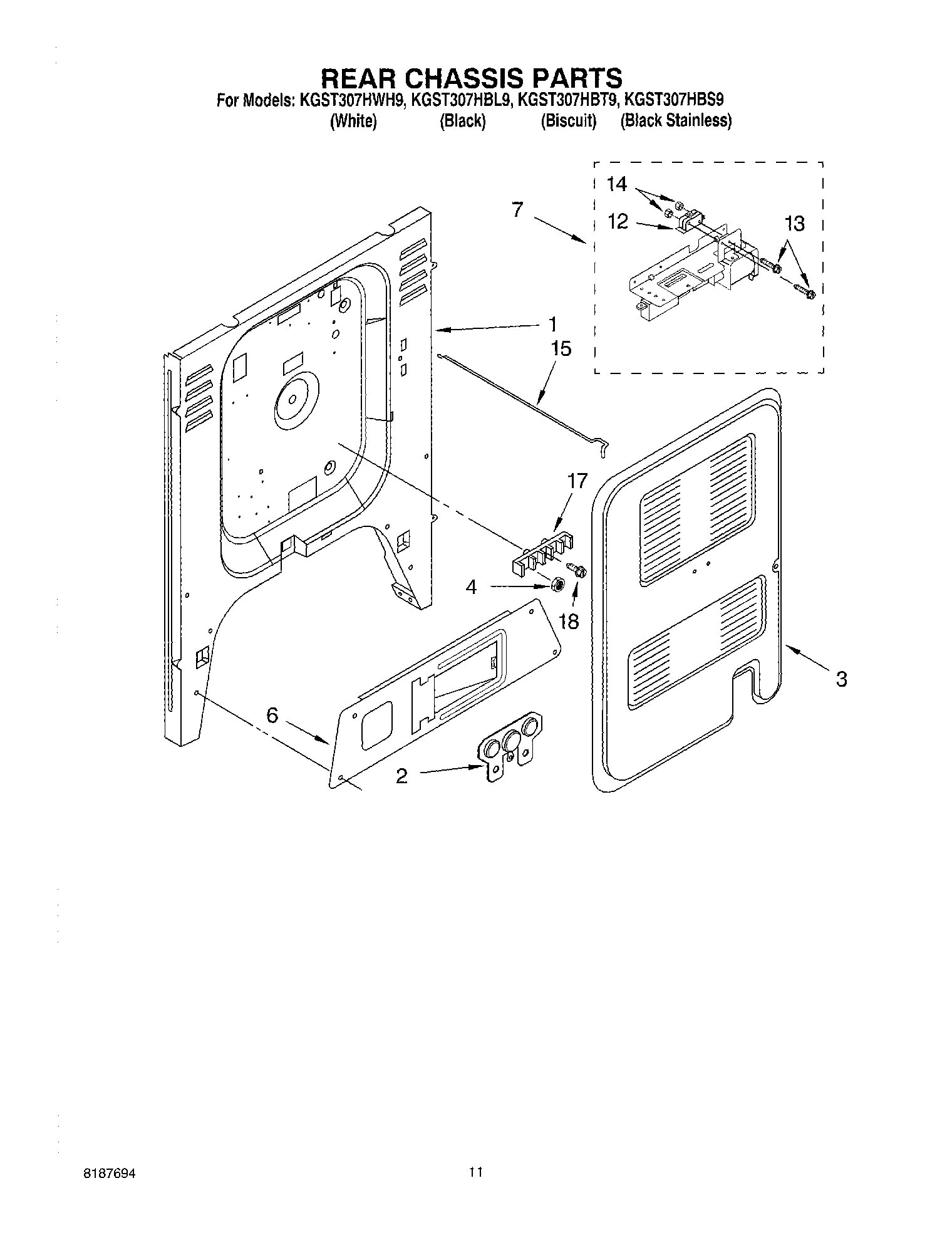

08 - REAR CHASSIS

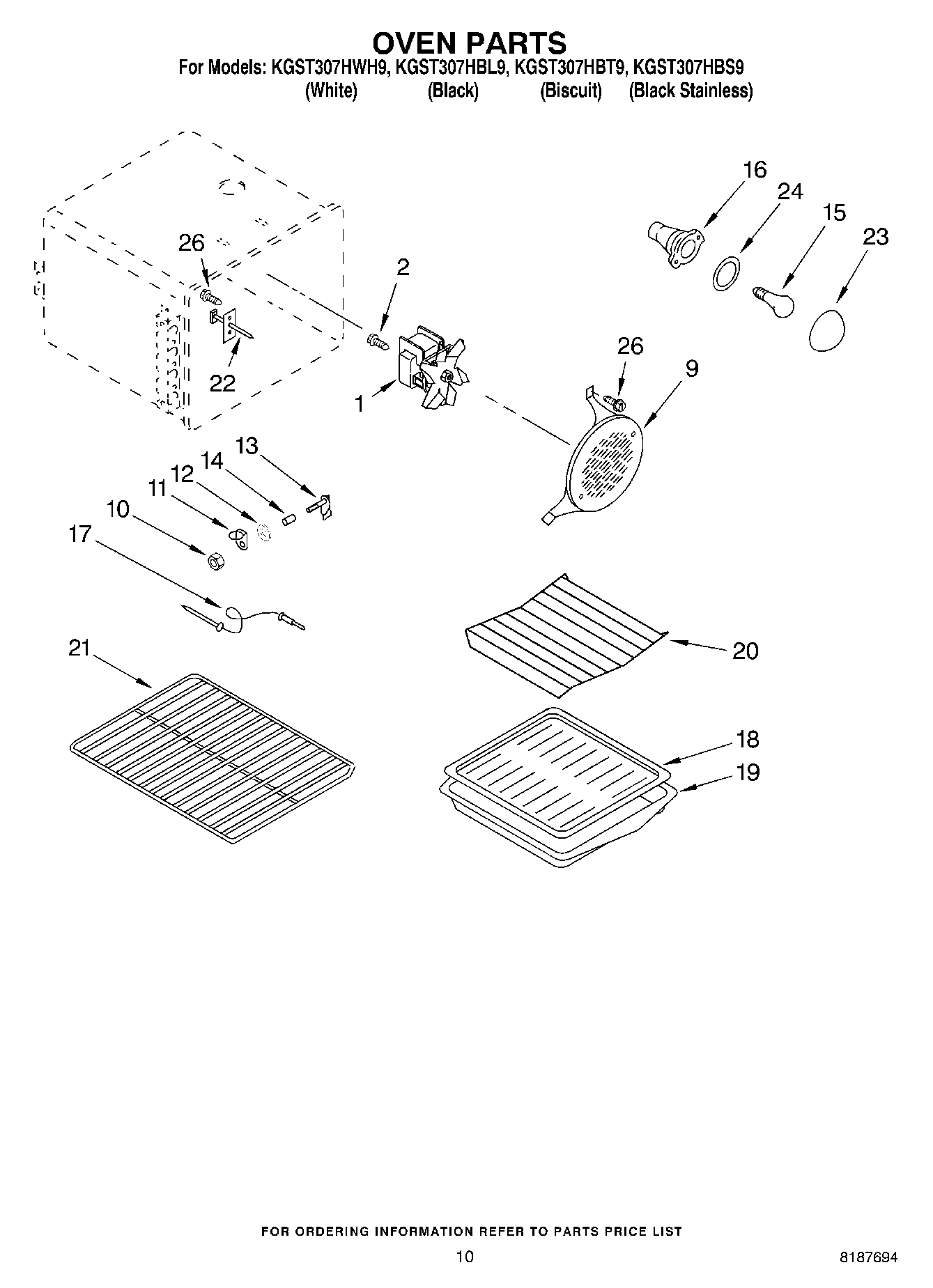

07 - OVEN

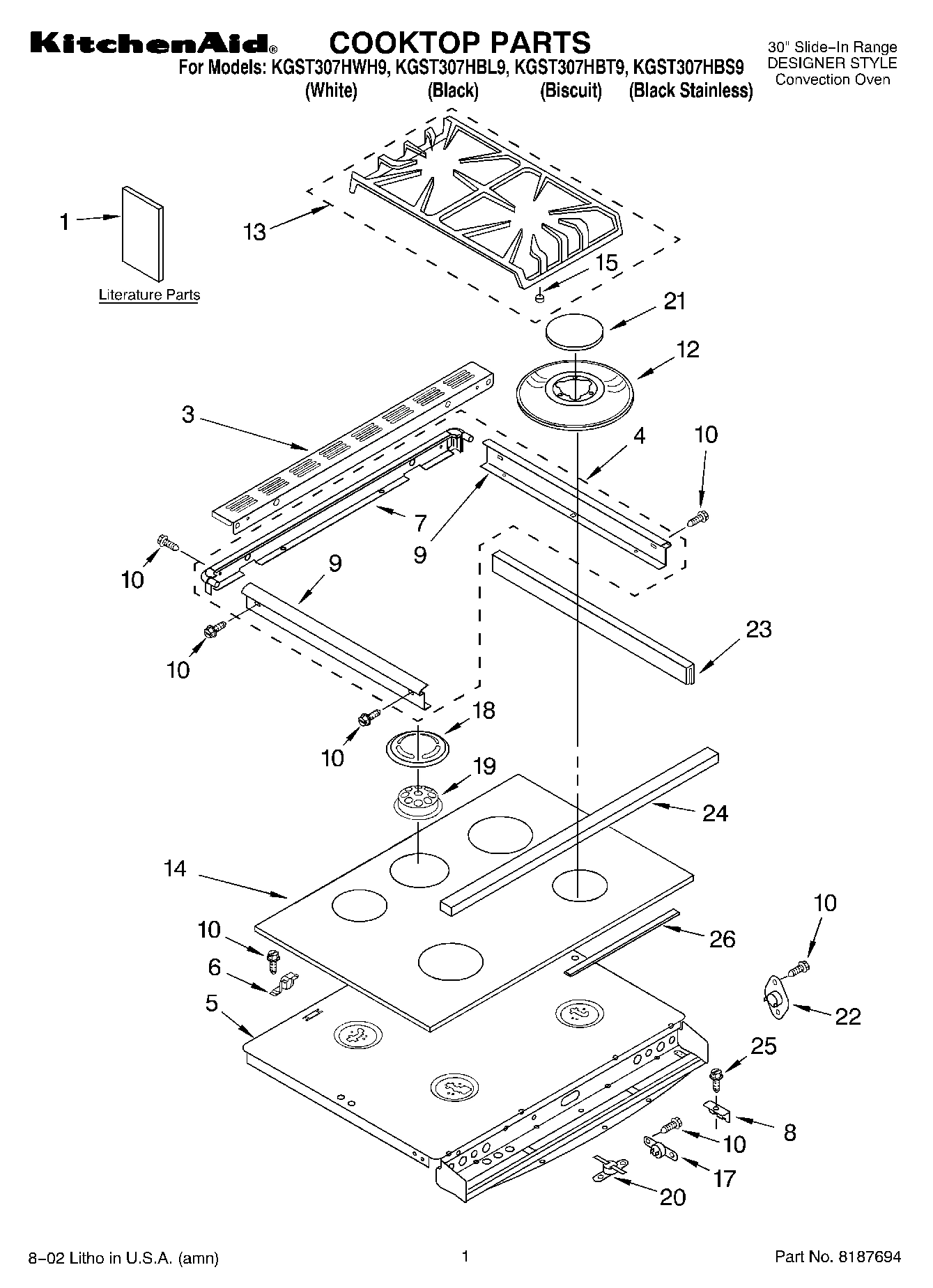

01 - COOKTOP, LITERATURE
Common parts from model Whirlpool KGST307HBT9 COOKTOP
1
Console, Glass (Black) WPL 9782418CB Contact Us For Availability
1
Burner Base W/Orifice (6K RF-LR) WPL 9782447 Contact Us For Availability
1
Assembly, Fan WPL 9781543 Contact Us For Availability
1
Shield, Oven (2) WPL 9752737 Contact Us For Availability
1
Back panel, Chassis WPL 9751051 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Guide, Easy Set) WPL LIT4449264 Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9752775 Contact Us For Availability
1
Literature Parts (LP Conv Instr.) WPL LIT9753848 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT9754241 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT9754288 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT9754372 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT9755235 Contact Us For Availability
2
Board, Display WPL 9782455 Contact Us For Availability
2
Suppressor, Trans WPL 9755444 Contact Us For Availability
2
Trim, Door-Left (Biscuit) WPL 9782003PC Contact Us For Availability
2
Trim, Door-Left (White) WPL 9782003PW Contact Us For Availability
2
Screw, 10-16 x 1/2 WPL 9780272 Contact Us For Availability
2
Flame Shield, Bake WPL 9752738 Contact Us For Availability
3
Trim, Door-Right (Black) WPL 9782004PB Contact Us For Availability
3
Trim, Door-Right (Biscuit) WPL 9782004PC Contact Us For Availability
3
Trim, Door-Right (White) WPL 9782004PW Contact Us For Availability
3
Burner, Broiler WPL 9753183 Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
3
Vent, Rear (Black) WPL 9755225PB Contact Us For Availability
3
Vent, Rear (Biscuit) WPL 9755225PC Contact Us For Availability
3
Vent, Rear (White) WPL 9755225PW Contact Us For Availability
4
Burner, Bake WPL 9751367 Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom (Biscuit) WPL 9781209PC Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
4
Frame, Cooktop (Black) WPL 9781832PB Contact Us For Availability
4
Frame, Cooktop (Biscuit) WPL 9781832PC Contact Us For Availability
4
Frame, Cooktop (White) WPL 9781832PW Contact Us For Availability
5
Glass, Door (Black) WPL 9781627PB Contact Us For Availability
5
Glass, Door (Stainless) WPL 9754041 Contact Us For Availability
5
Glass, Door (Biscuit) WPL 9781627PC Contact Us For Availability
5
Glass, Door (White) WPL 9781627PW Contact Us For Availability
5
Support, Burner WPL 9754197 Contact Us For Availability
6
Vent, Door (Black) WPL 9753498GB Contact Us For Availability
6
Vent, Door (Biscuit) WPL 9753498GC Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Bracket, Regulator Valve WPL 9751500 Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Washer, Pivot WPL 9752003 Contact Us For Availability
7
Gasket, Door Vent WPL 9781659 Contact Us For Availability
7
Screw WPL 3400075 Contact Us For Availability
7
Bracket, Broil Shooter WPL 9752858 Contact Us For Availability
7
Oven Lock Assembly WPL 9782611 Contact Us For Availability
7
Trim, Rear (Includes End Caps) (Black) WPL 9781831PB Contact Us For Availability
7
Trim, Rear (Includes End Caps) (Biscuit) WPL 9781831PC Contact Us For Availability
7
Trim, Rear (Includes End Caps) (White) WPL 9781831PW Contact Us For Availability
8
Knobs, Control (4) (White) WPL 9751199FW Contact Us For Availability
8
Handle, Door (Black) WPL 9780523PB Contact Us For Availability
8
Handle, Door (Biscuit) WPL 9780523PC Contact Us For Availability
8
Handle, Door (White) WPL 9780523PW Contact Us For Availability
8
Pan, Oven Bottom WPL 9752736GM Contact Us For Availability
8
Support Clips (4) WPL 9753691 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Tubing, Broil WPL 9782061 Contact Us For Availability
9
Baffle, Convection WPL 9751904GM Contact Us For Availability
9
Trim, Side (Black) WPL 9781828PB Contact Us For Availability
9
Trim, Side (Biscuit) WPL 9781828PC Contact Us For Availability
9
Trim, Side (White) WPL 9781828PW Contact Us For Availability
10
Board, Power WPL 9782435 Contact Us For Availability
10
Lock-Nut, Cvr.Jack WPL 4167277 Contact Us For Availability
11
Jack Cover WPL 4167266 Contact Us For Availability
12
Frame, Glass WPL 9781602 Contact Us For Availability
12
Tubing, Valve To Regulator WPL 9781015 Contact Us For Availability
12
Switch, Interloc WPL 9754291 Contact Us For Availability
12
Gasket WPL 305289 Contact Us For Availability
12
(Bezel, Burner (Black)) (14K LF) WPL 9753600GB Contact Us For Availability
12
Bezel, Burner (Mouse Gray) (14K LF) WPL 9753600GS Contact Us For Availability
12
(Bezel, Burner (Black)) (6K RF-LR) WPL 9753601GB Contact Us For Availability
12
Bezel, Burner (Mouse Gray) (6K RF-LR) WPL 9753601GS Contact Us For Availability
12
Bezel, Burner (Black) (12K RR) WPL 9753602GB Contact Us For Availability
12
Bezel, Burner (Mouse Gray) (12K RR) WPL 9753602GS Contact Us For Availability
13
Grate, Burner (Mouse Gray) WPL 9753616GS Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
13
Pan Support, Bake WPL 9752734 Contact Us For Availability
13
Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability
13
Receptacle, Probe WPL 4173575 Contact Us For Availability
13
Grate, Burner (Black) WPL 9753616GB Contact Us For Availability
14
Bracket, Bake WPL 9751600 Contact Us For Availability
14
Nut (2) WPL 9750888 Contact Us For Availability
14
Spacer - Tubing WPL 3179672 Contact Us For Availability
14
Cooktop, Glass (Black) WPL 9753606CB Contact Us For Availability
14
Cooktop, Glass (Opaque White) WPL 9753606CO Contact Us For Availability
14
Cooktop, Glass (Honeycomb) WPL 9753606CT Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Nut No.18 5/8 WPL 9751203 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
16
Orifice, Burner (6K Small Base) WPL 9753928 Contact Us For Availability
16
Coverbox (Broiler Tubing) WPL 9752920 Contact Us For Availability
17
Thermo-Dis WPL 341196 Contact Us For Availability
17
Probe, Meat WPL 3150144 Contact Us For Availability
17
Screw, 8-18 x 1/4`` WPL 9780271 Contact Us For Availability
17
Orifice No.54 WPL 9752716 Contact Us For Availability
18
WPL W10355051 No Longer Available
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
18
Gas Conversion K WPL 9752717 Contact Us For Availability
18
Insulation WPL 9754006 Contact Us For Availability
18
Screw, 10-24x3/8 WPL 9751643 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
18
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
18
Grommet, Harness WPL 9751868 Contact Us For Availability
18
WPL 9753374 WPL 9753374 Contact Us For Availability
18
WPL 9753604 WPL 9753604 Contact Us For Availability
18
WPL 9754004 WPL 9754004 Contact Us For Availability
18
WPL 9754005 WPL 9754005 Contact Us For Availability
18
WPL 9754011 WPL 9754011 Contact Us For Availability
18
WPL 9754301 WPL 9754301 Contact Us For Availability
18
WPL 9754366 WPL 9754366 Contact Us For Availability
18
WPL 9755024 WPL 9755024 Contact Us For Availability
18
WPL 9755193 WPL 9755193 Contact Us For Availability
18
WPL 9781055 WPL 9781055 Contact Us For Availability
18
WPL 9781555 WPL 9781555 Contact Us For Availability
18
WPL 9782111 WPL 9782111 Contact Us For Availability
18
WPL 9782344 WPL 9782344 Contact Us For Availability
18
WPL 9782443 WPL 9782443 Contact Us For Availability
18
WPL 9782454 WPL 9782454 Contact Us For Availability
18
WPL 9782460 WPL 9782460 Contact Us For Availability
18
WPL 9782465 WPL 9782465 Contact Us For Availability
18
WPL 9782466 WPL 9782466 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
18
WPL 98884 WPL 98884 Contact Us For Availability
18
WPL 9751271GB WPL 9751271GB Contact Us For Availability
18
WPL 9751271GC WPL 9751271GC Contact Us For Availability
18
WPL 9751271GW WPL 9751271GW Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
WPL 9751366 WPL 9751366 Contact Us For Availability
20
For Stn. Steel MDL WPL 9750257 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
20
Rack, Roasting WPL 9750827 Contact Us For Availability
21
Head, Burner (14K LF) WPL 4455849 Contact Us For Availability
21
WPL 3191899 WPL 3191899 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Rack, Standard (3) WPL 9750823 Contact Us For Availability
21
WPL 9753939GB WPL 9753939GB Contact Us For Availability
21
WPL 9753939GS WPL 9753939GS Contact Us For Availability
22
Sensor WPL 9782081 Contact Us For Availability
22
WPL 9752006 WPL 9752006 Contact Us For Availability
23
Retainer, clip WPL 9750676 Contact Us For Availability
23
WPL 9752034 WPL 9752034 Contact Us For Availability
24
WPL 9754103 WPL 9754103 Contact Us For Availability
24
Front, Drawer (Black) WPL 9782108PB Contact Us For Availability
24
Front, Drawer (Biscuit) WPL 9782108PC Contact Us For Availability
24
Front, Drawer (White) WPL 9782108PW Contact Us For Availability
24
Front, Drawer (For Stn.Steel Mdl.) WPL 9782109PB Contact Us For Availability
25
Heat Channel WPL 9750693 Contact Us For Availability
25
WPL 9751871 WPL 9751871 Contact Us For Availability
26
WPL 9754136 WPL 9754136 Contact Us For Availability
28
Spacer, Door (8) WPL 9781502 Contact Us For Availability
29
Door Switch WPL 9755192 Contact Us For Availability
34
Trim, Drawer-Top For Stn.Steel Mdl. WPL 9750614PB Contact Us For Availability
35
Spacer (Stn.Mdl.) WPL 9753329 Contact Us For Availability
36
Panel, Drawer For Stn.Steel Mdl. WPL 9753293 Contact Us For Availability
37
Trim, Drawer-Btm For Stn. Steel Mdl. WPL 9750613PB Contact Us For Availability
× ![]()
