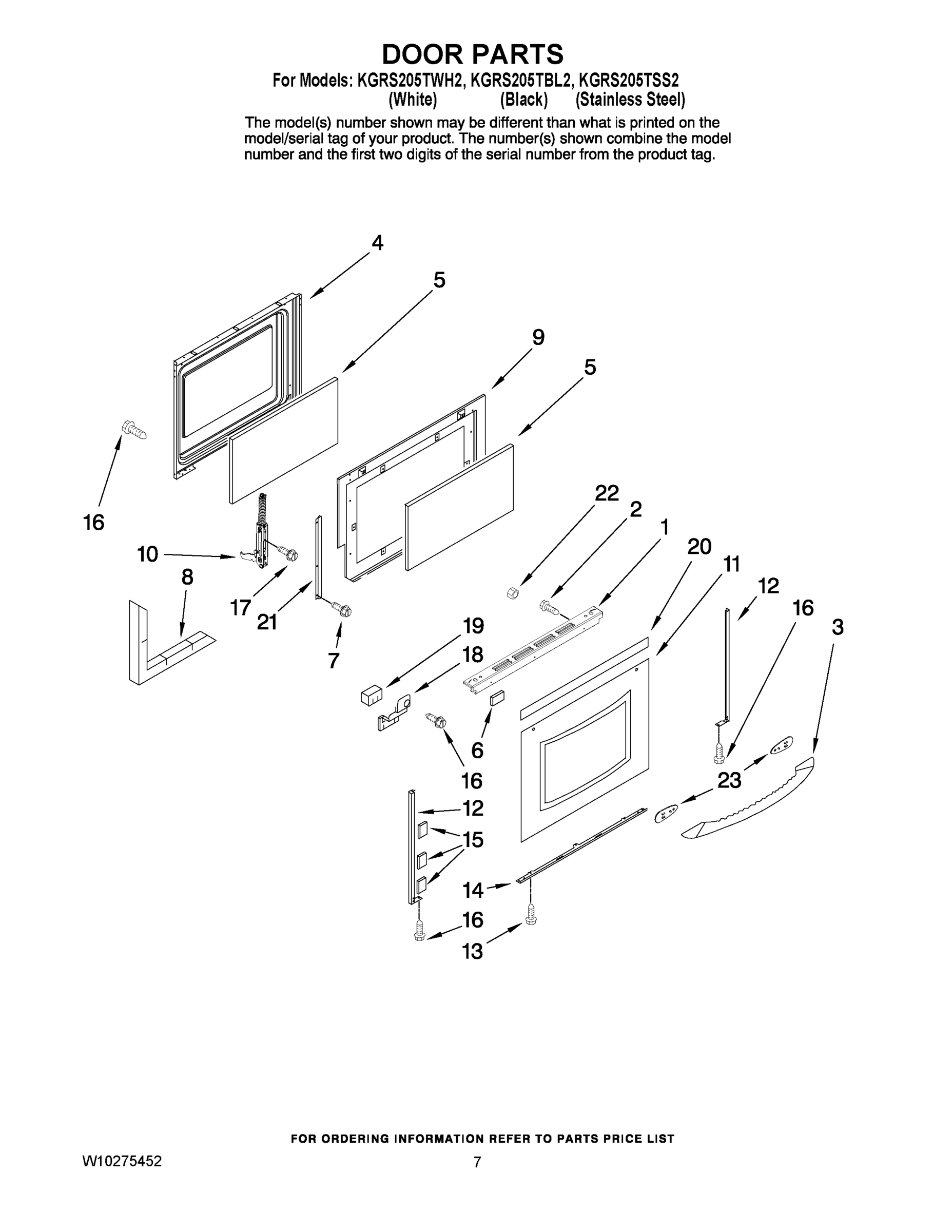

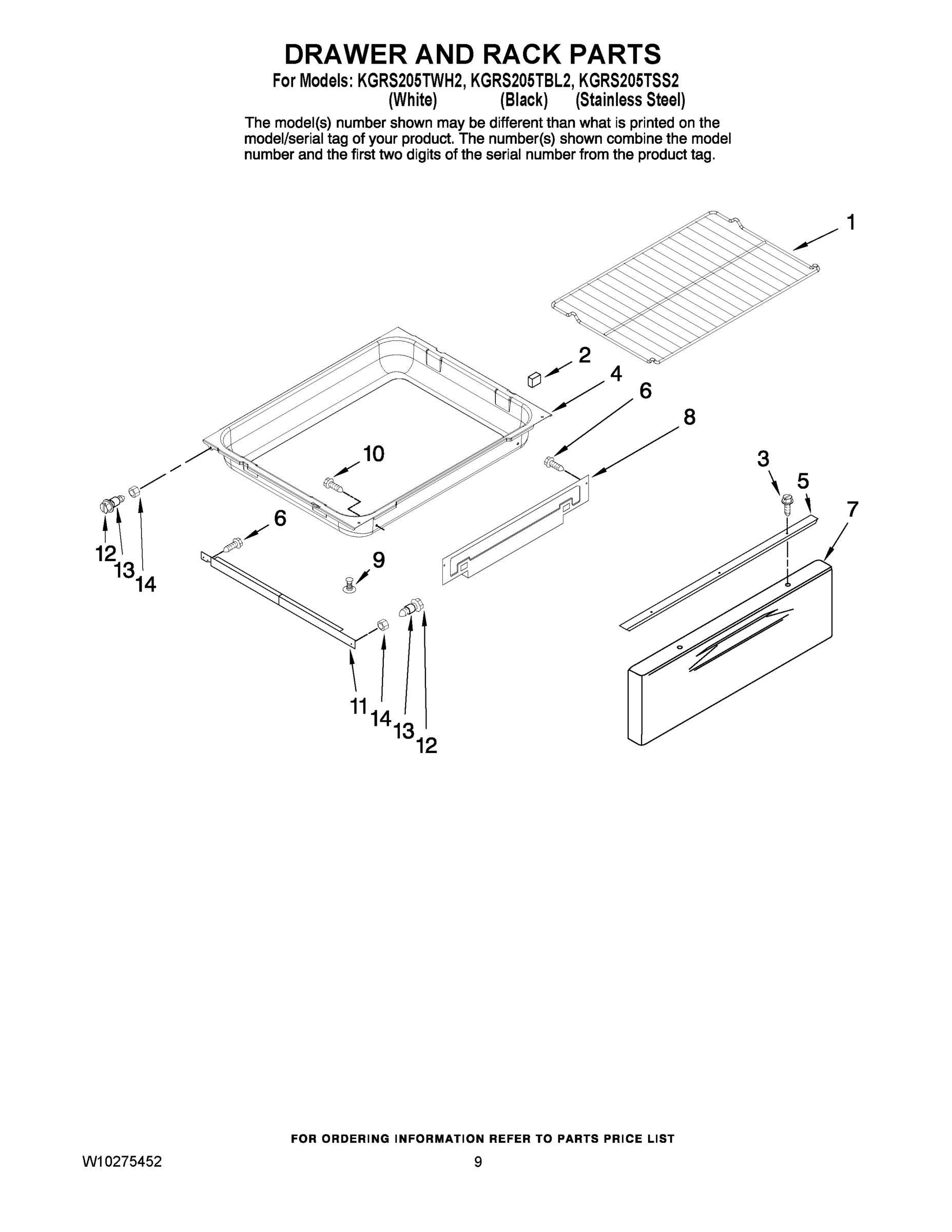

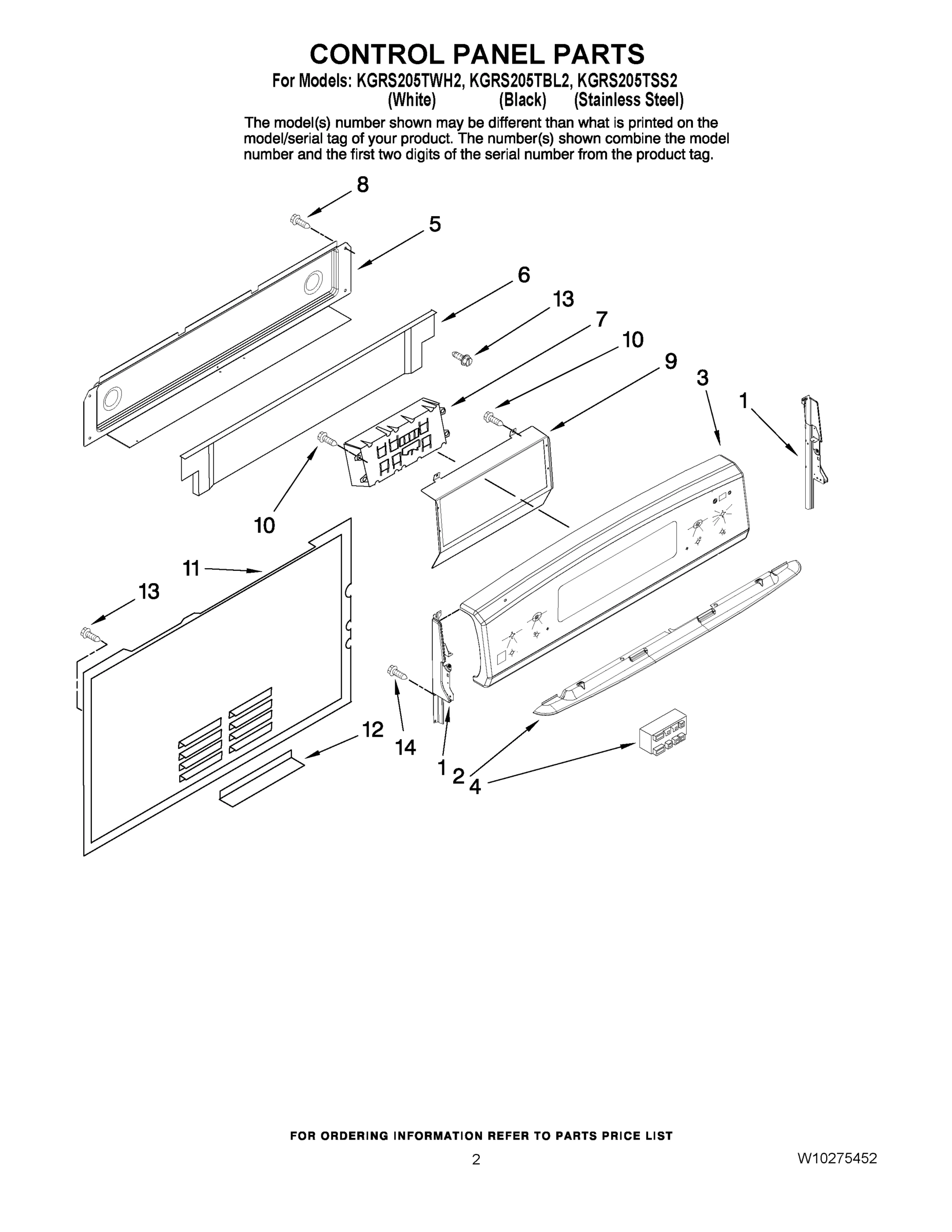

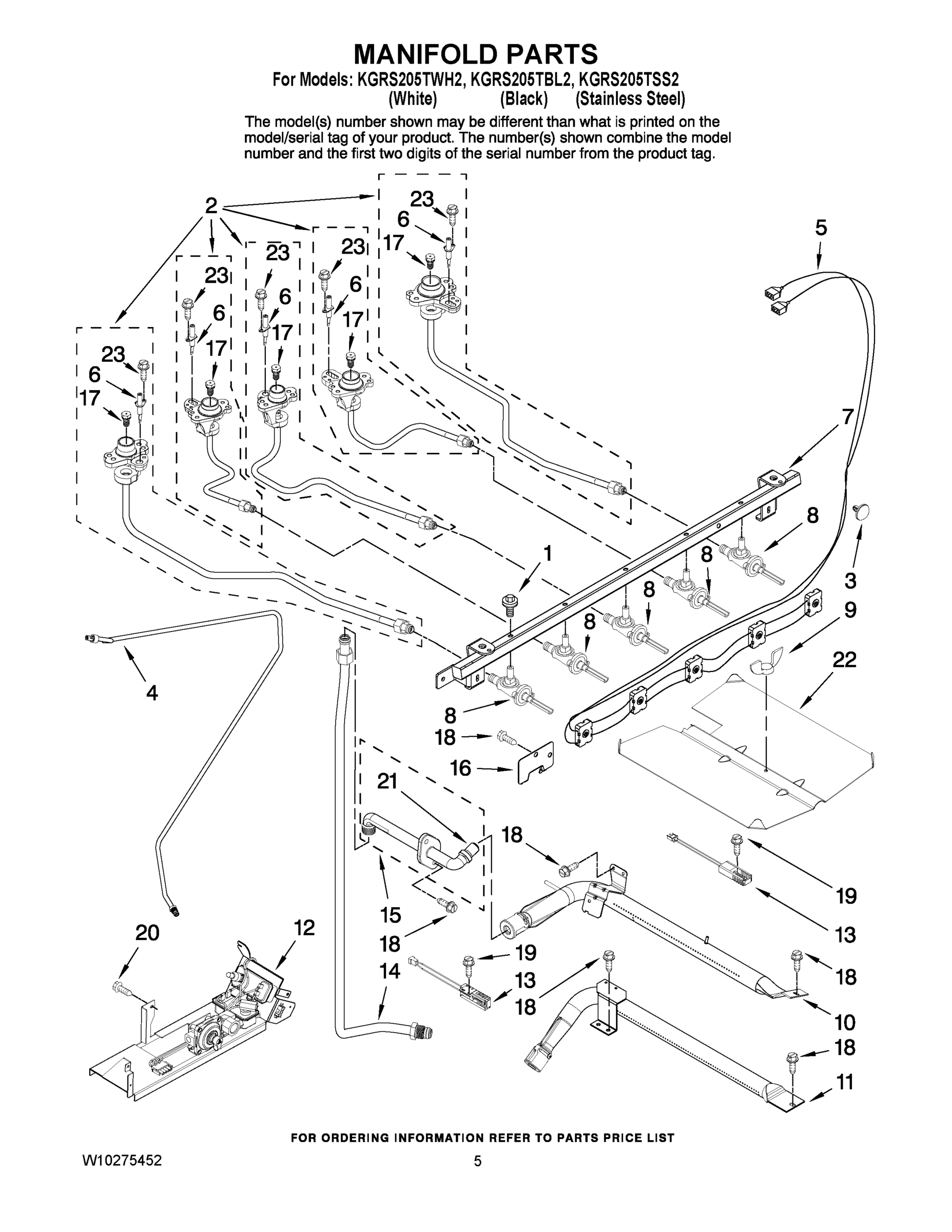

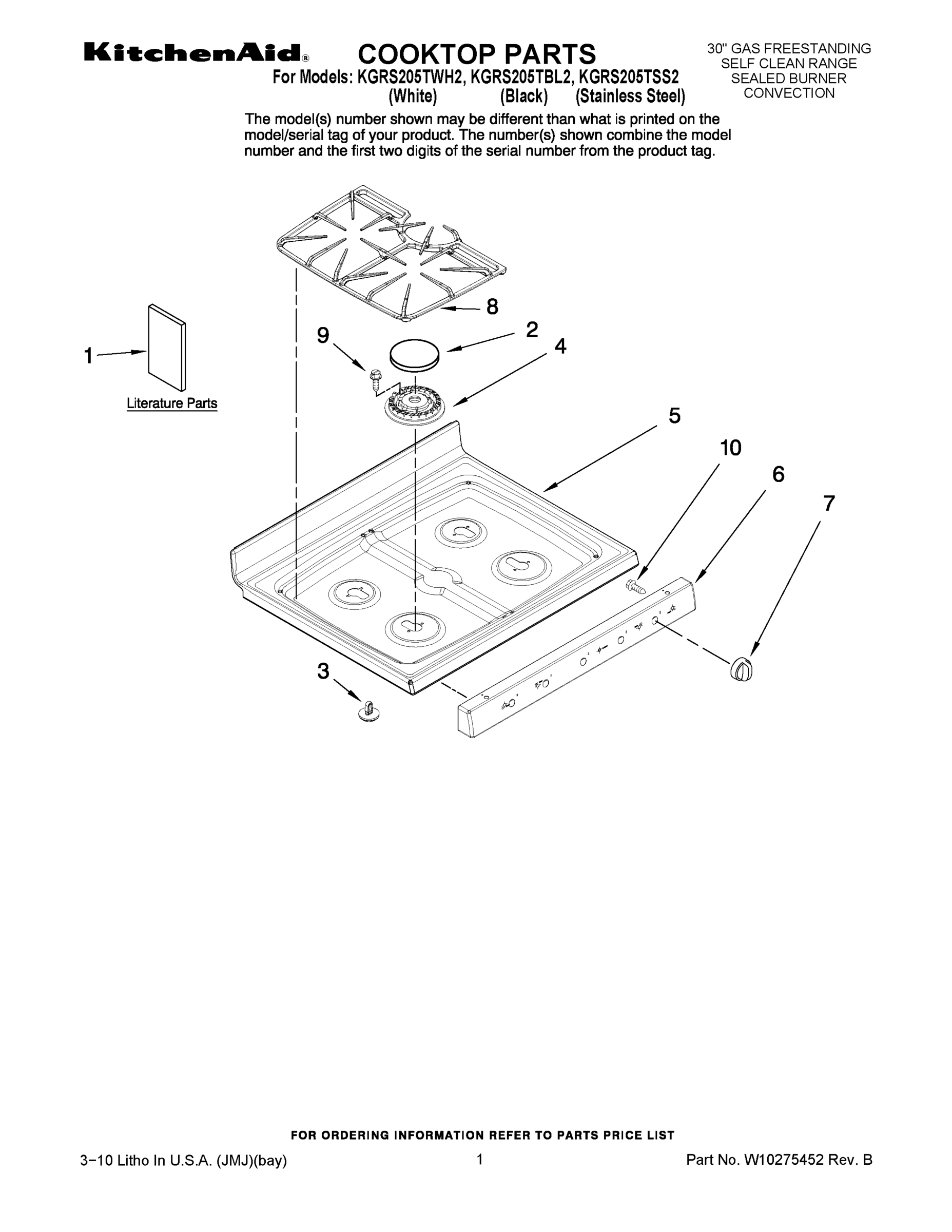

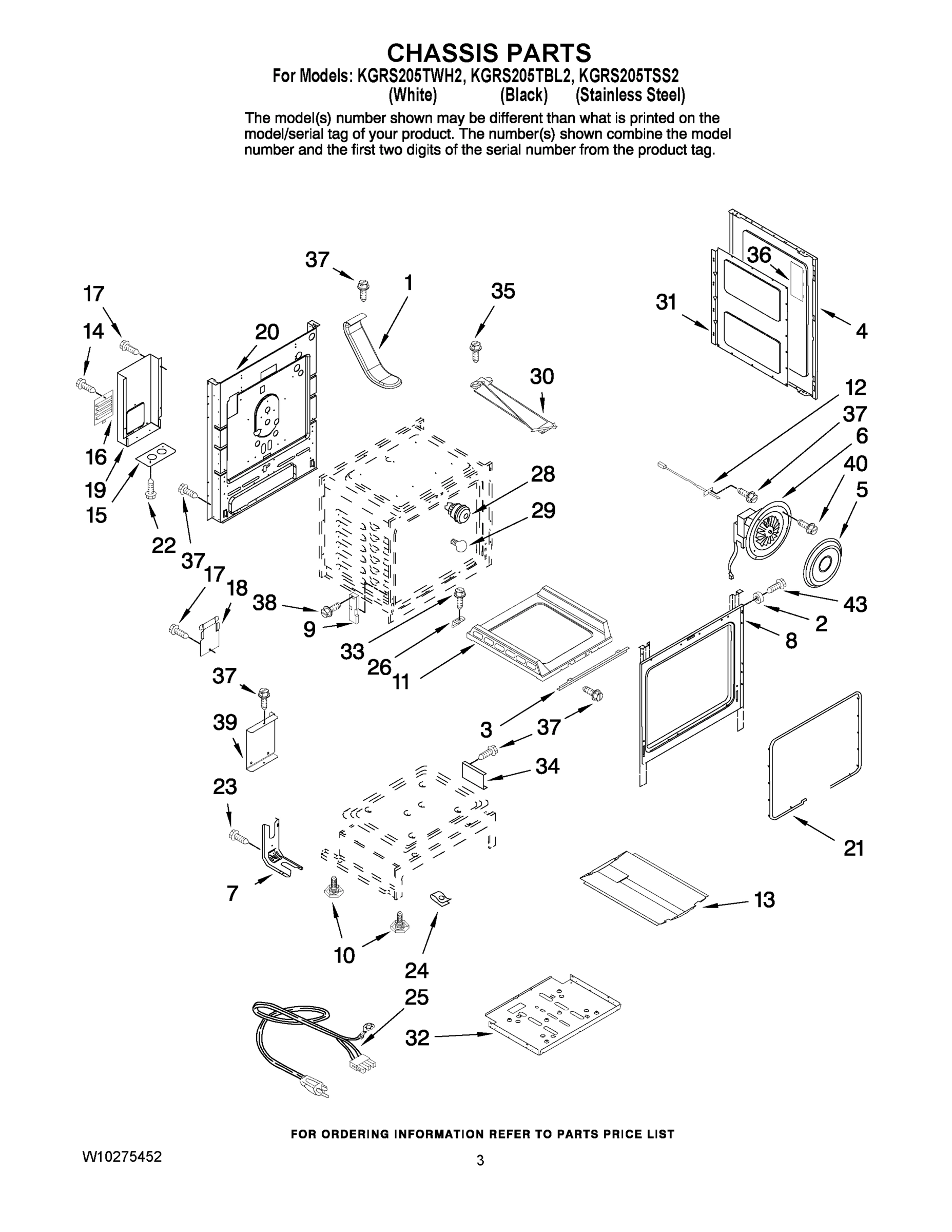

Model Whirlpool KGRS205TWH2 30`` GAS FREESTANDING SELF CLEAN RANGE SEALED BURN – Common Parts &amp; Diagrams

1

VENT, OVEN WPL 8026P08060 Contact Us For Availability

1

Wiring Diagram WPL W10168001 Contact Us For Availability

1

Owners Manual WPL W10185364 Contact Us For Availability

1

Installation Instructions WPL W10188242 Contact Us For Availability

2

SPACER, BUMPER WPL 8010P13060 Contact Us For Availability

2

SPACER, SIDE PANEL WPL 8010P14860 Contact Us For Availability

2

HOLDER, ORIFICE (RF) WPL 7527P09560 Contact Us For Availability

2

Holder, Orifice (CTR) WPL 7527P09760 Contact Us For Availability

2

Holder, Orifice (LF) WPL 7527P10160 Contact Us For Availability

2

HOLDER, ORIFICE (RR) WPL 7527P12460 Contact Us For Availability

2

Holder, Orifice (LR) WPL 7527P12560 Contact Us For Availability

2

CAP, BURNER (CTR) (GRAY) WPL 7504P29460 Contact Us For Availability

2

CAP, BURNER (LF) (GRAY) WPL 7504P29560 Contact Us For Availability

2

CAP, BURNER (RF) (GRAY) WPL 7504P29660 Contact Us For Availability

2

CAP, BURNER (CTR) (BLACK) WPL 7504P29860 Contact Us For Availability

2

CAP, BURNER (LF) (BLACK) WPL 7504P29960 Contact Us For Availability

2

CAP, BURNER (RF) (BLACK) WPL 7504P30060 Contact Us For Availability

2

Cap, Burner (RR & LR) (Gray) WPL W10168351 Contact Us For Availability

2

Cap, Burner (RR & LR) (Black) WPL W10168355 Contact Us For Availability

3

Handle, Door (S.Steel) WPL W10153016 Contact Us For Availability

3

Support, Oven Bottom WPL 3807P68045 Contact Us For Availability

3

SPACER, SNAP-IN WPL 8010P14960 Contact Us For Availability

4

WPW10406243 Whirlpool Burner Head Auxiliary 6 In Stock WPL WPW10406243 $19.53

4

WPW10406797 Whirlpool Range Burner Base (12K In Stock WPL WPW10406797 $39.77

4

WPW10406878 Whirlpool Burner Base (16K) In Stock WPL WPW10406878 $42.50

4

LINER, DOOR WPL 2402W29719 Contact Us For Availability

4

DRAWER WPL 3405F03780 Contact Us For Availability

4

PANEL, SIDE (2) (WHITE) WPL 2618F17258 Contact Us For Availability

4

PANEL, SIDE (2) (BLACK) WPL 2618F17269 Contact Us For Availability

4

TUBING, MAIN SUPPLY WPL 7506P36160 Contact Us For Availability

4

BURNER (RR & LR) WPL 7540P04360 Contact Us For Availability

5

HARNESS, IGNITER INCLUDES SWITCHES WPL W10173438 Contact Us For Availability

5

Glass, Inner (2) WPL 7902P43660 Contact Us For Availability

5

HANDLE, DRAWER WPL 7701P54760 Contact Us For Availability

5

PLATE, CONVECT WPL 3605F30519 Contact Us For Availability

5

Cooktop (Black) WPL W10182781 Contact Us For Availability

5

Cooktop (White) WPL W10182784 Contact Us For Availability

6

WP74009958 Whirlpool Spark Electrode Assembly In Stock WPL WP74009958 $17.29

6

PANEL, MANIFOLD (STAINLESS STEEL) WPL W10168678 Contact Us For Availability

6

Tape, White WPL 74004224 Contact Us For Availability

6

SCREW WPL 7101P65260 Contact Us For Availability

6

FAN, CONVECT WPL 7427P10860 Contact Us For Availability

6

Panel, Manifold (Black) WPL W10168240 Contact Us For Availability

6

Panel, Manifold (White) WPL W10168241 Contact Us For Availability

7

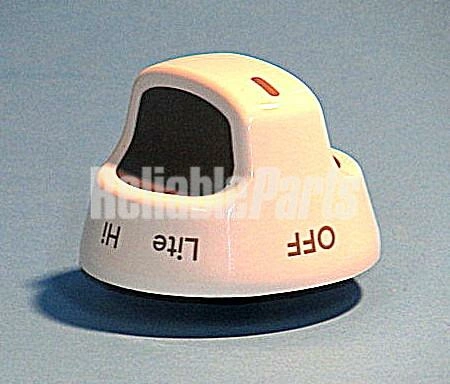

WPW10160372 Whirlpool Knob Backorder WPL WPW10160372 $24.78

7

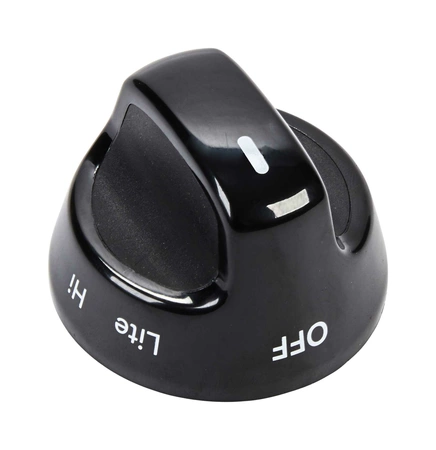

WPW10160374 Whirlpool Knob Backorder WPL WPW10160374 $22.18

7

WPW10160375 Whirlpool Oven Control Knob In Stock WPL WPW10160375 $28.67

7

PANEL, DRAWER FRNT (STAINLESS STEEL) WPL 7760P22860 Contact Us For Availability

7

Panel, Drawer Frnt (White) WPL W10159223 Contact Us For Availability

7

Panel, Drawer Frnt (Black) WPL W10159224 Contact Us For Availability

7

BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability

7

PIPE, MANIFOLD WPL 7513P52460 Contact Us For Availability

8

Insulation, Door WPL 7002P24660 Contact Us For Availability

8

PANEL, INNER WPL 3605P33751 Contact Us For Availability

8

STAINLESS STEEL WPL 5716A13150 Contact Us For Availability

8

FRAME, FRONT (NOT SERVICED) WPL NP Contact Us For Availability

8

VALVE (LF) WPL 7502P49960 Contact Us For Availability

8

VALVE (LR/RR/CTR) WPL 7502P50060 Contact Us For Availability

8

VALVE (RF) WPL 7502P50160 Contact Us For Availability

8

Grate, Burner (2) (Gray) WPL W10168265 Contact Us For Availability

8

Grate, Burner (2) (Black) WPL W10168266 Contact Us For Availability

9

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $1.73

9

Retainer, Insulation WPL 3601F38051 Contact Us For Availability

9

DRAWER, STOP WPL 8038P03760 Contact Us For Availability

9

HINGE, RECEIVER WPL 7106P12560 Contact Us For Availability

9

Nut WPL 7103P03060 Contact Us For Availability

W10160904 Whirlpool Broiler Burner Backorder WPL W10160904 $140.76

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.90

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $3.22

HINGE, DOOR WPL 7106P12460 Contact Us For Availability

FOOT, LEVELER (4) WPL 7101P50760 Contact Us For Availability

GLASS, OUTER DOOR (BLACK) WPL W10160908 Contact Us For Availability

GLASS, OUTER DOOR (WHITE) WPL W10160906 Contact Us For Availability

GLASS, OUTER DOOR (STAINLESS STEEL) WPL W10160909 Contact Us For Availability

Rail, Drawer WPL 3406P03451 Contact Us For Availability

BOTTOM, OVEN WPL 2205F05361 Contact Us For Availability

Burner, Bake WPL 31945701 Contact Us For Availability

Trim, Door Side (Black) WPL 3608F12670 Contact Us For Availability

Trim, Door Side (White) WPL 3608F12671 Contact Us For Availability

SHAFT, STORAGE DRAWER ROLLER WPL 7118P03260 Contact Us For Availability

SENSOR, OVEN WPL 7430P04160 Contact Us For Availability

VALVE/REGULATOR WPL 7501P23360 Contact Us For Availability

74007498 Whirlpool Range Flat Igniter In Stock WPL 74007498 $40.93

Roller, Drawer WPL 8014P02260 Contact Us For Availability

BAFFLE, BURNER WPL 3601F35645 Contact Us For Availability

IGNITER (BAKE) WPL 7432P10660 Contact Us For Availability

TRIM, LOWER DOOR (BLACK) WPL 3608F09270 Contact Us For Availability

TRIM, LOWER DOOR (WHITE) WPL 3608F09271 Contact Us For Availability

NUT WPL 7103P19060 Contact Us For Availability

SCREW WPL 7101P36660 Contact Us For Availability

TUBING (BROILER FITTING TO VALVE) WPL 7506P35760 Contact Us For Availability

Tape, Double Sided (Black) WPL W10208307 Contact Us For Availability

Tape, Double Sided (White) WPL W10208308 Contact Us For Availability

Plate, Conduit WPL 3605F14651 Contact Us For Availability

FITTING, BROILER WPL W10247148 Contact Us For Availability

16

PANEL, ACCESS WPL 3605P14651 Contact Us For Availability

16

Cover, Igniter WPL 4005F42145 Contact Us For Availability

ORIFICE, BURNER (CENTER) WPL 7509P12060 Contact Us For Availability

ORIFICE, BURNER (LR/RR) WPL 7509P12260 Contact Us For Availability

ORIFICE, BURNER (LEFT FRONT) WPL 7509P12360 Contact Us For Availability

ORIFICE, BURNER (RIGHT FRONT) WPL 7509P12460 Contact Us For Availability

Bracket, Handle (Right) WPL 3801P85745 Contact Us For Availability

Bracket, Handle (Left) WPL 3801P85845 Contact Us For Availability

COVER, BROIL WPL 4005F75345 Contact Us For Availability

Screw WPL 7101P37660 Contact Us For Availability

19

Screw WPL 7101P28260 Contact Us For Availability

19

Insulation, Corner WPL 7002P48460 Contact Us For Availability

19

COVER, LOWER WIRE WPL 4005P70351 Contact Us For Availability

20

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $3.22

20

TAPE, FOIL (3``) WPL W10208311 Contact Us For Availability

20

Back, Main WPL 4002F34751 Contact Us For Availability

21

W11562931 Whirlpool Door Gasket In Stock WPL W11562931 $43.61

21

BRACKET, WINDOW(2) WPL 3801F88651 Contact Us For Availability

21

ORIFICE WPL 7507P36660 Contact Us For Availability

22

NUT WPL 311426 Contact Us For Availability

22

Screw WPL 7101P33660 Contact Us For Availability

22

BAFFLE, BROIL BURNER WPL 3601P33645 Contact Us For Availability

W10491985 Whirlpool Screw In Stock WPL W10491985 $3.22

SPACER, HANDLE (STAINLESS STEEL) WPL 3823F01745 Contact Us For Availability

Spacer, Handle (Black) WPL W10169552 Contact Us For Availability

Spacer, Handle (White) WPL W10169553 Contact Us For Availability

24

CLIP (4) WPL 7112P15860 Contact Us For Availability

25

CORD, POWER WPL 7402P10960 Contact Us For Availability

26

BRACKET, OVEN BOTTOM WPL 3801F82245 Contact Us For Availability

28

Light Assembly WPL 7407P18160 Contact Us For Availability

29

Bulb, Oven Light WPL 7407P10360 Contact Us For Availability

30

Latch, Door Lock WPL 8002P10460 Contact Us For Availability

31

Retainer, Insulation WPL 3804F31651 Contact Us For Availability

32

Shield, Heat WPL 3604P40951 Contact Us For Availability

35

3196166 Whirlpool Screw Backorder WPL 3196166 $5.31

36

Insulation WPL 7002P49460 Contact Us For Availability

39

Bracket, Oven Support WPL 3801P79851 Contact Us For Availability

40

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.22

43

SCREW WPL 7101P61860 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $31.20

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.51

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.92

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $24.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $39.00

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $34.75

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

INSULATION, WRAP WPL 7002P42460 Contact Us For Availability

Insulation, Back WPL 7002P49260 Contact Us For Availability

SPUDS, LP GAS (KIT OF 5) WPL W10188936 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

HARNESS, MAIN WPL 5171P89460 Contact Us For Availability

Screw, Ground WPL 7101P02760 Contact Us For Availability

PAINT, BULK (1 qt.) (Black (Uncut)) WPL 799340 Contact Us For Availability

REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( WPL 799832 Contact Us For Availability

Clip, Wire WPL 8019P01360 Contact Us For Availability
