Model Whirlpool KEDS100VAL1 – Common Parts &amp; Diagrams

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $56.69

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 312318 WPL 312318 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

touch-up self-clean (1/2 pt.) WPL 261810 Contact Us For Availability

console WPL 261825 Contact Us For Availability

Rotisserie Kit WPL 261881 Contact Us For Availability

Instructions, Installation WPL LIT3147380 Contact Us For Availability

Guide, Use & Care WPL LIT3147430 Contact Us For Availability

Tech Sheet WPL LIT3148391 Contact Us For Availability

Book, Cooking Guide WPL LIT3149670 Contact Us For Availability

List, Repair Parts WPL LIT884831 Contact Us For Availability

WPL 308043 WPL 308043 Contact Us For Availability

1

Support, Box WPL 310718 Contact Us For Availability

1

Liner, Door WPL 3170706 Contact Us For Availability

1

Harness, Wire (Main) WPL 3149770 Contact Us For Availability

1

Frame, Front WPL 3170855 Contact Us For Availability

2

Box, Burner WPL 311021 Contact Us For Availability

2

Frame, Window WPL 3148234 Contact Us For Availability

2

Harness, Wire (Surface Unit) WPL 3147828 Contact Us For Availability

2

Pin, Hinge Ear (2) WPL 307985 Contact Us For Availability

3

Shield, Switch WPL 310716 Contact Us For Availability

3

screw (6) WPL 3148443 Contact Us For Availability

3

Seal, Flange (2) WPL 3148441 Contact Us For Availability

3

Harness, Wire (Infinite Switch) WPL 313464 Contact Us For Availability

3

Snubber, Door (2) WPL 309111 Contact Us For Availability

4

Support, Cooktop WPL 310717 Contact Us For Availability

4

Glass, Reflective WPL 3148178 Contact Us For Availability

4

Pushnut (2) WPL 308306 Contact Us For Availability

5

814103 Whirlpool Clip In Stock WPL 814103 $5.96

5

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $4.82

5

Seal, Window WPL 3148183 Contact Us For Availability

5

End Trim, R.H. Vent Door (White - Almond End WPL 3148472 Contact Us For Availability

5

End Trim, R.H. Vent Door (Black) WPL 3148697 Contact Us For Availability

5

End Trim, R.H. Vent Door (Black) WPL 3148698 Contact Us For Availability

5

Nut (4) WPL 814102 Contact Us For Availability

5

Block, Disconnect WPL 351297 Contact Us For Availability

5

Insulation Tray WPL 310770 Contact Us For Availability

6

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

6

Vent Door (Black) WPL 314190 Contact Us For Availability

6

Vent Door (White - Almond) WPL 3149676 Contact Us For Availability

6

Bushing WPL 258109 Contact Us For Availability

6

Retainer, Insulation WPL 3148723 Contact Us For Availability

6

Side Wrapper (Right Side) WPL 311006 Contact Us For Availability

6

Side Wrapper (Left Side) WPL 311009 Contact Us For Availability

7

16515 Whirlpool Clip Backorder WPL 16515 $12.46

7

WP3169203 Whirlpool Door Glass Backorder WPL WP3169203 $91.63

7

Trim, Bottom WPL 314184 Contact Us For Availability

7

Screw (6) WPL 342043 Contact Us For Availability

7

Cover, Top Rear WPL 3147565 Contact Us For Availability

7

Support, Side Wrapper (4) WPL 311774 Contact Us For Availability

8

Rubber Channel (2) (Black Model Only) WPL 310842 Contact Us For Availability

8

Cooktop (White) WPL 3148747 Contact Us For Availability

8

Cooktop (Almond) WPL 3148748 Contact Us For Availability

8

Cooktop (Black) WPL 3148753 Contact Us For Availability

8

Retainer, Glass (2) WPL 3148187 Contact Us For Availability

8

Adapter, Terminal WPL 3147832 Contact Us For Availability

8

Insulation Baffle (2) WPL 311256 Contact Us For Availability

8

Screw, No.6-20x1 1/4 (2) WPL 3148442 Contact Us For Availability

9

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $13.76

9

Retainer, Glass (4) WPL 310823 Contact Us For Availability

9

Bumper (4) WPL 3148182 Contact Us For Availability

9

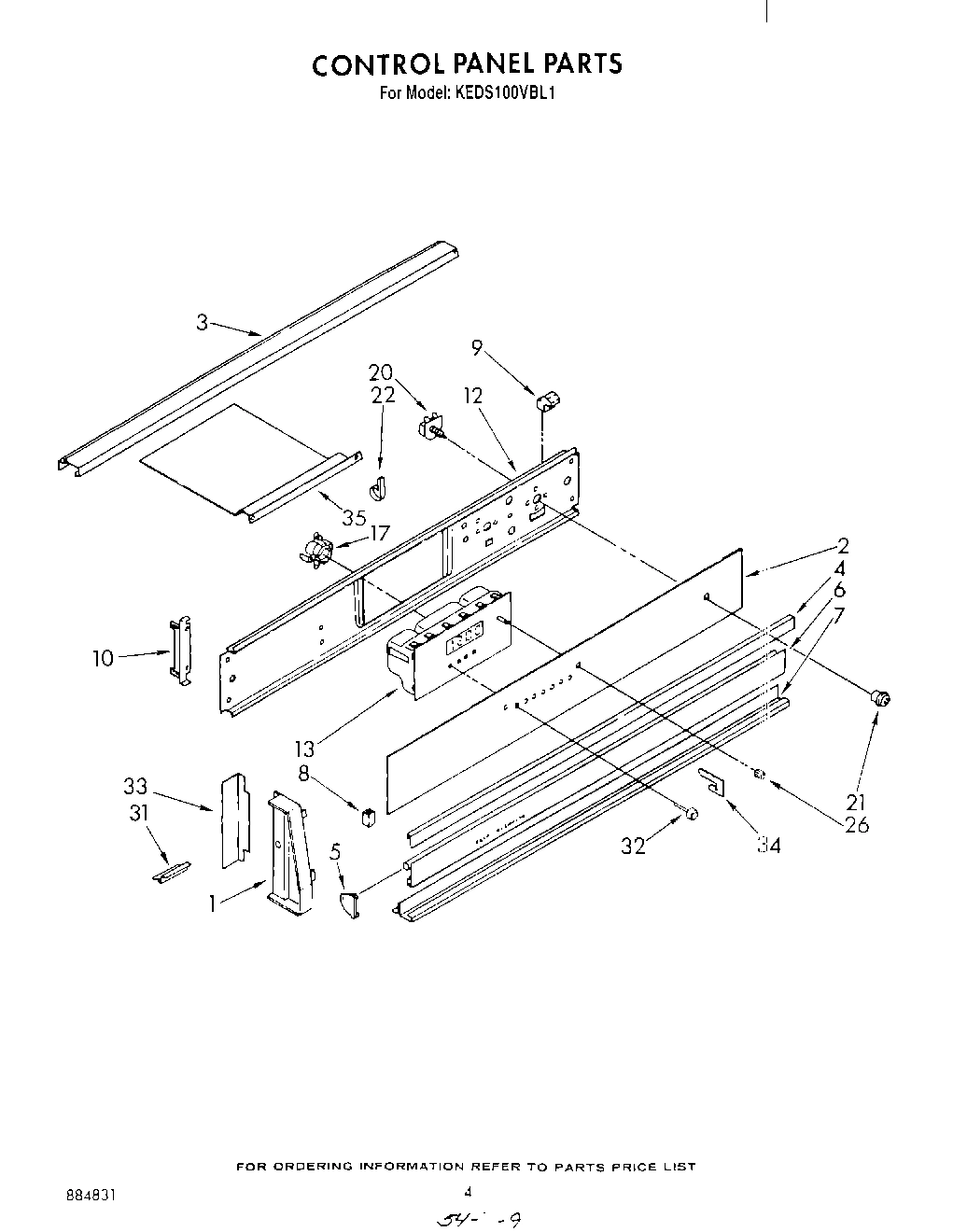

Baffle, Top Insulation WPL 310693 Contact Us For Availability

Bracket, Control Panel (2) WPL 310720 Contact Us For Availability

Control Panel (Black) WPL 3147677 Contact Us For Availability

Panel, Control (White) WPL 3147678 Contact Us For Availability

Panel, Control (Almond) WPL 3147679 Contact Us For Availability

Control Panel (Tape, Foam) WPL 3147928 Contact Us For Availability

Glass, Panel (Black) WPL 3148185 Contact Us For Availability

Glass, Panel (White) WPL 3149049 Contact Us For Availability

Glass, Panel (Almond) WPL 3149050 Contact Us For Availability

Side Trim L.H. WPL 310685 Contact Us For Availability

Side Trim (R.H.) WPL 310689 Contact Us For Availability

11

Seal, Switch WPL 309839 Contact Us For Availability

11

Foil WPL 3148184 Contact Us For Availability

11

Oven (30`` Pyro) WPL 329003 Contact Us For Availability

W10900107 Whirlpool Oven Surface Element Swit In Stock WPL W10900107 $35.69

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $4.70

Bracket, Control WPL 3148647 Contact Us For Availability

Handle, Oven Door (Black) WPL 3147636 Contact Us For Availability

Handle, Oven Door (White) WPL 3147637 Contact Us For Availability

Handle, Oven Door (Almond) WPL 3147638 Contact Us For Availability

Bracket, Oven Mounting (2) WPL 310713 Contact Us For Availability

Screw No.6-32 (4) WPL 313806 Contact Us For Availability

Oven Control WPL 3149459 Contact Us For Availability

Indicator Light (Lens, No.313602) WPL 313461 Contact Us For Availability

Insulation WPL 3147951 Contact Us For Availability

Plug Button WPL 257314 Contact Us For Availability

14

Bracket, Sensor WPL 3147830 Contact Us For Availability

14

Cap, Top White - Almond WPL 3149473 Contact Us For Availability

WP313808 Whirlpool Screw Backorder WPL WP313808 $4.82

Thermostat WPL 3147833 Contact Us For Availability

Hinge Ear, R.H. WPL 328801 Contact Us For Availability

Hinge Ear, L.H. WPL 328802 Contact Us For Availability

16

WP308544 Whirlpool Screw In Stock WPL WP308544 $4.82

16

Shield WPL 3148680 Contact Us For Availability

16

Plate, Side Panel (2) WPL 310659 Contact Us For Availability

17

Thermostat, Oven WPL 3149648 Contact Us For Availability

17

Channel Arm (2) WPL 329713 Contact Us For Availability

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $7.82

Frame (Black) WPL 3148784 Contact Us For Availability

Frame (White) WPL 3148785 Contact Us For Availability

Frame (Almond) WPL 3148786 Contact Us For Availability

W10291024 Whirlpool Range Cooktop Gray Porcel In Stock WPL W10291024 $45.99

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

Door Top (Screw (2) Black) WPL 3149333 Contact Us For Availability

Door Top (Black) WPL 3148606 Contact Us For Availability

Door Top (White - Almond) WPL 3149675 Contact Us For Availability

Ring, Retainer (2) WPL 307594 Contact Us For Availability

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $45.62

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $54.56

Switch, Oven Light (Black) WPL 312581 Contact Us For Availability

Switch, Oven Light (Washer) WPL 312796 Contact Us For Availability

Switch, Oven Light (White - Almond) WPL 3148465 Contact Us For Availability

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $7.91

Bezel, Switch (Black) WPL 313030 Contact Us For Availability

Bezel, Switch (White - Almond) WPL 3148462 Contact Us For Availability

Medallion, Coil WPL 309195 Contact Us For Availability

22

WP308126 Whirlpool Door Spring In Stock WPL WP308126 $17.80

22

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $7.20

22

Knob, Control (4) WPL 3149111 Contact Us For Availability

W10854470 Whirlpool Trim Ring Backorder WPL W10854470 $60.90

W10858781 Whirlpool Trim Ring Backorder WPL W10858781 $63.86

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

Tube, Vent Extension WPL 310835 Contact Us For Availability

24

Eliminator, Smoke WPL 310839 Contact Us For Availability

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $26.99

Knob, Timer (1) (Black) WPL 3149784 Contact Us For Availability

Knob, Timer (1) (White) WPL 3149785 Contact Us For Availability

Knob, Timer (1) (Almond) WPL 3149786 Contact Us For Availability

27

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $110.99

28

Socket, Oven Light (Alt.) WPL 307856 Contact Us For Availability

28

Socket, Oven Light (Alt.) WPL 310208 Contact Us For Availability

28

Socket, Oven Light WPL 660556 Contact Us For Availability

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

30

Cover, Light WPL 308039 Contact Us For Availability

31

WPL 3148102 WPL 3148102 Contact Us For Availability

31

Retainer, Light WPL 308038 Contact Us For Availability

WPL 3149780 WPL 3149780 Contact Us For Availability

WPL 3149781 WPL 3149781 Contact Us For Availability

WPL 3149782 WPL 3149782 Contact Us For Availability

Coverplate WPL 311982 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

WPL 3149900 WPL 3149900 Contact Us For Availability

WPL 3149901 WPL 3149901 Contact Us For Availability

WPL 3149902 WPL 3149902 Contact Us For Availability

Screw (2) WPL 311056 Contact Us For Availability

Latch Assembly WPL 3171150 Contact Us For Availability

34

WPL 3149142 WPL 3149142 Contact Us For Availability

34

Safety Switch WPL 313309 Contact Us For Availability

34

Screw (2) WPL 98106 Contact Us For Availability

WPL 98520 WPL 98520 Contact Us For Availability

WPL 309080 WPL 309080 Contact Us For Availability

WPL 3149419 WPL 3149419 Contact Us For Availability

Insulator, Switch WPL 309245 Contact Us For Availability

36

Screw No.6 x 3/8 WPL 309258 Contact Us For Availability

36

Terminal, Shield WPL 313035 Contact Us For Availability

37

Screw, 10-24 x WPL 308422 Contact Us For Availability

37

WPL 310825 WPL 310825 Contact Us For Availability

38

WPL 246135 WPL 246135 Contact Us For Availability

38

WPL 311253 WPL 311253 Contact Us For Availability

39

WPL 310345 WPL 310345 Contact Us For Availability

40

WPL 3148284 WPL 3148284 Contact Us For Availability

45

WPL 3148440 WPL 3148440 Contact Us For Availability

WP355515 Whirlpool Screw Backorder WPL WP355515 $4.82

WPL 3149426 WPL 3149426 Contact Us For Availability

WPL 3149427 WPL 3149427 Contact Us For Availability

WPL 3149428 WPL 3149428 Contact Us For Availability

WPL 3149429 WPL 3149429 Contact Us For Availability

WPL 3149430 WPL 3149430 Contact Us For Availability

WPL 3149431 WPL 3149431 Contact Us For Availability

WPL 314235 WPL 314235 Contact Us For Availability

WPL 3149446 WPL 3149446 Contact Us For Availability

WPL 3149447 WPL 3149447 Contact Us For Availability

WPL 3149448 WPL 3149448 Contact Us For Availability

48

WPL 3149458 WPL 3149458 Contact Us For Availability

52

WPL 3149542 WPL 3149542 Contact Us For Availability

53

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

53

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $14.85

54

WPL 310458 WPL 310458 Contact Us For Availability

55

WPL 311592 WPL 311592 Contact Us For Availability

56

WPL 311012 WPL 311012 Contact Us For Availability

60

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $44.99

61

WPL 308173 WPL 308173 Contact Us For Availability

62

WPL 308172 WPL 308172 Contact Us For Availability
