Model Whirlpool KBRS22KGWH3 BOTTOM MOUNT REFRIGERATOR – Common Parts & Diagrams

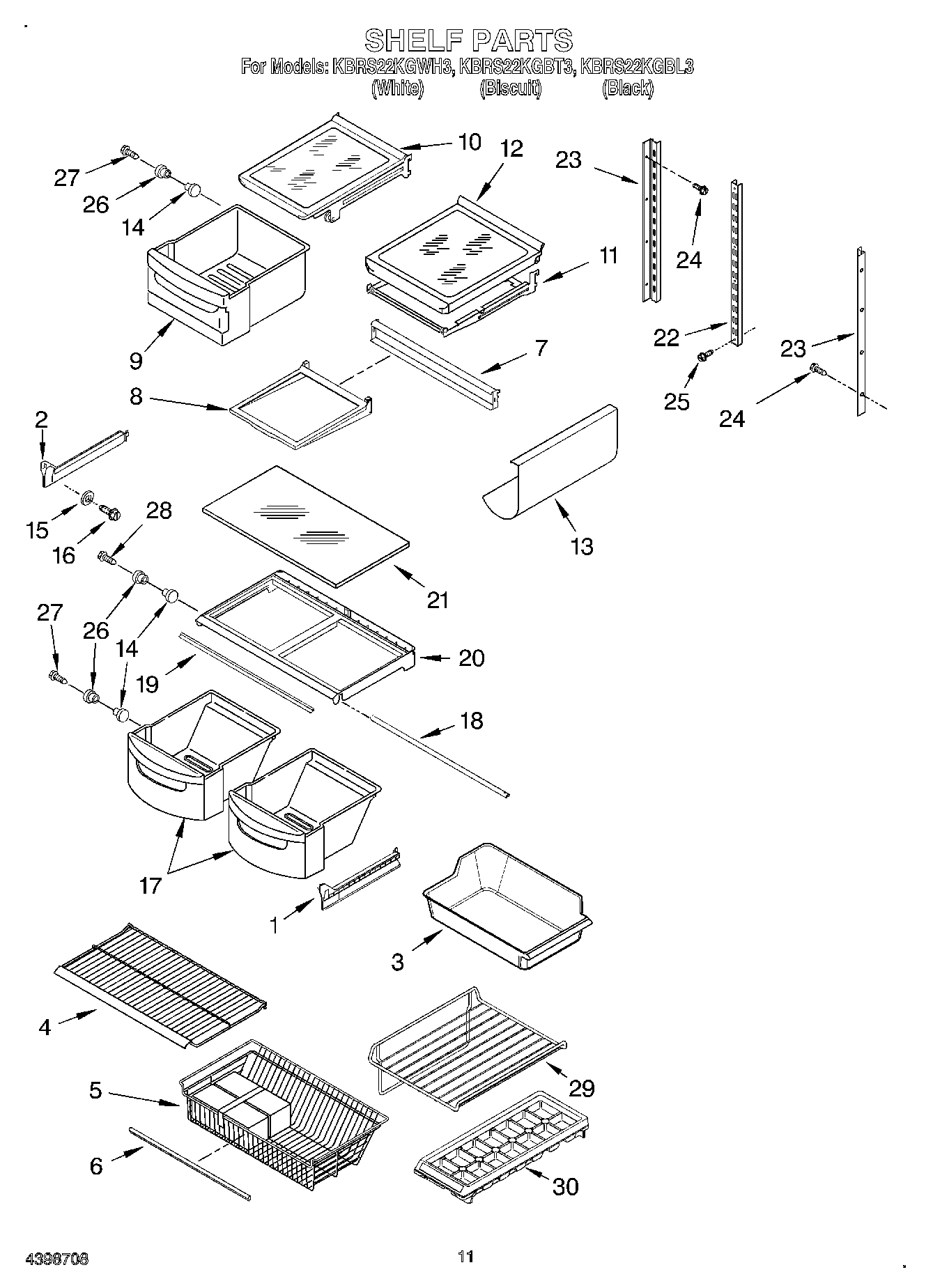

07 - SHELF, LIT/OPTIONAL

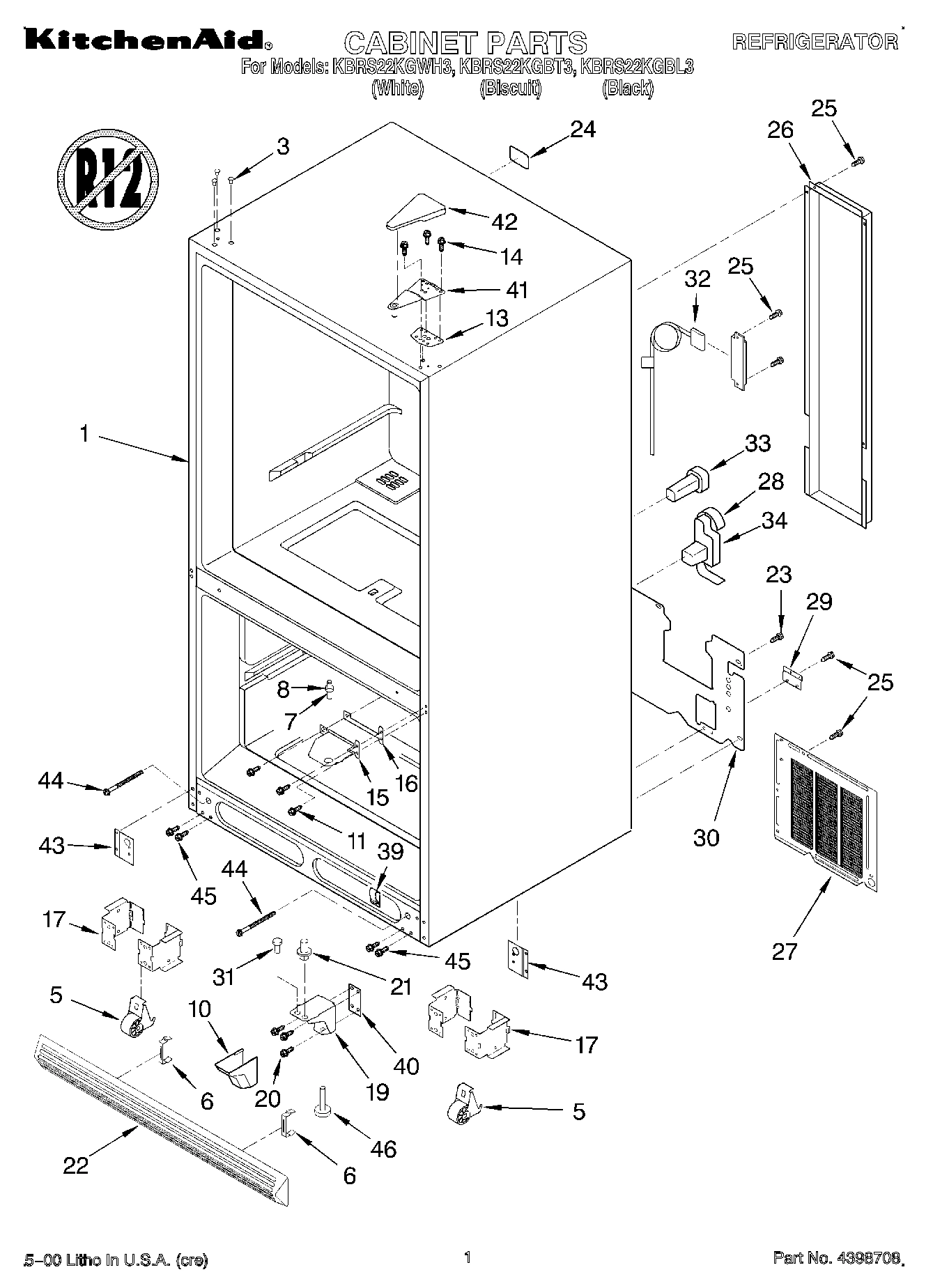

01 - CABINET

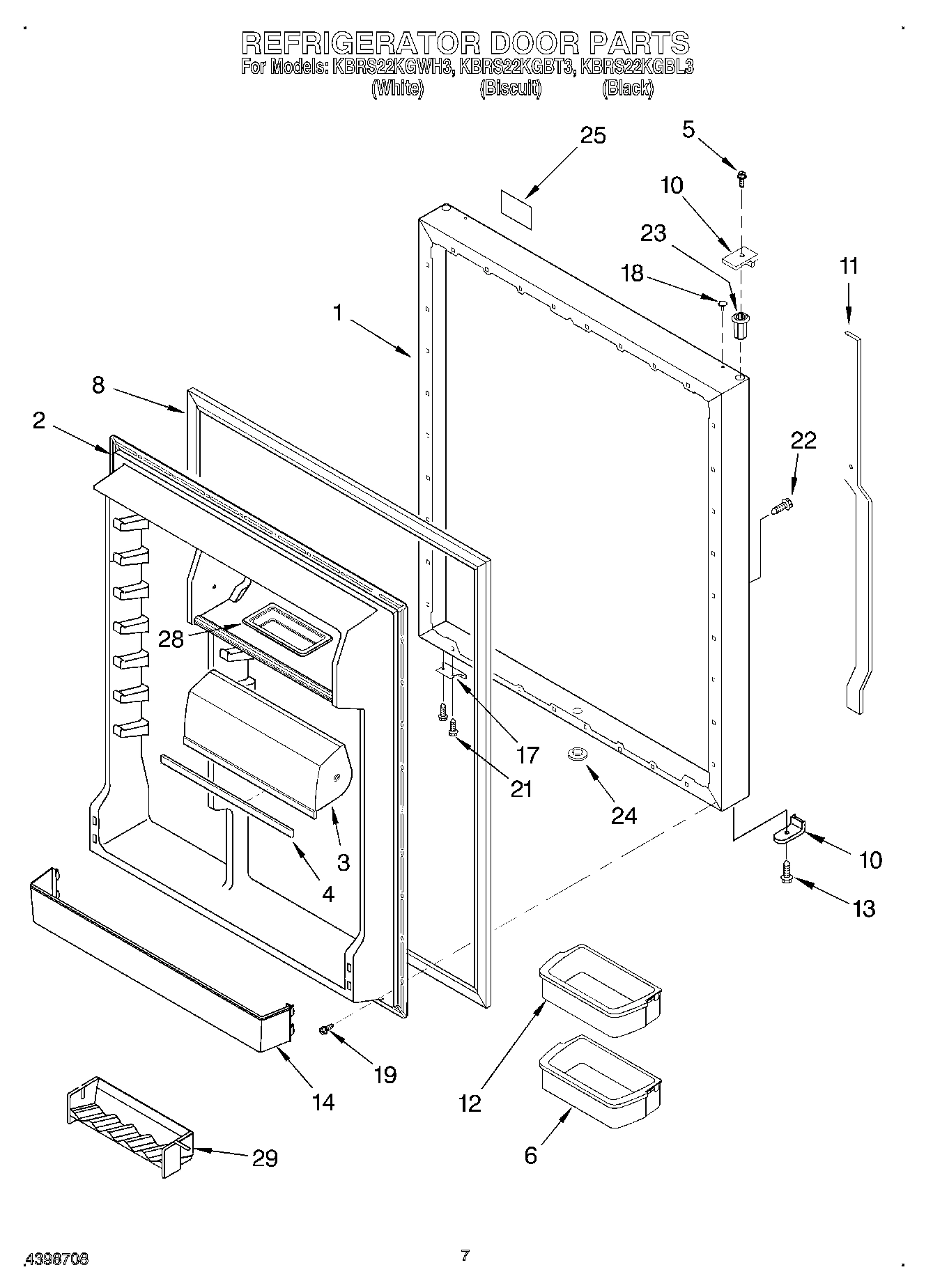

05 - REFRIGERATOR DOOR

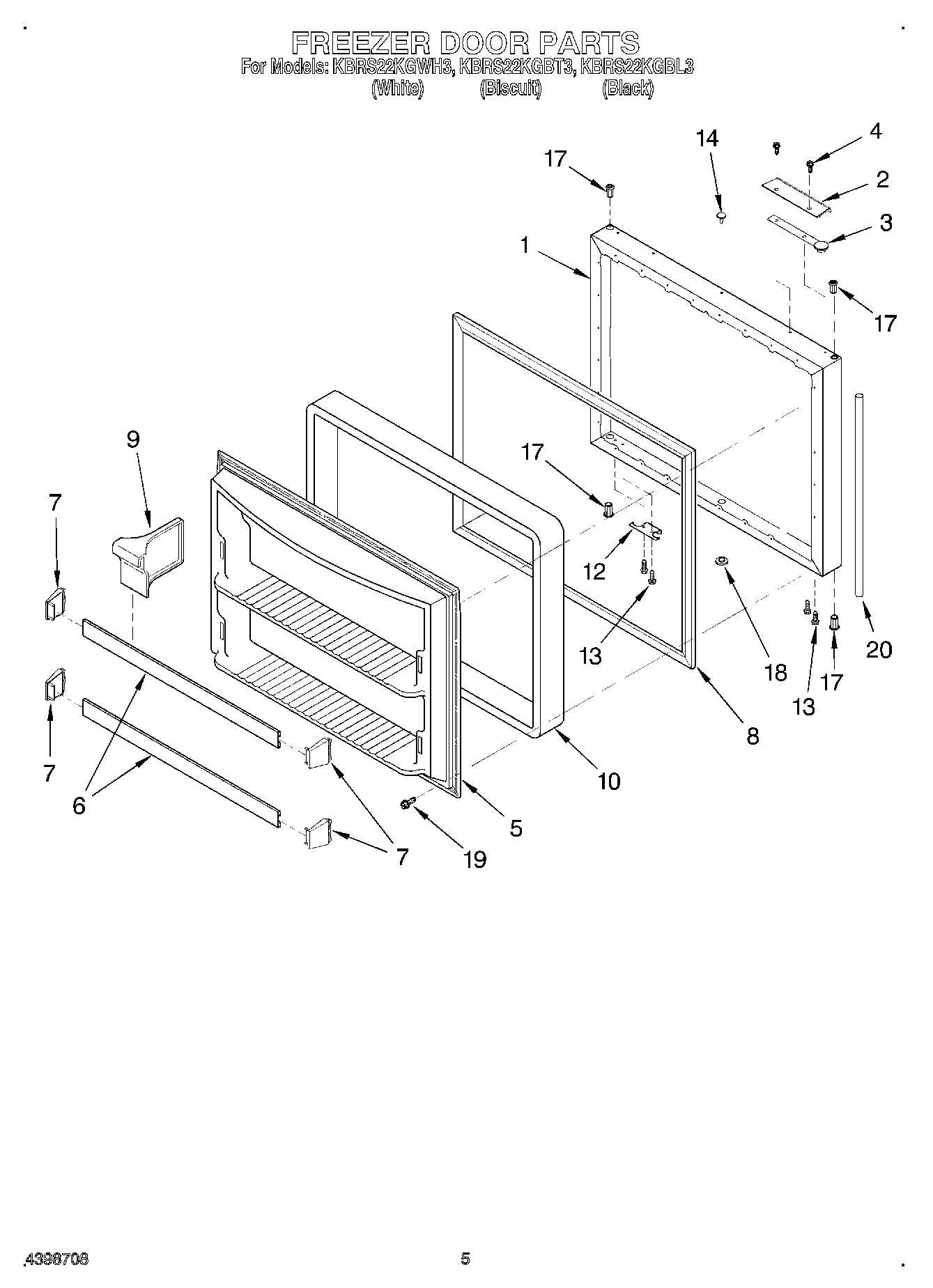

03 - FREEZER DOOR

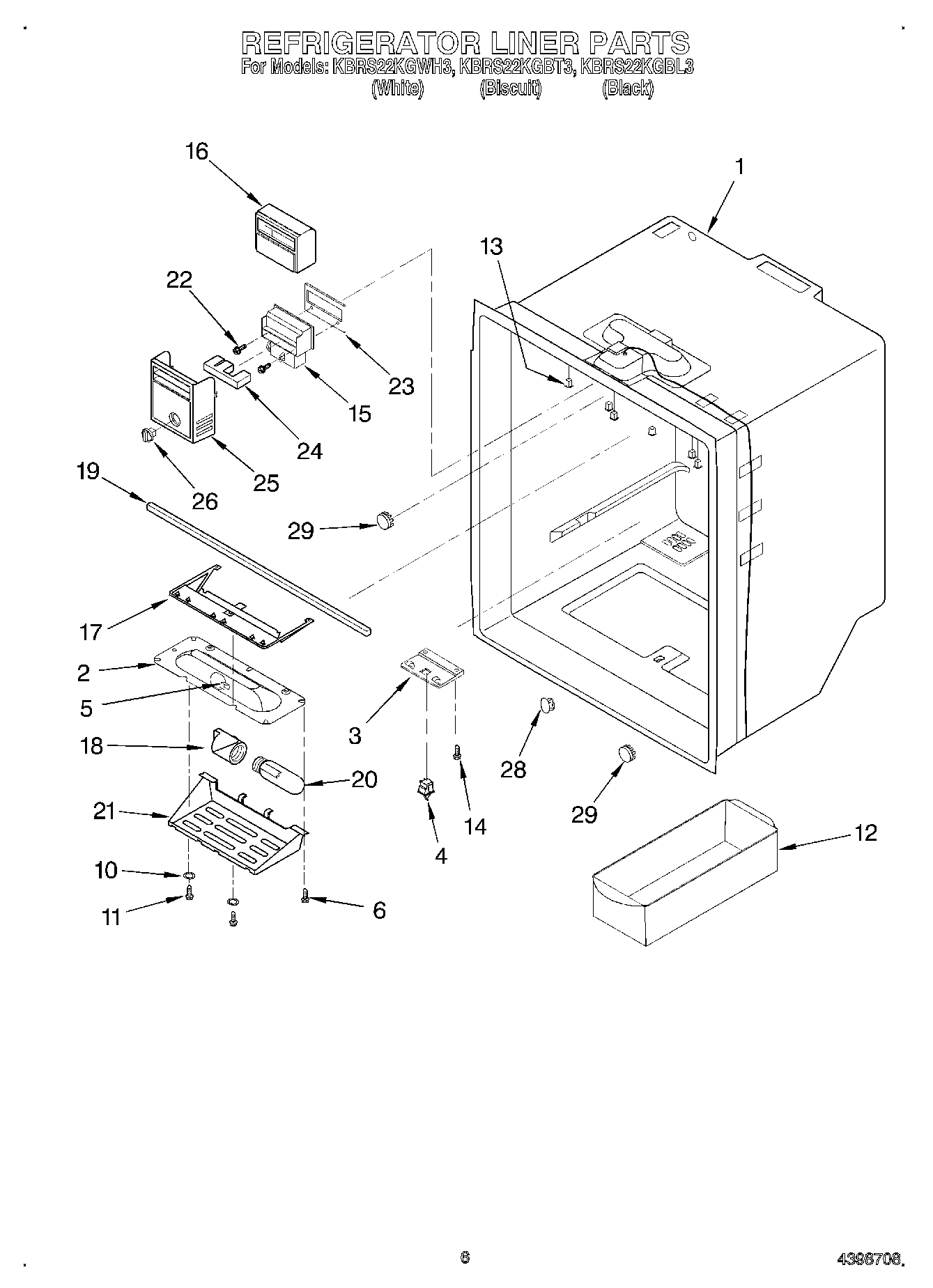

04 - REFRIGERATOR LINER

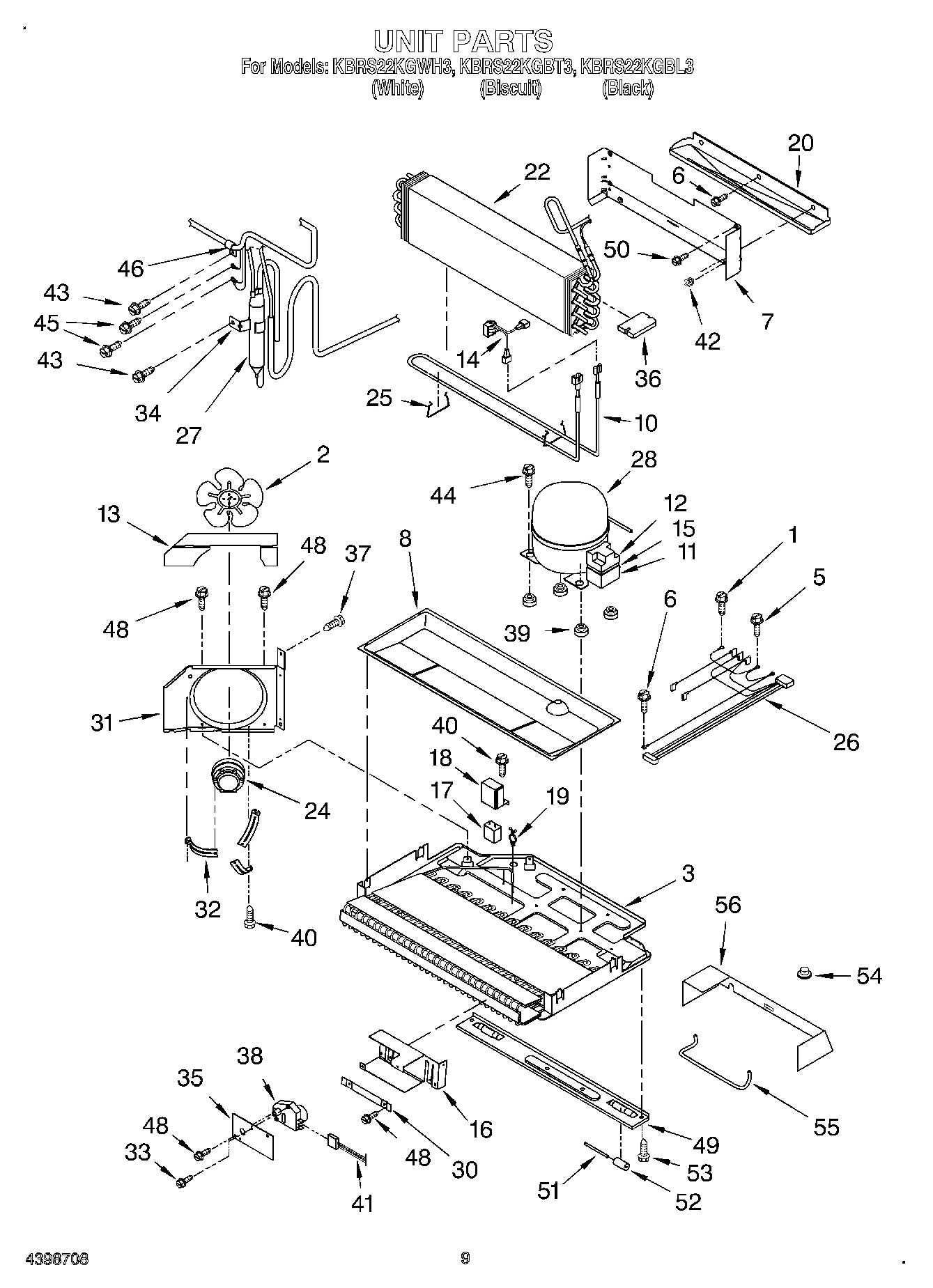

06 - UNIT

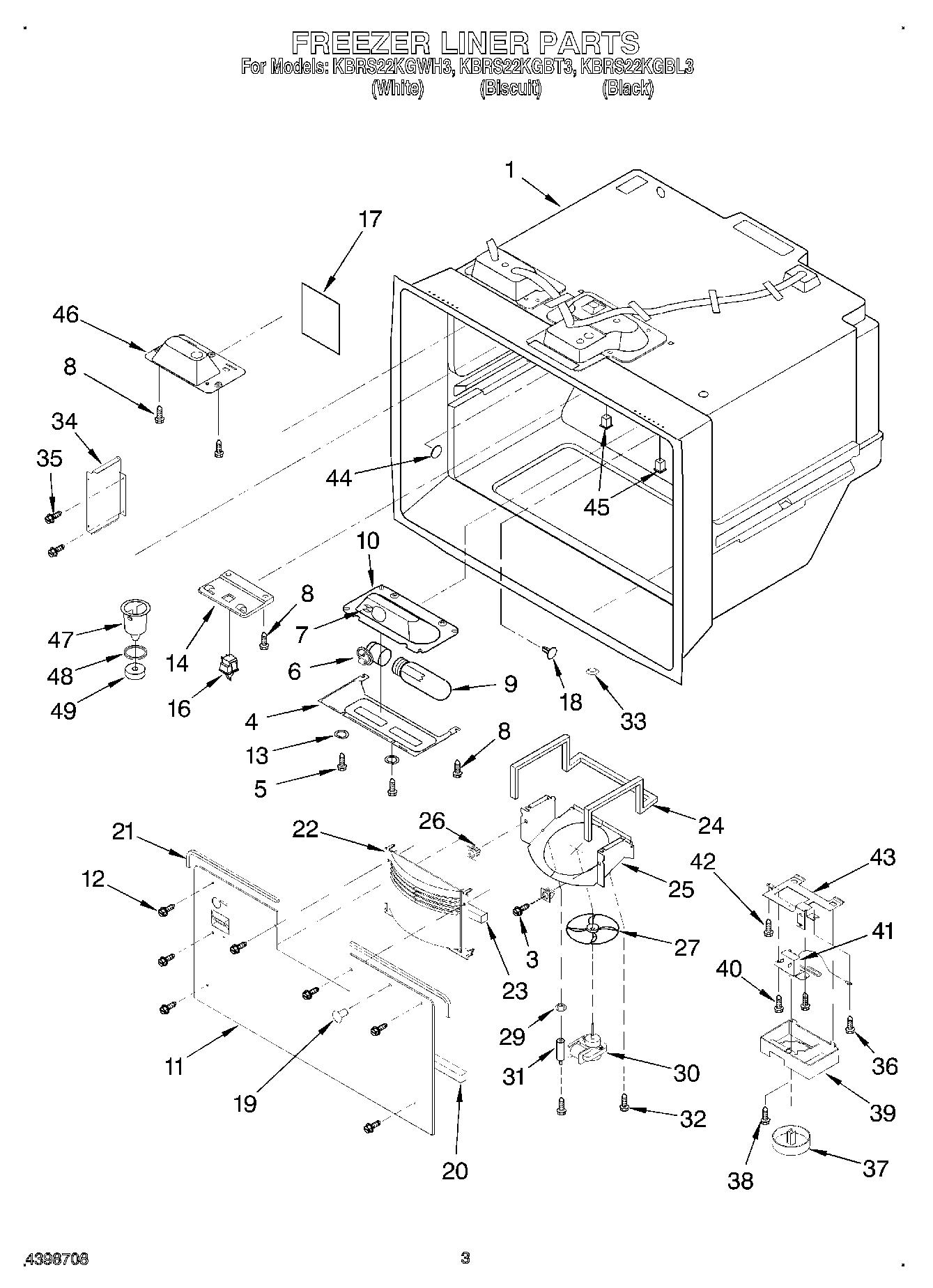

02 - FREEZER LINER
Common parts from model Whirlpool KBRS22KGWH3 BOTTOM MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI80120A8 Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 8170491 Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 8170492 Contact Us For Availability
1
Refrigerator Door Panel (Includes Insulation) WPL 8170493 Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) (Bla WPL 8170457 Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) (Whi WPL 8170459 Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) (Bis WPL 8170496 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI80122A4 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI80121A8 Contact Us For Availability
2
Interior Panel WPL 4344371 Contact Us For Availability
2
Handle (White) WPL 4344596 Contact Us For Availability
2
Handle (Black) WPL 4344598 Contact Us For Availability
2
Handle (Biscuit) WPL 8170511 Contact Us For Availability
2
Fan, Blade WPL 4344271 Contact Us For Availability
3
Door, Compartment WPL 4344369 Contact Us For Availability
3
Plug, Button (Black) WPL 4344157 Contact Us For Availability
3
Plug, Button (White) WPL 4344159 Contact Us For Availability
3
Plug, Button (Biscuit) WPL 8170484 Contact Us For Availability
3
Cover, Light Switch WPL 4343928 Contact Us For Availability
3
Condenser & Pan Assembly WPL 8170489 Contact Us For Availability
4
Trim, Comp. Door WPL 4344370 Contact Us For Availability
4
Light Lens WPL 4344205 Contact Us For Availability
5
Roller, Front Assy. WPL 4344291 Contact Us For Availability
5
Interior Panel WPL 4344355 Contact Us For Availability
5
Screw WPL 4344206 Contact Us For Availability
6
Clip, Grille WPL 4344155 Contact Us For Availability
6
Shelf Bin (1) WPL 4344372 Contact Us For Availability
6
Trim, Shelf WPL 4344582 Contact Us For Availability
7
Clip, Ground WPL 4343682 Contact Us For Availability
7
Heat Shield WPL 4344217 Contact Us For Availability
8
Door Gasket, Magnetic (Black) WPL 8170507 Contact Us For Availability
8
Drain Pan WPL 4344276 Contact Us For Availability
9
Divider, Door Shelf WPL 4344300 Contact Us For Availability
10
Hinge Cover, Bottom (Black) WPL 4344202 Contact Us For Availability
10
Hinge Cover, Bottom (White) WPL 4344204 Contact Us For Availability
10
Hinge Cover, Bottom (Biscuit) WPL 8170490 Contact Us For Availability
10
End Cap (White) WPL 4344589 Contact Us For Availability
10
End Cap (Black) WPL 4344591 Contact Us For Availability
10
End Cap (Biscuit) WPL 8170502 Contact Us For Availability
10
Housing, Frz.Lt. WPL 8170381 Contact Us For Availability
11
Insert, Handle (Black) WPL 8170498 Contact Us For Availability
11
Insert, Handle (Biscuit) WPL 8170500 Contact Us For Availability
11
Insert, Handle (White) WPL 8170501 Contact Us For Availability
11
Screw (8) WPL 4344167 Contact Us For Availability
11
Cover WPL 4343852 Contact Us For Availability
11
Cover, Evaporator WPL 4344387 Contact Us For Availability
12
Shelf Bin (3) WPL 4344365 Contact Us For Availability
12
Screw WPL 4344215 Contact Us For Availability
13
Shim, Hinge Top (Black) WPL 4344192 Contact Us For Availability
13
Shim, Hinge Top (Almond) WPL 4344193 Contact Us For Availability
13
Shim, Hinge Top (White) WPL 4344194 Contact Us For Availability
13
Screw WPL 4344588 Contact Us For Availability
13
Washer (4) WPL 4344211 Contact Us For Availability
13
Gasket WPL 4344275 Contact Us For Availability
14
Eyelet, Roller WPL 2174478 Contact Us For Availability
14
Trivet, Door WPL 4344373 Contact Us For Availability
14
Screw WPL 4344309 Contact Us For Availability
14
Cover, Switch WPL 8170341 Contact Us For Availability
15
Hinge, Center WPL 4344431 Contact Us For Availability
15
Control, Damper WPL 8170409 Contact Us For Availability
16
Shim, Center Hinge (White) WPL 4344176 Contact Us For Availability
16
Shim, Center Hinge (Black) WPL 4344425 Contact Us For Availability
16
Shim, Center Hinge (Almond) WPL 4344426 Contact Us For Availability
16
Insulation, Damper WPL 4344184 Contact Us For Availability
16
Bracket, Timer WPL 4344278 Contact Us For Availability
17
Housing, Roller WPL 8170506 Contact Us For Availability
17
Bushing (Black) WPL 4344361 Contact Us For Availability
17
Bushing (White) WPL 4344362 Contact Us For Availability
17
Shield, Light WPL 8170383 Contact Us For Availability
17
Cover, Plug WPL 4344166 Contact Us For Availability
18
Plug, Button (Black) WPL 4344364 Contact Us For Availability
18
Socket, Duel WPL 8170384 Contact Us For Availability
18
Shield, Capacitor WPL 4344277 Contact Us For Availability
19
Hinge Bottom (Black) WPL 8170453 Contact Us For Availability
19
Hinge Bottom (White) WPL 8170454 Contact Us For Availability
19
Screw WPL 4343811 Contact Us For Availability
19
Gasket WPL 4344185 Contact Us For Availability
19
Clip, Wire WPL 4343969 Contact Us For Availability
19
Plug, Button WPL 4344228 Contact Us For Availability
20
Support Pin WPL 4344199 Contact Us For Availability
20
Drain Pan WPL 4344221 Contact Us For Availability
20
Gasket, Bottom WPL 4344216 Contact Us For Availability
21
Light Lens, Top WPL 8170386 Contact Us For Availability
21
Gasket, Top (2) WPL 4343886 Contact Us For Availability
22
Grille (Black) WPL 8170481 Contact Us For Availability
22
Grille (Biscuit) WPL 8170482 Contact Us For Availability
22
Grille (White) WPL 8170483 Contact Us For Availability
22
Screw WPL 8170313 Contact Us For Availability
22
Screw WPL 4343571 Contact Us For Availability
22
Evaporator WPL 8170402 Contact Us For Availability
22
Cover, Fan Shroud WPL 4344220 Contact Us For Availability
23
Screw WPL 4344267 Contact Us For Availability
23
Gasket, Damper WPL 4343681 Contact Us For Availability
23
Gasket WPL 4344587 Contact Us For Availability
24
Plug, I/M WPL 4344264 Contact Us For Availability
24
Plug, Button (Biscuit) WPL 8170497 Contact Us For Availability
24
Insert WPL 4343650 Contact Us For Availability
24
Motor, Fan WPL 4344419 Contact Us For Availability
24
Gasket WPL 4344230 Contact Us For Availability
25
Screw WPL 4344324 Contact Us For Availability
25
Screw WPL 4343759 Contact Us For Availability
25
Nameplate (Black) WPL 8170503 Contact Us For Availability
25
Nameplate (White) WPL 8170505 Contact Us For Availability
25
Nameplate (Biscuit) WPL 8170512 Contact Us For Availability
25
Cover, Control WPL 8170371 Contact Us For Availability
25
Evap. Fan Shroud WPL 4344229 Contact Us For Availability
26
Roller WPL 2174388 Contact Us For Availability
26
Wire Cover WPL 4344257 Contact Us For Availability
26
Knob, Control WPL 4344180 Contact Us For Availability
26
Harness, Unit WPL 4344569 Contact Us For Availability
26
Grommet, Screw WPL 4343657 Contact Us For Availability
27
Back Cover WPL 8170375 Contact Us For Availability
28
Harness, Control WPL 8170449 Contact Us For Availability
28
Butter Dish WPL 4344296 Contact Us For Availability
28
Insulation, Plug WPL 4343240 Contact Us For Availability
29
Rack, Ice Tray WPL 8170401 Contact Us For Availability
29
Holder, Beverage WPL 4344374 Contact Us For Availability
29
Plug, Button WPL 4344241 Contact Us For Availability
29
Grommet WPL 8170388 Contact Us For Availability
30
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2` WPL 876029 Contact Us For Availability
30
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
30
Ice Container Assembly WPL 4343700 Contact Us For Availability
30
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
30
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
30
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
30
WPL 978883 WPL 978883 Contact Us For Availability
30
Cover, Unit WPL 8170377 Contact Us For Availability
30
Washer WPL 4344282 Contact Us For Availability
31
Plug, Button WPL 4344210 Contact Us For Availability
31
Shroud WPL 4344554 Contact Us For Availability
31
Spacer WPL 8170390 Contact Us For Availability
32
Power Cord WPL 4344263 Contact Us For Availability
32
Bracket, Fan Motor WPL 4344272 Contact Us For Availability
32
Screw (4) WPL 8170391 Contact Us For Availability
33
Grommet WPL 4344259 Contact Us For Availability
33
Plug, Button WPL 4344227 Contact Us For Availability
33
Screw WPL 4344281 Contact Us For Availability
34
PLug WPL 4344260 Contact Us For Availability
34
Clip, Drier WPL 4343763 Contact Us For Availability
34
Duct, Return Air WPL 4344222 Contact Us For Availability
35
Cover, Timer WPL 8170451 Contact Us For Availability
36
Screw WPL 4343860 Contact Us For Availability
36
Block, Evaporator WPL ARI80123A4 Contact Us For Availability
37
Screw WPL 4344151 Contact Us For Availability
37
Knob, Control WPL 4344214 Contact Us For Availability
38
Screw WPL 4344224 Contact Us For Availability
39
Grommet (4) WPL 4343845 Contact Us For Availability
39
Cover, Frz. Control WPL 8170392 Contact Us For Availability
40
Shim, Hinge WPL 4344286 Contact Us For Availability
40
Screw WPL 4344562 Contact Us For Availability
40
Screw WPL 4343861 Contact Us For Availability
41
Hinge Top WPL 4344172 Contact Us For Availability
41
Harness WPL 4344274 Contact Us For Availability
42
Hinge Cover (Black) WPL 4344195 Contact Us For Availability
42
Hinge Cover (White) WPL 8170379 Contact Us For Availability
42
Hinge Cover (Biscuit) WPL 8170488 Contact Us For Availability
42
Clip, Evaporator WPL 4344219 Contact Us For Availability
42
Screw WPL 4343215 Contact Us For Availability
43
Plate, Hinge Tap (Right Side) WPL 4344299 Contact Us For Availability
43
Plate, Hinge Tap (Left Side) WPL 4344301 Contact Us For Availability
43
Bracket, Control WPL 4344578 Contact Us For Availability
44
Biscuit WPL 8170380 Contact Us For Availability
44
Screw WPL 4343847 Contact Us For Availability
44
Plug, Button WPL 4344316 Contact Us For Availability
45
Grommet WPL 4344321 Contact Us For Availability
46
Clamp WPL 4343661 Contact Us For Availability
46
Housing, Frz. Control WPL 4344312 Contact Us For Availability
48
Screw WPL 4344395 Contact Us For Availability
49
Cabinet, Brace WPL 4344297 Contact Us For Availability
51
Axle-Roller WPL 4344289 Contact Us For Availability
52
Roller-Rear WPL 4344288 Contact Us For Availability
53
Screw WPL 4344292 Contact Us For Availability
55
Drain Tube WPL 4344283 Contact Us For Availability
56
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
56
Insulation WPL 4344595 Contact Us For Availability
56
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
