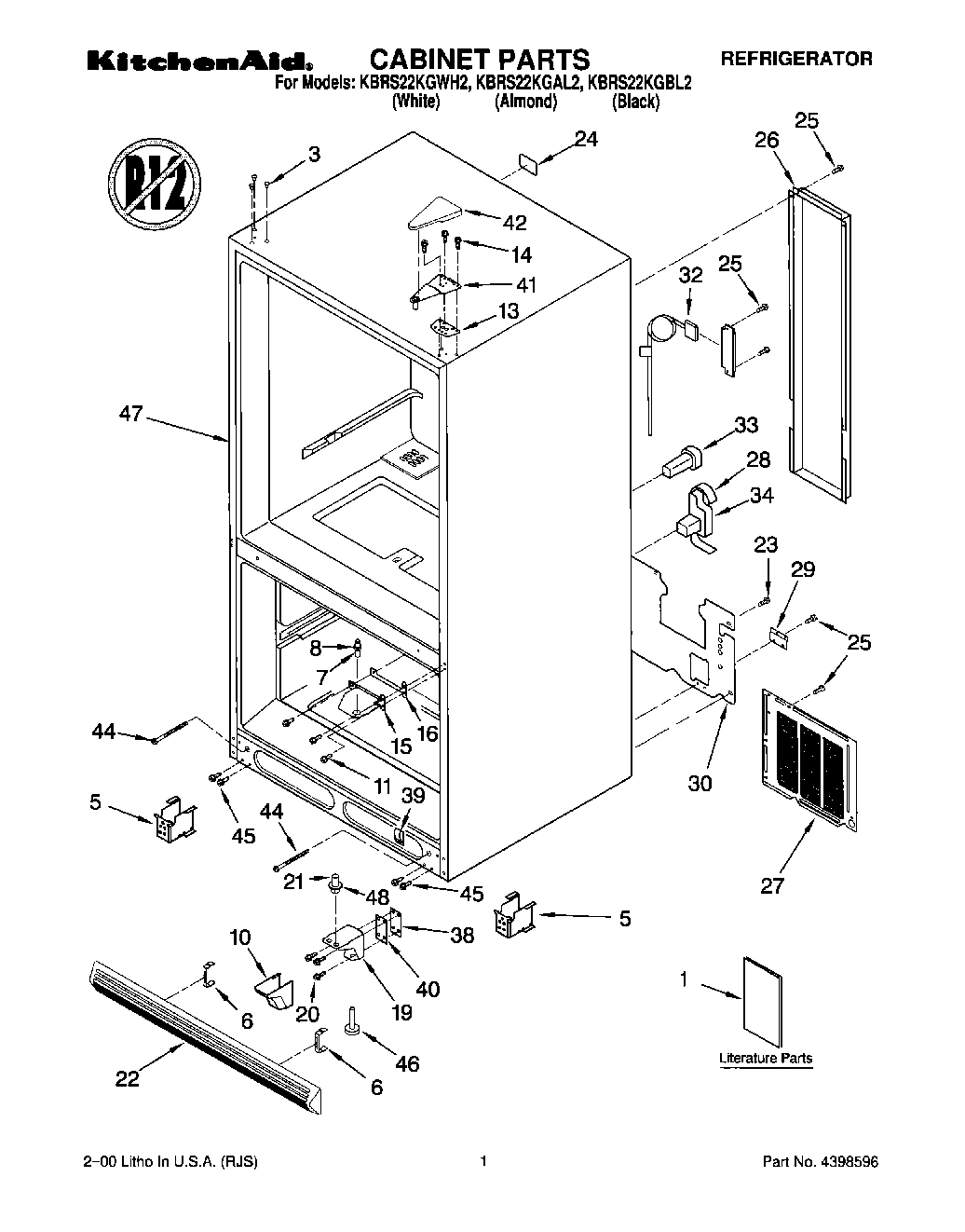

Model Whirlpool KBRS22KGWH2 BOTTOM MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

1

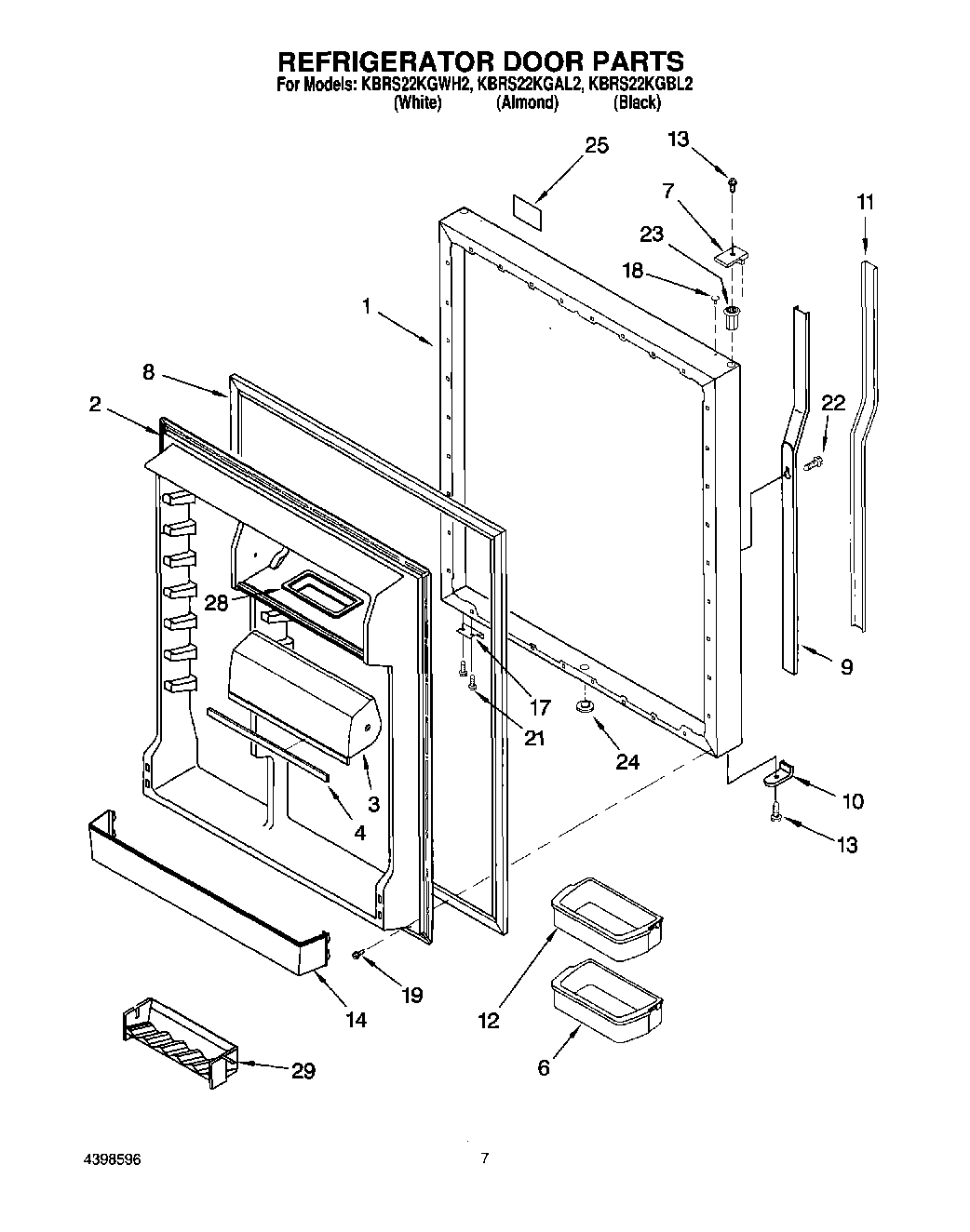

Refrigerator Door Panel (Includes Insulation) WPL 4344584 Contact Us For Availability

1

Refrigerator Door Panel (Includes Insulation) WPL 4344585 Contact Us For Availability

1

Refrigerator Door Panel (Includes Insulation) WPL 4344586 Contact Us For Availability

1

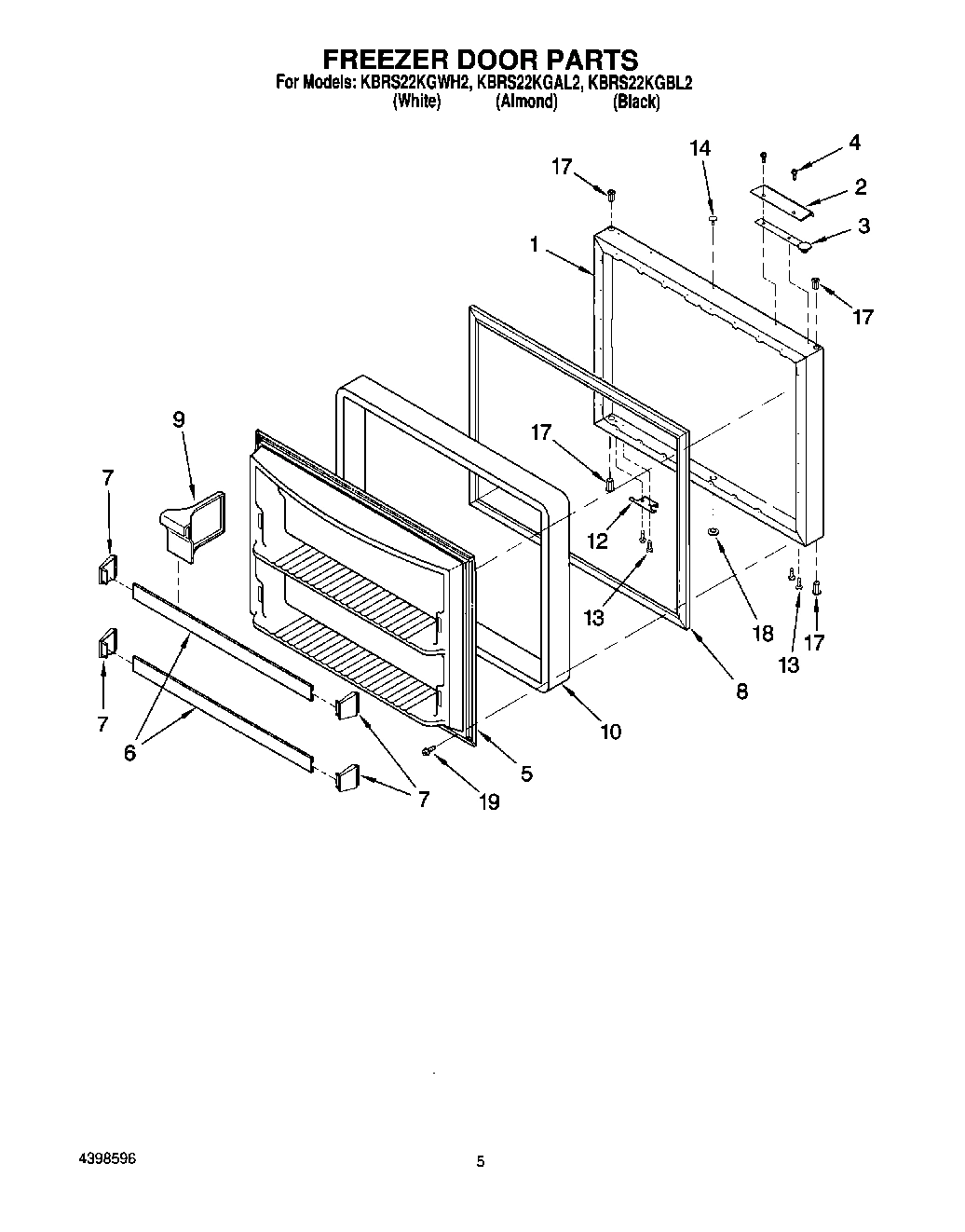

Freezer Door Panel (Includes Insulation) (Bla WPL 8170457 Contact Us For Availability

1

Freezer Door Panel (Includes Insulation) (Alm WPL 8170458 Contact Us For Availability

1

Freezer Door Panel (Includes Insulation) (Whi WPL 8170459 Contact Us For Availability

1

Support, Crisper WPL 4344581 Contact Us For Availability

1

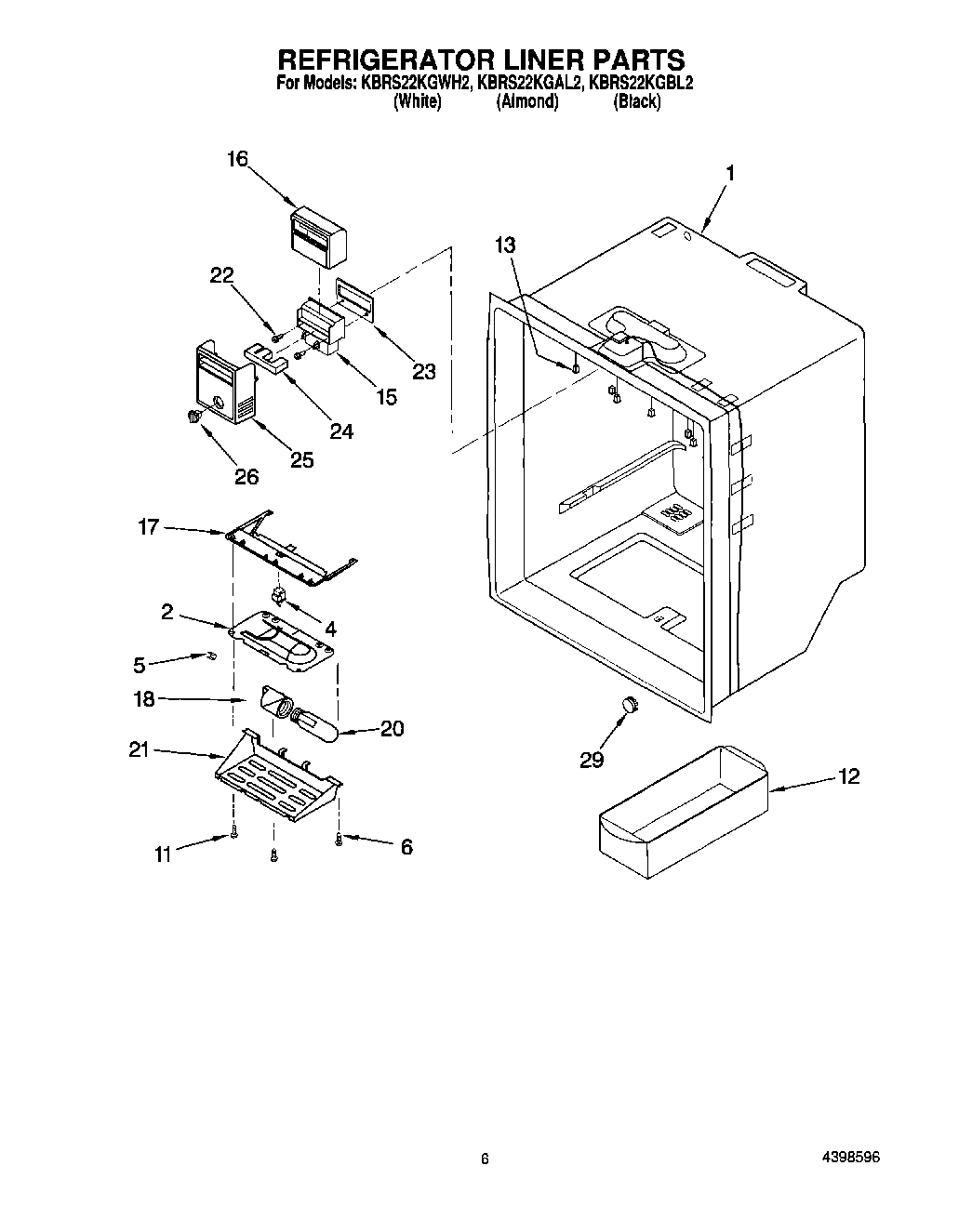

Liner (Not A Serviceable Part) WPL ARI80118A5 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI80119A9 Contact Us For Availability

2

Fan, Blade WPL 4344271 Contact Us For Availability

2

Interior Panel WPL 4344371 Contact Us For Availability

2

Handle (White) WPL 4344596 Contact Us For Availability

2

Handle (Almond) WPL 4344597 Contact Us For Availability

2

Handle (Black) WPL 4344598 Contact Us For Availability

2

Support, Crisper WPL 4344580 Contact Us For Availability

2

Housing, Ref. Light WPL 8170381 Contact Us For Availability

3

WP67001255 Whirlpool Ice Bucket In Stock WPL WP67001255 $85.52

3

Condenser & Pan Assembly WPL 4344270 Contact Us For Availability

3

Door, Compartment WPL 4344369 Contact Us For Availability

3

Plug, Button (Black) WPL 4344157 Contact Us For Availability

3

Plug, Button (Almond) WPL 4344158 Contact Us For Availability

3

Plug, Button (White) WPL 4344159 Contact Us For Availability

4

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.32

4

Trim, Comp. Door WPL 4344370 Contact Us For Availability

4

Screw WPL 8170396 Contact Us For Availability

4

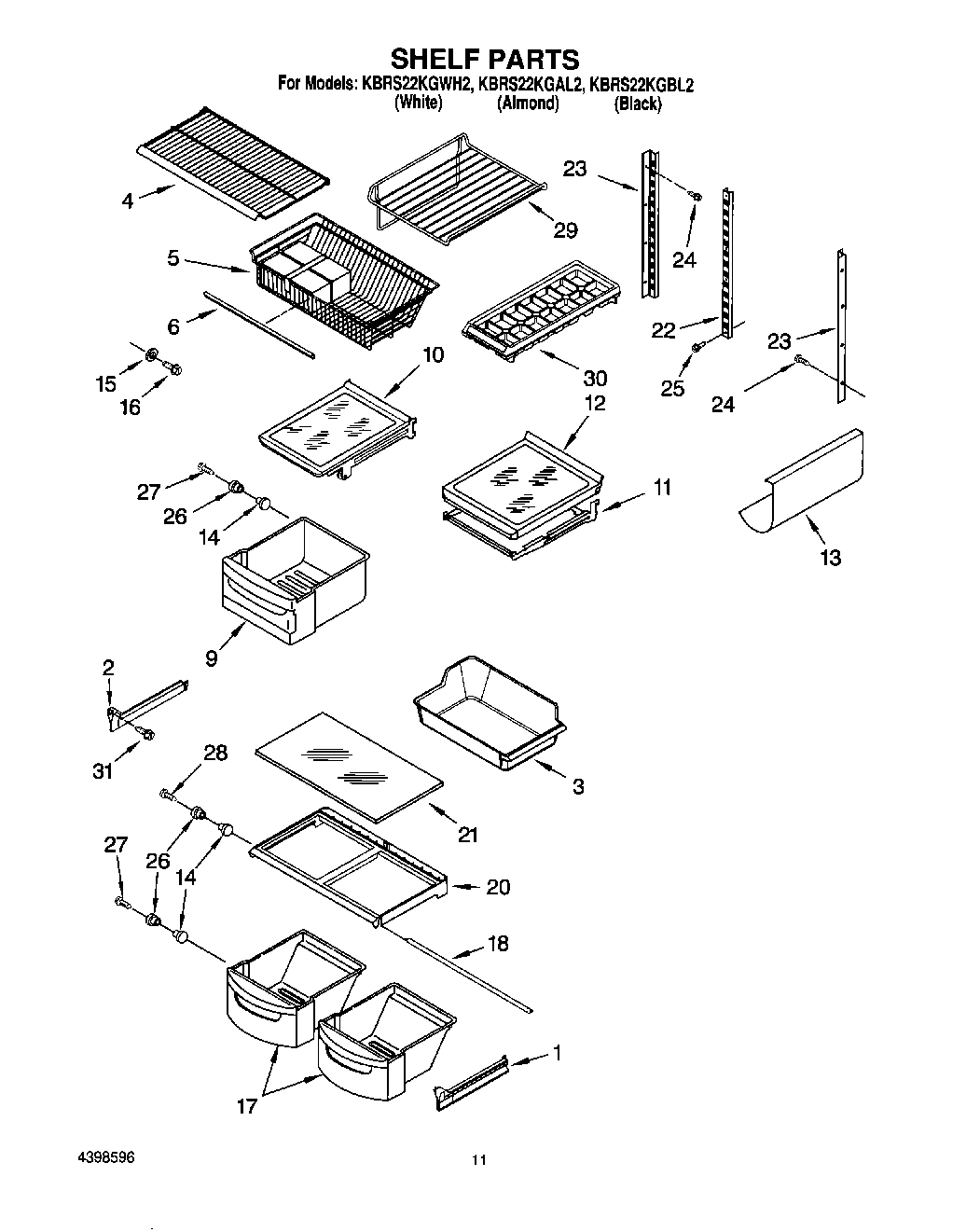

Shelf, Frz. Wire WPL 8170400 Contact Us For Availability

4

Light Lens WPL 4344205 Contact Us For Availability

5

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.46

5

Interior Panel WPL 4344355 Contact Us For Availability

5

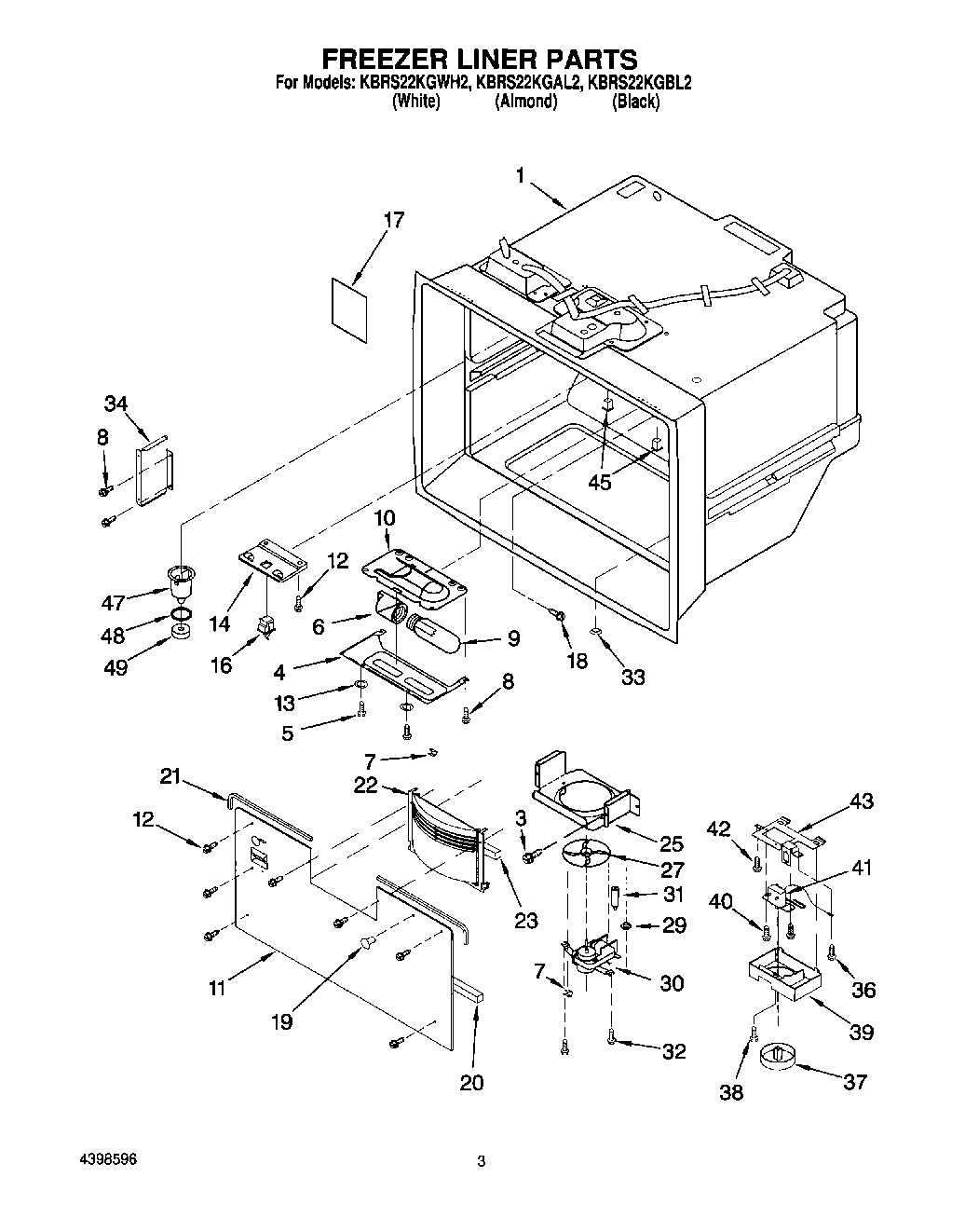

Basket, Freezer WPL 8170310 Contact Us For Availability

5

Screw WPL 4344206 Contact Us For Availability

5

Clip, Ground WPL 4343682 Contact Us For Availability

6

Shelf Bin (1) WPL 4344532 Contact Us For Availability

6

Trim, Shelf WPL 4344582 Contact Us For Availability

6

Handle, Basket WPL 8170311 Contact Us For Availability

6

Screw WPL 4344167 Contact Us For Availability

7

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $10.99

7

Heat Shield WPL 4344217 Contact Us For Availability

7

End Cap (White) WPL 4344589 Contact Us For Availability

7

End Cap (Almond) WPL 4344590 Contact Us For Availability

7

End Cap (Black) WPL 4344591 Contact Us For Availability

8

WP12550101Q Whirlpool Refrigerator Gasket Backorder WPL WP12550101Q $122.07

8

WP12550115Q Whirlpool Door Gasket In Stock WPL WP12550115Q $110.97

8

WP12550116Q Whirlpool Refrigerator Gasket In Stock WPL WP12550116Q $96.41

8

Drain Pan WPL 4344394 Contact Us For Availability

8

Door Gasket, Magnetic (Black) WPL 8170394 Contact Us For Availability

9

Screw WPL 4343759 Contact Us For Availability

9

Retainer, Insert (Black) WPL 2188182B Contact Us For Availability

9

Retainer, Insert (Almond) WPL 2188182N Contact Us For Availability

9

Retainer, Insert (White) WPL 2188182W Contact Us For Availability

9

Divider, Door Shelf WPL 4344300 Contact Us For Availability

9

Meat Pan WPL 4344307 Contact Us For Availability

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $118.74

WP10428409 Whirlpool Refrigerator Evaporator Backorder WPL WP10428409 $85.49

End Cap (White) WPL 4344592 Contact Us For Availability

End Cap (Almond) WPL 4344593 Contact Us For Availability

End Cap (Black) WPL 4344594 Contact Us For Availability

Shelf, Meat Pan WPL 8170406 Contact Us For Availability

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $3.22

Cover WPL 4343852 Contact Us For Availability

Insert, Handle (White) WPL 2188139 Contact Us For Availability

Insert, Handle (Almond) WPL 2188140 Contact Us For Availability

Insert, Handle (Black) WPL 2188141 Contact Us For Availability

Frame Assy (3) WPL 4344309 Contact Us For Availability

Cover, Evaporator WPL 4344387 Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $43.15

67003781 Whirlpool Refrigerator Door Stop (BS Backorder WPL 67003781 $36.05

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $7.10

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.76

WP4344040 Whirlpool Refrigerator Overload Backorder WPL WP4344040 $78.33

Shelf Bin (3) WPL 4344365 Contact Us For Availability

Shelf, S/G (3) WPL 4344313 Contact Us For Availability

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $3.46

Gasket WPL 4344275 Contact Us For Availability

Screw WPL 4344588 Contact Us For Availability

Rack, Wine WPL 4344294 Contact Us For Availability

Washer (4) WPL 4344211 Contact Us For Availability

Grommet WPL 4344321 Contact Us For Availability

WP10442411 Whirlpool Bimetal Defrost Thermost In Stock WPL WP10442411 $44.36

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $4.19

WP67001130 Whirlpool Refrigerator White Butto Backorder WPL WP67001130 $4.19

Eyelet, Roller WPL 2174478 Contact Us For Availability

Trivet, Door WPL 4344373 Contact Us For Availability

Plug, Button (Almond) WPL 4344534 Contact Us For Availability

Cover, Switch WPL 8170341 Contact Us For Availability

15

WP10972101 Whirlpool Refrigerator Spacer Backorder WPL WP10972101 $7.24

15

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $79.78

15

Control, Damper WPL 8170382 Contact Us For Availability

16

WP67006908 Whirlpool Refrigerator Screw In Stock WPL WP67006908 $2.59

16

Bracket, Timer WPL 8170451 Contact Us For Availability

16

Insulation, Damper WPL 4344184 Contact Us For Availability

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $47.49

Bushing (Black) WPL 4344361 Contact Us For Availability

Bushing (White) WPL 4344362 Contact Us For Availability

Pan, Crisper WPL 4344366 Contact Us For Availability

Cover, Plug WPL 4344166 Contact Us For Availability

Shield, Light WPL 8170383 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $57.89

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.85

Shield, Capacitor WPL 4344277 Contact Us For Availability

Plug, Button (Black) WPL 4344364 Contact Us For Availability

Socket, Light WPL 8170384 Contact Us For Availability

19

Clip, Wire WPL 4343969 Contact Us For Availability

19

Screw WPL 4343811 Contact Us For Availability

19

Plug, Button WPL 4344228 Contact Us For Availability

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $9.04

Drain Pan WPL 4344389 Contact Us For Availability

Cover, Pan WPL 4344368 Contact Us For Availability

Gasket, Bottom WPL 4344216 Contact Us For Availability

67007018 Whirlpool Refrigerator Bottom Hinge Backorder WPL 67007018 $4.20

Clamp, Tube WPL 4343777 Contact Us For Availability

Glass, Crisper Cover WPL 4344367 Contact Us For Availability

Gasket, Top (2) WPL 4343886 Contact Us For Availability

Light Lens, Top WPL 8170386 Contact Us For Availability

WP98165 Whirlpool Screw Backorder WPL WP98165 $3.46

Grille (Black) WPL 4344152 Contact Us For Availability

Grille (Almond) WPL 4344153 Contact Us For Availability

Grille (White) WPL 4344154 Contact Us For Availability

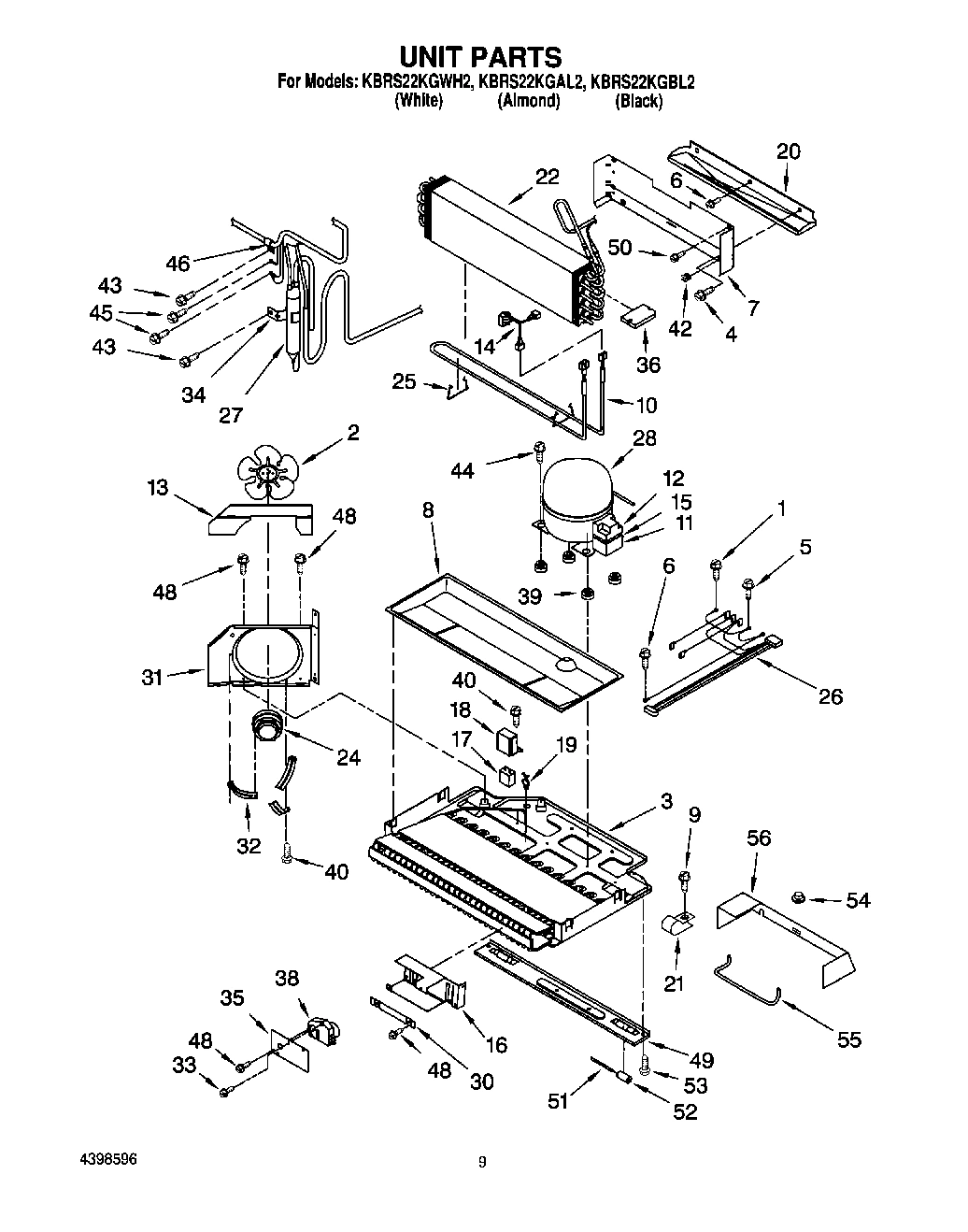

Evaporator WPL 8170402 Contact Us For Availability

Screw WPL 8170313 Contact Us For Availability

Ladder, Center WPL 4344322 Contact Us For Availability

Cover, Fan Shroud WPL 4344388 Contact Us For Availability

Screw WPL 4344267 Contact Us For Availability

Ladder, Side WPL 4344323 Contact Us For Availability

Gasket WPL 4344587 Contact Us For Availability

Gasket, Damper WPL 4343681 Contact Us For Availability

Plug, I/M WPL 4344264 Contact Us For Availability

Motor, Fan WPL 4344419 Contact Us For Availability

Plug, Button (Almond) WPL 4344363 Contact Us For Availability

Insert WPL 4343650 Contact Us For Availability

W11673433 Whirlpool Clip Backorder WPL W11673433 $69.92

Nameplate (White) WPL 4344555 Contact Us For Availability

Nameplate (Almond) WPL 4344556 Contact Us For Availability

Nameplate (Black) WPL 4344557 Contact Us For Availability

Screw WPL 4344324 Contact Us For Availability

Evap. Fan Shroud WPL 8170387 Contact Us For Availability

Cover, Control WPL 8170371 Contact Us For Availability

Wire Cover WPL 4344257 Contact Us For Availability

Harness, Unit WPL 4344569 Contact Us For Availability

Roller WPL 2174388 Contact Us For Availability

Knob, Control WPL 4344180 Contact Us For Availability

W10116797 Whirlpool Refrigerator Fan Blade Backorder WPL W10116797 $4.19

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $26.71

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $4.77

Back Cover WPL 8170375 Contact Us For Availability

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $403.27

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.71

Harness, Control WPL 8170449 Contact Us For Availability

Butter Dish WPL 4344296 Contact Us For Availability

W10833899 Whirlpool Refrigerator Water Inlet In Stock WPL W10833899 $178.31

Holder, Beverage WPL 4344374 Contact Us For Availability

Rack, Ice Tray WPL 8170401 Contact Us For Availability

Grommet WPL 8170388 Contact Us For Availability

Plug, Button WPL 4344241 Contact Us For Availability

WP12013209Q Whirlpool Refrigerator Evaporator In Stock WPL WP12013209Q $231.05

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $4.45

Cover, Unit WPL 8170377 Contact Us For Availability

Washer WPL 4344282 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.20

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

350956 Whirlpool Spray Assembly In Stock WPL 350956 $17.07

4396418 Whirlpool Ice Maker Backorder WPL 4396418 $206.42

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $24.57

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $52.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.19

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $47.27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $70.54

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.60

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Shroud WPL 4344554 Contact Us For Availability

Ice Container Assembly WPL 4343700 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Spacer WPL 8170390 Contact Us For Availability

32

Power Cord WPL 4344263 Contact Us For Availability

32

Bracket, Fan Motor WPL 4344272 Contact Us For Availability

32

Screw (2) WPL 8170391 Contact Us For Availability

33

Grommet WPL 4344259 Contact Us For Availability

33

Screw WPL 4343749 Contact Us For Availability

33

Plug, Button WPL 4344227 Contact Us For Availability

34

PLug WPL 4344260 Contact Us For Availability

34

Clip, Drier WPL 4343763 Contact Us For Availability

34

Duct, Return Air WPL 4344222 Contact Us For Availability

35

Cover, Timer WPL 4344552 Contact Us For Availability

36

Screw WPL 4343860 Contact Us For Availability

36

Block, Evaporator WPL 4344234 Contact Us For Availability

37

Knob, Control WPL 4344214 Contact Us For Availability

38

R0131577 Whirlpool Defrost Timer In Stock WPL R0131577 $39.59

38

Shim, Hinge WPL 4344515 Contact Us For Availability

38

Screw WPL 4344224 Contact Us For Availability

39

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $4.77

39

Grommet (4) WPL 4343845 Contact Us For Availability

39

Cover, Frz. Control WPL 8170392 Contact Us For Availability

40

Shim, Hinge WPL 4344286 Contact Us For Availability

40

Screw WPL 4344562 Contact Us For Availability

40

Screw WPL 4343861 Contact Us For Availability

41

W10752646 Whirlpool Control Thermostat In Stock WPL W10752646 $107.48

41

Hinge Top WPL 4344172 Contact Us For Availability

Hinge Cover (Black) WPL 4344195 Contact Us For Availability

Hinge Cover (Almond) WPL 8170378 Contact Us For Availability

Hinge Cover (White) WPL 8170379 Contact Us For Availability

Clip, Evaporator WPL 4344219 Contact Us For Availability

43

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $3.22

43

Bracket, Control WPL 4344578 Contact Us For Availability

44

Screw WPL 8170380 Contact Us For Availability

44

Screw WPL 4343847 Contact Us For Availability

45

W11573574 Whirlpool Screw In Stock WPL W11573574 $11.39

46

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $8.00

46

Clamp WPL 4343661 Contact Us For Availability

47

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $29.53

47

Cabinet (Not A Serviceable Part) WPL ARI80117A3 Contact Us For Availability

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $6.05

Shim (White) WPL 4344200 Contact Us For Availability

Shim (Black) WPL 4344201 Contact Us For Availability

Screw WPL 4344395 Contact Us For Availability

49

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $4.19

49

Cabinet, Brace WPL 4344297 Contact Us For Availability

51

Axle-Roller WPL 4344289 Contact Us For Availability

52

Roller-Rear WPL 4344288 Contact Us For Availability

53

Screw WPL 4344292 Contact Us For Availability

54

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $6.28

55

Drain Tube WPL 4344283 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.43

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $33.30

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $40.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $42.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $31.24

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Insulation WPL 4344595 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
