Model Whirlpool KBLS36MHW01 BUILT-IN BOTTOM MOUNT REFRIGERATOR – Common Parts & Diagrams
01 - CABINET, LITERATURE

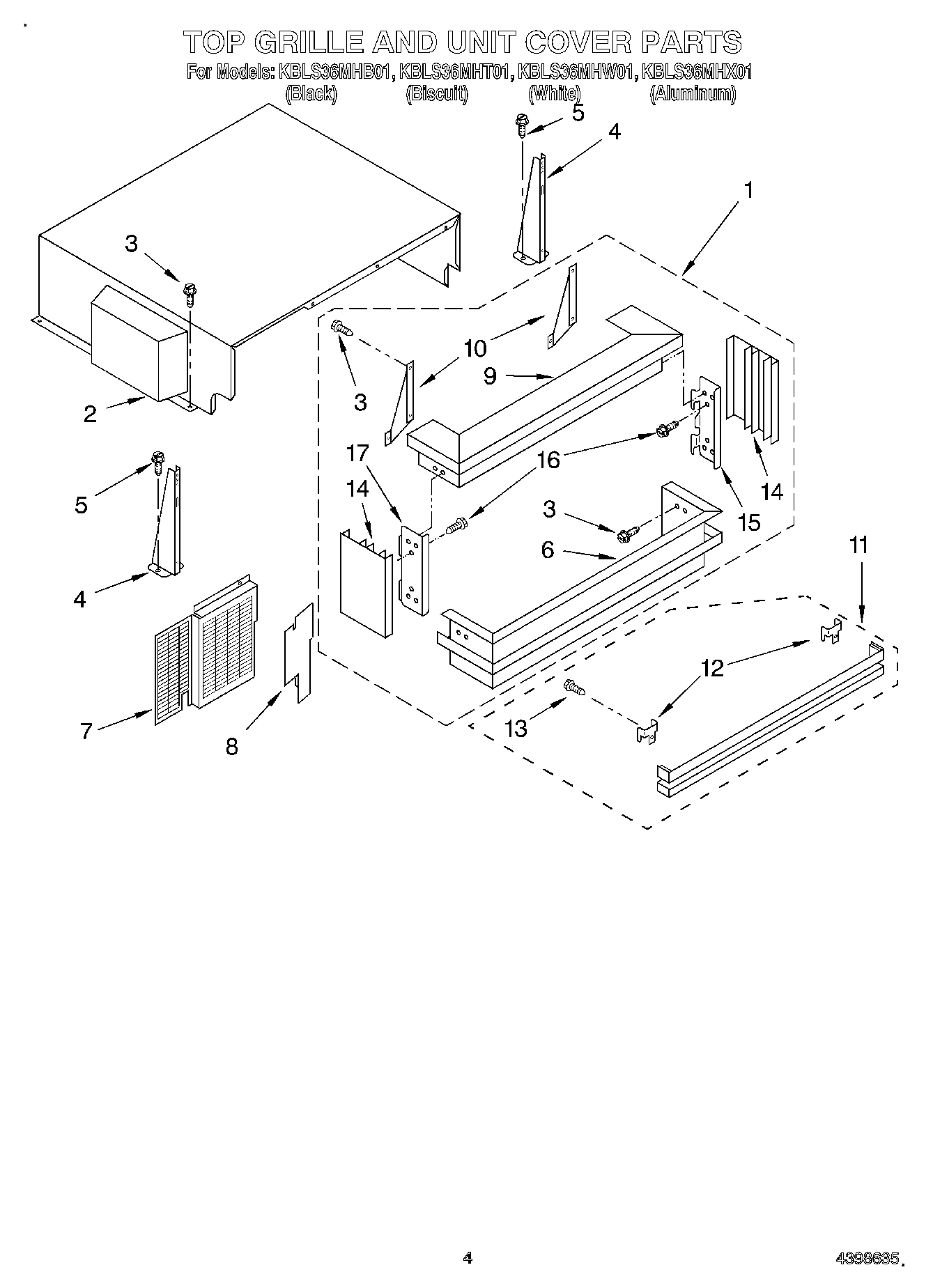

03 - TOP GRILLE AND UNIT COVER

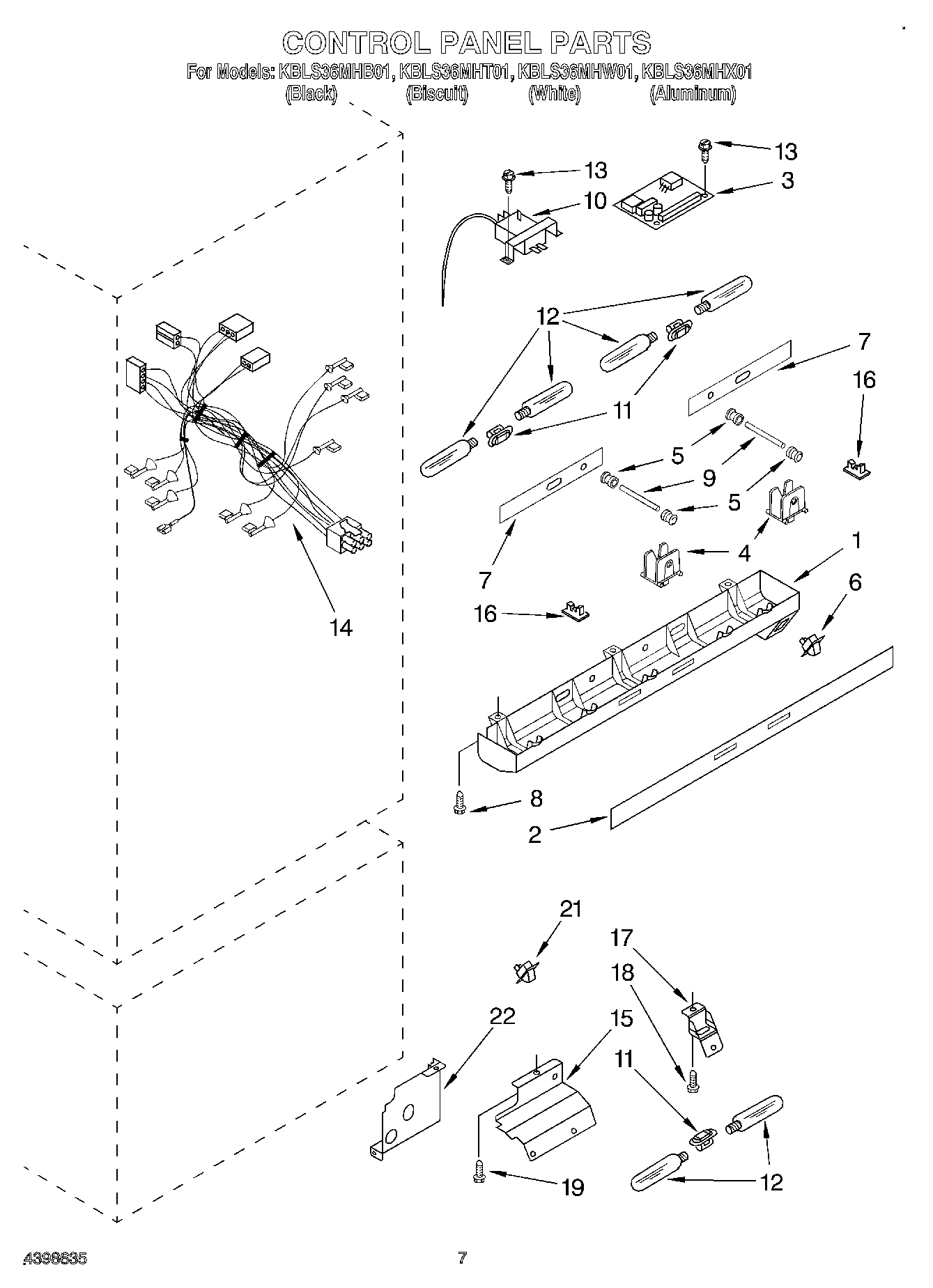

05 - CONTROL PANEL

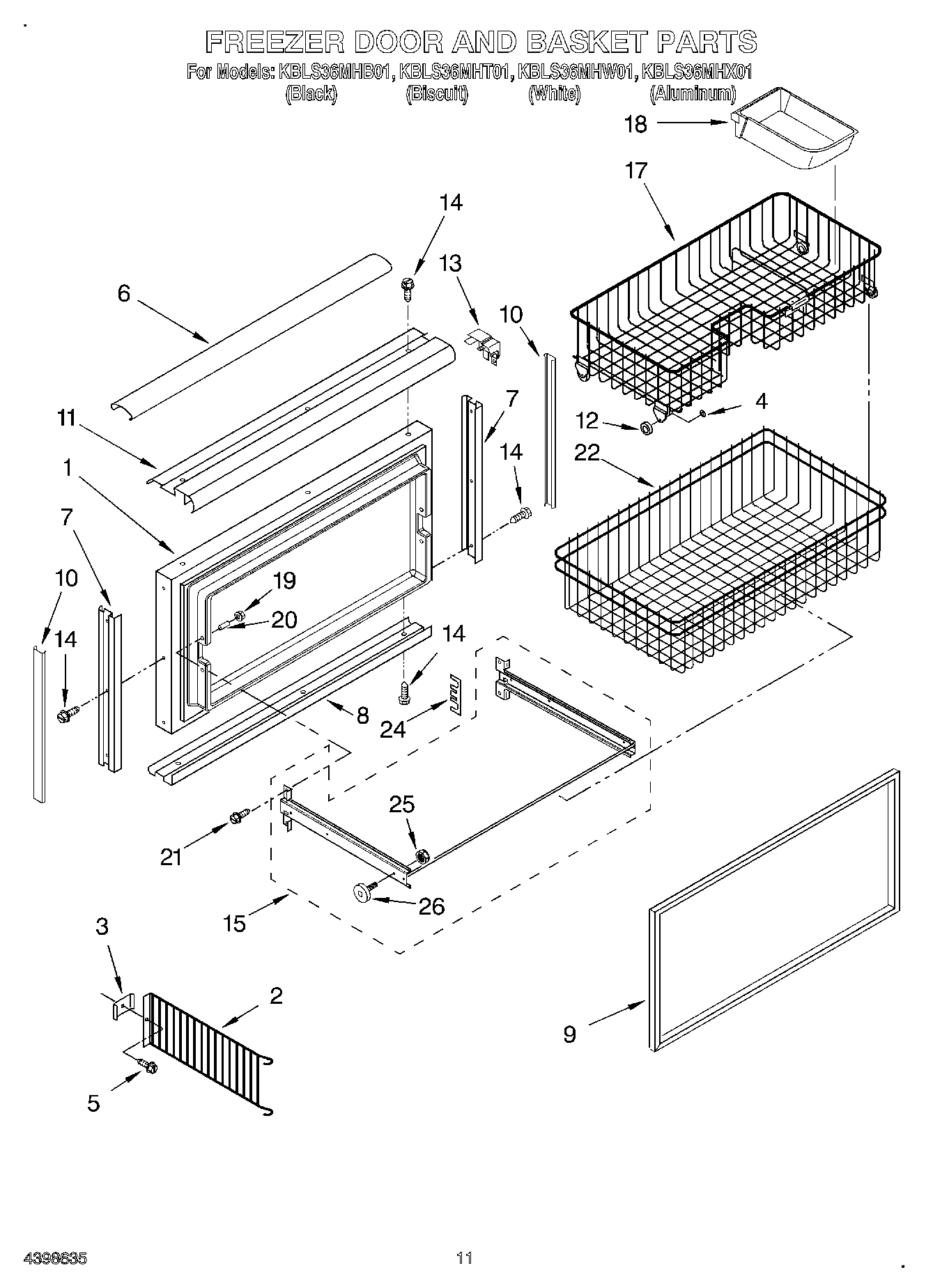

07 - FREEZER DOOR AND BASKET

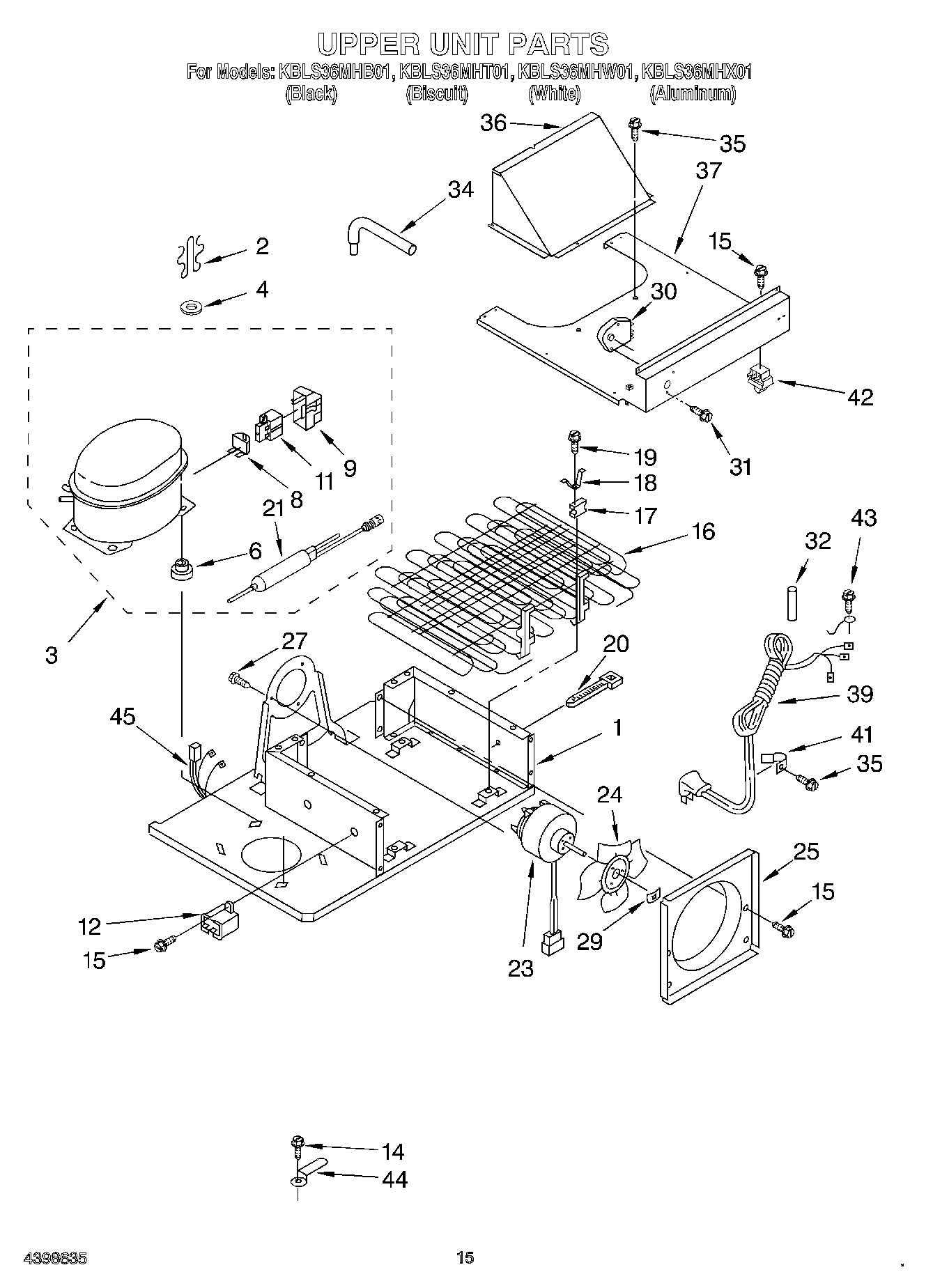

09 - UPPER UNIT

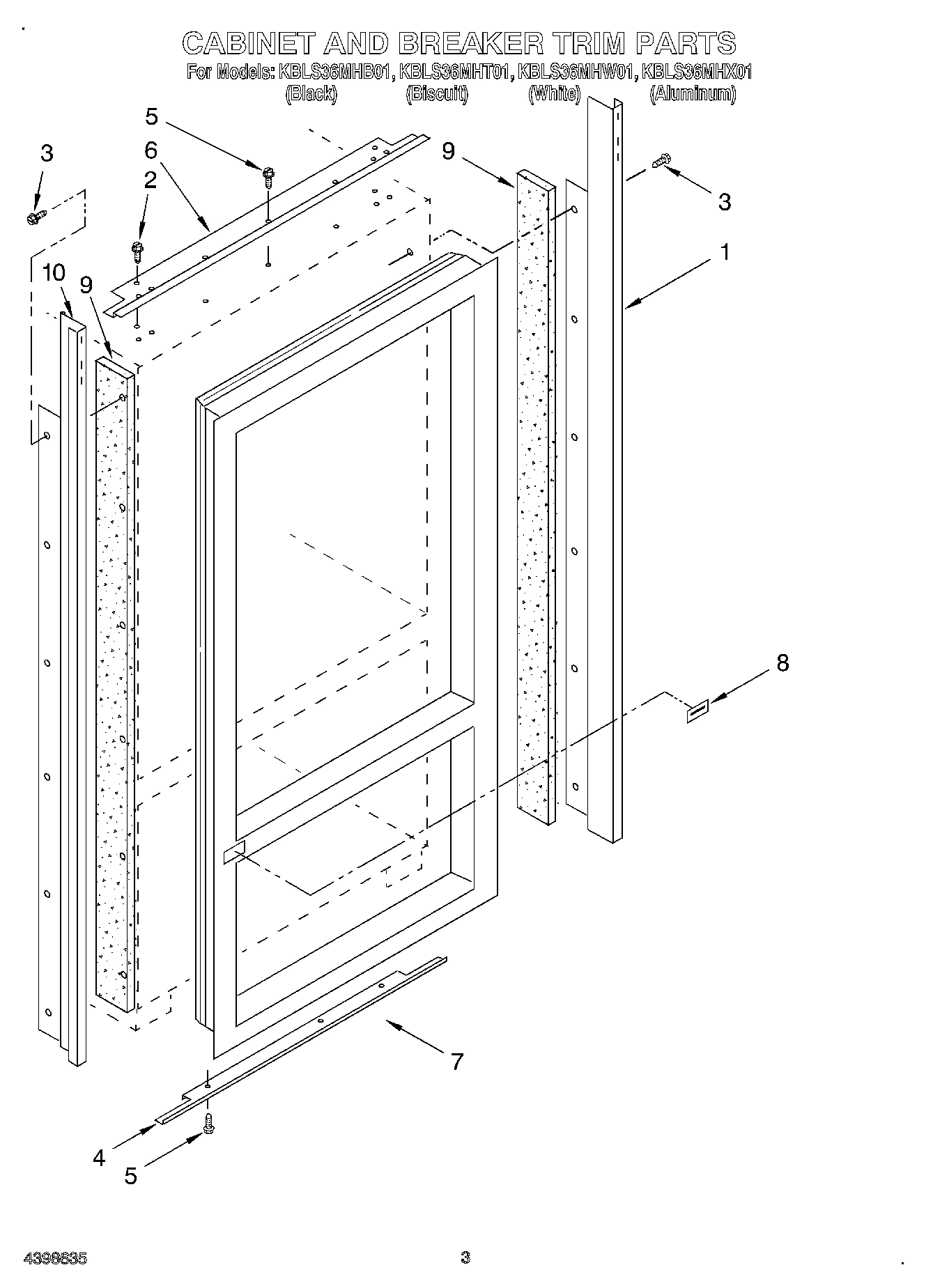

02 - CABINET AND BREAKER TRIM

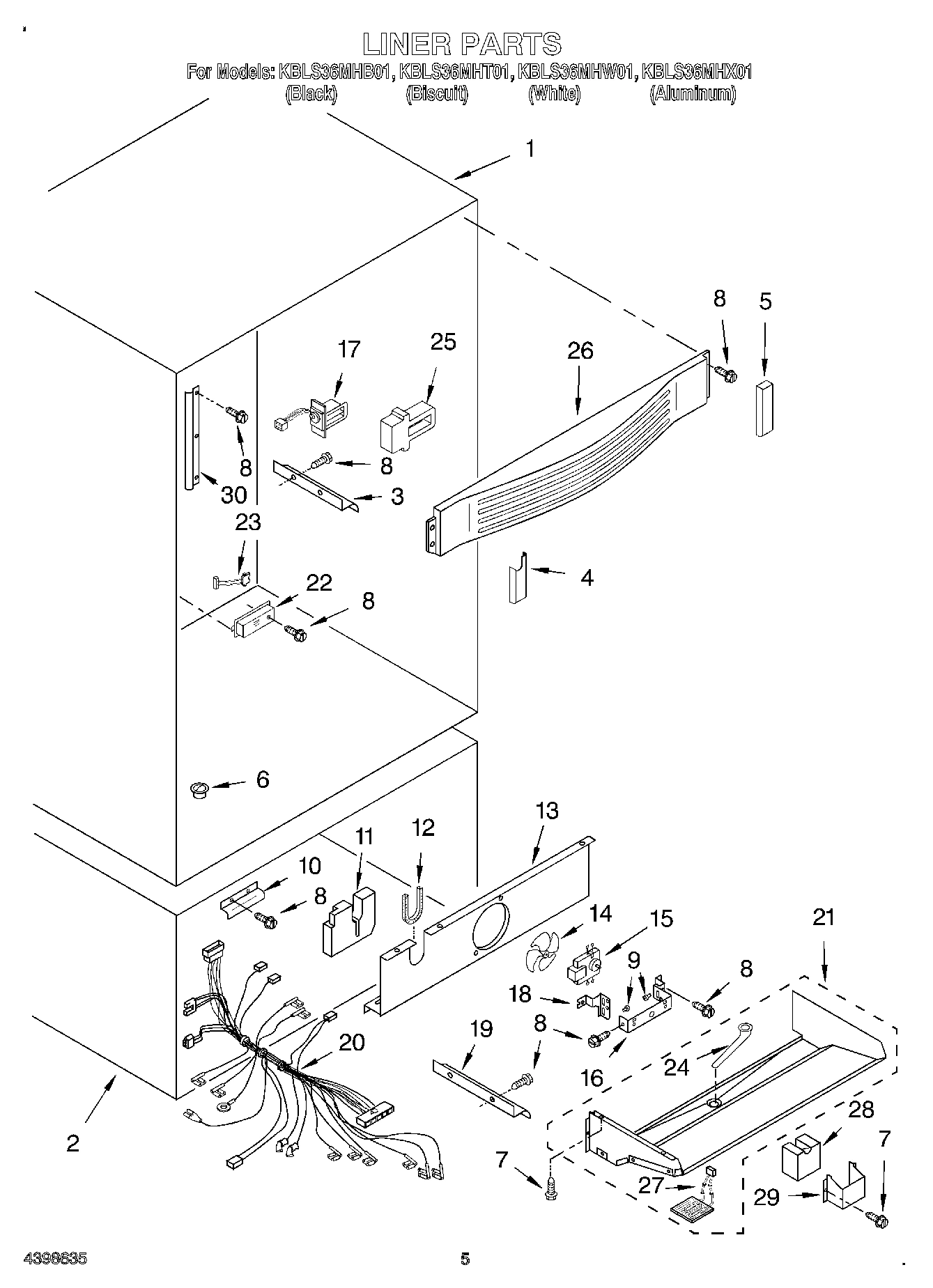

04 - LINER

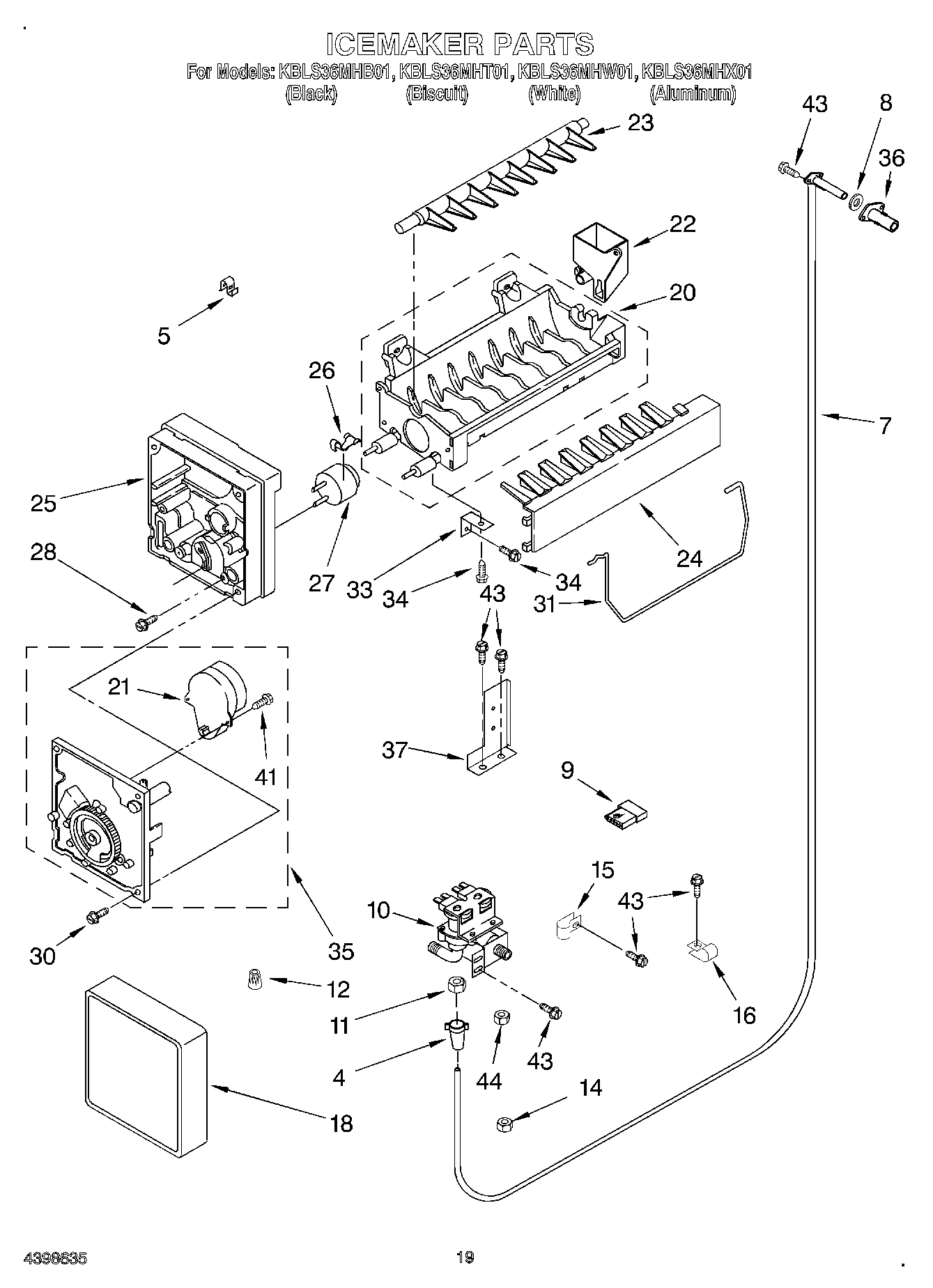

11 - ICE MAKER

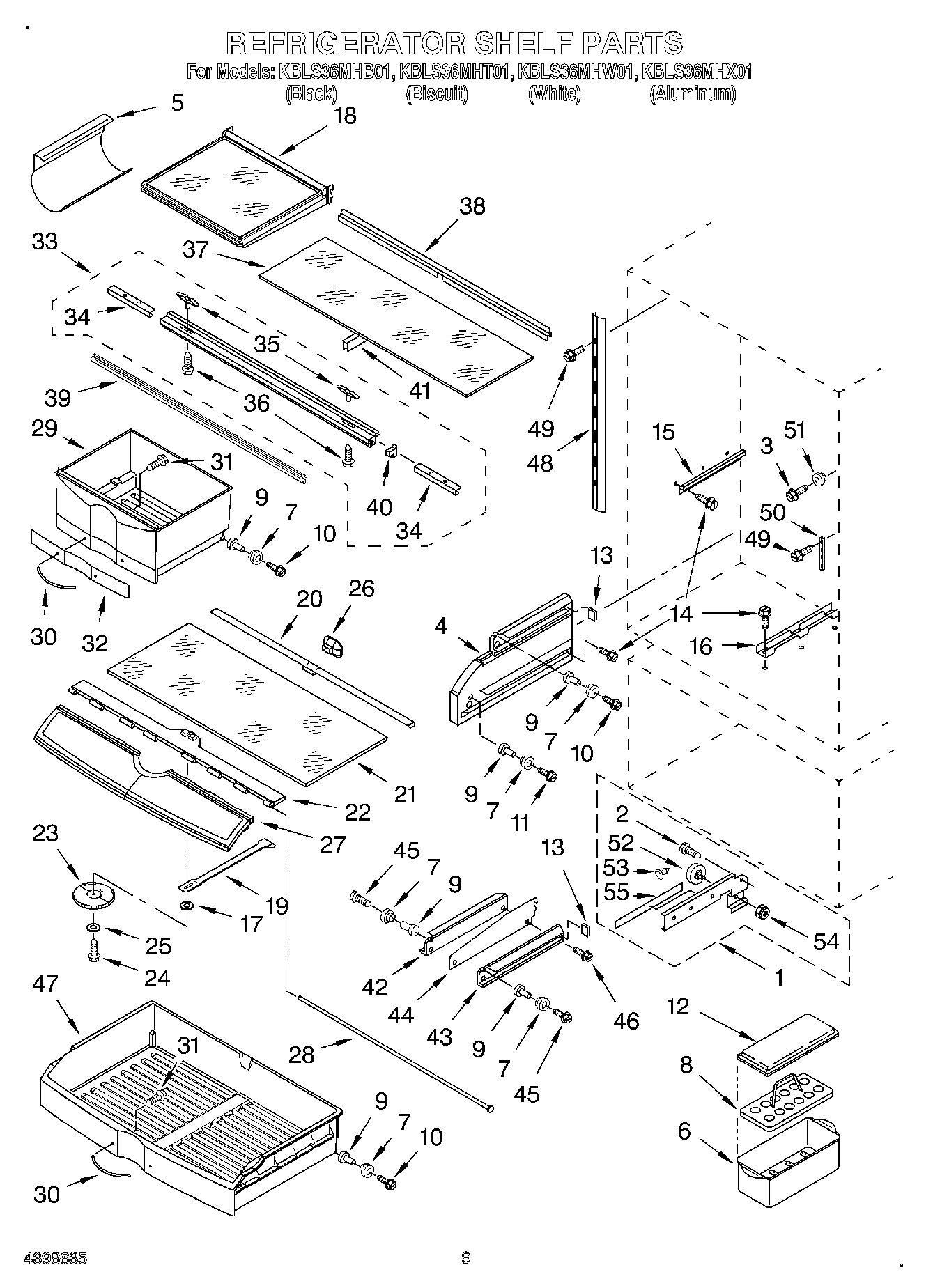

06 - REFRIGERATOR SHELF

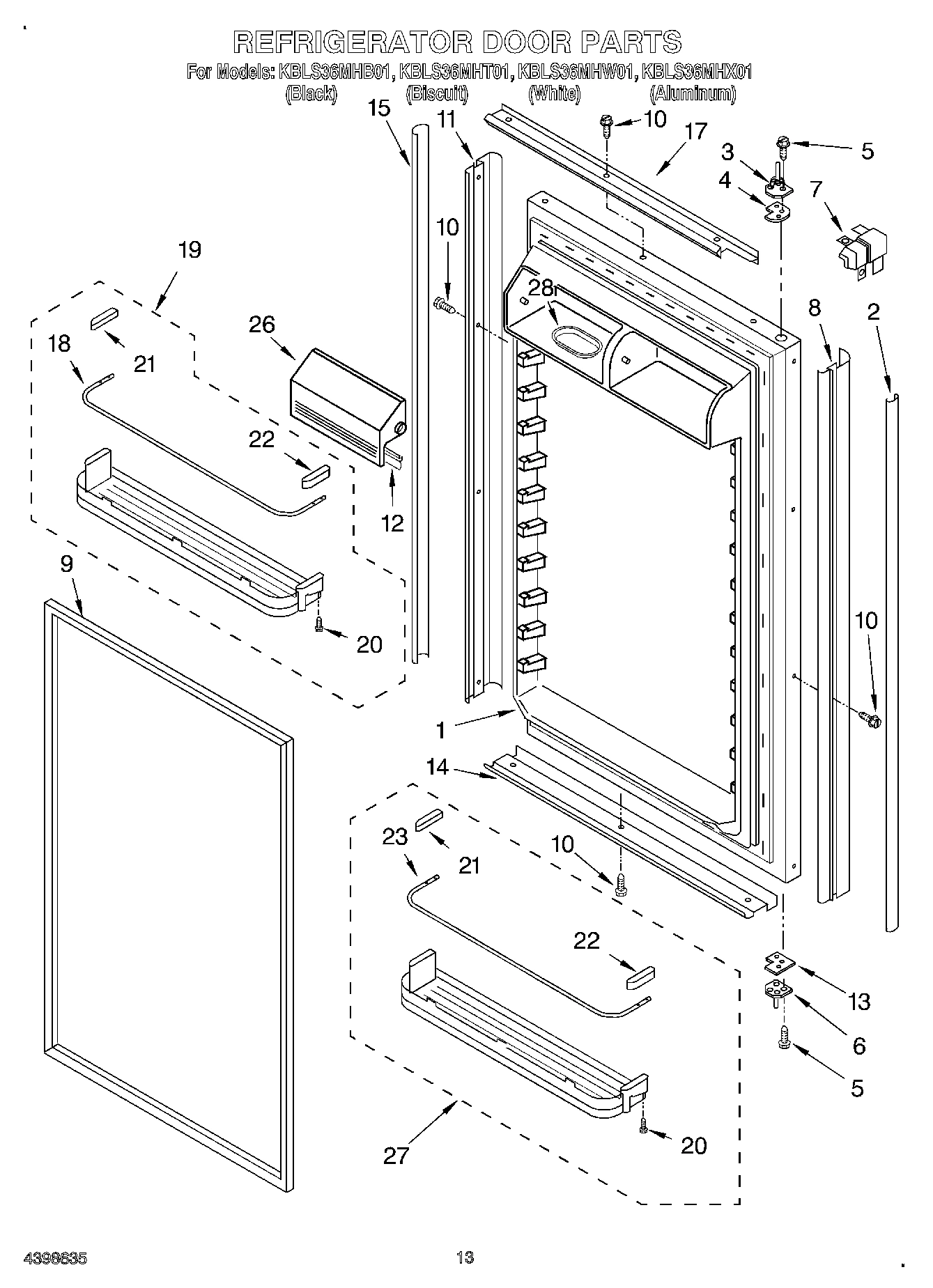

08 - REFRIGERATOR DOOR

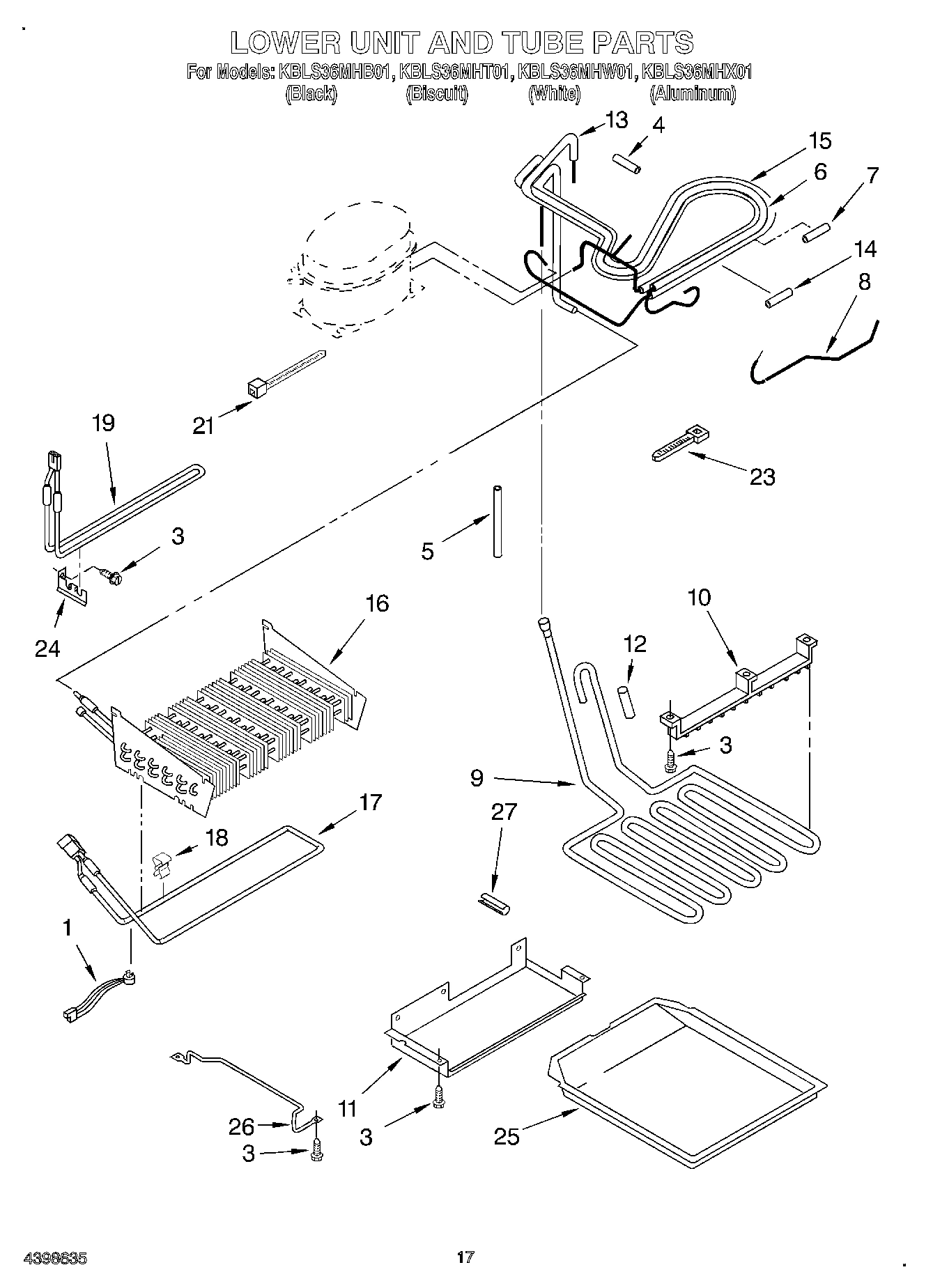

10 - LOWER UNIT AND TUBE
Common parts from model Whirlpool KBLS36MHW01 BUILT-IN BOTTOM MOUNT REFRIGERATOR
1
Control Panel WPL 2005489 Contact Us For Availability
1
Freezer Door Panel (Includes Item 9) WPL 2207525 Contact Us For Availability
1
Assembly, Unit Base WPL 2003398 Contact Us For Availability
1
Cabinet Trim, Right Side (Aluminum) WPL 2006209 Contact Us For Availability
1
Cabinet Trim, Right Side (White) WPL 2006210 Contact Us For Availability
1
Cabinet Trim, Right Side (Black) WPL 2006211 Contact Us For Availability
1
Cabinet Trim, Right Side (Biscuit) WPL 2006212 Contact Us For Availability
1
Liner, Refrigerator (Not Serviceable) WPL ARI79061A3 Contact Us For Availability
1
Slide, Freezer Basket (Right Side) WPL 2207520 Contact Us For Availability
1
Slide, Freezer Basket (Left Side) WPL 2207521 Contact Us For Availability
1
Refrigerator Door (Includes Item 9) WPL 2005168 Contact Us For Availability
1
Defrost Bi-Metal WPL 2207482 Contact Us For Availability
2
Overlay, Control Panel WPL 2005940 Contact Us For Availability
2
Divider, Basket WPL 2204525 Contact Us For Availability
2
Clip, Compressor Mounting (4) WPL 2163787 Contact Us For Availability
2
Screw WPL 2003857 Contact Us For Availability
2
Liner, Freezer (Not a Serviceable Part) WPL ARI79062A8 Contact Us For Availability
2
Screw, 8-15 x 1.00 WPL 9751808 Contact Us For Availability
2
Cover-Trim, Handle (Aluminum) WPL 2006337 Contact Us For Availability
2
Cover-Trim, Handle (White) WPL 2006338 Contact Us For Availability
2
Cover-Trim, Handle (Biscuit) WPL 2006340 Contact Us For Availability
2
Cover-Trim, Handle (Black) WPL 2006341 Contact Us For Availability
3
Circuit Board WPL 2005585 Contact Us For Availability
3
Clamp, Divider WPL 2207429 Contact Us For Availability
3
Repair, Screw WPL 487246 Contact Us For Availability
3
Wiring Channel Side WPL 2005775 Contact Us For Availability
3
Hinge Assembly, Top WPL 2005171 Contact Us For Availability
4
Slide, Control WPL 2005414 Contact Us For Availability
4
Washer WPL 680975 Contact Us For Availability
4
Cabinet, Trim (Bottom) WPL 2209073 Contact Us For Availability
4
Diffuser Cap, Left Side WPL 2005932 Contact Us For Availability
4
Spacer, Crisper (Right Side) WPL 2005138 Contact Us For Availability
4
Spacer, Crisper (Left Side) WPL 2005139 Contact Us For Availability
4
Spacer-Hinge, Top WPL 2004520 Contact Us For Availability
5
Grommet, Light Fiber WPL 2172906 Contact Us For Availability
5
Diffuser Cap, Right Side WPL 2005931 Contact Us For Availability
6
Cover-Trim, Handle (Aluminum) WPL 2006327 Contact Us For Availability
6
Cover-Trim, Handle (White) WPL 2006328 Contact Us For Availability
6
Cover-Trim, Handle (Biscuit) WPL 2006330 Contact Us For Availability
6
Cover-Trim, Handle (Black) WPL 2006331 Contact Us For Availability
6
Cabinet, Trim Top WPL 2003645 Contact Us For Availability
6
Hinge Assembly, Bottom WPL 2003985 Contact Us For Availability
6
Condenser Inlet Tube WPL 2005577 Contact Us For Availability
7
Heat Shield, Lamp WPL 2005935 Contact Us For Availability
7
Trim-Door, Side (Aluminum) WPL 2005868 Contact Us For Availability
7
Trim-Door, Side (White) WPL 2005869 Contact Us For Availability
7
Trim-Door, Side (Biscuit) WPL 2006303 Contact Us For Availability
7
Trim-Door, Side (Black) WPL 2006304 Contact Us For Availability
7
Trim, Corner (White) WPL 2006270 Contact Us For Availability
7
Trim, Corner (Biscuit) WPL 2006272 Contact Us For Availability
7
Trim, Corner (Black) WPL 2006273 Contact Us For Availability
7
Breaker Trim WPL 2005786 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2005009 Contact Us For Availability
7
Roller WPL 2188212 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2003015 Contact Us For Availability
8
Screw (3) WPL 489260 Contact Us For Availability
8
Trim-Door, Bottom (Aluminum) WPL 2006278 Contact Us For Availability
8
Trim-Door, Bottom (White) WPL 2006279 Contact Us For Availability
8
Trim-Door, Bottom (Biscuit) WPL 2006281 Contact Us For Availability
8
Trim-Door, Bottom (Black) WPL 2006282 Contact Us For Availability
8
Cover, Hinge WPL 2005782 Contact Us For Availability
8
Trim-Door, Side (Aluminum) WPL 2005859 Contact Us For Availability
8
Trim-Door, Side (White) WPL 2005860 Contact Us For Availability
8
Trim-Door, Side (Biscuit) WPL 2006276 Contact Us For Availability
8
Trim-Door, Side (Black) WPL 2006277 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Fiber Optic WPL 2179920 Contact Us For Availability
9
Eyelet, Roller WPL 2174478 Contact Us For Availability
9
Door Gasket, Magnetic WPL 2188411 Contact Us For Availability
9
Grommet WPL 548268 Contact Us For Availability
9
Connector WPL 2154472 Contact Us For Availability
9
Door Gasket, Magnetic WPL 2188410 Contact Us For Availability
10
Screw WPL 2005921 Contact Us For Availability
10
Thermostat WPL 2207475 Contact Us For Availability
10
Cover-Trim, Side (Aluminum) WPL 2006322 Contact Us For Availability
10
Cover-Trim, Side (White) WPL 2006323 Contact Us For Availability
10
Cover-Trim, Side (Biscuit) WPL 2006325 Contact Us For Availability
10
Cover-Trim, Side (Black) WPL 2006326 Contact Us For Availability
10
Cabinet Trim, Left Side (Aluminum) WPL 2006213 Contact Us For Availability
10
Cabinet Trim, Left Side (White) WPL 2006214 Contact Us For Availability
10
Cabinet Trim, Left Side (Black) WPL 2006215 Contact Us For Availability
10
Cabinet Trim, Left Side (Biscuit) WPL 2006216 Contact Us For Availability
10
Wiring Channel, Freezer Rear WPL 2006148 Contact Us For Availability
10
Valve, Solenoid WPL 2006766 Contact Us For Availability
10
Hanger, Heater WPL 1113062 Contact Us For Availability
11
Socket, Light WPL 2005043 Contact Us For Availability
11
Handle, Door (Aluminum) WPL 2005188 Contact Us For Availability
11
Handle, Door (White) WPL 2005392 Contact Us For Availability
11
Handle, Door (Biscuit) WPL 2006291 Contact Us For Availability
11
Handle, Door (Black) WPL 2006292 Contact Us For Availability
11
Foam, Fan Shroud WPL 2204505 Contact Us For Availability
11
Handle, Door (Aluminum) WPL 2005853 Contact Us For Availability
11
Handle, Door (White) WPL 2005854 Contact Us For Availability
11
Handle, Door (Biscuit) WPL 2006299 Contact Us For Availability
11
Handle, Door (Black) WPL 2006300 Contact Us For Availability
11
Shield, Drain Pan WPL 2005908 Contact Us For Availability
12
Capacitor WPL 2169137 Contact Us For Availability
12
Grommet, Flexible WPL 2207430 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
12
Cover WPL 2169935 Contact Us For Availability
12
Gasket (2) WPL 2005982 Contact Us For Availability
12
Sleeve WPL 2002448 Contact Us For Availability
13
Stop, Roller WPL 1113169 Contact Us For Availability
13
Shroud, Evaporator Fan WPL 2204506 Contact Us For Availability
13
Spacer-Hinge, Bottom WPL 2003982 Contact Us For Availability
13
Tube, Discharge WPL 2002995 Contact Us For Availability
14
Trim-Side, Panel (White) WPL 2006167 Contact Us For Availability
14
Trim-Side, Panel (Black) WPL 2006171 Contact Us For Availability
14
Trim-Side, Panel (Biscuit) WPL 2006175 Contact Us For Availability
14
Harness, Control Box WPL 2207480 Contact Us For Availability
14
Screw WPL 486899 Contact Us For Availability
14
Plug, Water Valve WPL 2215656 Contact Us For Availability
14
Trim-Door, Bottom (Aluminum) WPL 2005862 Contact Us For Availability
14
Trim-Door, Bottom (White) WPL 2005863 Contact Us For Availability
14
Trim-Door, Bottom (Biscuit) WPL 2006285 Contact Us For Availability
14
Trim-Door, Bottom (Black) WPL 2006286 Contact Us For Availability
15
Heat Exchanger WPL 2005103 Contact Us For Availability
15
Bracket-Panel, Right Side WPL 2006161 Contact Us For Availability
15
Channel, Wiring Freezer Light WPL 2207411 Contact Us For Availability
15
Bracket, Assembly Freezer Basket WPL 2207533 Contact Us For Availability
15
Support, Crisper Shelf (2) WPL 2005987 Contact Us For Availability
15
Cover-Trim, Side (Aluminum) WPL 2006332 Contact Us For Availability
15
Cover-Trim, Side (White) WPL 2006333 Contact Us For Availability
15
Cover-Trim, Side (Biscuit) WPL 2006335 Contact Us For Availability
15
Cover-Trim, Side (Black) WPL 2006336 Contact Us For Availability
16
CLIP, WIRING WPL 1115375 Contact Us For Availability
16
Condenser WPL 2003392 Contact Us For Availability
16
Bracket (Single) WPL 938224 Contact Us For Availability
16
Rail, Deli Center WPL 2006454 Contact Us For Availability
16
Evaporator (Also Order Item 15) WPL 2204539 Contact Us For Availability
17
Heater, Defrost (Front) WPL 2207485 Contact Us For Availability
17
Screw, Door Stop WPL 2001295 Contact Us For Availability
17
Bracket-Panel, Left Side WPL 2006160 Contact Us For Availability
17
Bracket, Freezer Light WPL 2207410 Contact Us For Availability
17
Basket, Upper WPL 2005376 Contact Us For Availability
17
Grommet (4) WPL 943447 Contact Us For Availability
17
Air Baffle Assembly WPL 2005584 Contact Us For Availability
17
Trim-Door, Top (Aluminum) WPL 2005865 Contact Us For Availability
17
Trim-Door, Top (White) WPL 2005866 Contact Us For Availability
17
Trim-Door, Top (Biscuit) WPL 2006289 Contact Us For Availability
17
Trim-Door, Top (Black) WPL 2006290 Contact Us For Availability
18
Pan, Ice Cube WPL 2174124 Contact Us For Availability
18
Clamp (4) WPL 1113019 Contact Us For Availability
18
Bracket (Double) WPL 548263 Contact Us For Availability
18
Shelf (4) WPL 2005571 Contact Us For Availability
18
Tube, Door Shelf WPL 2005482 Contact Us For Availability
18
Clamp, Heater (4) WPL 2204510 Contact Us For Availability
19
Cam, Door Closer WPL 2005783 Contact Us For Availability
19
Screw WPL 487522 Contact Us For Availability
19
Wiring Channel Freezer, Side WPL 2006147 Contact Us For Availability
19
Air Damper, Deli WPL 2005429 Contact Us For Availability
19
Shelf, Door (2) WPL 2005417 Contact Us For Availability
19
Heater, Defrost (Rear) WPL 2207486 Contact Us For Availability
20
Bushing WPL 2207471 Contact Us For Availability
20
Wiring Harness, Freezer WPL 2207481 Contact Us For Availability
20
Rail-Rear, Deli WPL 2005151 Contact Us For Availability
21
Screw WPL 3400507 Contact Us For Availability
21
Cover, Evaporator Assembly WPL 2204504 Contact Us For Availability
21
Glass Shelf, Deli WPL 2005152 Contact Us For Availability
21
End Cap, Left WPL 2005542 Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
22
Wiring Cover, Icemaker WPL 2005792 Contact Us For Availability
22
Basket, Freezer Lower WPL 2006244 Contact Us For Availability
22
Rail-Front, Deli WPL 2005153 Contact Us For Availability
22
End Cap, Right WPL 2005541 Contact Us For Availability
23
Thermistor WPL 1116959 Contact Us For Availability
23
Strap WPL 851095 Contact Us For Availability
23
Motor, Fan WPL 2208903 Contact Us For Availability
23
Control Knob, Deli WPL 2005415 Contact Us For Availability
23
Tube, Door Shelf (Gallon) WPL 2006152 Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
24
Spacer WPL 2207576 Contact Us For Availability
24
Drain Tube, Condesate WPL 2204514 Contact Us For Availability
24
Support, Heater WPL 2204543 Contact Us For Availability
25
Orifice, Fan WPL 2003169 Contact Us For Availability
25
Insulation, Baffle WPL 2005117 Contact Us For Availability
25
Washer WPL 2006252 Contact Us For Availability
26
Roller WPL 2207550 Contact Us For Availability
26
Cover, Air Diffuser WPL 2005422 Contact Us For Availability
26
Connector, Deli Pan WPL 2005165 Contact Us For Availability
26
Door, Utility Bin (2) ( WPL 2005419 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
27
Heater-Tube, Drain WPL 2204595 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
27
Lid, Deli Pan WPL 2005428 Contact Us For Availability
27
WPL 2006154 WPL 2006154 Contact Us For Availability
28
Insulation, Tube Drain WPL 2204538 Contact Us For Availability
28
Hinge Rod, Deli Pan WPL 2005923 Contact Us For Availability
28
WPL 2165792 WPL 2165792 Contact Us For Availability
29
Cover, Tube Drain WPL 2204537 Contact Us For Availability
29
Cripser Pan WPL 2005157 Contact Us For Availability
30
Guard, Capillary Tube WPL 2006476 Contact Us For Availability
30
Handle, Crisper Pan WPL 2005480 Contact Us For Availability
31
Shut Off Arm WPL 2208981 Contact Us For Availability
32
Sleeve, Condenser WPL 2000645 Contact Us For Availability
32
Overlay, Crisper Pan WPL 2005986 Contact Us For Availability
33
Rail-Front, Crisper Shelf WPL 2005424 Contact Us For Availability
34
Process, Tube WPL 2003011 Contact Us For Availability
34
Vent, Crisper Shelf WPL 2005425 Contact Us For Availability
35
Slide-Humidity, Crisper Shelf WPL 2005413 Contact Us For Availability
36
Heater, Fill Tube WPL 2004594 Contact Us For Availability
36
Cover, Fan WPL 2003174 Contact Us For Availability
37
Cover, Condenser WPL 2005535 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2004914 Contact Us For Availability
37
Glass, Crisper Shelf WPL 2005477 Contact Us For Availability
38
Rail-Rear, Crisper Shelf WPL 2005478 Contact Us For Availability
39
Service Cord WPL 2003381 Contact Us For Availability
39
Seal-Front, Crisper Shelf WPL 2005479 Contact Us For Availability
40
Insulation, Crisper Rail WPL 2005984 Contact Us For Availability
41
Clamp, Cord (2) WPL 1113162 Contact Us For Availability
41
Baffle-Center, Crisper Shelf WPL 2005985 Contact Us For Availability
42
Center Support, Left Half WPL 2005794 Contact Us For Availability
43
Center Support, Right Half WPL 2005795 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
44
Compresion Nut WPL 1129179 Contact Us For Availability
44
Bracket, Center Support WPL 2005796 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2207479 Contact Us For Availability
45
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
47
Deli Pan WPL 2005163 Contact Us For Availability
48
Ladder, Shelf (4) WPL 2005410 Contact Us For Availability
50
Ladder, Crisper Support WPL 2005797 Contact Us For Availability
52
Roller WPL 2207462 Contact Us For Availability
53
Bumper WPL 2207522 Contact Us For Availability
55
Shim WPL 2207569 Contact Us For Availability
× ![]()
