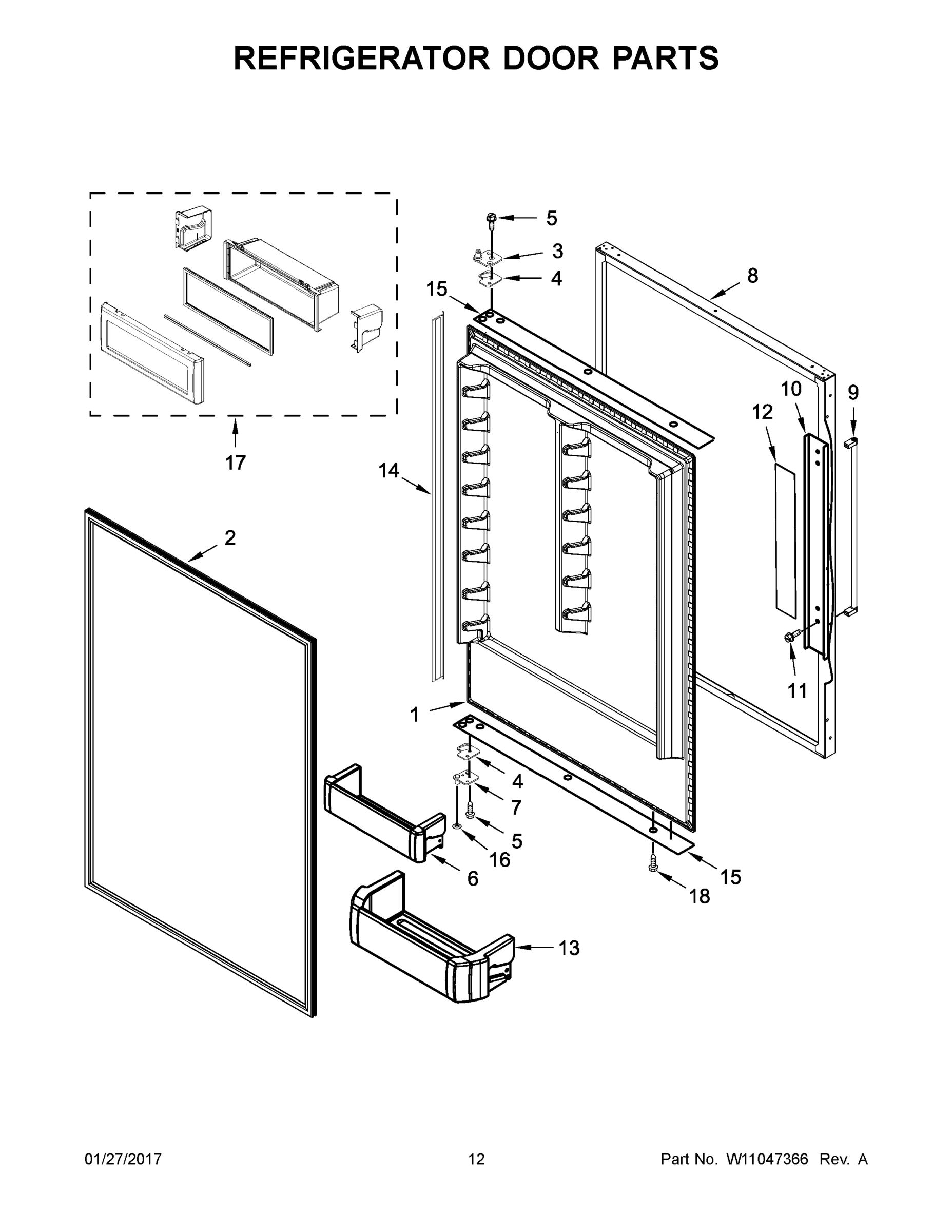

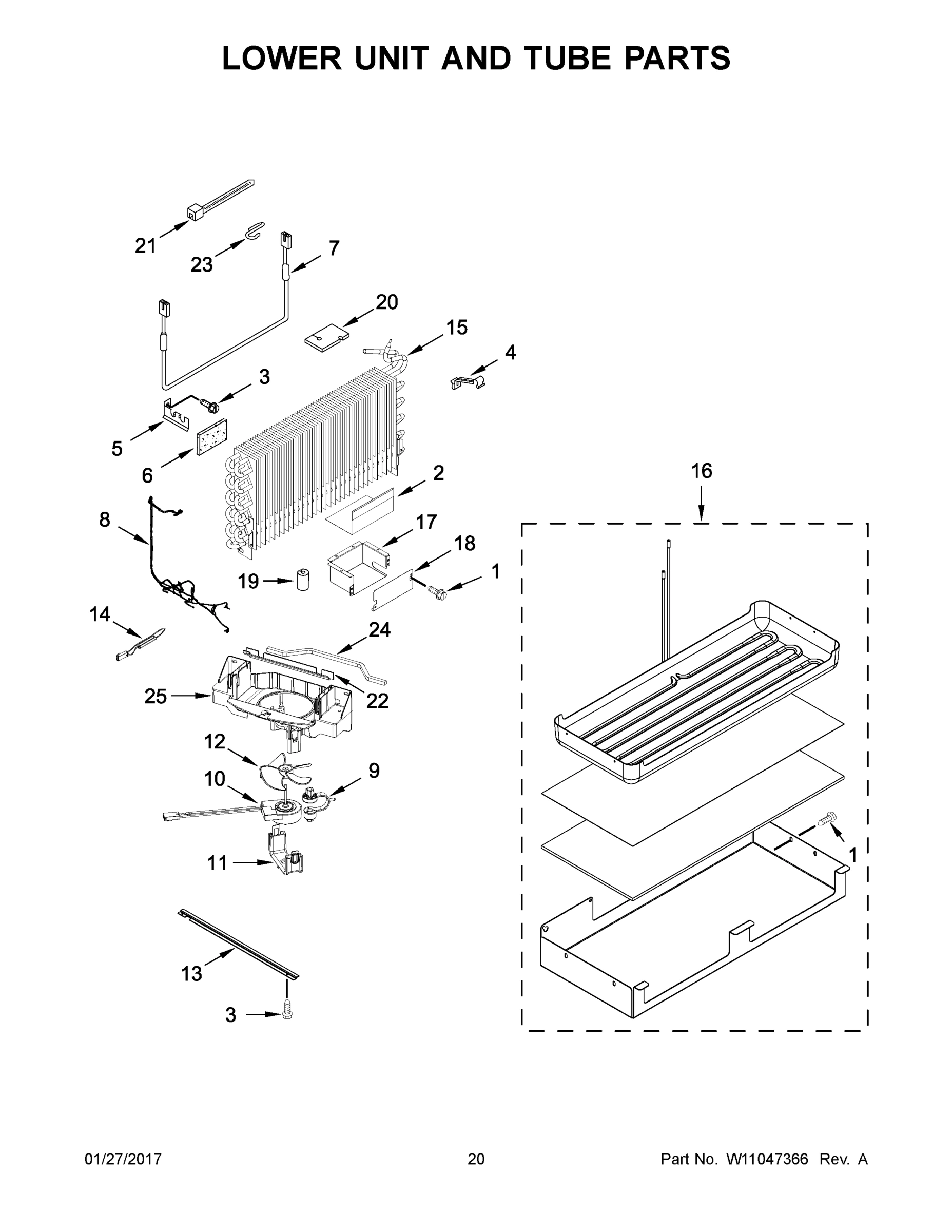

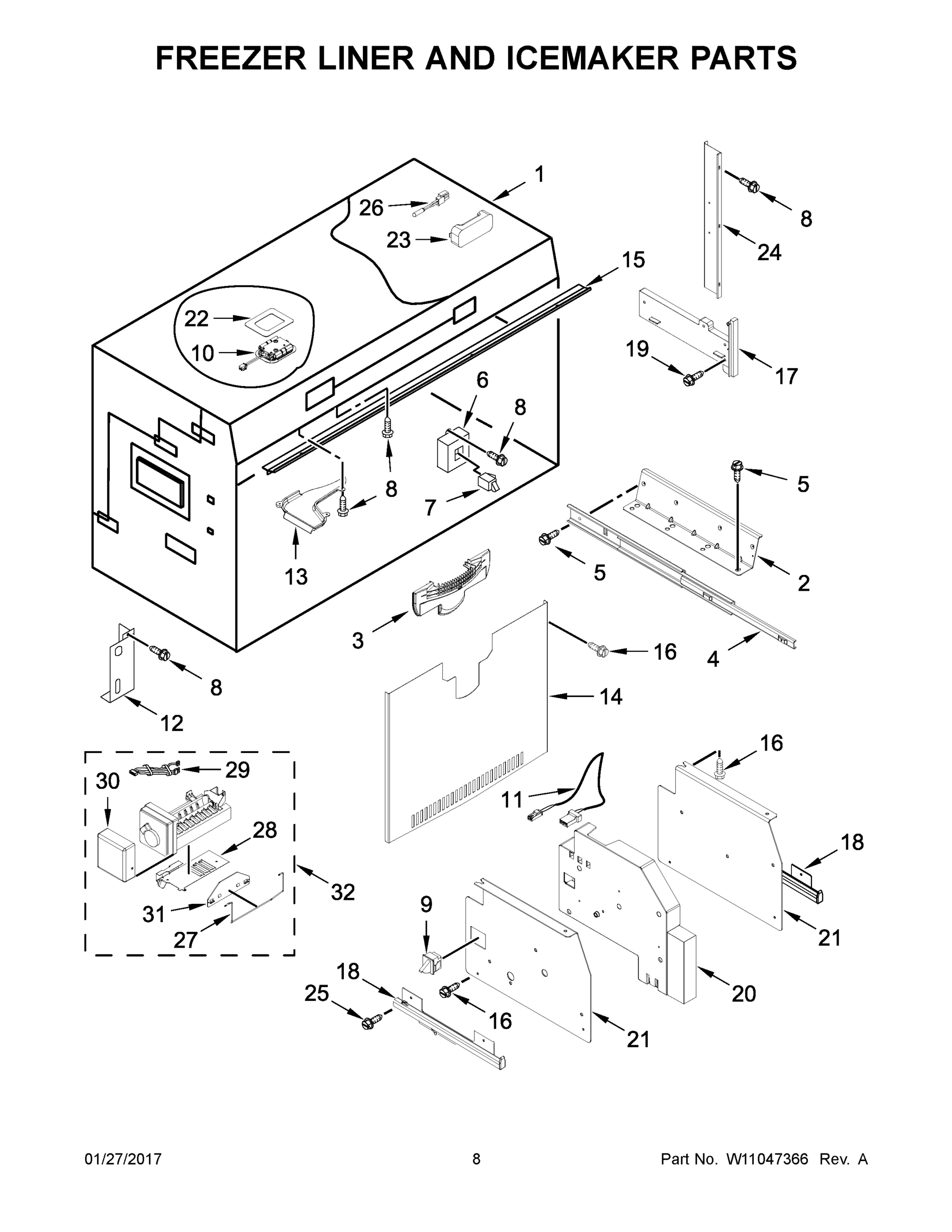

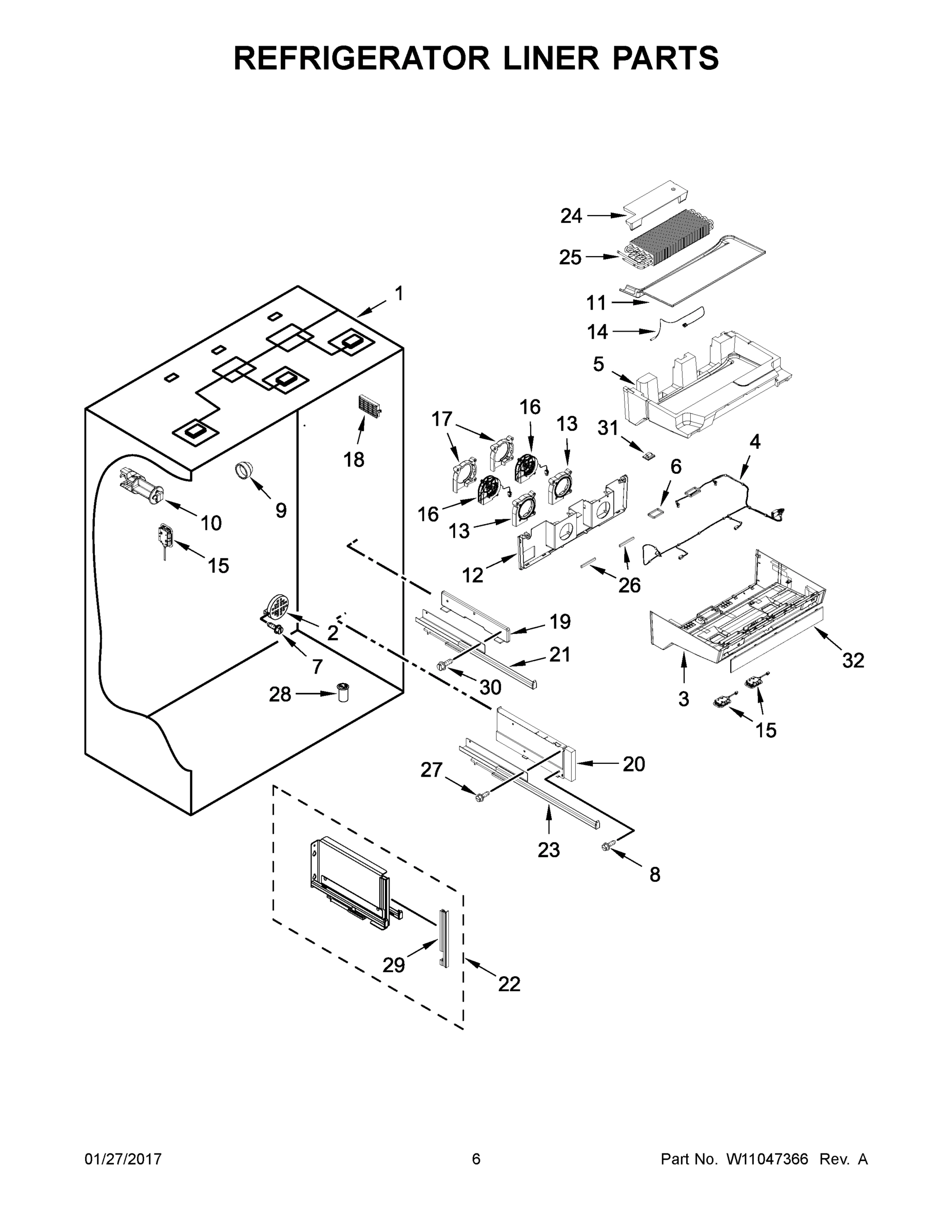

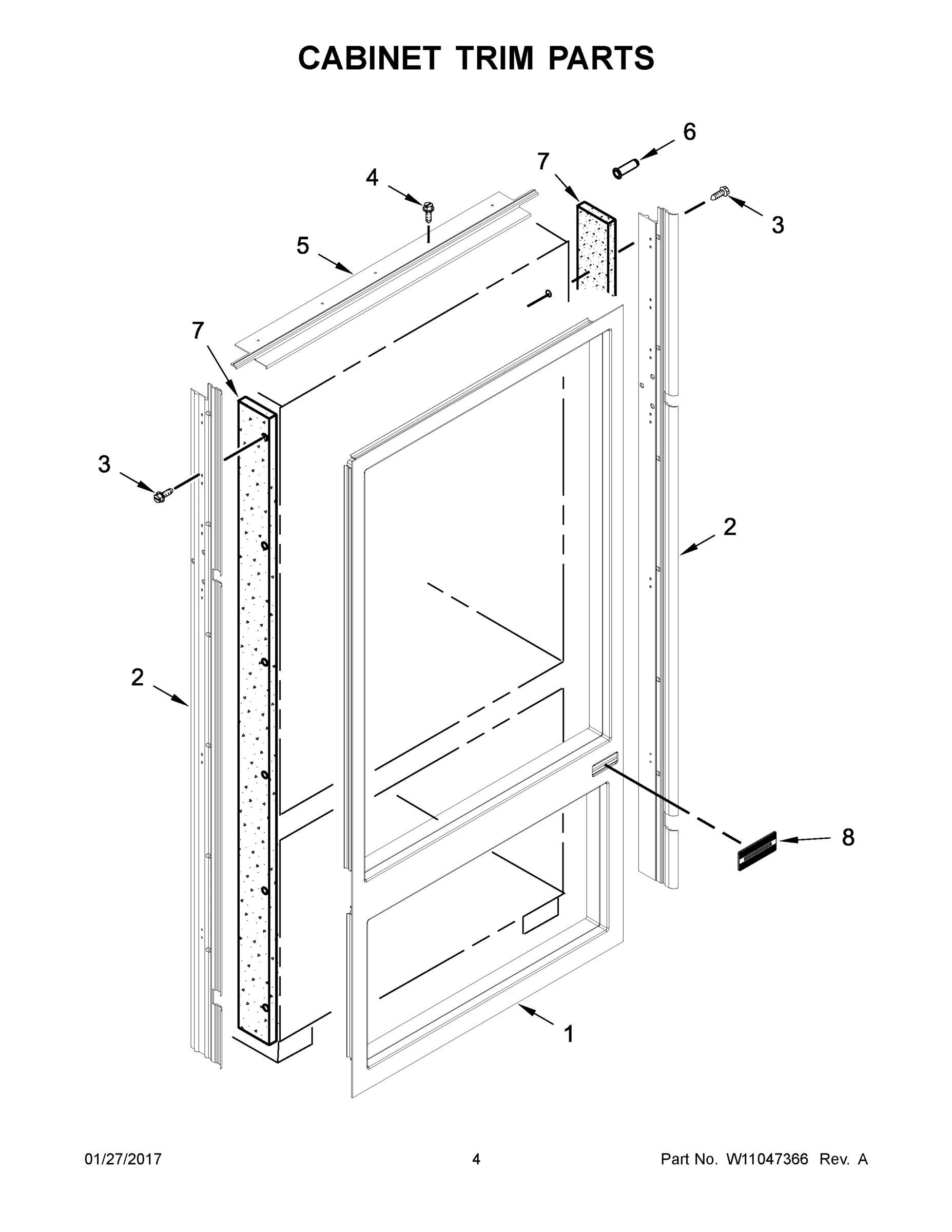

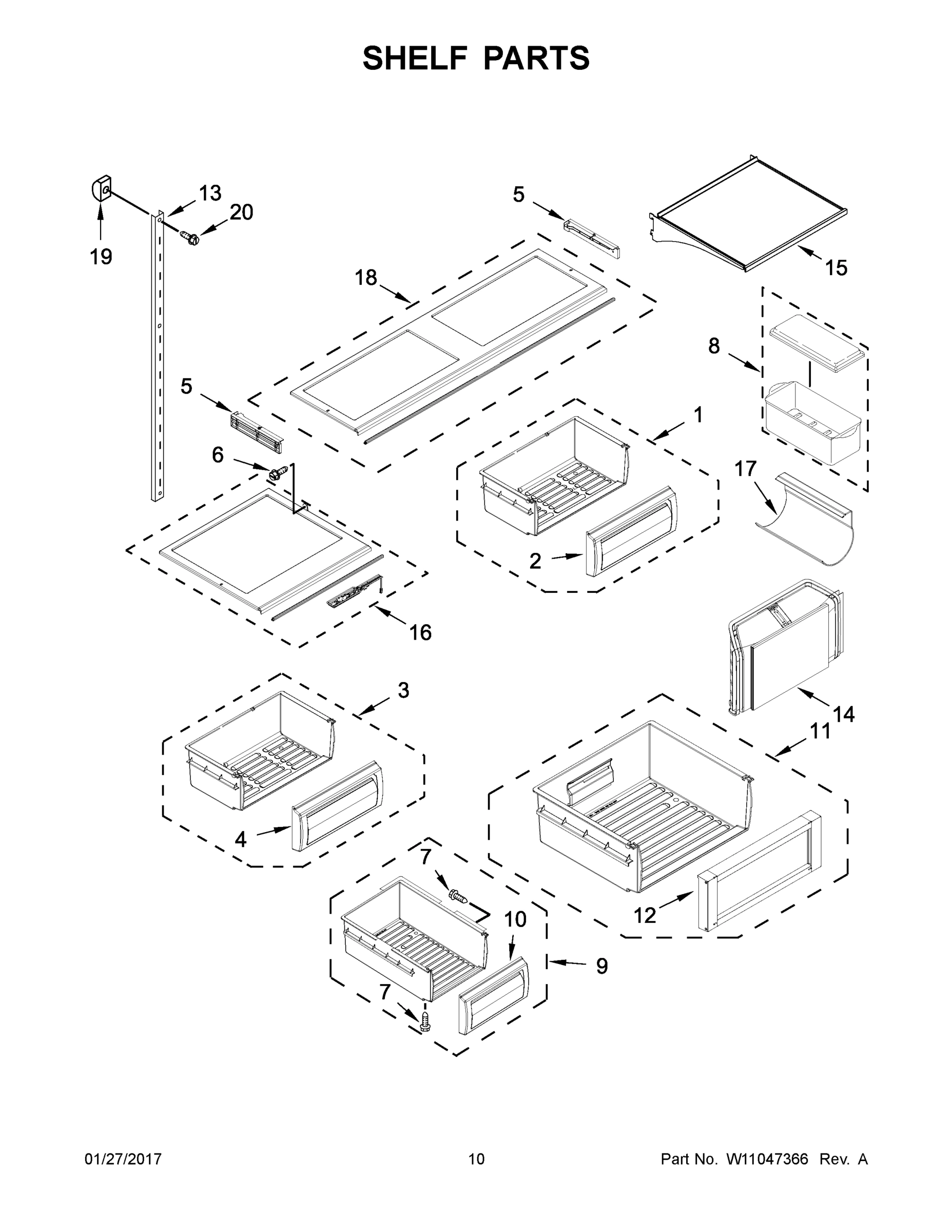

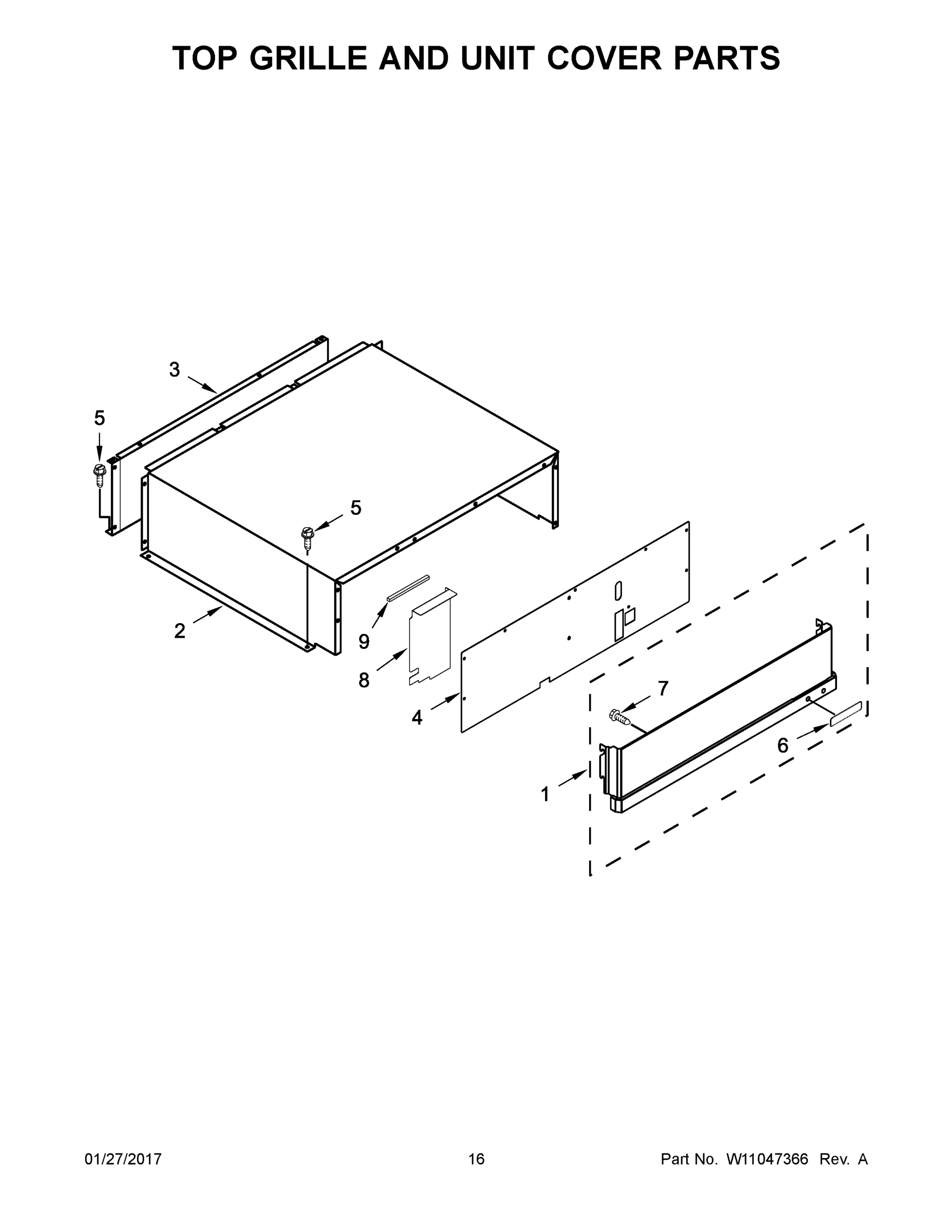

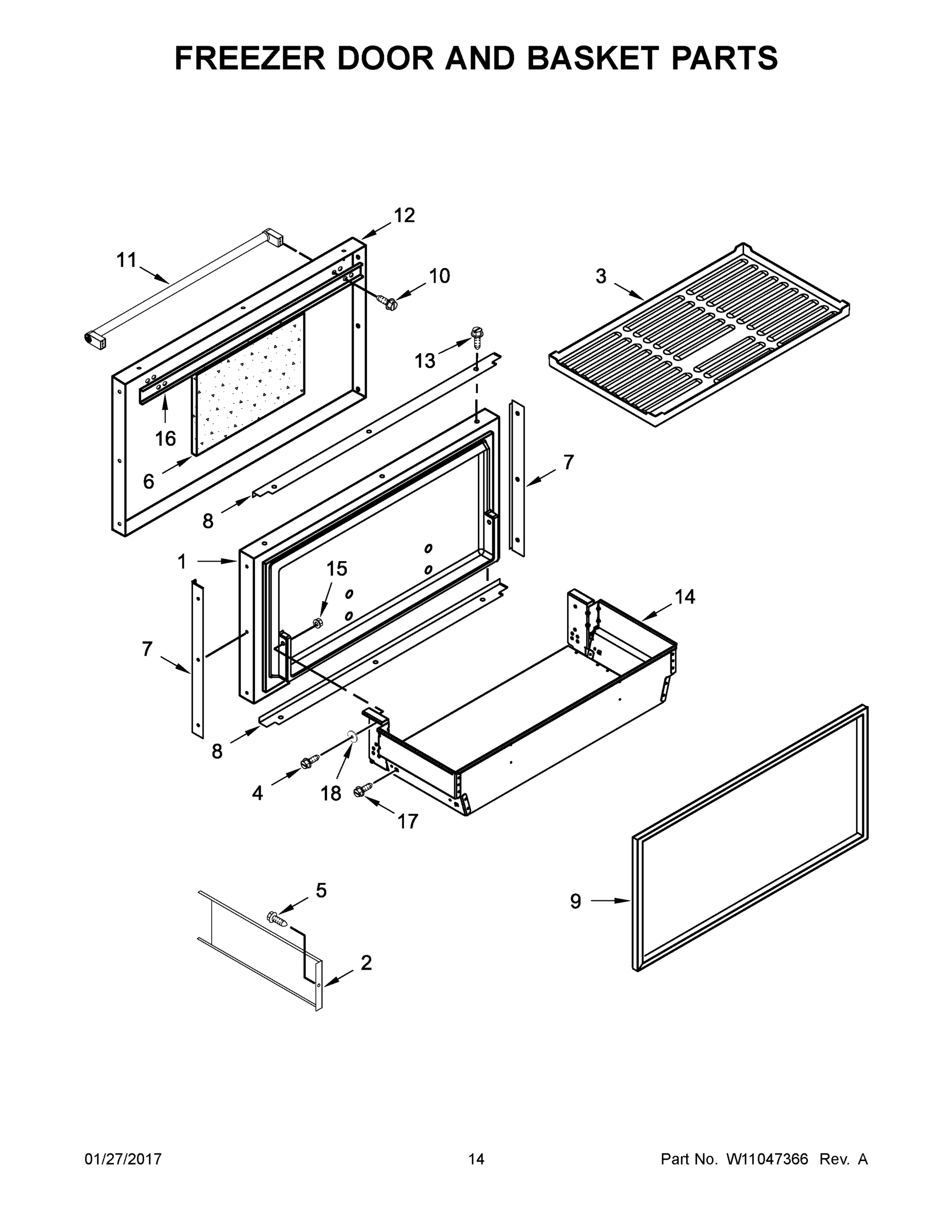

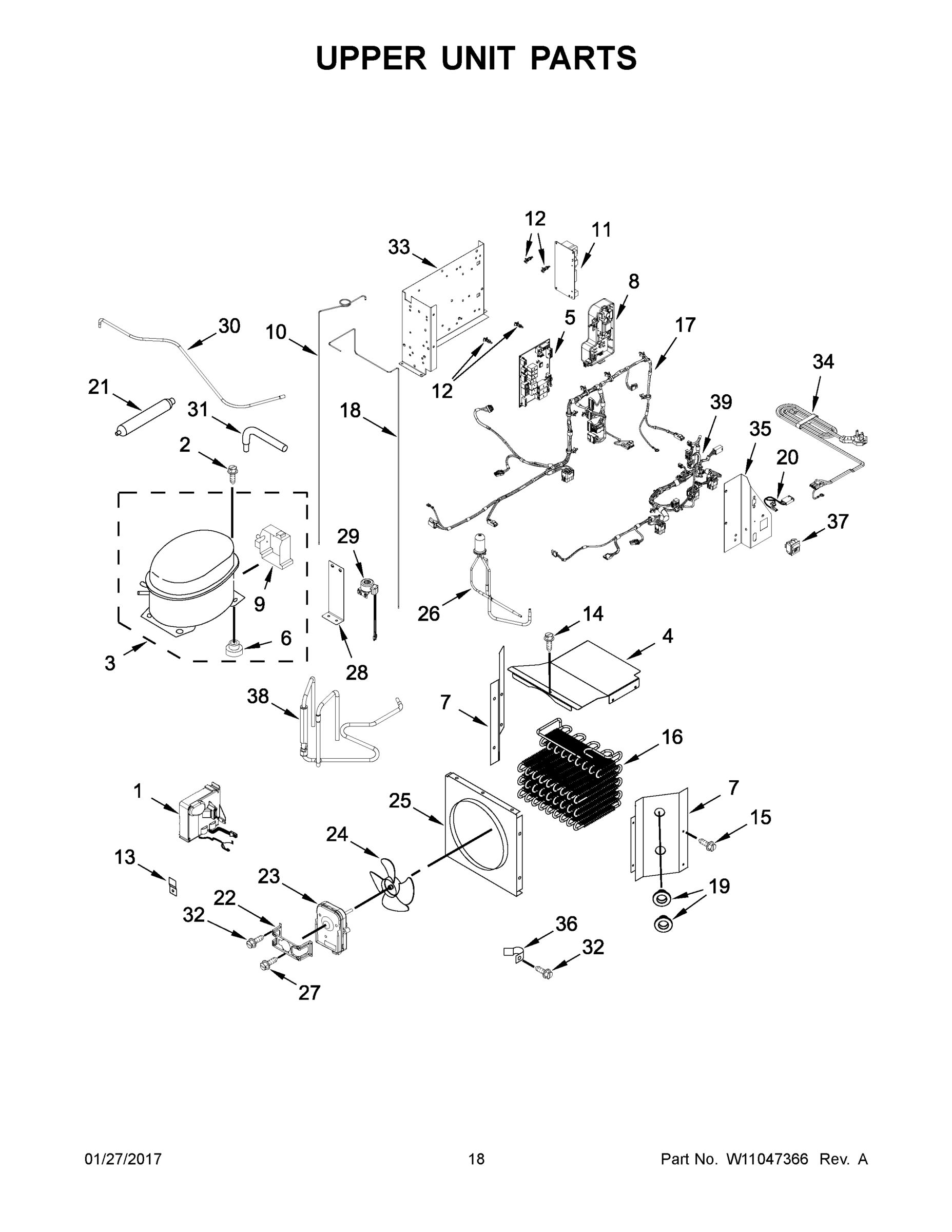

Model Whirlpool KBBL306ESS01 REFRIGERATOR, BOTTOM MOUNT, BUILT-IN – Common Parts &amp; Diagrams

1

W11449308 Whirlpool Refrigerator Upper Grille Backorder WPL W11449308 $215.82

1

W11573593 Whirlpool Refrigerator Inverter Box In Stock WPL W11573593 $170.83

1A

W11449389 Whirlpool Refrigerator Upper Grille Backorder WPL W11449389 $215.82

2

W10529562 Whirlpool Refrigerator Front Panel Backorder WPL W10529562 $210.51

2

W10744328 Whirlpool Refrigerator Support Asse In Stock WPL W10744328 $216.15

2

W11173662 Whirlpool Refrigerator Cabinet Trim Backorder WPL W11173662 $181.60

2

COVER-UNIT Backorder WPL W11735285 $118.23

2A

W11173663 Whirlpool Refrigerator Cabinet Trim Backorder WPL W11173663 $181.60

3

2307584 Whirlpool Refrigerator Grommet Backorder WPL 2307584 $13.64

3

W10529581 Whirlpool Refrigerator Crisper Pan Backorder WPL W10529581 $271.01

3

W10555476 Whirlpool Refrigerator Evaporator C Backorder WPL W10555476 $152.28

4

W10694109 Whirlpool Refrigerator Cover Unit Backorder WPL W10694109 $122.34

4

W11650036 Whirlpool Slide Backorder WPL W11650036 $218.76

4

W11661567 Whirlpool Wire Harness Backorder WPL W11661567 $63.23

4

W11673500 Whirlpool Door Hinge In Stock WPL W11673500 $86.94

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $20.53

5

W11712700 Whirlpool Insulation Backorder WPL W11712700 $54.58

5

WPW10739408-includeCORE Whirlpool WPW10739408 Backorder WPL WPW10739408-includeCORE $227.12

5

SCREW WPL W10061370 Contact Us For Availability

6

W10529547 Whirlpool Refrigerator Cantilever B In Stock WPL W10529547 $187.82

6

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

6

W10839793 Whirlpool Refrigerator Nameplate In Stock WPL W10839793 $31.36

6

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $4.82

6

WPW10121451 Whirlpool Refrigerator Insert Backorder WPL WPW10121451 $4.82

7

2316807 Whirlpool Refrigerator Door Hinge Backorder WPL 2316807 $138.54

7

W10524056 Whirlpool Refrigerator Heater Backorder WPL W10524056 $95.70

7

W11670534 Whirlpool Refrigerator Switch Backorder WPL W11670534 $13.58

7

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.46

7

SEAL, SIDE TRIM WPL 2005925 Contact Us For Availability

8

W10215666 Whirlpool Refrigerator Screw Backorder WPL W10215666 $5.85

8

W10801506 Whirlpool Refrigerator Door Skin Backorder WPL W10801506 $569.22

8

W11368839 Whirlpool Refrigerator Inverter Box In Stock WPL W11368839 $184.47

8

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.29

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $61.35

9

W10600690 Whirlpool Refrigerator Ice Pan Backorder WPL W10600690 $185.38

9

W10783284 Whirlpool Refrigerator Handle Backorder WPL W10783284 $148.95

9

W11289496 Whirlpool Refrigerator Switch In Stock WPL W11289496 $17.32

10

W11396715 Whirlpool Refrigerator Evaporator M In Stock WPL W11396715 $114.58

W10555480 Whirlpool Refrigerator Shield Backorder WPL W10555480 $103.33

W10568445 Whirlpool Refrigerator Jumper Wire Backorder WPL W10568445 $46.61

WP308544 Whirlpool Screw In Stock WPL WP308544 $4.82

WPW10624574-includeCORE Whirlpool WPW10624574 Backorder WPL WPW10624574-includeCORE $231.95

12

W10555484 Whirlpool Refrigerator Housing Backorder WPL W10555484 $130.96

12

LINE, WATER WPL W10577944 Contact Us For Availability

12

FILLER, FOAM WPL 2327469 Contact Us For Availability

13

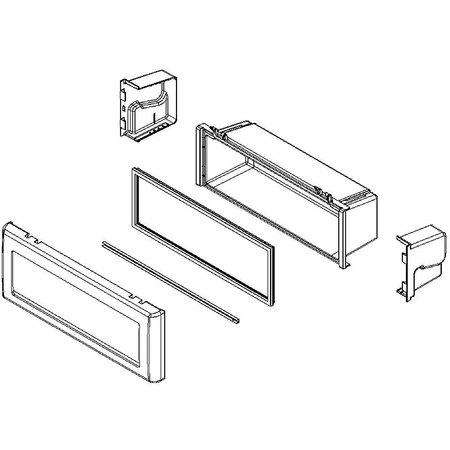

W10529542 Whirlpool Refrigerator Cantilever B Backorder WPL W10529542 $218.33

13

W10538315 Whirlpool Refrigerator Housing Backorder WPL W10538315 $56.87

13

W11291510 Whirlpool Refrigerator Valve Backorder WPL W11291510 $47.00

14

W10602825 Whirlpool Refrigerator Wire Jumper In Stock WPL W10602825 $27.60

14

W11661569 Whirlpool Thermistor Backorder WPL W11661569 $66.93

14

SPACER, DOOR (SIDE) WPL W10672076 Contact Us For Availability

15

W10568582 Whirlpool Refrigerator CANT Shelf Backorder WPL W10568582 $218.28

15

SPACER Backorder WPL W10609682 $92.72

15

W10710400 Whirlpool Refrigerator Deflector Backorder WPL W10710400 $104.86

2005032 Whirlpool Refrigerator Leveler Backorder WPL 2005032 $126.45

W10127710 Whirlpool Refrigerator Plate Backorder WPL W10127710 $15.88

W10591457 Whirlpool Refrigerator Condenser In Stock WPL W10591457 $151.99

W11678257 Whirlpool Fan Backorder WPL W11678257 $191.00

HEATER-PAN Backorder WPL W11797349 $337.52

WP2006346 Whirlpool Refrigerator Washer In Stock WPL WP2006346 $6.87

2318189 Whirlpool Refrigerator Drip Pan Backorder WPL 2318189 $96.75

W10109030 Whirlpool Refrigerator Screw Backorder WPL W10109030 $9.35

W10538317 Whirlpool Refrigerator Housing Backorder WPL W10538317 $56.49

W10618265 Whirlpool Refrigerator Cantilever B Backorder WPL W10618265 $220.75

W10701859 Whirlpool Refrigerator Wine Rack Backorder WPL W10701859 $13.15

W10898829 Whirlpool Refrigerator Wire Harness Backorder WPL W10898829 $94.52

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $115.07

2306117 Whirlpool Refrigerator Slide Backorder WPL 2306117 $189.57

W10720080 Whirlpool Refrigerator Tube Backorder WPL W10720080 $77.54

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $9.63

18A

2306116 Whirlpool Refrigerator Slide Backorder WPL 2306116 $210.17

19

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $19.90

19

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $5.99

19

W11246413 Whirlpool Refrigerator Inlet Valve In Stock WPL W11246413 $120.11

20

2310195 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310195 $80.03

21

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $59.25

21

W10600630 Whirlpool Refrigerator Support Backorder WPL W10600630 $94.84

21

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $17.11

21A

W10569886 Whirlpool Refrigerator Slide Backorder WPL W10569886 $153.93

22

2207470 Whirlpool Refrigerator Hinge Shim Backorder WPL 2207470 $34.01

22

W10672548 Whirlpool Refrigerator Shim Backorder WPL W10672548 $13.30

23

W10569890 Whirlpool Refrigerator Slide Backorder WPL W10569890 $176.43

23

W11127829 Whirlpool Refrigerator Condenser Mo In Stock WPL W11127829 $124.81

23

WPW10121140 Whirlpool Refrigerator Housing In Stock WPL WPW10121140 $193.02

23A

W10615641 Whirlpool Refrigerator Slide Backorder WPL W10615641 $156.43

24

W10555472 Whirlpool Refrigerator Insulation Backorder WPL W10555472 $25.45

24

WPW10139483 Whirlpool Refrigerator Condenser In Stock WPL WPW10139483 $54.43

25

W11553229 Whirlpool Refrigerator Evaporator In Stock WPL W11553229 $143.87

25

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

26

W11647768 Whirlpool Refrigerator Valve Backorder WPL W11647768 $85.68

27

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $43.23

28

BRACKET Backorder WPL W11755873 $47.10

29

2005101 Whirlpool Refrigerator Bottom Hinge Backorder WPL 2005101 $58.73

29

W10508673 Whirlpool Refrigerator Wire Harness Backorder WPL W10508673 $81.25

29

W11429989 Whirlpool Refrigerator Solenoid In Stock WPL W11429989 $98.77

30

W10555310 Whirlpool Refrigerator Tube Backorder WPL W10555310 $14.55

30

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $6.60

30

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

31

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $25.40

31

W11215550 Whirlpool Ice Level Arm In Stock WPL W11215550 $46.57

32

WPW10188547 Whirlpool Refrigerator Front Gril Backorder WPL WPW10188547 $99.10

33

W10550831 Whirlpool Refrigerator Housing Backorder WPL W10550831 $56.30

34

2310196 Whirlpool Refrigerator Power Cord Backorder WPL 2310196 $60.22

34

W11739145 Whirlpool Front Grille Backorder WPL W11739145 $122.85

35

W10625531 Whirlpool Refrigerator Bracket Backorder WPL W10625531 $51.27

36A

WP2307857 Whirlpool Refrigerator Extension In Stock WPL WP2307857 $59.81

37

W10741112 Whirlpool Refrigerator Bracket Backorder WPL W10741112 $42.62

37

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $62.48

37A

W10741111 Whirlpool Refrigerator Bracket In Stock WPL W10741111 $42.62

38

W10545389 Whirlpool Refrigerator Tube Backorder WPL W10545389 $156.24

39

W10898828 Whirlpool Refrigerator Wire Harness Backorder WPL W10898828 $101.17

39

W11238395 Whirlpool Refrigerator Filter Cap In Stock WPL W11238395 $43.41

40

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.89

41

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.32

42

W10188434 Whirlpool Refrigerator Hinge Gap Backorder WPL W10188434 $43.88

44

2005433 Whirlpool Refrigerator Spacer Backorder WPL 2005433 $14.81

45

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $4.99

46

W10565837 Whirlpool Refrigerator Wire Harness In Stock WPL W10565837 $54.82

47

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $125.15

48

W10482373 Whirlpool Refrigerator Jumper Wire In Stock WPL W10482373 $81.25

49

W10619899 Whirlpool Refrigerator Water Tube Backorder WPL W10619899 $28.21

50

2317847 Whirlpool Refrigerator Water Tube Backorder WPL 2317847 $52.95

51

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $6.17

52

W10635851 Whirlpool Refrigerator Water Tube In Stock WPL W10635851 $55.05

53

W11225845 Whirlpool Refrigerator Inlet Valve In Stock WPL W11225845 $120.11

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $9.85

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.92

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.76

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $31.53

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.43

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS WPL 978029 Contact Us For Availability

MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" WPL 876029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
