Model Whirlpool JMW9527DAS ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts &amp; Diagrams

1

COVER, TOP WPL 74008366 Contact Us For Availability

1

GLASS TOUCH ASY (STL) WPL 74011970 Contact Us For Availability

1

FRAME ASSY. (BLK) WPL 74008378 Contact Us For Availability

2

WP74004607 Whirlpool Light Lens Backorder WPL WP74004607 $12.66

2

WP74009716 Whirlpool Electronic Control Board Backorder WPL WP74009716 $638.77

2

PANEL, TOP RETAINER WPL 2618F22351 Contact Us For Availability

2

PANEL, RETAINER (UPR 27``) WPL 74008368 Contact Us For Availability

2

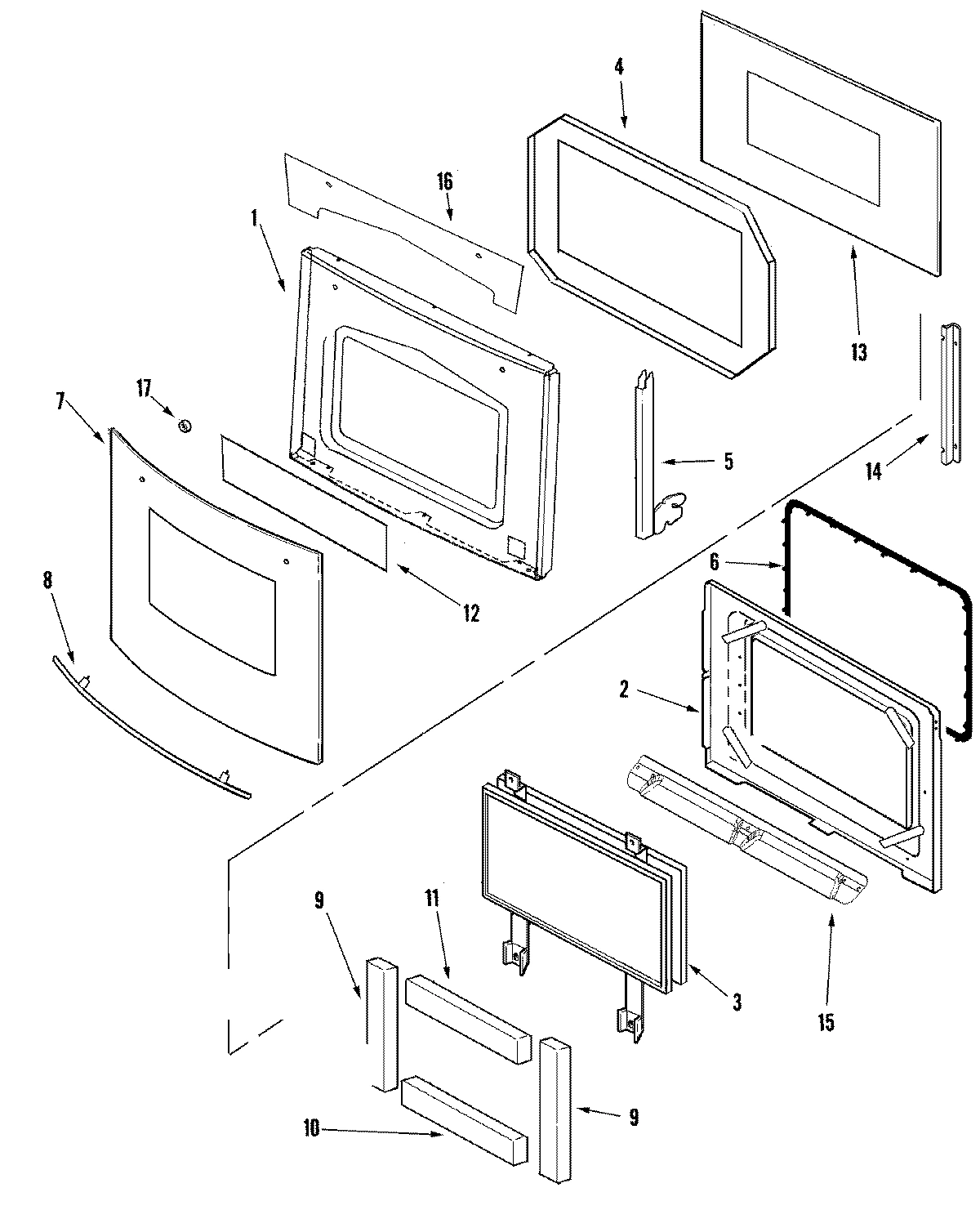

LINER, OVEN DOOR WPL 74008367 Contact Us For Availability

3

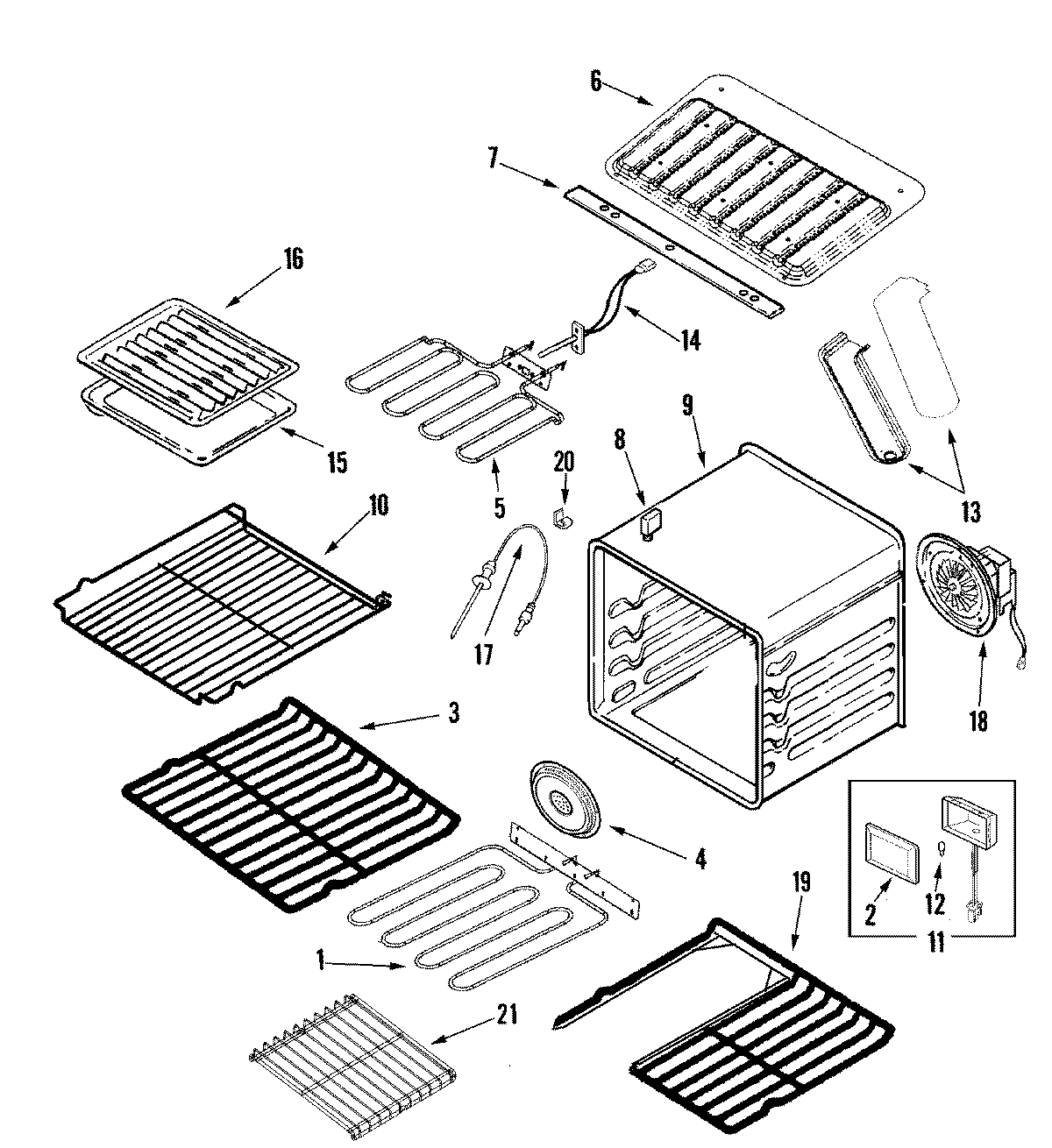

RACK, OVEN WPL Y704660 Contact Us For Availability

3

NOT REQUIRED PART OR SEE NOTE FOR MICROWAVE P WPL W10124350 Contact Us For Availability

3

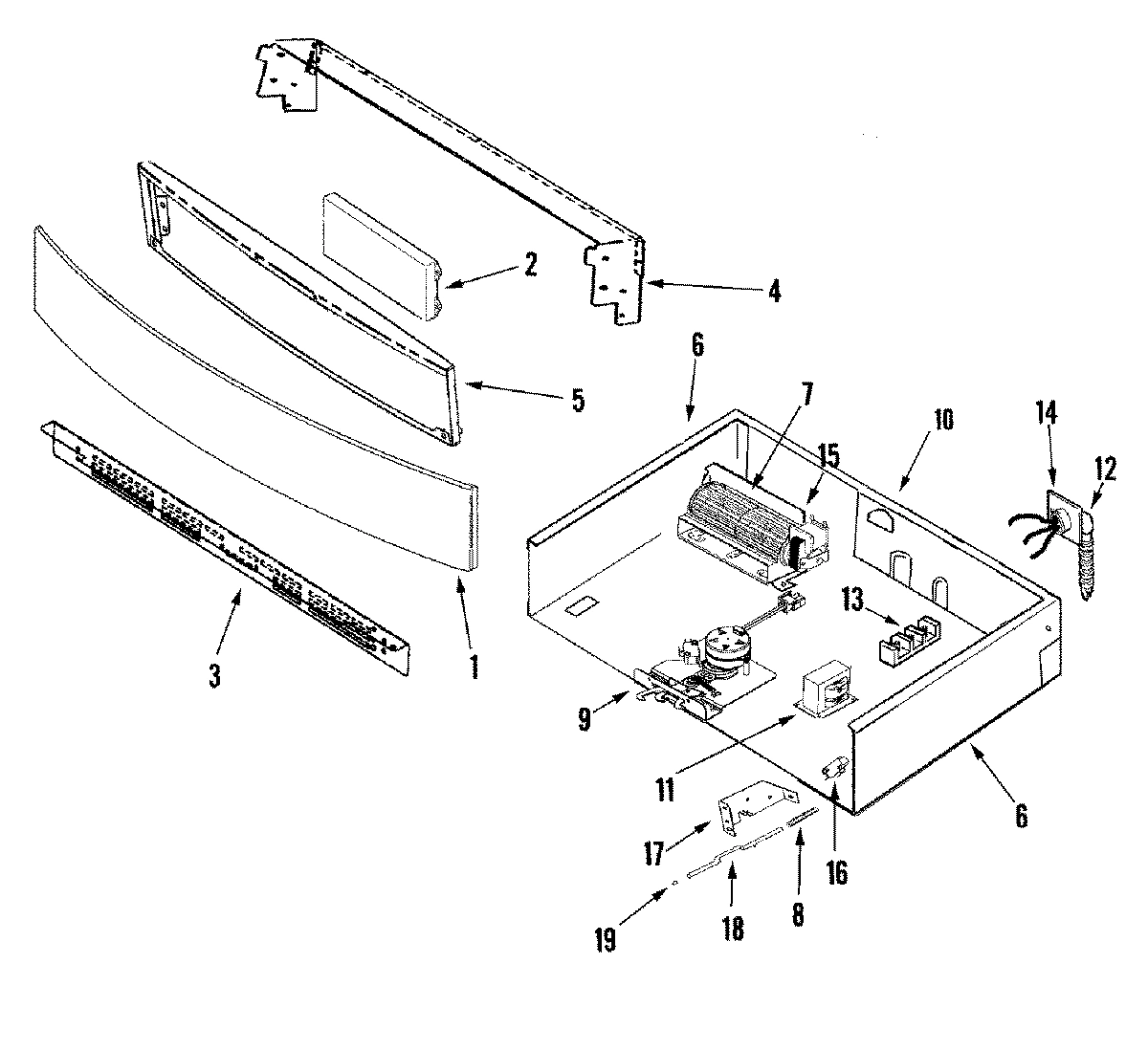

TRIM, CONTROL PANEL (BLK) WPL 74008361 Contact Us For Availability

3

WINDOW ASSEMBLY WPL 74005639 Contact Us For Availability

4

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

4

COVER, CONVECT FAN WPL 74008461 Contact Us For Availability

4

COVER, CONVECT FAN WPL 74009712 Contact Us For Availability

4

KIT, SIDE TRIM (SINGLE) WPL 12002402 Contact Us For Availability

4

TRIM, SIDE (BLK) WPL 74008363 Contact Us For Availability

4

SUPPORT, TOP CONTROL WPL 74008362 Contact Us For Availability

4

RETAINER, INSULATION WPL 74005638 Contact Us For Availability

5

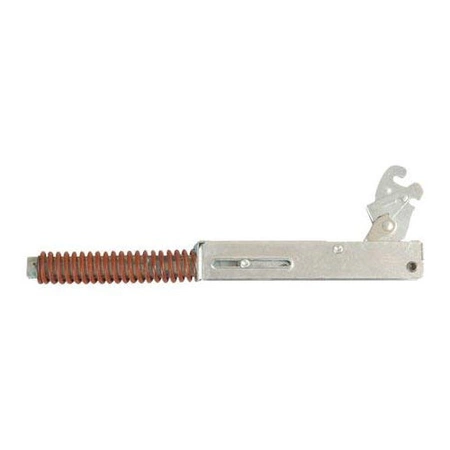

WP74010284 Whirlpool Door Hinge In Stock WPL WP74010284 $94.28

5

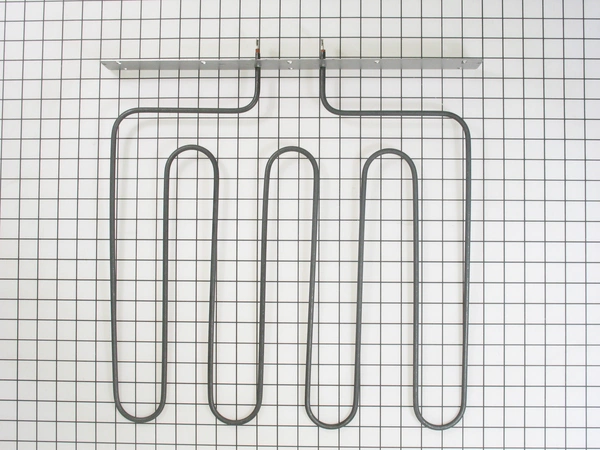

WPW10184147 Whirlpool Broil Element Backorder WPL WPW10184147 $141.10

5

MANUAL, U & C WPL 74008390 Contact Us For Availability

5

MANUAL, USE & CARE WPL W10169641 Contact Us For Availability

5

ELEMENT, BROIL WPL 7406P50060 Contact Us For Availability

5

TRIM, BOTTOM (BLK) WPL 74008364 Contact Us For Availability

5

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

5

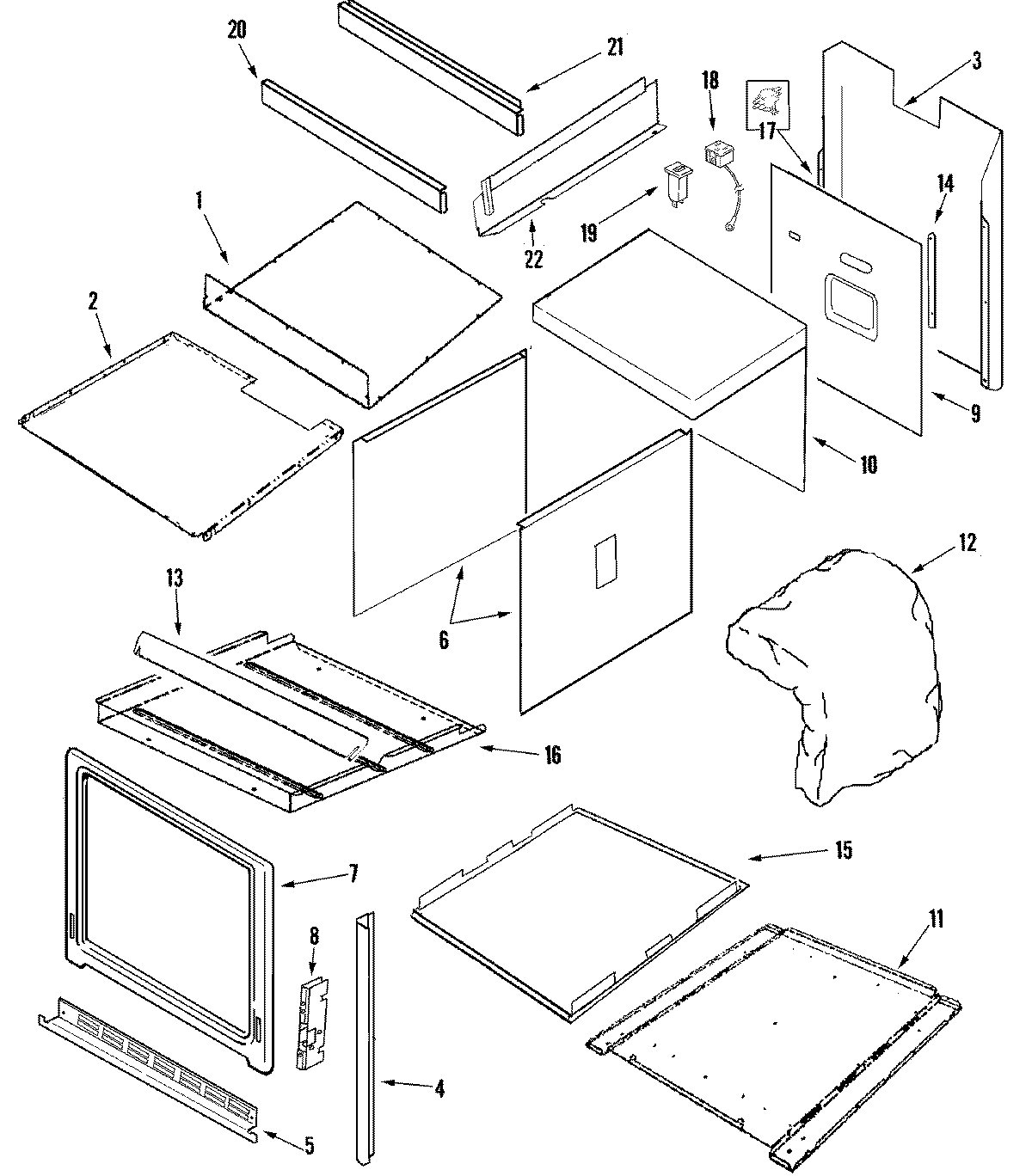

FRAME, CONTROL PANEL WPL 74008351 Contact Us For Availability

5

HINGE, DOOR WPL 74008384 Contact Us For Availability

6

WP71001970 Whirlpool Door Seal Backorder WPL WP71001970 $120.69

6

COOKBOOK WPL 74008467 Contact Us For Availability

6

SHIELD, BROIL WPL 74008375 Contact Us For Availability

6

PANEL, SIDE WPL 74008381 Contact Us For Availability

6

SIDE PANEL, CONTROL (LT) WPL 74008359 Contact Us For Availability

6

SIDE PANEL, CONTROL (RT) WPL 74008360 Contact Us For Availability

7

WP74008383 Whirlpool Tangential Fan In Stock WPL WP74008383 $160.82

7

DVD, JENN AIR WALLOVEN GUIDE WPL 74008247 Contact Us For Availability

7

SCREW WPL 7101P34560 Contact Us For Availability

7

SUPPORT, BROIL ELEMENT WPL 74003563 Contact Us For Availability

7

FRAME, OVEN WPL 74008373 Contact Us For Availability

7

GLASS, OUTER DOOR ASSY. (STL) WPL 74008393 Contact Us For Availability

8

7408P088-60 Whirlpool Meat Probe Backorder WPL 7408P088-60 $56.81

8

WP74011337 Whirlpool Bracket Backorder WPL WP74011337 $29.67

8

SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability

8

NUT, HEX 3/8`` WPL Y703356 Contact Us For Availability

8

RECEPTACLE, HINGE WPL 74008377 Contact Us For Availability

8

HANDLE, DOOR (SS) WPL 74008389 Contact Us For Availability

9

WPW10186996 Whirlpool Door Latch Backorder WPL WPW10186996 $255.78

9

OVEN, WELD ASSY. WPL 74008374 Contact Us For Availability

9

TUBE, VENT (27) WPL 74009839 Contact Us For Availability

9

RETAINER, REAR INSULATION WPL 74008357 Contact Us For Availability

9

INSULATION, DOOR (SIDE) WPL 71001839 Contact Us For Availability

W10187048 Whirlpool Rear Cover Backorder WPL W10187048 $77.39

RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability

INSULATION, (BACK/TOP) WPL 74008380 Contact Us For Availability

PANEL, REAR CONTROL BOX WPL 2624F10051 Contact Us For Availability

INSULATION, DOOR (BTM) WPL 71001969 Contact Us For Availability

HALOGEN LAMP ASSY WPL 74004521 Contact Us For Availability

HALOGEN LAMP ASSY. WPL 74009970 Contact Us For Availability

PANEL, BOTTOM (27``) WPL 74008370 Contact Us For Availability

TRANSFORMER (STEPDOWN) WPL 74005416 Contact Us For Availability

5700P829-60 Whirlpool Wire Harness Backorder WPL 5700P829-60 $240.86

W10886919 Whirlpool Light Bulb In Stock WPL W10886919 $18.79

GROMMET, ANTI-SHORT WPL 74004222 Contact Us For Availability

INSULATION, (WRAP) WPL 74008379 Contact Us For Availability

SHIELD, DOOR HEAT (27``) WPL 74008394 Contact Us For Availability

3807F678-45 Whirlpool Mounting Bracket Backorder WPL 3807F678-45 $56.27

WPW10281322 Whirlpool Connector Backorder WPL WPW10281322 $6.04

VENT BOX ASSY. WPL 74008342 Contact Us For Availability

VENT BOX ASSY. WPL 74009843 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

CONNECTOR, CABLE WPL 7417P01760 Contact Us For Availability

GLASS, DOOR (SCREENED) WPL 74008391 Contact Us For Availability

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $4.82

WP74008369 Whirlpool Oven Temperature Sensor In Stock WPL WP74008369 $108.13

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

CHANNEL, VENT WPL 74008358 Contact Us For Availability

BRACKET, CABLE WPL 74004712 Contact Us For Availability

RETAINER, GLASS WPL 74003650 Contact Us For Availability

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $5.02

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

CHANNEL, BOTTOM AIR WPL 74008352 Contact Us For Availability

TRIM, BOTTOM DOOR VENT (BLK) WPL 74008392 Contact Us For Availability

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

PAN, HIDDEN BAKE WPL 74008356 Contact Us For Availability

SCREW, SWITCH WPL 7101P33060 Contact Us For Availability

INSULATOR WPL 74008264 Contact Us For Availability

INSULATION, DOOR (STL) WPL 74008396 Contact Us For Availability

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $5.30

WP7403P899-60 Whirlpool Safety Switch Backorder WPL WP7403P899-60 $148.74

WP7430P038-60 Whirlpool Meat Probe Sensor In Stock WPL WP7430P038-60 $107.56

BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability

FAN, CONVECTION ASSY. WPL 74008466 Contact Us For Availability

FAN, CONVECTION ASSY. WPL 74009713 Contact Us For Availability

OUTLET, APPLIANCE WPL 701704 Contact Us For Availability

ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability

WP71002286 Whirlpool Circuit Breaker Backorder WPL WP71002286 $57.13

RACK, CREATE A SPACE HALF 27`` WPL 74008465 Contact Us For Availability

RACK, CREATE A SPACE HALF 27`` WPL 74009586 Contact Us For Availability

COVER, PLUNGER (DOOR LIGHT) WPL 74007586 Contact Us For Availability

20

CLIP, OVEN WPL 71001170 Contact Us For Availability

20

RETAINER, FRONT (MICRO 27``) WPL 74008578 Contact Us For Availability

21

INSERT, HALF RACK 27`` WPL 74008474 Contact Us For Availability

21

INSERT, HALF RACK 27`` WPL 74009588 Contact Us For Availability

21

RETAINER, REAR (MICRO 27``) WPL 74008582 Contact Us For Availability

22

RACK, OVEN (SMART & EASY 27``) WPL 74009585 Contact Us For Availability

22

RETAINER, SIDE (MICRO RH) WPL 74008580 Contact Us For Availability

22

RETAINER, SIDE (MICRO LH) WPL 74008581 Contact Us For Availability

NI

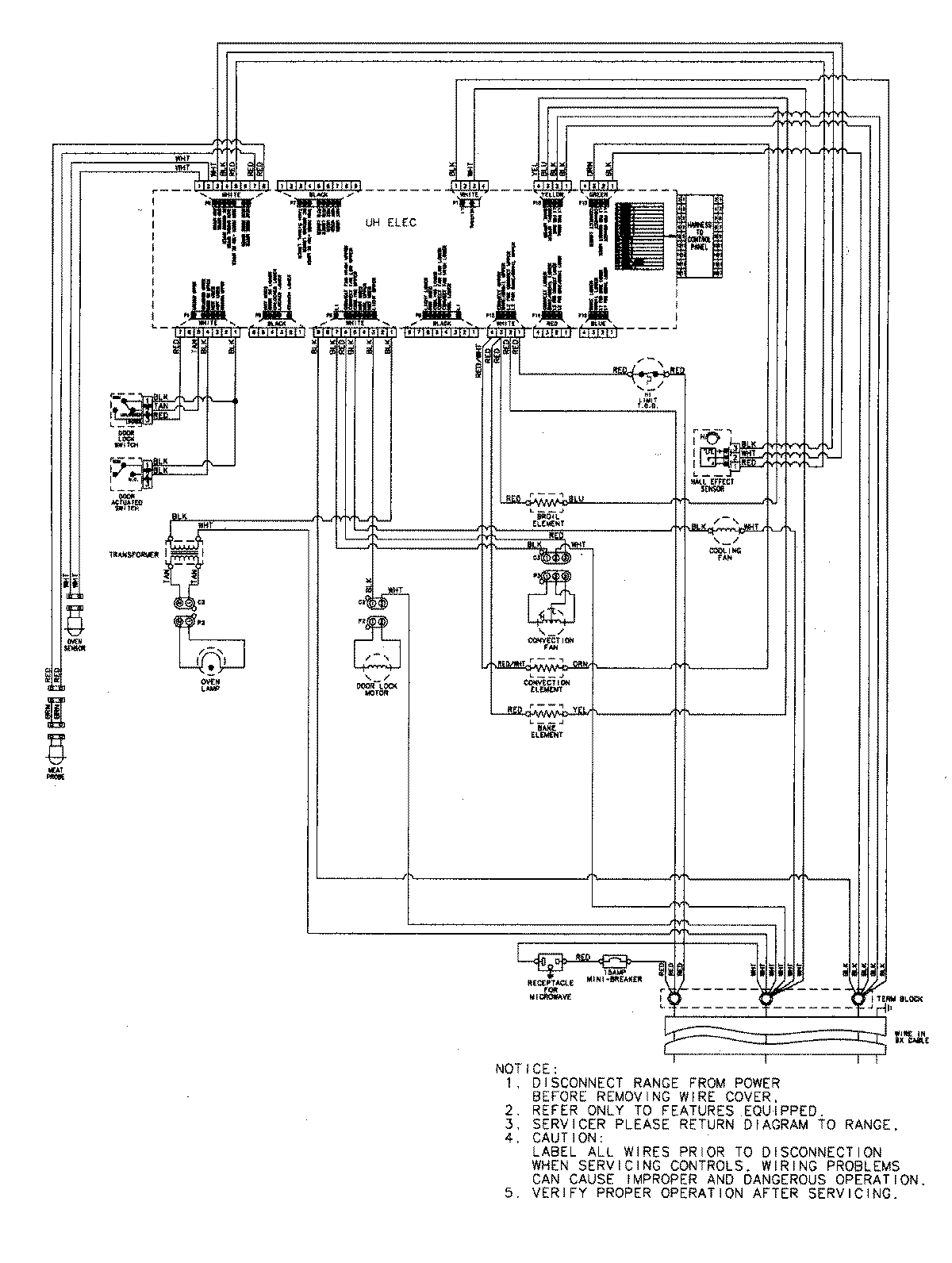

WIRING INFORMATION WPL 15003302 Contact Us For Availability
