Model Whirlpool JMW9527BAB ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams
04 - INTERNAL CONTROLS
05 - MICROWAVE

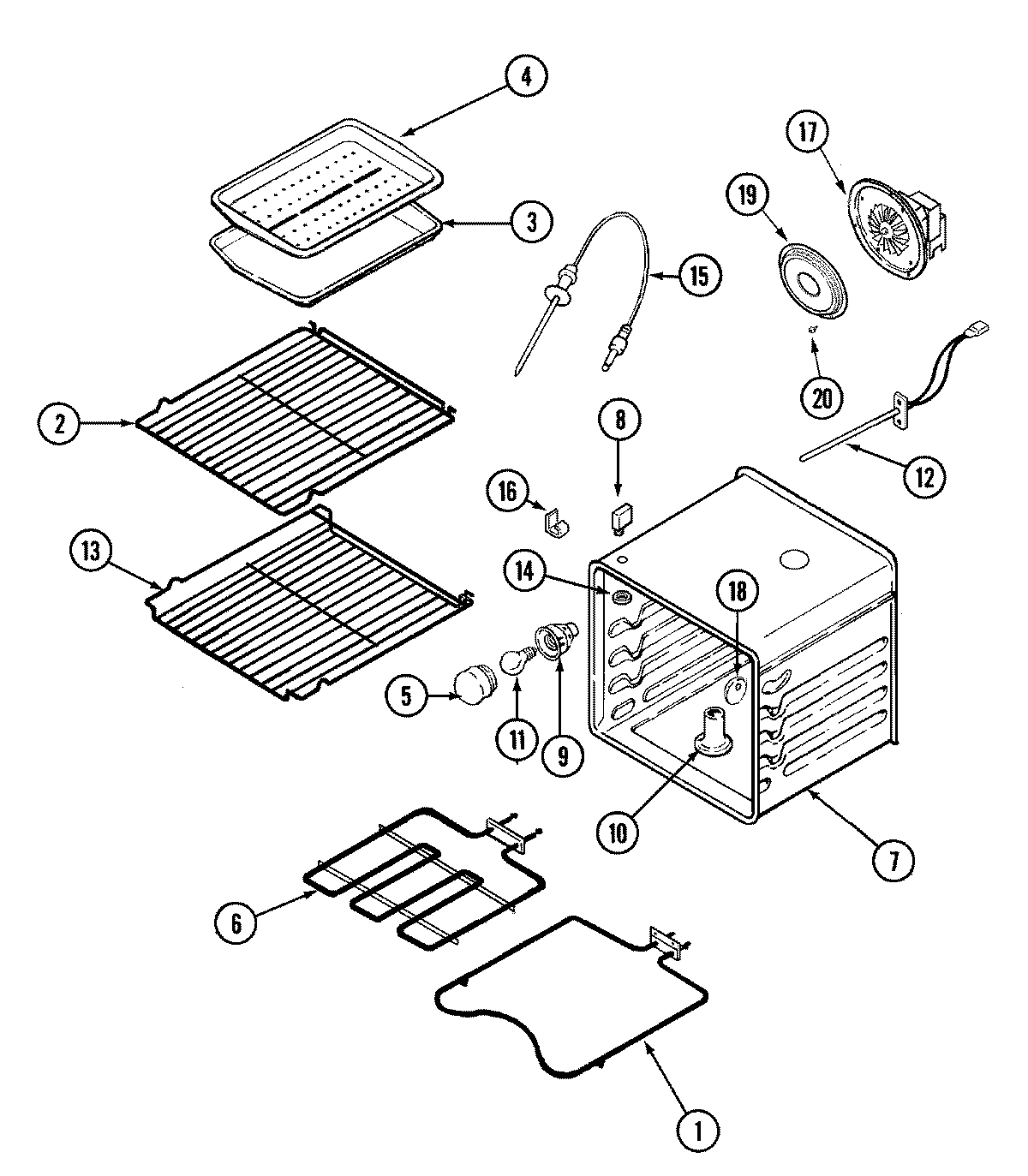

07 - OVEN

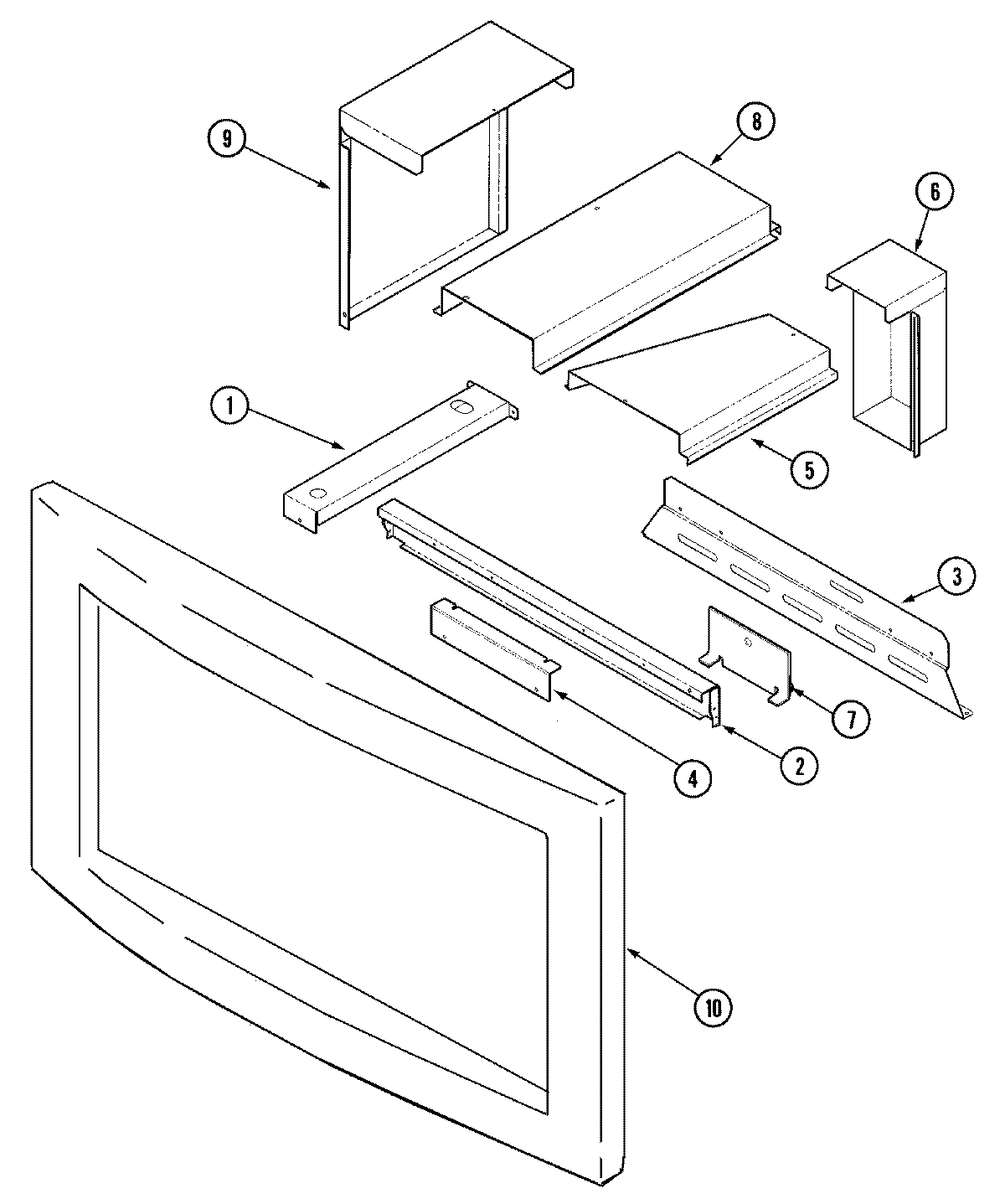

06 - MICROWAVE FRAME & ATTACHMENTS

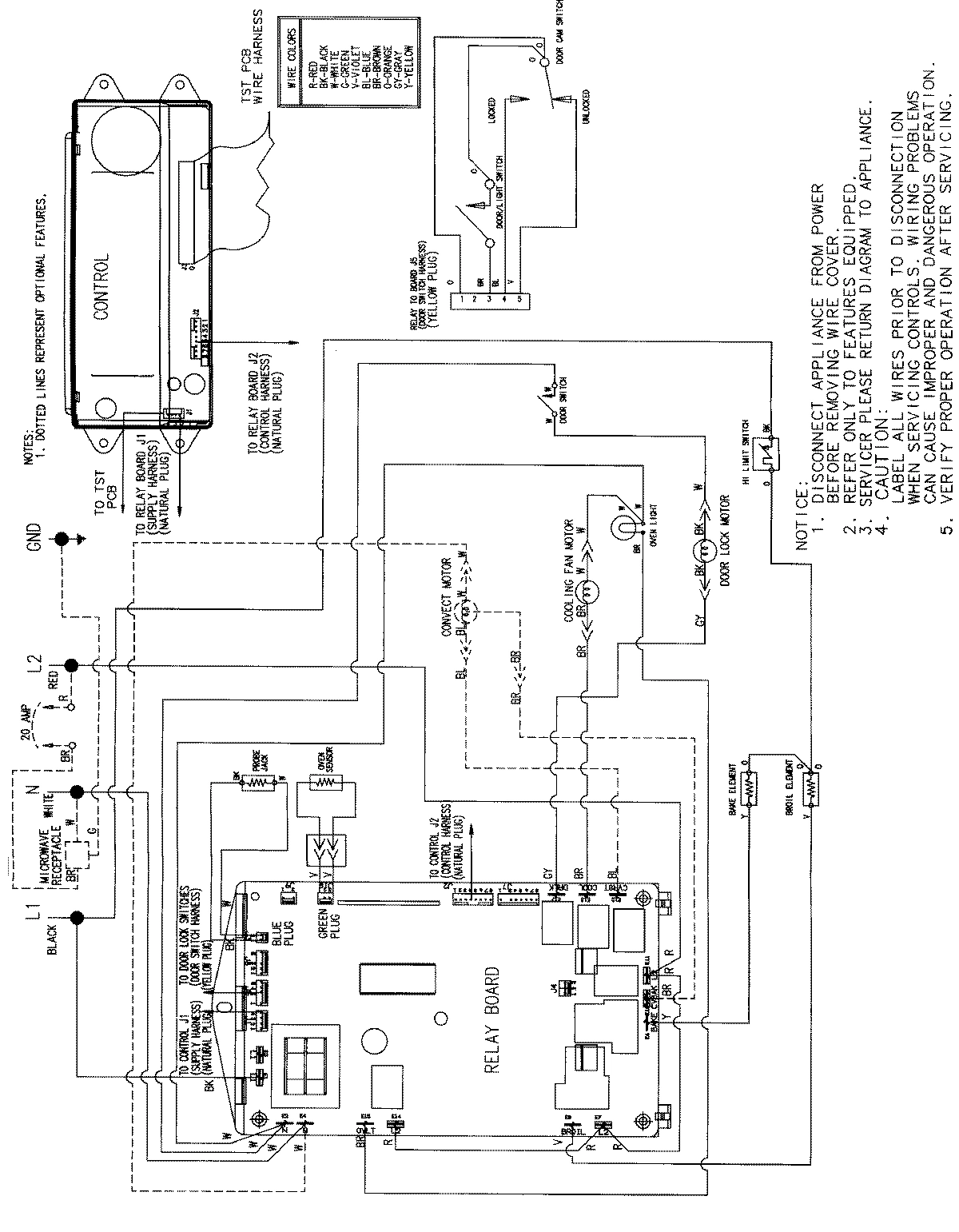

08 - WIRING INFORMATION

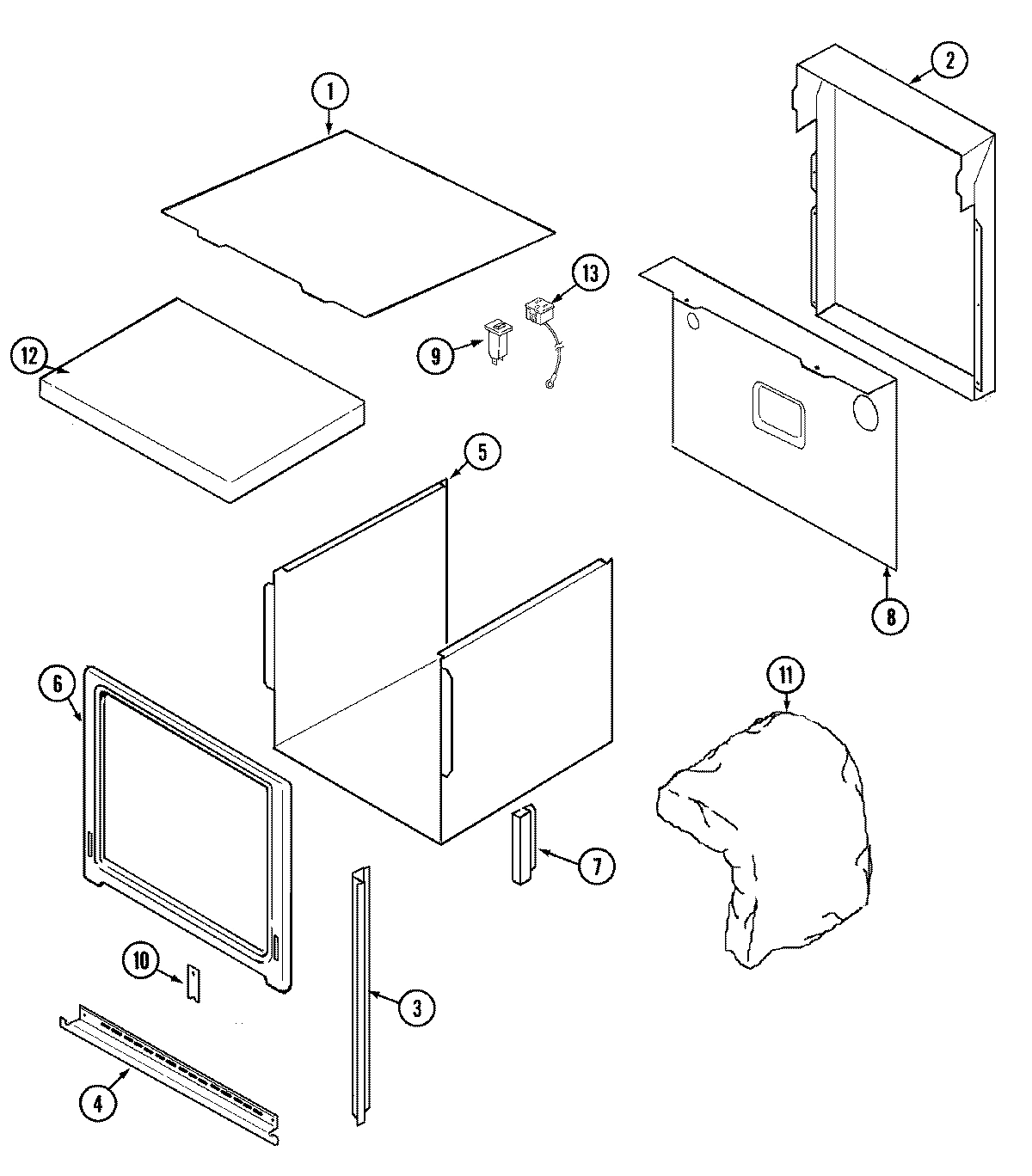

01 - BODY

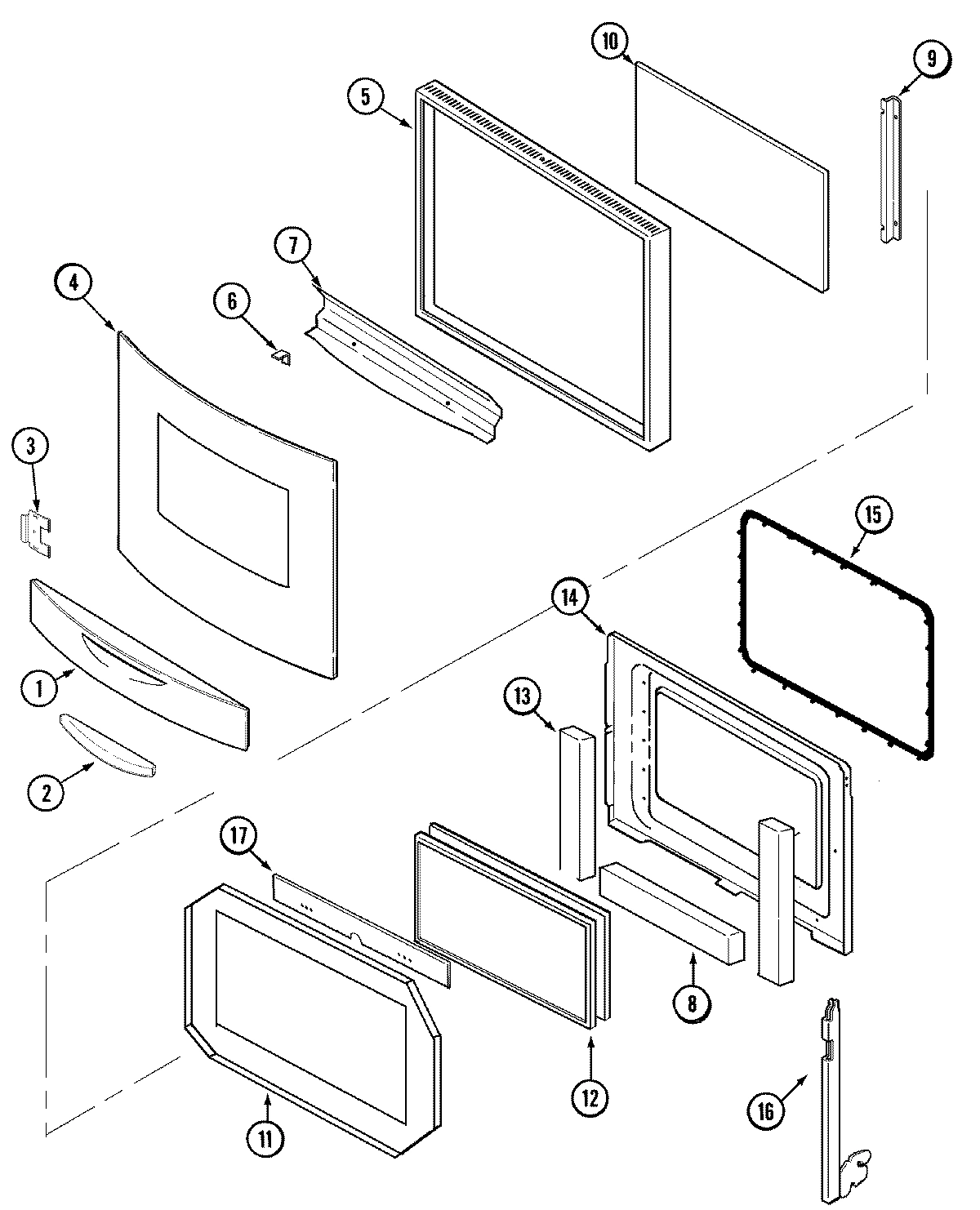

03 - DOOR

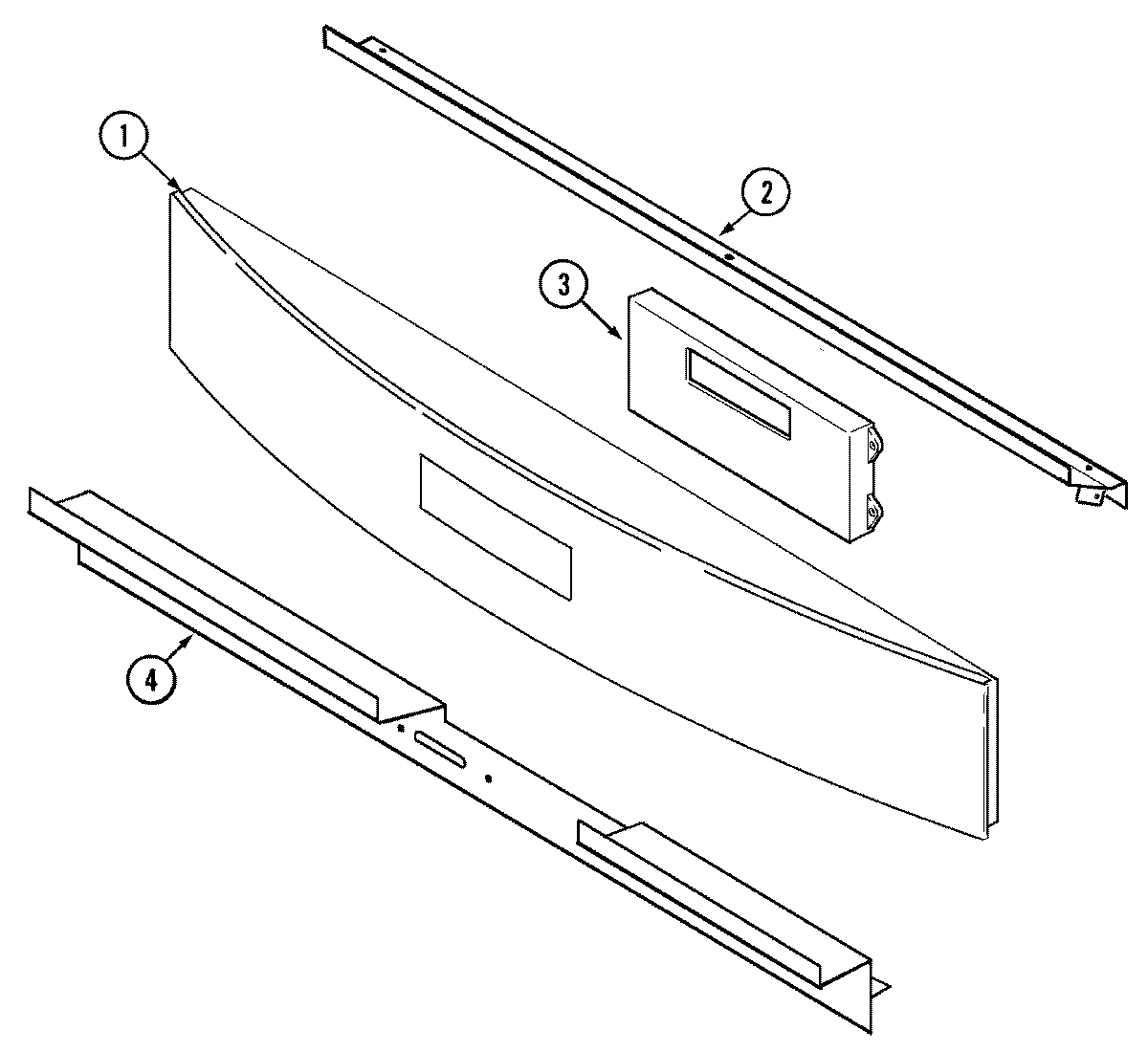

02 - CONTROL PANEL
Common parts from model Whirlpool JMW9527BAB ELECTRIC WALL OVEN/MICROWAVE COMBO
0
PANEL (SIDE-BTM-SIDE) WPL 74005627 Contact Us For Availability
1
SADDLE, RAIL WPL 71003516 Contact Us For Availability
1
TOP (OUTER) WPL 71001950 Contact Us For Availability
1
HANDLE, DOOR (BLK) WPL 74005591 Contact Us For Availability
1
CONTROL PANEL ASSY (BLK) WPL 71003440 Contact Us For Availability
2
RACK, OVEN WPL Y704660 Contact Us For Availability
2
EXTENSION, VENT WPL 71001843 Contact Us For Availability
2
SADDLE, STRUT (FRONT) WPL 74005651 Contact Us For Availability
2
COVER, MAIN BACK WPL 71001813 Contact Us For Availability
2
WASHER WPL 7109P03660 Contact Us For Availability
2
POCKET, HANDLE (BLK) WPL 74005592 Contact Us For Availability
2
SUPPORT, TOP CONTROL WPL 71003449 Contact Us For Availability
3
SWITCH, DOOR LOCK WPL 71001129 Contact Us For Availability
3
NOT REQUIRED PART OR SEE NOTE FOR MICROWAVE P WPL W10124350 Contact Us For Availability
3
PAN, BROIL WPL 3401F01419 Contact Us For Availability
3
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
3
SADDLE, STRUT (REAR) WPL 71003518 Contact Us For Availability
3
TRIM, SIDE (LT-BLK) WPL 71003529 Contact Us For Availability
3
TRIM, SIDE (RT-BLK) WPL 71003530 Contact Us For Availability
3
BRACKET, HANDLE WPL 71003386 Contact Us For Availability
4
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
4
SCREW WPL 7101P33760 Contact Us For Availability
4
BRACKET, LOCKING (FRONT) WPL 74005649 Contact Us For Availability
4
TRIM, OVEN (LWR-BLK) WPL 71001956 Contact Us For Availability
4
TRIM, OVEN (LWR-BLK) WPL 74005626 Contact Us For Availability
4
GLASS, DOOR (BLK) WPL 74005612 Contact Us For Availability
4
TRIM, CONTROL PANEL (BLK) WPL 71001946 Contact Us For Availability
5
LATCH, DOOR ASSY. WPL 71001845 Contact Us For Availability
5
HOOD, INTAKE (TOP) WPL 71003520 Contact Us For Availability
5
FRAME, DOOR (BLK)----NA WPL 71003446 Contact Us For Availability
5
FRAME, DOOR (BLK) WPL 74006315 Contact Us For Availability
5
HARNESS, WIRE CONTROL (J2) WPL 71001798 Contact Us For Availability
5
HARNESS, DOOR SWITCH (UPR) WPL 71001808 Contact Us For Availability
5
HARNESS, DOOR LOCK (UPR) WPL 71001809 Contact Us For Availability
5
HARNESS, CONVECT WPL 71001861 Contact Us For Availability
5
HARNESS, MEAT PROBE WPL 71001868 Contact Us For Availability
5
HARNESS, TOUCH PAD/CLOCK WPL 71003403 Contact Us For Availability
5
HARNESS, CONTROL/RELAY BOARD WPL 71003404 Contact Us For Availability
5
HARNESS, MAIN (UPR) WPL 74005198 Contact Us For Availability
5
HARNESS, SENSOR (LWR) WPL 74005199 Contact Us For Availability
5
HARNESS, MAIN (UPR) WPL 74006938 Contact Us For Availability
5
HARNESS, UPR DR SW. & MTR WPL 74007064 Contact Us For Availability
6
VENT (BTM) WPL 71001846 Contact Us For Availability
6
HOOD, INTAKE (REAR) WPL 71003521 Contact Us For Availability
6
FRAME, OVEN WPL 71003185 Contact Us For Availability
6
PLATE, LATCH WPL 71001831 Contact Us For Availability
6
COOKBOOK WPL 71003508 Contact Us For Availability
6
GUIDE, COOKING (TRILINGUAL) WPL 74005475 Contact Us For Availability
6
MANUAL, USE & CARE WPL 74005656 Contact Us For Availability
7
VENT (TOP) WPL 71001847 Contact Us For Availability
7
WASHER, ALUM WPL 71001403 Contact Us For Availability
7
OVEN WELD ASSY. WPL 71003006 Contact Us For Availability
7
BRACKET, LOCKING (REAR) WPL 71003522 Contact Us For Availability
7
SHIELD, HEAT WPL 71003396 Contact Us For Availability
7
GASKET, WINDOW WPL 790058 Contact Us For Availability
8
BRACKET, FAN WPL 71001853 Contact Us For Availability
8
RECEPTACLE, PROBE WPL 71001863 Contact Us For Availability
8
HOOD, EXHAUST (TOP) WPL 71003523 Contact Us For Availability
8
PANEL, BACK (INR) WPL 74004616 Contact Us For Availability
8
INSULATION, DOOR (BTM) WPL 71001969 Contact Us For Availability
9
WIRE CABLE ASSY. WPL 71002293 Contact Us For Availability
9
RECEPTACLE, BULB WPL 71001866 Contact Us For Availability
9
HOOD, EXHAUST (SIDE) WPL 71003524 Contact Us For Availability
9
RETAINER, GLASS WPL 74003650 Contact Us For Availability
10
SWITCH, DOOR LIGHT WPL 71002904 Contact Us For Availability
10
TUBE, VENT WPL 71002419 Contact Us For Availability
10
SCREW, BLACK WPL 71002514 Contact Us For Availability
10
FRAME, MICROWAVE (BLK) WPL 71003525 Contact Us For Availability
10
PLATE, HINGE TRAP WPL 71001812 Contact Us For Availability
10
GLASS, DOOR (INNER) WPL 74005637 Contact Us For Availability
11
BOARD, RELAY (UPPER) WPL 71003431 Contact Us For Availability
11
INSULATION (WRAP) WPL 71001960 Contact Us For Availability
11
RETAINER, INSULATION WPL 74005638 Contact Us For Availability
12
FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability
12
INSULATION (BTM) WPL 71001963 Contact Us For Availability
12
INSULATION (TOP-BACK) WPL 71002227 Contact Us For Availability
12
WINDOW ASSEMBLY WPL 74005639 Contact Us For Availability
13
RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability
13
OUTLET, APPLIANCE WPL 701704 Contact Us For Availability
13
INSULATION, DOOR (SIDE) WPL 71001839 Contact Us For Availability
14
BLADE, FAN WPL 71001852 Contact Us For Availability
14
NUT, HEX 3/8`` WPL Y703356 Contact Us For Availability
14
LINER, OVEN DOOR WPL 74005615 Contact Us For Availability
16
CLIP, OVEN WPL 71001170 Contact Us For Availability
16
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
17
MOTOR ASSY, CONVECTION WPL 74005657 Contact Us For Availability
17
SCREW WPL 702731 Contact Us For Availability
17
HEAT SINK WPL 74005614 Contact Us For Availability
18
BUTTON, PLUG WPL 702929 Contact Us For Availability
19
PLATE, CONVECTION (FRT) WPL 74005658 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002514 Contact Us For Availability
× ![]()
