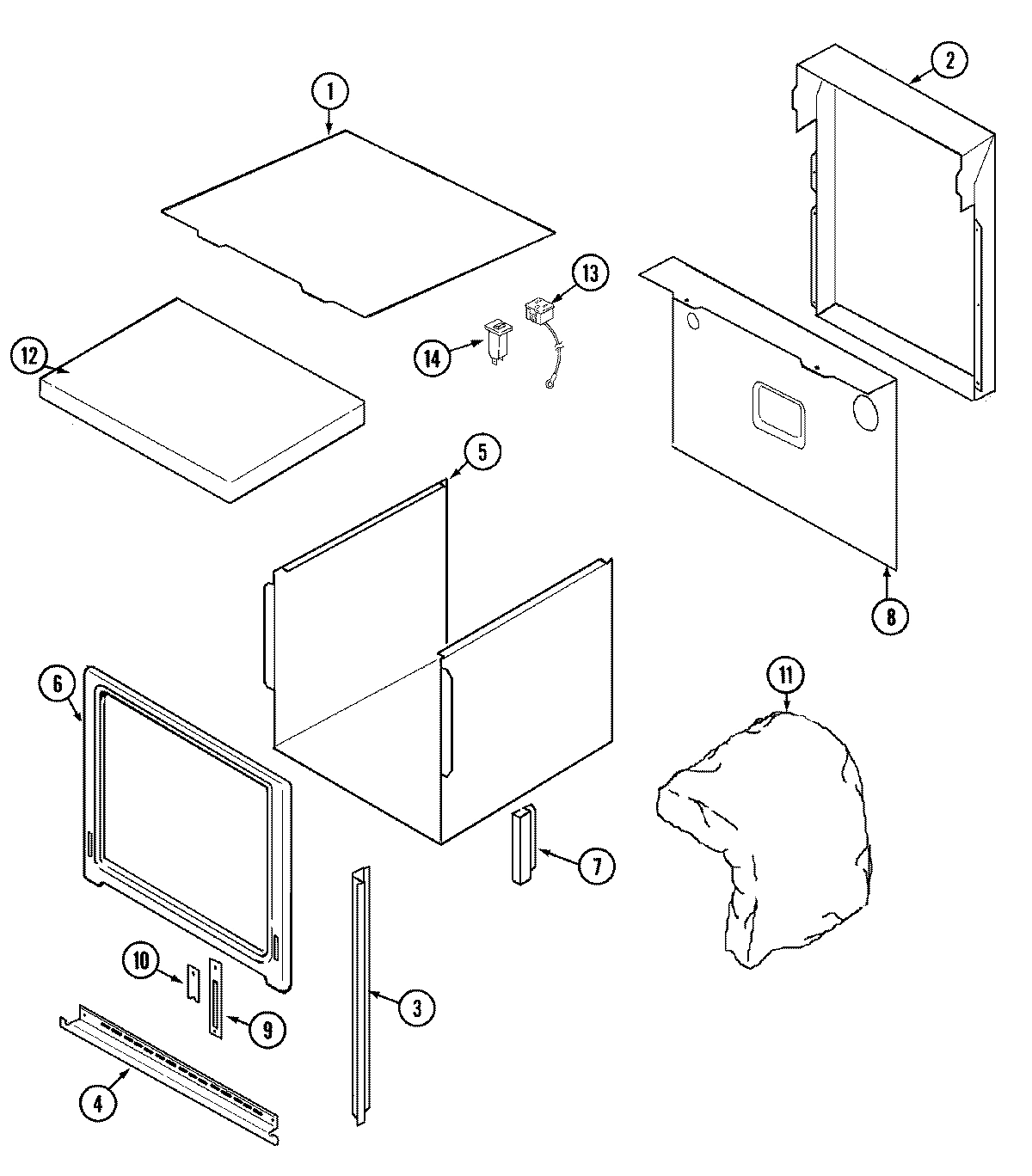

Model Whirlpool JMW9527AAW ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts &amp; Diagrams

1

WP7406P272-60 Whirlpool Bake Element In Stock WPL WP7406P272-60 $94.65

1

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

1

PANEL, INNER TOP (OVEN) WPL 71001976 Contact Us For Availability

1

TOP (OUTER) WPL 71001950 Contact Us For Availability

1

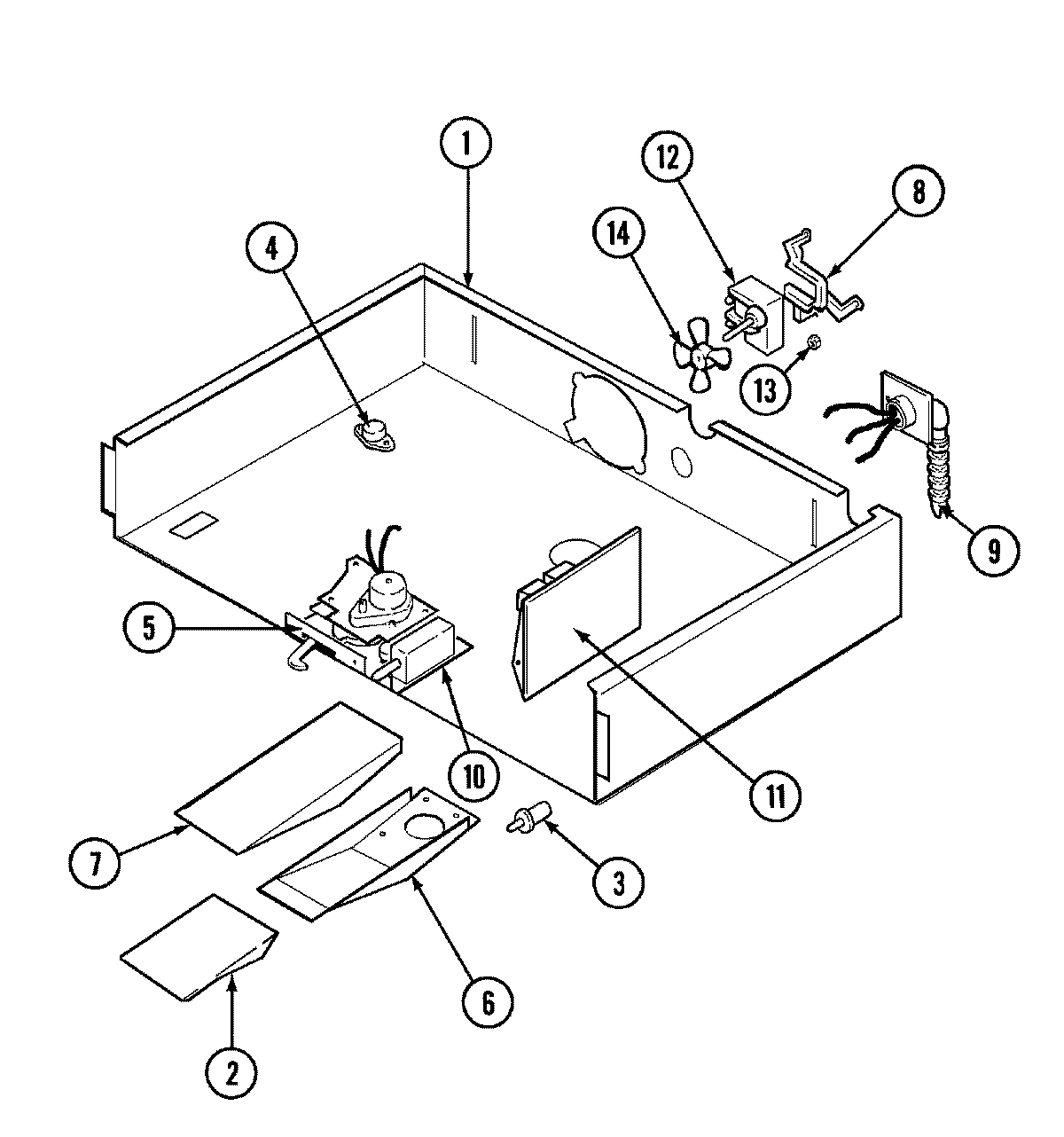

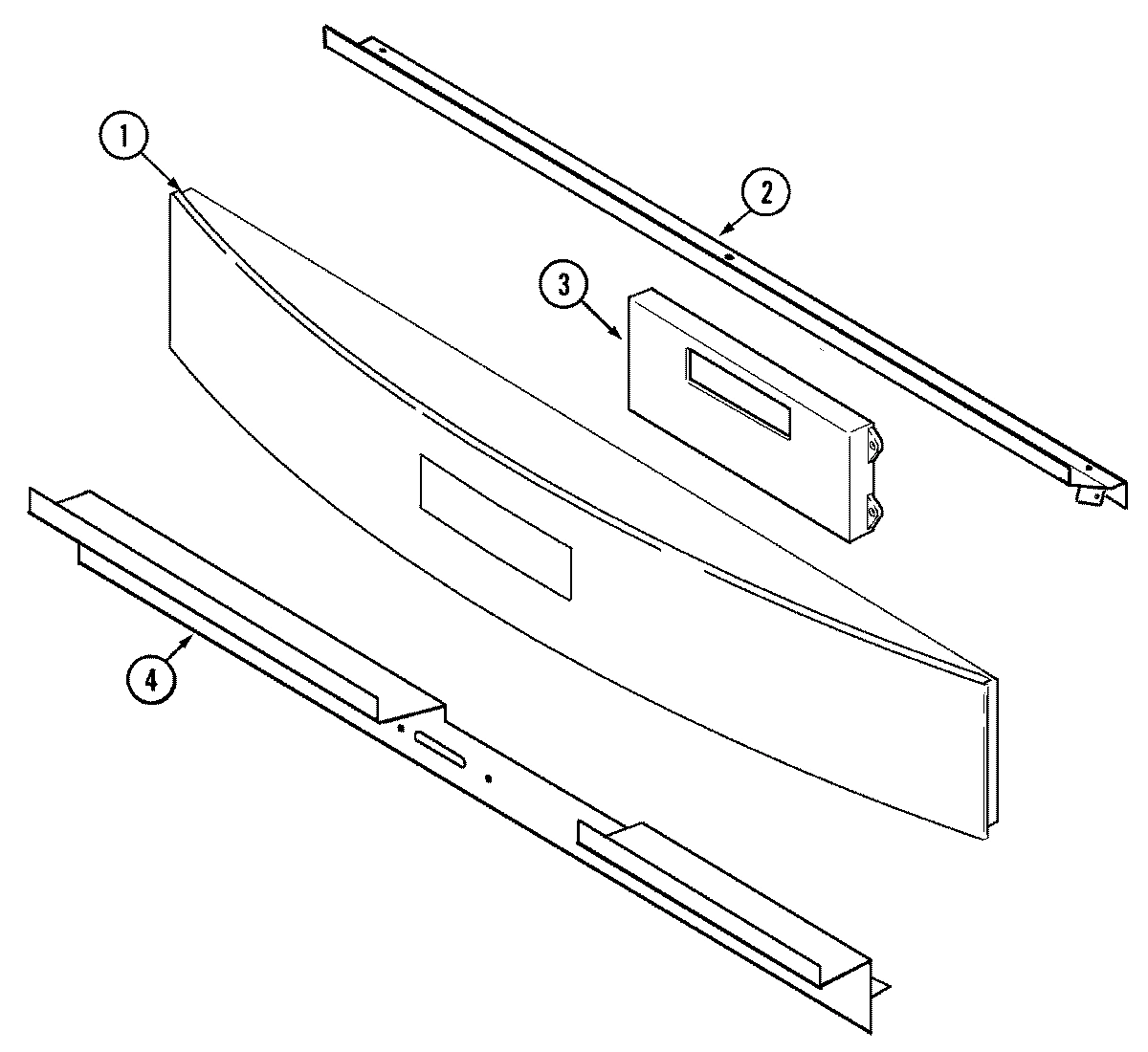

CONTROL PANEL ASSY (WHT) WPL 71003439 Contact Us For Availability

1

HANDLE, DOOR (WHT) WPL 71003419 Contact Us For Availability

2

W11772394 Whirlpool Screw In Stock WPL W11772394 $8.39

2

RACK, OVEN WPL Y704660 Contact Us For Availability

2

SADDLE, STRUT (FRONT) WPL 71003517 Contact Us For Availability

2

EXTENSION, VENT WPL 71001843 Contact Us For Availability

2

COVER, MAIN BACK WPL 71001813 Contact Us For Availability

2

SUPPORT, TOP CONTROL WPL 71003449 Contact Us For Availability

2

POCKET, HANDLE (WHT) WPL 71003390 Contact Us For Availability

2

WASHER WPL 7109P03660 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

3

WP71003424-includeCORE Whirlpool WP71003424 R Backorder WPL WP71003424-includeCORE $349.67

3

SADDLE, STRUT (REAR) WPL 71003518 Contact Us For Availability

3

SWITCH, DOOR LOCK WPL 71001129 Contact Us For Availability

3

NOT REQUIRED PART OR SEE NOTE FOR MICROWAVE P WPL W10124350 Contact Us For Availability

3

TRIM, SIDE (LT-WHT) WPL 71003527 Contact Us For Availability

3

TRIM, SIDE (RT-WHT) WPL 71003528 Contact Us For Availability

3

BRACKET, HANDLE WPL 71003386 Contact Us For Availability

4

WP71001844 Whirlpool Thermostat Backorder WPL WP71001844 $148.74

4

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $4.82

4

BRACKET, LOCKING (FRONT) WPL 71003519 Contact Us For Availability

4

SCREW WPL 7101P33760 Contact Us For Availability

4

TRIM, OVEN (LWR-WHT) WPL 71001955 Contact Us For Availability

4

TRIM, CONTROL PANEL (BLK) WPL 71001946 Contact Us For Availability

4

GLASS, DOOR (WHT) WPL 71003433 Contact Us For Availability

5

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $76.26

5

HOOD, INTAKE (TOP) WPL 71003520 Contact Us For Availability

5

LATCH, DOOR ASSY. WPL 71001845 Contact Us For Availability

5

PANEL (SIDE-BTM-SIDE) WPL 71001957 Contact Us For Availability

5

HARNESS, WIRE CONTROL (J2) WPL 71001798 Contact Us For Availability

5

HARNESS, CONTROL (J10-UPR) WPL 71001806 Contact Us For Availability

5

HARNESS, SUPPLY (J1) WPL 71001807 Contact Us For Availability

5

HARNESS, DOOR SWITCH (UPR) WPL 71001808 Contact Us For Availability

5

HARNESS, DOOR LOCK (UPR) WPL 71001809 Contact Us For Availability

5

HARNESS, CONVECT WPL 71001861 Contact Us For Availability

5

HARNESS, MEAT PROBE WPL 71001868 Contact Us For Availability

5

HARNESS, TOUCH PAD/CLOCK WPL 71003403 Contact Us For Availability

5

HARNESS, CONTROL/RELAY BOARD WPL 71003404 Contact Us For Availability

5

HARNESS, MAIN (UPR) WPL 74005198 Contact Us For Availability

5

HARNESS, SENSOR (LWR) WPL 74005199 Contact Us For Availability

5

FRAME, DOOR (WHT) WPL 71003445 Contact Us For Availability

6

WP355214 Whirlpool Screw In Stock WPL WP355214 $5.30

6

HOOD, INTAKE (REAR) WPL 71003521 Contact Us For Availability

6

VENT (BTM) WPL 71001846 Contact Us For Availability

6

FRAME, OVEN WPL 71003185 Contact Us For Availability

6

GUIDE, COOKING WPL 71002782 Contact Us For Availability

6

COOKBOOK WPL 71003508 Contact Us For Availability

6

MANUAL, USE & CARE WPL 71003509 Contact Us For Availability

6

PLATE, LATCH WPL 71001831 Contact Us For Availability

7

WP74008015 Whirlpool Bracket Assembly In Stock WPL WP74008015 $213.49

7

BRACKET, LOCKING (REAR) WPL 71003522 Contact Us For Availability

7

WASHER, ALUM WPL 71001403 Contact Us For Availability

7

OVEN WELD ASSY. WPL 71003006 Contact Us For Availability

7

VENT (TOP) WPL 71001847 Contact Us For Availability

7

SHIELD, HEAT WPL 71003396 Contact Us For Availability

7

GASKET, WINDOW WPL 790058 Contact Us For Availability

8

HOOD, EXHAUST (TOP) WPL 71003523 Contact Us For Availability

8

RECEPTACLE, PROBE WPL 71001863 Contact Us For Availability

8

BRACKET, FAN WPL 71001853 Contact Us For Availability

8

BACK, MAIN (INNER) WPL 71001959 Contact Us For Availability

8

INSULATION, DOOR (BTM) WPL 71001969 Contact Us For Availability

9

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $5.02

9

HOOD, EXHAUST (SIDE) WPL 71003524 Contact Us For Availability

9

RECEPTACLE, BULB WPL 71001866 Contact Us For Availability

9

WIRE CABLE ASSY. WPL 71001848 Contact Us For Availability

9

PLATE, HINGE COVER WPL 71001815 Contact Us For Availability

9

BRACKET, DOOR GLASS (INNER) WPL 71003398 Contact Us For Availability

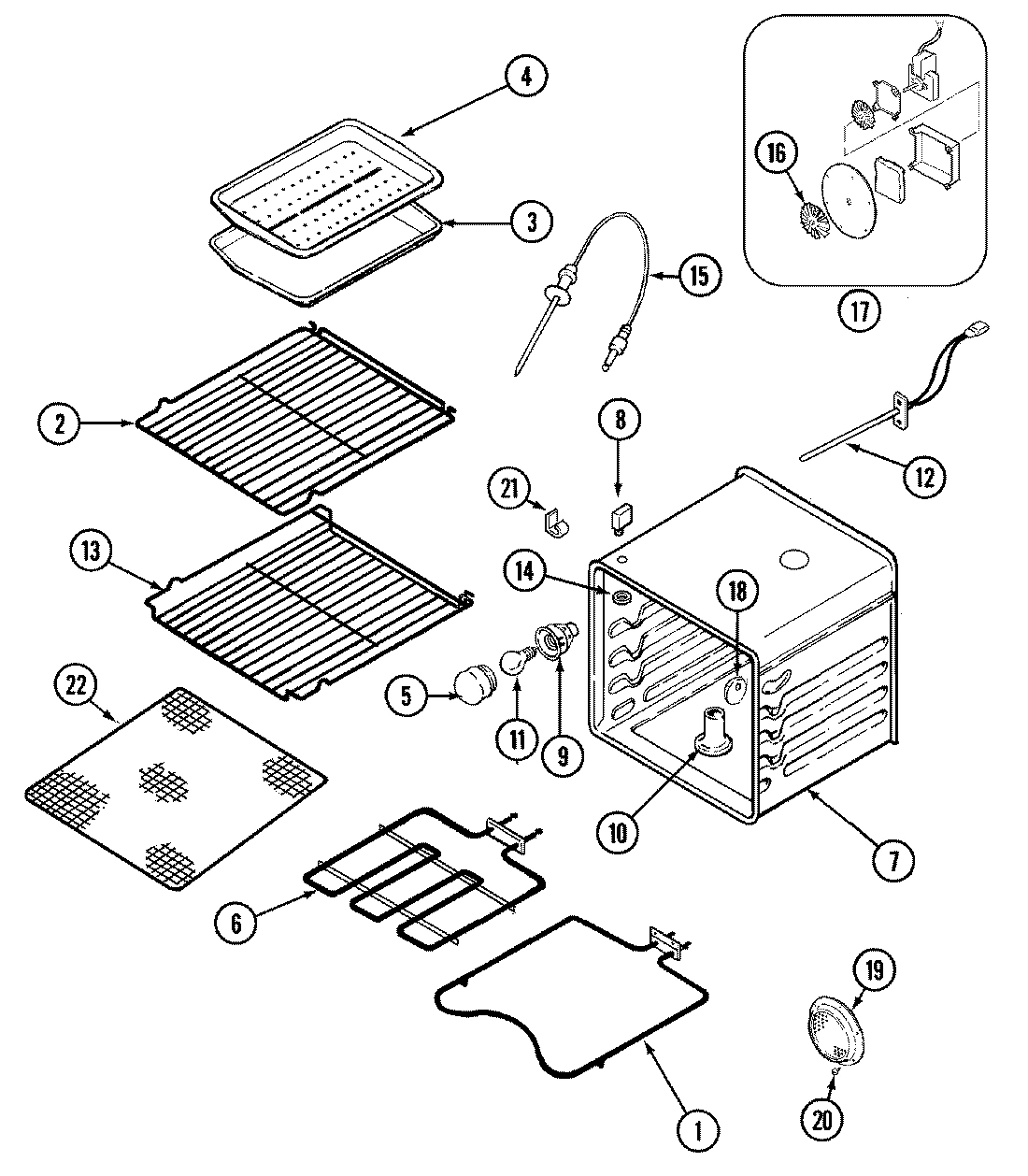

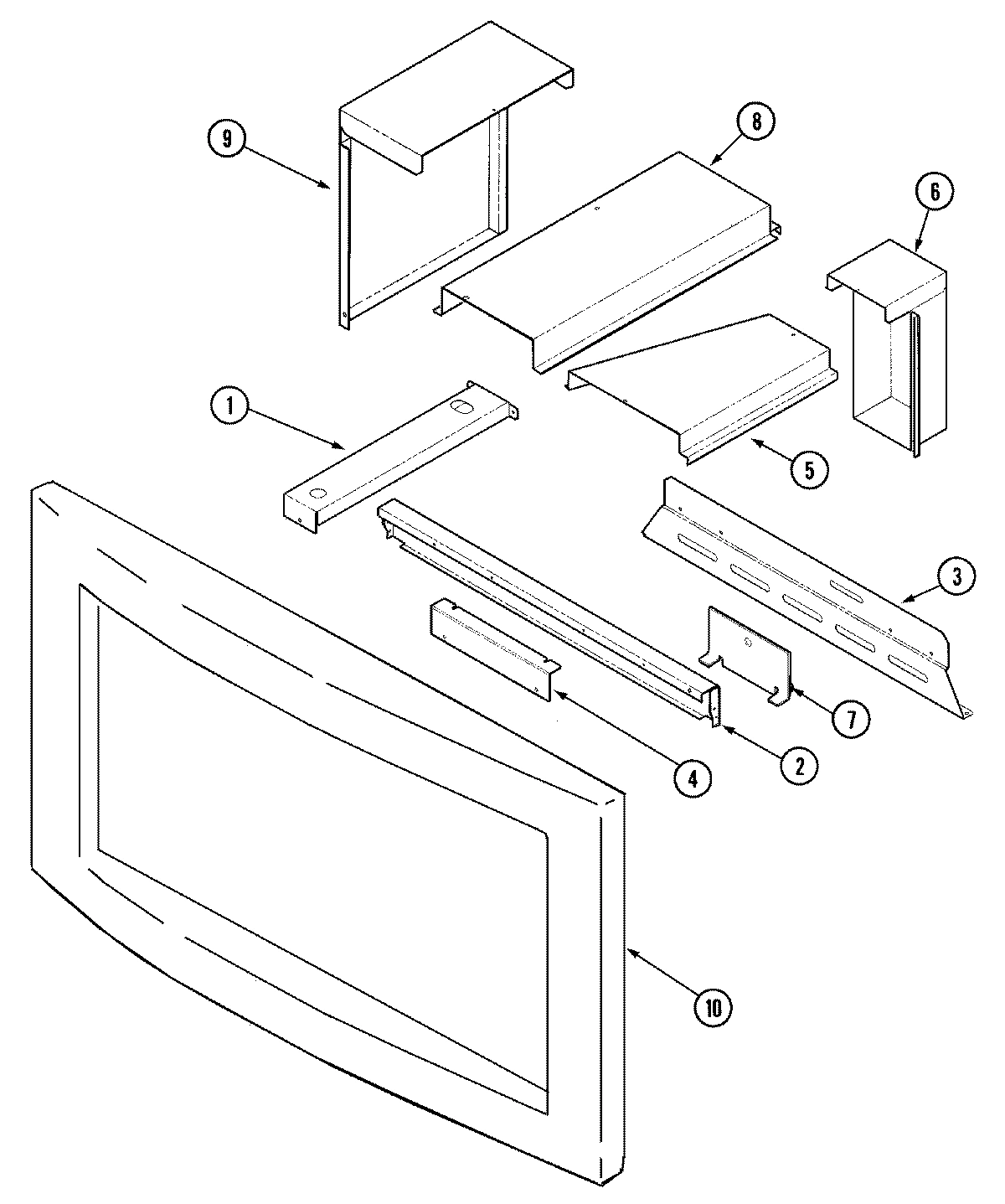

FRAME, MICROWAVE (WHT) WPL 71003526 Contact Us For Availability

TUBE, VENT WPL 71002419 Contact Us For Availability

SWITCH, DOOR LIGHT WPL 71002904 Contact Us For Availability

PLATE, HINGE TRAP WPL 71001812 Contact Us For Availability

GLASS, INNER WPL 71002801 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $5.30

BOARD, RELAY (UPPER) WPL 71003431 Contact Us For Availability

INSULATION (WRAP) WPL 71001960 Contact Us For Availability

RETAINER, INSULATION WPL 71002864 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

WP7902P444-60 Whirlpool Door Glass Backorder WPL WP7902P444-60 $113.25

FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability

INSULATION (BTM) WPL 71001963 Contact Us For Availability

INSULATION (TOP-BACK) WPL 71002227 Contact Us For Availability

M0282005 Whirlpool Nut Backorder WPL M0282005 $5.10

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $5.02

RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability

OUTLET, APPLIANCE WPL 701704 Contact Us For Availability

INSULATION, DOOR (SIDE) WPL 71001839 Contact Us For Availability

WP71002286 Whirlpool Circuit Breaker Backorder WPL WP71002286 $57.13

WPW10296816 Whirlpool Refrigerator Screw Backorder WPL WPW10296816 $5.02

NUT, HEX 3/8`` WPL Y703356 Contact Us For Availability

BLADE, FAN WPL 71001852 Contact Us For Availability

LINER, OVEN DOOR WPL 71002968 Contact Us For Availability

15

W10759523 Whirlpool Screw Backorder WPL W10759523 $4.55

15

WP71001870 Whirlpool Temperature Probe Sensor Backorder WPL WP71001870 $171.29

15

WP71001970 Whirlpool Door Seal Backorder WPL WP71001970 $120.69

16

WP74008014 Whirlpool Range Oven Door Hinge In Stock WPL WP74008014 $118.85

16

WHEEL, CONVECT ASSY. WPL 71001855 Contact Us For Availability

17

CONVECTION MTR ASSY WPL 71001858 Contact Us For Availability

18

BUTTON, PLUG WPL 702929 Contact Us For Availability

19

PLATE, CONVECTION (FRT) WPL 71001947 Contact Us For Availability

20

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

21

CLIP, OVEN WPL 71001170 Contact Us For Availability

22

74007237 Whirlpool Spacer Backorder WPL 74007237 $40.16

22

RACK, DEHYDRATION WPL 74003595 Contact Us For Availability

NI

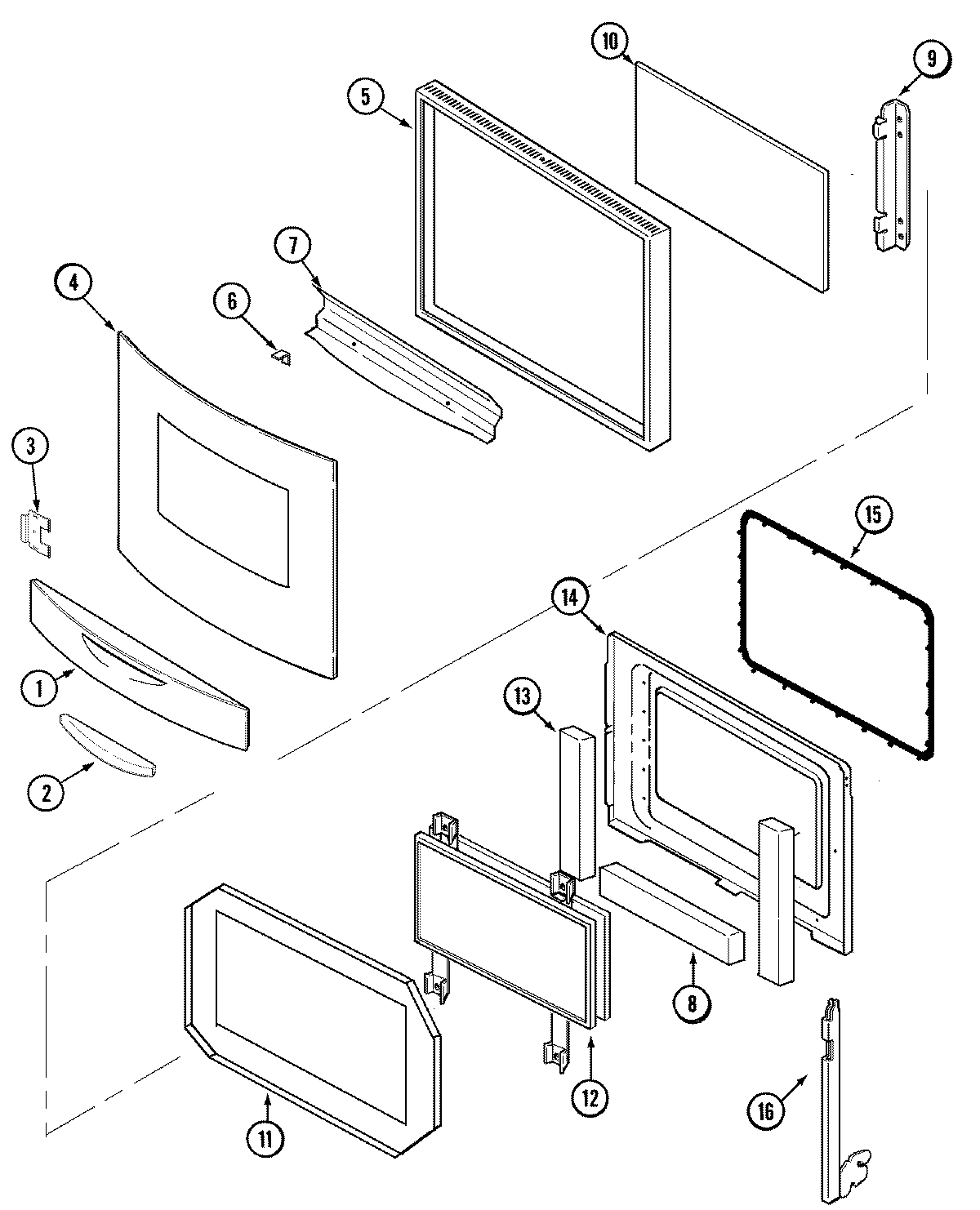

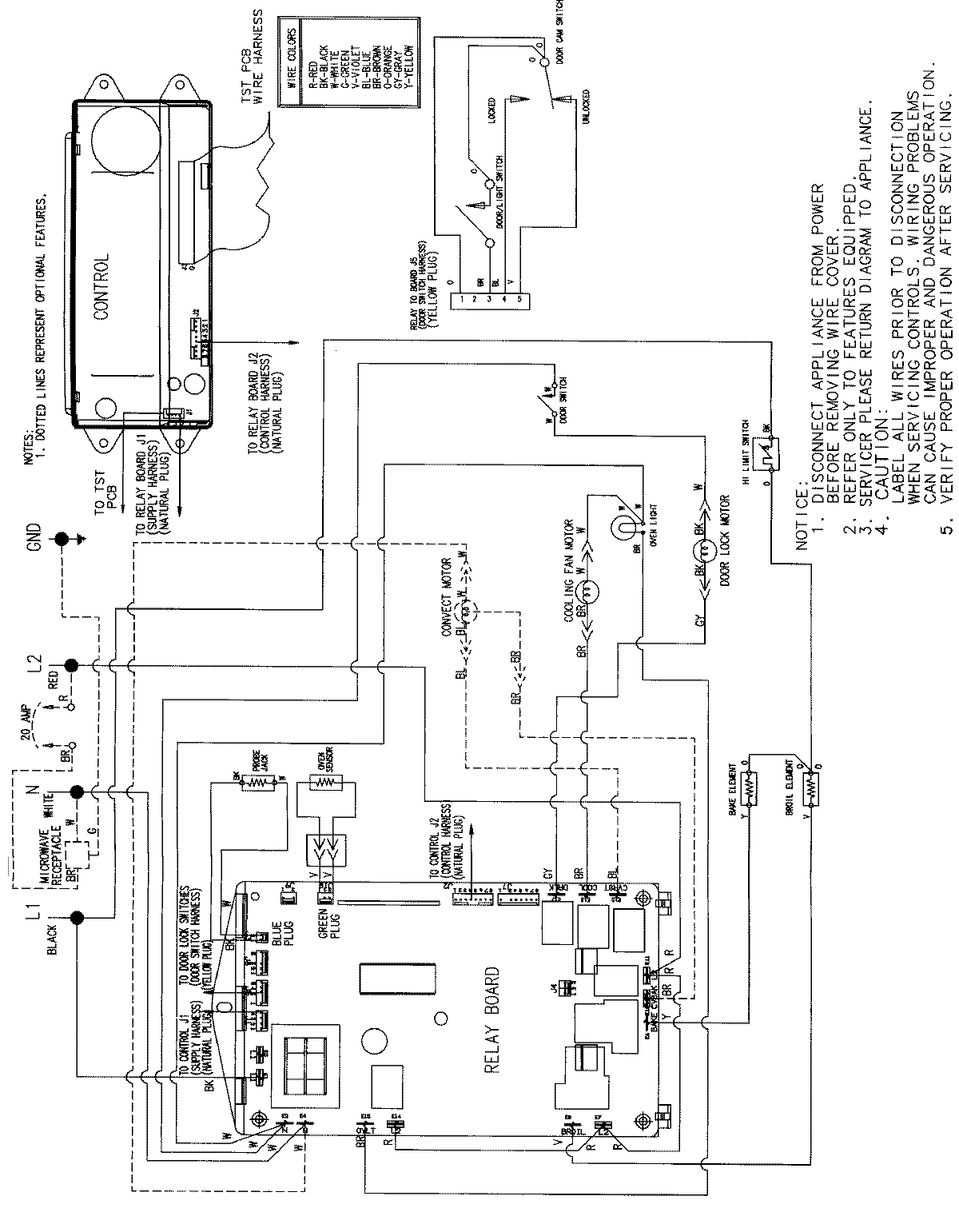

WIRING INFORMATION WPL 15002514 Contact Us For Availability
