Model Whirlpool JMW8527DAS ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts &amp; Diagrams

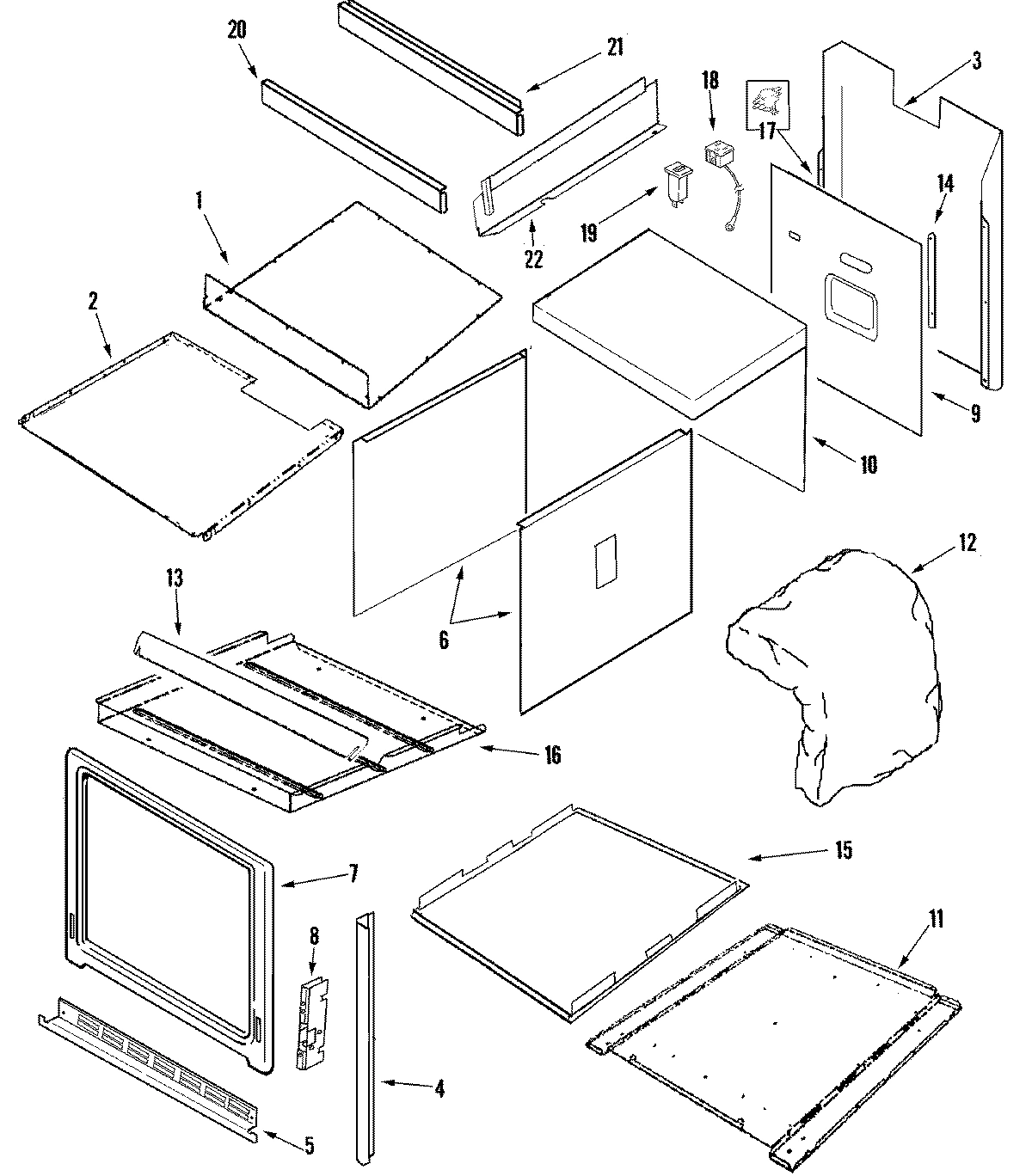

1

COVER, TOP WPL 74008366 Contact Us For Availability

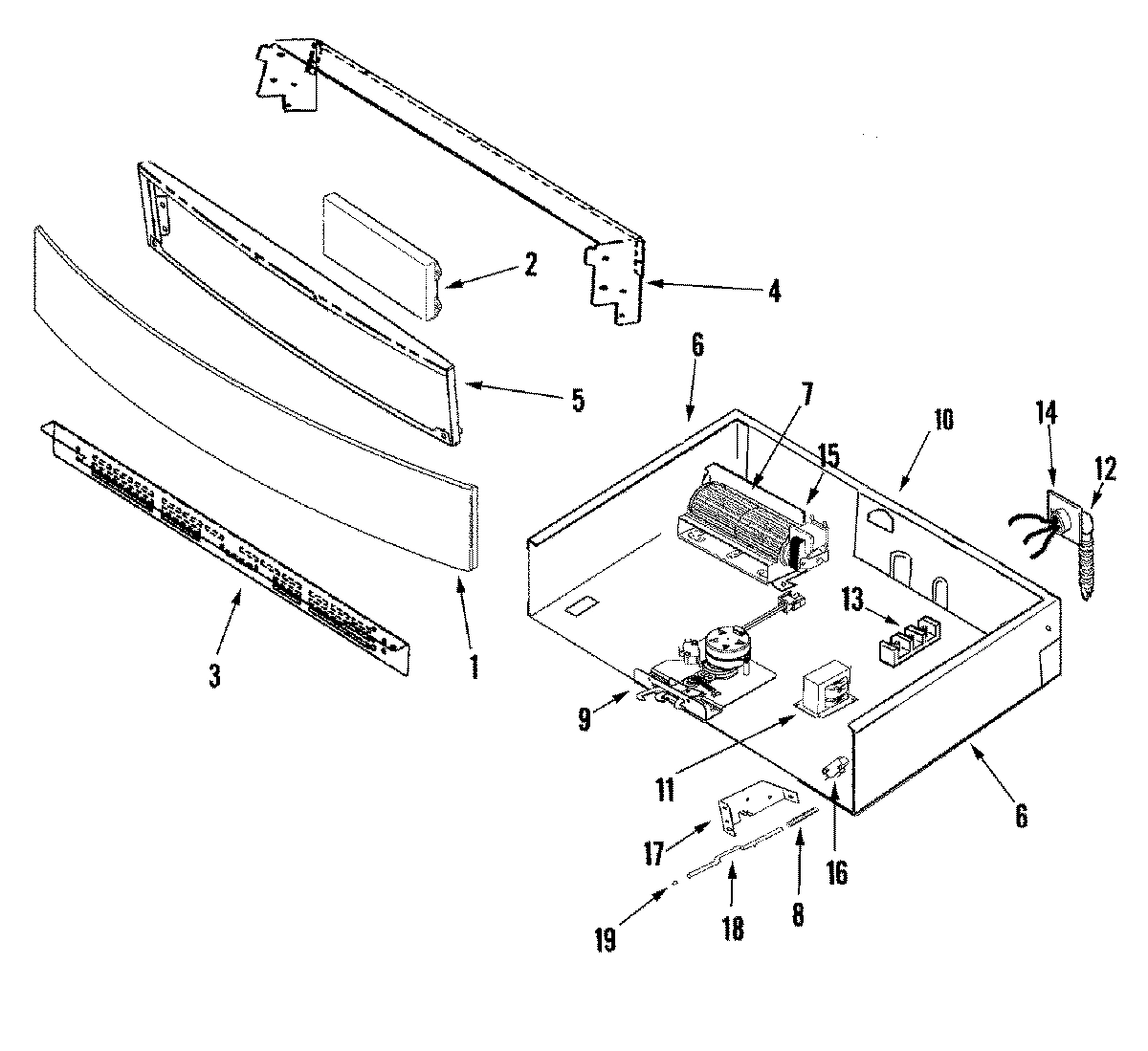

1

GLASS TOUCH ASY (STL) WPL 74011971 Contact Us For Availability

1

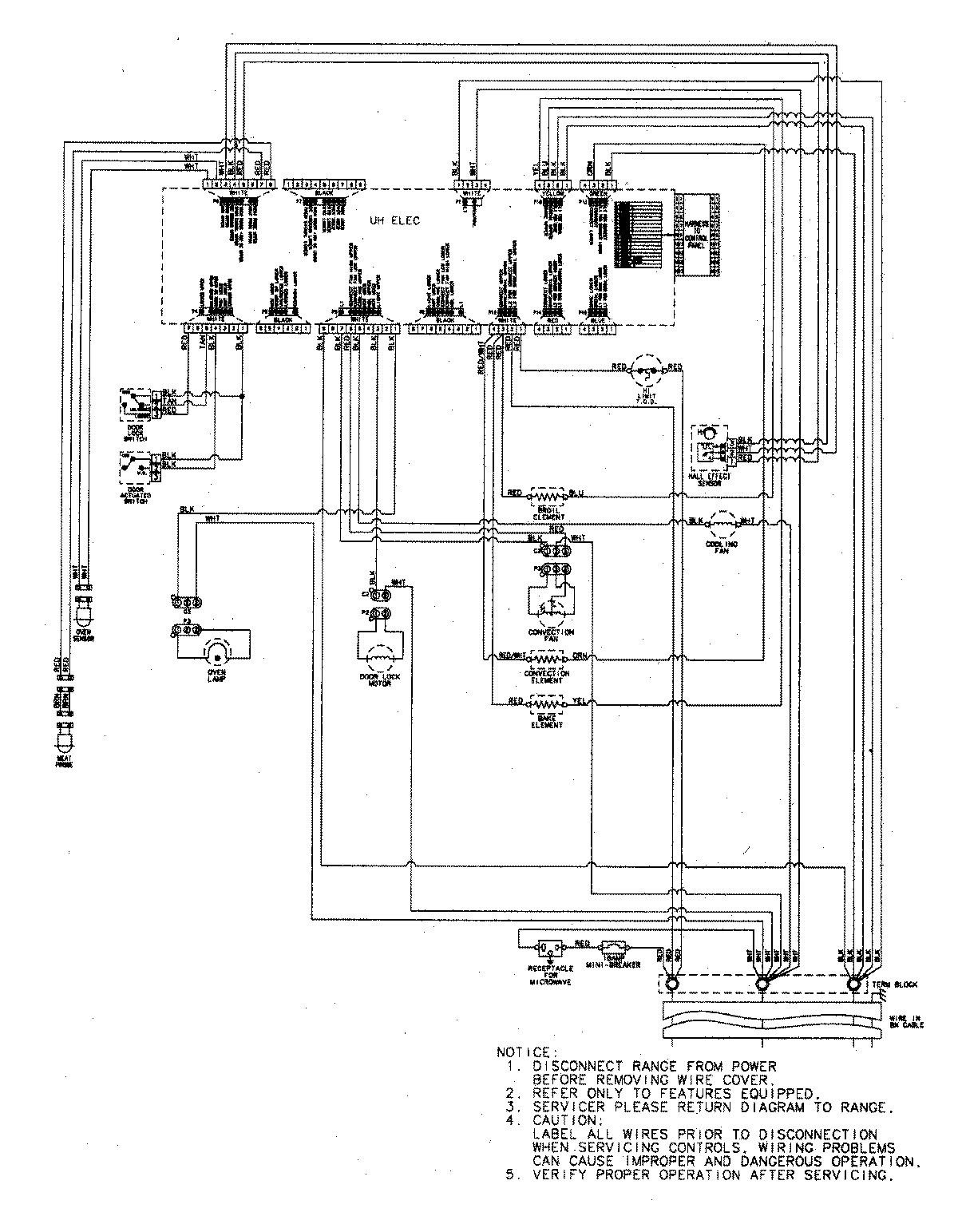

WIRING INFORMATION (FRC) WPL 15003843 Contact Us For Availability

1

HARNESS, SENSOR WPL 74008346 Contact Us For Availability

2

WP74004607 Whirlpool Light Lens Backorder WPL WP74004607 $12.66

2

WP74009714 Whirlpool Control Board Backorder WPL WP74009714 $638.77

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

2

PANEL, TOP RETAINER WPL 2618F22351 Contact Us For Availability

2

PANEL, RETAINER (UPR 27``) WPL 74008368 Contact Us For Availability

2

PANEL, TOP RETAINER (UPR-27) WPL 74011382 Contact Us For Availability

2

HARNESS, MAIN (COMBO) WPL 74008583 Contact Us For Availability

2

HARNESS, MAIN (COMBO) WPL 74011377 Contact Us For Availability

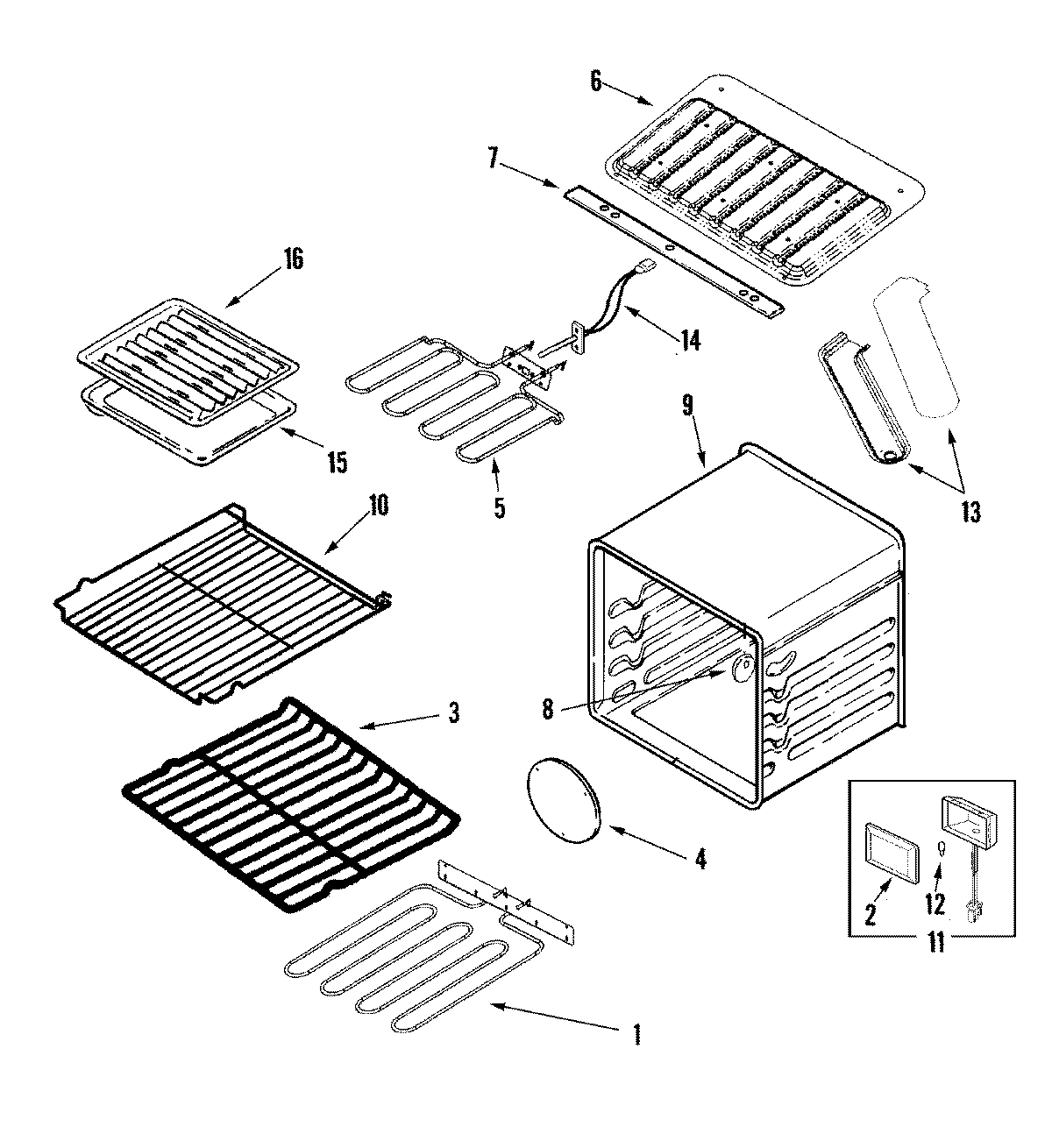

3

RACK, OVEN WPL Y704660 Contact Us For Availability

3

TRIM, CONTROL PANEL (BLK) WPL 74008361 Contact Us For Availability

3

HARNESS, CONTROL PANEL TO PCB WPL 74008345 Contact Us For Availability

4

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

4

KIT, SIDE TRIM (SINGLE) WPL 12002402 Contact Us For Availability

4

TRIM, SIDE (BLK) WPL 74008363 Contact Us For Availability

4

SUPPORT, TOP CONTROL WPL 74008362 Contact Us For Availability

4

NOT REQUIRED PART OR SEE NOTE FOR MICROWAVE P WPL W10124350 Contact Us For Availability

4

MANUAL, U & C WPL 74008390 Contact Us For Availability

4

MANUAL, USE & CARE WPL W10169641 Contact Us For Availability

4

PLATE, NON-CONVECT WPL 71002903 Contact Us For Availability

5

WP74010284 Whirlpool Door Hinge In Stock WPL WP74010284 $94.28

5

WPW10184147 Whirlpool Broil Element Backorder WPL WPW10184147 $141.10

5

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $5.02

5

HINGE, DOOR WPL 74008384 Contact Us For Availability

5

TRIM, BOTTOM (BLK) WPL 74008364 Contact Us For Availability

5

FRAME, CONTROL PANEL WPL 74008351 Contact Us For Availability

5

GUIDE, COOKING (TRILINGUAL) WPL 74007136 Contact Us For Availability

5

ELEMENT, BROIL WPL 7406P50060 Contact Us For Availability

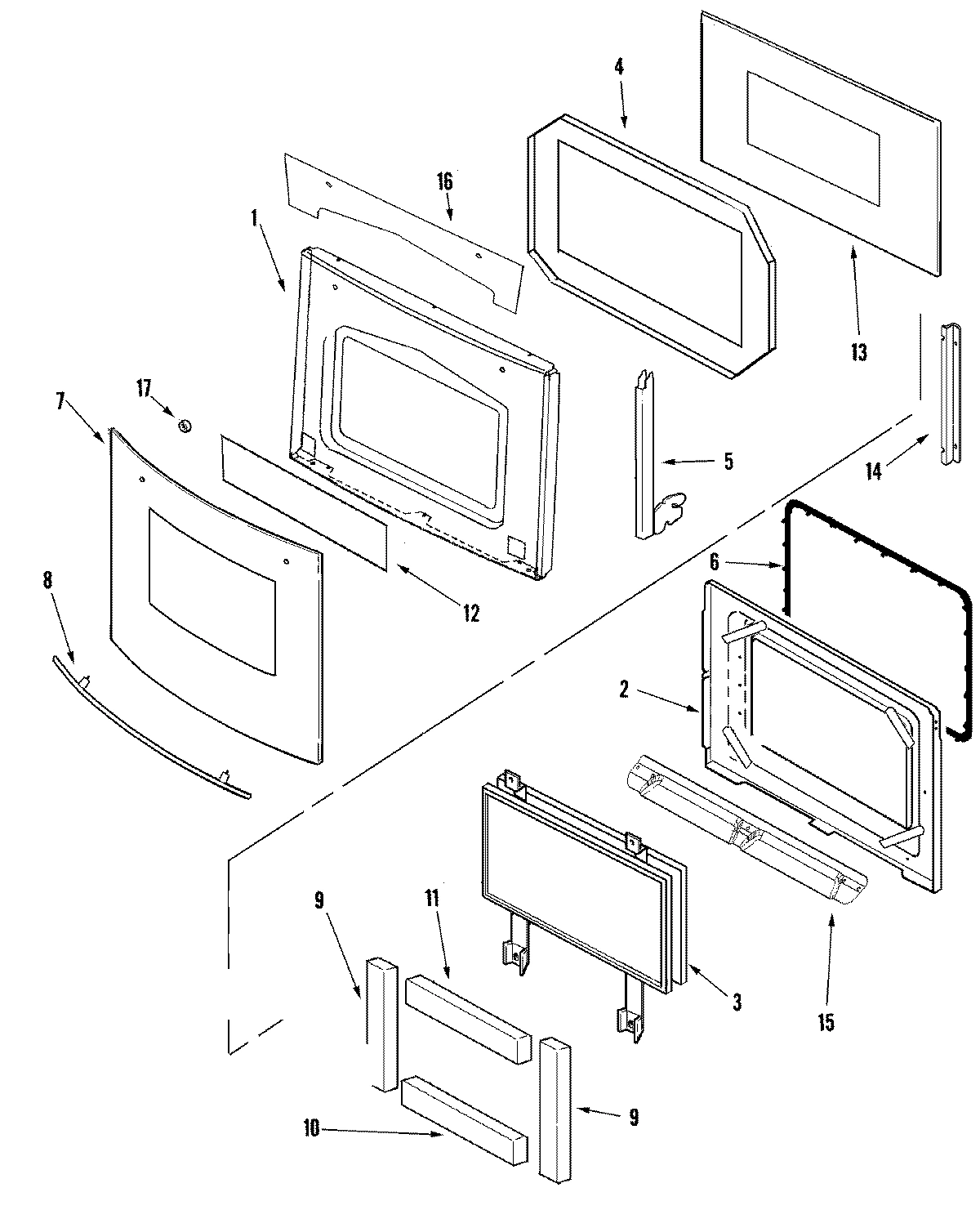

6

WP71001970 Whirlpool Door Seal Backorder WPL WP71001970 $120.69

6

PANEL, SIDE WPL 74008381 Contact Us For Availability

6

PANEL, SIDE WPL 74011390 Contact Us For Availability

6

SIDE PANEL, CONTROL (LT) WPL 74008359 Contact Us For Availability

6

SIDE PANEL, CONTROL (RT) WPL 74008360 Contact Us For Availability

6

DVD, JENN AIR WALLOVEN GUIDE WPL 74008247 Contact Us For Availability

6

SHIELD, BROIL WPL 74008375 Contact Us For Availability

7

WP74008383 Whirlpool Tangential Fan In Stock WPL WP74008383 $160.82

7

GLASS, OUTER DOOR ASSY. (STL) WPL 74008393 Contact Us For Availability

7

FRAME, OVEN WPL 74008373 Contact Us For Availability

7

SCREW WPL 7101P34560 Contact Us For Availability

7

SUPPORT, BROIL ELEMENT WPL 74003563 Contact Us For Availability

8

WP74011337 Whirlpool Bracket Backorder WPL WP74011337 $29.67

8

SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability

8

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

8

HANDLE, DOOR (SS) WPL 74008389 Contact Us For Availability

8

RECEPTACLE, HINGE WPL 74008377 Contact Us For Availability

8

BUTTON, PLUG WPL 702929 Contact Us For Availability

9

WPW10186996 Whirlpool Door Latch Backorder WPL WPW10186996 $255.78

9

INSULATION, DOOR (SIDE) WPL 71001839 Contact Us For Availability

9

RETAINER, REAR INSULATION WPL 74008357 Contact Us For Availability

9

RETAINER, INSUL (REAR UPR 27) WPL 74011388 Contact Us For Availability

9

CLIP, OVEN WPL 71001170 Contact Us For Availability

9

OVEN, WELD ASSY. WPL 74008374 Contact Us For Availability

9

TUBE, VENT (27) WPL 74009839 Contact Us For Availability

W10187048 Whirlpool Rear Cover Backorder WPL W10187048 $77.39

INSULATION, DOOR (BTM) WPL 71001969 Contact Us For Availability

INSULATION, (BACK/TOP) WPL 74008380 Contact Us For Availability

PANEL, REAR CONTROL BOX WPL 2624F10051 Contact Us For Availability

RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability

PANEL, BOTTOM (27``) WPL 74008370 Contact Us For Availability

TRANSFORMER (STEPDOWN) WPL 74005416 Contact Us For Availability

HALOGEN LAMP ASSY WPL 74004521 Contact Us For Availability

HALOGEN LAMP ASSY. WPL 74009970 Contact Us For Availability

5700P829-60 Whirlpool Wire Harness Backorder WPL 5700P829-60 $240.86

W10886919 Whirlpool Light Bulb In Stock WPL W10886919 $18.79

GROMMET, ANTI-SHORT WPL 74004222 Contact Us For Availability

SHIELD, DOOR HEAT (27``) WPL 74008394 Contact Us For Availability

INSULATION, (WRAP) WPL 74008379 Contact Us For Availability

3807F678-45 Whirlpool Mounting Bracket Backorder WPL 3807F678-45 $56.27

WPW10281322 Whirlpool Connector Backorder WPL WPW10281322 $6.04

GLASS, DOOR (SCREENED) WPL 74008391 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

CONNECTOR, CABLE WPL 7417P01760 Contact Us For Availability

VENT BOX ASSY. WPL 74008342 Contact Us For Availability

VENT BOX ASSY. WPL 74009843 Contact Us For Availability

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $4.82

WP74008369 Whirlpool Oven Temperature Sensor In Stock WPL WP74008369 $108.13

RETAINER, GLASS WPL 74003650 Contact Us For Availability

CHANNEL, VENT WPL 74008358 Contact Us For Availability

BRACKET, CABLE WPL 74004712 Contact Us For Availability

15

TRIM, BOTTOM DOOR VENT (BLK) WPL 74008392 Contact Us For Availability

15

CHANNEL, BOTTOM AIR WPL 74008352 Contact Us For Availability

15

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

WP7450P108-60 Whirlpool Lite Switch Backorder WPL WP7450P108-60 $113.42

INSULATION, DOOR (STL) WPL 74008396 Contact Us For Availability

PAN, HIDDEN BAKE WPL 74008356 Contact Us For Availability

SCREW, SWITCH WPL 7101P33060 Contact Us For Availability

INSULATOR WPL 74008264 Contact Us For Availability

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $5.30

WP7403P899-60 Whirlpool Safety Switch Backorder WPL WP7403P899-60 $148.74

BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability

RACK, OVEN (SMART & EASY 27``) WPL 74009585 Contact Us For Availability

18

OUTLET, APPLIANCE WPL 701704 Contact Us For Availability

18

ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability

19

WP71002286 Whirlpool Circuit Breaker Backorder WPL WP71002286 $57.13

19

COVER, PLUNGER (DOOR LIGHT) WPL 74007586 Contact Us For Availability

20

RETAINER, FRONT (MICRO 27``) WPL 74008578 Contact Us For Availability

21

RETAINER, REAR (MICRO 27``) WPL 74008582 Contact Us For Availability

22

RETAINER, SIDE (MICRO RH) WPL 74008580 Contact Us For Availability

22

RETAINER, SIDE (MICRO LH) WPL 74008581 Contact Us For Availability

NI

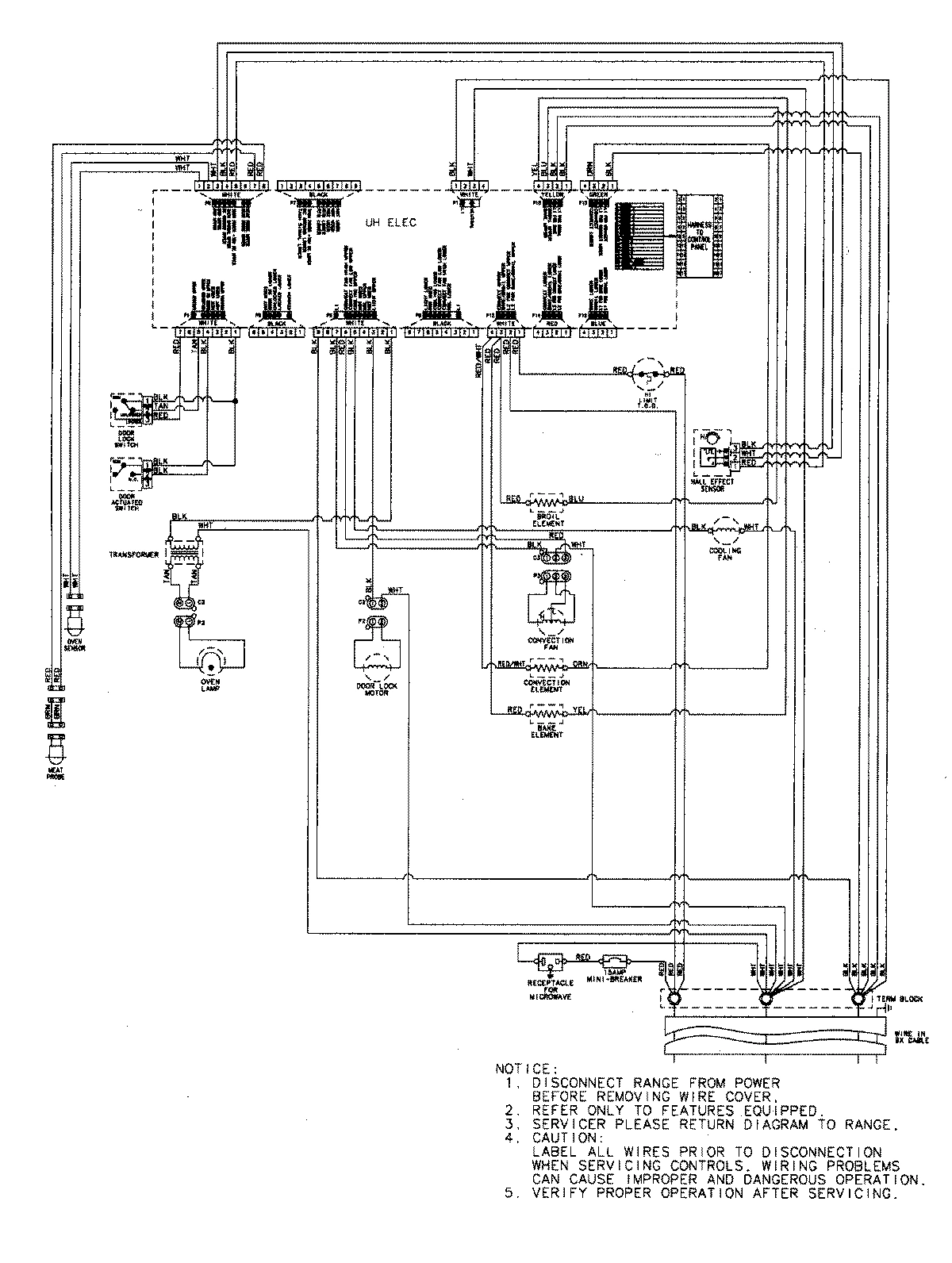

WIRING INFORMATION WPL 15003302 Contact Us For Availability
