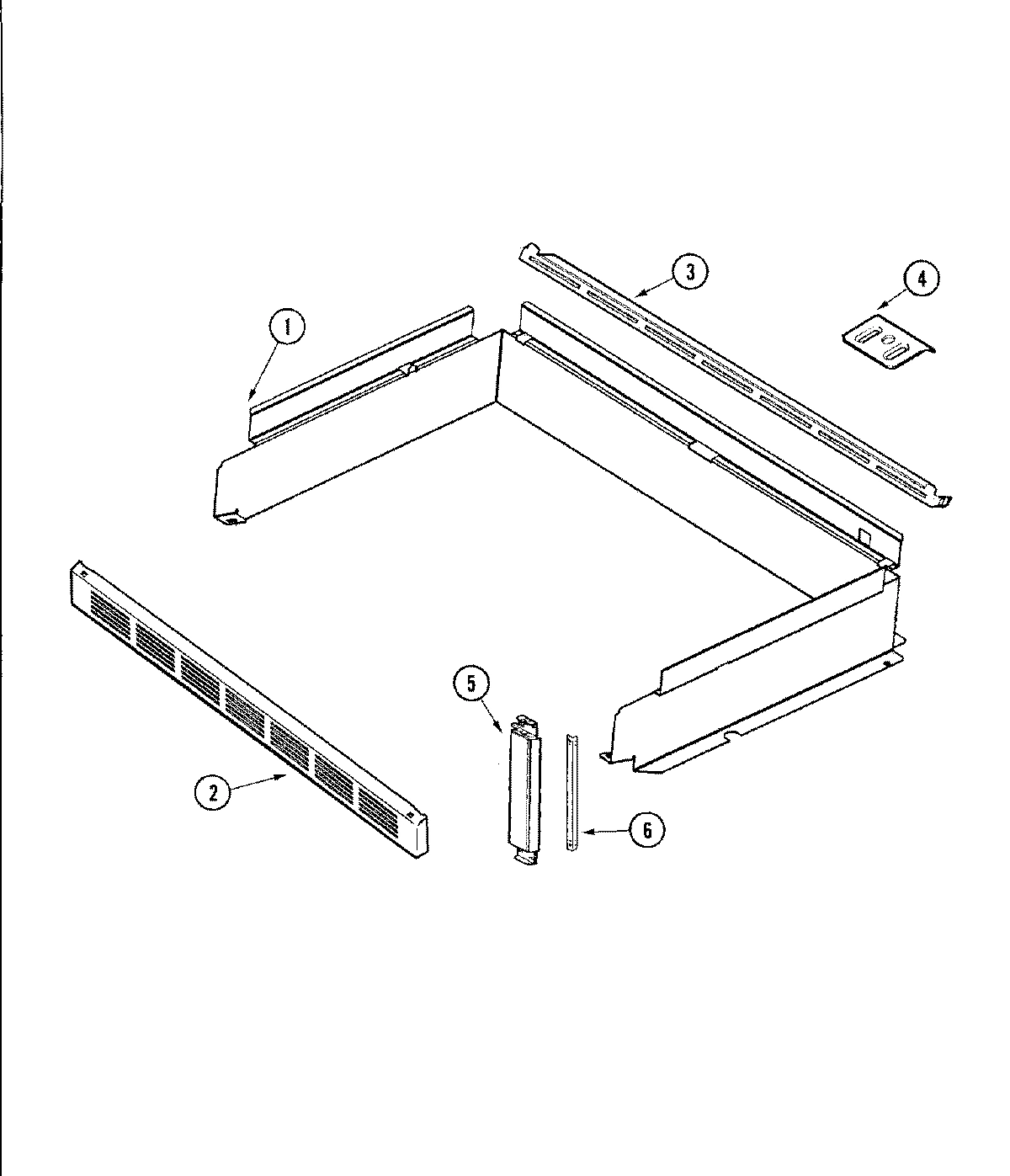

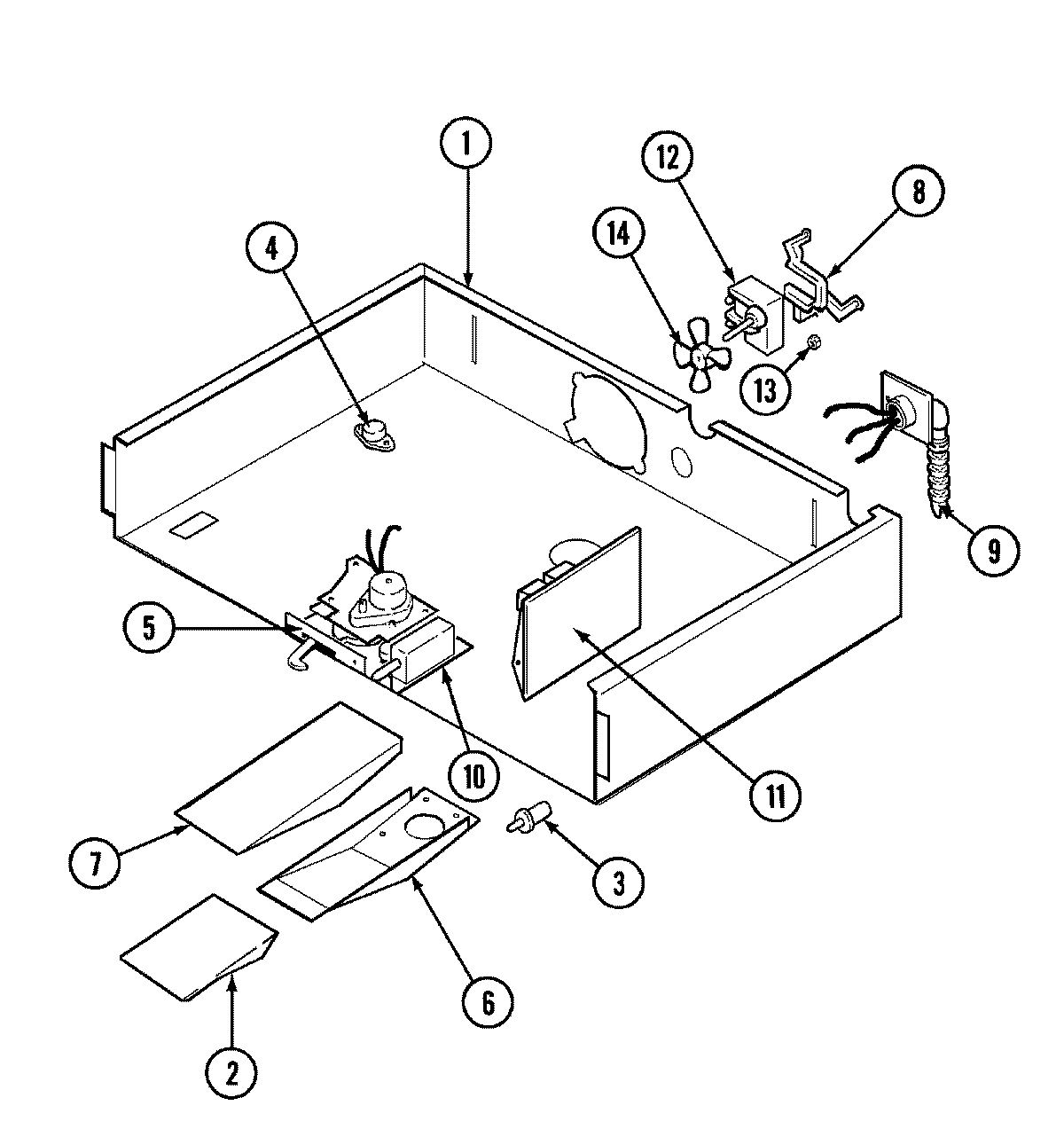

Model Whirlpool JMW8527CAB ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts &amp; Diagrams

1

PANEL, TOP (INR) WPL 74006827 Contact Us For Availability

1

SUPPORT, MICROWAVE WPL 74007139 Contact Us For Availability

1

HANDLE, DOOR (BLK) WPL 74005591 Contact Us For Availability

2

W11772394 Whirlpool Screw In Stock WPL W11772394 $8.39

2

RACK, OVEN WPL Y704660 Contact Us For Availability

2

COVER, MAIN BACK WPL 71001813 Contact Us For Availability

2

EXTENSION, VENT WPL 71001843 Contact Us For Availability

2

TRIM, TOP/BOTTOM (BLK 27``) WPL 74007153 Contact Us For Availability

2

WASHER WPL 7109P03660 Contact Us For Availability

2

POCKET, HANDLE (BLK) WPL 74005592 Contact Us For Availability

2

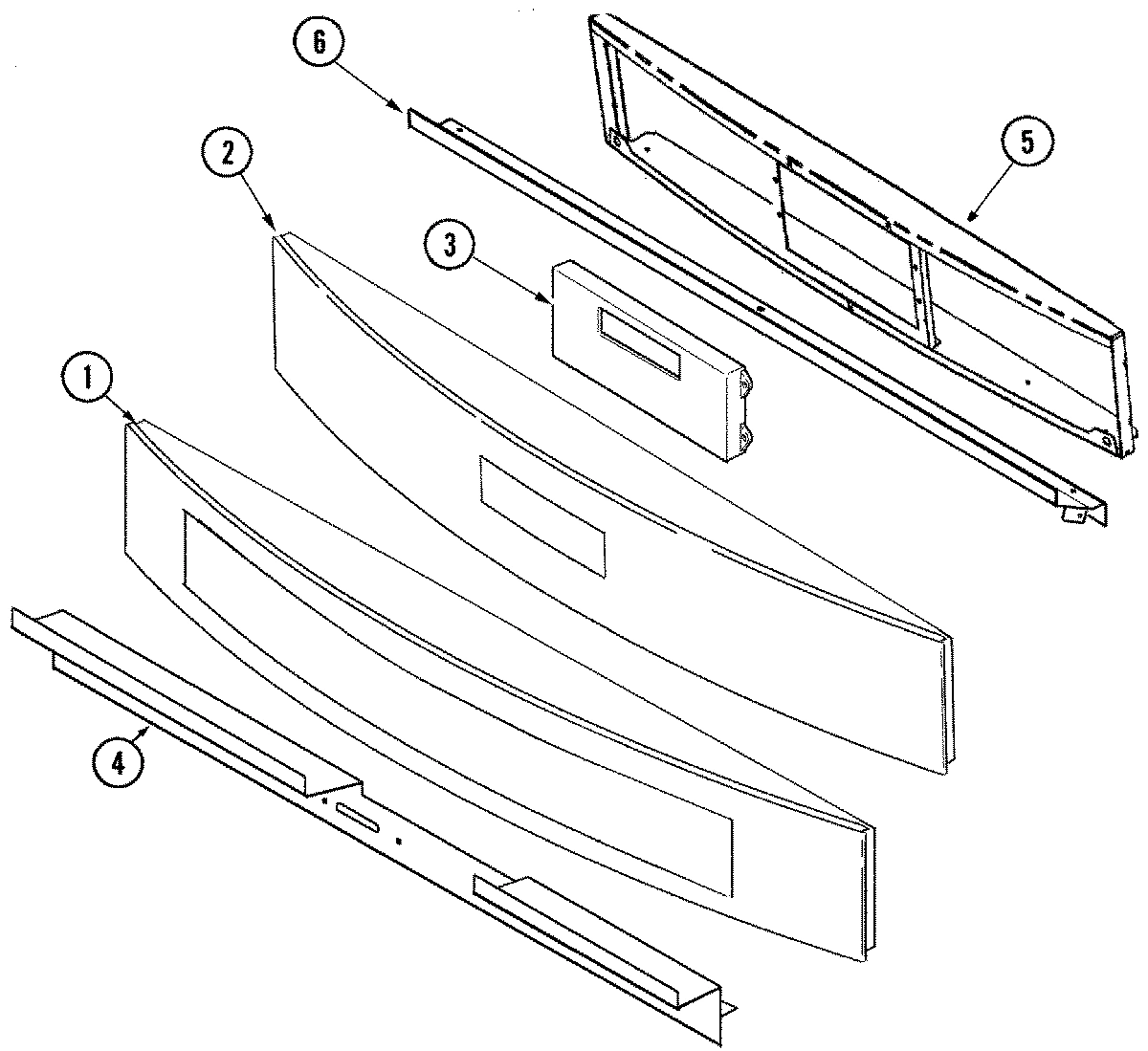

PANEL, CONTROL (BLK) WPL 74007054 Contact Us For Availability

3

WP71003424-includeCORE Whirlpool WP71003424 R Backorder WPL WP71003424-includeCORE $349.67

3

TRIM, SIDE (BLK) WPL 74006903 Contact Us For Availability

3

SWITCH, DOOR LOCK WPL 71001129 Contact Us For Availability

3

RETAINER, HOLD DOWN(27``) WPL 74006760 Contact Us For Availability

3

BRACKET, HANDLE WPL 71003386 Contact Us For Availability

3

NOT REQUIRED PART OR SEE NOTE FOR MICROWAVE P WPL W10124350 Contact Us For Availability

3

PLATE, NON-CONVECT WPL 71002903 Contact Us For Availability

4

WP71001844 Whirlpool Thermostat Backorder WPL WP71001844 $148.74

4

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $4.82

4

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

4

TRIM, OVEN (LWR-BLK) WPL 74005626 Contact Us For Availability

4

BRACKET, ANTI-TIP WPL 74006905 Contact Us For Availability

4

GLASS, DOOR (BLK) WPL 74005612 Contact Us For Availability

4

TRIM, CONTROL PANEL WPL 71001804 Contact Us For Availability

5

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

5

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $76.26

5

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $5.02

5

PANEL (SIDE-BTM-SIDE) WPL 74005627 Contact Us For Availability

5

LATCH, DOOR ASSY. WPL 71001845 Contact Us For Availability

5

TRIM, SIDE (BLK 27``) WPL 74007149 Contact Us For Availability

5

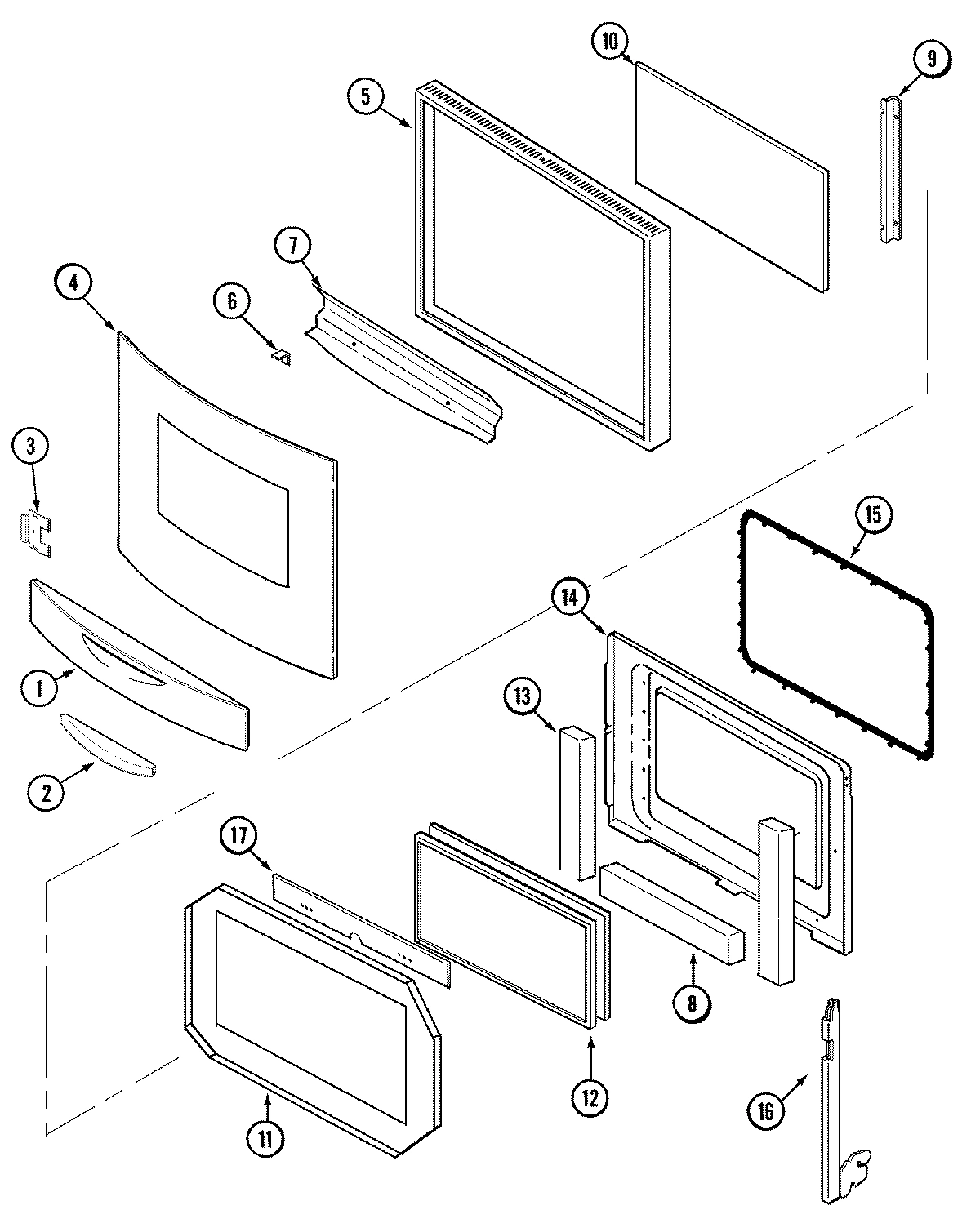

FRAME, DOOR (BLK) WPL 74006315 Contact Us For Availability

5

SUPPORT,(CONTROL 27``)(BLK) WPL 74006908 Contact Us For Availability

6

WP355214 Whirlpool Screw In Stock WPL WP355214 $5.30

6

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

6

WP98008545 Whirlpool Screw Backorder WPL WP98008545 $11.88

6

FRAME, OVEN WPL 71003185 Contact Us For Availability

6

VENT (BTM) WPL 71001846 Contact Us For Availability

6

BRACKET, TRIM WPL 74006761 Contact Us For Availability

6

PLATE, LATCH WPL 71001831 Contact Us For Availability

6

SUPPORT, TOP CONTROL WPL 74006816 Contact Us For Availability

7

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $4.82

7

WP74008015 Whirlpool Bracket Assembly In Stock WPL WP74008015 $213.49

7

VENT (TOP) WPL 71001847 Contact Us For Availability

7

SHIELD, HEAT WPL 71003396 Contact Us For Availability

7

GASKET WPL 7201P05660 Contact Us For Availability

7

GASKET, WINDOW WPL 790058 Contact Us For Availability

7

WASHER, ALUM WPL 71001403 Contact Us For Availability

7

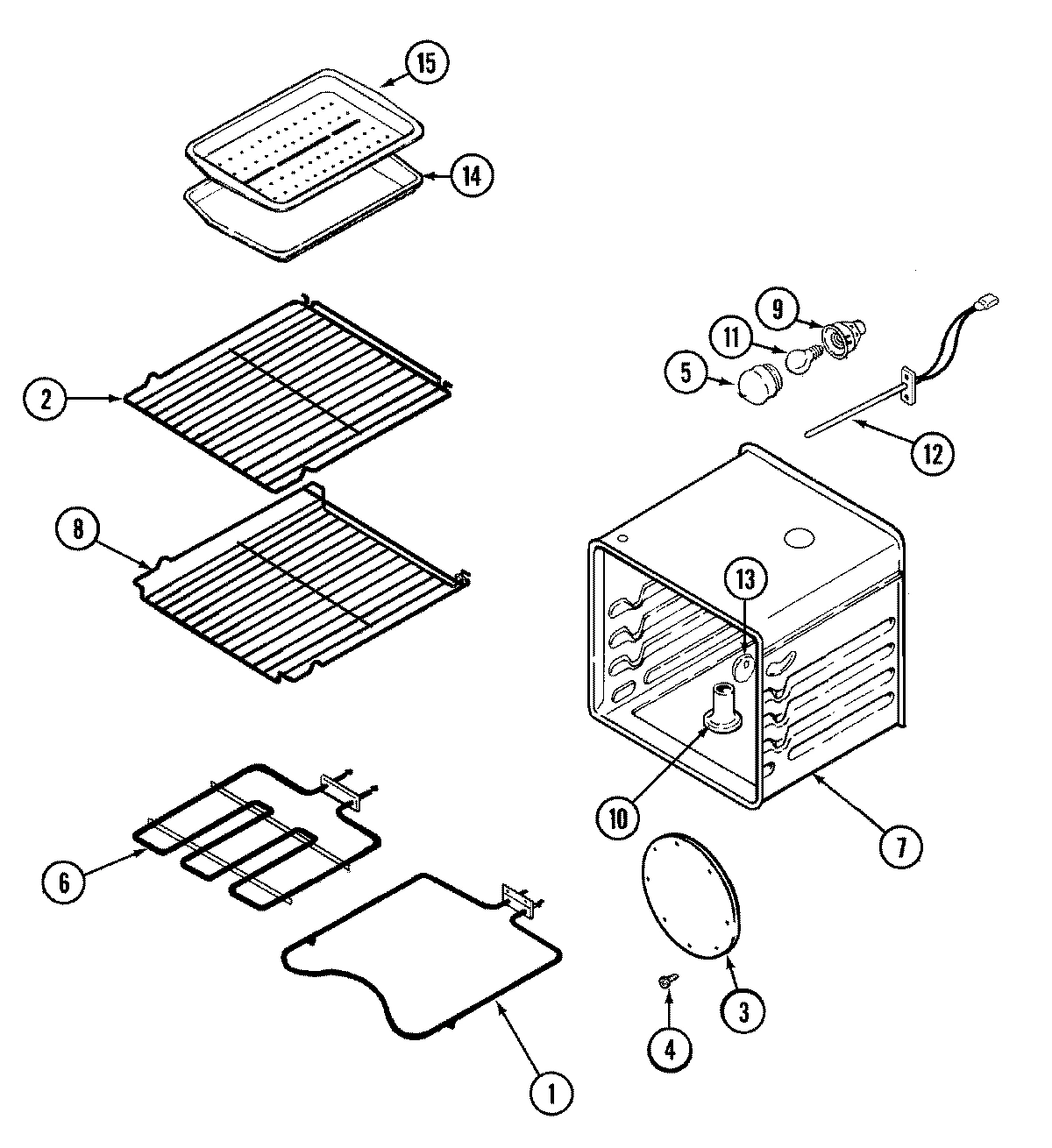

OVEN WELD ASSY. WPL 71003006 Contact Us For Availability

7

HARNESS, WIRE CONTROL (J2) WPL 71001798 Contact Us For Availability

7

HARNESS, TOUCH PAD/CLOCK WPL 71003403 Contact Us For Availability

7

HARNESS, CONTROL/RELAY BOARD WPL 71003404 Contact Us For Availability

7

HARNESS, SENSOR (LWR) WPL 74005199 Contact Us For Availability

7

HARNESS, UPPER MAIN WPL 74007034 Contact Us For Availability

7

HARNESS, UPR DR SW. & MTR WPL 74007064 Contact Us For Availability

8

PANEL, BACK (INR) WPL 74004616 Contact Us For Availability

8

BRACKET, FAN WPL 71001853 Contact Us For Availability

8

INSULATION, DOOR (BTM) WPL 71001969 Contact Us For Availability

8

RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability

8

MANUAL, USE & CARE (TRI) WPL 74005858 Contact Us For Availability

8

GUIDE, COOKING (TRILINGUAL) WPL 74007136 Contact Us For Availability

9

WP71002286 Whirlpool Circuit Breaker Backorder WPL WP71002286 $57.13

9

OUTLET, APPLIANCE WPL 701704 Contact Us For Availability

9

WIRE CABLE ASSY. WPL 71002293 Contact Us For Availability

9

RETAINER, GLASS WPL 74003650 Contact Us For Availability

9

RECEPTACLE, BULB WPL 71001866 Contact Us For Availability

PLATE, HINGE TRAP WPL 71001812 Contact Us For Availability

SWITCH, DOOR LIGHT WPL 71002904 Contact Us For Availability

GLASS, DOOR (INNER) WPL 74005637 Contact Us For Availability

TUBE, VENT WPL 71002419 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $5.30

INSULATION (WRAP) WPL 71001960 Contact Us For Availability

BOARD, RELAY WPL 74006612 Contact Us For Availability

RETAINER, INSULATION WPL 74005638 Contact Us For Availability

CLIP, OVEN WPL 71001170 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

INSULATION (BTM) WPL 71001963 Contact Us For Availability

INSULATION (TOP-BACK) WPL 71002227 Contact Us For Availability

FAN MOTOR ASSY. WPL 71001851 Contact Us For Availability

WINDOW ASSEMBLY WPL 74005639 Contact Us For Availability

M0282005 Whirlpool Nut Backorder WPL M0282005 $5.10

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $5.02

INSULATION, DOOR (SIDE) WPL 71001839 Contact Us For Availability

BUTTON, PLUG WPL 702929 Contact Us For Availability

W10759523 Whirlpool Screw Backorder WPL W10759523 $4.55

BLADE, FAN WPL 71001852 Contact Us For Availability

LINER, OVEN DOOR WPL 74005615 Contact Us For Availability

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

15

WP71001970 Whirlpool Door Seal Backorder WPL WP71001970 $120.69

15

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

16

WP74008014 Whirlpool Range Oven Door Hinge In Stock WPL WP74008014 $118.85

16

SCREW, BLACK WPL 7101P27060 Contact Us For Availability

17

SCREW WPL 702731 Contact Us For Availability

17

HEAT SINK WPL 74005614 Contact Us For Availability

NI

WIRING INFORMATION WPL 15002514 Contact Us For Availability
