Model Whirlpool JJW9827DDS ELECTRIC WALL OVEN – Common Parts & Diagrams

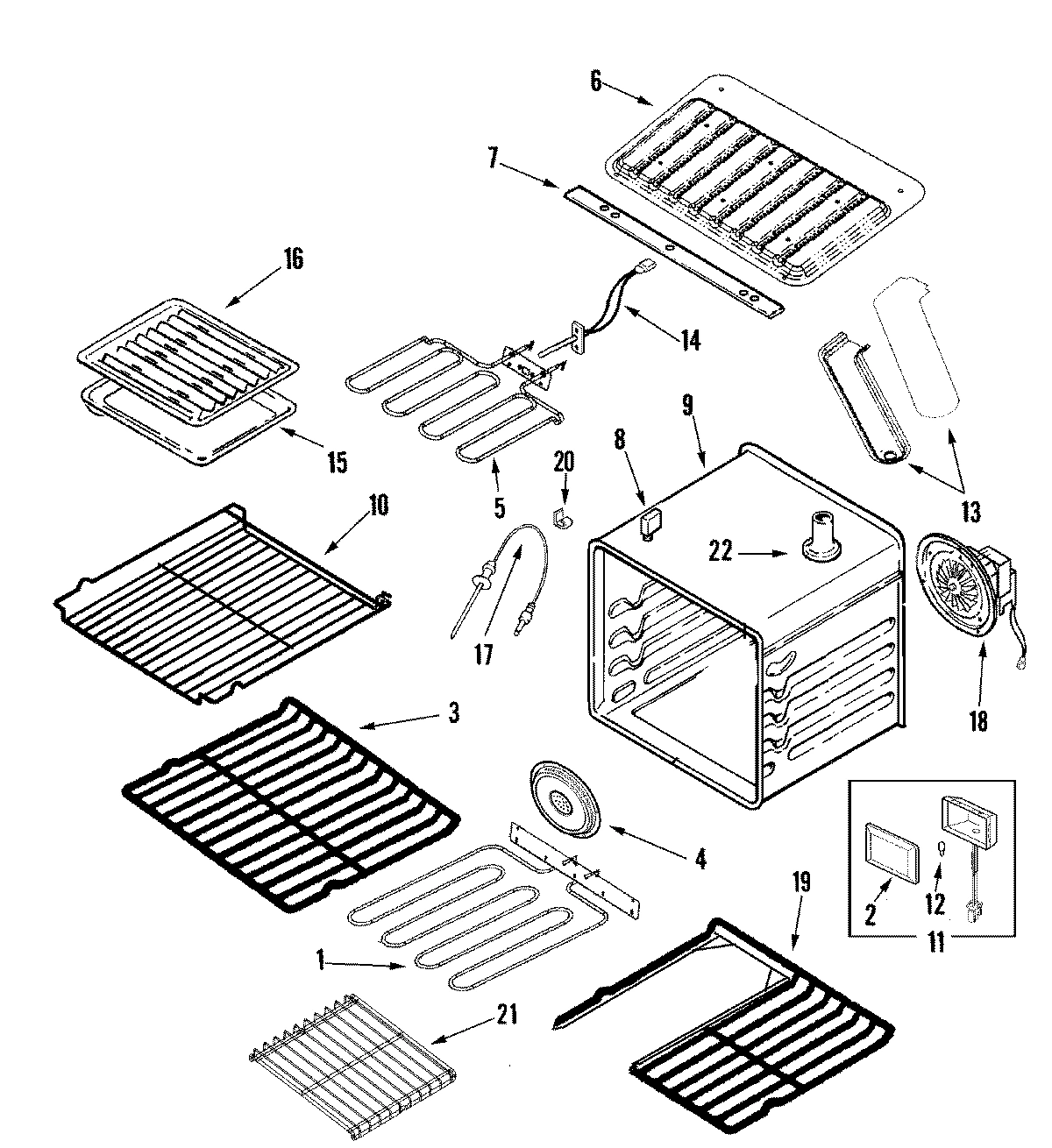

04 - OVEN

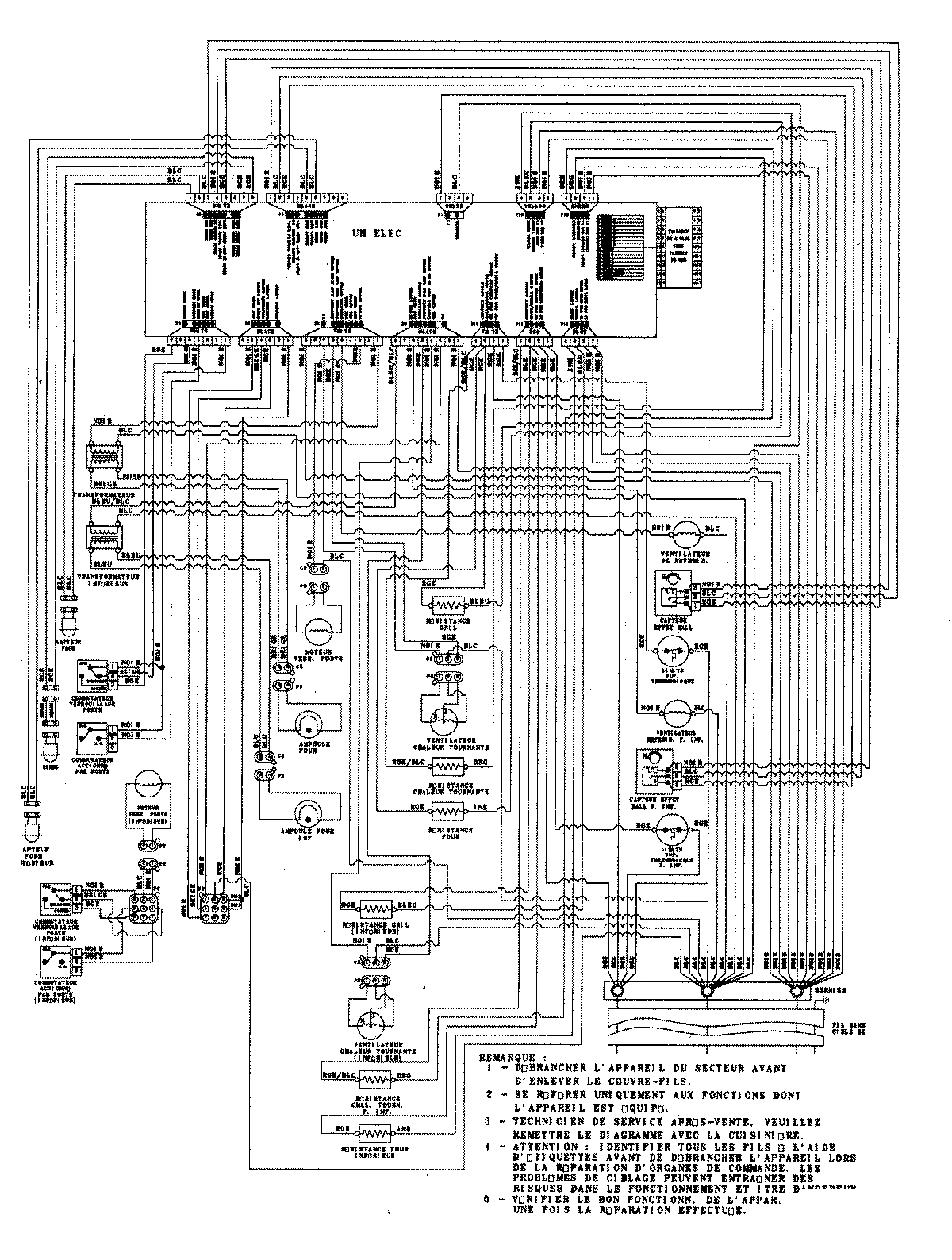

07 - WIRING INFORMATION
05 - SUPPLEMENTAL INFORMATION

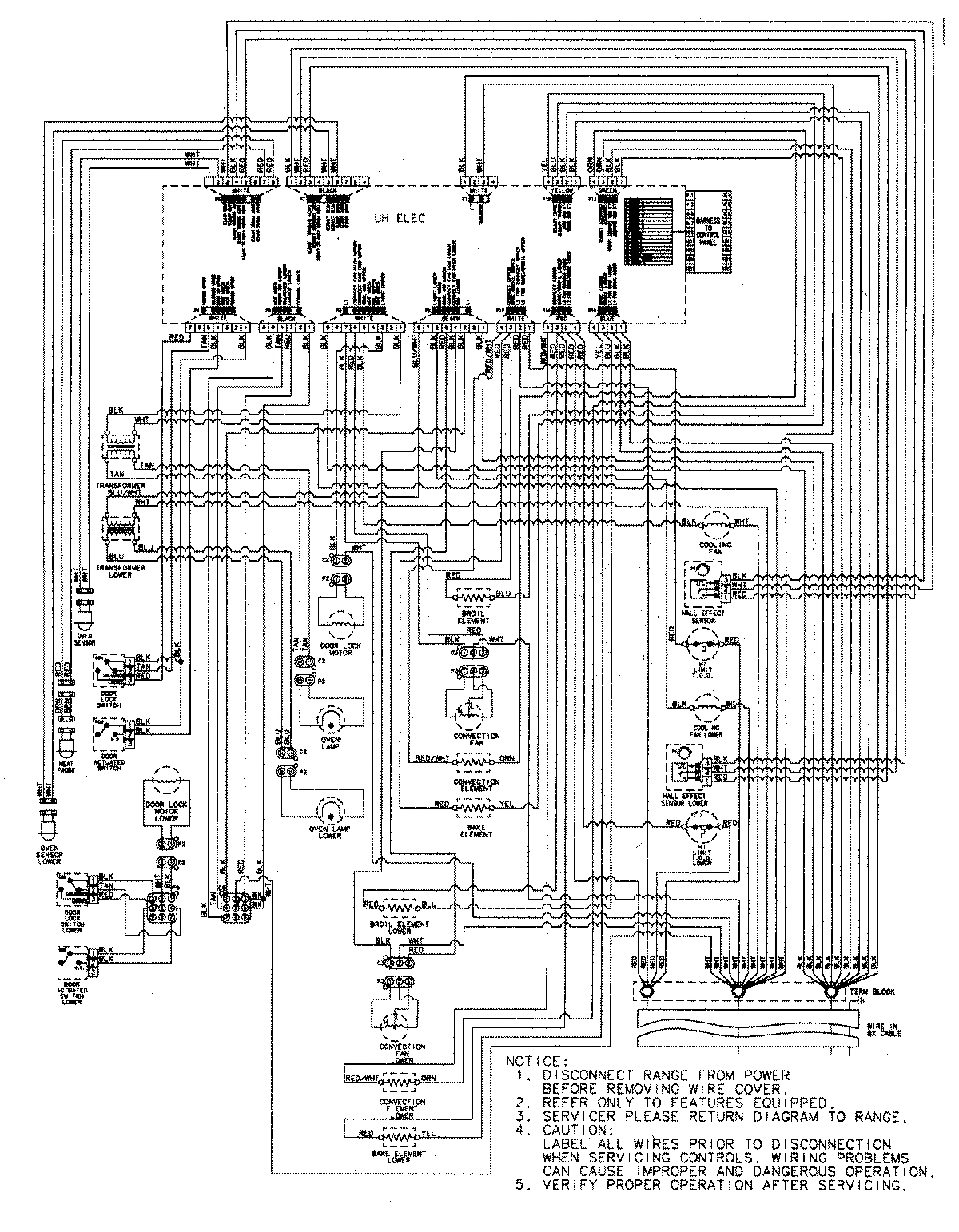

06 - WIRING INFORMATION

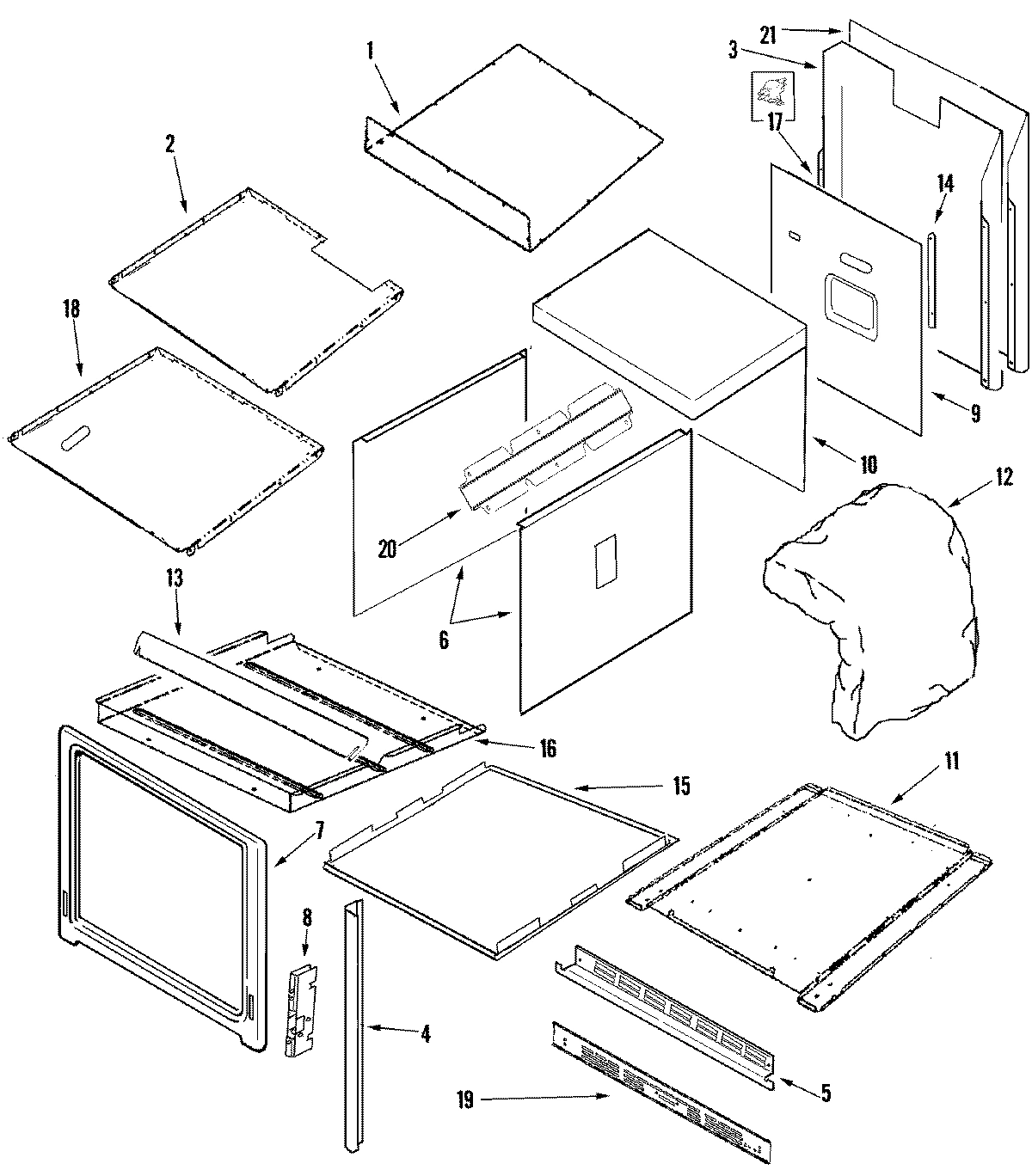

01 - BODY

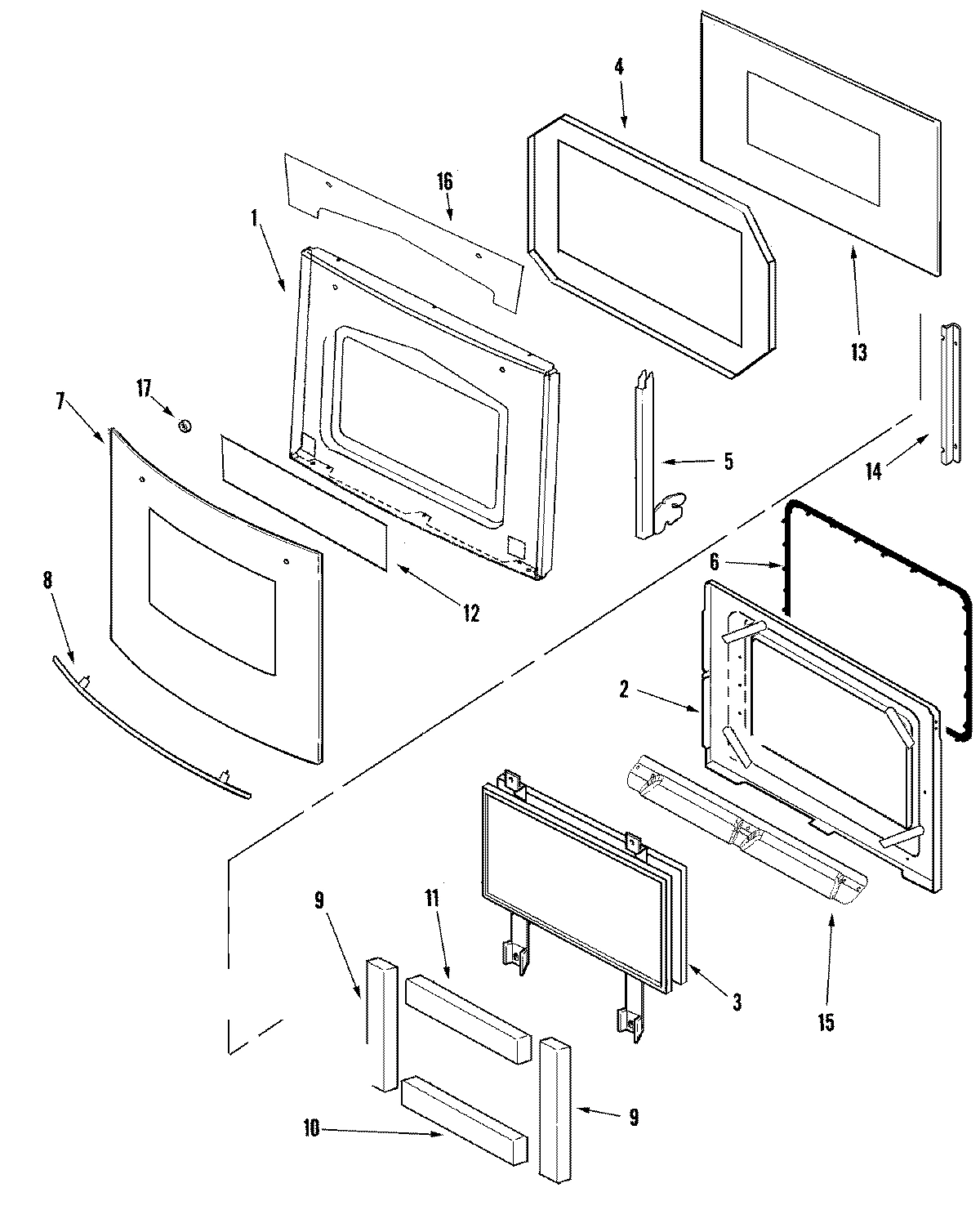

03 - DOOR

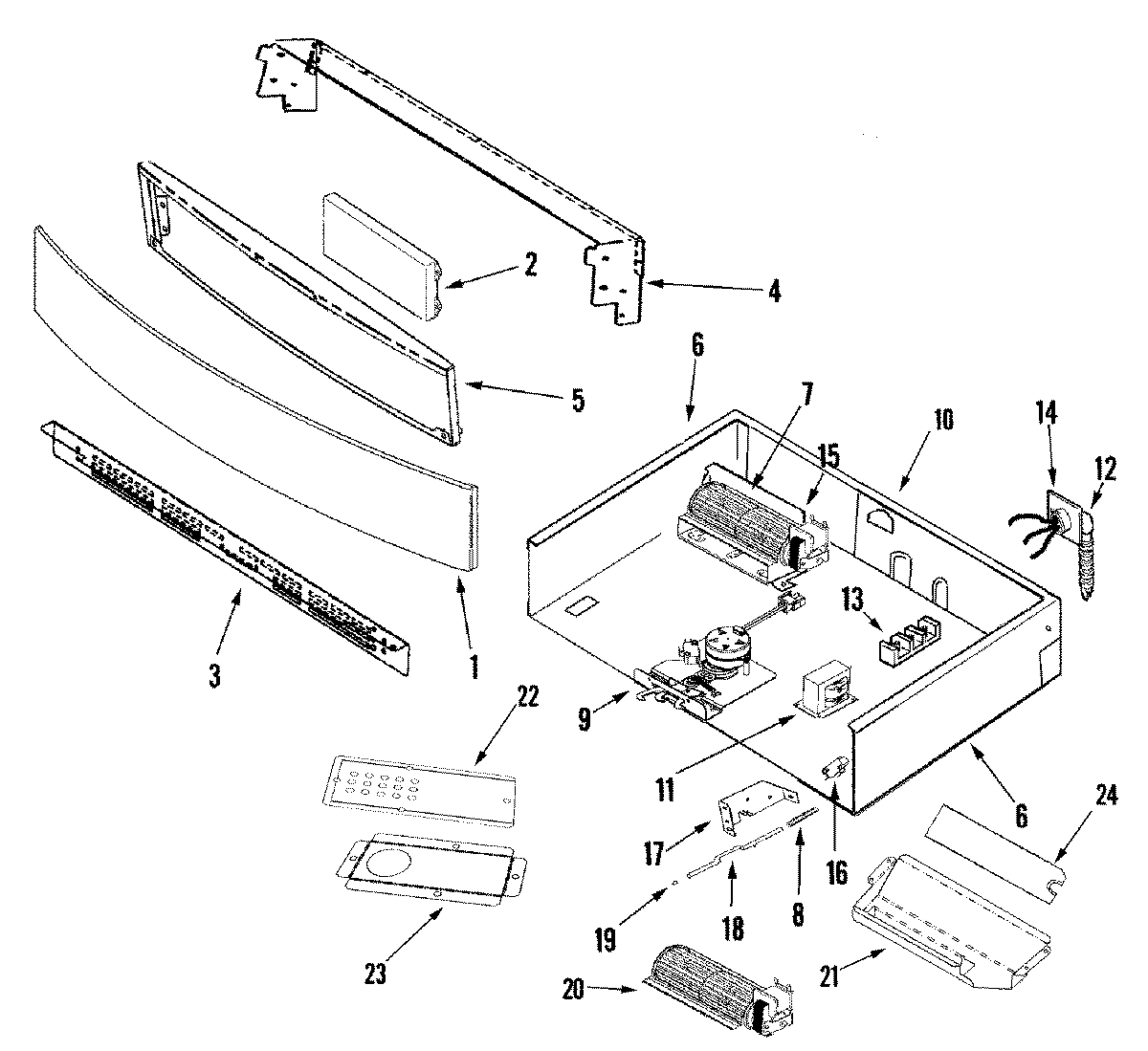

02 - CONTROL PANEL AND INTERNAL CONTROLS
Common parts from model Whirlpool JJW9827DDS ELECTRIC WALL OVEN
1
WIRING INFORMATION (FRC) WPL 15003283 Contact Us For Availability
1
HARNESS, MAIN (DBL CONVECT) WPL 74008518 Contact Us For Availability
1
HARNESS, MAIN (DBL 2-CONV) WPL 74011376 Contact Us For Availability
1
COVER, TOP WPL 74008366 Contact Us For Availability
1
FRAME ASSY. (BLK) WPL 74008378 Contact Us For Availability
1
GLASS TOUCH ASSY. (STL) WPL 74008522 Contact Us For Availability
2
PANEL, TOP RETAINER WPL 2618F22351 Contact Us For Availability
2
PANEL, RETAINER (UPR 27``) WPL 74008368 Contact Us For Availability
2
BRACKET, CENTER SUPPORT WPL 74009572 Contact Us For Availability
2
PANEL, TOP RETAINER (UPR-27) WPL 74011382 Contact Us For Availability
2
LINER, OVEN DOOR WPL 74008367 Contact Us For Availability
2
CONTROL, DOUBLE CONVECT WPL 74008523 Contact Us For Availability
2
CONTROL, DBL-DBL CONVECT WPL 74009718 Contact Us For Availability
3
RACK, OVEN WPL Y704660 Contact Us For Availability
3
WINDOW ASSEMBLY WPL 74005639 Contact Us For Availability
3
TRIM, CONTROL PANEL (BLK) WPL 74008361 Contact Us For Availability
4
COVER, CONVECT FAN WPL 74009712 Contact Us For Availability
4
HARNESS, CONTROL PANEL TO PCB WPL 74008345 Contact Us For Availability
4
KIT, SIDE TRIM (DOUBLE) WPL 12002403 Contact Us For Availability
4
TRIM, SIDE (DOUBLE-BLK) WPL 74008438 Contact Us For Availability
4
RETAINER, INSULATION WPL 74005638 Contact Us For Availability
4
SUPPORT, TOP CONTROL WPL 74008362 Contact Us For Availability
5
ELEMENT, BROIL WPL 7406P50060 Contact Us For Availability
5
HARNESS, LOWER LOCK WPL 74008434 Contact Us For Availability
5
TRIM, BOTTOM (BLK) WPL 74008364 Contact Us For Availability
5
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
5
HINGE, DOOR WPL 74008384 Contact Us For Availability
5
FRAME, CONTROL PANEL WPL 74008351 Contact Us For Availability
6
SHIELD, BROIL WPL 74008375 Contact Us For Availability
6
HARNESS, MEAT PROBE JACK WPL 74008463 Contact Us For Availability
6
PANEL, SIDE WPL 74008381 Contact Us For Availability
6
PANEL, SIDE WPL 74011390 Contact Us For Availability
6
SIDE PANEL, CONTROL (LT) WPL 74008359 Contact Us For Availability
6
SIDE PANEL, CONTROL (RT) WPL 74008360 Contact Us For Availability
7
SCREW WPL 7101P34560 Contact Us For Availability
7
SUPPORT, BROIL ELEMENT WPL 74003563 Contact Us For Availability
7
FRAME, OVEN WPL 74008373 Contact Us For Availability
7
GLASS, OUTER DOOR ASSY. (STL) WPL 74008393 Contact Us For Availability
8
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
8
BUTTON, PLUG WPL 702929 Contact Us For Availability
8
NUT, HEX 3/8`` WPL Y703356 Contact Us For Availability
8
DVD, JENN AIR WALLOVEN GUIDE WPL 74008247 Contact Us For Availability
8
RECEPTACLE, HINGE WPL 74008377 Contact Us For Availability
8
HANDLE, DOOR (SS) WPL 74008389 Contact Us For Availability
9
OVEN, WELD ASSY. WPL 74008374 Contact Us For Availability
9
MANUAL, U & C WPL 74008390 Contact Us For Availability
9
MANUAL, USE & CARE WPL W10169641 Contact Us For Availability
9
RETAINER, REAR INSULATION WPL 74008448 Contact Us For Availability
9
RETAINER, INSULATION (DBL 27``) WPL 74009178 Contact Us For Availability
9
RETAINER, INSUL (REAR UPR 27) WPL 74011388 Contact Us For Availability
9
RETAINER, INSUL (REAR LWR 27) WPL 74011389 Contact Us For Availability
9
INSULATION, DOOR (SIDE) WPL 71001839 Contact Us For Availability
10
RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability
10
COOKBOOK WPL 74008477 Contact Us For Availability
10
INSULATION, (BACK/TOP) WPL 74008380 Contact Us For Availability
10
INSULATION, DOOR (BTM) WPL 71001969 Contact Us For Availability
10
PANEL, REAR CONTROL BOX WPL 2624F10051 Contact Us For Availability
11
HALOGEN LAMP ASSY WPL 74004521 Contact Us For Availability
11
HALOGEN LAMP ASSY. WPL 74009970 Contact Us For Availability
11
GUIDE, COOKING (TRILINGUAL) WPL 74007136 Contact Us For Availability
11
PANEL, BOTTOM (27``) WPL 74008370 Contact Us For Availability
11
INSULATION, TOP WPL 74005634 Contact Us For Availability
11
TRANSFORMER (STEPDOWN) WPL 74005416 Contact Us For Availability
11
NOT REQUIRED PART OR SEE NOTE NO LONGER REQUI WPL W10124350 Contact Us For Availability
12
GROMMET, ANTI-SHORT WPL 74004222 Contact Us For Availability
12
TECH SHT, WALL OVEN, ELECT WPL 16026100 Contact Us For Availability
12
TECH SHT, WALL OVEN, ELECT WPL 16026101 Contact Us For Availability
12
INSULATION, (WRAP) WPL 74008379 Contact Us For Availability
12
SHIELD, DOOR HEAT (27``) WPL 74008394 Contact Us For Availability
12
WIRE CABLE ASSY. WPL 74004726 Contact Us For Availability
13
VENT BOX ASSY. WPL 74008342 Contact Us For Availability
13
VENT BOX ASSY. WPL 74009843 Contact Us For Availability
13
GLASS, DOOR (SCREENED) WPL 74008391 Contact Us For Availability
13
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
13
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
13
CONNECTOR, CABLE WPL 7417P01760 Contact Us For Availability
14
CHANNEL, VENT (DOUBLE) WPL 74008446 Contact Us For Availability
14
CHANNEL, VENT WPL 74008450 Contact Us For Availability
14
RETAINER, GLASS WPL 74003650 Contact Us For Availability
14
BRACKET, CABLE WPL 74004712 Contact Us For Availability
15
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
15
CHANNEL, BOTTOM AIR WPL 74008352 Contact Us For Availability
15
TRIM, BOTTOM DOOR VENT (BLK) WPL 74008392 Contact Us For Availability
16
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
16
PAN, HIDDEN BAKE WPL 74008356 Contact Us For Availability
16
INSULATION, DOOR (STL) WPL 74008396 Contact Us For Availability
16
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
16
INSULATOR WPL 74008264 Contact Us For Availability
17
BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability
18
FAN, CONVECTION ASSY. WPL 74008466 Contact Us For Availability
18
FAN, CONVECTION ASSY. WPL 74009713 Contact Us For Availability
18
Panel, Top Retainer (lwr-27) WPL 2618F22451 Contact Us For Availability
18
PANEL, TOP RETAINER (LWR) 27`` WPL 74008426 Contact Us For Availability
18
PANEL, TOP RETAINER (LWR-27) WPL 74011383 Contact Us For Availability
18
ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability
19
RACK, CREATE A SPACE HALF 27`` WPL 74008465 Contact Us For Availability
19
RACK, CREATE A SPACE HALF 27`` WPL 74009586 Contact Us For Availability
19
TRIM, CENTER (BLK) WPL 74008449 Contact Us For Availability
19
BUMPER, ROD WPL 74001631 Contact Us For Availability
20
CLIP, OVEN WPL 71001170 Contact Us For Availability
20
SUPPORT, CENTER WPL 74008433 Contact Us For Availability
20
FAN, TANGENTIAL (LWR) WPL 74008437 Contact Us For Availability
21
INSERT, HALF RACK 27`` WPL 74008474 Contact Us For Availability
21
INSERT, HALF RACK 27`` WPL 74009588 Contact Us For Availability
21
COVER, MAIN BACK WPL 74008430 Contact Us For Availability
21
BRACKET, COOLING FAN (LWR) WPL 74008432 Contact Us For Availability
22
TUBE, OVEN VENT WPL 74008453 Contact Us For Availability
22
TUBE, VENT (27) WPL 74009839 Contact Us For Availability
22
COVER, VENT (DBL) WPL 74008444 Contact Us For Availability
23
RACK, OVEN (SMART & EASY 27``) WPL 74009585 Contact Us For Availability
23
BOX, VENT (DBL) WPL 74008445 Contact Us For Availability
24
COVER, AIR CHANNEL (LWR) WPL 74008451 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003282 Contact Us For Availability
× ![]()
