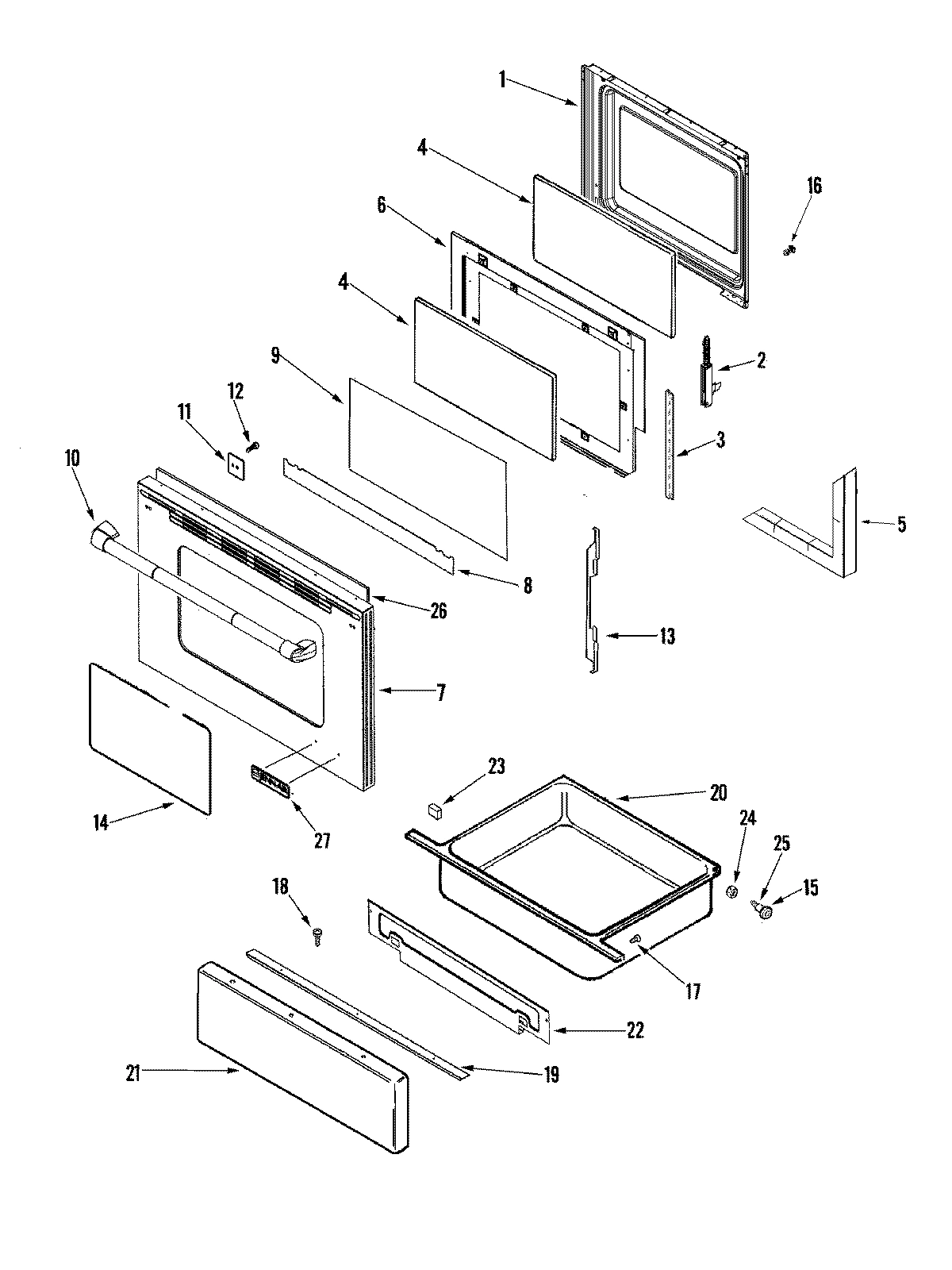

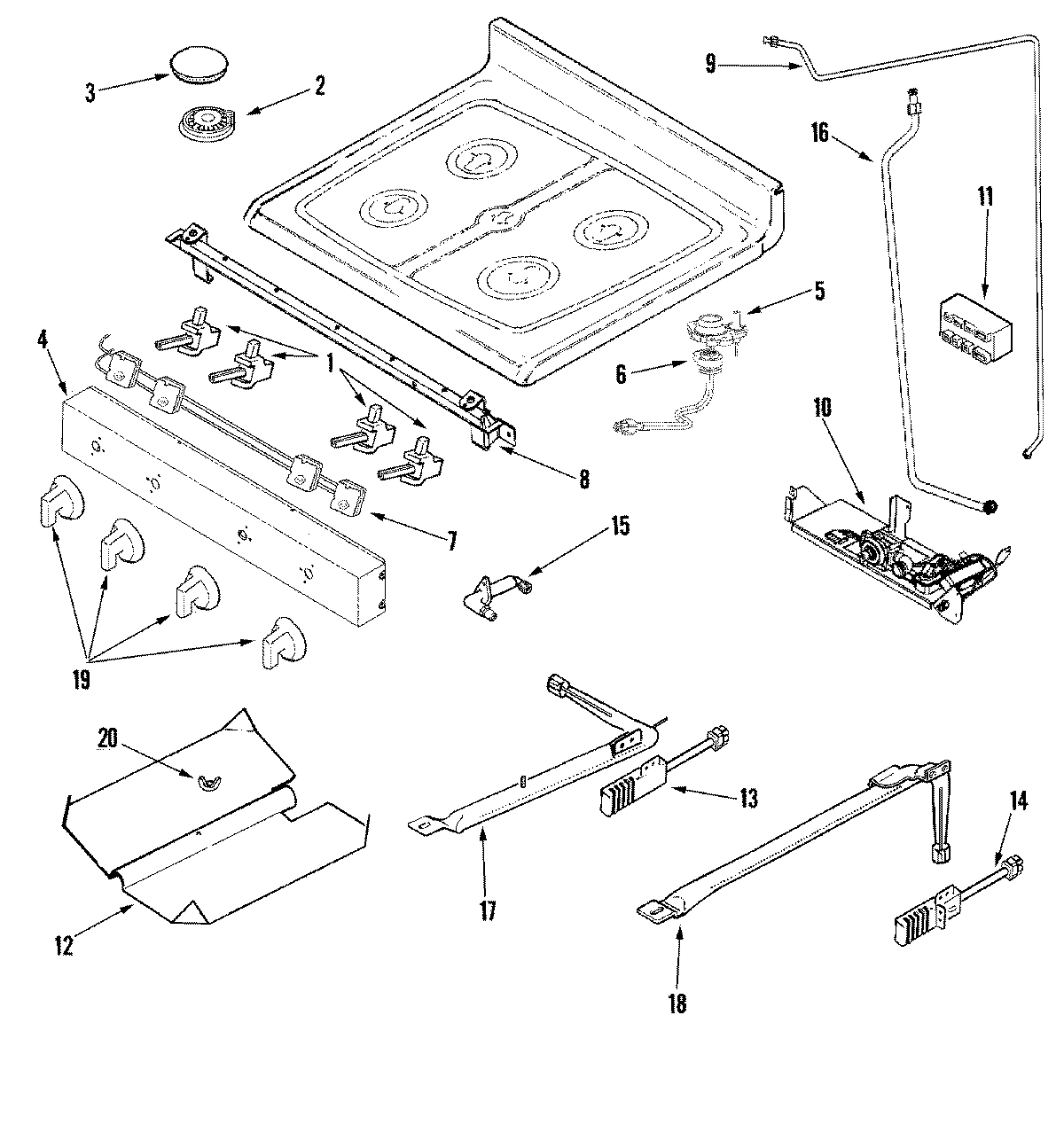

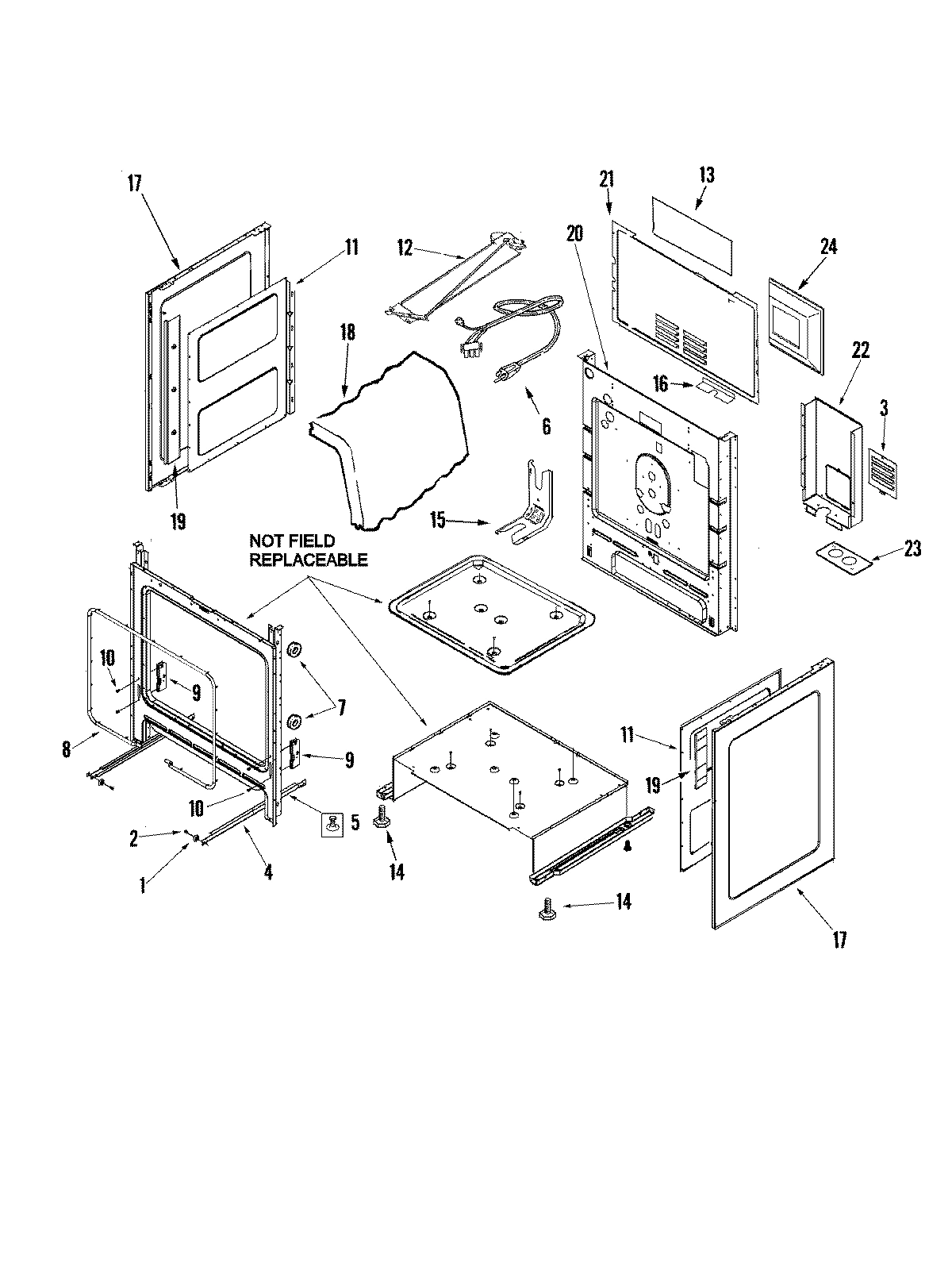

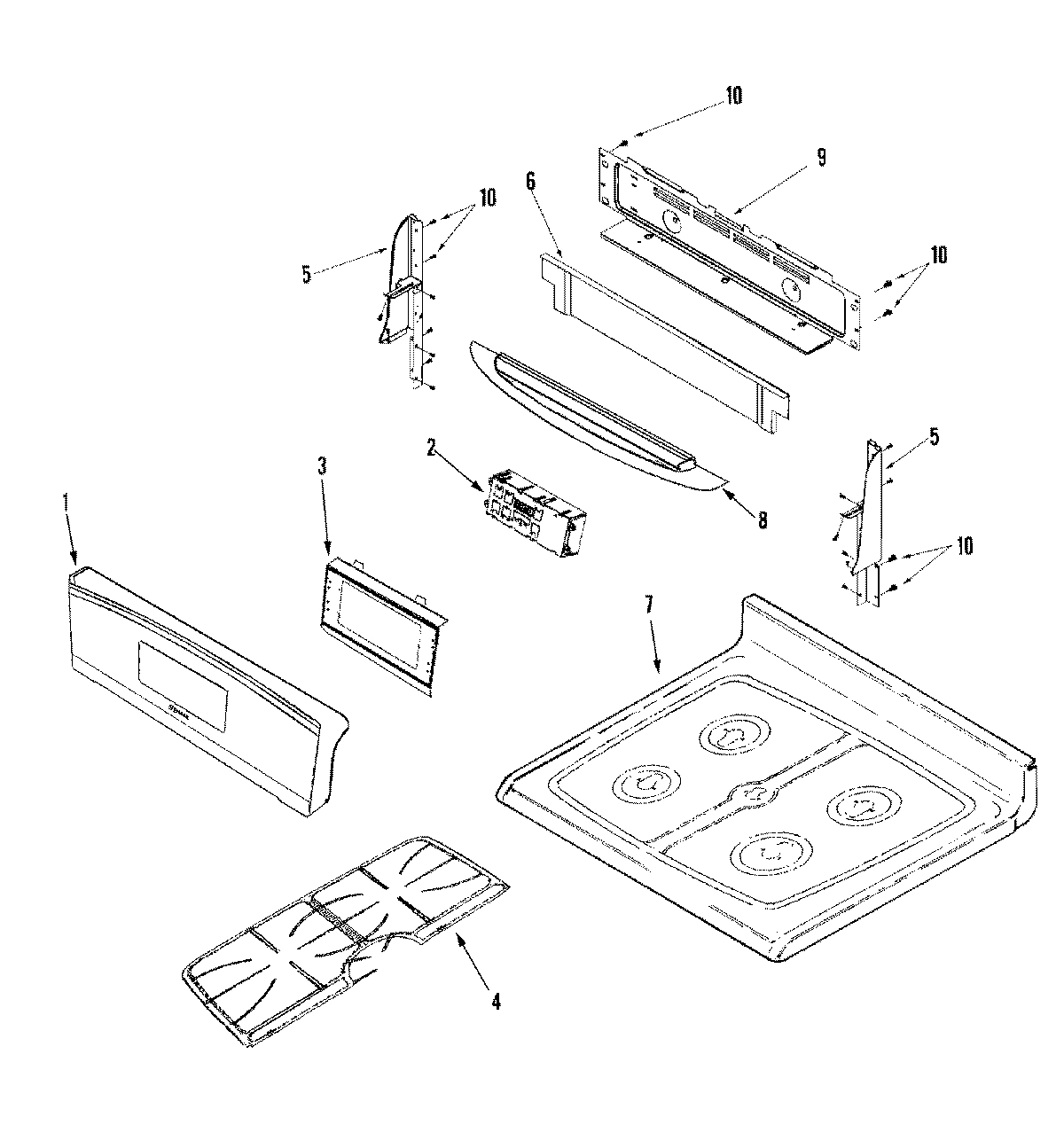

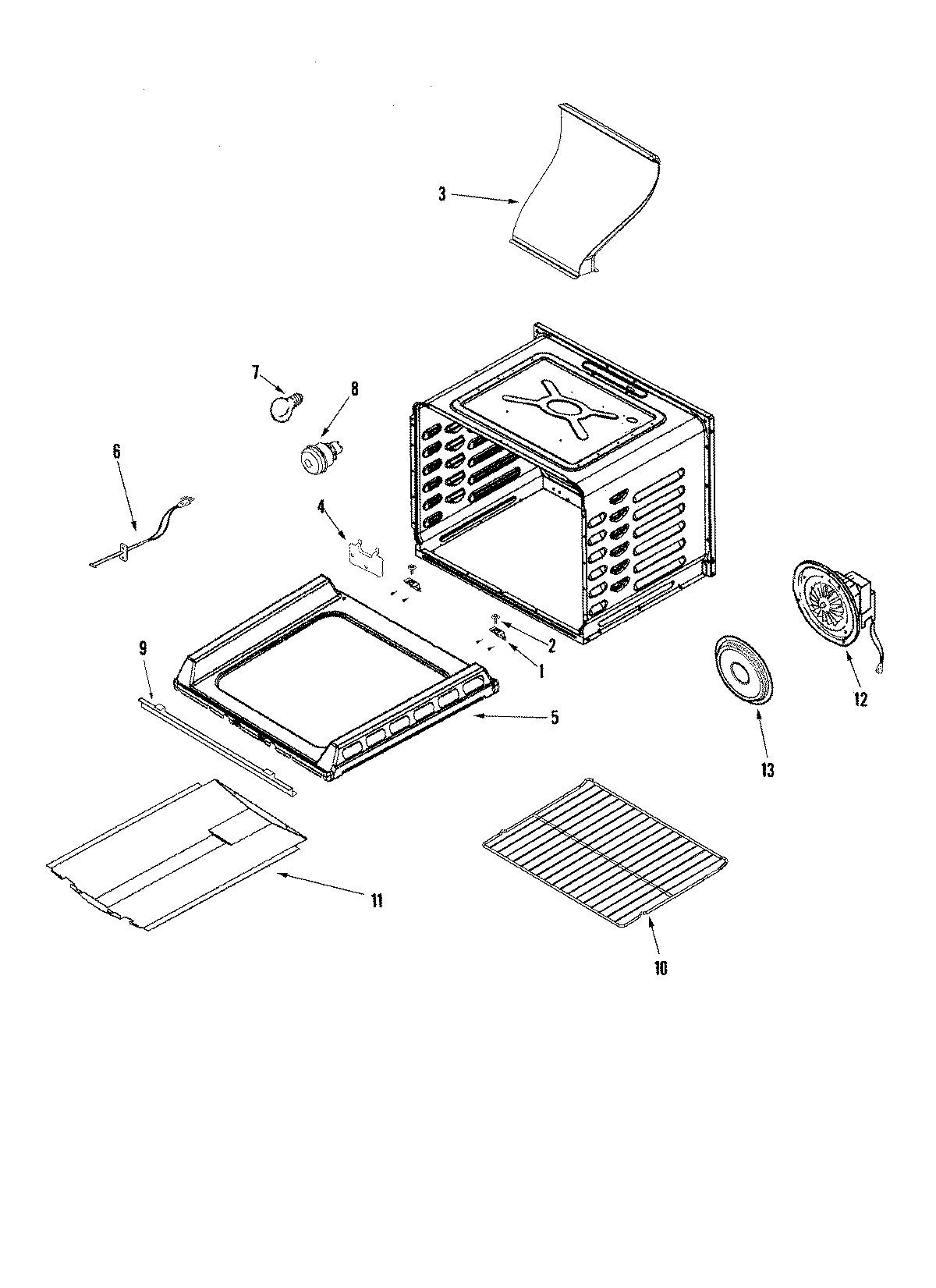

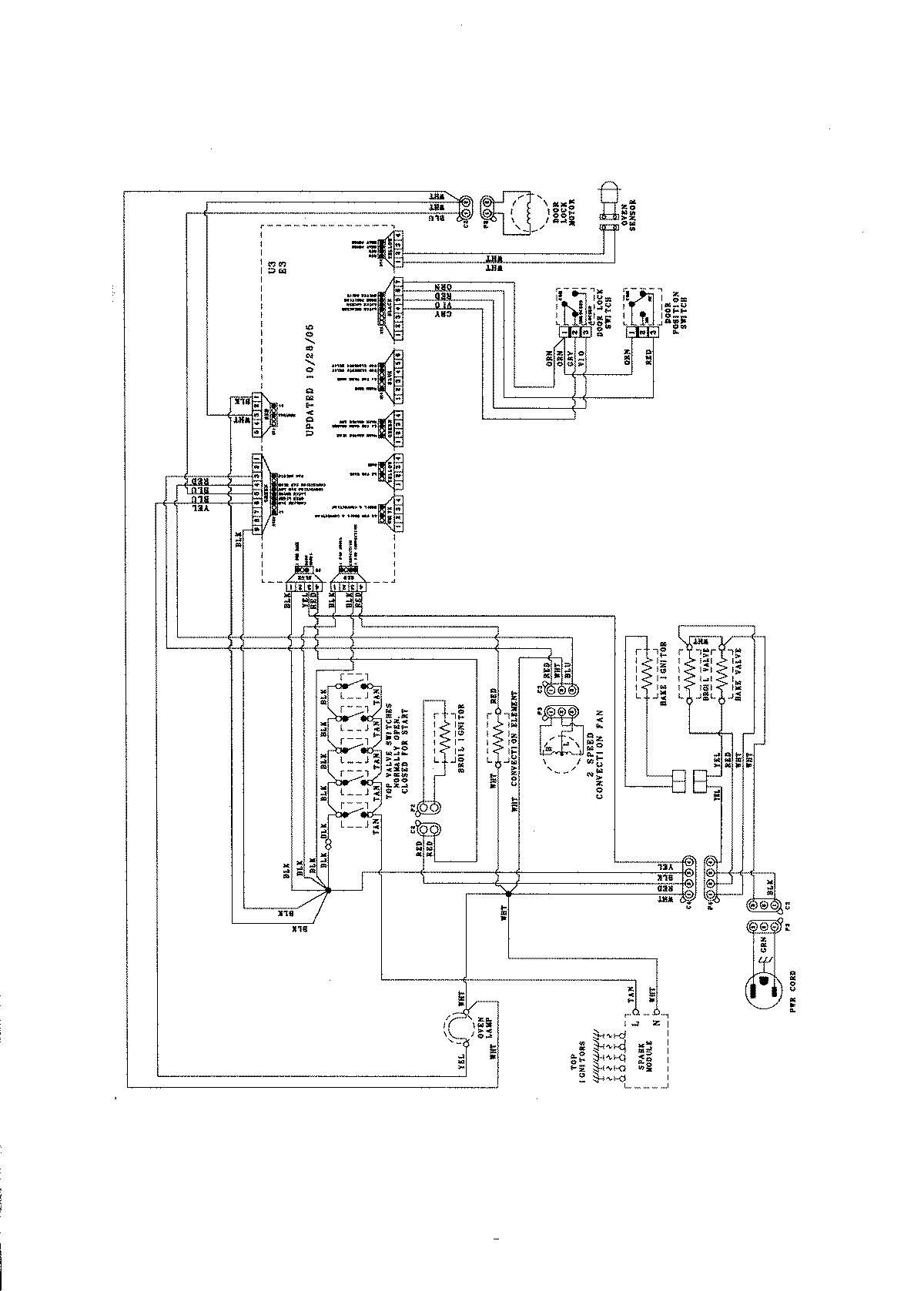

Model Maytag JGR8885RDP GAS RANGE – Common Parts &amp; Diagrams

1

SCREW, 8 X 1/2 MAY 74002979 Contact Us For Availability

1

SUPPORT, OVEN BOTTOM (REAR) MAY 74008694 Contact Us For Availability

1

MAY 5751M726-60 MAY 5751M726-60 Contact Us For Availability

1

MAY 74008926 MAY 74008926 Contact Us For Availability

1

VALVE, BURNER (5K COPRECI) MAY 74010629 Contact Us For Availability

1

VALVE, 16K (COPRECI) MAY 74010751 Contact Us For Availability

1

VALVE, 12K (COPRECI) MAY 74010752 Contact Us For Availability

1

MAY 8113P621-60 MAY 8113P621-60 Contact Us For Availability

1

MAY 8113P714-60 MAY 8113P714-60 Contact Us For Availability

2

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $5.58

2

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.77

2

WPW10406243 Whirlpool Burner Head Auxiliary 6 In Stock WPL WPW10406243 $19.53

2

WPW10406878 Whirlpool Burner Base (16K) In Stock WPL WPW10406878 $42.50

2

MAY 8507P329-60 MAY 8507P329-60 Contact Us For Availability

2

BASE, BURNER(9.2K) MAY 74009900 Contact Us For Availability

2

MAY 5171P803-60 MAY 5171P803-60 Contact Us For Availability

3

3801F886-51 Whirlpool Mounting Bracket Backorder WPL 3801F886-51 $25.12

3

WP8284669 Whirlpool Burner Cap In Stock WPL WP8284669 $39.19

3

MAY 74007750 MAY 74007750 Contact Us For Availability

3

MAY 74010189 MAY 74010189 Contact Us For Availability

3

MAY 74008817 MAY 74008817 Contact Us For Availability

3

MAY 74011982 MAY 74011982 Contact Us For Availability

3

MAY 5171P838-60 MAY 5171P838-60 Contact Us For Availability

4

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $105.30

4

74008761 Whirlpool Spacer Snap-In Backorder WPL 74008761 $8.89

4

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $9.14

4

MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability

4

MAY 7518P409-60 MAY 7518P409-60 Contact Us For Availability

4

MAY 2616N391-50 MAY 2616N391-50 Contact Us For Availability

4

KIT, LP CONVERSION MAY 5789A601-60 Contact Us For Availability

5

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $23.64

5

WP74009958 Whirlpool Spark Electrode Assembly In Stock WPL WP74009958 $17.29

5

WPW10211368 Whirlpool Oven Bottom Backorder WPL WPW10211368 $215.64

5

END CAP (RT-BLK) MAY 74009022 Contact Us For Availability

5

END CAP (LT-BLK) MAY 74009023 Contact Us For Availability

5

INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability

6

12001655 Whirlpool Oven Sensor In Stock WPL 12001655 $24.34

6

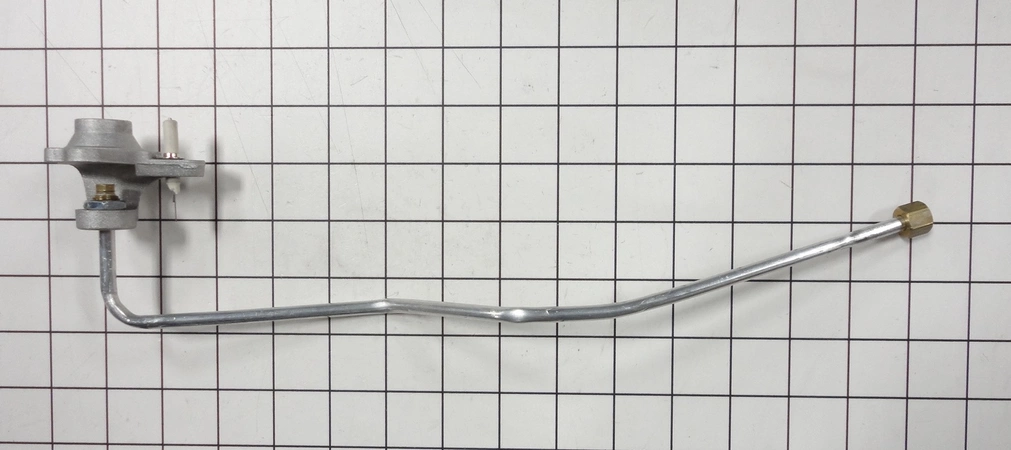

W10154209 Whirlpool Orifice Holder Backorder WPL W10154209 $72.22

6

WP74009099 Whirlpool Orifice Holder Backorder WPL WP74009099 $117.36

6

MAY 74008876 MAY 74008876 Contact Us For Availability

6

MAY 74009444 MAY 74009444 Contact Us For Availability

6

BAFFLE/INSULATION RETAINER MAY 3601F380-51 Contact Us For Availability

6

ORIFICE HOLDER/TUBE ASY (LR) MAY 7527P098-60 Contact Us For Availability

6

MAY 7527P113-60 MAY 7527P113-60 Contact Us For Availability

7

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $10.08

7

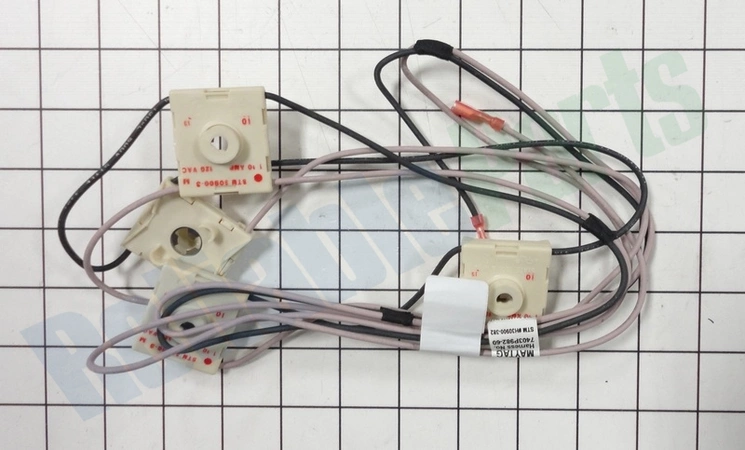

WP74010630 Whirlpool Switch Harness In Stock WPL WP74010630 $99.21

7

MAY 2001F283-09 MAY 2001F283-09 Contact Us For Availability

7

MAY 7760P216-60 MAY 7760P216-60 Contact Us For Availability

8

WP74011278 Whirlpool Light Backorder WPL WP74011278 $78.30

8

SCREW, SHOULDER MAY 74003640 Contact Us For Availability

8

SHIELD, HEAT VISOR (BLK) MAY 74010577 Contact Us For Availability

8

INSULATION, FOIL (DOOR) MAY 7002P482-60 Contact Us For Availability

8

MAY 74008809 MAY 74008809 Contact Us For Availability

9

WP74010551 Whirlpool Receiver Backorder WPL WP74010551 $8.30

9

SUPPORT, OVEN BOTTOM (FRONT) MAY 74008695 Contact Us For Availability

9

SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability

9

MAY 74008836 MAY 74008836 Contact Us For Availability

9

MAY 74010983 MAY 74010983 Contact Us For Availability

9

MAY 7902P805-60 MAY 7902P805-60 Contact Us For Availability

9

TUBING, SUPPLY MAY 74008829 Contact Us For Availability

10

WP74008763 Whirlpool Oven Rack Backorder WPL WP74008763 $113.66

10

MAY 7701P534-60 MAY 7701P534-60 Contact Us For Availability

10

VALVE/REGULATOR ASSEMBLY MAY 74010218 Contact Us For Availability

74008821 Whirlpool Spark Module Backorder WPL 74008821 $216.29

W10919249 Whirlpool Burner Grate Foot In Stock WPL W10919249 $5.90

BAFFLE, BAKE BURNER MAY 74008846 Contact Us For Availability

MAY M0275597 MAY M0275597 Contact Us For Availability

MAY 74010785 MAY 74010785 Contact Us For Availability

12

MAY 74011176 MAY 74011176 Contact Us For Availability

12

MAY 74011751 MAY 74011751 Contact Us For Availability

12

MAY 74008819 MAY 74008819 Contact Us For Availability

74007498 Whirlpool Range Flat Igniter In Stock WPL 74007498 $40.93

MAY 71001394 MAY 71001394 Contact Us For Availability

COVER, CONVECT MAY 74005783 Contact Us For Availability

MAY 3801F918-51 MAY 3801F918-51 Contact Us For Availability

74008835 Whirlpool Clip Retainer Backorder WPL 74008835 $7.55

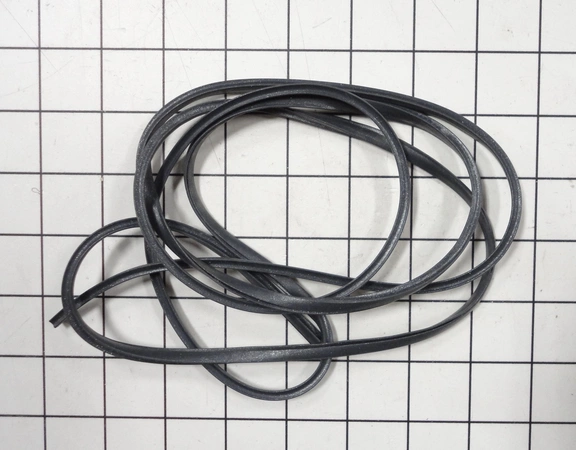

74008916 Whirlpool Window Gasket Backorder WPL 74008916 $56.02

WP7432P136-60 Whirlpool Oven Igniter In Stock WPL WP7432P136-60 $56.23

SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability

15

74008818 Whirlpool Broil Burner Fitting Backorder WPL 74008818 $53.07

15

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.90

15

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $5.15

16

74008830 Whirlpool Oven Broil Tubing Backorder WPL 74008830 $55.30

17

WP7101P072-60 Whirlpool Screw Backorder WPL WP7101P072-60 $4.77

17

BURNER, BROIL MAY 74008820 Contact Us For Availability

18

INSULATION, WRAPPER MAY 74008700 Contact Us For Availability

18

MAY 31945701 MAY 31945701 Contact Us For Availability

19

MAY 74008909 MAY 74008909 Contact Us For Availability

19

HANDLE, DRAWER MAY 7701P547-60 Contact Us For Availability

19

MAY 7733P499-60 MAY 7733P499-60 Contact Us For Availability

20

WP3405F037-80 Whirlpool Utility Drawer Backorder WPL WP3405F037-80 $284.89

20

NUT, WING MAY 7103P030-60 Contact Us For Availability

21

PANEL, DRAWER (STL) MAY 7760P228-60 Contact Us For Availability

22

MAY 74009105 MAY 74009105 Contact Us For Availability

23

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $6.56

23

PLATE, CONDUIT REINFORCEMENT MAY 3605F146-51 Contact Us For Availability

24

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.97

24

MAY 74010814 MAY 74010814 Contact Us For Availability

25

SHAFT, STORAGE DRAWER ROLLER MAY 74005231 Contact Us For Availability

26

TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability

27

7103P166-60 Whirlpool Nut Backorder WPL 7103P166-60 $12.15

27

MAY 74006889 MAY 74006889 Contact Us For Availability

NI

MAY 8119P373-60 MAY 8119P373-60 Contact Us For Availability
