Model Whirlpool JGR8850ADA GAS RANGE – Common Parts & Diagrams

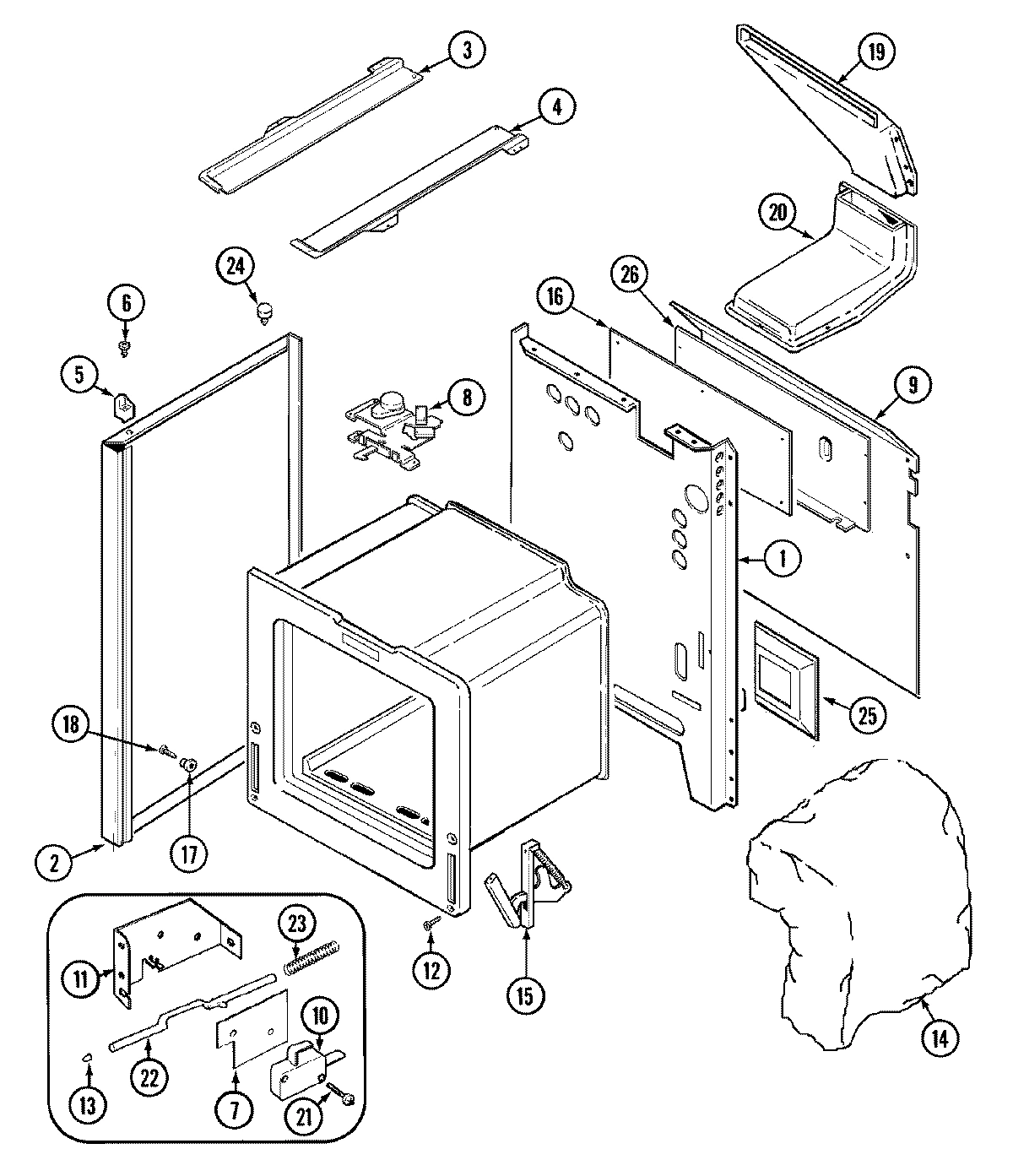

01 - BODY

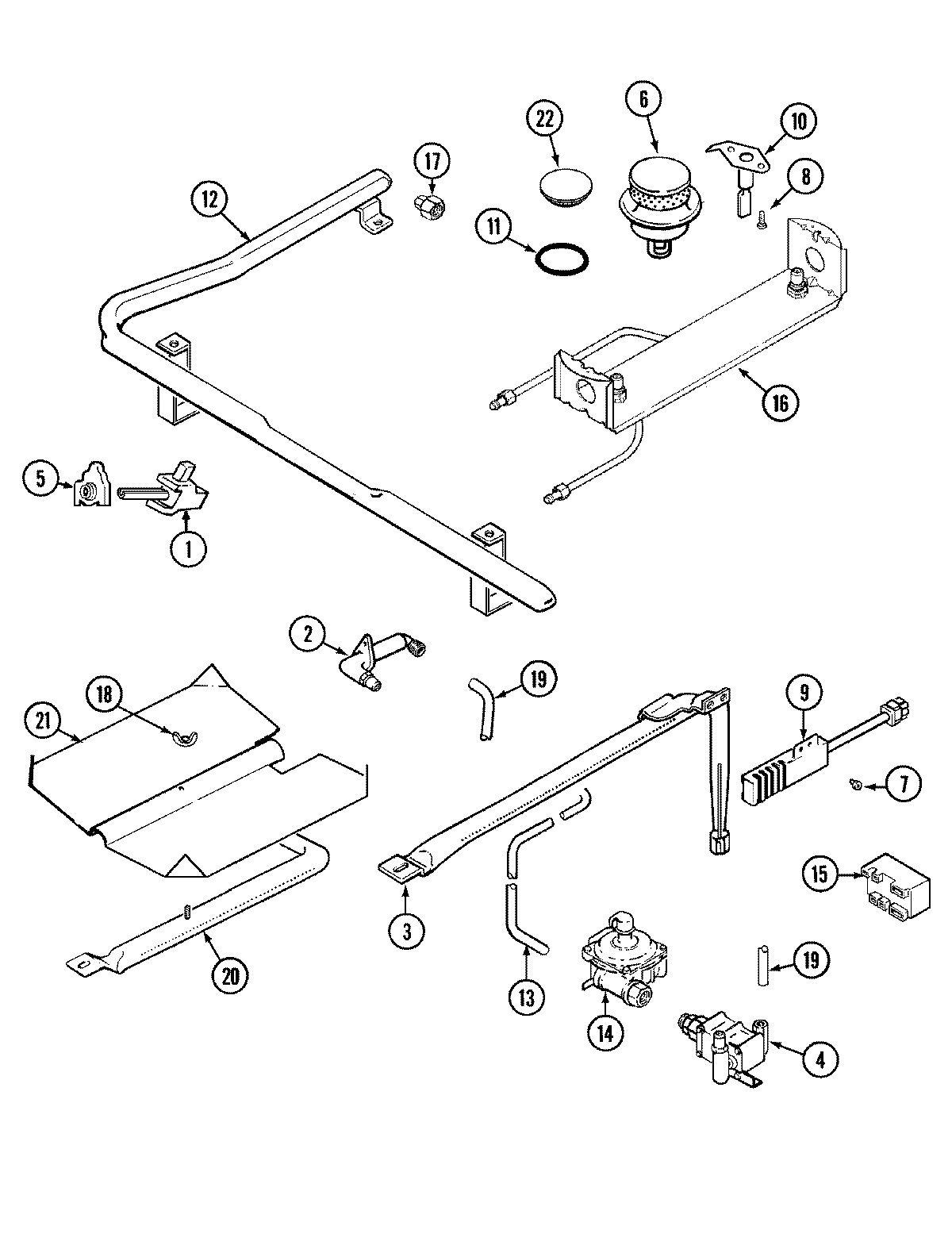

04 - GAS CONTROLS

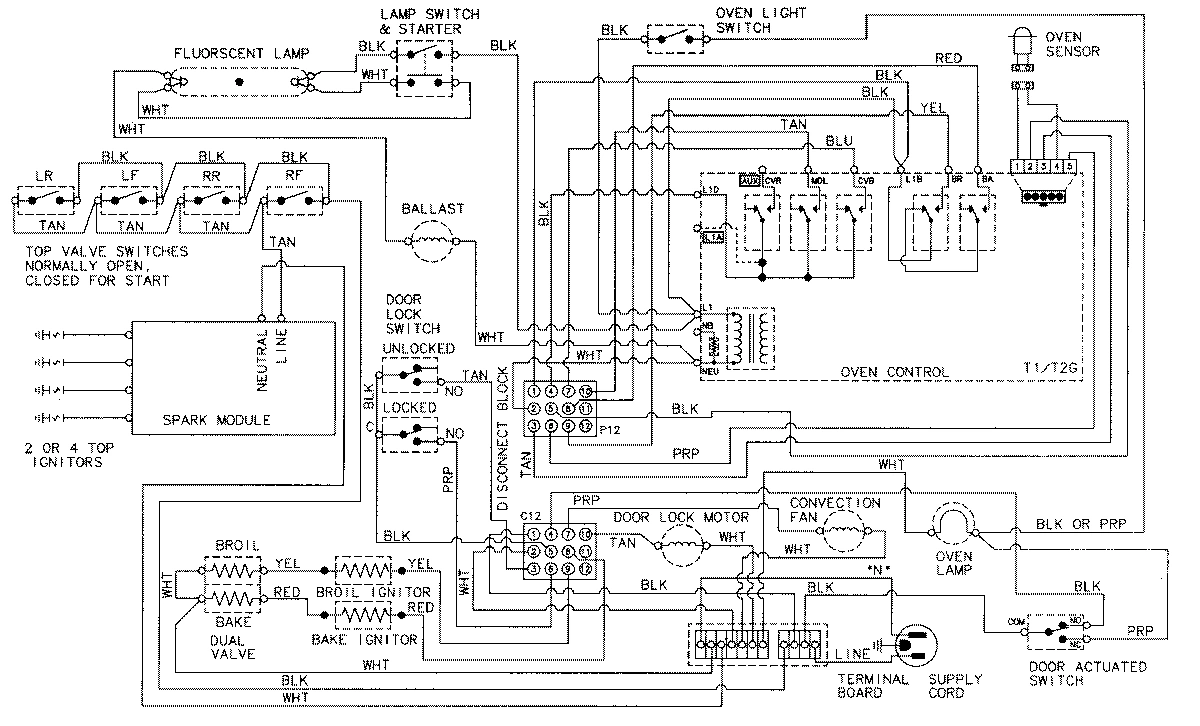

07 - WIRING INFORMATION

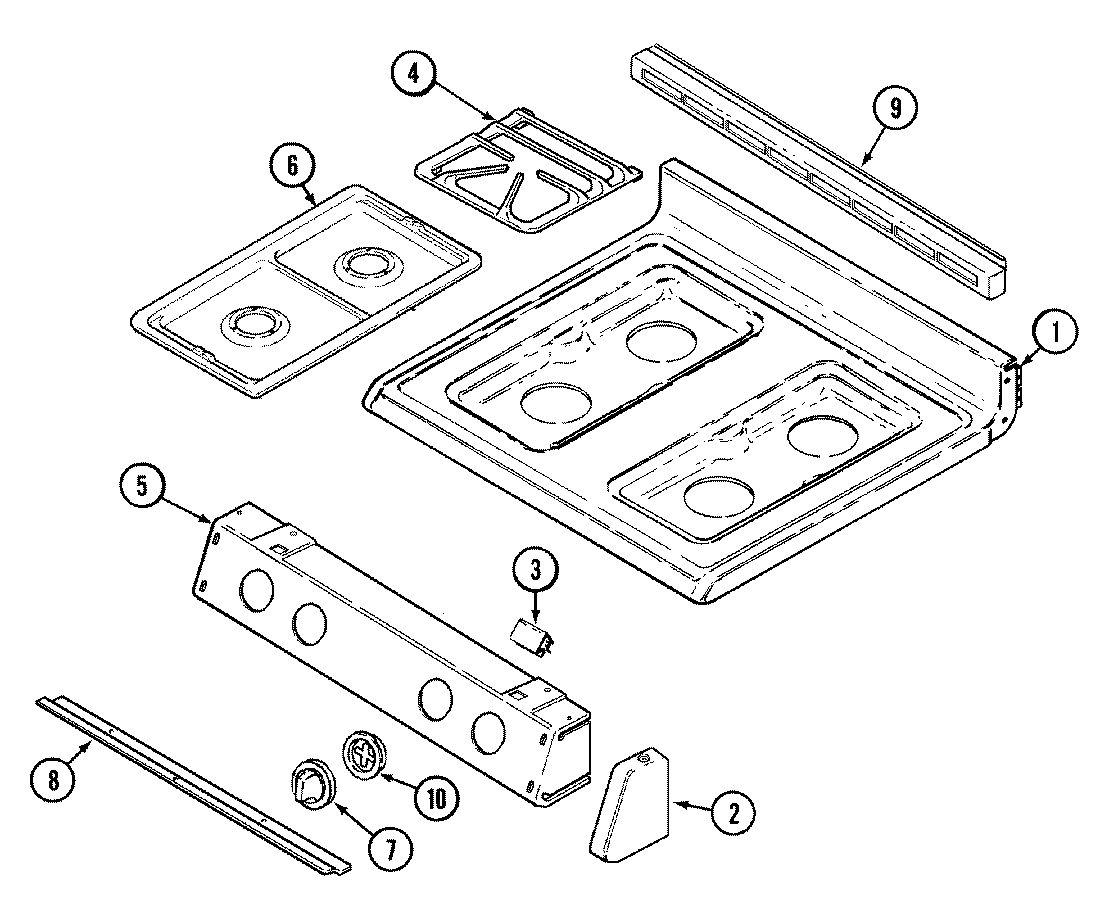

06 - TOP ASSEMBLY

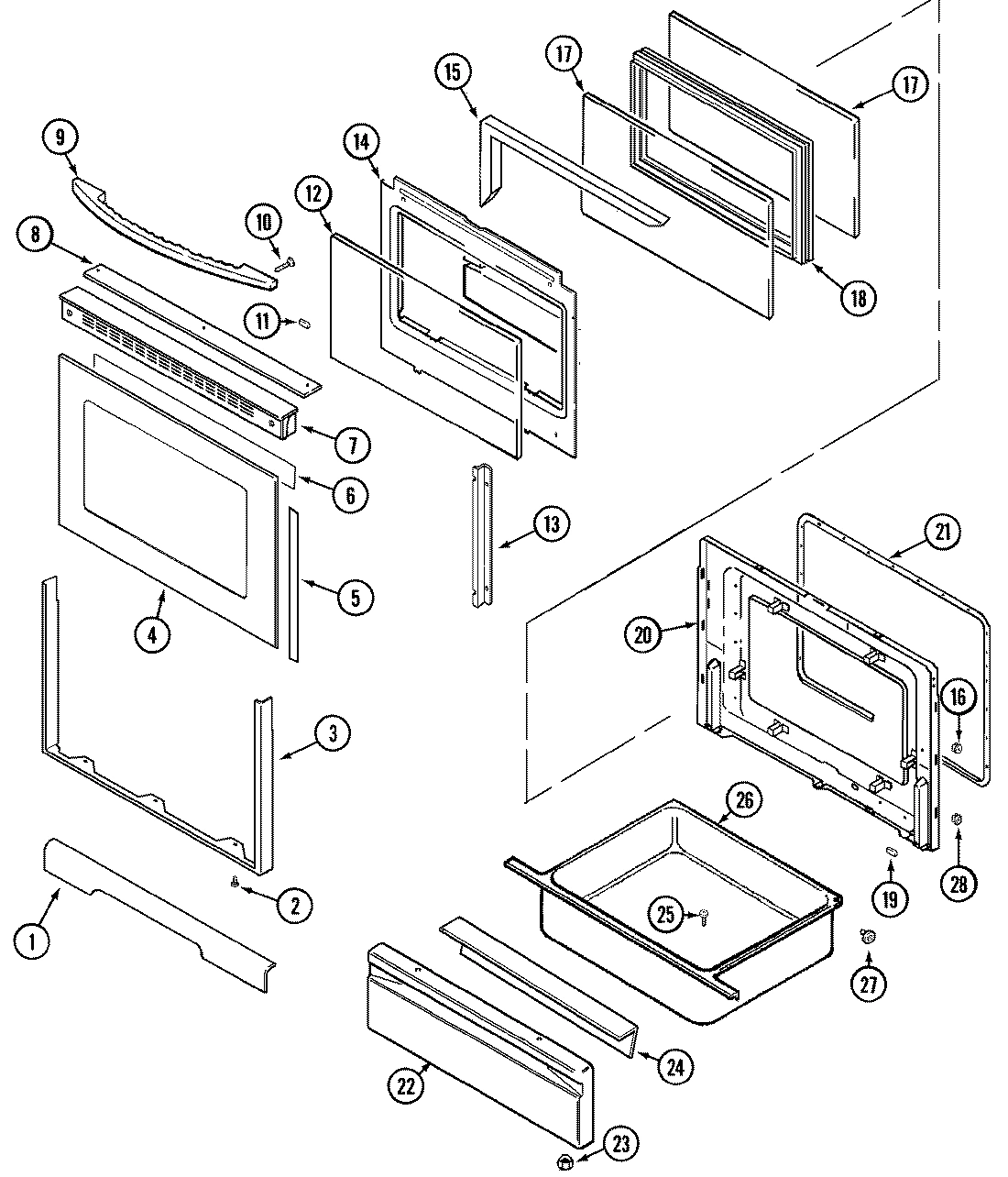

03 - DOOR/DRAWER

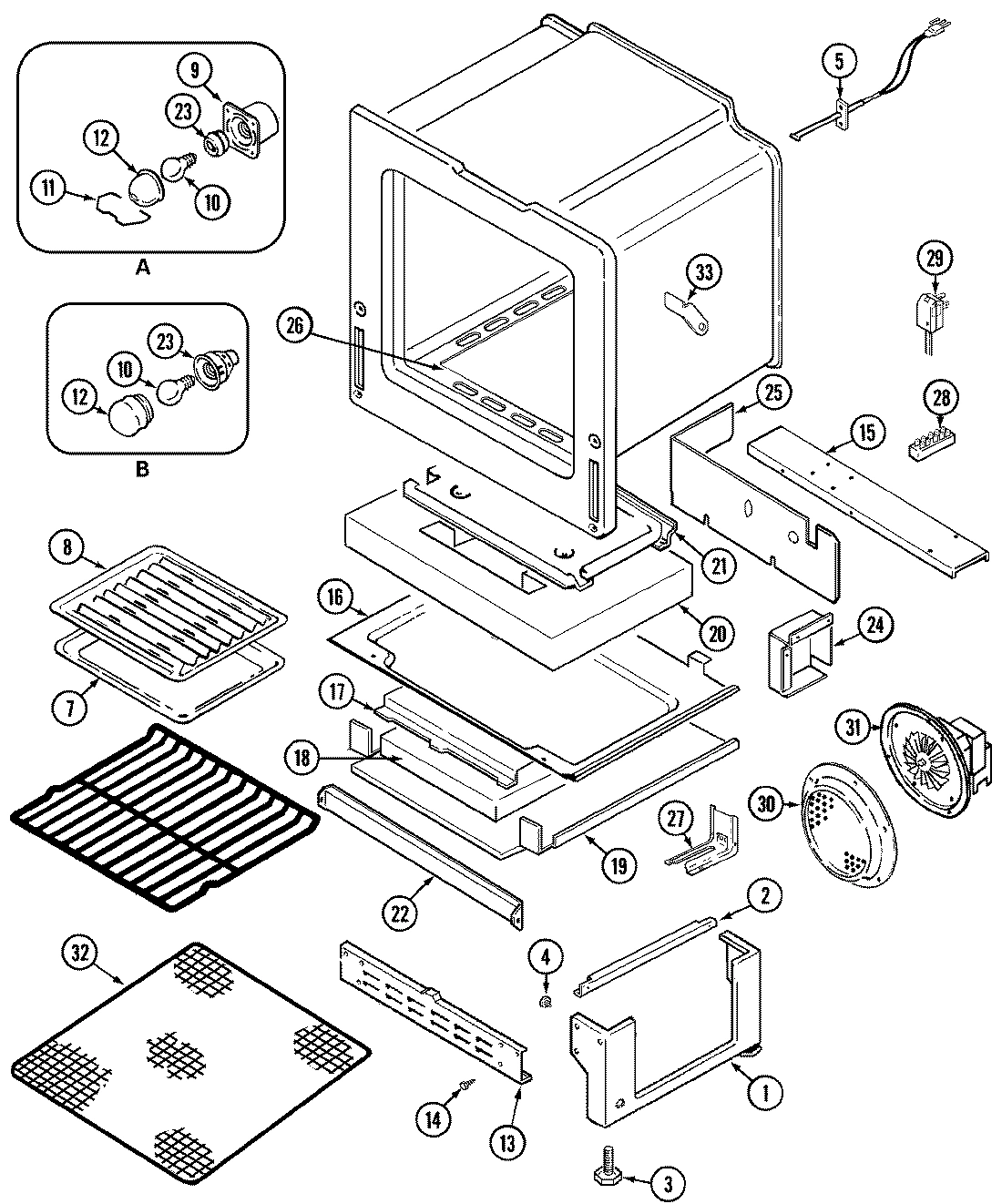

05 - OVEN/BASE

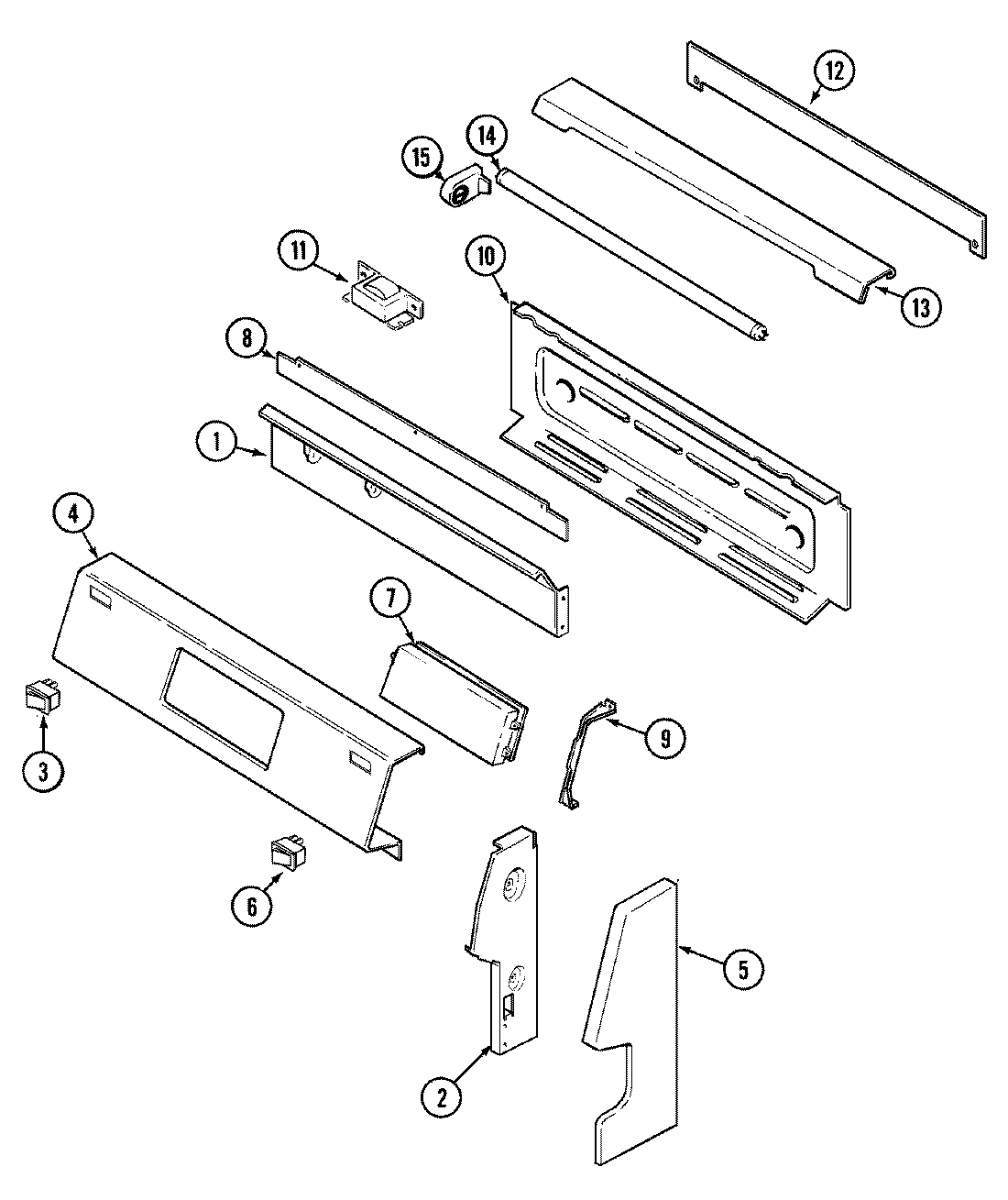

02 - CONTROL PANEL
Common parts from model Whirlpool JGR8850ADA GAS RANGE
1
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
1
VALVE, TOP BURNER WPL 7502P25160 Contact Us For Availability
1
TOP, MAIN (ALM) WPL 74003513 Contact Us For Availability
1
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
1
TRIM, DRAWER (ALM) WPL 74003668 Contact Us For Availability
1
PEDESTAL, SIDE WPL 74003405 Contact Us For Availability
1
SHIELD, VENT DEFLECTOR WPL 74003488 Contact Us For Availability
2
PLATE, FITTING WPL 3605F18645 Contact Us For Availability
2
FITTING, BROIL BURNER WPL 7507P08860 Contact Us For Availability
2
END CAP, PANEL (RT-ALM) WPL 74003517 Contact Us For Availability
2
END CAP, PANEL (LT-ALM) WPL 74003518 Contact Us For Availability
2
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
2
BRACKET, CONTROL PANEL (LT) WPL 74003489 Contact Us For Availability
2
BRACKET, CONTROL PANEL (RT) WPL 74003490 Contact Us For Availability
3
BURNER, BAKE WPL 3403D04345 Contact Us For Availability
3
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
3
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
3
CLIP, TOP LOCKING WPL 74004827 Contact Us For Availability
3
FRAME W/TAPE ASSY WPL 74004843 Contact Us For Availability
3
SWITCH, FLUORESCENT LIGHT(ALM) WPL 74003555 Contact Us For Availability
4
BOX, BURNER (RT) WPL 74002632 Contact Us For Availability
4
VALVE, OVEN WPL 7501P09760 Contact Us For Availability
4
GRATE (TAUPE) WPL 71003049 Contact Us For Availability
4
GLASS, DOOR (ALM) WPL 74003661 Contact Us For Availability
4
ROLLER (W/SHAFT) WPL 74003462 Contact Us For Availability
4
PANEL, CONTROL (ALM) WPL 71003036 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
5
PANEL, MANIFOLD (ALM) WPL 71003051 Contact Us For Availability
5
SCREW WPL 7101P07460 Contact Us For Availability
5
TAPE, FOIL (8.75`` X 1``) WPL 74003660 Contact Us For Availability
5
SCREW (1/2``-ALM) WPL 7101P37460 Contact Us For Availability
5
SCREW (1 3/16``-ALM) WPL 74002528 Contact Us For Availability
5
END CAP, CONTROL PNL (RT-ALM) WPL 74003551 Contact Us For Availability
5
END CAP, CONTROL PNL (LT-ALM) WPL 74003552 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
SEALED BURNER ASSY. (TAUPE) WPL 74003521 Contact Us For Availability
6
BURNER, SEALED (TAUPE) WPL 74003966 Contact Us For Availability
6
BOWL, DRIP (DBL-ALM) WPL 71003052 Contact Us For Availability
6
TAPE, FOIL 29`` X 2`` WPL 74003664 Contact Us For Availability
7
INSULATOR, SWITCH WPL 74001872 Contact Us For Availability
7
SCREW WPL 7101P32860 Contact Us For Availability
7
KNOB, VALVE (ALM) WPL 74002051 Contact Us For Availability
7
TRIM, TOP (ALM) WPL 74003651 Contact Us For Availability
7
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
7
CLOCK (ALM) WPL 71003113 Contact Us For Availability
8
LATCH, DOOR LOCK WPL 74003559 Contact Us For Availability
8
SCREW WPL 7101P31560 Contact Us For Availability
8
SHIELD, SIGHT WPL 74002447 Contact Us For Availability
8
SCREW, TRIM (ALM) WPL 7101P37060 Contact Us For Availability
8
INSERT, DOOR TRIM (ALM) WPL 7728P09560 Contact Us For Availability
8
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
8
SHIELD, SIGHT WPL 8036P00360 Contact Us For Availability
9
COVER, MAIN BACK WIRE WPL 4005F33151 Contact Us For Availability
9
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
9
TRIM, VENT (TAUPE) WPL 74003520 Contact Us For Availability
9
HANDLE, DOOR (ALM) WPL 74003654 Contact Us For Availability
9
HOUSING, BULB WPL 74003388 Contact Us For Availability
9
SCREW (ALM) WPL 74002502 Contact Us For Availability
9
BRACKET, CLOCK WPL 74003550 Contact Us For Availability
10
SWITCH WPL 74001802 Contact Us For Availability
10
BEZEL, KNOB (ALM) WPL 74002054 Contact Us For Availability
10
BULB-OVEN WPL 7407P10360 Contact Us For Availability
10
HOUSING, CONTROL PANEL WPL 74003493 Contact Us For Availability
11
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
11
BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability
11
GASKET, BURNER WPL 74002745 Contact Us For Availability
11
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
11
TAPE, DBL. SIDED (WHT) WPL 71002092 Contact Us For Availability
11
RETAINER, BULB COVER WPL 74003391 Contact Us For Availability
11
BALLAST WPL 74003033 Contact Us For Availability
12
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
12
PIPE, MANIFOLD WPL 74003504 Contact Us For Availability
12
GLASS, DOOR WPL 74003649 Contact Us For Availability
12
COVER, BULB WPL 74003389 Contact Us For Availability
12
COVER, BULB WPL 7724P04760 Contact Us For Availability
12
SHIELD, LIGHT WPL 74003558 Contact Us For Availability
13
BUMPER, ROD WPL 74001631 Contact Us For Availability
13
TUBING, REGULATOR/PIPE (3/8``) WPL 3414F10344 Contact Us For Availability
13
RETAINER, GLASS WPL 74003650 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
COVER, LIGHT (ALM) WPL 74003556 Contact Us For Availability
14
INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P06760 Contact Us For Availability
14
BAFFLE, DOOR WPL 74003648 Contact Us For Availability
14
SCREW WPL 7101P29060 Contact Us For Availability
14
BULB, FLUORESCENT LI WPL 7407P03760 Contact Us For Availability
15
INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability
15
SUPPORT, VALVE/REGULATOR WPL 74002593 Contact Us For Availability
15
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
16
SHIELD, FLUE (LOWER) WPL 3604F16551 Contact Us For Availability
16
FITTING ASSY., ORIFICE (LT) WPL 74003506 Contact Us For Availability
16
RETAINER, BOTTOM INSULATION WPL 74003242 Contact Us For Availability
16
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
LOXIT NUT WPL 7103P12160 Contact Us For Availability
17
SHIELD, HEAT WPL 3604F20451 Contact Us For Availability
17
HARNESS, SENSOR/LOCK WPL 71003046 Contact Us For Availability
17
HARNESS, CONTROL PANEL WPL 71003591 Contact Us For Availability
18
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
18
NUT, WING WPL 7103P03060 Contact Us For Availability
18
FRAME, GLASS WPL 74003644 Contact Us For Availability
18
INSULATION, DRAWER & SHIELD WPL 7002P14060 Contact Us For Availability
18
MANUAL, USE & CARE (FRCH) WPL 16008701 Contact Us For Availability
18
MANUAL, USE & CARE WPL 71003045 Contact Us For Availability
18
MANUAL, USE & CARE WPL 74004042 Contact Us For Availability
19
EXTENSION, FLUE BOX WPL 4022W00719 Contact Us For Availability
19
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
19
3/8`` NUT & FERRULE WPL 1555258K Contact Us For Availability
19
TUBING, BROIL BURNER (3/8``) WPL 3414F10244 Contact Us For Availability
19
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
19
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
19
GUIDE, COOKING WPL 71002782 Contact Us For Availability
20
BOX, VENT WPL 74002367 Contact Us For Availability
20
BURNER, BROIL WPL 3403D02445 Contact Us For Availability
20
LINING, DOOR WPL 74003642 Contact Us For Availability
20
INSULATION, OVEN WPL 74003503 Contact Us For Availability
20
MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability
21
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
21
BAFFLE, BROIL BURNER WPL 3601F21747 Contact Us For Availability
21
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
21
PAN, BAKE BURNER WPL 74001651 Contact Us For Availability
22
ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability
22
CAP, BURNER (TAUPE) WPL 71003054 Contact Us For Availability
22
PANEL, DRAWER (ALM) WPL 71003041 Contact Us For Availability
22
BAFFLE, OVEN FRONT WPL 74001219 Contact Us For Availability
23
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
23
HARNESS, SPARK MODULE/TOP WPL 5120D01960 Contact Us For Availability
23
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
23
WIRES, IGNITER WPL 5140D03560 Contact Us For Availability
23
NUT, LOCK WPL 7103P13960 Contact Us For Availability
23
RECEPTACLE, BULB WPL 74003387 Contact Us For Availability
23
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
24
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
24
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
24
SCREW WPL 74004208 Contact Us For Availability
24
SUPPORT, SPARK MODULE WPL 3807F47351 Contact Us For Availability
25
RETAINER, INSUL. (BACK) WPL 74001801 Contact Us For Availability
25
COVER, BURNER VALVE WPL 74003329 Contact Us For Availability
26
COVER, CONVECT WIRE WPL 74002598 Contact Us For Availability
26
DRAWER, STORAGE WPL 71003042 Contact Us For Availability
26
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
27
NUT WPL 7103P08260 Contact Us For Availability
27
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
27
SCREW WPL 7101P34460 Contact Us For Availability
28
NUT, SNAP (SQUARE-BLK) WPL 74003643 Contact Us For Availability
28
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
29
CORD, POWER WPL 7402P04360 Contact Us For Availability
30
COVER, CONVECT FAN WPL 74002943 Contact Us For Availability
31
FAN ASSY. (CONVECT) WPL 74002596 Contact Us For Availability
31
FAN ASSY. (CONVECT) WPL 74003815 Contact Us For Availability
32
RACK, DEHYDRATION WPL 74003595 Contact Us For Availability
33
SCREW, SHOULDER WPL 74003640 Contact Us For Availability
33
SPACER, DOOR DEHYDRATION WPL 74003639 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002275 Contact Us For Availability
× ![]()
