JGB928BEK5BB

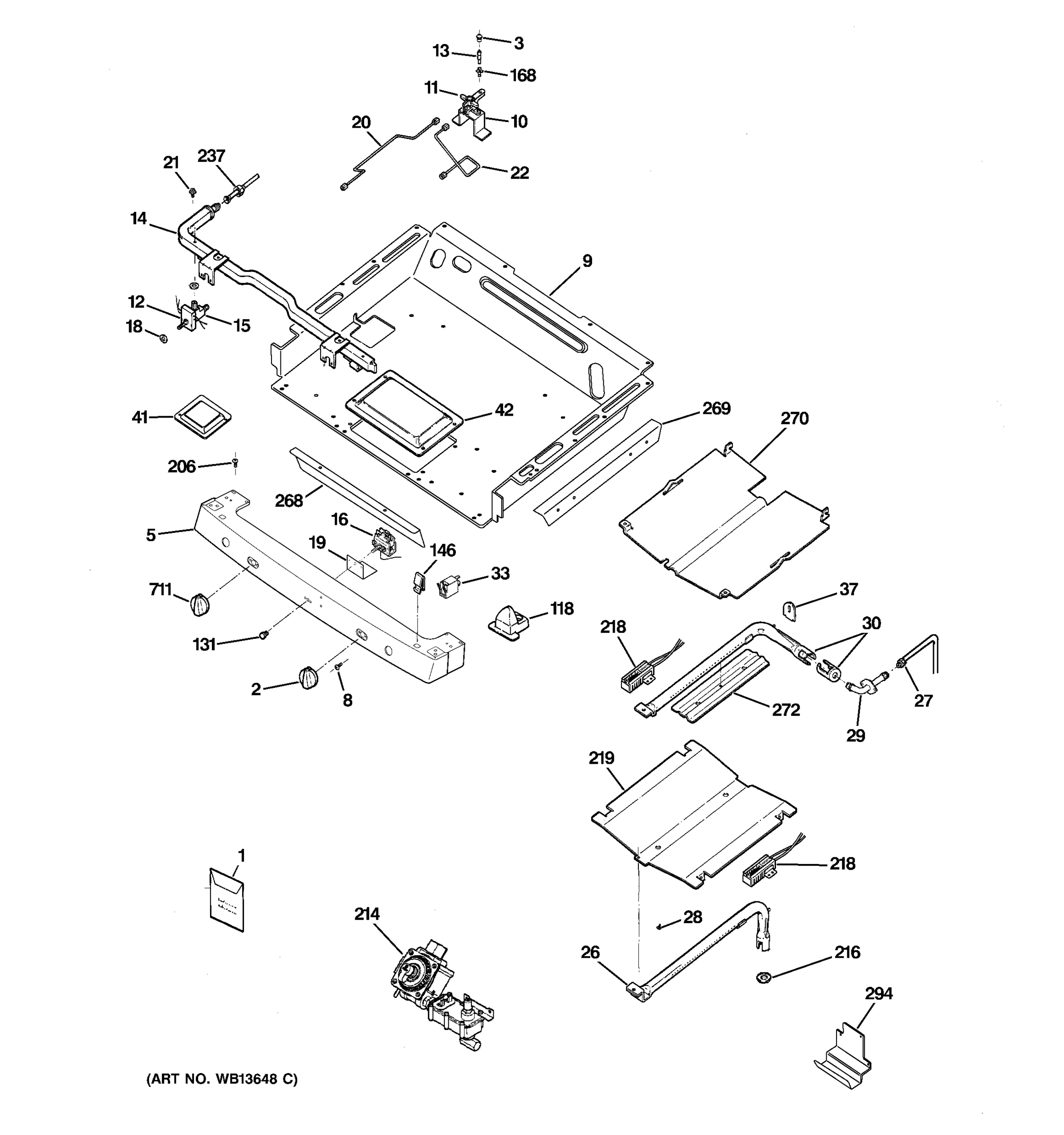

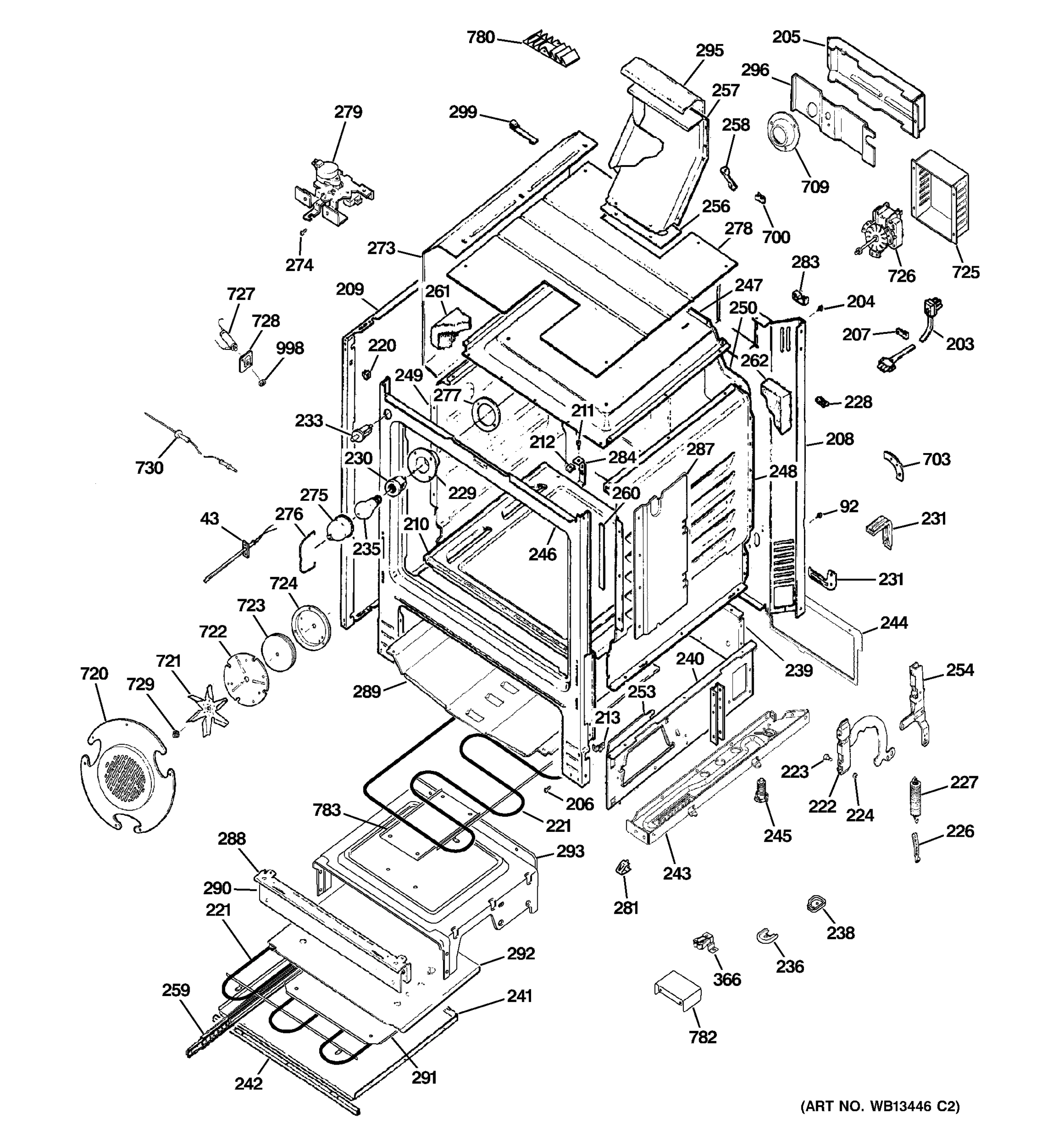

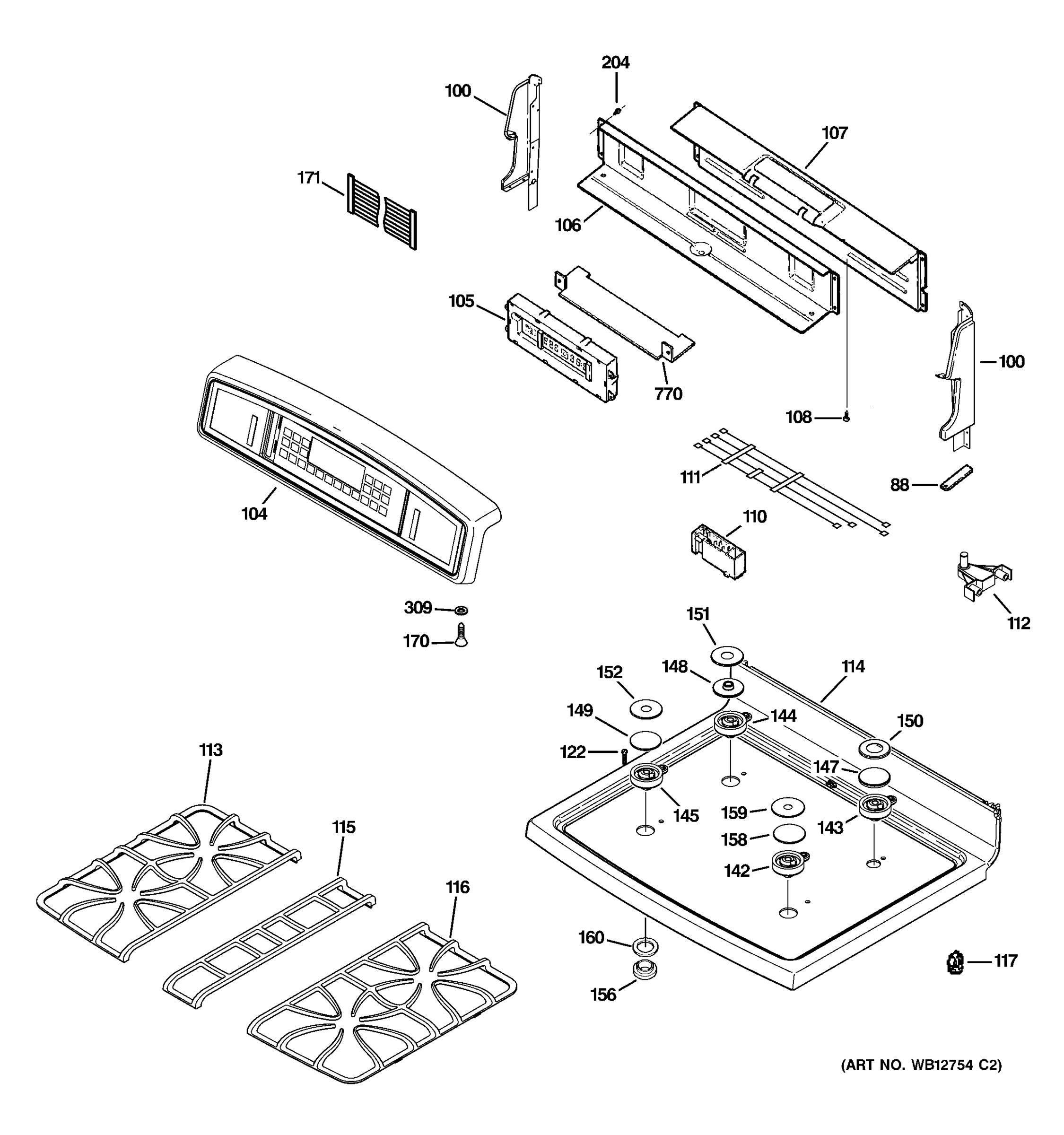

Model JGB928BEK5BB – Common Parts & Diagrams

Common parts from model JGB928BEK5BB

PM10X310 GE Cerama Bryte Cooktop Cleaner

PM10X310 GE Cerama Bryte Cooktop Cleaner In Stock GEN PM10X310 $10.21

WB01K10002 GE Oven Screw 8-32

WB01K10002 GE Oven Screw 8-32 In Stock GEN WB01K10002 $21.00

WB20K10017 GE Oven Thermostat

WB20K10017 GE Oven Thermostat Out of Stock GEN WB20K10017 $111.80

WB2K24 GE Oven Cover Valve

WB2K24 GE Oven Cover Valve Out of Stock GEN WB2K24 $37.36

COVER THERMOSTAT

COVER THERMOSTAT Out of Stock GEN WB37K10012 $7.54

WB01K10066 GE Oven Screw 8 HD 10-32

WB01K10066 GE Oven Screw 8 HD 10-32 Out of Stock GEN WB01K10066 $7.54

WB28K10168 GE Oven Tube Burner Supply

WB28K10168 GE Oven Tube Burner Supply Out of Stock GEN WB28K10168 $40.14

WB1X1293 GE Oven Screw

WB1X1293 GE Oven Screw Out of Stock GEN WB1X1293 $5.69

WB25K10010 GE Oven Light Indicator Pilot

WB25K10010 GE Oven Light Indicator Pilot In Stock GEN WB25K10010 $12.00

WB34K14 GE Cover Ignitor

WB34K14 GE Cover Ignitor Out of Stock GEN WB34K14 $17.52

COVER BURNER BOX

COVER BURNER BOX Out of Stock GEN WB63K10063 $6.90

WB20K10015 GE Oven Temperature Sensor

WB20K10015 GE Oven Temperature Sensor In Stock GEN WB20K10015 $35.09

WB13X42446 GE Spark Module Replacement Kit

WB13X42446 GE Spark Module Replacement Kit In Stock GEN WB13X42446 $28.03

WB18K10027 GE Oven Harness Module

WB18K10027 GE Oven Harness Module In Stock GEN WB18K10027 $7.54

WB14K10003 GE Hinge Range Top

WB14K10003 GE Hinge Range Top Out of Stock GEN WB14K10003 $7.54

WB14K10005 GE Oven Pin Locator

WB14K10005 GE Oven Pin Locator Out of Stock GEN WB14K10005 $44.90

WB25K10009 GE Oven Lens

WB25K10009 GE Oven Lens Out of Stock GEN WB25K10009 $7.54

WB16T10032 GE Oven Base Burner RT Front

WB16T10032 GE Oven Base Burner RT Front Out of Stock GEN WB16T10032 $37.36

WB16T10031 GE Oven Burner Base Small

WB16T10031 GE Oven Burner Base Small In Stock GEN WB16T10031 $26.76

WB16T10030 GE Oven Base Burner Medium

WB16T10030 GE Oven Base Burner Medium Out of Stock GEN WB16T10030 $31.78

WB16T10033 GE Oven Base Burner Large

WB16T10033 GE Oven Base Burner Large Out of Stock GEN WB16T10033 $23.53

WB16K10036 GE Oven Burner Head-Small

WB16K10036 GE Oven Burner Head-Small Out of Stock GEN WB16K10036 $88.94

WB16T10029 GE Head Burner

WB16T10029 GE Head Burner Out of Stock GEN WB16T10029 $112.99

WB13T10023 GE Oven Burner Cap-L

WB13T10023 GE Oven Burner Cap-L Out of Stock GEN WB13T10023 $44.05

WB13T10028 GE Oven Burner Cap Black C X-LG

WB13T10028 GE Oven Burner Cap Black C X-LG Out of Stock GEN WB13T10028 $75.27

WB01K10112 GE Range Stove Oven Electrode Clip

WB01K10112 GE Range Stove Oven Electrode Clip In Stock GEN WB01K10112 $7.54

WB01X23501 GE Oven Screw 8-32 TT FLP .270

WB01X23501 GE Oven Screw 8-32 TT FLP .270 In Stock GEN WB01X23501 $7.54

WR01X10065 GE Screw

WR01X10065 GE Screw Out of Stock GEN WR01X10065 $7.54

WB35X37973 GE Bottom Oven and Deflector Assem

WB35X37973 GE Bottom Oven and Deflector Assem In Stock GEN WB35X37973 $67.63

WB19K10041 GE Oven Safety Valve and Regulator

WB19K10041 GE Oven Safety Valve and Regulator Out of Stock GEN WB19K10041 $270.23

WB13K21 GE Oven Ignitor 3 3/4 7Leads

WB13K21 GE Oven Ignitor 3 3/4 7Leads In Stock GEN WB13K21 $50.80

WB13X25261 GE Oven Ignitor Glowbar

WB13X25261 GE Oven Ignitor Glowbar In Stock GEN WB13X25261 $70.79

WB44K10014 GE Oven Heating Element Top

WB44K10014 GE Oven Heating Element Top Out of Stock GEN WB44K10014 $104.00

WB44K10015 GE Oven Heating Element Bottom

WB44K10015 GE Oven Heating Element Bottom Out of Stock GEN WB44K10015 $100.65

WB08T10026 GE Range Receptacle Push-In

WB08T10026 GE Range Receptacle Push-In In Stock GEN WB08T10026 $7.54

WB24K10068 GE Oven Plunger Switch

WB24K10068 GE Oven Plunger Switch Out of Stock GEN WB24K10068 $13.67

WB28X24772 GE Oven Gas Tube or Connector

WB28X24772 GE Oven Gas Tube or Connector Out of Stock GEN WB28X24772 $42.45

WB02X10521 GE Oven Levelling Leg

WB02X10521 GE Oven Levelling Leg In Stock GEN WB02X10521 $9.88

WB53K10015 GE Oven Top

WB53K10015 GE Oven Top Out of Stock GEN WB53K10015 $101.77

WB39K10025 GE Oven Slide & Bearing Assembly

WB39K10025 GE Oven Slide & Bearing Assembly Out of Stock GEN WB39K10025 $115.97

WB39K10026 GE Oven Slide & Bearing Assembly

WB39K10026 GE Oven Slide & Bearing Assembly Out of Stock GEN WB39K10026 $118.49

WB34K10 GE Oven Shield Broil

WB34K10 GE Oven Shield Broil Out of Stock GEN WB34K10 $20.07

WB02K10137 GE Oven TWO Switch Motor Latch

WB02K10137 GE Oven TWO Switch Motor Latch Out of Stock GEN WB02K10137 $11.64

WB35K10054 GE Oven Insulation Drawer Top

WB35K10054 GE Oven Insulation Drawer Top Out of Stock GEN WB35K10054 $85.86

RANGE TERMINAL COVER

RANGE TERMINAL COVER Out of Stock GEN WB63K10054 $23.10

GE Range Washer

GE Range Washer Out of Stock GEN WB1X119D $13.67

WB35X29668 GE Oven Door Gasket Assembly

WB35X29668 GE Oven Door Gasket Assembly In Stock GEN WB35X29668 $30.96

WB01K10093 GE Oven Speednut

WB01K10093 GE Oven Speednut In Stock GEN WB01K10093 $7.54

WB1X558D GE Oven Screw Package 12

WB1X558D GE Oven Screw Package 12 Out of Stock GEN WB1X558D $22.04

WB35K10053 GE Range Front Drawer Insulation

WB35K10053 GE Range Front Drawer Insulation Out of Stock GEN WB35K10053 $24.43

WB35K25 GE Oven Insulation BOT Door

WB35K25 GE Oven Insulation BOT Door Out of Stock GEN WB35K25 $36.64

WB56K12 GE Oven Guard Insulation

WB56K12 GE Oven Guard Insulation Out of Stock GEN WB56K12 $89.21

WB55K13 GE Oven Panel Weld

WB55K13 GE Oven Panel Weld Out of Stock GEN WB55K13 $126.35

WB39K10027 GE Range Slide Internal

WB39K10027 GE Range Slide Internal Out of Stock GEN WB39K10027 $43.22

WB39K20 GE Oven Bracket Mounting DRW

WB39K20 GE Oven Bracket Mounting DRW Out of Stock GEN WB39K20 $7.54

WB55K10024 GE Oven Liner Drawer

WB55K10024 GE Oven Liner Drawer Out of Stock GEN WB55K10024 $69.69

WB48K10010 GE Oven Rack Baking Drawer

WB48K10010 GE Oven Rack Baking Drawer Out of Stock GEN WB48K10010 $120.38

WB07K10232 GE Oven Trim Bottom Assembly

WB07K10232 GE Oven Trim Bottom Assembly Out of Stock GEN WB07K10232 $10.40

WB04K10017 GE Oven Gasket Drawer Assembly

WB04K10017 GE Oven Gasket Drawer Assembly Out of Stock GEN WB04K10017 $30.11

WB1X5731D GE Oven Nut PKG/12

WB1X5731D GE Oven Nut PKG/12 Out of Stock GEN WB1X5731D $27.05

WB04K10018 GE Oven Gasket Lower

WB04K10018 GE Oven Gasket Lower Out of Stock GEN WB04K10018 $34.52

WB02K10110 GE Oven Catch

WB02K10110 GE Oven Catch Out of Stock GEN WB02K10110 $22.04

WB02K10111 GE Oven Strike

WB02K10111 GE Oven Strike Out of Stock GEN WB02K10111 $13.12

WB02K10112 GE Oven Bumper Blue

WB02K10112 GE Oven Bumper Blue In Stock GEN WB02K10112 $7.54

WB2K15 GE Oven Grate Bumper/Foot

WB2K15 GE Oven Grate Bumper/Foot In Stock GEN WB2K15 $7.54

WB63K10062 GE Oven Bracket Drawer

WB63K10062 GE Oven Bracket Drawer Out of Stock GEN WB63K10062 $25.75

WB34K10087 GE Oven Window Spacer Assembly

WB34K10087 GE Oven Window Spacer Assembly Out of Stock GEN WB34K10087 $133.55

WB34K10037 GE Oven Fan Cover Front

WB34K10037 GE Oven Fan Cover Front Out of Stock GEN WB34K10037 $80.84

WB34K10038 GE Oven Fan Cover Back

WB34K10038 GE Oven Fan Cover Back Out of Stock GEN WB34K10038 $16.89

WB35K10038 GE Range Insulator Fan

WB35K10038 GE Range Insulator Fan Out of Stock GEN WB35K10038 $7.54

WB02K10034 GE Range Fan Support

WB02K10034 GE Range Fan Support Out of Stock GEN WB02K10034 $14.50

WB26K10003 GE Oven Fan Motor Convection

WB26K10003 GE Oven Fan Motor Convection In Stock GEN WB26K10003 $108.59
