Model Maytag JFI2089ATS10 REFRIGERATOR – Common Parts & Diagrams

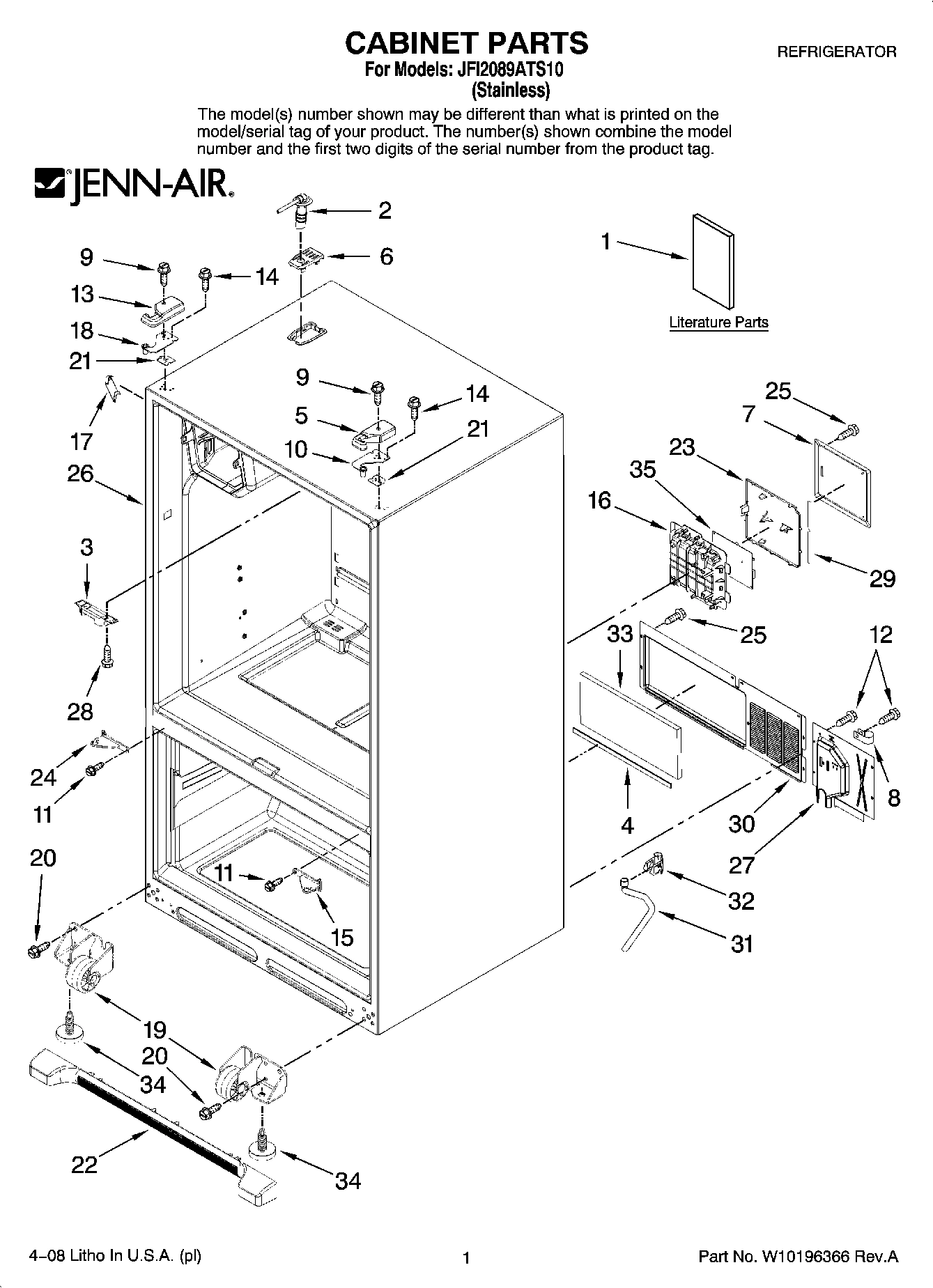

01 - CABINET PARTS

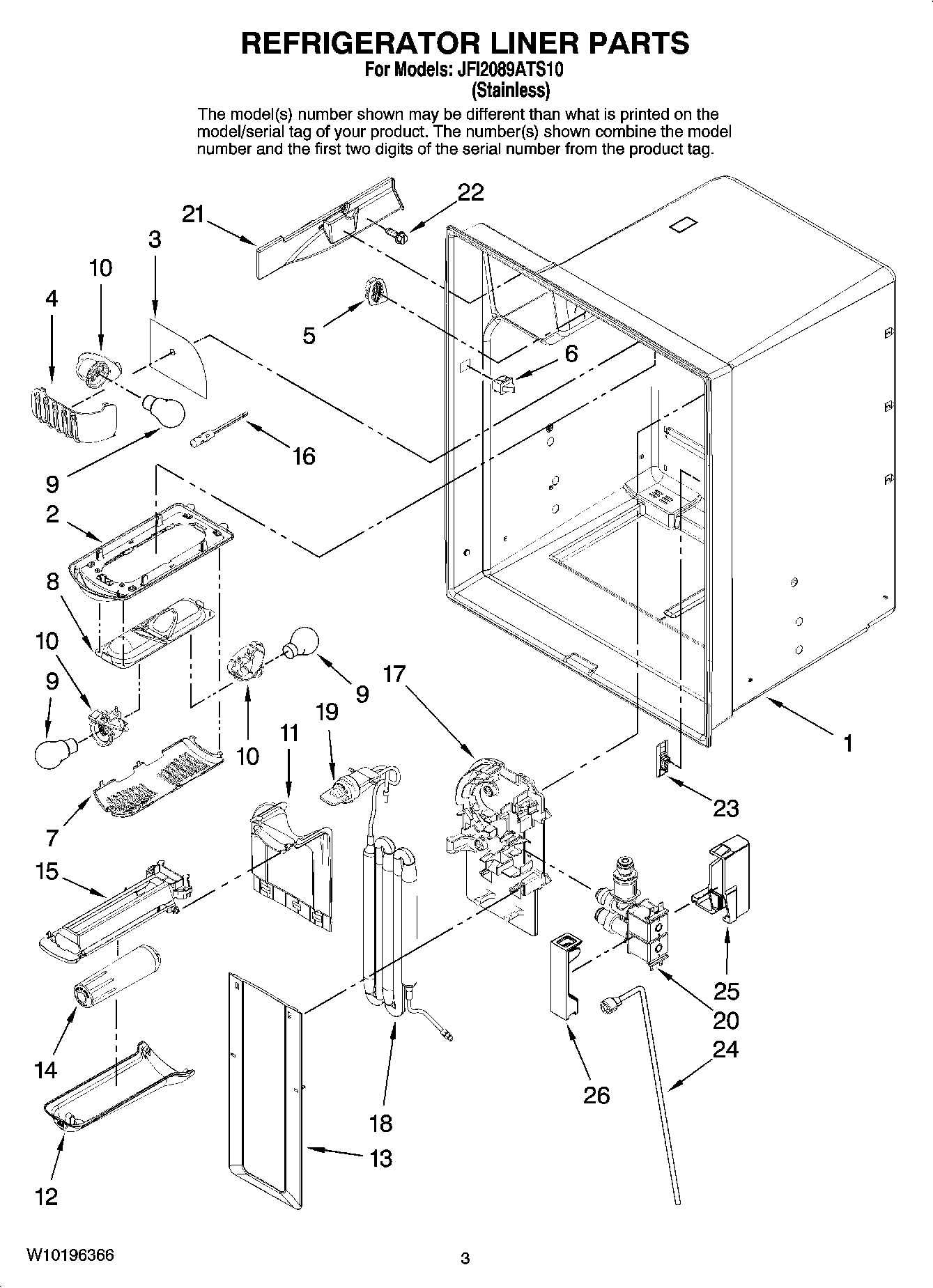

02 - REFRIGERATOR LINER PARTS

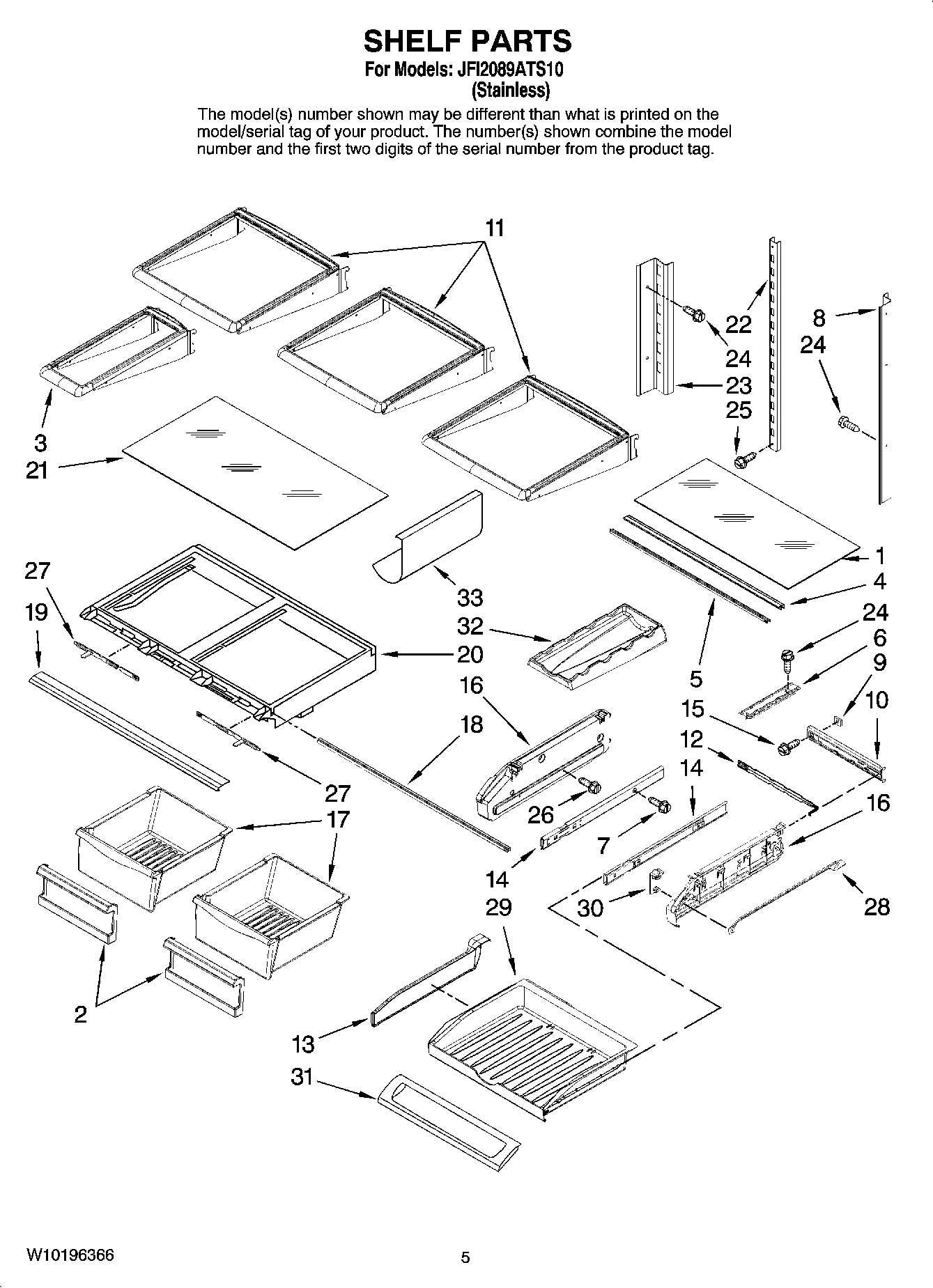

03 - SHELF PARTS

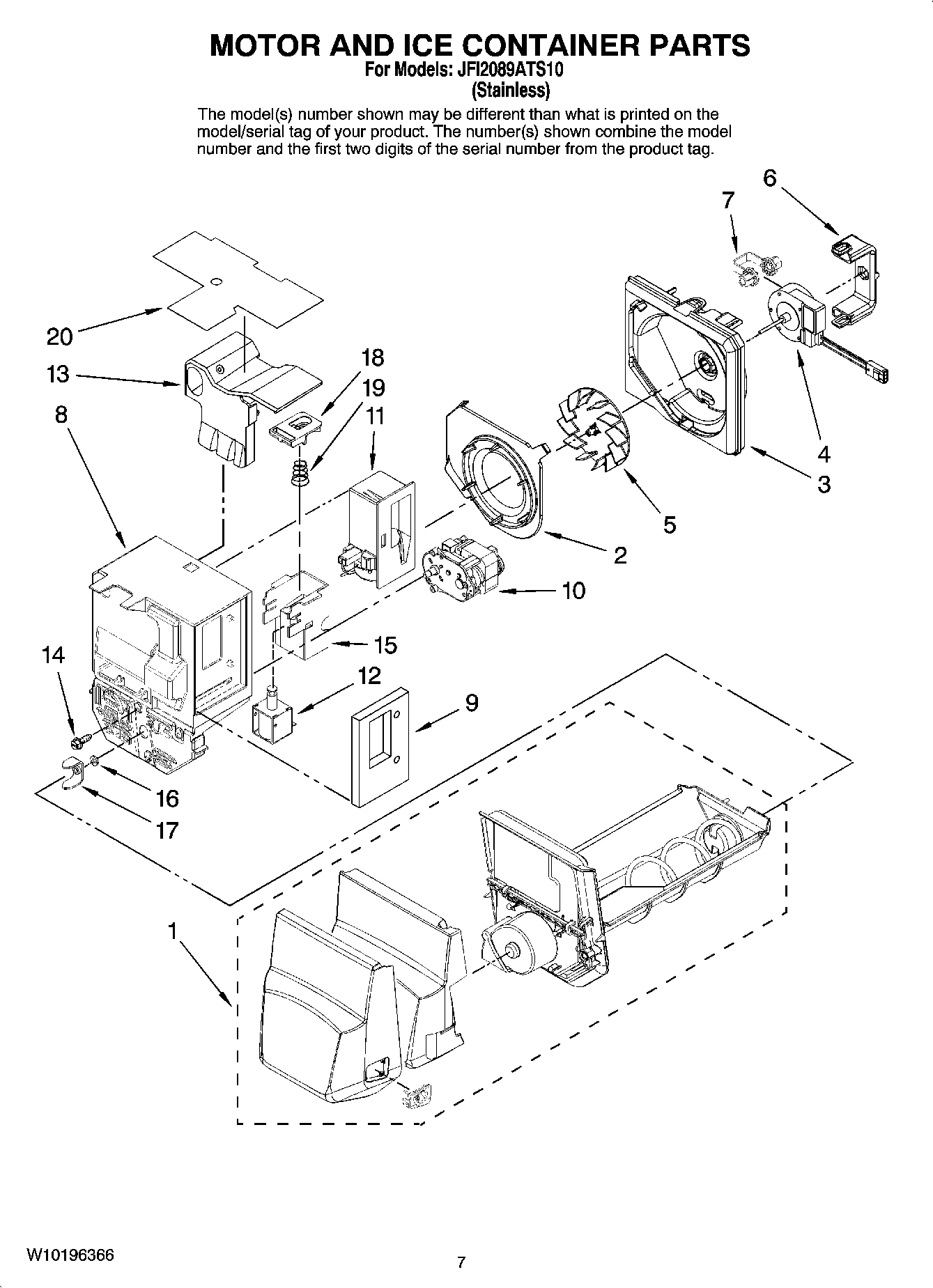

04 - MOTOR AND ICE CONTAINER PARTS

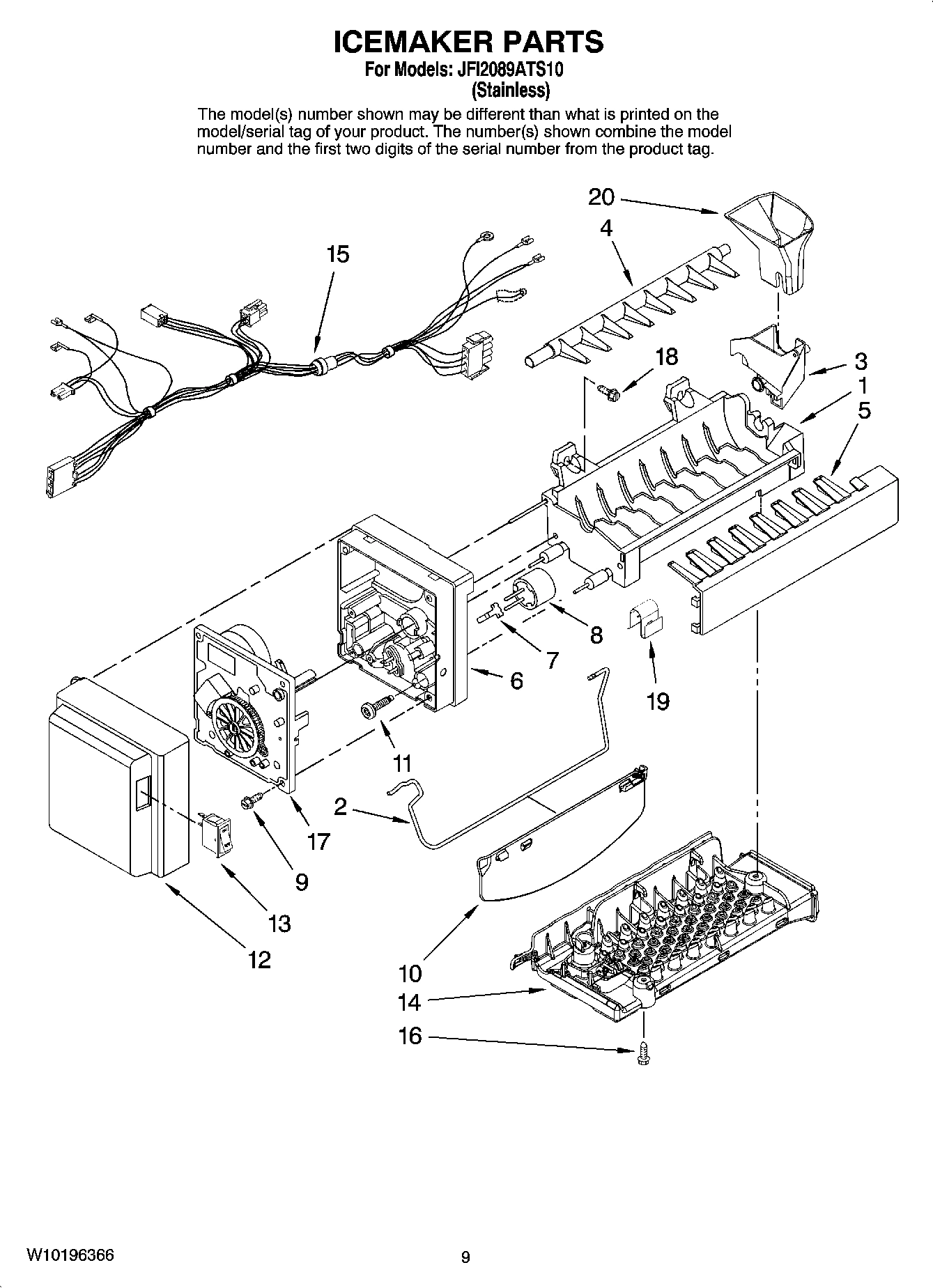

05 - ICEMAKER PARTS

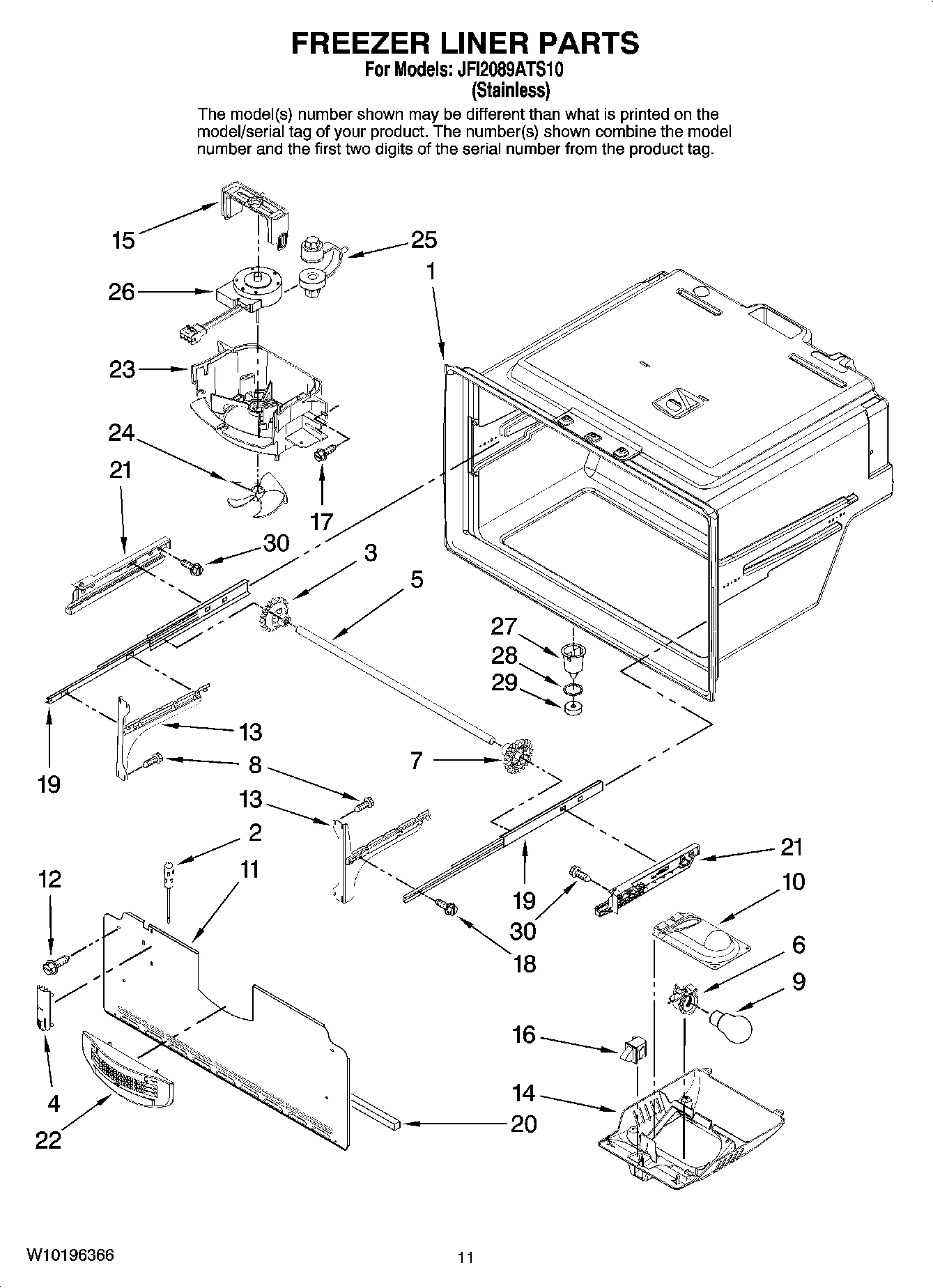

06 - FREEZER LINER PARTS

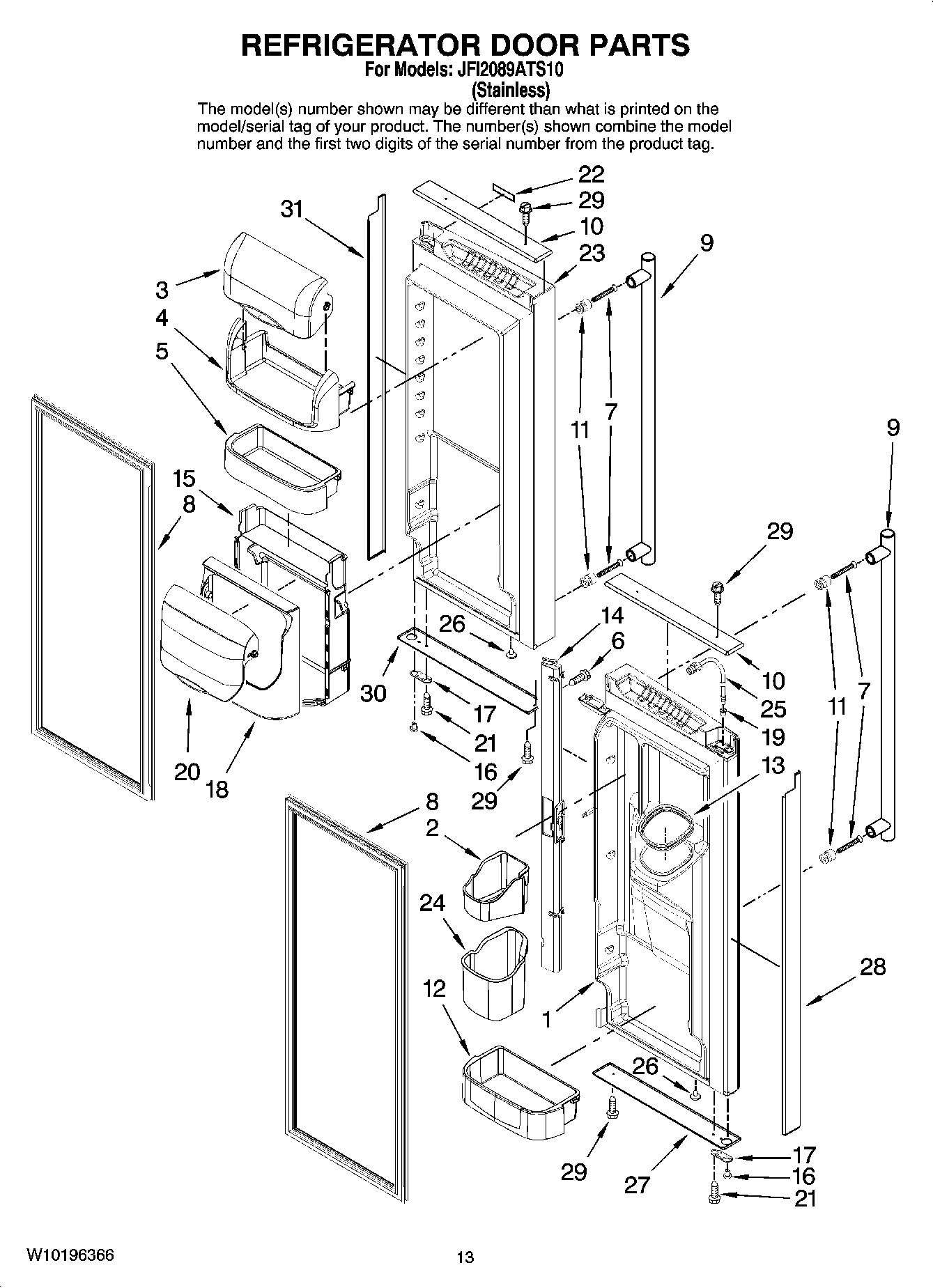

07 - REFRIGERATOR DOOR PARTS

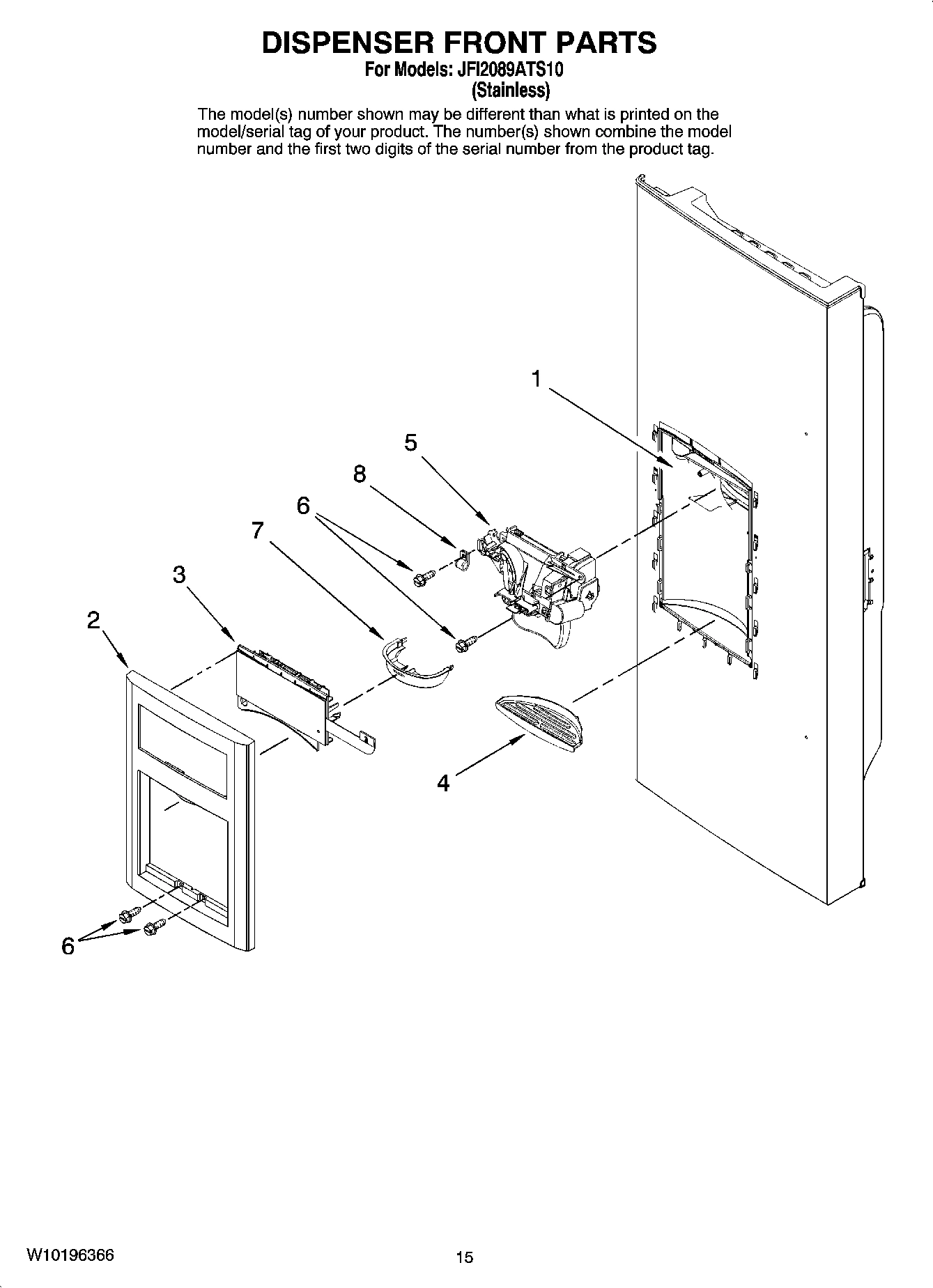

08 - DISPENSER FRONT PARTS

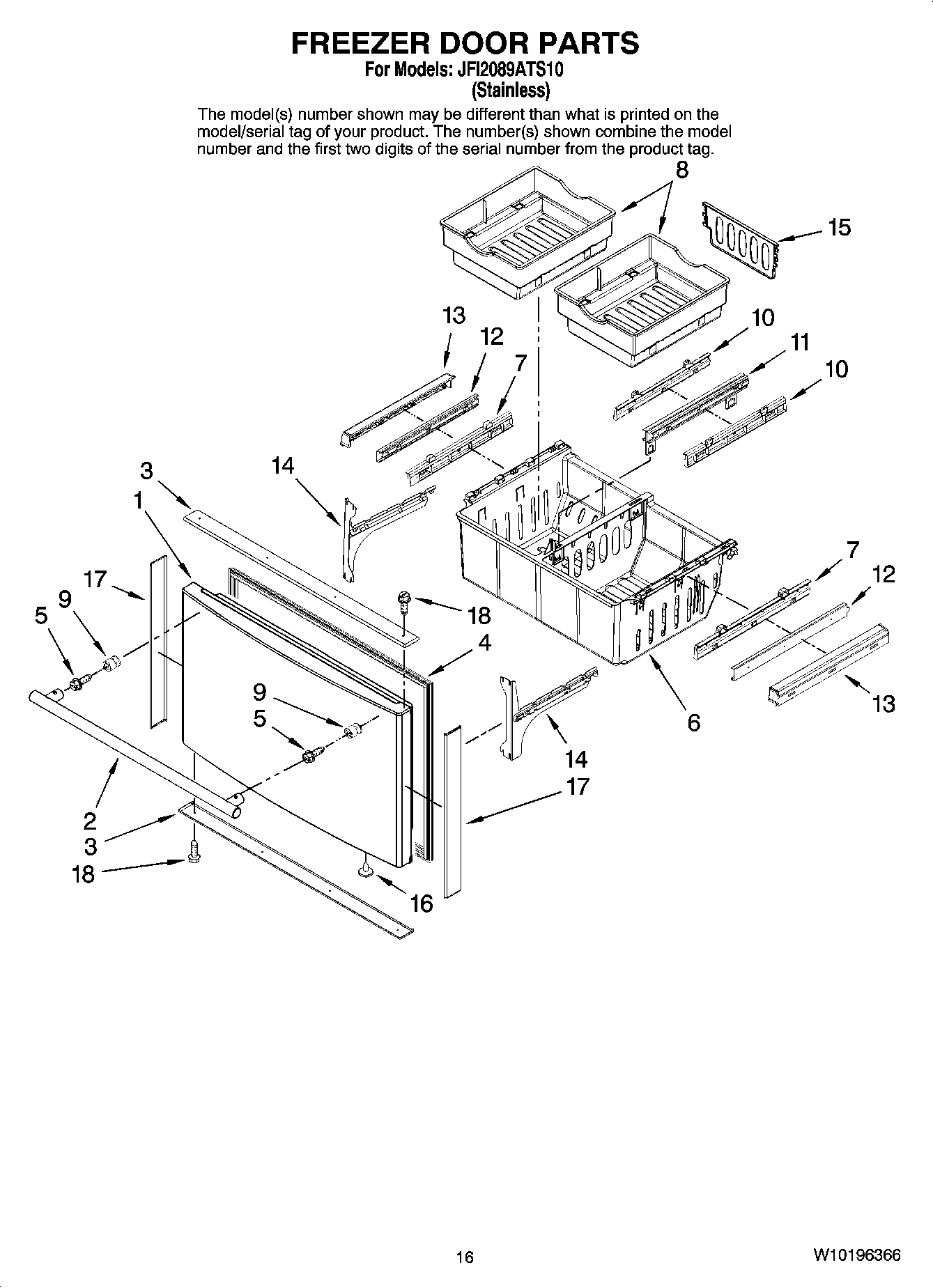

09 - FREEZER DOOR PARTS

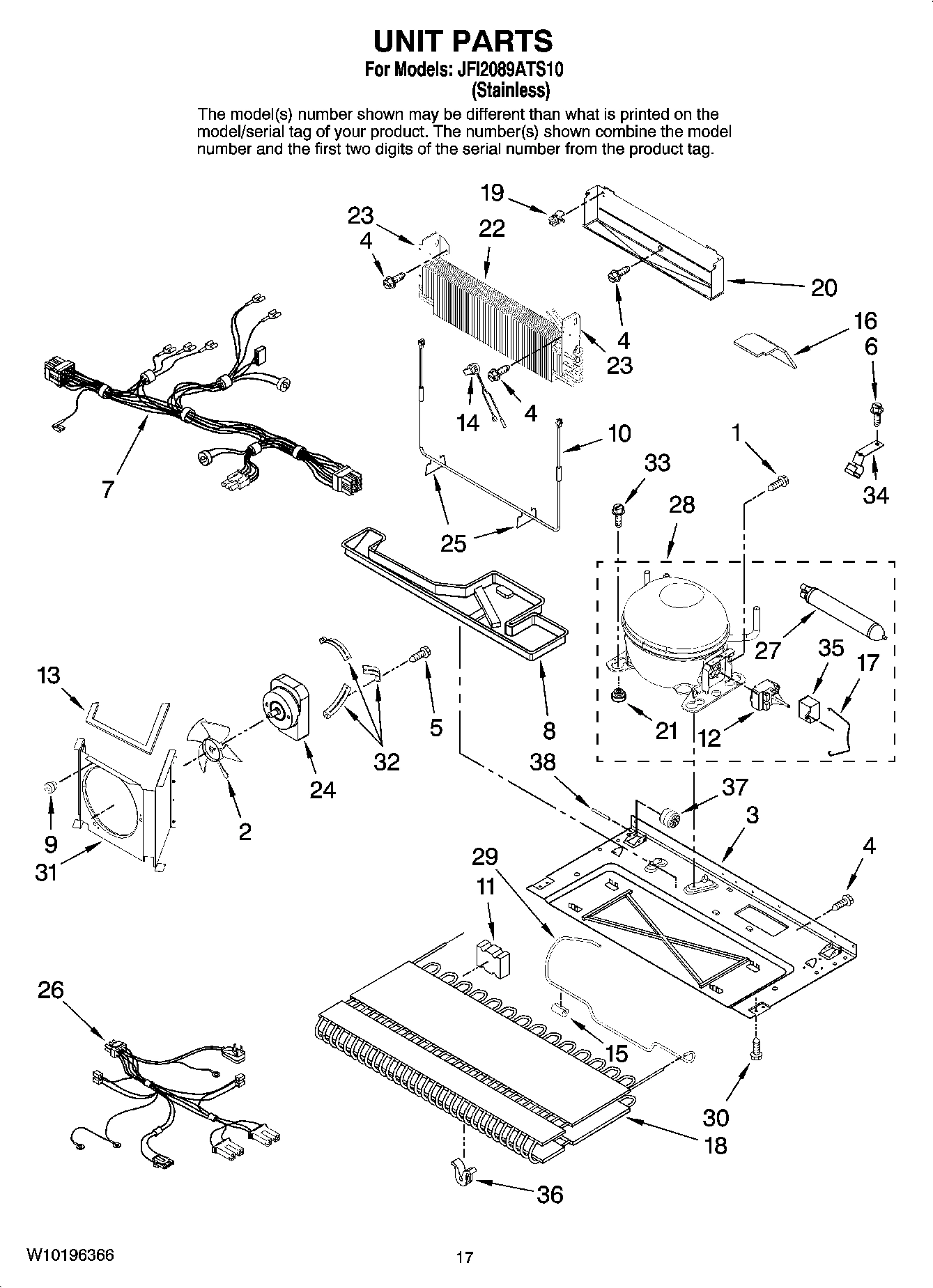

10 - UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JFI2089ATS10 REFRIGERATOR
1
MOLD & HEATER ASSEMBLY (ALSO ORDER 542638 GRE MAY W10122527 Contact Us For Availability
1
MAY W10187652 MAY W10187652 Contact Us For Availability
1
MAY W10187642 MAY W10187642 Contact Us For Availability
1
MAY 67006433 MAY 67006433 Contact Us For Availability
2
Front, Crisper Pan (2) MAY 67005912 Contact Us For Availability
2
MAY W10121282 MAY W10121282 Contact Us For Availability
2
MAY W10175514 MAY W10175514 Contact Us For Availability
2
Bin, Upper Door MAY W10187453 Contact Us For Availability
2
MAY W10187482 MAY W10187482 Contact Us For Availability
2
Handle, Door (Stainless) MAY 12850909 Contact Us For Availability
2
MAY W10162928 MAY W10162928 Contact Us For Availability
3
MAY W10121281 MAY W10121281 Contact Us For Availability
3
Cup, Fill MAY 628515 Contact Us For Availability
3
MAY W10188357 MAY W10188357 Contact Us For Availability
3
MAY W10187661 MAY W10187661 Contact Us For Availability
3
MAY 67005889 MAY 67005889 Contact Us For Availability
4
MAY W10162697 MAY W10162697 Contact Us For Availability
4
Screw MAY 67006425 Contact Us For Availability
4
MAY 627843 MAY 627843 Contact Us For Availability
4
MAY W10187472 MAY W10187472 Contact Us For Availability
4
MAY W10162895 MAY W10162895 Contact Us For Availability
5
MAY W10123444 MAY W10123444 Contact Us For Availability
5
MAY 2182124 MAY 2182124 Contact Us For Availability
5
SCREW, HANDLE MAY W10133608 Contact Us For Availability
5
MAY Y67006296 MAY Y67006296 Contact Us For Availability
6
MAY 67006400 MAY 67006400 Contact Us For Availability
6
MAY W10165970 MAY W10165970 Contact Us For Availability
6
MAY 2194712 MAY 2194712 Contact Us For Availability
6
MAY Y12570701 MAY Y12570701 Contact Us For Availability
6
MAY 67006786 MAY 67006786 Contact Us For Availability
6
MAY 67006981 MAY 67006981 Contact Us For Availability
6
MAY 67006737 MAY 67006737 Contact Us For Availability
7
MAY W10151687 MAY W10151687 Contact Us For Availability
7
MAY 2315522 MAY 2315522 Contact Us For Availability
7
MAY W10187469 MAY W10187469 Contact Us For Availability
7
Harness, Evap Heater MAY W10119239 Contact Us For Availability
8
MAY W10187440 MAY W10187440 Contact Us For Availability
8
Thermostat (Also Order 542369 Cement) MAY 627985 Contact Us For Availability
8
MAY W10162891 MAY W10162891 Contact Us For Availability
8
MAY M0108106 MAY M0108106 Contact Us For Availability
8
MAY W10184227 MAY W10184227 Contact Us For Availability
9
MAY 61004743 MAY 61004743 Contact Us For Availability
9
MAY 67006341 MAY 67006341 Contact Us For Availability
9
Screw (3) MAY 489464 Contact Us For Availability
9
Handle, Door (Stainless) MAY 12850910 Contact Us For Availability
9
MAY 67006109 MAY 67006109 Contact Us For Availability
10
MAY 67001035 MAY 67001035 Contact Us For Availability
10
MAY W10121440 MAY W10121440 Contact Us For Availability
10
MAY W10187660 MAY W10187660 Contact Us For Availability
10
MAY W10184223 MAY W10184223 Contact Us For Availability
10
MAY W10162932 MAY W10162932 Contact Us For Availability
11
MAY W10127427 MAY W10127427 Contact Us For Availability
11
Screw (2) MAY 8533917 Contact Us For Availability
11
MAY 67006383 MAY 67006383 Contact Us For Availability
11
MAY 67007119 MAY 67007119 Contact Us For Availability
11
MAY 67005491 MAY 67005491 Contact Us For Availability
12
MAY W10121444 MAY W10121444 Contact Us For Availability
12
MAY W10187434 MAY W10187434 Contact Us For Availability
12
MAY 67007118 MAY 67007118 Contact Us For Availability
12
MAY W10128791 MAY W10128791 Contact Us For Availability
13
MAY W10118612 MAY W10118612 Contact Us For Availability
13
MAY 2313326 MAY 2313326 Contact Us For Availability
13
MAY 67007117 MAY 67007117 Contact Us For Availability
13A
MAY 67007116 MAY 67007116 Contact Us For Availability
14
MAY W10121269 MAY W10121269 Contact Us For Availability
14
Bracket, Door Slide (Left) MAY W10119064 Contact Us For Availability
14
MAY 67006423 MAY 67006423 Contact Us For Availability
14
MAY W10164405 MAY W10164405 Contact Us For Availability
14
MAY 67006387 MAY 67006387 Contact Us For Availability
14A
Bracket, Door Slide (Right) MAY W10119295 Contact Us For Availability
15
MAY 67007111 MAY 67007111 Contact Us For Availability
15
MAY W10123395 MAY W10123395 Contact Us For Availability
15
MAY 67006373 MAY 67006373 Contact Us For Availability
16
MAY 67006346 MAY 67006346 Contact Us For Availability
16
PAD-ACOUSTIC MAY 12820504 Contact Us For Availability
17
MAY 63052-1 MAY 63052-1 Contact Us For Availability
17
MAY 626678 MAY 626678 Contact Us For Availability
17
MAY W10187671 MAY W10187671 Contact Us For Availability
17
MAY 2255199 MAY 2255199 Contact Us For Availability
18
MAY 67006347 MAY 67006347 Contact Us For Availability
18
Screw (3) MAY 489276 Contact Us For Availability
18
MAY 67006769 MAY 67006769 Contact Us For Availability
19
MAY 12664501 MAY 12664501 Contact Us For Availability
19
MAY 67006348 MAY 67006348 Contact Us For Availability
19
Clip MAY 628379 Contact Us For Availability
19
MAY W10180420 MAY W10180420 Contact Us For Availability
19
MAY 10623002 MAY 10623002 Contact Us For Availability
20
MAY W10142628 MAY W10142628 Contact Us For Availability
20
MAY W10121434 MAY W10121434 Contact Us For Availability
20
MAY 67003731 MAY 67003731 Contact Us For Availability
20
MAY 67002490 MAY 67002490 Contact Us For Availability
21
Screw MAY 67006473 Contact Us For Availability
21
MAY W10184173 MAY W10184173 Contact Us For Availability
21
MAY W10184175 MAY W10184175 Contact Us For Availability
21
MAY W10169124 MAY W10169124 Contact Us For Availability
22
MAY 67006358 MAY 67006358 Contact Us For Availability
22
MAY W10184230 MAY W10184230 Contact Us For Availability
23
MAY 67006354 MAY 67006354 Contact Us For Availability
23
MAY 67006424 MAY 67006424 Contact Us For Availability
23
MAY W10187651 MAY W10187651 Contact Us For Availability
23
MAY W10162951 MAY W10162951 Contact Us For Availability
23A
MAY W10162962 MAY W10162962 Contact Us For Availability
24
Bin, Lower Door MAY W10187454 Contact Us For Availability
24
MAY 67004432 MAY 67004432 Contact Us For Availability
26
MAY 67006415 MAY 67006415 Contact Us For Availability
26
MAY W10162809 MAY W10162809 Contact Us For Availability
26
MAY 13060202 MAY 13060202 Contact Us For Availability
27
MAY 67005864 MAY 67005864 Contact Us For Availability
27
MAY D7753903 MAY D7753903 Contact Us For Availability
27
MAY W10187665 MAY W10187665 Contact Us For Availability
27
Drier MAY 2317845 Contact Us For Availability
28
MAY 67003794 MAY 67003794 Contact Us For Availability
28
SEAL, O RING MAY M0500703 Contact Us For Availability
28
MAY W10187669 MAY W10187669 Contact Us For Availability
28
Compressor (Includes Items 12,17,21,27,35) MAY W10134623 Contact Us For Availability
29
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
29
MAY W10134293 MAY W10134293 Contact Us For Availability
30
MAY 67006406 MAY 67006406 Contact Us For Availability
30
MAY W10187666 MAY W10187666 Contact Us For Availability
30
MAY 67006573 MAY 67006573 Contact Us For Availability
31
MAY W10187670 MAY W10187670 Contact Us For Availability
31
MAY W10158508 MAY W10158508 Contact Us For Availability
32
MAY 67004953 MAY 67004953 Contact Us For Availability
33
MAY 67005999 MAY 67005999 Contact Us For Availability
33
MAY 67006432 MAY 67006432 Contact Us For Availability
34
MAY 10547003 MAY 10547003 Contact Us For Availability
35
MAY 2264017 MAY 2264017 Contact Us For Availability
36
GROMMET, COND (4) MAY W10137529 Contact Us For Availability
100
MAY W10122533 MAY W10122533 Contact Us For Availability
NI
MAY 67007112 MAY 67007112 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
Cleaner, Stnls Steel Magic MAY 20000008 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
Enamel, White (13 Oz. Spray Can) MAY 350930 Contact Us For Availability
NI
MAY 350939 MAY 350939 Contact Us For Availability
NI
Primer, White (13 Oz. Spray Can) MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
Brush Touch-Up Kit (White) MAY 72017 Contact Us For Availability
NI
Brush Touch-Up Kit (Black) MAY 72032 Contact Us For Availability
NI
MAY 799340 MAY 799340 Contact Us For Availability
NI
Enamel, White (1 Qt. Uncut) MAY 799344 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
MAY 876305 MAY 876305 Contact Us For Availability
NI
MAY 876370 MAY 876370 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
