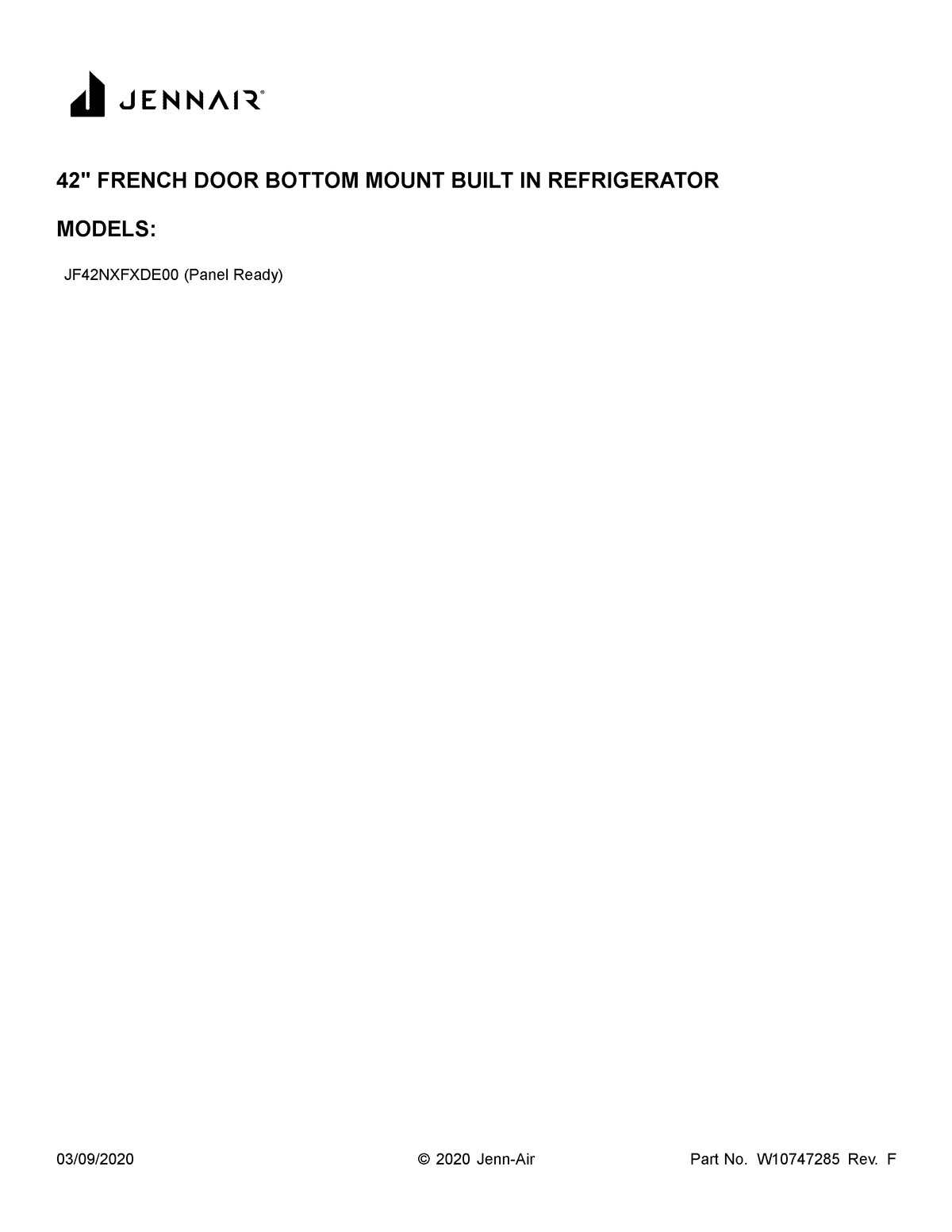

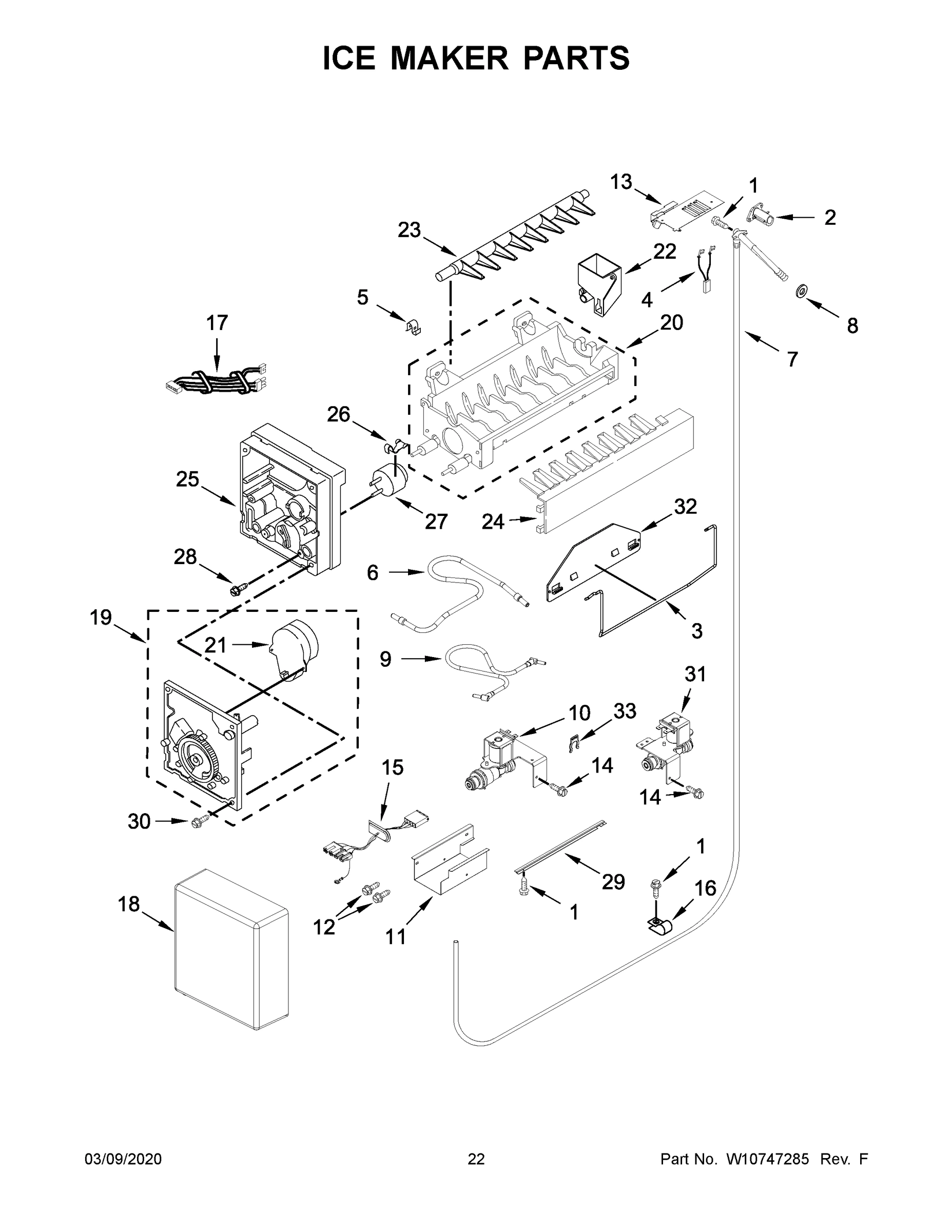

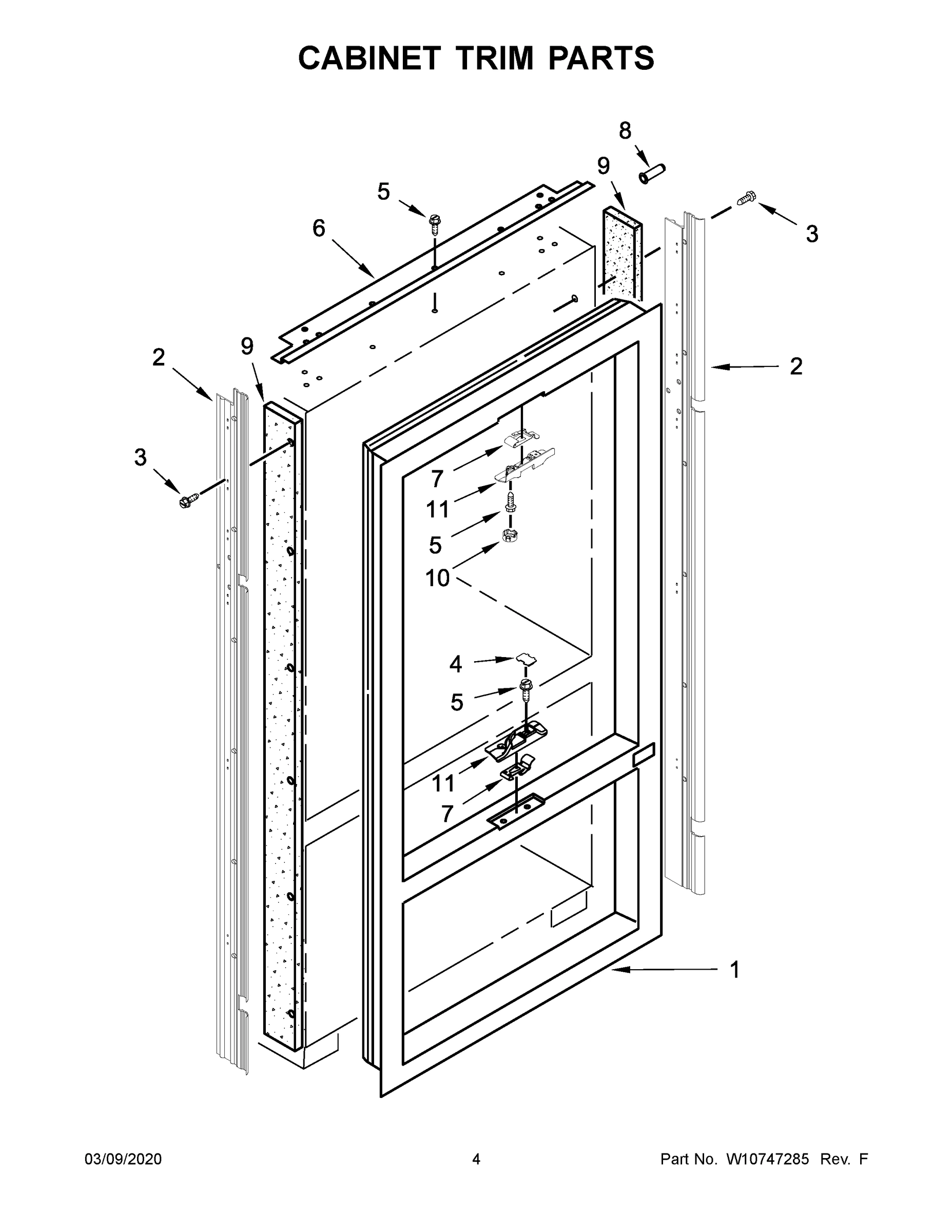

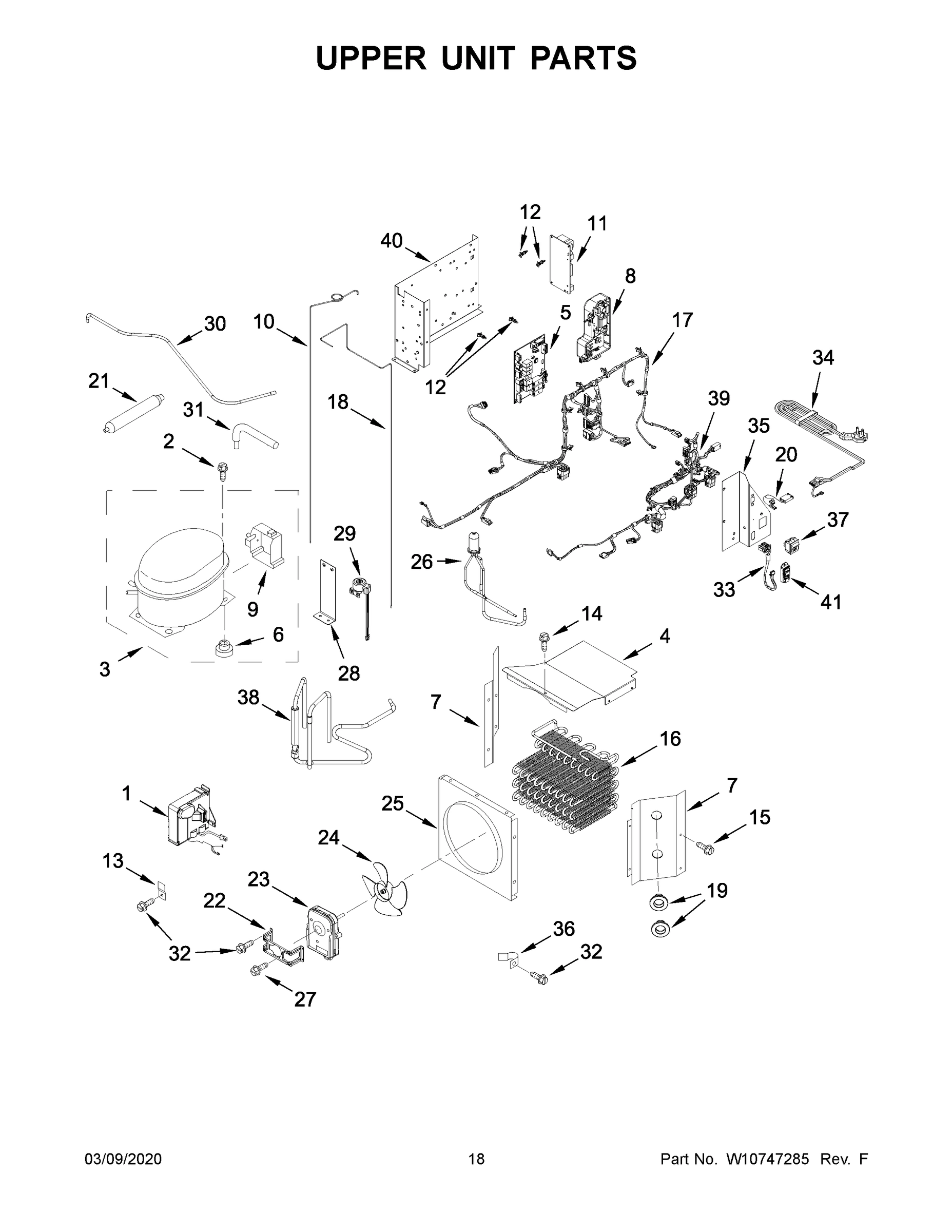

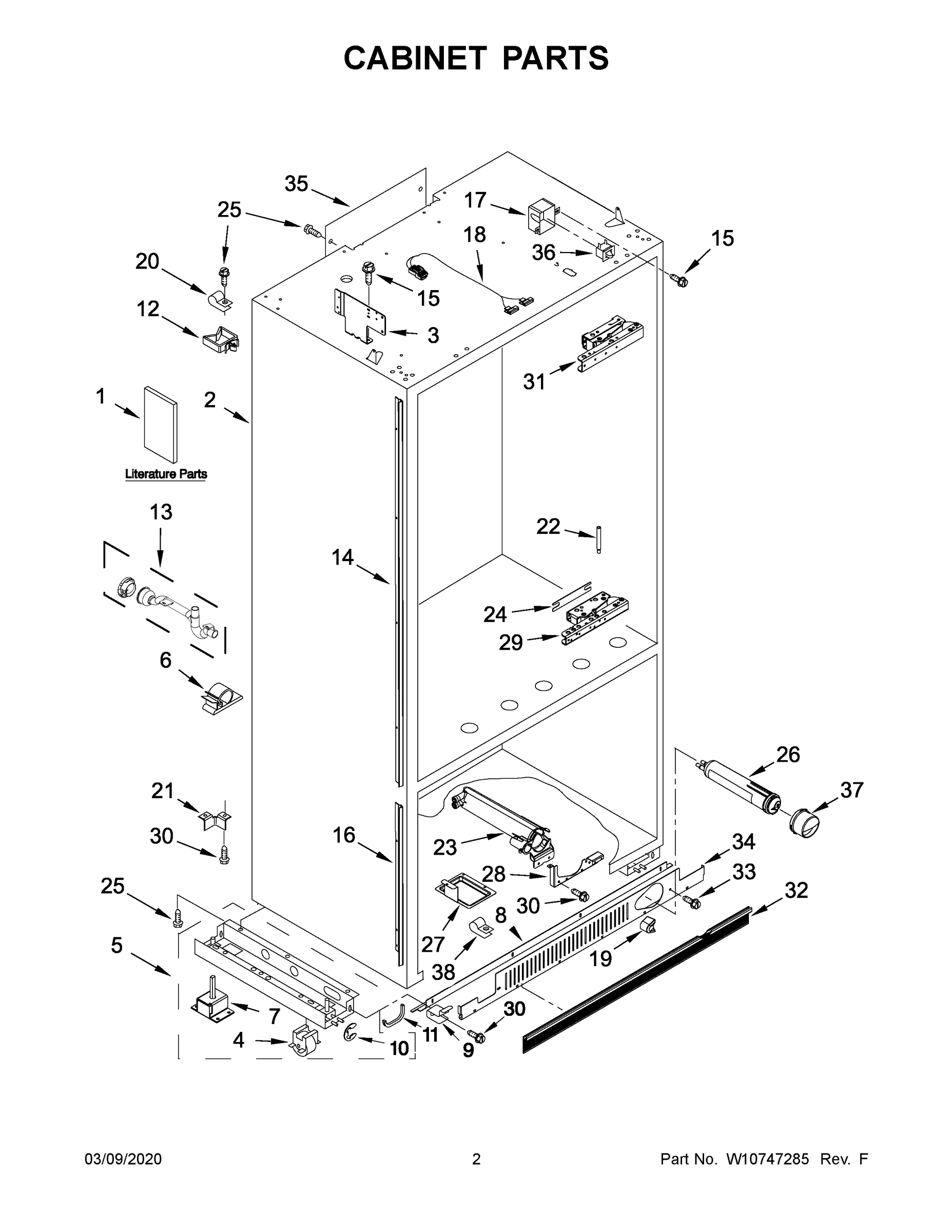

Model Whirlpool JF42NXFXDE00 REFRIGERATOR, FRENCH DOOR, BUILT-IN, BOTTOM MOUNT – Common Parts &amp; Diagrams

1

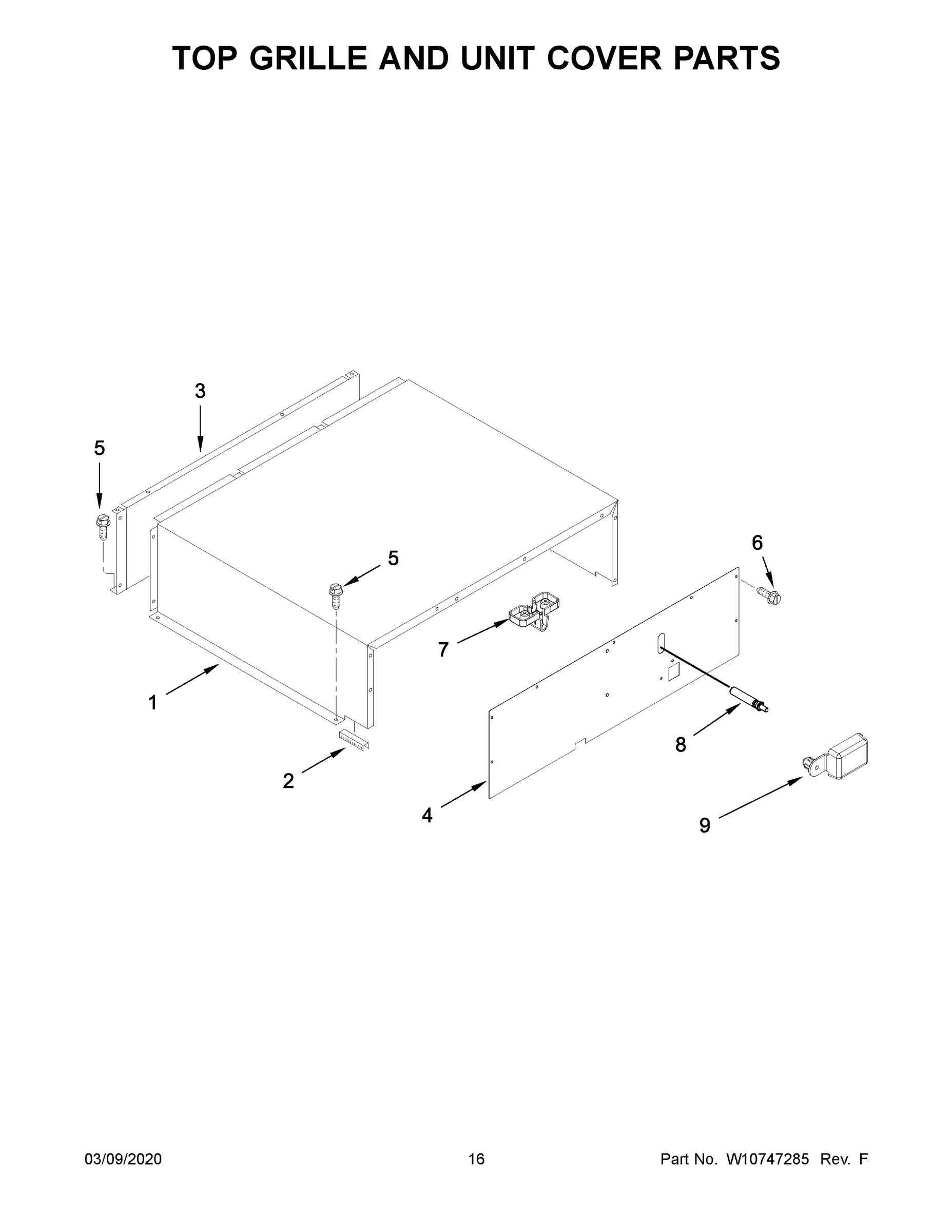

W11735285 Whirlpool Unit Cover Backorder WPL W11735285 $126.50

2

W10714136 Whirlpool Refrigerator Door Trim Backorder WPL W10714136 $230.41

2

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $90.46

2

SCREW WPL 489473 Contact Us For Availability

2A

W10714135 Whirlpool Refrigerator Door Trim Backorder WPL W10714135 $230.41

3

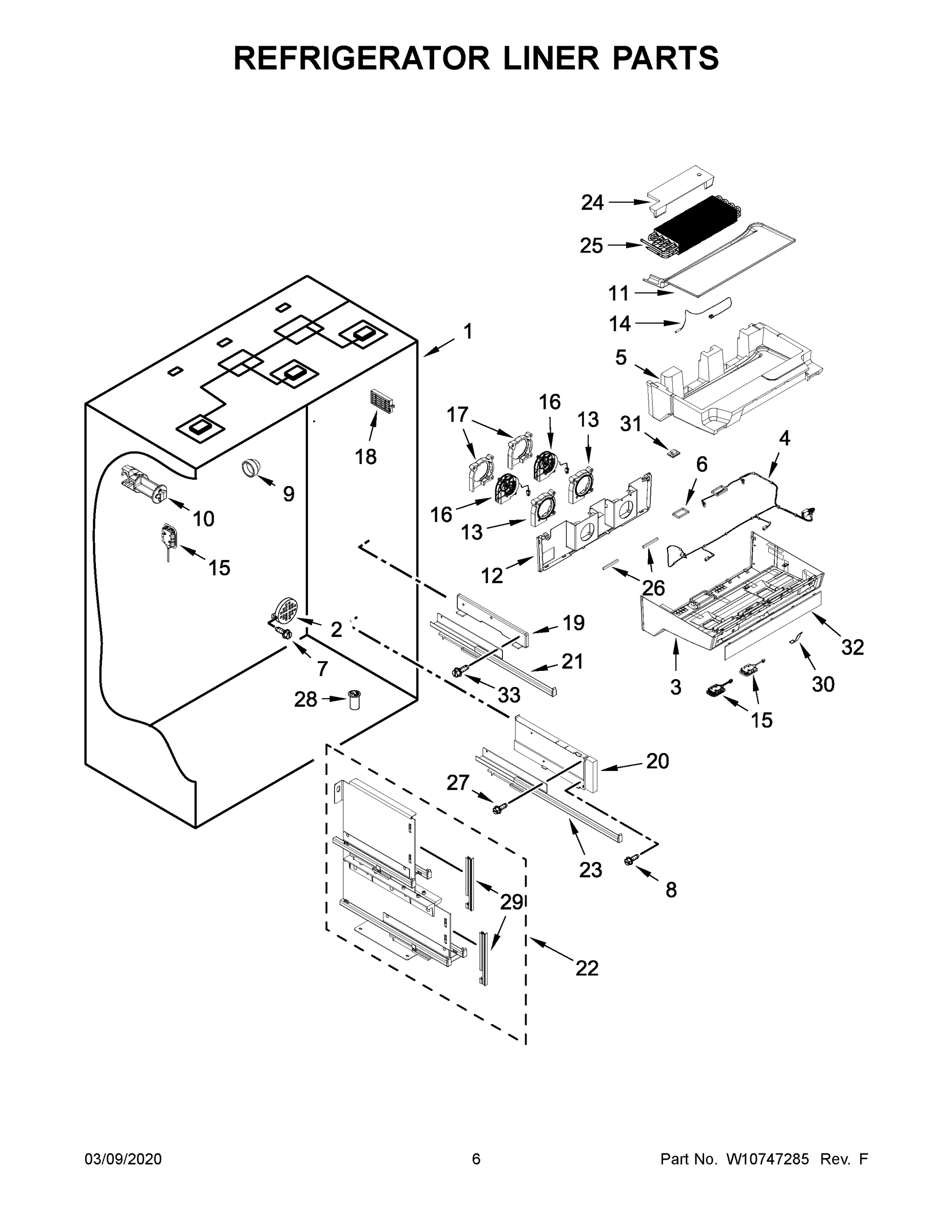

8201675 Whirlpool Refrigerator Compressor In Stock WPL 8201675 $370.57

3

W10234194 Whirlpool Refrigerator Hinge Pin Backorder WPL W10234194 $10.30

3

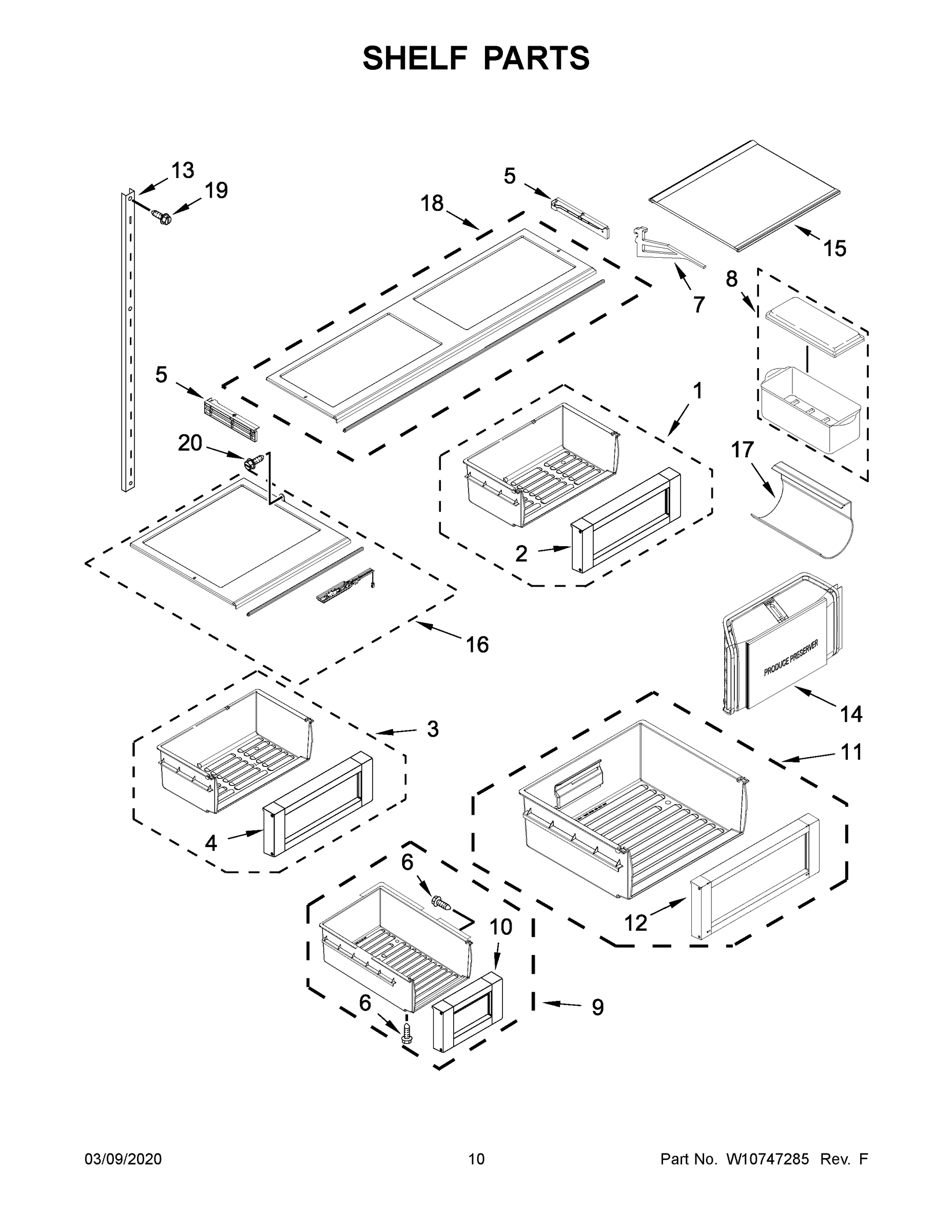

W10529506 Whirlpool Refrigerator Crisper Pan Backorder WPL W10529506 $241.43

3

W10636487 Whirlpool Refrigerator Evaporator C Backorder WPL W10636487 $172.73

3

W10665413 Whirlpool Refrigerator Mat Backorder WPL W10665413 $191.10

3

W11042558 Whirlpool Refrigerator Bracket Backorder WPL W11042558 $61.72

3A

W11042559 Whirlpool Refrigerator Bracket Backorder WPL W11042559 $61.72

4

W10482373 Whirlpool Refrigerator Jumper Wire In Stock WPL W10482373 $86.94

4

W10525175 Whirlpool Refrigerator Cover Backorder WPL W10525175 $49.70

4

W10606841 Whirlpool Refrigerator Bracket Backorder WPL W10606841 $24.31

4

W10694113 Whirlpool Refrigerator Unit Cover Backorder WPL W10694113 $71.39

4

W11650036 Whirlpool Slide Backorder WPL W11650036 $247.39

4

W11661567 Whirlpool Wire Harness Backorder WPL W11661567 $67.66

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $32.24

5

W10606808 Whirlpool Refrigerator Cover Trim Backorder WPL W10606808 $174.93

5

W11712700 Whirlpool Insulation Backorder WPL W11712700 $58.40

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

WPW10739408-includeCORE Whirlpool WPW10739408 Backorder WPL WPW10739408-includeCORE $253.37

5

SCREW WPL W10061370 Contact Us For Availability

5A

W10726562 Whirlpool Refrigerator Trim Cover Backorder WPL W10726562 $109.28

6

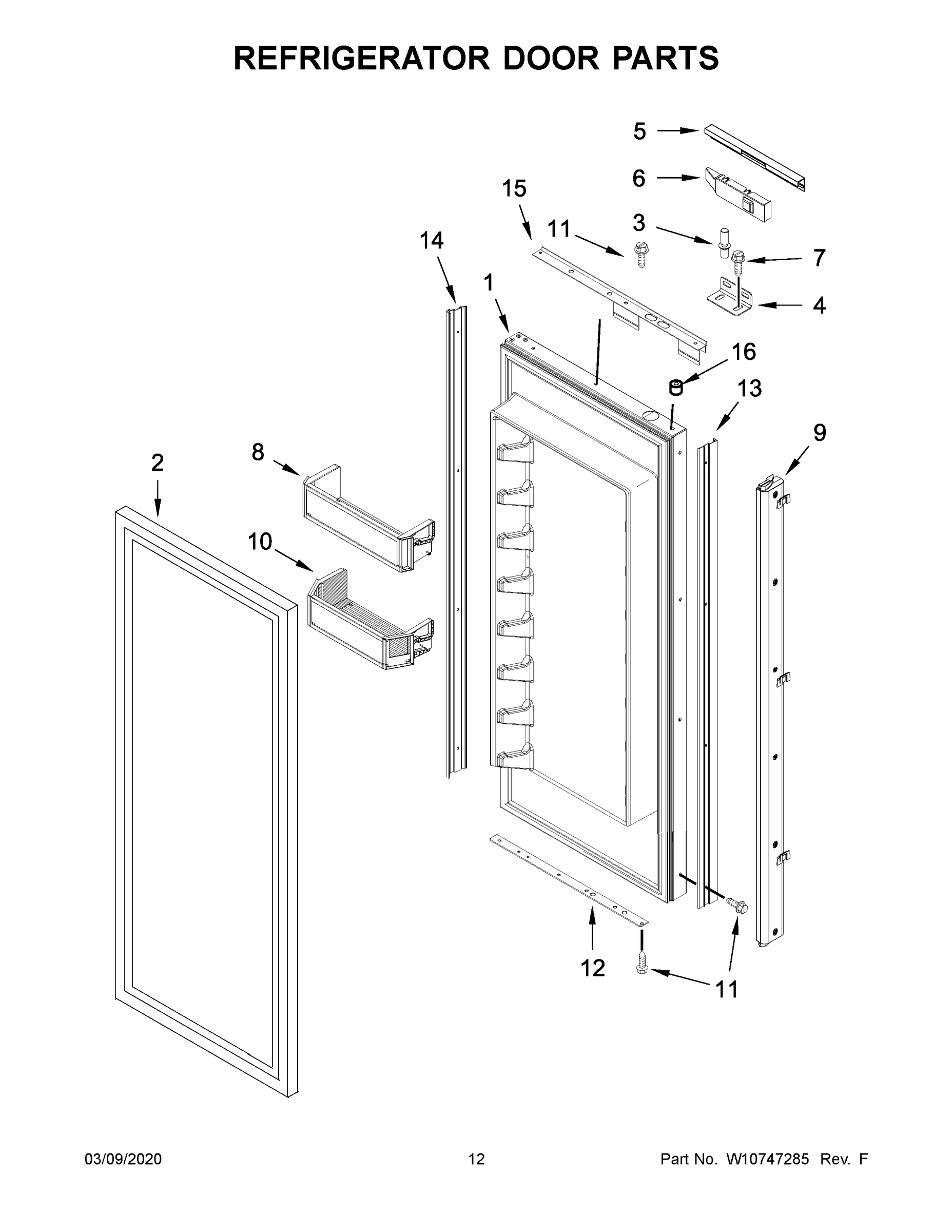

W10606813 Whirlpool Refrigerator Cover Backorder WPL W10606813 $21.95

6

W10619899 Whirlpool Refrigerator Water Tube Backorder WPL W10619899 $30.19

6

W11623171 Whirlpool Refrigerator Switch Backorder WPL W11623171 $92.62

6

W11661108 Whirlpool Grommet Backorder WPL W11661108 $9.12

6A

W10606814 Whirlpool Refrigerator Cover Backorder WPL W10606814 $21.55

7

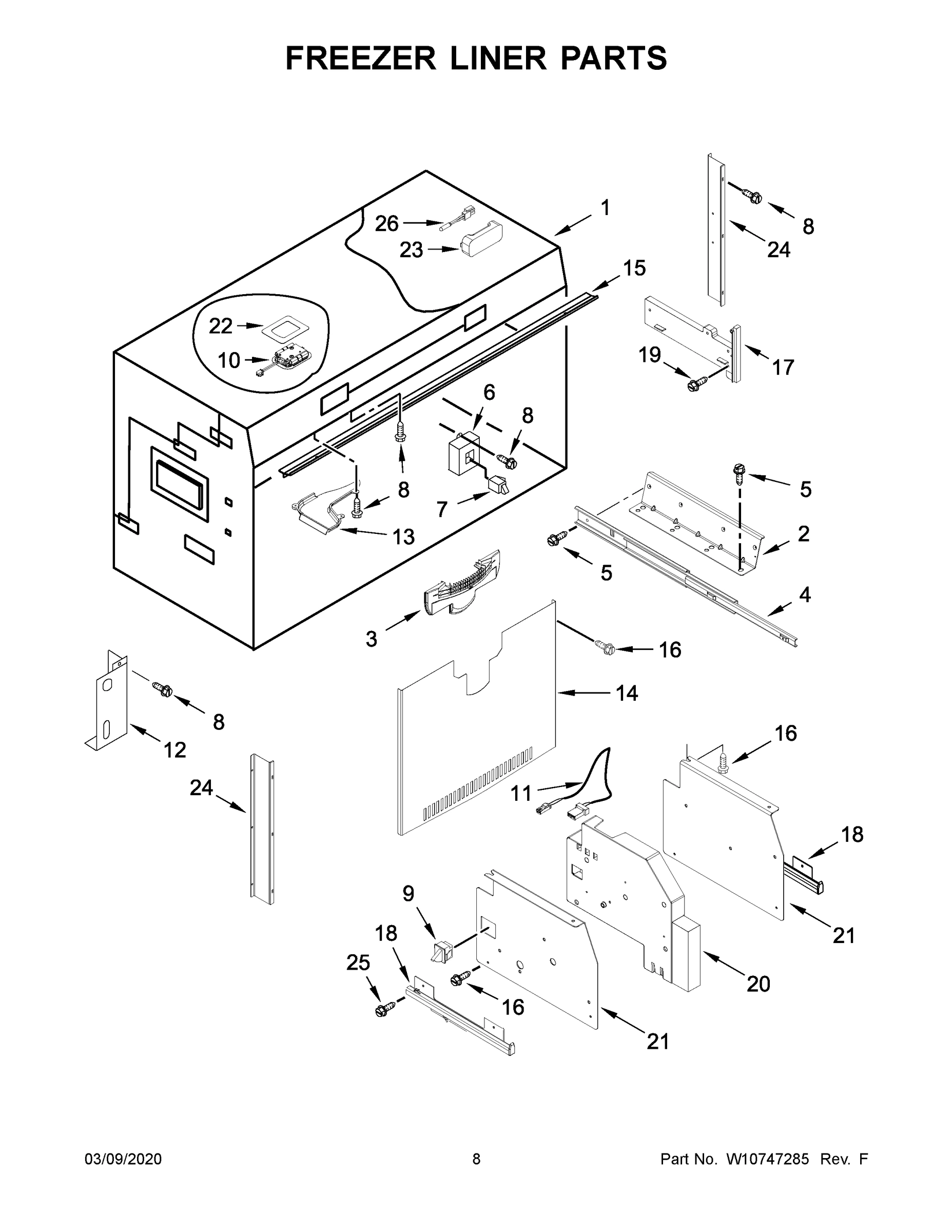

2005032 Whirlpool Refrigerator Leveler Backorder WPL 2005032 $135.30

7

2309230 Whirlpool Refrigerator Clip Backorder WPL 2309230 $10.02

7

2317847 Whirlpool Refrigerator Water Tube Backorder WPL 2317847 $56.66

7

W10524056 Whirlpool Refrigerator Heater Backorder WPL W10524056 $102.40

7

W10606810 Whirlpool Refrigerator Door Trim Backorder WPL W10606810 $134.52

7

W11670534 Whirlpool Refrigerator Switch Backorder WPL W11670534 $13.58

7

W11690161 Whirlpool Support Backorder WPL W11690161 $32.95

7

WPW10525177 Whirlpool Plate Backorder WPL WPW10525177 $75.24

7A

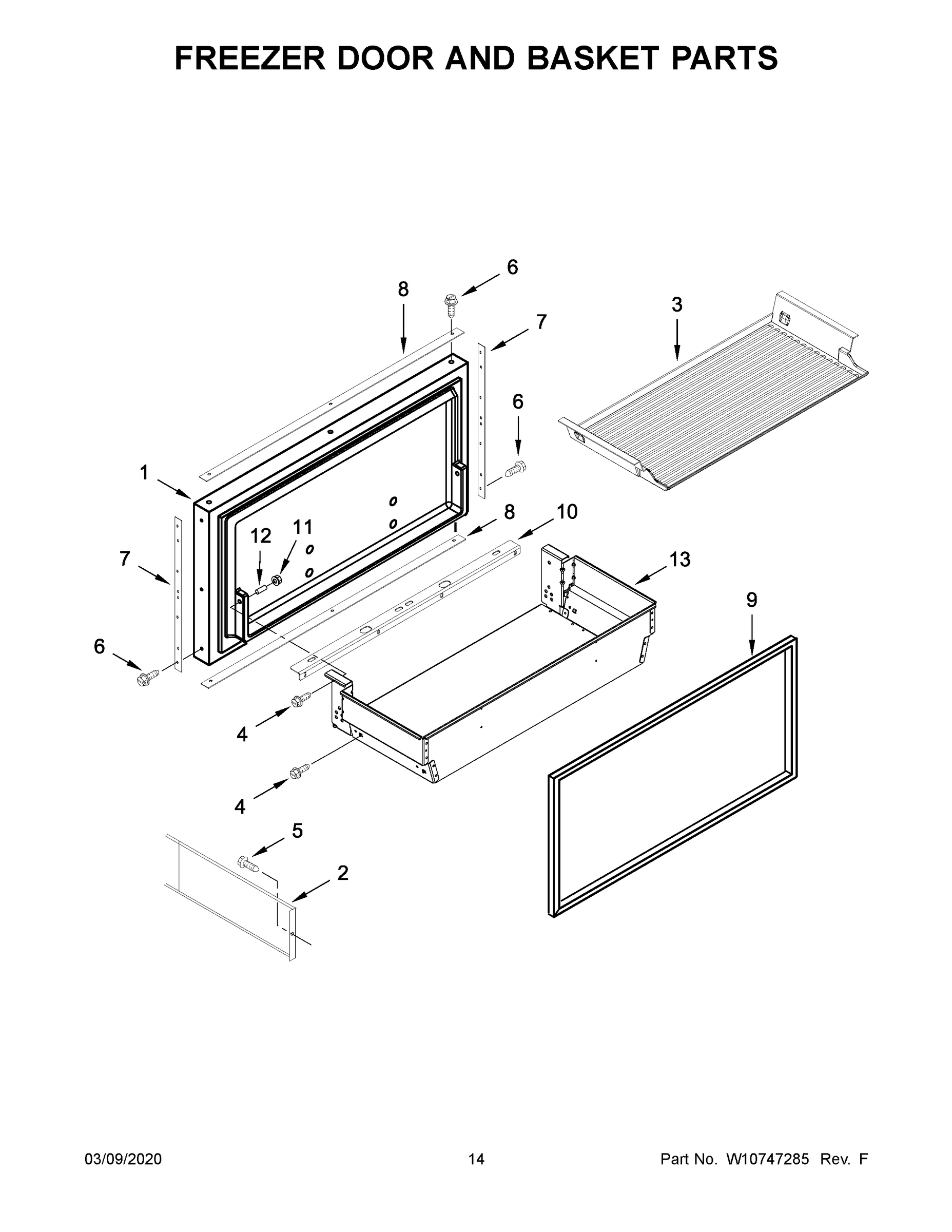

2309231 Whirlpool Refrigerator Clip Backorder WPL 2309231 $37.72

7A

WPW10525179 Whirlpool Plate Backorder WPL WPW10525179 $75.24

8

W10215666 Whirlpool Refrigerator Screw Backorder WPL W10215666 $5.85

8

W10529452 Whirlpool Refrigerator Cantilever B Backorder WPL W10529452 $238.88

8

W11368839 Whirlpool Refrigerator Inverter Box In Stock WPL W11368839 $147.83

8

WP1106508 Whirlpool Refrigerator Gasket In Stock WPL WP1106508 $6.17

8

WPW10121451 Whirlpool Refrigerator Insert Backorder WPL WPW10121451 $4.82

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $65.65

9

W10626679 Whirlpool Refrigerator Ice Pan Backorder WPL W10626679 $239.42

9

W10635851 Whirlpool Refrigerator Water Tube Backorder WPL W10635851 $58.91

9

W11289496 Whirlpool Refrigerator Switch In Stock WPL W11289496 $25.73

9

SEAL, SIDE TRIM WPL 2005925 Contact Us For Availability

9

ASSEMBLY, MULLION (GREY) WPL W10732104 Contact Us For Availability

10

W10720079 Whirlpool Refrigerator Tube Backorder WPL W10720079 $49.57

10

W11225845 Whirlpool Refrigerator Inlet Valve In Stock WPL W11225845 $95.94

10

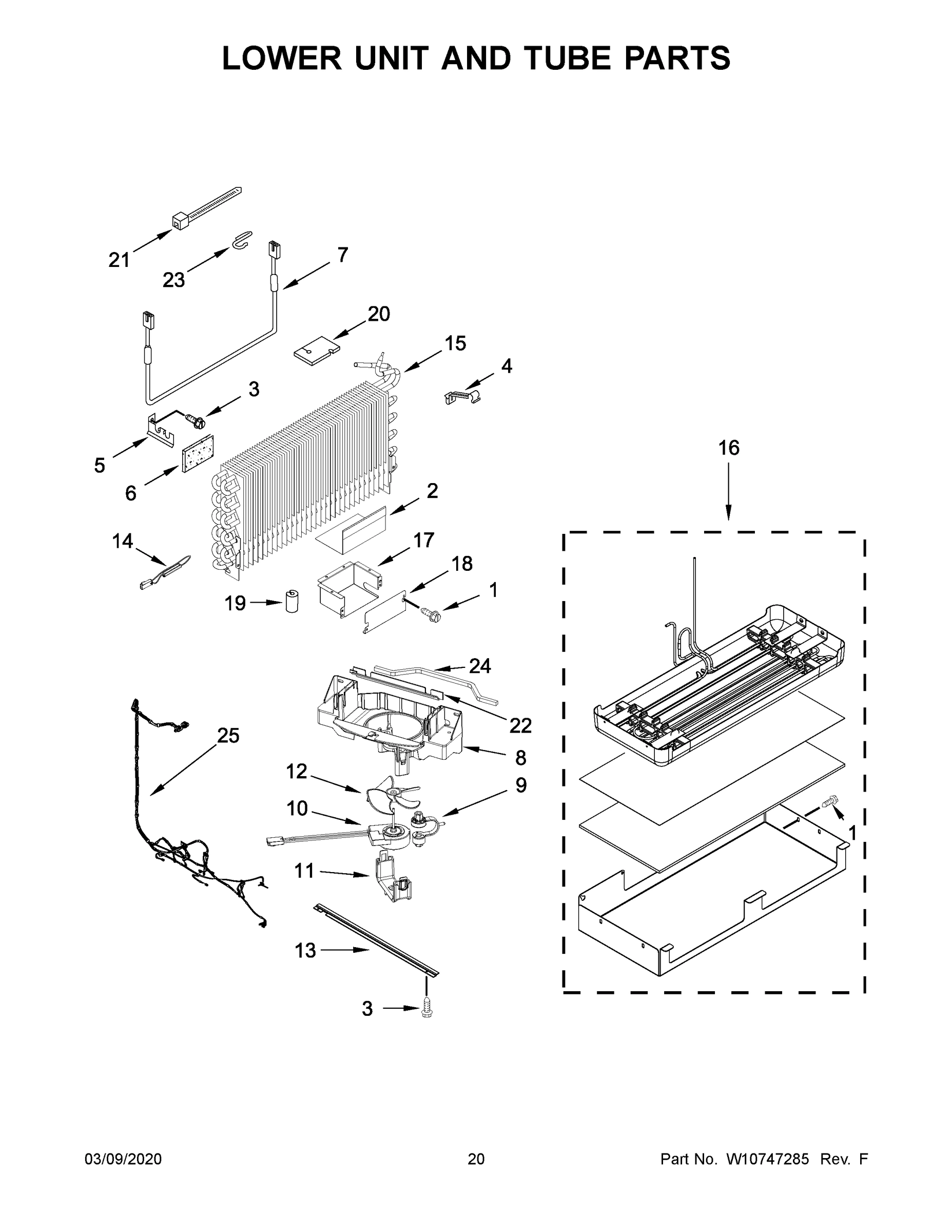

W11396715 Whirlpool Refrigerator Evaporator M In Stock WPL W11396715 $92.34

2307584 Whirlpool Refrigerator Grommet Backorder WPL 2307584 $13.64

W10555480 Whirlpool Refrigerator Shield Backorder WPL W10555480 $110.57

W10568445 Whirlpool Refrigerator Jumper Wire Backorder WPL W10568445 $49.88

WPW10624574-includeCORE Whirlpool WPW10624574 Backorder WPL WPW10624574-includeCORE $246.92

12

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $11.67

13

2256328 Whirlpool Bracket Assembly Backorder WPL 2256328 $49.71

13

W10538315 Whirlpool Refrigerator Housing Backorder WPL W10538315 $60.85

13

W11291510 Whirlpool Refrigerator Valve Backorder WPL W11291510 $50.28

W10602825 Whirlpool Refrigerator Wire Jumper In Stock WPL W10602825 $29.54

W10606803 Whirlpool Refrigerator Door Trim Backorder WPL W10606803 $66.77

W10687588 Whirlpool Refrigerator Cabinet Trim Backorder WPL W10687588 $166.05

W10826105 Whirlpool Refrigerator Pro Service Backorder WPL W10826105 $105.81

W11661569 Whirlpool Thermistor Backorder WPL W11661569 $71.61

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

14A

W10687582 Whirlpool Refrigerator Cabinet Trim Backorder WPL W10687582 $166.05

W10565837 Whirlpool Refrigerator Wire Harness Backorder WPL W10565837 $58.65

W10651648 Whirlpool Refrigerator Door Trim Backorder WPL W10651648 $205.85

W10710401 Whirlpool Refrigerator Deflector Backorder WPL W10710401 $97.60

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $5.02

2005433 Whirlpool Refrigerator Spacer Backorder WPL 2005433 $14.81

W10591457 Whirlpool Refrigerator Condenser Backorder WPL W10591457 $164.17

W10714137 Whirlpool Refrigerator Cabinet Trim Backorder WPL W10714137 $58.77

W10890886 Whirlpool Refrigerator Heater Assem Backorder WPL W10890886 $266.12

W11678257 Whirlpool Fan Backorder WPL W11678257 $204.36

16A

W10687583 Whirlpool Refrigerator Cabinet Trim Backorder WPL W10687583 $110.76

W10508673 Whirlpool Refrigerator Wire Harness In Stock WPL W10508673 $86.94

W10538317 Whirlpool Refrigerator Housing Backorder WPL W10538317 $60.45

W10565844 Whirlpool Refrigerator Wire Harness Backorder WPL W10565844 $137.20

W10664385 Whirlpool Refrigerator Track Backorder WPL W10664385 $48.36

W10701859 Whirlpool Refrigerator Wine Rack Backorder WPL W10701859 $13.15

17A

W10664383 Whirlpool Refrigerator Track Backorder WPL W10664383 $50.30

18

2306117 Whirlpool Refrigerator Slide Backorder WPL 2306117 $202.84

18

W10720080 Whirlpool Refrigerator Tube Backorder WPL W10720080 $82.97

18

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

18A

2306116 Whirlpool Refrigerator Slide Backorder WPL 2306116 $224.88

19

W10587113 Whirlpool Grommet Backorder WPL W10587113 $10.00

19

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $6.02

2310195 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310195 $85.64

W10569848 Whirlpool Refrigerator Track Backorder WPL W10569848 $66.96

W10647421 Whirlpool Refrigerator Divider Backorder WPL W10647421 $73.01

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

20A

W10569845 Whirlpool Refrigerator Track Backorder WPL W10569845 $66.96

21

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $63.40

21

W10600630 Whirlpool Refrigerator Support Backorder WPL W10600630 $101.47

21

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.83

21A

W10569886 Whirlpool Refrigerator Slide Backorder WPL W10569886 $164.70

W10234202 Whirlpool Refrigerator Hinge Pin Backorder WPL W10234202 $60.39

W10392442 Whirlpool Refrigerator Cup Fill Backorder WPL W10392442 $18.29

W10414681 Whirlpool Bracket Backorder WPL W10414681 $54.79

W10654275 Whirlpool Refrigerator Support Backorder WPL W10654275 $308.27

W10672548 Whirlpool Refrigerator Shim Backorder WPL W10672548 $13.30

W10569892 Whirlpool Refrigerator Slide Backorder WPL W10569892 $167.38

W11127829 Whirlpool Refrigerator Condenser Mo In Stock WPL W11127829 $112.76

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $63.89

WPW10121140 Whirlpool Refrigerator Housing In Stock WPL WPW10121140 $126.34

23A

W10569891 Whirlpool Refrigerator Slide Backorder WPL W10569891 $167.38

W10291661 Whirlpool Refrigerator Hinge Shim Backorder WPL W10291661 $10.52

W10555472 Whirlpool Refrigerator Insulation Backorder WPL W10555472 $25.45

W10788834 Whirlpool Strip Arm Backorder WPL W10788834 $59.31

WPW10139483 Whirlpool Refrigerator Condenser In Stock WPL WPW10139483 $48.87

25

W10415670 Whirlpool Orifice Backorder WPL W10415670 $33.06

25

W11553229 Whirlpool Refrigerator Evaporator In Stock WPL W11553229 $123.29

25

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

26

W11647768 Whirlpool Refrigerator Valve In Stock WPL W11647768 $90.83

27

2318189 Whirlpool Refrigerator Drip Pan Backorder WPL 2318189 $103.52

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $56.89

27

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $6.83

28

W10001280 Whirlpool Refrigerator Screw Backorder WPL W10001280 $5.85

28

W11755873 Whirlpool Bracket Backorder WPL W11755873 $50.40

28

BRACKET, 3 WAY VALVE WPL W10544999 Contact Us For Availability

29

WPW10364560 Whirlpool Refrigerator Solenoid In Stock WPL WPW10364560 $120.55

30

W10555310 Whirlpool Refrigerator Tube Backorder WPL W10555310 $14.55

31

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $25.40

31

W10691145 Whirlpool Refrigerator Door Hinge Backorder WPL W10691145 $291.08

31

W11246413 Whirlpool Refrigerator Inlet Valve In Stock WPL W11246413 $95.95

31A

W11700299 Whirlpool Door Hinge Backorder WPL W11700299 $287.90

32

W11624204 Whirlpool Screw Backorder WPL W11624204 $8.89

32

WPW10188549 Whirlpool Refrigerator Front Gril Backorder WPL WPW10188549 $93.53

33

W10782424 Whirlpool Refrigerator Ring Backorder WPL W10782424 $15.41

33

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $5.30

34

2310196 Whirlpool Refrigerator Power Cord Backorder WPL 2310196 $64.43

34

W11739146 Whirlpool Grille-Frt Backorder WPL W11739146 $131.45

35

W10625531 Whirlpool Refrigerator Bracket Backorder WPL W10625531 $54.86

36

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

36

SWITCH, LIGHT WPL W10606838 Contact Us For Availability

37

W11238395 Whirlpool Refrigerator Filter Cap Backorder WPL W11238395 $34.61

37

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $53.31

38

W10545389 Whirlpool Refrigerator Tube Backorder WPL W10545389 $167.18

39

W10565841 Whirlpool Refrigerator Wire Harness Backorder WPL W10565841 $143.40

40

W10550831 Whirlpool Refrigerator Housing Backorder WPL W10550831 $60.24

41

W10625259 Whirlpool Refrigerator Jumper Wire Backorder WPL W10625259 $138.87

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $37.41

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $20.75

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $56.75

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $36.01

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $32.12

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $80.02

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $18.89

W10488118 Whirlpool Refrigerator Installation Backorder WPL W10488118 $83.46

W10917540 Whirlpool Touch-Up Paint Backorder WPL W10917540 $18.89

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $43.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $67.02

VALVE, ACCESS (5/8") WPL 978029 Contact Us For Availability

MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" WPL 876029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability

REFRIGERANT CHARGE 5.00 OZ. (R-134A) WPL NP Contact Us For Availability
