Model Whirlpool JES9860CCS01 ELECTRIC RANGE – Common Parts & Diagrams
08 - OPTIONAL PARTS (NOT INCLUDED)

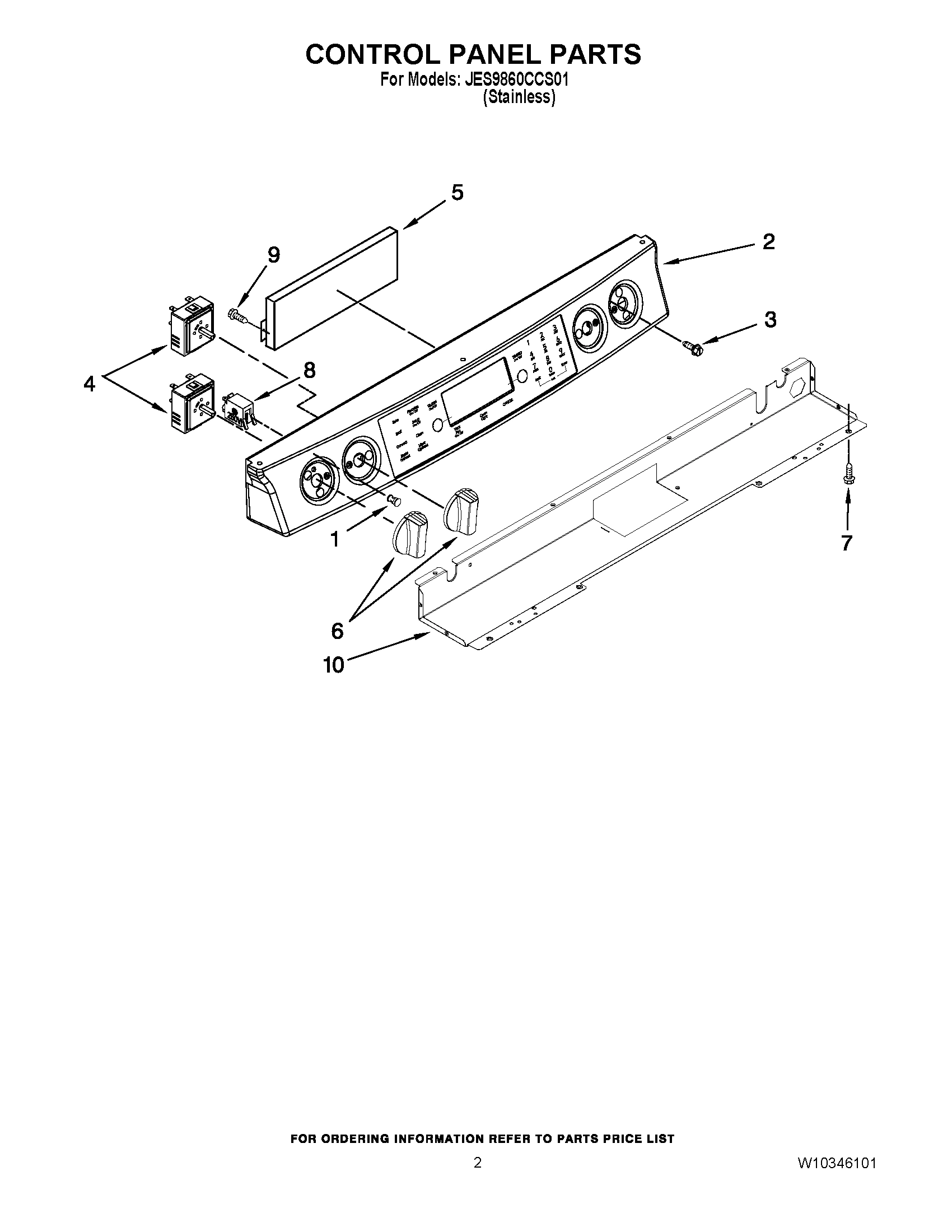

02 - CONTROL PANEL PARTS

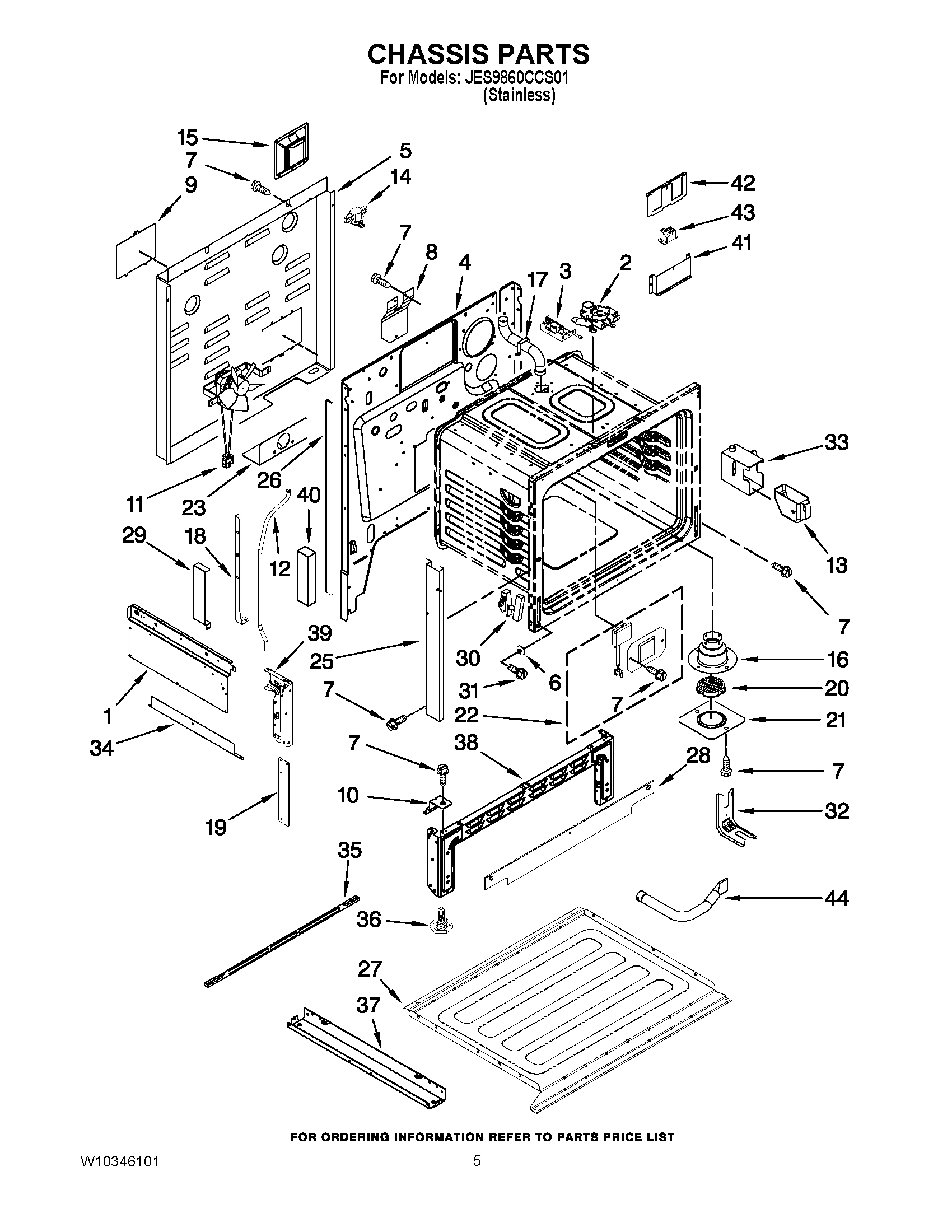

04 - CHASSIS PARTS

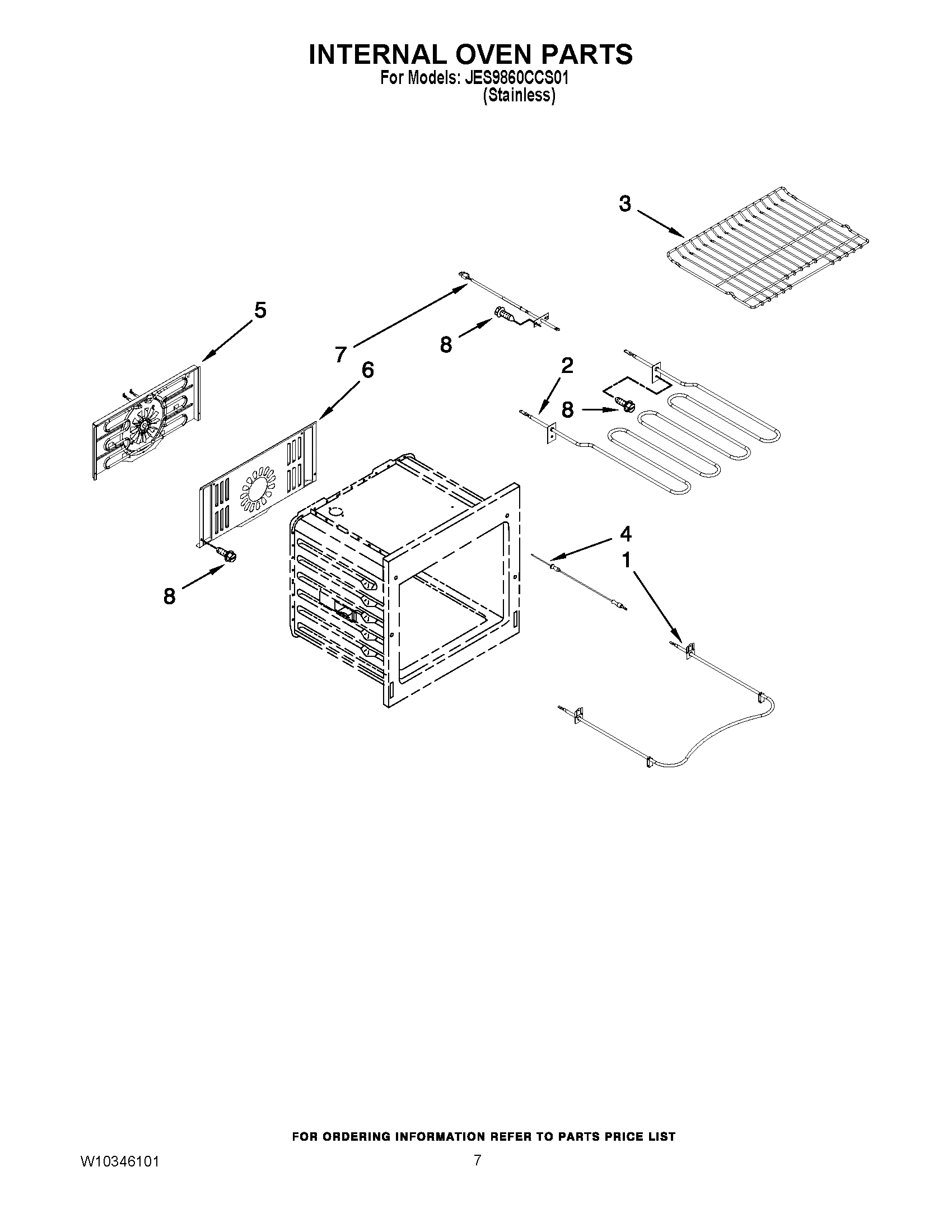

05 - INTERNAL OVEN PARTS

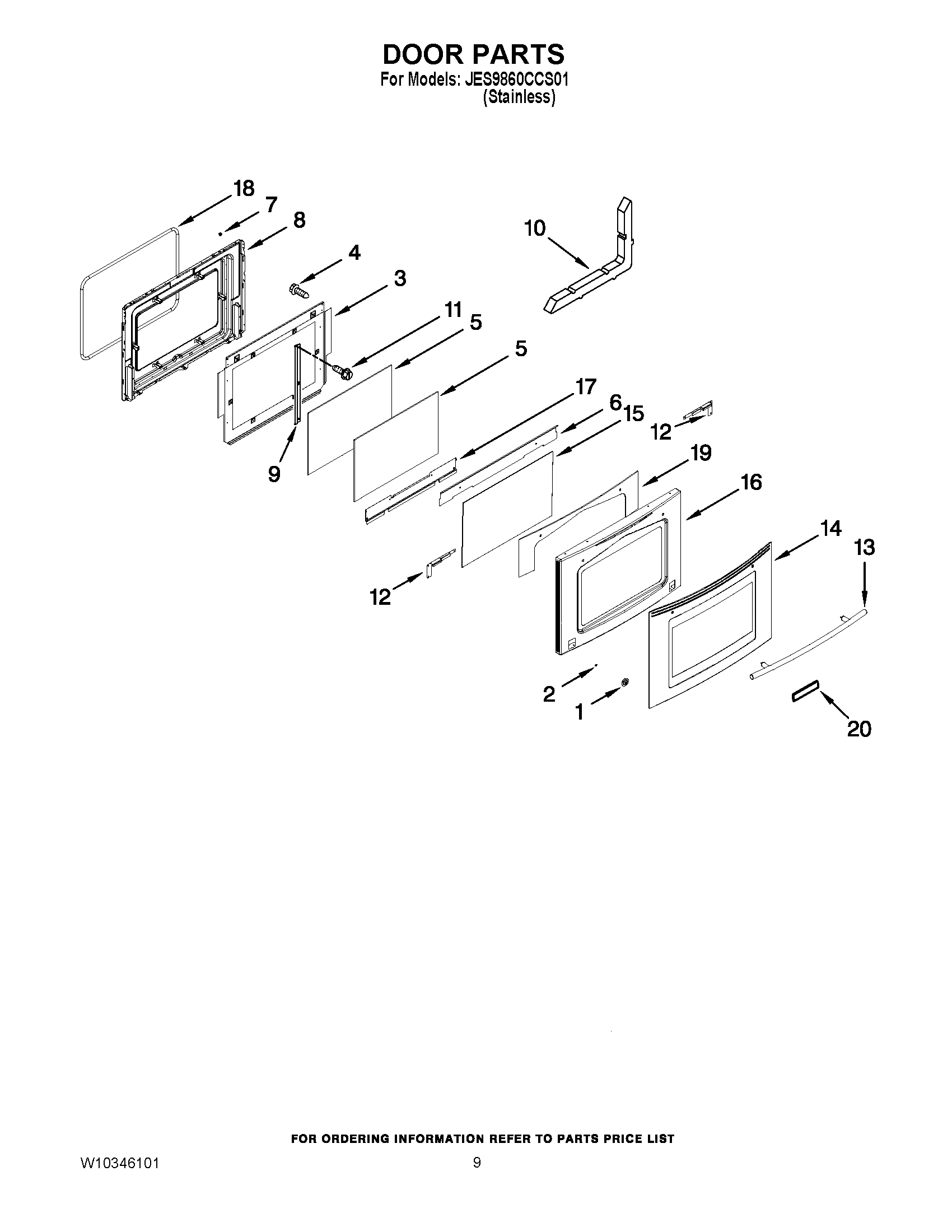

07 - DOOR PARTS

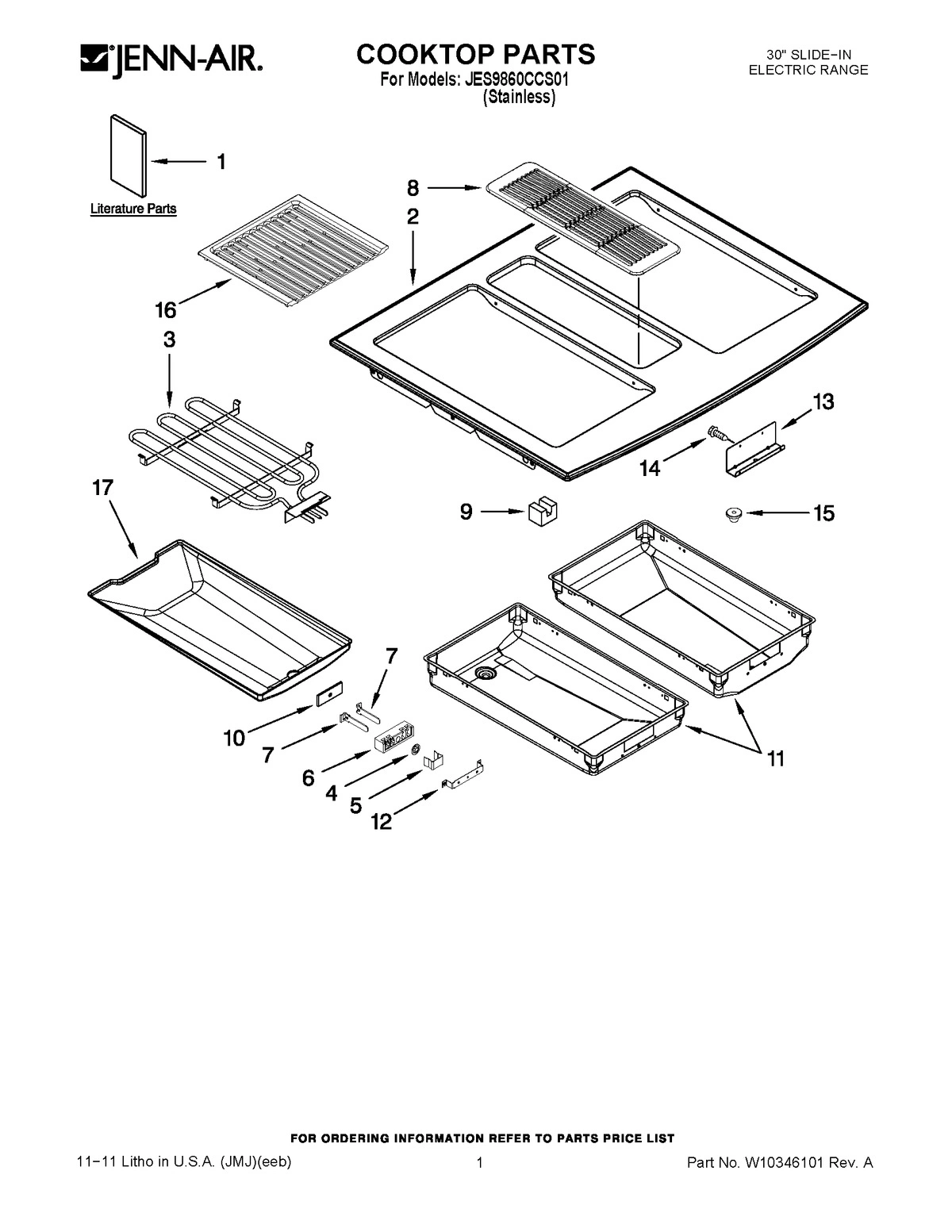

01 - COOKTOP PARTS

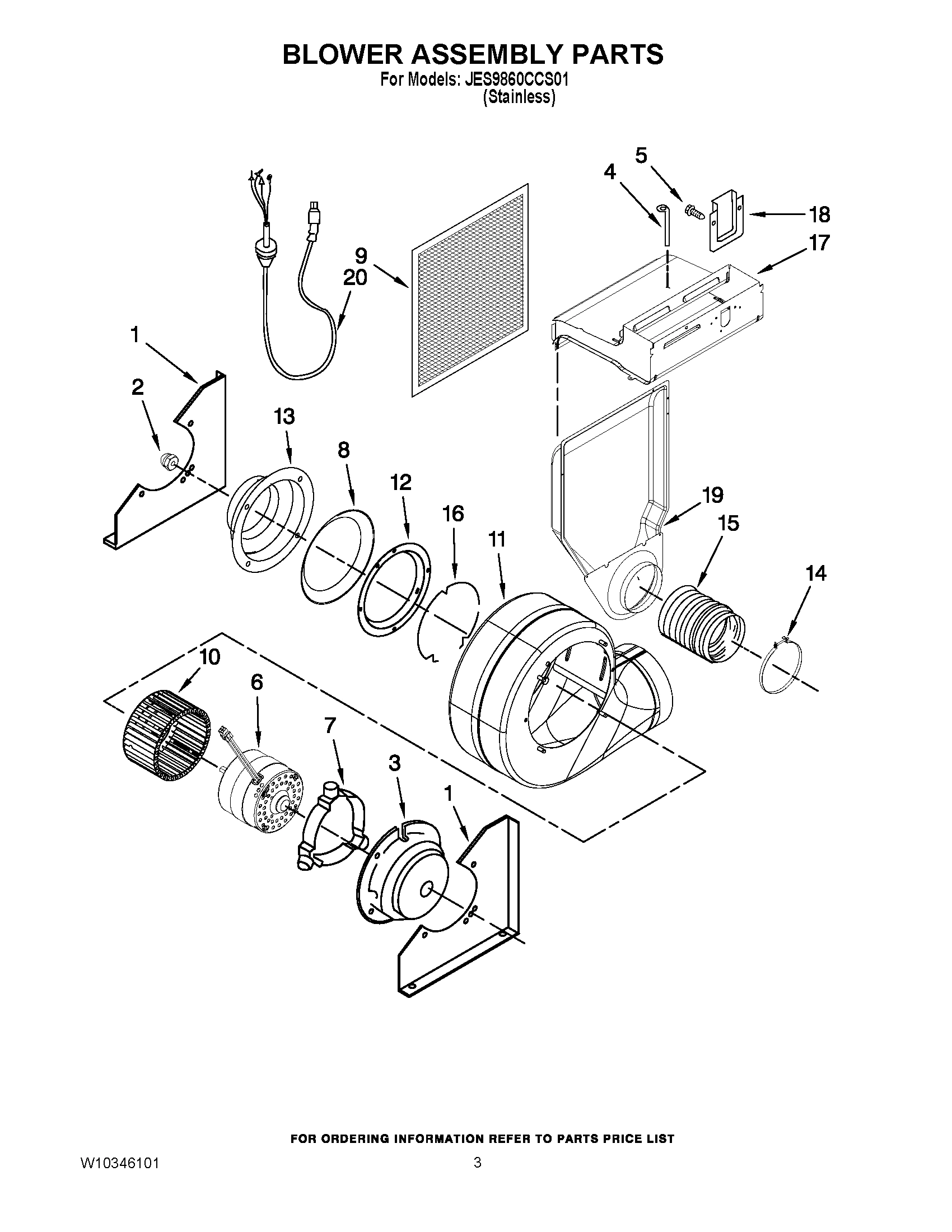

03 - BLOWER ASSEMBLY PARTS

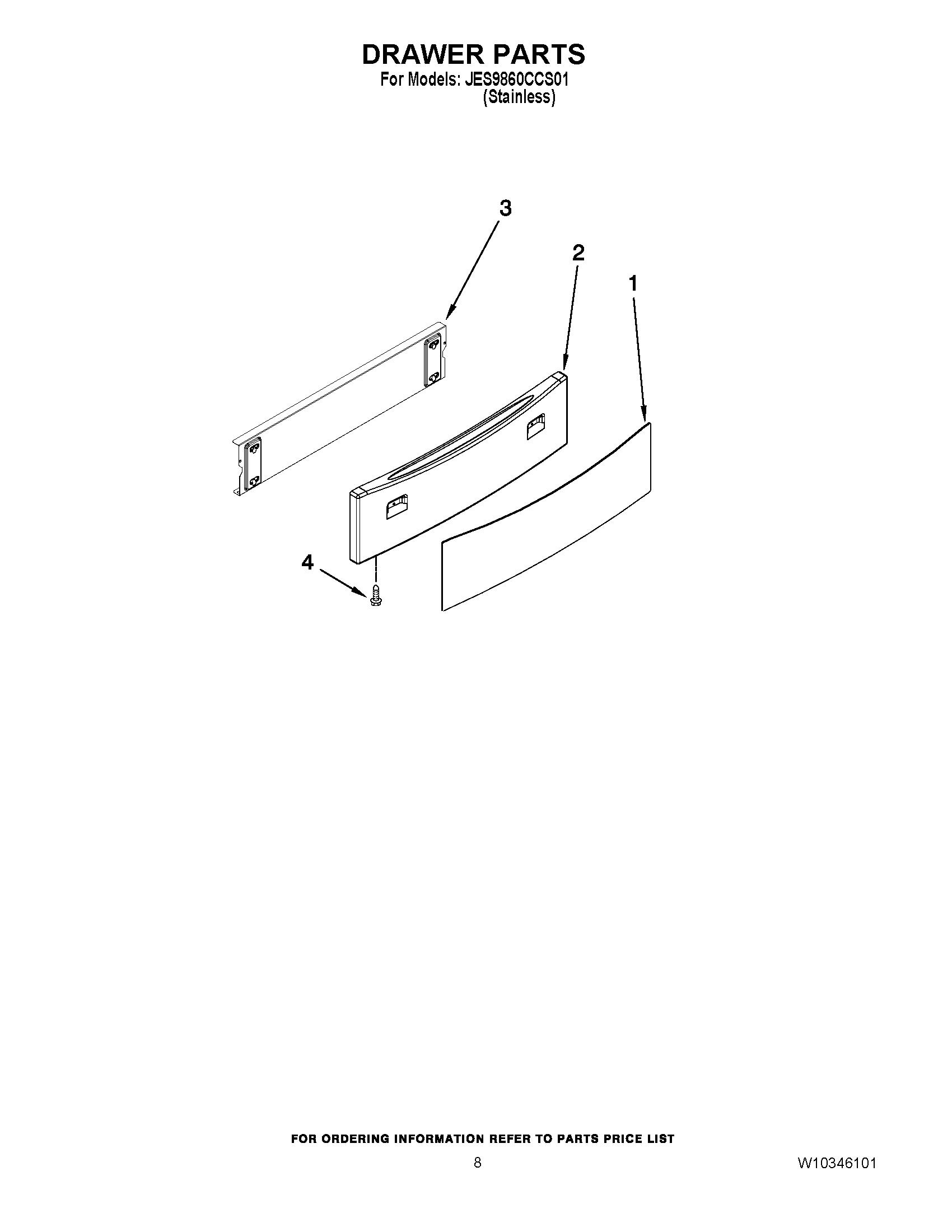

06 - DRAWER PARTS
Common parts from model Whirlpool JES9860CCS01 ELECTRIC RANGE
1
WASHER WPL 7109P08260 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (ENGLISH) WPL 9762761 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (FRENCH) WPL W10065852 Contact Us For Availability
1
USE & CARE GUIDE WPL W10235524 Contact Us For Availability
1
DIAGRAM, WIRING (ENGLISH) WPL W10235689 Contact Us For Availability
1
DIAGRAM, WIRING (FRENCH) WPL W10235690 Contact Us For Availability
1
INSTRUCTIONS, INSTALLATION WPL W10253462 Contact Us For Availability
1
BRACKET, MOUNT WPL 3801F63151 Contact Us For Availability
2
PANEL, CONTROL (STAINLESS) WPL W10314420 Contact Us For Availability
2
NUT (10-32) WPL 7103P17660 Contact Us For Availability
2
COOKTOP (STAINLESS) WPL 2002D24550 Contact Us For Availability
2
LOCKNUT WPL 7103P16260 Contact Us For Availability
2
PANEL, DRAWER (BLACK) WPL 2416F08670 Contact Us For Availability
3
LIGHT SWITCH ASSY WPL 7450P10960 Contact Us For Availability
3
RACK, OVEN WPL 7801P17360 Contact Us For Availability
3
BAFFLE, OVEN DOOR WPL 3601F37351 Contact Us For Availability
3
COVER, MOTOR WPL 4005F53780 Contact Us For Availability
3
HANGER, ACCESS PANEL WPL 3806F01180 Contact Us For Availability
4
MAIN, BACK WPL 3804F31351 Contact Us For Availability
4
RECEPTACLE, MEAT PROBE WPL 7408P08660 Contact Us For Availability
4
SCREW WPL 7101P37660 Contact Us For Availability
4
NUT WPL 7103P14860 Contact Us For Availability
4
STOP, FILTER WPL 7809P03060 Contact Us For Availability
5
ASSY., CONV. FAN WPL W10213813 Contact Us For Availability
5
COVER, WIRE REAR WPL 4005F81051 Contact Us For Availability
5
SCREW WPL 7101P42660 Contact Us For Availability
5
Glass, Inner WPL 7902P43660 Contact Us For Availability
5
CLIP, SHUNT WPL 7422P00260 Contact Us For Availability
6
COVER, CONVECT. WPL W10312218 Contact Us For Availability
6
SPACER, SIDE PNL WPL 8004P02460 Contact Us For Availability
6
SHIELD WPL 3604F41851 Contact Us For Availability
6
BLOCK, ELEMENT TERMINAL WPL 7401P06160 Contact Us For Availability
7
Sensor, Oven WPL 7430P04260 Contact Us For Availability
7
NUT, SNAP WPL 7103P14160 Contact Us For Availability
7
CONTACT, SPADE WPL 7405P13160 Contact Us For Availability
7
ASSY., MOTOR BAND WPL 5700D52660 Contact Us For Availability
8
INSULATOR, CORD WPL 7003P10160 Contact Us For Availability
8
Screw WPL 7101P43460 Contact Us For Availability
8
Lining, Door WPL 2402W31219 Contact Us For Availability
8
GRILL, AIR WPL 7772P05060 Contact Us For Availability
8
RING, RESTRICTOR WPL 4026F00951 Contact Us For Availability
9
PANEL, ACCESS WPL 4005F61251 Contact Us For Availability
9
Bracket, Glass WPL 3801F88651 Contact Us For Availability
9
Block, Element Support WPL 8255P41260 Contact Us For Availability
9
FILTER, GREASE WPL 8310P00660 Contact Us For Availability
10
SUPPORT, OVEN (BOTTOM) WPL 3807F61551 Contact Us For Availability
10
Insulation, Door WPL 7002P24660 Contact Us For Availability
10
INSULATOR WPL 7003P08260 Contact Us For Availability
10
WHEEL, BLOWER WPL 7114P00560 Contact Us For Availability
11
FAN, COOLING WPL 7427P09460 Contact Us For Availability
11
PAN, GRILL (LEFT) WPL 3401F05019 Contact Us For Availability
11
PAN, GRILL (RIGHT) WPL 3401F05119 Contact Us For Availability
11
ASSY., SCROLL BLWR WPL 2822W00180 Contact Us For Availability
12
RETAINER, GLASS (RIGHT) WPL 3804F30751 Contact Us For Availability
12
RETAINER, GLASS (LEFT) WPL 3804F30851 Contact Us For Availability
12
BRKT, GRILL PAN WPL 3801F62151 Contact Us For Availability
12
RING, INLET WPL 4026F00851 Contact Us For Availability
13
HANDLE, DOOR (STAINLESS) WPL W10223152 Contact Us For Availability
13
HOUSING, GREASE CUP WPL 8312P19160 Contact Us For Availability
13
SUPPORT, CARTRIDGE PAN WPL 3807F74351 Contact Us For Availability
13
ADAPTER, RING RESTRICTOR WPL 2818F00180 Contact Us For Availability
14
GLASS, DOOR (STAINLESS) WPL W10235390 Contact Us For Availability
14
THERMOSTAT, HI-LIMIT WPL 7403P85660 Contact Us For Availability
14
SCREW WPL 7101P63560 Contact Us For Availability
14
CLAMP, HOSE WPL 7111P04760 Contact Us For Availability
15
RETAINER, INSUL. CONVECT. WPL 3804F30051 Contact Us For Availability
15
GLASS, COATED WPL 7902P76860 Contact Us For Availability
15
PLUG, RUBBER WPL 7718P02460 Contact Us For Availability
15
DUCT, FLEXIBLE WPL 8032P00360 Contact Us For Availability
16
TUBE, VENT LOWER WPL 8026P09660 Contact Us For Availability
16
FRAME, DOOR (BLACK) WPL 3603F07570 Contact Us For Availability
16
GRATE, GRILL WPL 7518P11860 Contact Us For Availability
16
RETAINER WPL 8038P00360 Contact Us For Availability
17
TUBE, VENT UPPER WPL 8026P09460 Contact Us For Availability
17
RETAINER,GLASS BTM WPL 3804F31780 Contact Us For Availability
17
LINER, PAN WPL 4009F08719 Contact Us For Availability
17
ASSY., PLENUM WPL 2801W03380 Contact Us For Availability
18
SUPPORT, OVEN REAR WPL 3807F73251 Contact Us For Availability
18
COVER, VENT WPL 4005F77980 Contact Us For Availability
19
BRKT., SIDE PANEL WPL 3801F92951 Contact Us For Availability
19
INSULATION, FOIL WPL 7002P46560 Contact Us For Availability
19
PLENUM (SIDE) WPL 2801L03780 Contact Us For Availability
20
SMOKE ELIMINATOR WPL 8034P00860 Contact Us For Availability
20
CORD, POWER WPL 7402P10460 Contact Us For Availability
21
PLATE, SMOKE ELM. WPL 3605F34445 Contact Us For Availability
22
LIGHT ASSY HALOGEN WPL 7407P18060 Contact Us For Availability
23
BRACKET, POWER SUPPLY WPL 3801F91151 Contact Us For Availability
25
TRIM, SIDE (BLACK) WPL 3608F13870 Contact Us For Availability
26
GUARD, EDGE WPL W10183566 Contact Us For Availability
27
RETAINER, INSUL. (BOTTOM) WPL 3804F31251 Contact Us For Availability
28
TRIM, FRONT FRAME WPL 7713P05460 Contact Us For Availability
29
SHIELD, HEAT WPL 3604F33651 Contact Us For Availability
30
HINGE WPL 7106P14360 Contact Us For Availability
31
SCREW, HINGE WPL 7101P28260 Contact Us For Availability
32
BRACKET, ANTI-TIP WPL 3801F65651 Contact Us For Availability
33
CUP, GREASE WPL 8312P19060 Contact Us For Availability
34
EXTENSION, SHIELD WPL 3826F06451 Contact Us For Availability
35
SUPPORT, ELEMENT WPL 3807F75445 Contact Us For Availability
36
LEG, LEVELING WPL 7101P66060 Contact Us For Availability
37
PEDESTAL, BOTTOM WPL 4020W03580 Contact Us For Availability
38
BASE, PEDESTAL WPL W10271711 Contact Us For Availability
39
PEDESTAL, REAR (RIGHT) WPL 4020F03280 Contact Us For Availability
39
PEDESTAL, REAR (LEFT) WPL 4020F03380 Contact Us For Availability
40
INSULATION, HEAT SHIELD WPL 7002P30460 Contact Us For Availability
41
BRACKET, RELAY WPL 8405P06360 Contact Us For Availability
42
BRKT, RELAY UPPER WPL 8405P04660 Contact Us For Availability
44
TUBE, DRAIN WPL 7506P40660 Contact Us For Availability
NI
CLEANER WPL 31605 Contact Us For Availability
NI
CLEANER, COOKTOP (CERAMIC MODELS) WPL 31464 Contact Us For Availability
NI
CLEANER, ALL-PURPOSE WPL 31682 Contact Us For Availability
NI
COVER, GRILL WPL A341 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
NI
INSULATION, WRAP WPL 7002P46660 Contact Us For Availability
NI
INSULATION, OVEN BOTTOM WPL 7002P46760 Contact Us For Availability
NI
INSULATION, BACK WPL 7002P46860 Contact Us For Availability
× ![]()
