Model Whirlpool JES9800CAB00 ELECTRIC RANGE – Common Parts &amp; Diagrams

1

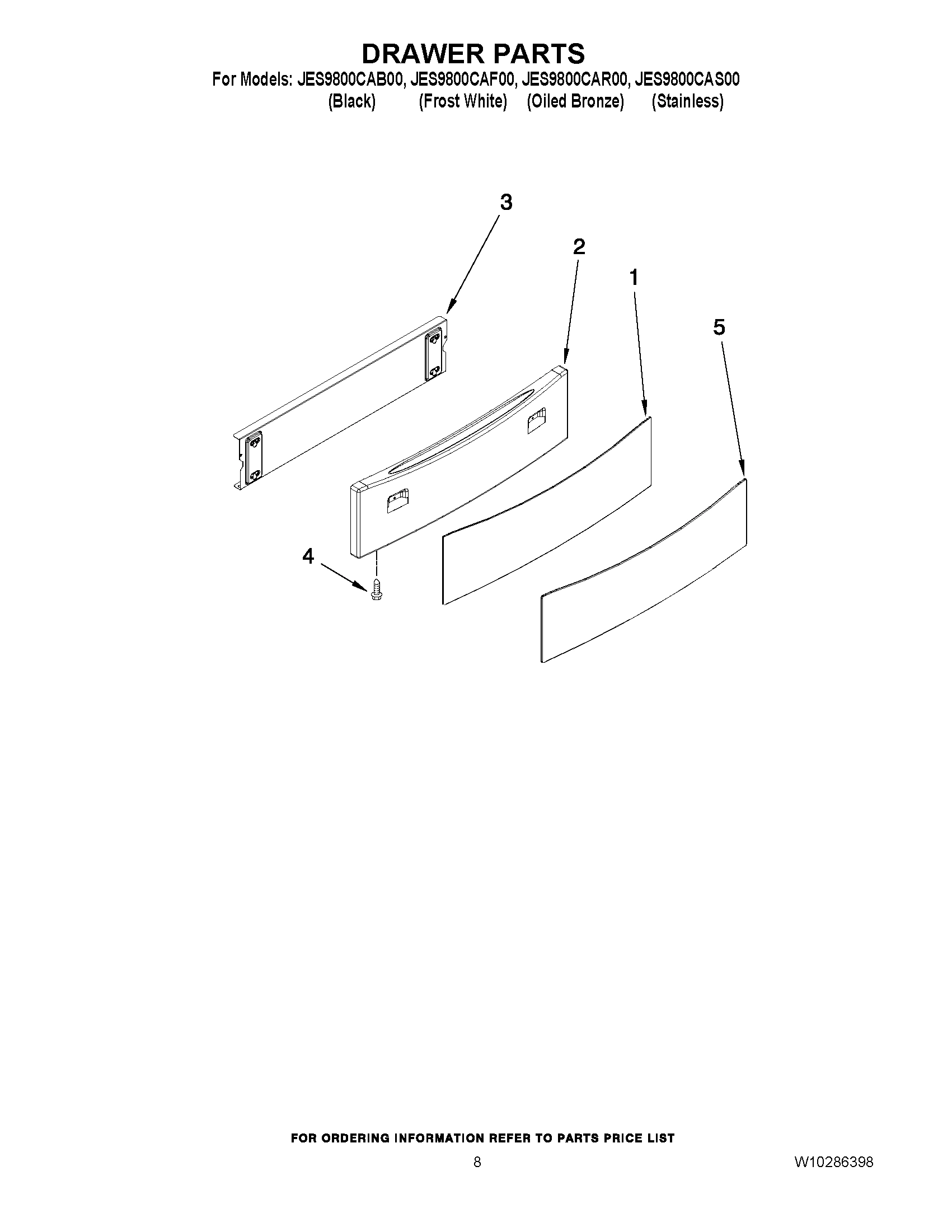

GLASS, DRAWER (BLACK) WPL 7922P05760 Contact Us For Availability

1

GLASS, DRAWER (WHITE) WPL 7922P05860 Contact Us For Availability

1

BRACKET, MOUNT WPL 3801F63151 Contact Us For Availability

1

WASHER WPL 7109P08260 Contact Us For Availability

2

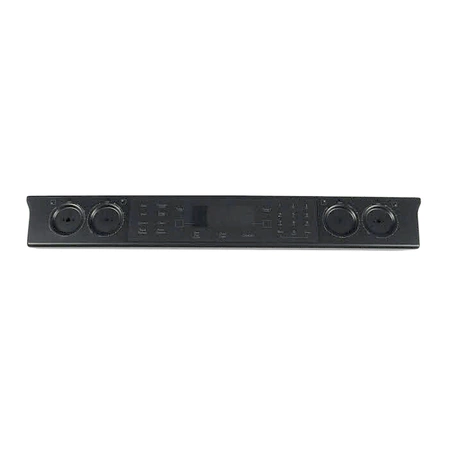

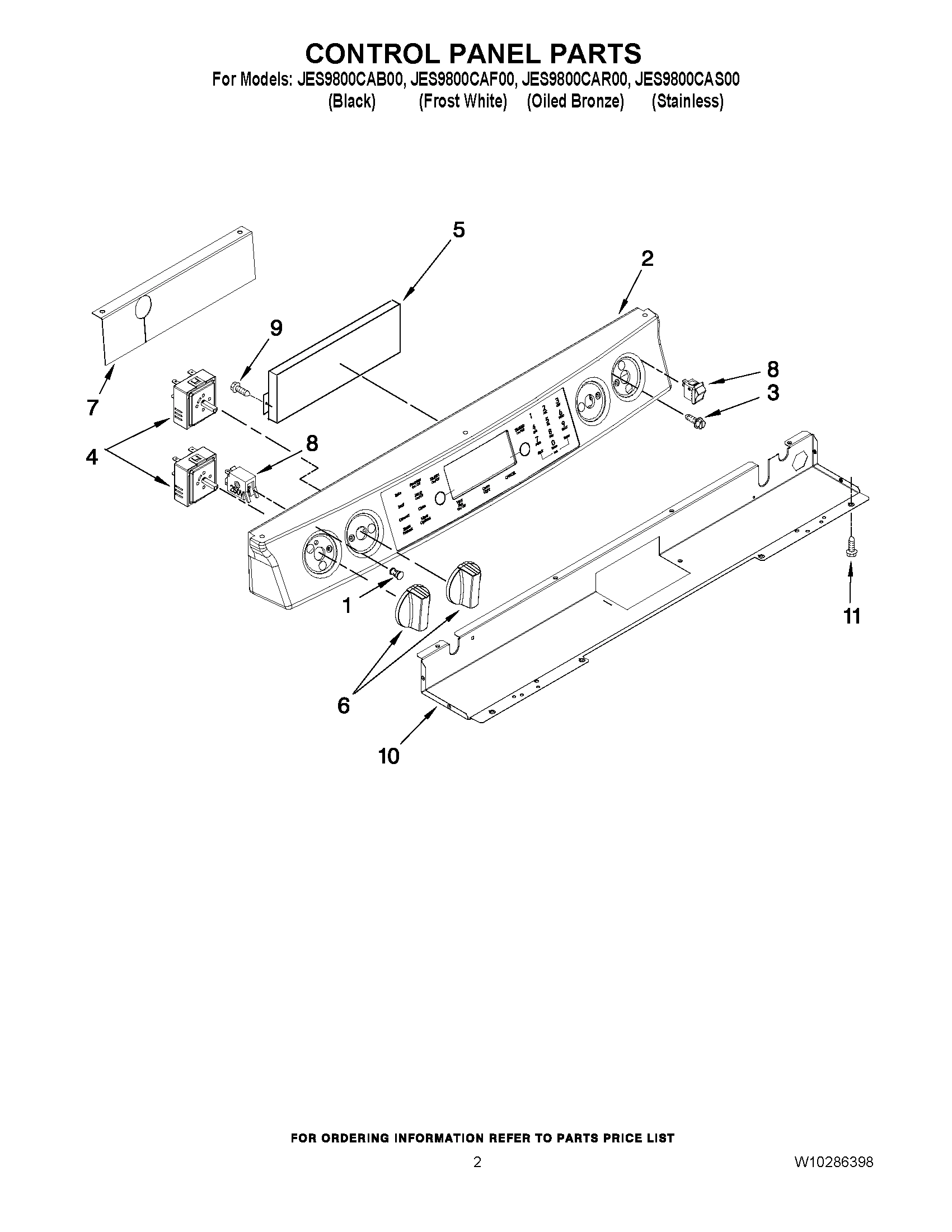

W10239347 Whirlpool Control Panel Backorder WPL W10239347 $305.14

2

W10239357 Whirlpool Cooktop Backorder WPL W10239357 $709.63

2

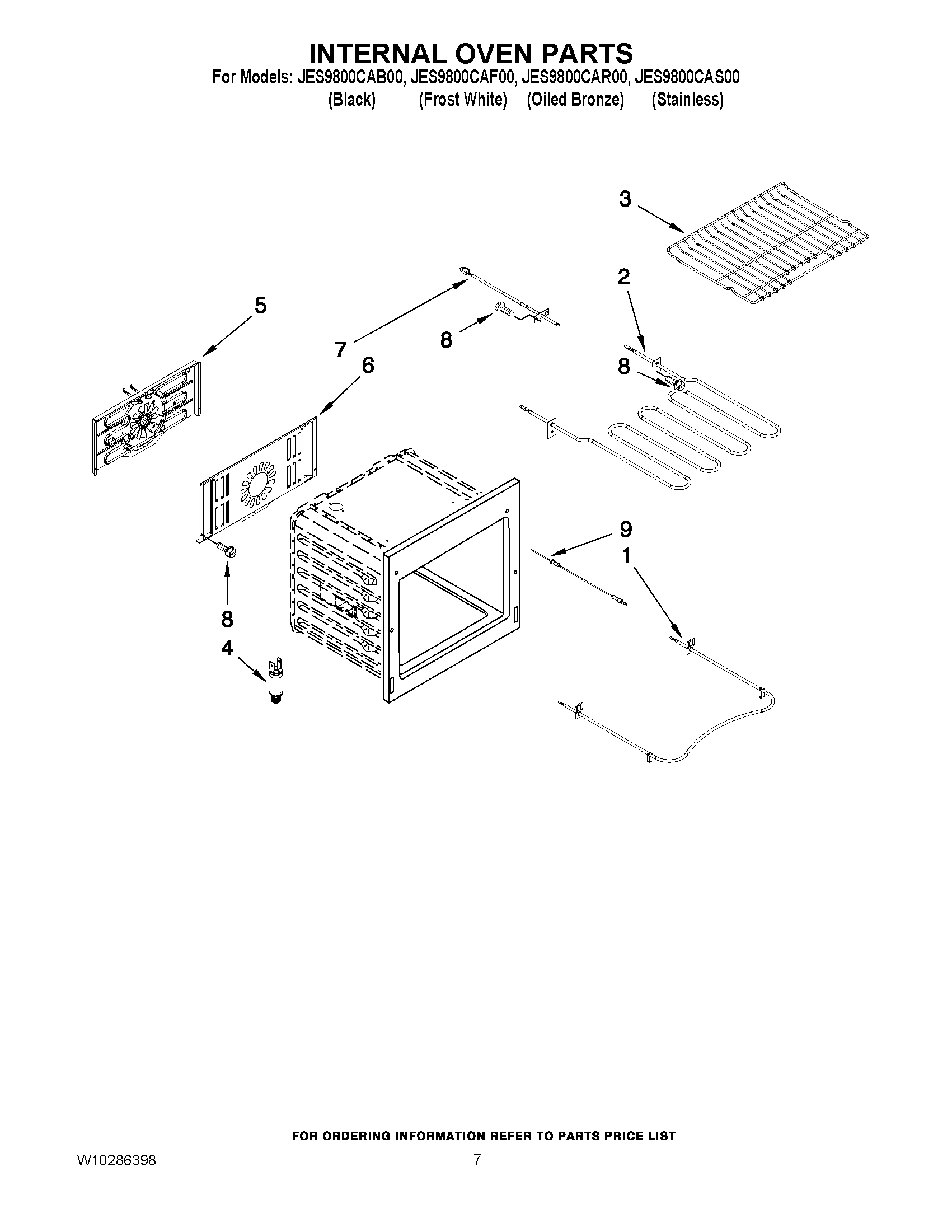

WP7406P430-60 Whirlpool Broil Element In Stock WPL WP7406P430-60 $144.92

2

COOKTOP (WHITE) WPL W10239360 Contact Us For Availability

2

LATCH ASSEMBLY WPL 8002P08960 Contact Us For Availability

2

PANEL, DRAWER (BLACK) WPL 2416F08670 Contact Us For Availability

2

PANEL, DRAWER (WHITE) WPL 2416F08671 Contact Us For Availability

2

LOCKNUT WPL 7103P16260 Contact Us For Availability

2

NUT (10-32) WPL 7103P17660 Contact Us For Availability

3

SWTCH-LITE WPL 7450P10860 Contact Us For Availability

3

HANGER, ACCESS PANEL WPL 3806F01180 Contact Us For Availability

3

COVER, MOTOR WPL 4005F53780 Contact Us For Availability

3

BAFFLE, OVEN DOOR WPL 3601F37351 Contact Us For Availability

3

RACK, OVEN WPL 7801P17360 Contact Us For Availability

4

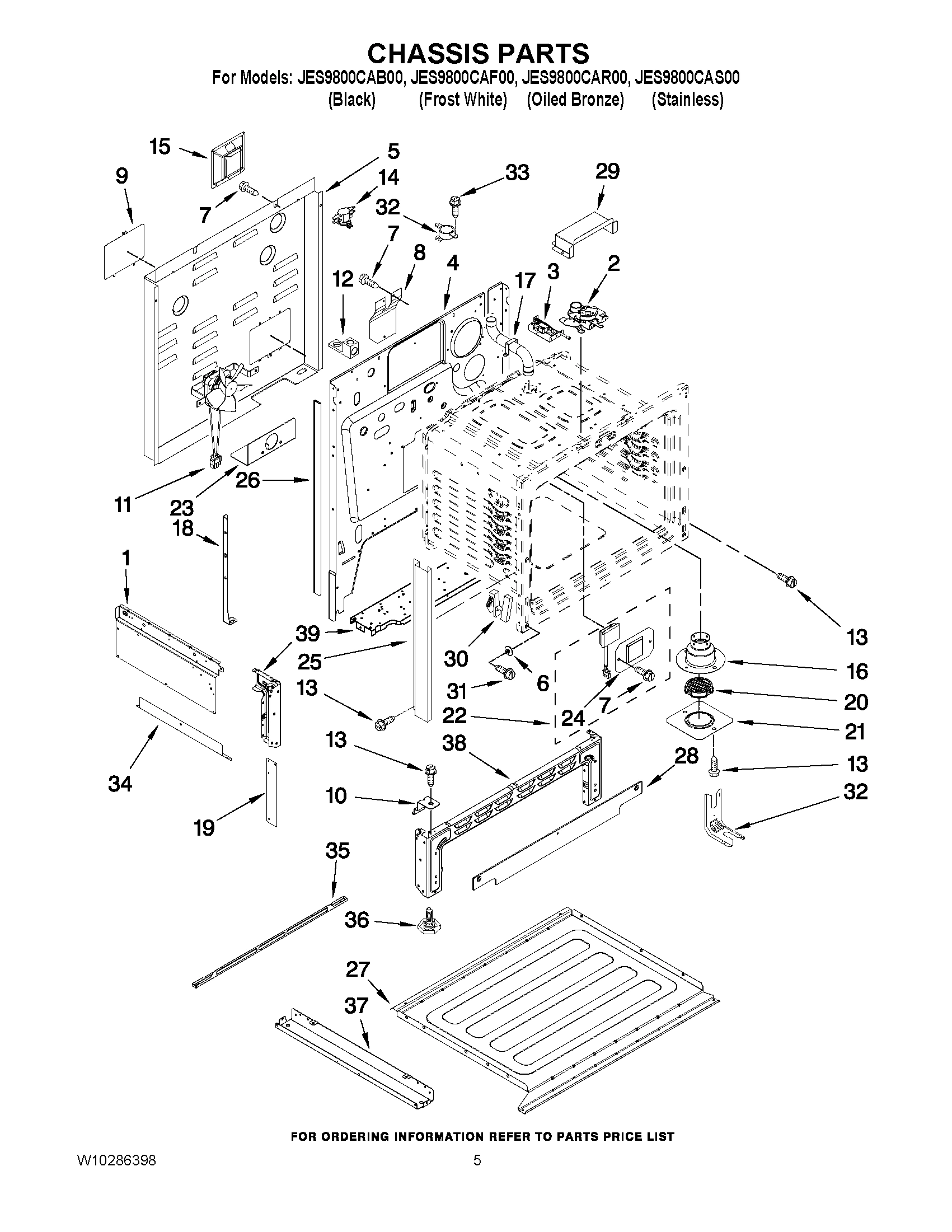

MAIN, BACK WPL 3804F31351 Contact Us For Availability

4

SCREW, 8AB X 1/2 WPL 7101P37660 Contact Us For Availability

4

STOP, FILTER WPL 7809P03060 Contact Us For Availability

4

RECEPTACLE, MEAT PROBE WPL 7408P08660 Contact Us For Availability

5

WPW10297248 Whirlpool Drawer Panel Backorder WPL WPW10297248 $171.57

5

ASSY., CONV. FAN WPL W10213813 Contact Us For Availability

5

COVER, WIRE REAR WPL 4005F81051 Contact Us For Availability

5

Glass, Inner WPL 7902P43660 Contact Us For Availability

6

W10207697 Whirlpool Knob Backorder WPL W10207697 $32.70

6

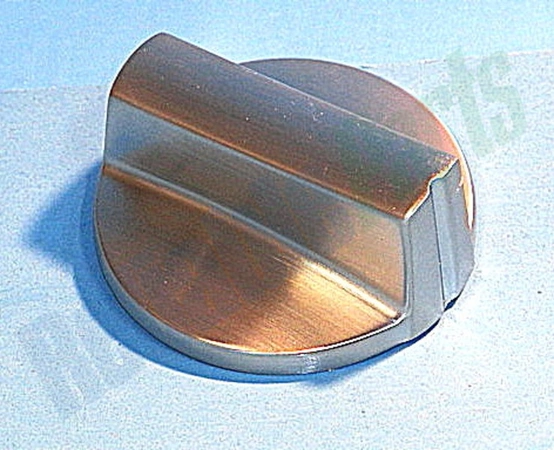

W10213943 Whirlpool Knob Backorder WPL W10213943 $40.33

6

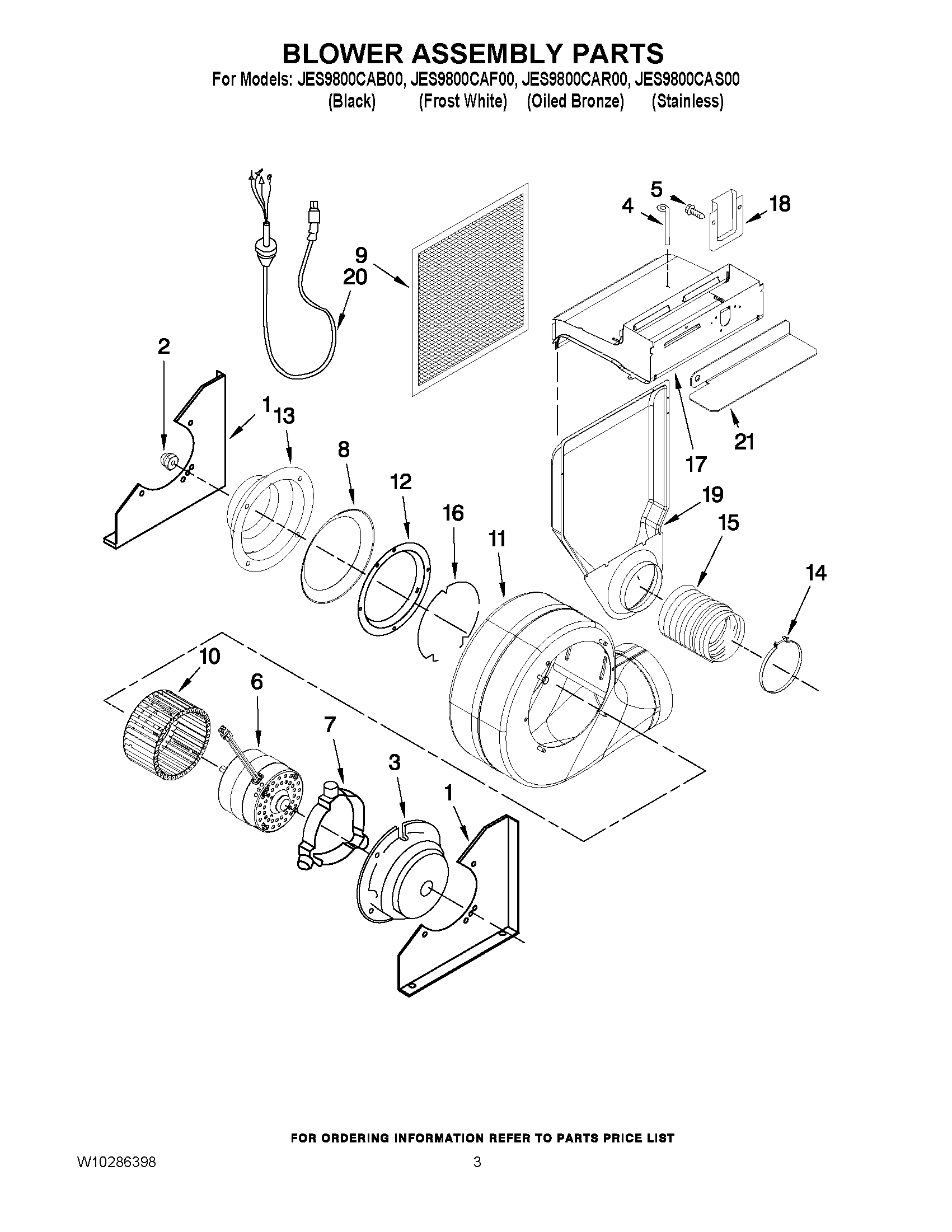

WPW10201322 Whirlpool Blower Motor Backorder WPL WPW10201322 $273.52

6

COVER, CONVECT. WPL W10312218 Contact Us For Availability

6

KNOB, (4) (WHITE) WPL W10213942 Contact Us For Availability

6

SPACER, SIDE PNL WPL 8004P02460 Contact Us For Availability

6

SHIELD WPL 3604F41851 Contact Us For Availability

7

ASSY., MOTOR BAND WPL 5700D52660 Contact Us For Availability

7

NUT, SNAP WPL 7103P14160 Contact Us For Availability

7

Sensor, Oven WPL 7430P04260 Contact Us For Availability

8

INSULATOR, CORD WPL 7003P10160 Contact Us For Availability

8

RING, RESTRICTOR WPL 4026F00951 Contact Us For Availability

8

Lining, Door WPL 2402W31219 Contact Us For Availability

8

Screw WPL 7101P43460 Contact Us For Availability

9

PANEL, ACCESS WPL 4005F61251 Contact Us For Availability

9

FILTER, GREASE WPL 8310P00660 Contact Us For Availability

9

Bracket, Glass WPL 3801F88651 Contact Us For Availability

9

PROBE, MEAT WPL 7430P03860 Contact Us For Availability

10

SUPPORT, OVEN (BOTTOM) WPL 3807F61551 Contact Us For Availability

10

WHEEL, BLOWER WPL 7114P00560 Contact Us For Availability

10

Insulation, Door WPL 7002P24660 Contact Us For Availability

11

FAN, COOLING WPL 7427P09460 Contact Us For Availability

11

SCREW WPL 7101P42660 Contact Us For Availability

11

ASSY., SCROLL BLWR WPL 2822W00180 Contact Us For Availability

BLOCK, BARE WIRE WPL 7401P15760 Contact Us For Availability

RING, INLET WPL 4026F00851 Contact Us For Availability

RETAINER, GLASS (RIGHT) WPL 3804F30751 Contact Us For Availability

RETAINER, GLASS (LEFT) WPL 3804F30851 Contact Us For Availability

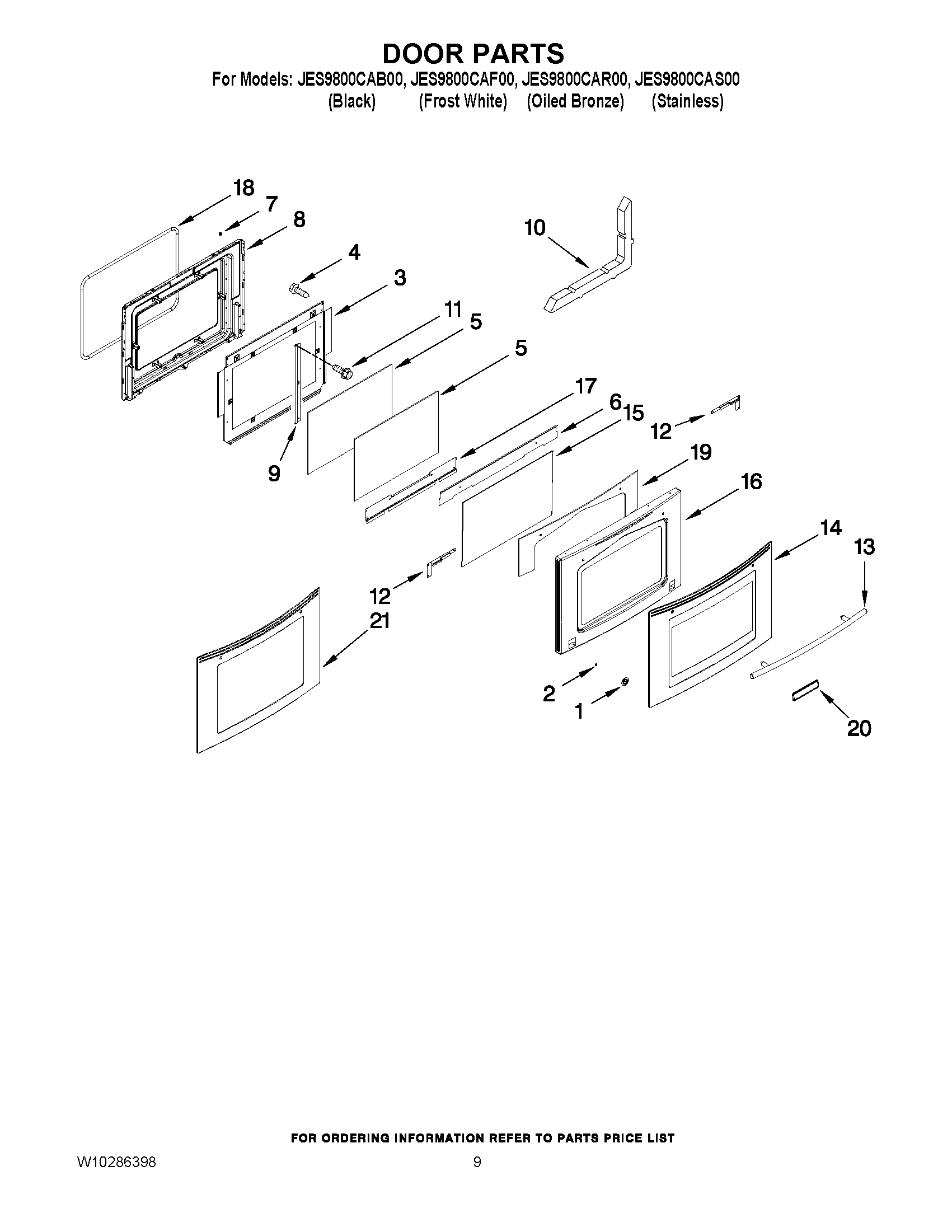

W10223163 Whirlpool Door Handle Backorder WPL W10223163 $227.26

W10223164 Whirlpool Door Handle Backorder WPL W10223164 $199.68

W10223165 Whirlpool Door Handle Backorder WPL W10223165 $201.06

HANDLE, DOOR (STAINLESS) WPL W10223152 Contact Us For Availability

ADAPTER, RING RESTRICTOR WPL 2818F00180 Contact Us For Availability

WPW10272332 Whirlpool Range Glass Door Backorder WPL WPW10272332 $226.32

GLASS, DOOR (STAINLESS) WPL W10235390 Contact Us For Availability

GLASS, DOOR (WHITE) WPL W10272330 Contact Us For Availability

THERMOSTAT, HI-LIMIT WPL 7403P85660 Contact Us For Availability

CLAMP, HOSE WPL 7111P04760 Contact Us For Availability

GLASS, DOOR (OILED BRONZE) WPL W10235391 Contact Us For Availability

15

RETAINER, INSUL. CONVECT. WPL 3804F30051 Contact Us For Availability

15

DUCT, FLEXIBLE WPL 8032P00360 Contact Us For Availability

15

GLASS, COATED WPL 7902P76860 Contact Us For Availability

TUBE, VENT LOWER WPL 8026P09660 Contact Us For Availability

RETAINER WPL 8038P00360 Contact Us For Availability

FRAME, DOOR (BLACK) WPL 3603F07570 Contact Us For Availability

FRAME, DOOR (WHITE) WPL 3603F07571 Contact Us For Availability

17

TUBE, VENT UPPER WPL 8026P09460 Contact Us For Availability

17

ASSY., PLENUM WPL 2801W03580 Contact Us For Availability

17

RETAINER,GLASS BTM WPL 3804F31780 Contact Us For Availability

18

WPW10162384 Whirlpool Door Gasket In Stock WPL WPW10162384 $76.58

18

SUPPORT, OVEN REAR WPL 3807F73251 Contact Us For Availability

18

COVER, VENT WPL 4005F77980 Contact Us For Availability

19

BRKT., SIDE PANEL WPL 3801F92951 Contact Us For Availability

19

PLENUM (SIDE) WPL 2801L03780 Contact Us For Availability

19

INSULATION, FOIL WPL 7002P46560 Contact Us For Availability

W10190723 Whirlpool Compactor Nameplate Backorder WPL W10190723 $76.40

W10214169 Whirlpool Nameplate Assembly Backorder WPL W10214169 $38.88

WPW10214168 Whirlpool Refrigerator Nameplate Backorder WPL WPW10214168 $60.45

SMOKE ELIMINATOR WPL 8034P00860 Contact Us For Availability

CORD, POWER WPL 7402P10460 Contact Us For Availability

21

PLATE, SMOKE ELM. WPL 3605F34445 Contact Us For Availability

21

SHIELD, PLENUM WPL 8404P01160 Contact Us For Availability

21

OVERLAY (OILED BRONZE) WPL W10234011 Contact Us For Availability

22

LIGHT ASSY HALOGEN WPL 7407P18060 Contact Us For Availability

23

BRACKET, POWER SUPPLY WPL 3801F91151 Contact Us For Availability

24

COVER, LIGHT WPL 4005F68451 Contact Us For Availability

25

TRIM, SIDE (BLACK) WPL 3608F13870 Contact Us For Availability

25

TRIM, SIDE (WHITE) WPL 3608F13871 Contact Us For Availability

26

GUARD, EDGE WPL W10183566 Contact Us For Availability

27

RETAINER, INSUL. (BOTTOM) WPL 3804F31251 Contact Us For Availability

28

TRIM, FRONT FRAME WPL 7713P05460 Contact Us For Availability

29

COVER, DOOR LATCH WPL 4005F75051 Contact Us For Availability

30

HINGE WPL 7106P14360 Contact Us For Availability

31

SCREW, HINGE WPL 7101P28260 Contact Us For Availability

32

BRACKET, ANTI-TIP WPL 3801F65651 Contact Us For Availability

34

EXTENSION, SHIELD WPL 3826F06451 Contact Us For Availability

35

SUPPORT, ELEMENT WPL 3807F75445 Contact Us For Availability

36

LEG, LEVELING WPL 7101P66060 Contact Us For Availability

37

PEDESTAL, BOTTOM WPL 4020W03580 Contact Us For Availability

38

BASE, PEDESTAL WPL W10271711 Contact Us For Availability

39

PEDESTAL, REAR (RIGHT) WPL 4020F03280 Contact Us For Availability

39

PEDESTAL, REAR (LEFT) WPL 4020F03380 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $52.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $46.71

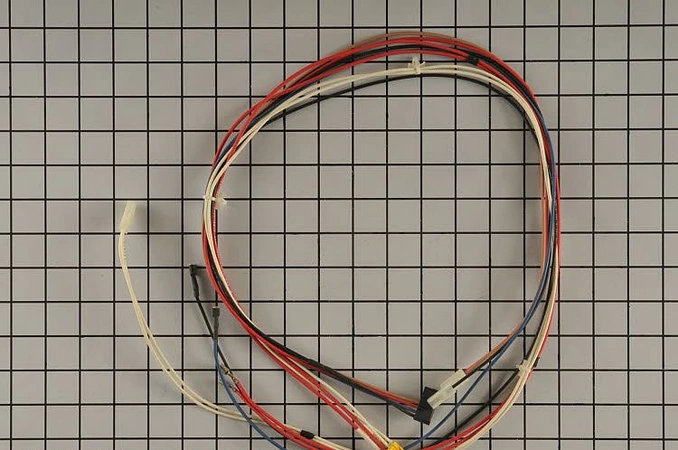

W10348630 Whirlpool Wire Harness Backorder WPL W10348630 $167.35

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $62.36

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $213.57

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $60.66

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability

HARNESS, MAIN WPL W10250357 Contact Us For Availability

INSULATION, WRAP WPL 7002P46660 Contact Us For Availability

INSULATION, OVEN BOTTOM WPL 7002P46760 Contact Us For Availability

INSULATION, BACK WPL 7002P46860 Contact Us For Availability

HARNESS,SWITCH(RT) WPL 5171P55060 Contact Us For Availability

HARNESS,SWITCH(LT) WPL 5171P55760 Contact Us For Availability

HARNESS, TOP WPL 5171P89860 Contact Us For Availability

Screw, Ground WPL 7101P02760 Contact Us For Availability
