Model Whirlpool JES8850CAS02 ELECTRIC RANGE – Common Parts & Diagrams

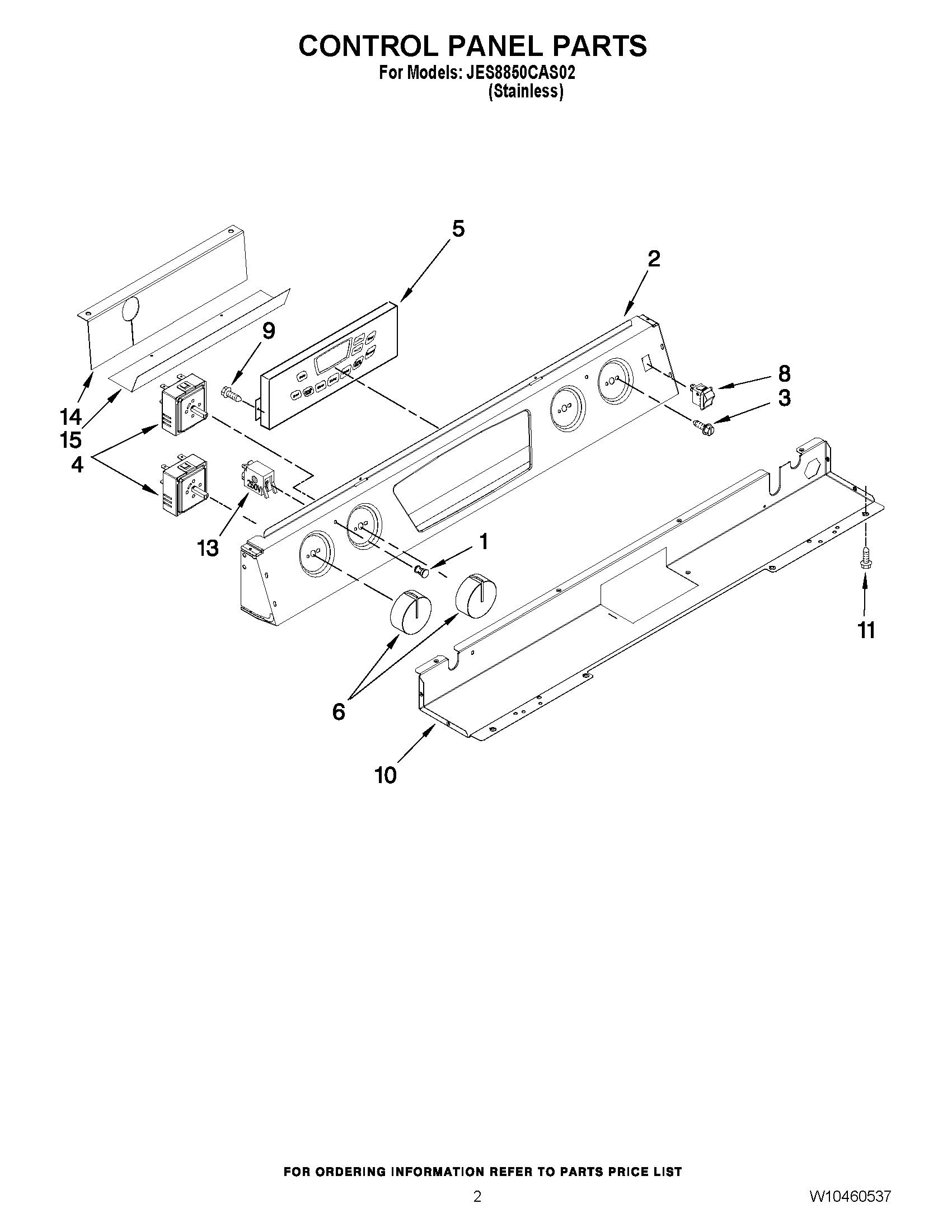

02 - CONTROL PANEL PARTS

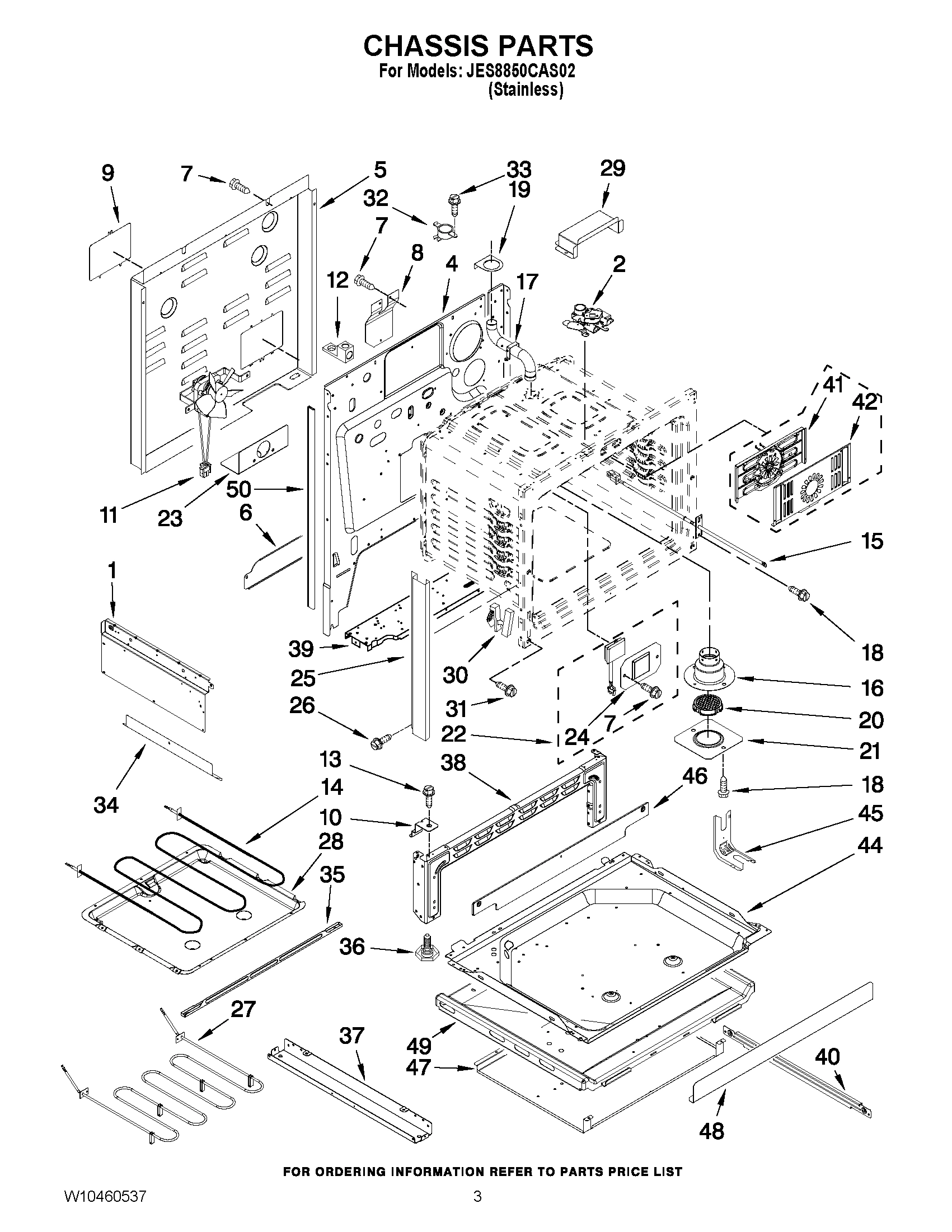

03 - CHASSIS PARTS

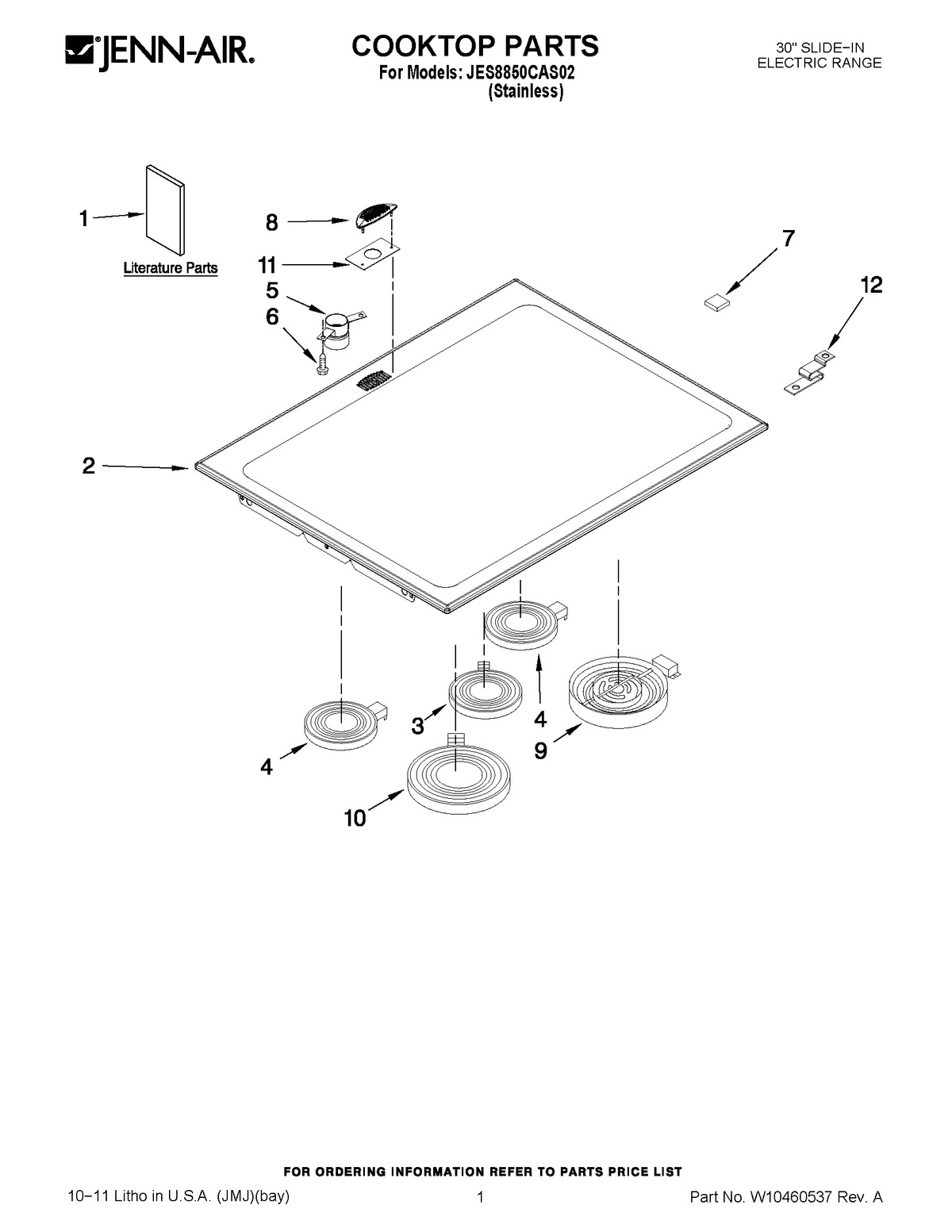

01 - COOKTOP PARTS

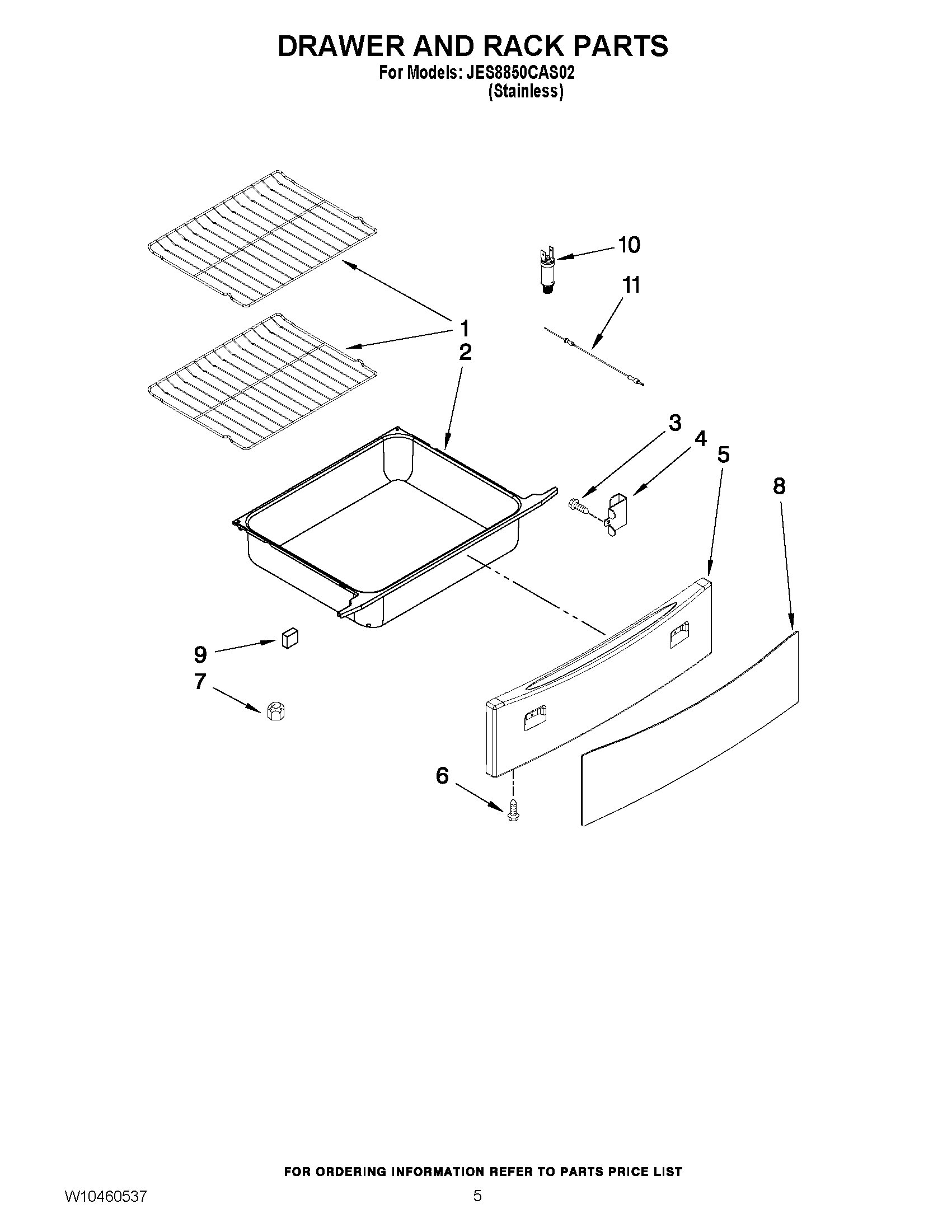

04 - DRAWER AND RACK PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)

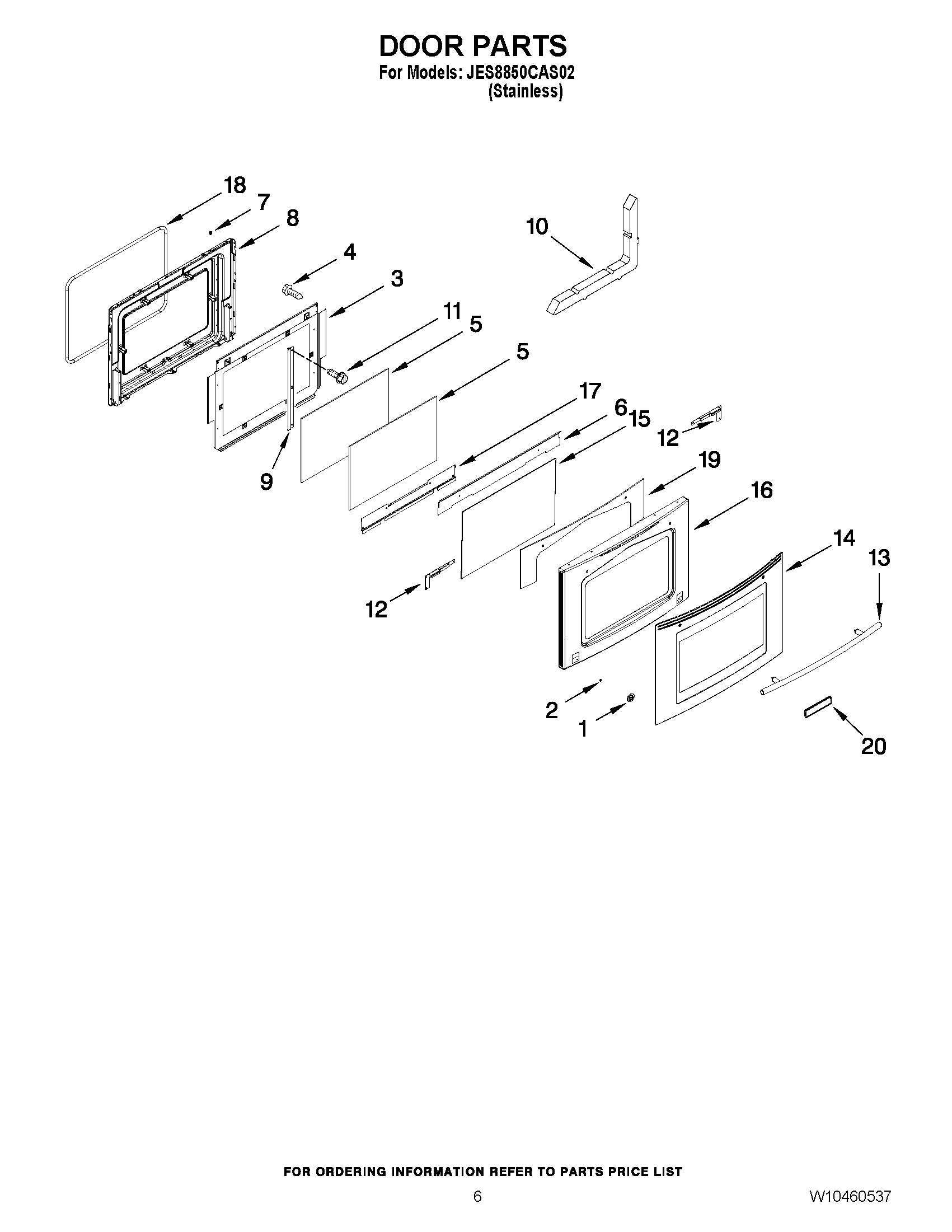

05 - DOOR PARTS
Common parts from model Whirlpool JES8850CAS02 ELECTRIC RANGE
1
SAFER CKG. TIPS WPL 9762761 Contact Us For Availability
1
USE & CARE GUIDE WPL W10235523 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL W10253461 Contact Us For Availability
1
WIRING DIAGRAM WPL W10394686 Contact Us For Availability
1
RACK, OVEN WPL 7801P17360 Contact Us For Availability
1
WASHER WPL 7109P08260 Contact Us For Availability
2
COOKTOP (BLACK) WPL W10235816 Contact Us For Availability
2
PANEL, CONTROL STAINLESS WPL W10314415 Contact Us For Availability
2
DRAWER, STORAGE WPL 3405W04319 Contact Us For Availability
2
NUT (10-32) WPL 7103P17660 Contact Us For Availability
3
SCREW (10-24) WPL 7101P07260 Contact Us For Availability
3
BAFFLE, OVEN DOOR WPL 3601F37351 Contact Us For Availability
4
BRACKET, DRAWER WPL 3801F88751 Contact Us For Availability
4
SCREW, 8AB X 1/2 WPL 7101P37660 Contact Us For Availability
5
TUBE, VENT UPPER WPL W10233479 Contact Us For Availability
5
PANEL, DRAWER (BLACK) WPL 2416F08670 Contact Us For Availability
5
Glass, Inner WPL 7902P43660 Contact Us For Availability
6
SCREW WPL 7101P49860 Contact Us For Availability
6
SHIELD WPL 3604F41851 Contact Us For Availability
7
NUT, LOCK (10-24) WPL 7103P13960 Contact Us For Availability
7
NUT, SNAP WPL 7103P14160 Contact Us For Availability
8
TRIM, VENT (BLACK) WPL 7744P46460 Contact Us For Availability
8
Lining, Door WPL 2402W31219 Contact Us For Availability
9
SPACER, RUBBER WPL 8010P15260 Contact Us For Availability
9
Bracket, Glass WPL 3801F88651 Contact Us For Availability
10
RECEPTACLE, PROBE WPL 7408P08660 Contact Us For Availability
10
Insulation, Door WPL 7002P24660 Contact Us For Availability
11
SCREW WPL 7101P42660 Contact Us For Availability
11
GASKET, VENT TRIM WPL 7201P07660 Contact Us For Availability
11
PROBE, MEAT WPL 7430P03860 Contact Us For Availability
12
SUPPORT, ELEMENT WPL 8004P09360 Contact Us For Availability
12
RETAINER, GLASS (RIGHT) WPL 3804F30751 Contact Us For Availability
12
RETAINER, GLASS (LEFT) WPL 3804F30851 Contact Us For Availability
13
HANDLE, DOOR (STAINLESS) WPL W10223152 Contact Us For Availability
14
GLASS, DOOR (STAINLESS) WPL W10301578 Contact Us For Availability
15
GLASS, COATED WPL 7902P76860 Contact Us For Availability
16
FRAME, DOOR (BLACK) WPL 3603F07570 Contact Us For Availability
17
TUBE, VENT UPPER WPL 8026P08460 Contact Us For Availability
17
RETAINER,GLASS BTM WPL 3804F31780 Contact Us For Availability
19
HOLDER, VENT TUBE WPL 3605F34551 Contact Us For Availability
19
INSULATION, FOIL WPL 7002P46560 Contact Us For Availability
20
SMOKE ELIMINATOR WPL 8034P00860 Contact Us For Availability
21
PLATE, SMOKE ELM. WPL 3605F35445 Contact Us For Availability
22
LIGHT ASSY HALOGEN WPL 7407P18060 Contact Us For Availability
23
BRACKET, POWER SUPPLY WPL 3801F91151 Contact Us For Availability
24
COVER, LIGHT WPL 4005F68451 Contact Us For Availability
25
TRIM, SIDE (BLACK) WPL 3608F13870 Contact Us For Availability
26
Screw WPL 7101P50060 Contact Us For Availability
28
PAN, HIDDEN BAKE WPL 3401F09245 Contact Us For Availability
29
COVER, DOOR LATCH WPL 4005F75051 Contact Us For Availability
30
HINGE WPL 7106P14360 Contact Us For Availability
31
SCREW, HINGE WPL 7101P28260 Contact Us For Availability
32
SWITCH, HI-LIMIT WPL 7403P64760 Contact Us For Availability
34
EXTENSION, SHIELD WPL 3826F06451 Contact Us For Availability
35
SUPPORT, ELEMENT WPL 3807F75445 Contact Us For Availability
36
LEG, LEVELING WPL 7101P66060 Contact Us For Availability
37
PEDESTAL, BOTTOM WPL 4020W03580 Contact Us For Availability
38
BASE, PEDESTAL WPL W10271711 Contact Us For Availability
39
SUPPORT, VALVE/REG WPL 3807F64051 Contact Us For Availability
41
KIT, CONV. FAN WPL W10213813 Contact Us For Availability
42
BAFFLE COVER WPL W10312218 Contact Us For Availability
44
RETAINER, INSUL (BOTTOM) WPL 3804F23151 Contact Us For Availability
45
BRACKET, ANTI-TIP WPL 3801F65651 Contact Us For Availability
46
TRIM, FRONT FRAME WPL 7713P05460 Contact Us For Availability
47
SHIELD,WARMING DWR WPL 3604F32645 Contact Us For Availability
48
COVER, FRONT WPL 4005F74945 Contact Us For Availability
49
BOTTOM, OVEN WPL 2205F06019 Contact Us For Availability
50
GUARD, EDGE WPL W10183566 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
NI
RETAINER, INSUL. CONVECT. WPL 3804F30051 Contact Us For Availability
NI
INSULATION, OVEN BOTTOM WPL 7002P44360 Contact Us For Availability
NI
INSULATION, BACK WPL 7002P44560 Contact Us For Availability
NI
INSULATION, WRAP WPL 7002P47160 Contact Us For Availability
NI
INSULATION HIDDEN BAKE WPL 7002P48860 Contact Us For Availability
NI
REFINISHING MATERIAL (GREASE) WPL 261582 Contact Us For Availability
NI
HARNESS,SWITCH(LT) WPL 5171P55960 Contact Us For Availability
NI
Screw, Ground WPL 7101P02760 Contact Us For Availability
NI
REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( WPL 799832 Contact Us For Availability
× ![]()
