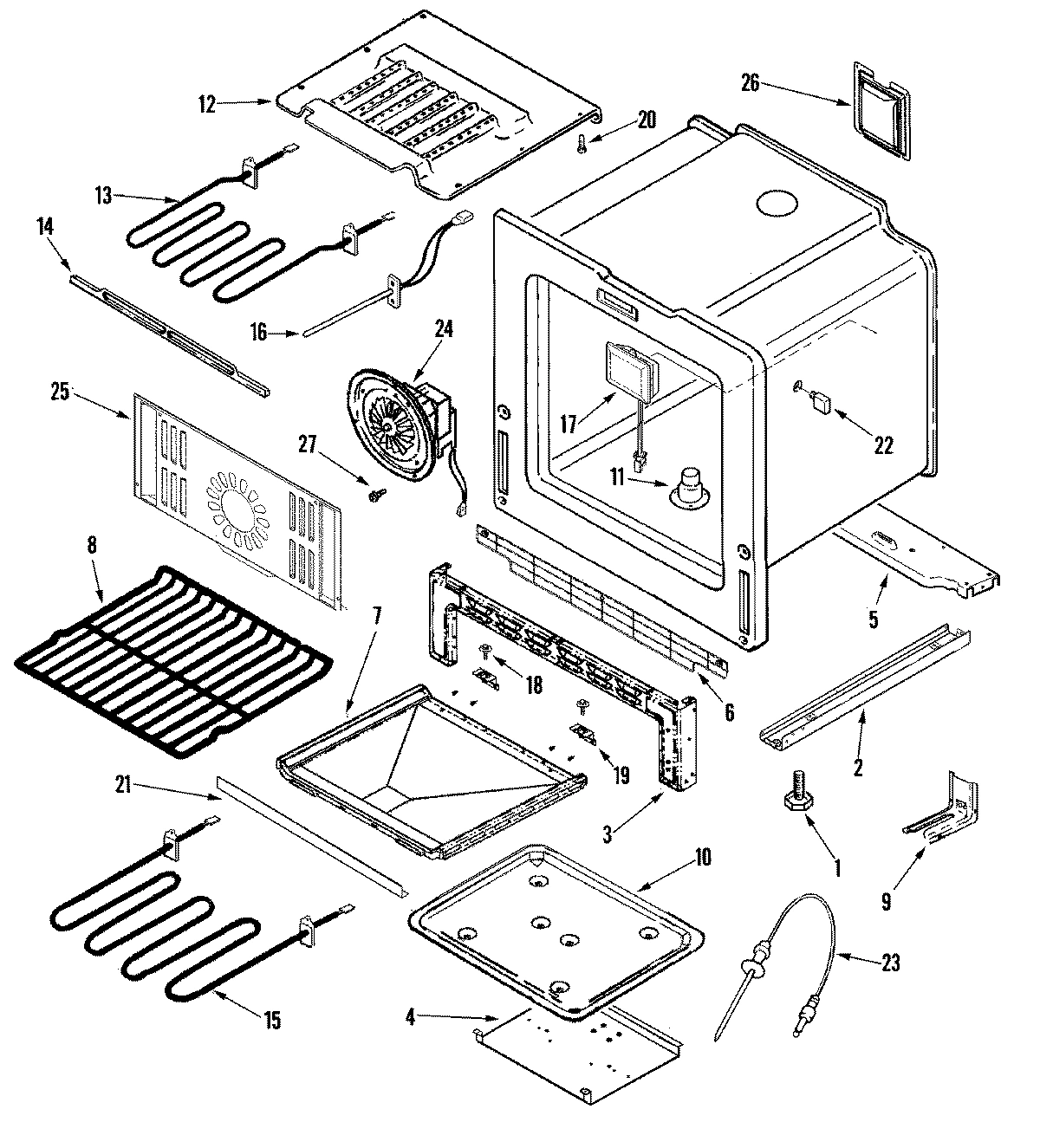

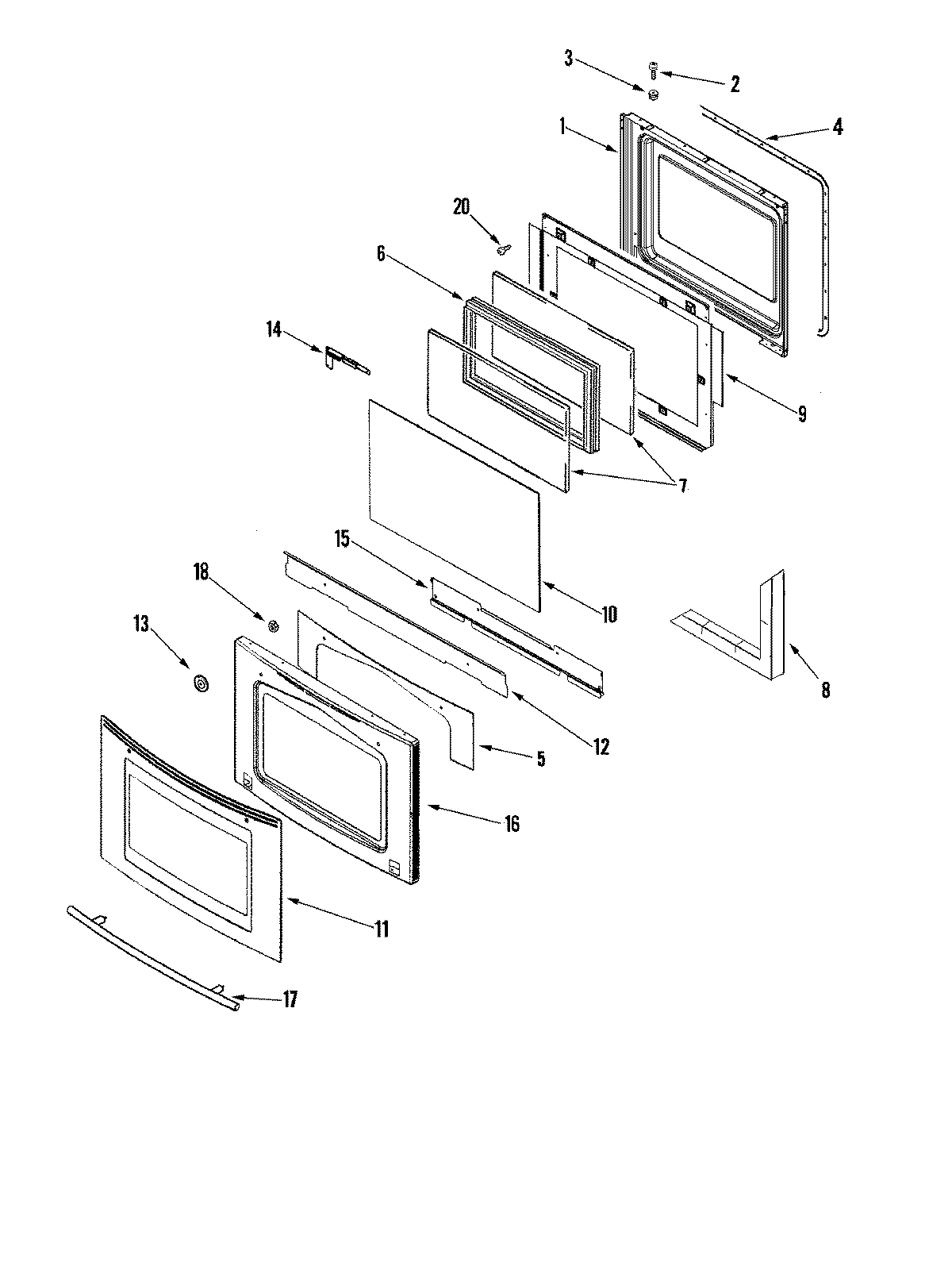

Model Whirlpool JES8850BAQ ELECTRIC RANGE – Common Parts &amp; Diagrams

1

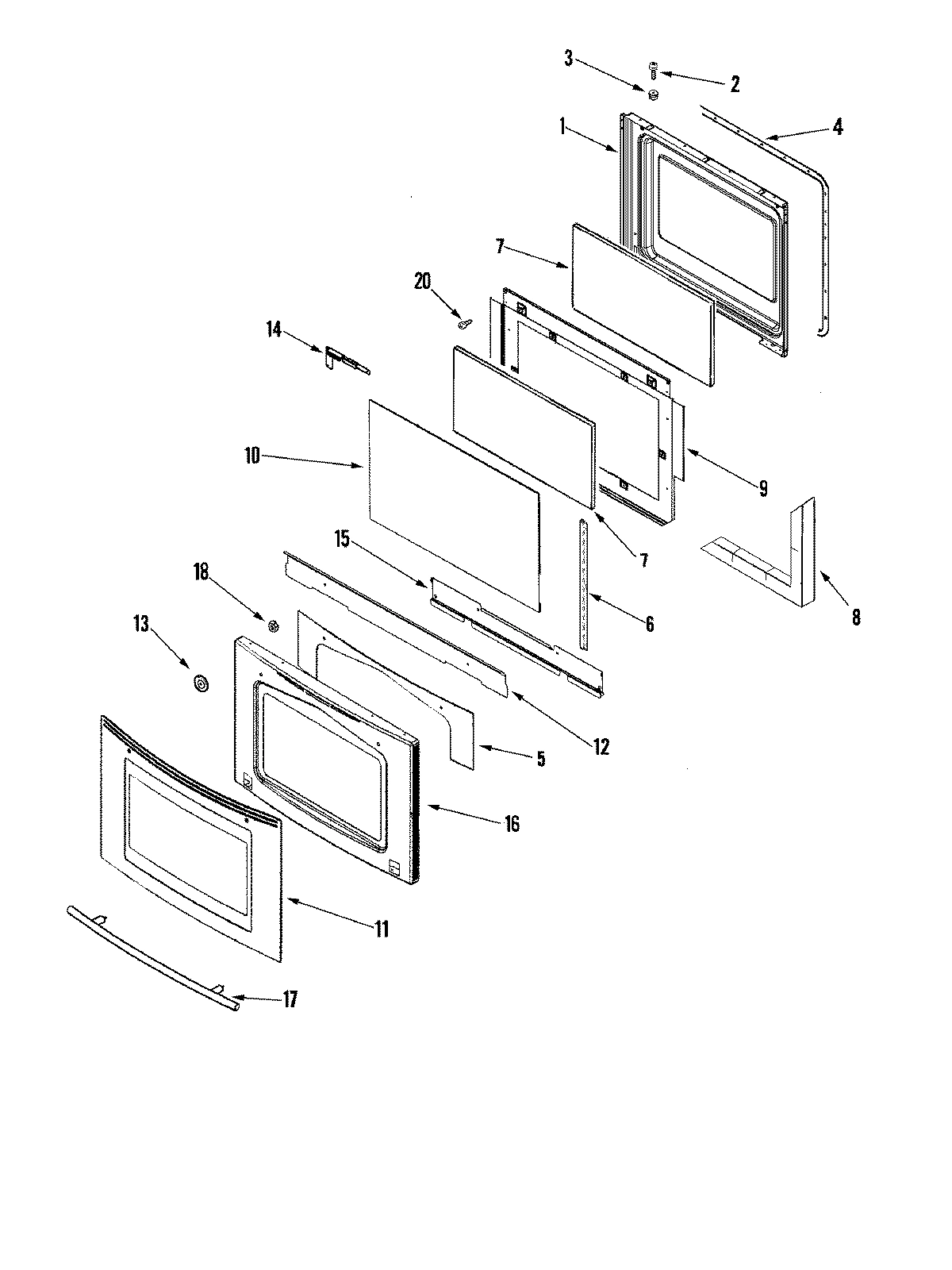

LINING, DOOR WPL 74003642 Contact Us For Availability

1

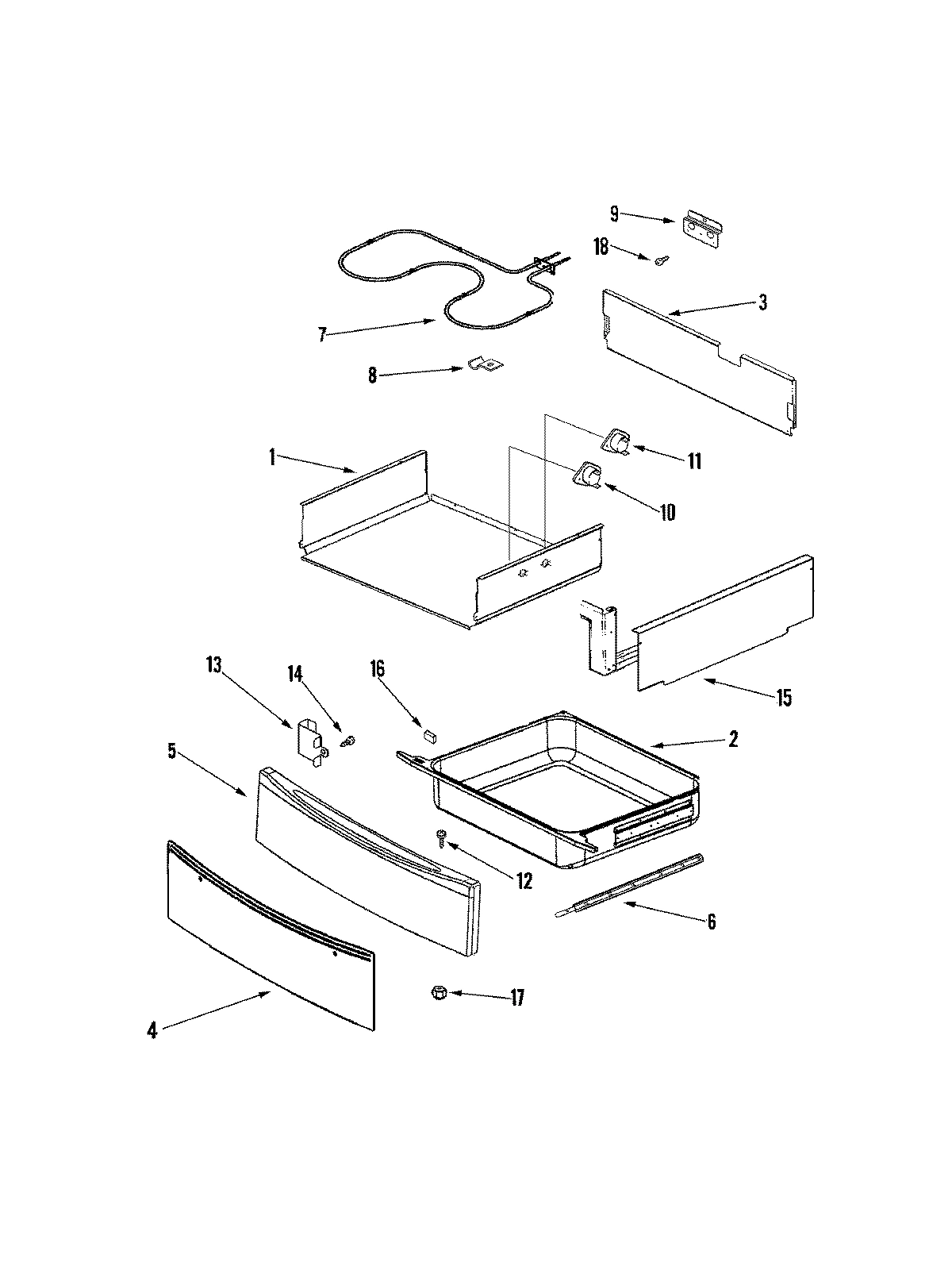

BODY, WARMING DRAWER WPL 74011814 Contact Us For Availability

1

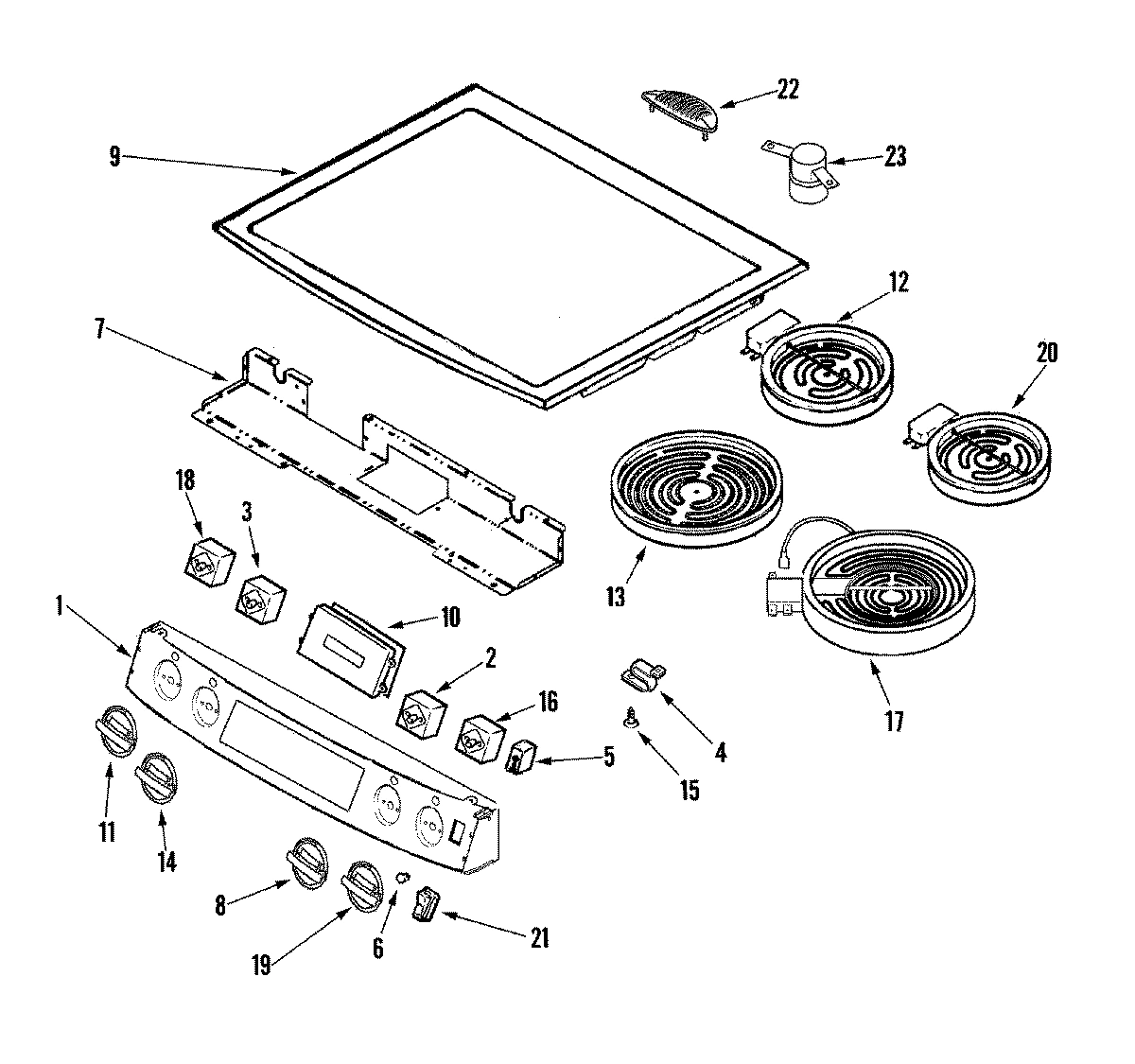

CONTROL PANEL/SWITCH ASY (BSQ) WPL 74011623 Contact Us For Availability

1

LINING, DOOR WPL 74011456 Contact Us For Availability

1

MANUAL, USE & CARE WPL 8113P52660 Contact Us For Availability

1

MANUAL, USE & CARE WPL 8113P75860 Contact Us For Availability

2

4020W035-80 Whirlpool Bottom PE Backorder WPL 4020W035-80 $80.93

2

WP74008940 Whirlpool Infinite Switch In Stock WPL WP74008940 $135.64

2

WP74009541 Whirlpool Screw Assembly Backorder WPL WP74009541 $4.82

2

DRAWER, WARMING WPL 74011815 Contact Us For Availability

2

HARNESS, MAIN WPL 74011616 Contact Us For Availability

3

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $6.85

3

BACK, WARMING DRAWER WPL 74011816 Contact Us For Availability

3

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

3

HARNESS, TOP WPL 74011617 Contact Us For Availability

3

PEDESTAL, FRONT WPL 74010882 Contact Us For Availability

4

74011475 Whirlpool Range Oven Door Hinge Asse In Stock WPL 74011475 $87.72

4

74011619 Whirlpool Range Harness Backorder WPL 74011619 $58.70

4

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

4

GLASS ASY, DRAWER (BSQ) WPL 74011817 Contact Us For Availability

4

SUPPORT, ELEMENT WPL 74007845 Contact Us For Availability

4

SHIELD, WARMING DRAWER WPL 74006591 Contact Us For Availability

5

5171P537-60 Whirlpool Wire Harness Backorder WPL 5171P537-60 $107.38

5

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $4.82

5

INSULATION, DOOR WPL 74011509 Contact Us For Availability

5

PANEL ASY, DRAWER (BSQ) WPL 74011643 Contact Us For Availability

5

SUPPORT, VALVE REGULATOR WPL 74007129 Contact Us For Availability

6

5171P784-60 Whirlpool Wire Harness Backorder WPL 5171P784-60 $16.03

6

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $8.89

6

74008265 Whirlpool Oven High Limit Thermostat Backorder WPL 74008265 $148.74

6

WP22001948 Whirlpool Indicator Lens In Stock WPL WP22001948 $7.93

6

WP74006588 Whirlpool Warming Drawer Glide Backorder WPL WP74006588 $74.51

6

FRAME, GLASS WPL 74003644 Contact Us For Availability

6

TRIM, FRONT FRAME (BLK) WPL 74011482 Contact Us For Availability

7

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $115.28

7

WP2205F060-19 Whirlpool Range Bottom Backorder WPL WP2205F060-19 $212.76

7

ELEMENT, WARMER WPL 74005789 Contact Us For Availability

7

SUPPORT, CONTROL PANEL WPL 74011761 Contact Us For Availability

7

HARNESS, SWITCH (RT) WPL 74011615 Contact Us For Availability

8

WP74011580 Whirlpool Flex Control Knob In Stock WPL WP74011580 $29.48

8

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

8

INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability

8

CLIP, WARMING ELEMENT WPL 74006592 Contact Us For Availability

9

3601F373-51 Whirlpool Baffle Backorder WPL 3601F373-51 $195.78

9

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

9

BAFFLE, OVEN DOOR WPL 74011339 Contact Us For Availability

9

SUPPORT, ELEMENT (REAR) WPL 74006576 Contact Us For Availability

9

GLASS TOP ASY (BSQ) WPL 74011637 Contact Us For Availability

9

SCREW WPL 7101P35260 Contact Us For Availability

7403P647-60 Whirlpool Limit Switch Backorder WPL 7403P647-60 $24.33

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 $5.02

WP8507P226-60 Whirlpool Electronic Control Bo Backorder WPL WP8507P226-60 $349.38

SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability

GLASS, DOOR (INNER/COATED) WPL 74010231 Contact Us For Availability

PAN, BAKE WPL 74010806 Contact Us For Availability

WP74011579 Whirlpool Control Knob In Stock WPL WP74011579 $29.48

SWITCH, HI-LIMIT (ELEC/DRAWER) WPL 74006587 Contact Us For Availability

GLASS ASY, DOOR (BSQ) WPL 74011512 Contact Us For Availability

TUBE, VENT (LWR) WPL 74010808 Contact Us For Availability

PLATE, VENT COVER WPL 74010809 Contact Us For Availability

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 $134.91

WP7101P072-60 Whirlpool Screw Backorder WPL WP7101P072-60 $4.82

SHIELD, DOOR WPL 74011049 Contact Us For Availability

SHIELD, BROIL (30``) WPL 74008408 Contact Us For Availability

W10823722 Whirlpool Surface Element In Stock WPL W10823722 $279.62

W10823724 Whirlpool Surface Element In Stock WPL W10823724 $265.73

WP7406P430-60 Whirlpool Broil Element In Stock WPL WP7406P430-60 $144.92

WASHER, HANDLE WPL 74009194 Contact Us For Availability

BRACKET, DRAWER WPL 74010896 Contact Us For Availability

74010819 Whirlpool Latch Assembly Backorder WPL 74010819 $234.61

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

WP74011493 Whirlpool Burner Knob In Stock WPL WP74011493 $38.83

RETAINER, GLASS (LT) WPL 74011503 Contact Us For Availability

RETAINER, GLASS (RT) WPL 74011504 Contact Us For Availability

RETAINER, GLASS (RT) WPL 74011463 Contact Us For Availability

RETAINER, GLASS (LT) WPL 74011797 Contact Us For Availability

SUPPORT, BROIL ELEMENT WPL 74003563 Contact Us For Availability

WP7101P498-60 Whirlpool Screw Backorder WPL WP7101P498-60 $4.82

WP7406P411-60 Whirlpool Bake Element Backorder WPL WP7406P411-60 $242.09

RETAINER, DOOR GLASS WPL 74007215 Contact Us For Availability

SHEILD, SIDE (WARMING DRWR) WPL 74011818 Contact Us For Availability

RETAINER, GLASS (LWR) WPL 74011464 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $6.25

WP74010824 Whirlpool Range Element Control Sw In Stock WPL WP74010824 $83.64

FRAME, DOOR (BSQ) WPL 74011644 Contact Us For Availability

W10823718 Whirlpool Surface Element Backorder WPL W10823718 $236.75

WP74008625 Whirlpool Door Handle Backorder WPL WP74008625 $195.02

WPW10586440 Whirlpool Blower Fan Backorder WPL WPW10586440 $228.42

LIGHT ASY, HAL0GEN WPL 74011220 Contact Us For Availability

NUT, LOCK WPL 7103P13960 Contact Us For Availability

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $5.30

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

WPW10185286 Whirlpool Infinite Switch In Stock WPL WPW10185286 $151.35

COVER, DOOR LATCH WPL 74010845 Contact Us For Availability

19

3801F911-51 Whirlpool Bracket Backorder WPL 3801F911-51 $5.46

19

WP74011631 Whirlpool Burner Knob Stainless St Backorder WPL WP74011631 $45.24

19

SUPPORT, OVEN BOTTOM WPL 74010812 Contact Us For Availability

20

74011620 Whirlpool Range Element Backorder WPL 74011620 $126.93

20

WP67006908 Whirlpool Refrigerator Screw Backorder WPL WP67006908 $5.02

20

INSULATOR, POWER CORD WPL 74006364 Contact Us For Availability

21

74008765 Whirlpool Range Oven Rocker Switch B Backorder WPL 74008765 $64.51

21

TRIM, SIDE (BSQ) WPL 74010833 Contact Us For Availability

21

COVER, FRONT WPL 74010807 Contact Us For Availability

22

TRIM, VENT (BSQ) WPL 74011633 Contact Us For Availability

23

WP7430P038-60 Whirlpool Meat Probe Sensor In Stock WPL WP7430P038-60 $107.56

23

COVER, TERMINAL BLOCK WPL 74005264 Contact Us For Availability

23

TUBE, VENT (UPR) WPL 74005759 Contact Us For Availability

24

SCREW WPL 7101P11260 Contact Us For Availability

24

CONVECTION FAN ASY. WPL 74011517 Contact Us For Availability

25

WPW10186795 Whirlpool Convection Baffle Backorder WPL WPW10186795 $54.31

26

3804F300-51 Whirlpool Retainer Backorder WPL 3804F300-51 $47.73

26

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

27

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

27

SCREW W/WASHER WPL 7101P12460 Contact Us For Availability

NI

WIRING INFORMATION WPL 15003891 Contact Us For Availability
