Model Whirlpool JES8850BAB19 ELECTRIC RANGE – Common Parts & Diagrams
03 - CHASSIS PARTS

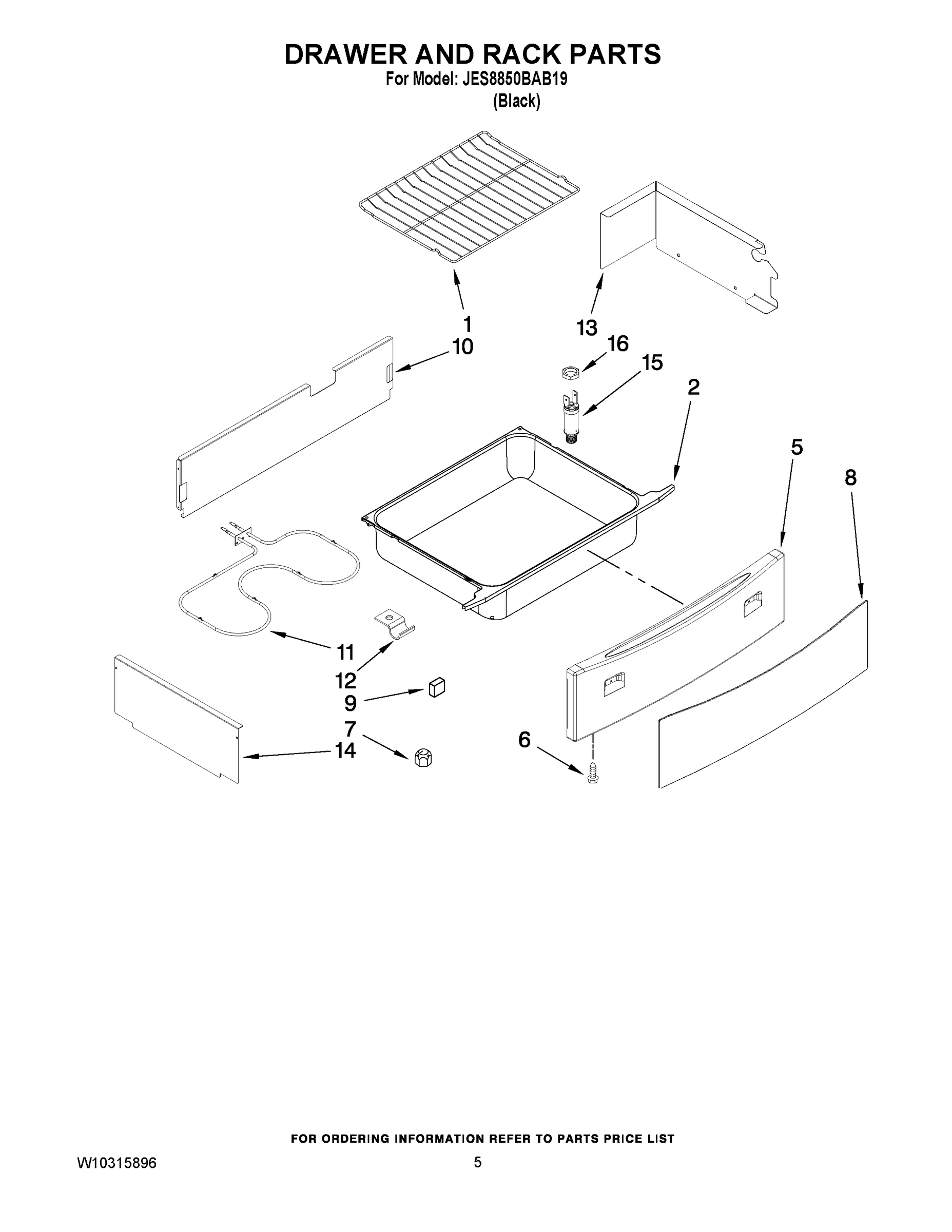

04 - DRAWER AND RACK PARTS

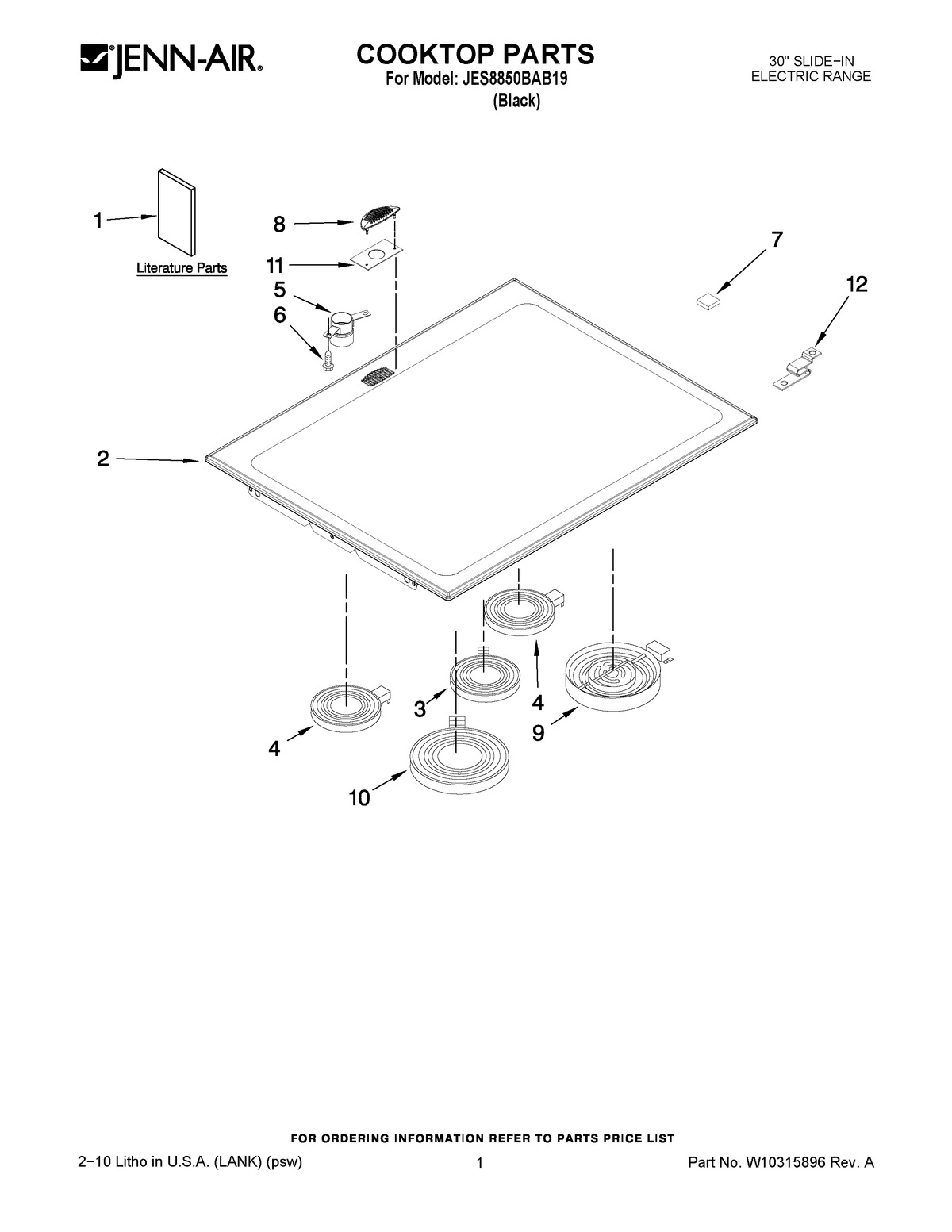

01 - COOKTOP PARTS

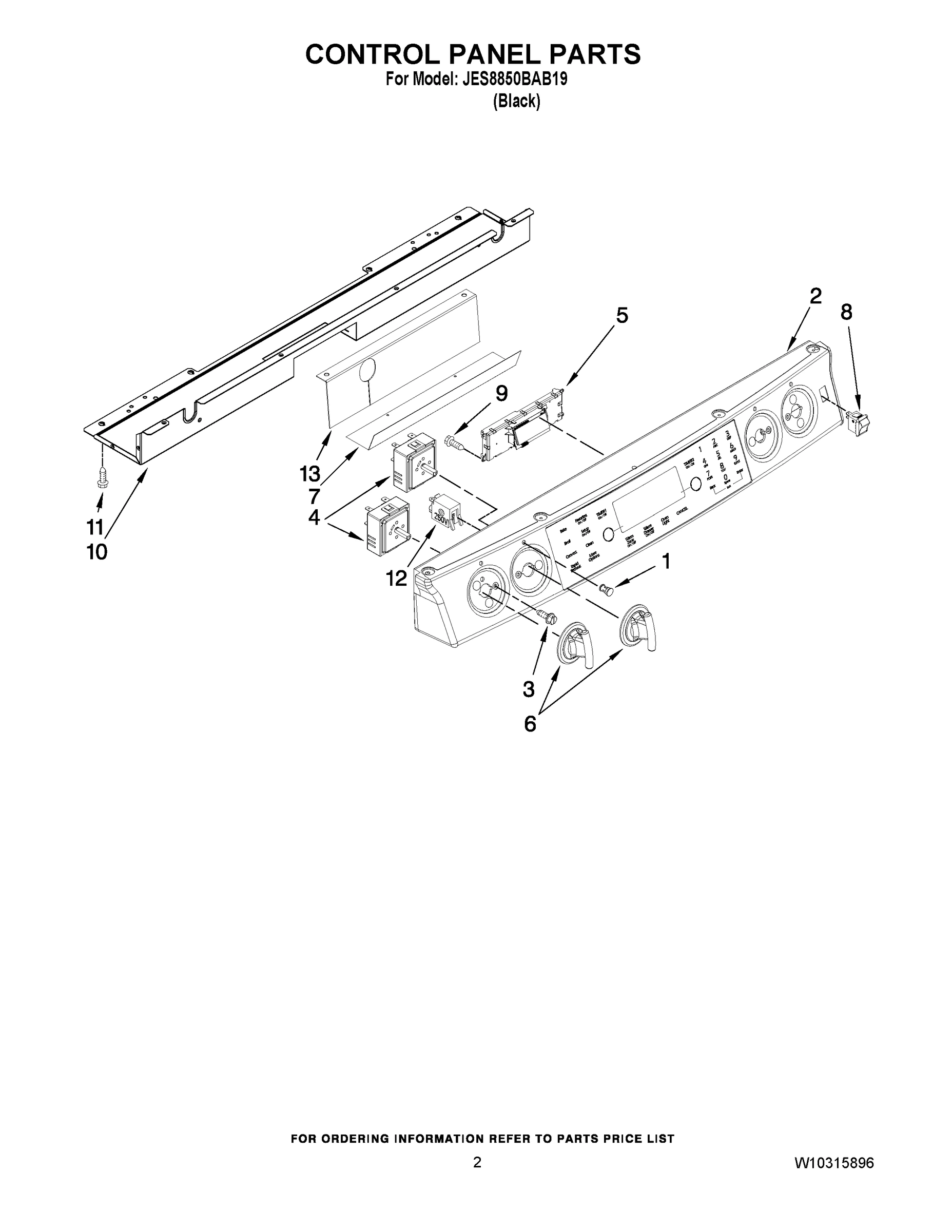

02 - CONTROL PANEL PARTS

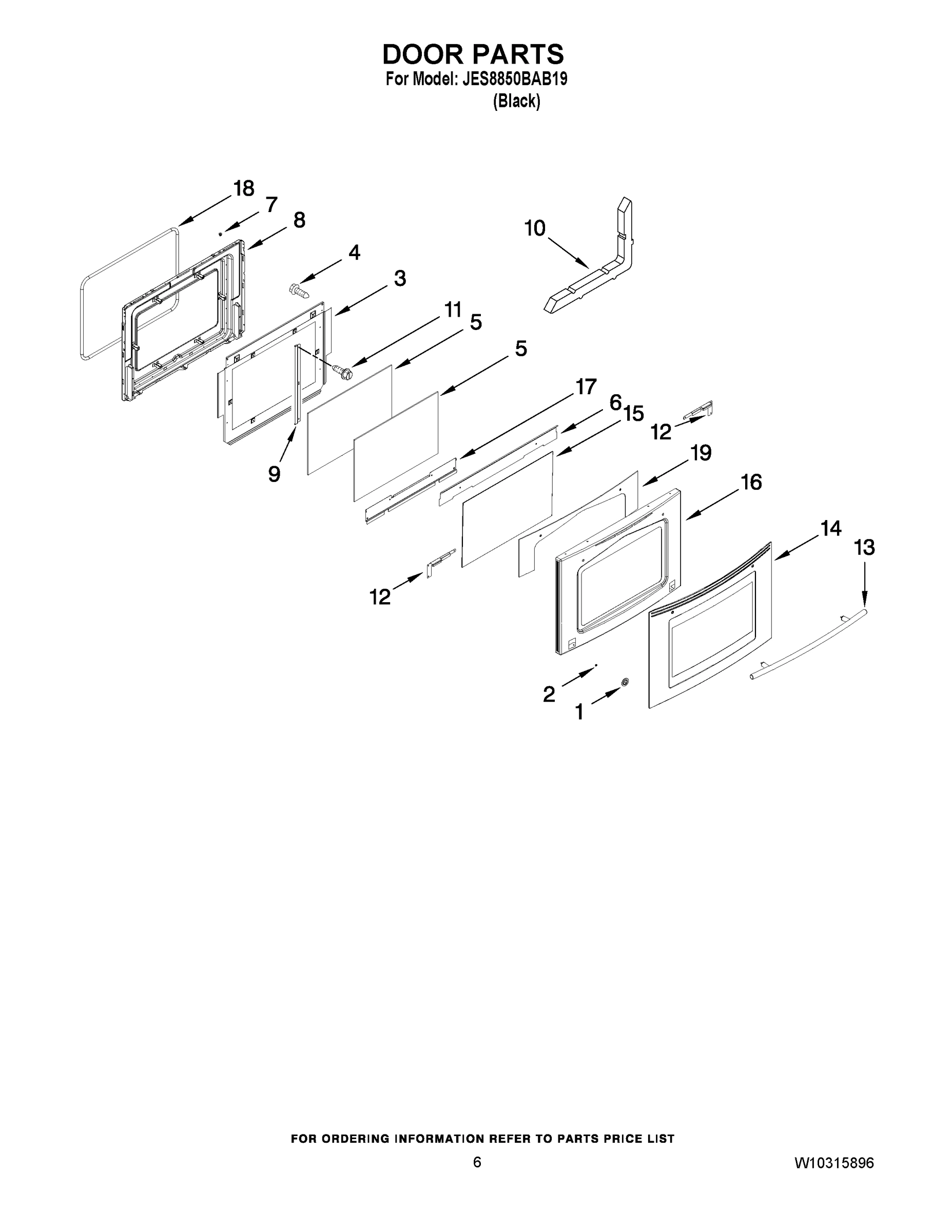

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool JES8850BAB19 ELECTRIC RANGE
1
RACK, OVEN WPL 7801P17360 Contact Us For Availability
1
USE & CARE GUIDE WPL 8101P69960 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL 8113P75860 Contact Us For Availability
1
WIRING DIAGRAM WPL 8119P42260 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (ENGLISH) WPL 9762761 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (FRENCH) WPL W10065852 Contact Us For Availability
1
LENS WPL 7730P03160 Contact Us For Availability
1
WASHER WPL 7109P08260 Contact Us For Availability
2
PANEL, CONTROL (BLACK) WPL W10206086 Contact Us For Availability
2
DRAWER, WARMING WPL 3405W04319 Contact Us For Availability
2
COOKTOP (BLACK) WPL W10199497 Contact Us For Availability
2
NUT (10-32) WPL 7103P17660 Contact Us For Availability
3
SCREW (10-24) WPL 7101P07260 Contact Us For Availability
3
ELEMENT, WARMER (CENTER) WPL 7406P45460 Contact Us For Availability
3
SCREW, SWITCH WPL 7101P67660 Contact Us For Availability
3
BAFFLE, OVEN DOOR WPL 3601F37351 Contact Us For Availability
4
BRACKET, DRAWER WPL 3801F88751 Contact Us For Availability
4
SCREW, 8AB X 1/2 WPL 7101P37660 Contact Us For Availability
4
ELEMENT LR/RR WPL 7406P37560 Contact Us For Availability
4
SWITCH, INFINITE (LR) WPL 7403P37360 Contact Us For Availability
4
SWITCH, INFINITE (RR) WPL 7403P87760 Contact Us For Availability
4
SWITCH, INFINITE (LF) WPL 7450P01160 Contact Us For Availability
5
PANEL, DRAWER (W/HANDLE) (BLACK) WPL 2416F08670 Contact Us For Availability
5
TUBE, VENT UPPER WPL W10233479 Contact Us For Availability
5
CONTROL, EOC WPL 8507P22660 Contact Us For Availability
5
Glass, Inner WPL 7902P43660 Contact Us For Availability
6
SCREW WPL 7101P49860 Contact Us For Availability
6
KNOB (RF) WPL 7737P39160 Contact Us For Availability
6
KNOB (LF) WPL 7737P39260 Contact Us For Availability
6
KNOB (RR) WPL 7737P39360 Contact Us For Availability
6
KNOB (LR) WPL 7737P39560 Contact Us For Availability
6
SHIELD WPL 3604F41851 Contact Us For Availability
7
NUT, LOCK (10-24) WPL 7103P13960 Contact Us For Availability
7
SPACER, RUBBER WPL 8010P15260 Contact Us For Availability
7
SHIELD, CONTROL WPL 7003P15260 Contact Us For Availability
7
NUT, SNAP WPL 7103P14160 Contact Us For Availability
8
GLASS, DRAWER (BLACK) WPL 7922P05760 Contact Us For Availability
8
TRIM, VENT (BLACK) WPL 7744P46460 Contact Us For Availability
8
SWITCH, ROCKER (BLACK) WPL 7403P79860 Contact Us For Availability
8
Lining, Door WPL 2402W31219 Contact Us For Availability
9
ELEMENT,TRIPLE-RF WPL 7406P39760 Contact Us For Availability
9
SCREW, CONTROL WPL 7101P07760 Contact Us For Availability
9
Bracket, Glass WPL 3801F88651 Contact Us For Availability
10
BACK, WARMING DRAWER WPL 4002F34045 Contact Us For Availability
10
ELEMENT,DUAL-LF WPL 7406P50160 Contact Us For Availability
10
SUPPORT, CONTROL PANEL WPL 3807F73151 Contact Us For Availability
10
Insulation, Door WPL 7002P24660 Contact Us For Availability
11
SCREW WPL 7101P42660 Contact Us For Availability
11
ELEMENT, WARMER WPL 7406P29460 Contact Us For Availability
11
GASKET, VENT TRIM WPL 7201P07660 Contact Us For Availability
12
CLIP, MOUNTING (4) (WARMER ELEMENT) WPL 7112P15360 Contact Us For Availability
12
SUPPORT, ELEMENT WPL 8004P09360 Contact Us For Availability
12
Light, Indicator WPL 7407P13660 Contact Us For Availability
12
RETAINER, GLASS (RIGHT) WPL 3804F30751 Contact Us For Availability
12
RETAINER, GLASS (LEFT) WPL 3804F30851 Contact Us For Availability
13
SHIELD, WARM DRAWER BACK WPL 3604F43451 Contact Us For Availability
13
SHIELD, INSULATOR WPL 7003P15060 Contact Us For Availability
13
HANDLE, DOOR WPL 7701P47360 Contact Us For Availability
14
SHIELD, WARM DRAWER SIDE WPL 3604F41451 Contact Us For Availability
14
GLASS, DOOR (BLACK) WPL 7922P05160 Contact Us For Availability
15
RECEPTACLE, WPL 7408P08660 Contact Us For Availability
15
GLASS, COATED WPL 7902P76860 Contact Us For Availability
16
NUT WPL 7103P17760 Contact Us For Availability
16
FRAME, DOOR (BLACK) WPL 3603F07570 Contact Us For Availability
17
TUBE, VENT UPPER WPL 8026P08460 Contact Us For Availability
17
RETAINER,GLASS BTM WPL 3804F31780 Contact Us For Availability
19
HOLDER, VENT TUBE WPL 3605F34551 Contact Us For Availability
19
INSULATION, FOIL WPL 7002P46560 Contact Us For Availability
20
SMOKE ELIMINATOR WPL 8034P00860 Contact Us For Availability
21
PLATE, SMOKE ELM. WPL 3605F35445 Contact Us For Availability
22
LIGHT ASSY HALOGEN WPL 7407P18060 Contact Us For Availability
23
BRACKET, POWER SUPPLY WPL 3801F91151 Contact Us For Availability
24
COVER, LIGHT WPL 4005F68451 Contact Us For Availability
25
TRIM, SIDE (BLACK) WPL 3608F13870 Contact Us For Availability
26
Screw WPL 7101P50060 Contact Us For Availability
27
ELEMENT, BAKE WPL 7406P41160 Contact Us For Availability
28
PAN, HIDDEN BAKE WPL 3401F09245 Contact Us For Availability
29
COVER, DOOR LATCH WPL 4005F75051 Contact Us For Availability
30
HINGE WPL 7106P14360 Contact Us For Availability
31
SCREW, HINGE WPL 7101P28260 Contact Us For Availability
32
SWITCH, HI-LIMIT WPL 7403P64760 Contact Us For Availability
34
EXTENSION, SHIELD WPL 3826F06451 Contact Us For Availability
35
SUPPORT, ELEMENT (BROIL) WPL 3807F75445 Contact Us For Availability
36
LEG, LEVELING WPL 7101P66060 Contact Us For Availability
37
PEDESTAL, BOTTOM WPL 4020W03580 Contact Us For Availability
38
BASE, PEDESTAL WPL W10271711 Contact Us For Availability
39
SUPPORT, VALVE/REG WPL 3807F64051 Contact Us For Availability
41
SHIELD, HEAT POUCH WPL 3604F32751 Contact Us For Availability
42
SUPPORT, ELEMENT (REAR) WPL 3807F63345 Contact Us For Availability
43
SWITCH, HI LIMIT (100F/85F) WPL 7403P65760 Contact Us For Availability
44
RETAINER, INSUL (BOTTOM) WPL 3804F23151 Contact Us For Availability
45
BRACKET, ANTI-TIP WPL 3801F65651 Contact Us For Availability
46
TRIM, FRONT FRAME WPL 7713P05460 Contact Us For Availability
47
SHIELD,WARMING DWR WARMING DRAWER WPL 3604F32645 Contact Us For Availability
48
COVER, FRONT WPL 4005F74945 Contact Us For Availability
49
BOTTOM, OVEN WPL 2205F06019 Contact Us For Availability
50
ASSEMBLY, CONVECTION FAN WPL W10213813 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
NI
INSULATION, OVEN BOTTOM WPL 7002P44360 Contact Us For Availability
NI
INSULATION, BACK WPL 7002P44560 Contact Us For Availability
NI
INSULATION, HIDDEN BAKE COVER WPL 7002P44860 Contact Us For Availability
NI
INSULATION, WRAP WPL 7002P47160 Contact Us For Availability
NI
HARNESS, SENSOR WPL 5171P53760 Contact Us For Availability
NI
HARNESS,SWITCH(LT) WPL 5171P78460 Contact Us For Availability
NI
HARNESS, WIRE (WARMING DRAWER) WPL 5171P80960 Contact Us For Availability
NI
HARNESS, WIRE (MAIN) WPL 5171P90060 Contact Us For Availability
NI
HARNESS, WIRE (TOP) WPL 5171P90160 Contact Us For Availability
NI
Screw, Ground WPL 7101P02760 Contact Us For Availability
× ![]()
