Whirlpool JES8850BAB ELECTRIC RANGE Parts List

1

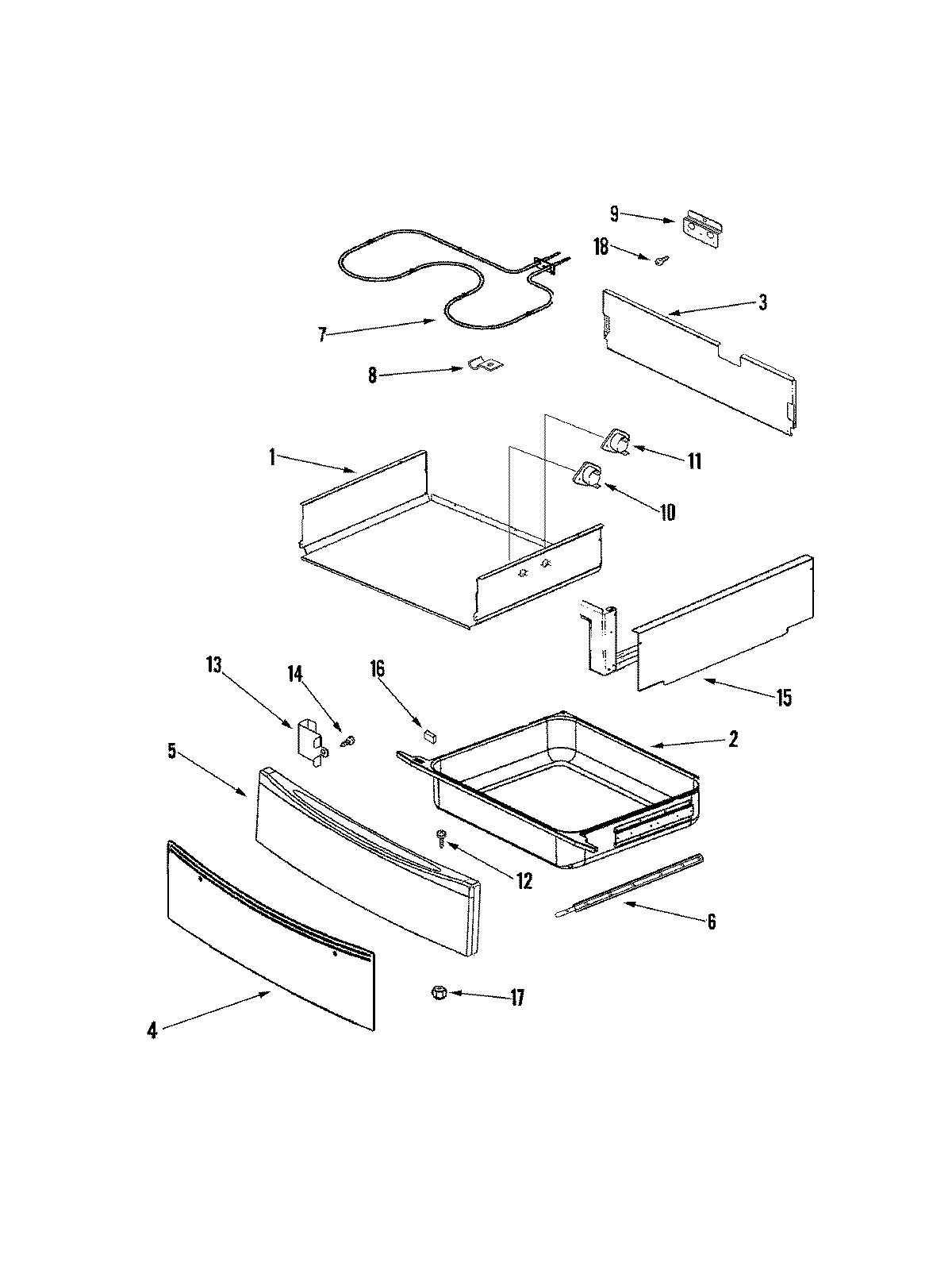

BODY, WARMING DRAWER WPL 74011814 Contact Us For Availability

View on Model

1

BACK, MAIN WPL 74011465 Contact Us For Availability

View on Model

1

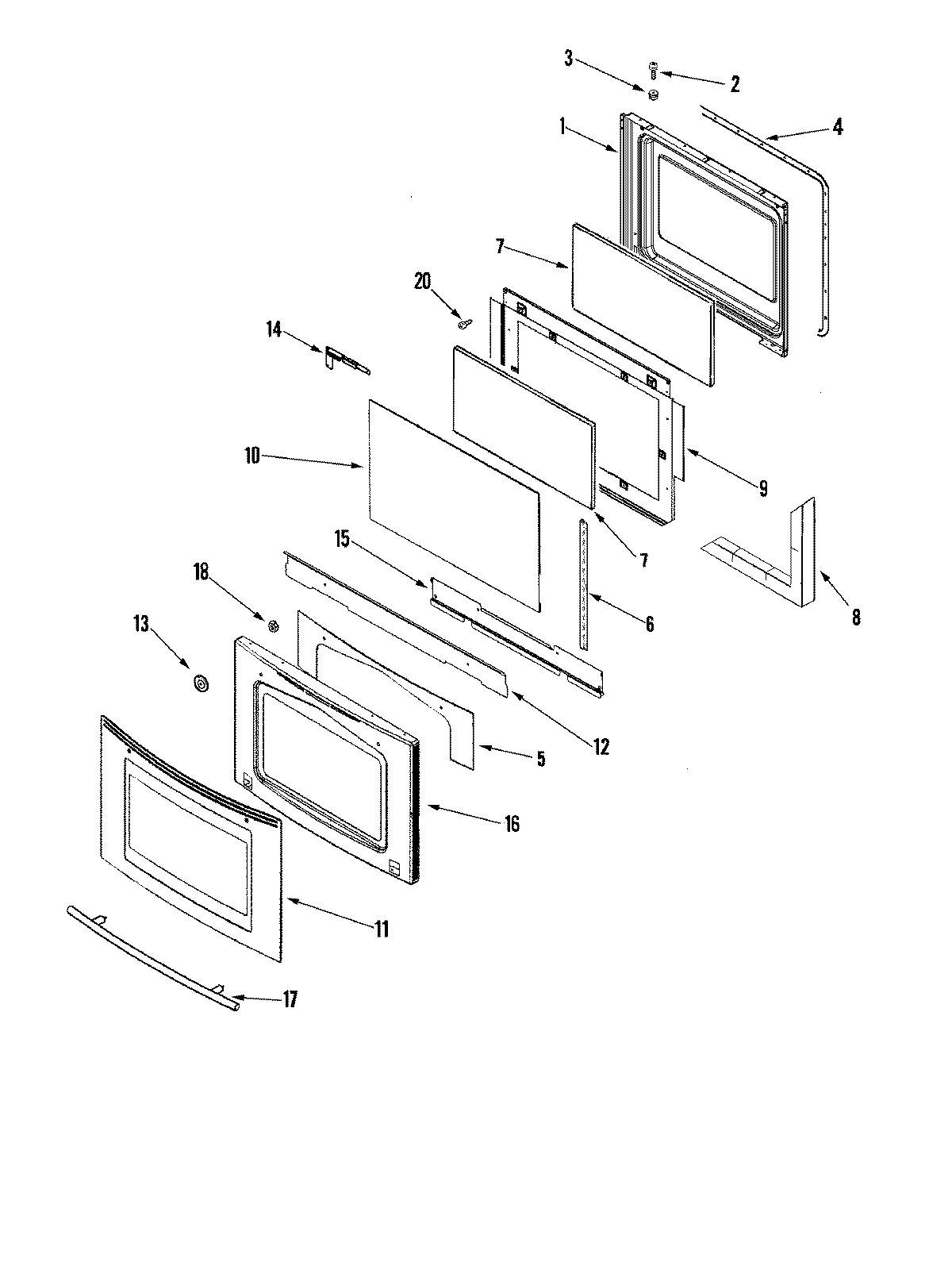

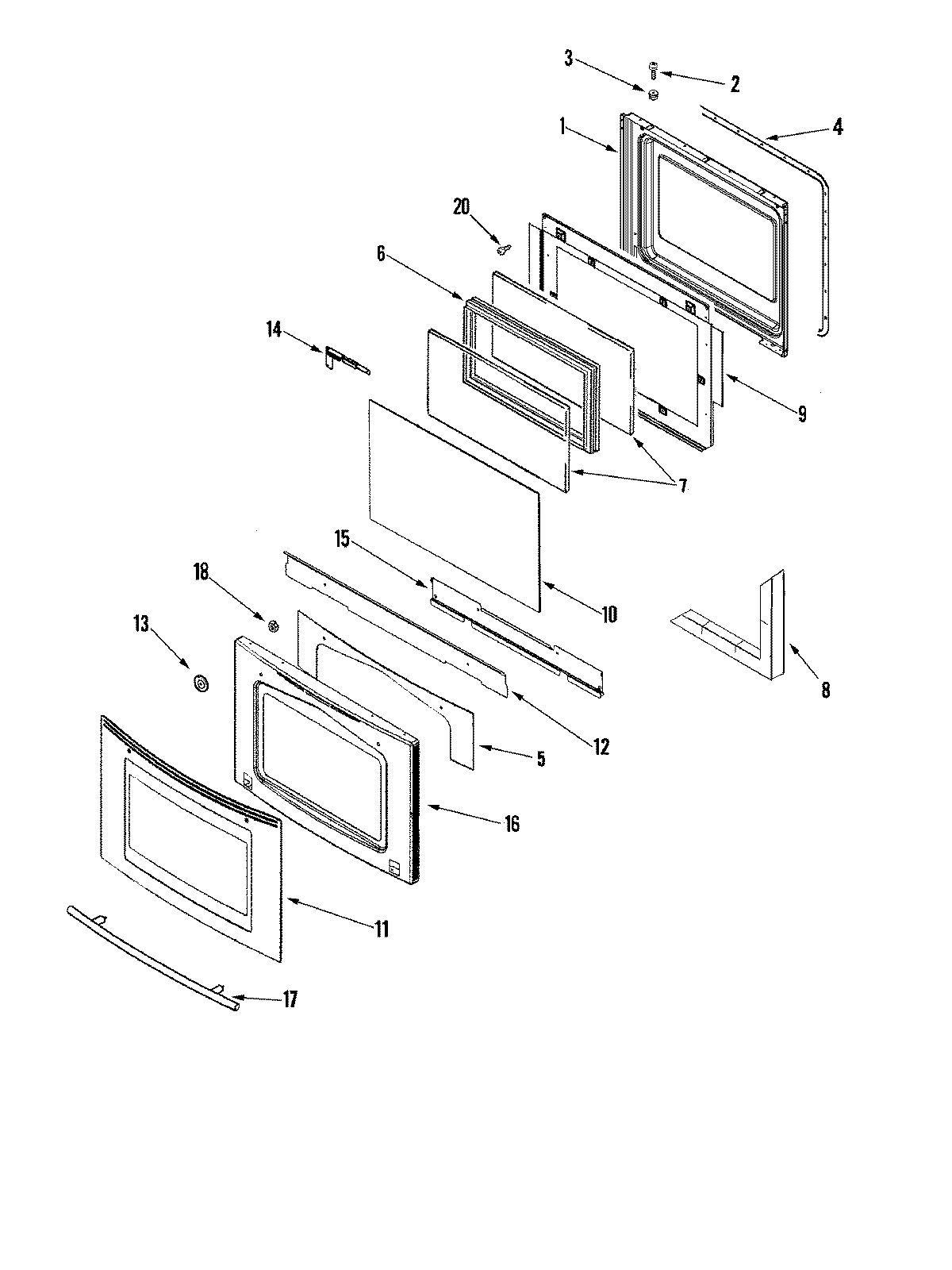

LINING, DOOR WPL 74003642 Contact Us For Availability

View on Model

1

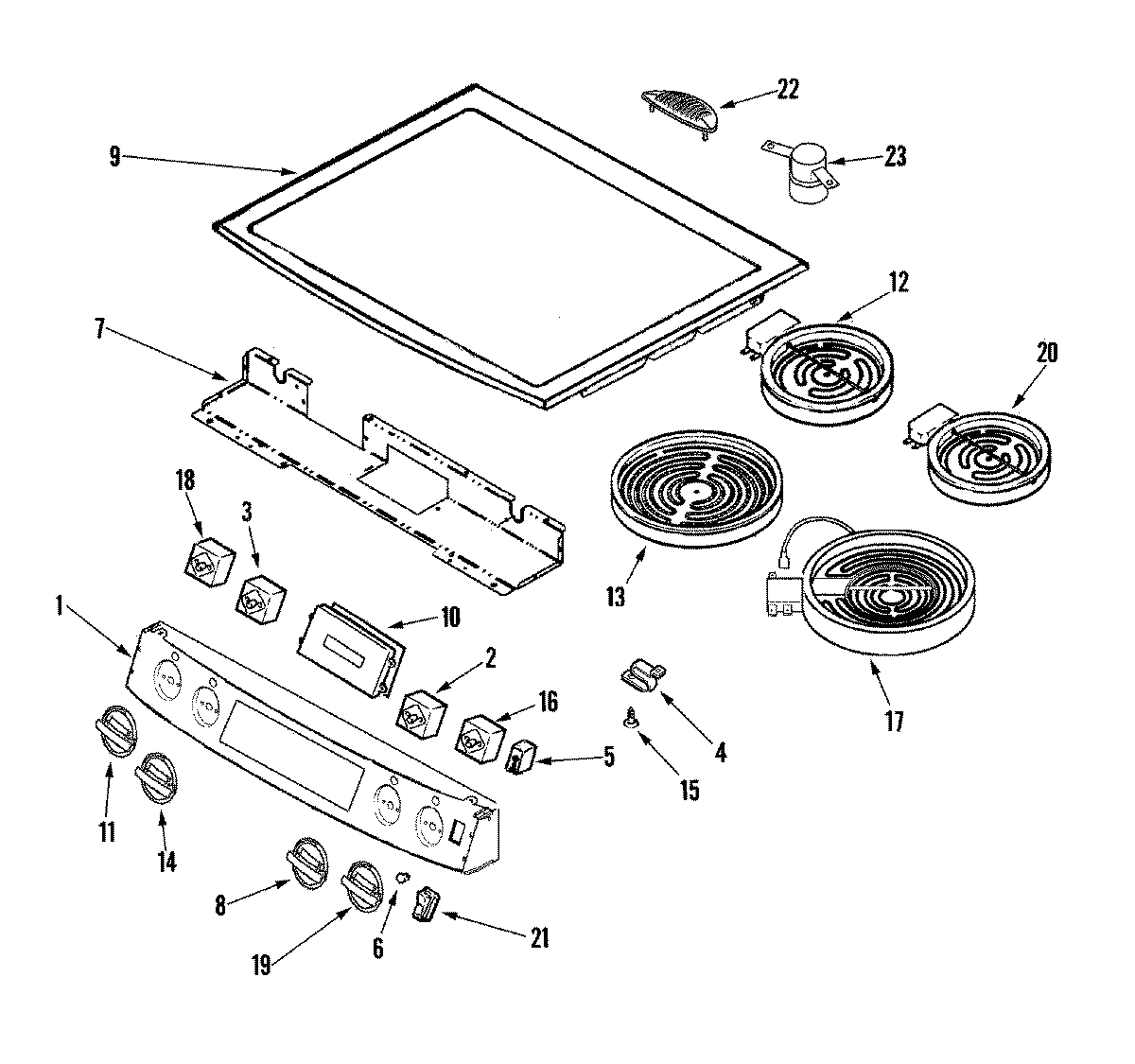

CONTROL PANEL/SWITCH ASY (BLK) WPL 74011621 Contact Us For Availability

View on Model

1

LINING, DOOR WPL 74011456 Contact Us For Availability

View on Model

2

WP74008940 Whirlpool Infinite Switch In Stock WPL WP74008940 $135.64

View on Model

2

WP98008545 Whirlpool Screw Backorder WPL WP98008545 $11.88

View on Model

2

DRAWER, WARMING WPL 74011815 Contact Us For Availability

View on Model

2

INSULATION, WRAPPER WPL 74010987 Contact Us For Availability

View on Model

3

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $6.85

View on Model

3

BACK, WARMING DRAWER WPL 74011816 Contact Us For Availability

View on Model

3

EXTENSION, MAIN BACK WPL 74010815 Contact Us For Availability

View on Model

3

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

View on Model

4

74011475 Whirlpool Range Oven Door Hinge Asse In Stock WPL 74011475 $87.72

View on Model

4

GLASS ASY, DRAWER (BLK) WPL 74011543 Contact Us For Availability

View on Model

4

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

View on Model

4

SUPPORT, ELEMENT WPL 74007845 Contact Us For Availability

View on Model

5

WP2416F086-70 Whirlpool Panel Assembly Backorder WPL WP2416F086-70 $157.87

View on Model

5

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $4.82

View on Model

5

TUBE, VENT WPL 74010816 Contact Us For Availability

View on Model

5

HOLDER, VENT TUBE WPL 74010817 Contact Us For Availability

View on Model

5

INSULATION, DOOR WPL 74011509 Contact Us For Availability

View on Model

6

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $8.89

View on Model

6

74008265 Whirlpool Oven High Limit Thermostat Backorder WPL 74008265 $148.74

View on Model

6

WP22001948 Whirlpool Indicator Lens In Stock WPL WP22001948 $7.93

View on Model

6

WP74006588 Whirlpool Warming Drawer Glide Backorder WPL WP74006588 $74.51

View on Model

6

TRIM, FRONT FRAME (BLK) WPL 74011482 Contact Us For Availability

View on Model

6

FRAME, GLASS WPL 74003644 Contact Us For Availability

View on Model

7

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $115.28

View on Model

7

WP2205F060-19 Whirlpool Range Bottom Backorder WPL WP2205F060-19 $212.76

View on Model

7

WP7450P108-60 Whirlpool Lite Switch Backorder WPL WP7450P108-60 $113.42

View on Model

7

ELEMENT, WARMER WPL 74005789 Contact Us For Availability

View on Model

7

SUPPORT, CONTROL PANEL WPL 74011761 Contact Us For Availability

View on Model

8

WP74011580 Whirlpool Flex Control Knob In Stock WPL WP74011580 $29.48

View on Model

8

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

View on Model

8

CLIP, WARMING ELEMENT WPL 74006592 Contact Us For Availability

View on Model

8

BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability

View on Model

8

INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability

View on Model

9

3601F373-51 Whirlpool Baffle Backorder WPL 3601F373-51 $195.78

View on Model

9

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

View on Model

9

SCREW WPL 7101P35260 Contact Us For Availability

View on Model

9

SUPPORT, ELEMENT (REAR) WPL 74006576 Contact Us For Availability

View on Model

9

SCREW----NA WPL 22002368 Contact Us For Availability

View on Model

9

BAFFLE, OVEN DOOR WPL 74011339 Contact Us For Availability

View on Model

9

GLASS TOP ASY (BLK) WPL 74011635 Contact Us For Availability

View on Model

10

7403P647-60 Whirlpool Limit Switch Backorder WPL 7403P647-60 $24.33

View on Model

10

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 $5.02

View on Model

10

WP8507P226-60 Whirlpool Electronic Control Bo Backorder WPL WP8507P226-60 $349.38

View on Model

10

SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability

View on Model

10

PAN, BAKE WPL 74010806 Contact Us For Availability

View on Model

10

GLASS, DOOR (INNER/COATED) WPL 74010231 Contact Us For Availability

View on Model

11

WP74011579 Whirlpool Control Knob In Stock WPL WP74011579 $29.48

View on Model

11

SWITCH, HI-LIMIT (ELEC/DRAWER) WPL 74006587 Contact Us For Availability

View on Model

11

TUBE, VENT (LWR) WPL 74010808 Contact Us For Availability

View on Model

11

PLATE, VENT COVER WPL 74010809 Contact Us For Availability

View on Model

11

ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability

View on Model

11

GLASS ASY, DOOR (BLK) WPL 74011511 Contact Us For Availability

View on Model

12

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 $134.91

View on Model

12

WP7101P072-60 Whirlpool Screw Backorder WPL WP7101P072-60 $4.82

View on Model

12

SHIELD, BROIL (30``) WPL 74008408 Contact Us For Availability

View on Model

12

BUMPER, ROD WPL 74001631 Contact Us For Availability

View on Model

12

SHIELD, DOOR WPL 74011049 Contact Us For Availability

View on Model

13

W10823722 Whirlpool Surface Element In Stock WPL W10823722 $279.62

View on Model

13

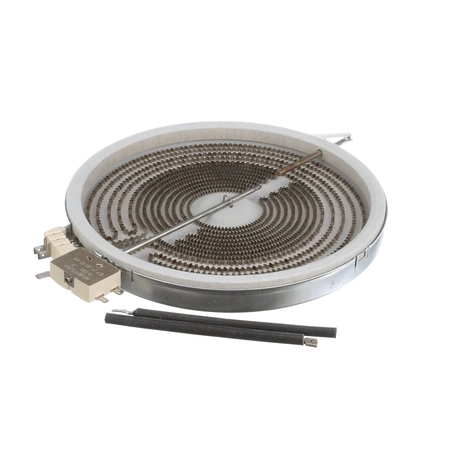

W10823724 Whirlpool Surface Element In Stock WPL W10823724 $265.73

View on Model

13

WP7406P430-60 Whirlpool Broil Element In Stock WPL WP7406P430-60 $144.92

View on Model

13

WASHER, HANDLE WPL 74009194 Contact Us For Availability

View on Model

13

BRACKET, DRAWER WPL 74010896 Contact Us For Availability

View on Model

13

INSULATOR WPL 74008264 Contact Us For Availability

View on Model

14

74010819 Whirlpool Latch Assembly Backorder WPL 74010819 $234.61

View on Model

14

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

View on Model

14

WP74011493 Whirlpool Burner Knob In Stock WPL WP74011493 $38.83

View on Model

14

SUPPORT, BROIL ELEMENT WPL 74003563 Contact Us For Availability

View on Model

14

RETAINER, GLASS (LT) WPL 74011503 Contact Us For Availability

View on Model

14

RETAINER, GLASS (RT) WPL 74011504 Contact Us For Availability

View on Model

14

RETAINER, GLASS (RT) WPL 74011463 Contact Us For Availability

View on Model

14

RETAINER, GLASS (LT) WPL 74011797 Contact Us For Availability

View on Model

15

WP7101P498-60 Whirlpool Screw Backorder WPL WP7101P498-60 $4.82

View on Model

15

WP7406P411-60 Whirlpool Bake Element Backorder WPL WP7406P411-60 $242.09

View on Model

15

SHEILD, SIDE (WARMING DRWR) WPL 74011818 Contact Us For Availability

View on Model

15

EXTENSION, HEAT SHEILD WPL 74010820 Contact Us For Availability

View on Model

15

RETAINER, DOOR GLASS WPL 74007215 Contact Us For Availability

View on Model

15

RETAINER, GLASS (LWR) WPL 74011464 Contact Us For Availability

View on Model

16

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

View on Model

16

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $6.25

View on Model

16

WP74010824 Whirlpool Range Element Control Sw In Stock WPL WP74010824 $83.64

View on Model

16

PANEL, SHIELD (LT) WPL 74010821 Contact Us For Availability

View on Model

16

FRAME, DOOR (BLK) WPL 74011507 Contact Us For Availability

View on Model

17

W10823718 Whirlpool Surface Element Backorder WPL W10823718 $236.75

View on Model

17

WP74008625 Whirlpool Door Handle Backorder WPL WP74008625 $195.02

View on Model

17

WPW10586440 Whirlpool Blower Fan Backorder WPL WPW10586440 $228.42

View on Model

17

LIGHT ASY, HAL0GEN WPL 74011220 Contact Us For Availability

View on Model

17

NUT, LOCK WPL 7103P13960 Contact Us For Availability

View on Model

18

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $5.30

View on Model

18

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

View on Model

18

WPW10185286 Whirlpool Infinite Switch In Stock WPL WPW10185286 $151.35

View on Model

18

COVER, DOOR LATCH WPL 74010845 Contact Us For Availability

View on Model

19

3801F911-51 Whirlpool Bracket Backorder WPL 3801F911-51 $5.46

View on Model

19

WP74011631 Whirlpool Burner Knob Stainless St Backorder WPL WP74011631 $45.24

View on Model

19

SUPPORT, OVEN BOTTOM WPL 74010812 Contact Us For Availability

View on Model

20

74011620 Whirlpool Range Element Backorder WPL 74011620 $126.93

View on Model

20

WP67006908 Whirlpool Refrigerator Screw Backorder WPL WP67006908 $5.02

View on Model

20

INSULATOR, POWER CORD WPL 74006364 Contact Us For Availability

View on Model

21

COVER, FRONT WPL 74010807 Contact Us For Availability

View on Model

21

SWITCH, ROCKER (BLK) WPL 74008718 Contact Us For Availability

View on Model

22

TRIM, VENT (BLK) WPL 74011632 Contact Us For Availability

View on Model

23

WP7430P038-60 Whirlpool Meat Probe Sensor In Stock WPL WP7430P038-60 $107.56

View on Model

23

COVER, TERMINAL BLOCK WPL 74005264 Contact Us For Availability

View on Model

23

TUBE, VENT (UPR) WPL 74005759 Contact Us For Availability

View on Model

24

CONVECTION FAN ASY. WPL 74011517 Contact Us For Availability

View on Model

24

SCREW WPL 7101P11260 Contact Us For Availability

View on Model

25

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

View on Model

25

WPW10186795 Whirlpool Convection Baffle Backorder WPL WPW10186795 $54.31

View on Model

26

3804F300-51 Whirlpool Retainer Backorder WPL 3804F300-51 $47.73

View on Model

26

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

View on Model

27

SCREW W/WASHER WPL 7101P12460 Contact Us For Availability

View on Model

27

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

View on Model

NI

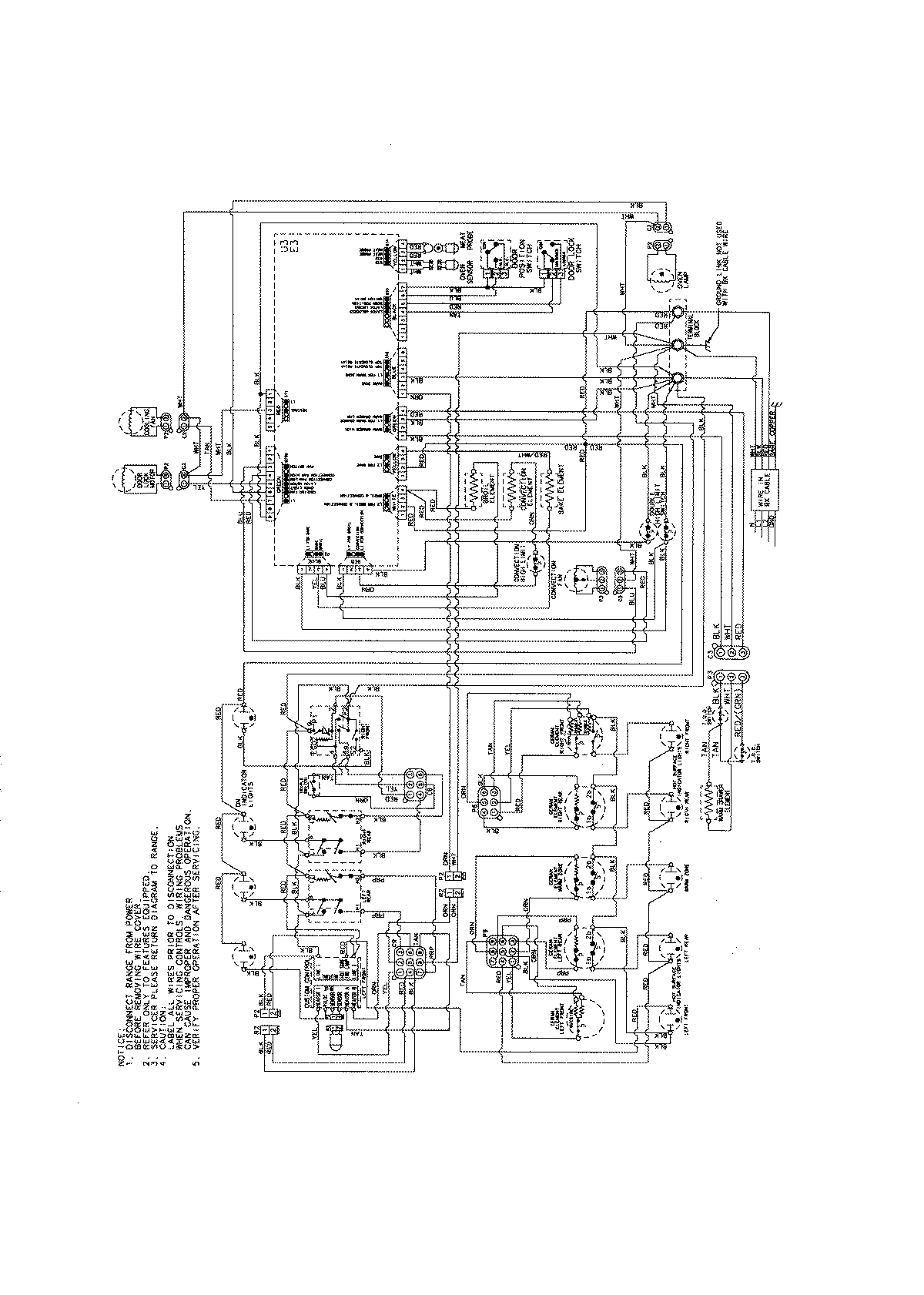

WIRING INFORMATION WPL 15003891 Contact Us For Availability

View on Model
