Model Whirlpool JES8750BAF16 ELECTRIC RANGE – Common Parts & Diagrams
06 - OPTIONAL PARTS (NOT INCLUDED)

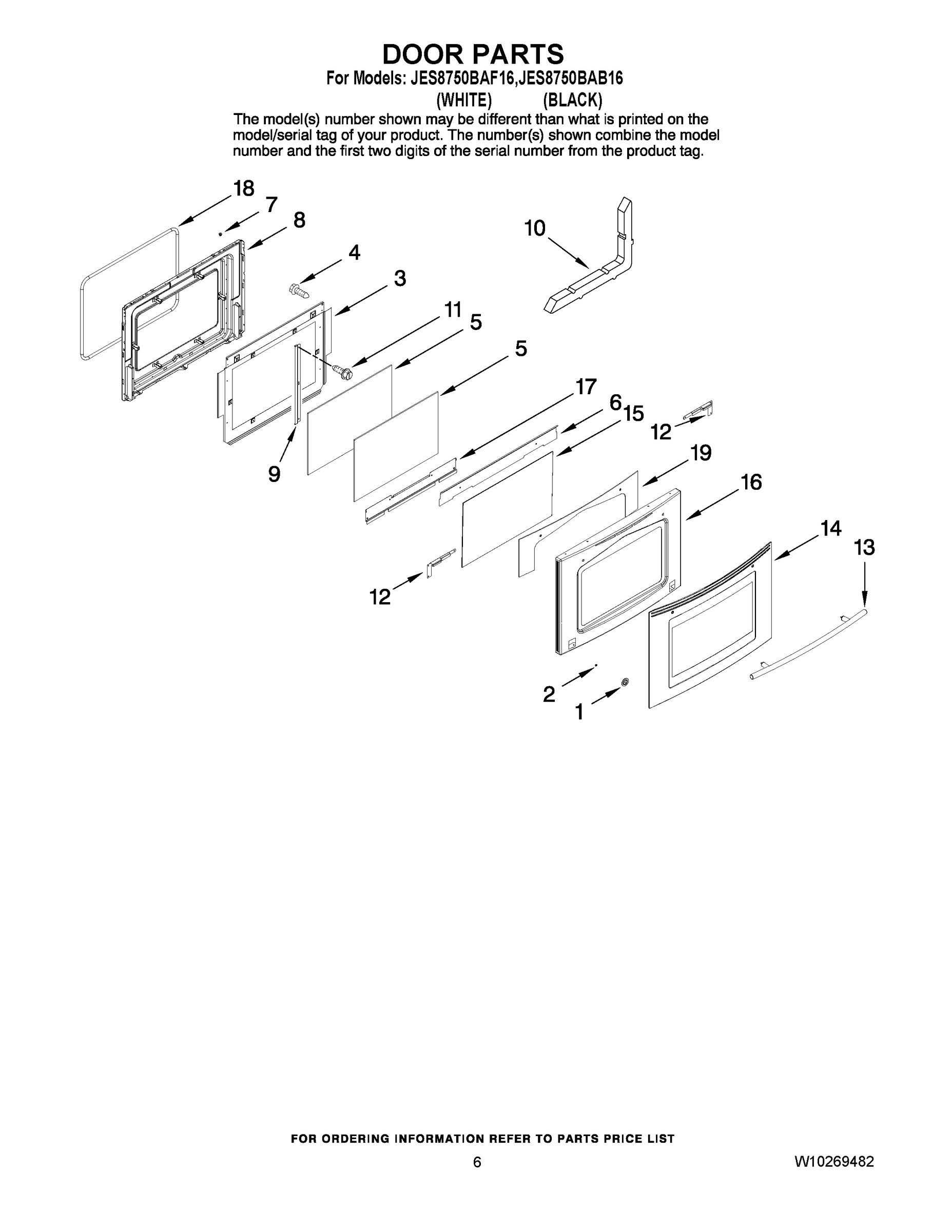

05 - DOOR PARTS

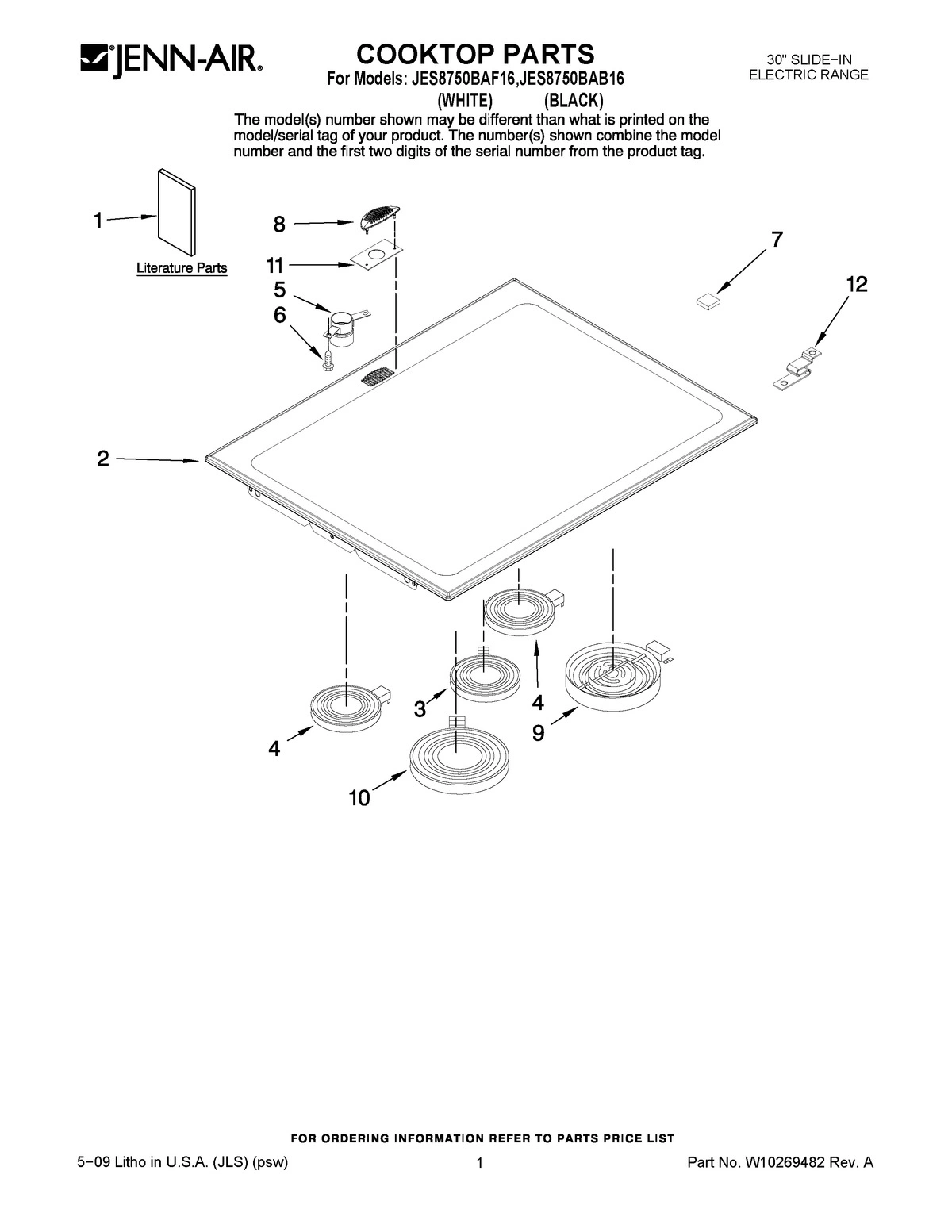

01 - COOKTOP PARTS

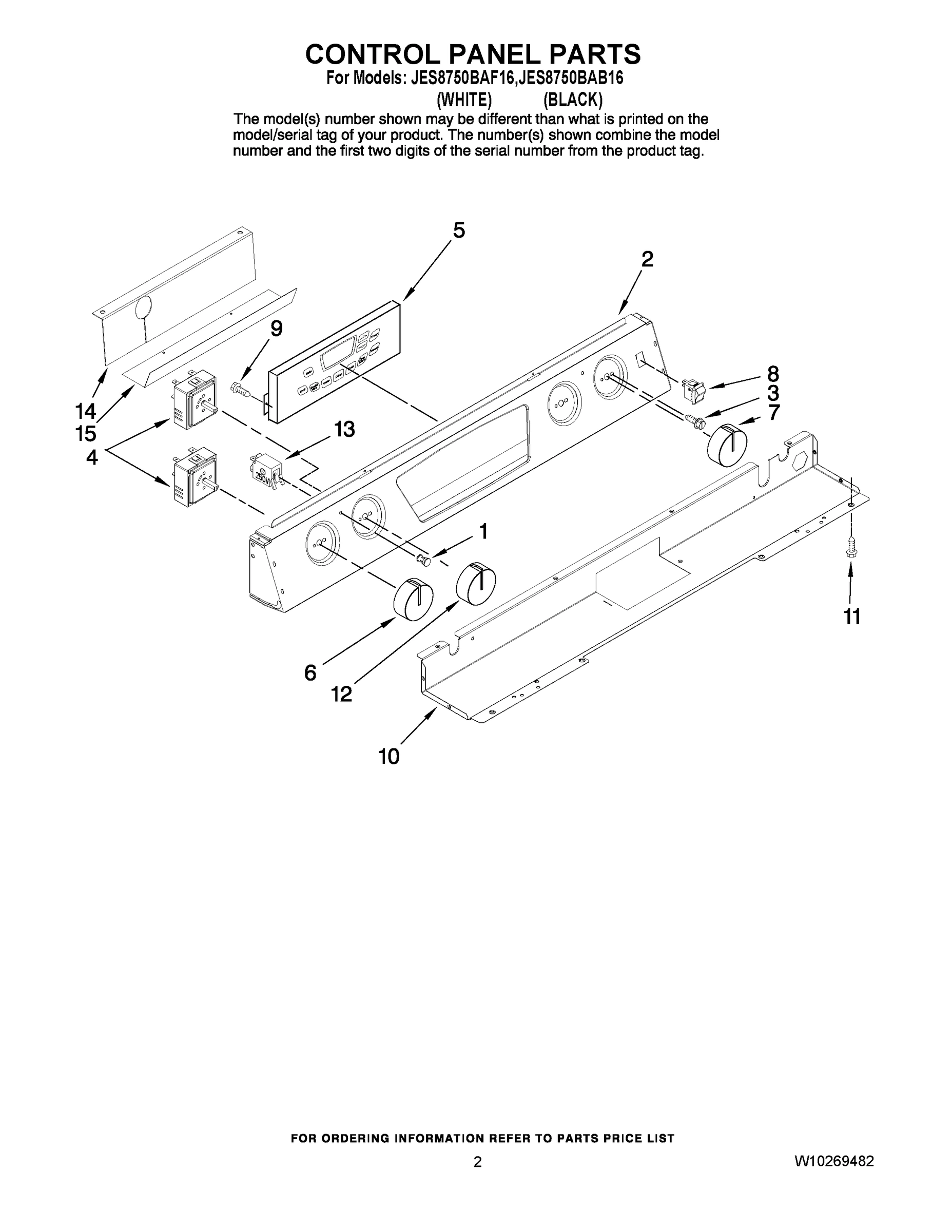

02 - CONTROL PANEL PARTS

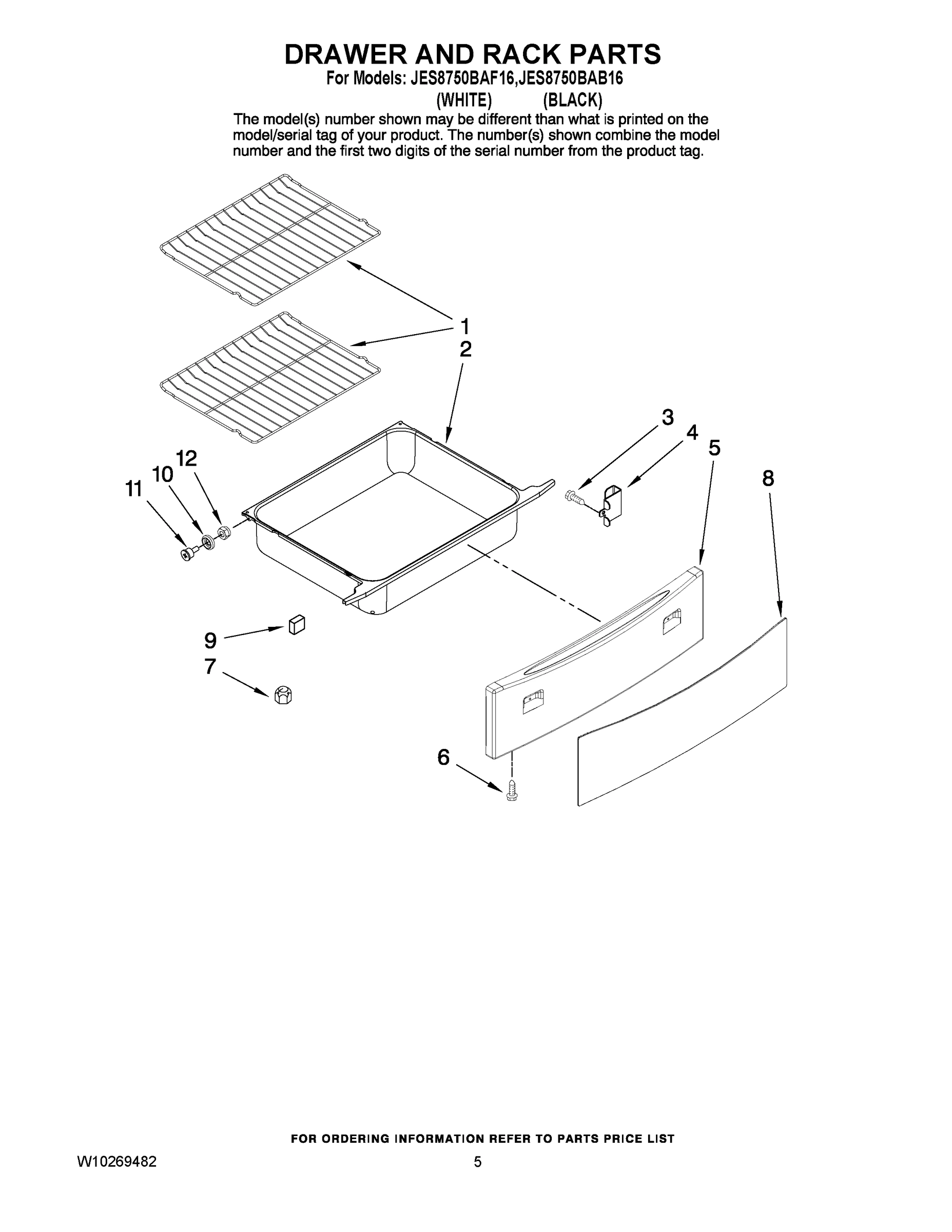

04 - DRAWER AND RACK PARTS

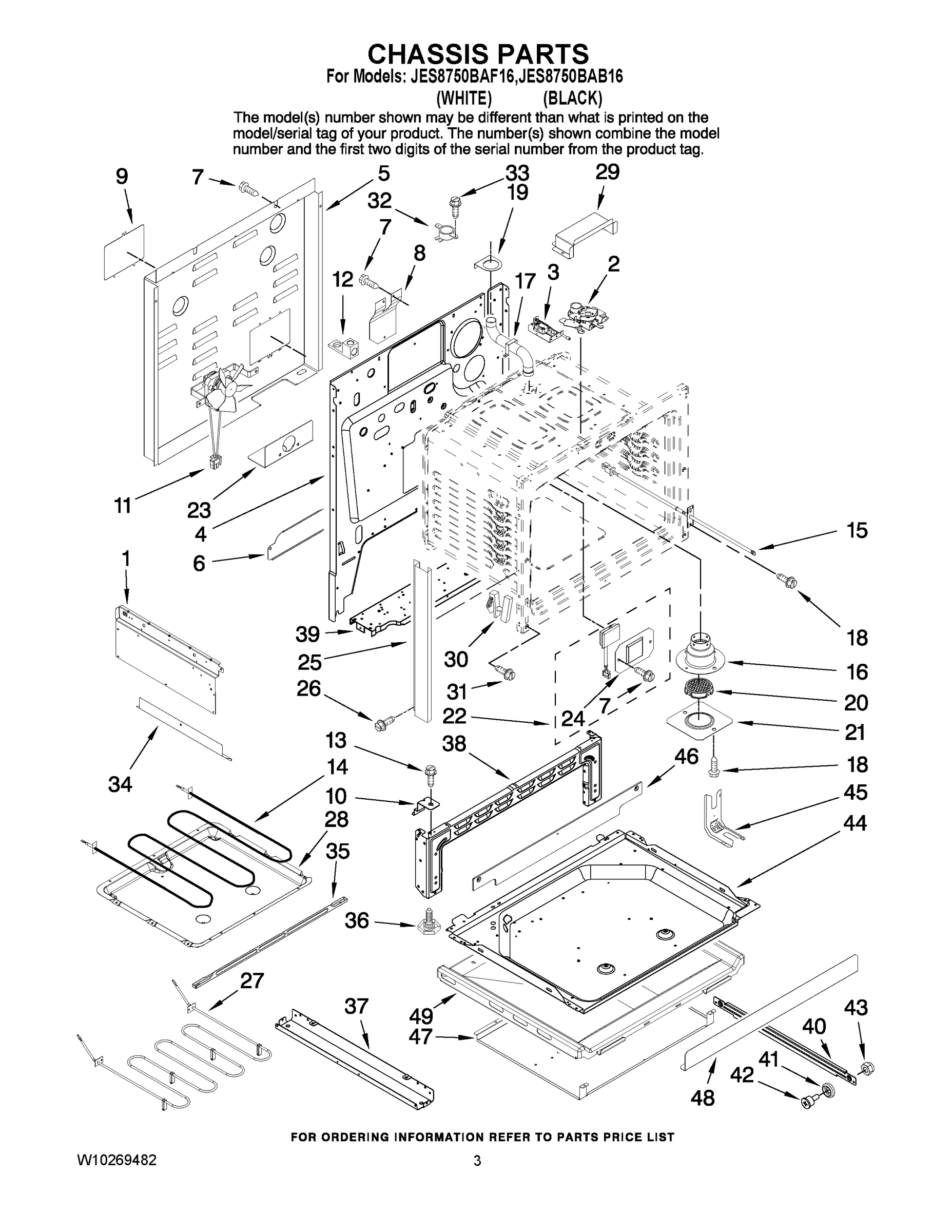

03 - CHASSIS PARTS
Common parts from model Whirlpool JES8750BAF16 ELECTRIC RANGE
1
WASHER WPL 7109P08260 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL 8101P69960 Contact Us For Availability
1
USE & CARE GUIDE WPL 8113P75860 Contact Us For Availability
1
WIRING DIAGRAM WPL 8119P15160 Contact Us For Availability
1
LENS WPL 7730P03160 Contact Us For Availability
1
RACK, OVEN WPL 7801P17360 Contact Us For Availability
1
PANEL, SHIELD (LEFT) WPL 2618F20151 Contact Us For Availability
1
PANEL, SHIELD (RIGHT) WPL 2618F20651 Contact Us For Availability
2
PANEL, CONTROL (BLACK) WPL W10206083 Contact Us For Availability
2
PANEL, CONTROL (WHITE) WPL W10206082 Contact Us For Availability
2
NUT (10-32) WPL 7103P17660 Contact Us For Availability
2
COOKTOP (WHITE) WPL 7920P12560 Contact Us For Availability
2
COOKTOP (BLACK) WPL 7920P22160 Contact Us For Availability
2
DRAWER, STORAGE WPL 3405F03380 Contact Us For Availability
2
LATCH ASSEMBLY WPL 8002P08960 Contact Us For Availability
3
BAFFLE, OVEN DOOR WPL 3601F37351 Contact Us For Availability
3
ELEMENT, WARM WPL 7406P45460 Contact Us For Availability
3
SCREW, SWITCH WPL 7101P67660 Contact Us For Availability
3
SCREW (10-24) WPL 7101P07260 Contact Us For Availability
3
LIGHT SWITCH ASSY WPL 7450P10960 Contact Us For Availability
4
SCREW, 8AB X 1/2 WPL 7101P37660 Contact Us For Availability
4
ELEMENT LR/RR WPL 7406P37560 Contact Us For Availability
4
SWITCH, INFINITE (6`` (LR/RR)) WPL 7403P37360 Contact Us For Availability
4
SWITCH, INFINITE (DUAL (RF/LF)) WPL 7450P01160 Contact Us For Availability
4
BRACKET, DRAWER WPL 3801F88751 Contact Us For Availability
4
MAIN BACK WPL 3804F29451 Contact Us For Availability
5
Glass, Inner WPL 7902P43660 Contact Us For Availability
5
TUBE, VENT UPPER WPL 8026P07460 Contact Us For Availability
5
CONTROL WPL 8507P22560 Contact Us For Availability
5
PANEL, DRAWER (BLACK) WPL 2416F08670 Contact Us For Availability
5
PANEL, DRAWER (WHITE) WPL 2416F08671 Contact Us For Availability
5
COVER, WIRE REAR WPL 4005F81051 Contact Us For Availability
6
SHIELD WPL 3604F41851 Contact Us For Availability
6
SCREW WPL 7101P49860 Contact Us For Availability
6
KNOB (DUAL) WPL 7737P39460 Contact Us For Availability
6
SCREW, PANEL WPL 7101P63560 Contact Us For Availability
6
EXTENSION, BACK WPL 3826F06651 Contact Us For Availability
7
NUT, SNAP WPL 7103P14160 Contact Us For Availability
7
SPACER, RUBBER WPL 8010P15260 Contact Us For Availability
7
KNOB, TRIPLE WPL 7737P39160 Contact Us For Availability
7
NUT, LOCK (10-24) WPL 7103P13960 Contact Us For Availability
8
Lining, Door WPL 2402W31219 Contact Us For Availability
8
TRIM, VENT (BLACK) WPL 7744P46460 Contact Us For Availability
8
TRIM, VENT (WHITE) WPL 7744P46760 Contact Us For Availability
8
SWITCH, ROCKER (BLACK) WPL 7403P79860 Contact Us For Availability
8
SWITCH, ROCKER (WHITE) WPL 7403P79960 Contact Us For Availability
8
GLASS, DRAWER (BLACK) WPL 7922P05760 Contact Us For Availability
8
GLASS, DRAWER (WHITE) WPL 7922P05860 Contact Us For Availability
8
INSULATOR, CORD WPL 7003P10160 Contact Us For Availability
9
Bracket, Glass WPL 3801F88651 Contact Us For Availability
9
ELEMENT,TRIPLE-RF WPL 7406P39760 Contact Us For Availability
9
SCREW, CONTROL WPL 7101P07760 Contact Us For Availability
9
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
9
PANEL, ACCESS WPL 4005F61251 Contact Us For Availability
10
Insulation, Door WPL 7002P24660 Contact Us For Availability
10
ELEMENT,DUAL-LF WPL 7406P43160 Contact Us For Availability
10
SUPPORT, CONTROL PANEL WPL 3807F73151 Contact Us For Availability
10
SUPPORT, OVEN (BOTTOM) WPL 3807F72745 Contact Us For Availability
11
GASKET, VENT TRIM WPL 7201P07660 Contact Us For Availability
11
FAN, COOLING WPL 7427P09460 Contact Us For Availability
12
RETAINER, GLASS (RIGHT) WPL 3804F30751 Contact Us For Availability
12
RETAINER, GLASS (LEFT) WPL 3804F30851 Contact Us For Availability
12
SUPPORT, ELEMENT WPL 8004P09360 Contact Us For Availability
12
KNOB,6`` (LR/RR) WPL 7737P39560 Contact Us For Availability
12
NUT, LOCK (8-32) WPL 7103P08260 Contact Us For Availability
12
BLOCK, BARE WIRE WPL 7401P15760 Contact Us For Availability
13
HANDLE, DOOR WPL 7701P47360 Contact Us For Availability
13
Light, Indicator WPL 7407P13660 Contact Us For Availability
14
GLASS, DOOR (WHITE) WPL 7922P05060 Contact Us For Availability
14
GLASS, DOOR (BLACK) WPL 7922P05160 Contact Us For Availability
14
SHIELD, INSULATOR WPL 7003P15060 Contact Us For Availability
14
ELEMENT, BROIL WPL 7406P43060 Contact Us For Availability
15
GLASS, COATED WPL 7902P76860 Contact Us For Availability
15
SHIELD, CONTROL WPL 7003P15260 Contact Us For Availability
15
Sensor, Oven WPL 7430P04260 Contact Us For Availability
16
FRAME, DOOR (BLACK) WPL 3603F07570 Contact Us For Availability
16
FRAME, DOOR (WHITE) WPL 3603F07571 Contact Us For Availability
16
TUBE, VENT LOWER WPL 8026P09660 Contact Us For Availability
17
RETAINER,GLASS BTM WPL 3804F31780 Contact Us For Availability
17
TUBE, VENT UPPER WPL 8026P08460 Contact Us For Availability
18
SEAL, DOOR WPL 7201P04660 Contact Us For Availability
19
INSULATION, FOIL WPL 7002P46560 Contact Us For Availability
19
HOLDER, VENT TUBE WPL 3605F34551 Contact Us For Availability
20
SMOKE ELIMINATOR WPL 8034P00860 Contact Us For Availability
21
PLATE, SMOKE ELM. WPL 3605F35445 Contact Us For Availability
22
LIGHT ASSY HALOGEN WPL 7407P18060 Contact Us For Availability
23
BRACKET, POWER SUPPLY WPL 3801F57451 Contact Us For Availability
24
COVER, LIGHT WPL 4005F68451 Contact Us For Availability
25
TRIM, SIDE (BLACK) WPL 3608F13870 Contact Us For Availability
25
TRIM, SIDE (WHITE) WPL 3608F13871 Contact Us For Availability
26
Screw WPL 7101P50060 Contact Us For Availability
27
ELEMENT, BAKE WPL 7406P41160 Contact Us For Availability
28
PAN, HIDDEN BAKE WPL 3401F09245 Contact Us For Availability
29
COVER, DOOR LATCH WPL 4005F75051 Contact Us For Availability
30
HINGE WPL 7106P14360 Contact Us For Availability
31
SCREW, HINGE WPL 7101P28260 Contact Us For Availability
32
SWITCH, HI-LIMIT WPL 7450P03460 Contact Us For Availability
33
SCREW WPL 7101P42660 Contact Us For Availability
34
EXTENSION, SHIELD WPL 3826F06451 Contact Us For Availability
35
SUPPORT, ELEMENT WPL 3807F75445 Contact Us For Availability
36
LEG, LEVELING WPL 7101P66060 Contact Us For Availability
37
PEDESTAL, BOTTOM WPL 4020W03580 Contact Us For Availability
38
PEDESTAL, FRONT WPL 4020F03680 Contact Us For Availability
39
SUPPORT, VALVE/REG WPL 3807F64051 Contact Us For Availability
40
RUNNER, DRAWER WPL 3406F03251 Contact Us For Availability
41
Roller, Drawer WPL 8014P02260 Contact Us For Availability
42
Shaft, Roller WPL 7118P03260 Contact Us For Availability
43
Nut, Lock WPL 7103P19060 Contact Us For Availability
44
RETAINER, INSUL (BOTTOM) WPL 3804F23151 Contact Us For Availability
45
BRACKET, ANTI-TIP WPL 3801F65651 Contact Us For Availability
46
TRIM, FRONT FRAME WPL 7713P05460 Contact Us For Availability
47
SHIELD,WARMING DWR WPL 3604F32645 Contact Us For Availability
48
COVER, FRONT WPL 4005F74945 Contact Us For Availability
49
BOTTOM, OVEN WPL 2205F06019 Contact Us For Availability
49
INSULATION, OVEN BOTTOM WPL 7002P44360 Contact Us For Availability
49
INSULATION, BACK WPL 7002P44560 Contact Us For Availability
49
INSULATION, WRAP WPL 7002P47160 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
× ![]()
