Model Whirlpool JER8750ACW ELECTRIC RANGE – Common Parts &amp; Diagrams

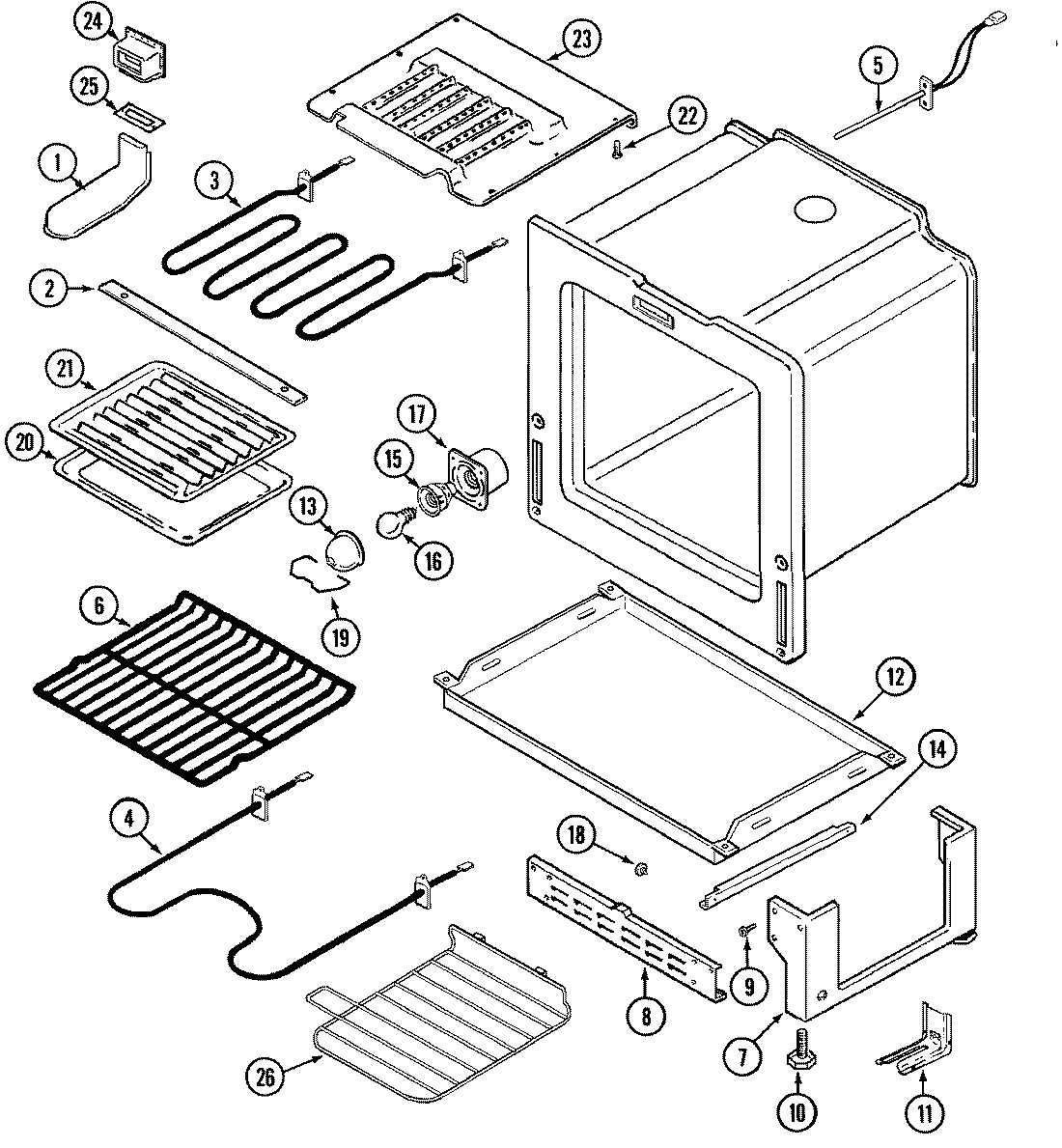

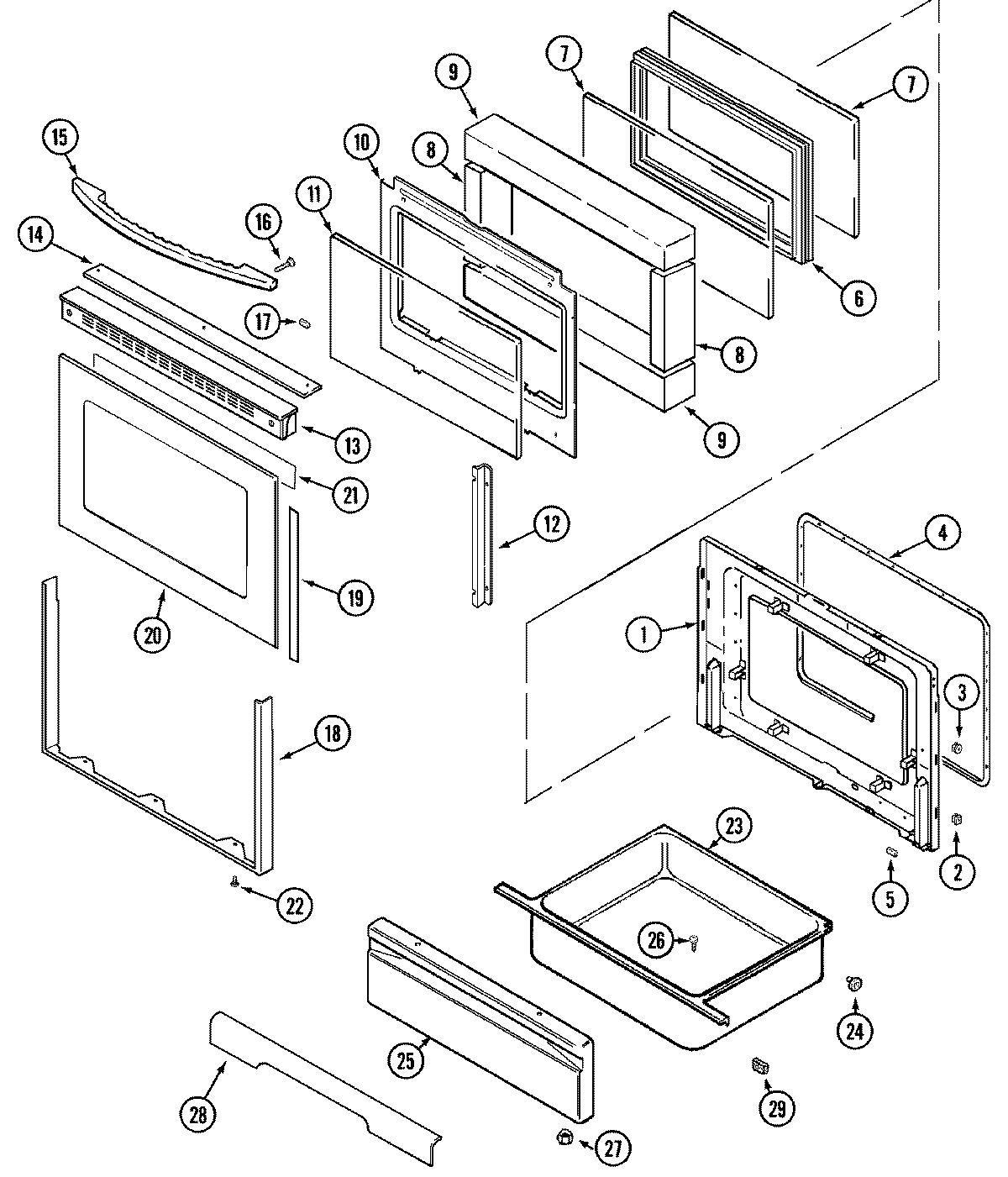

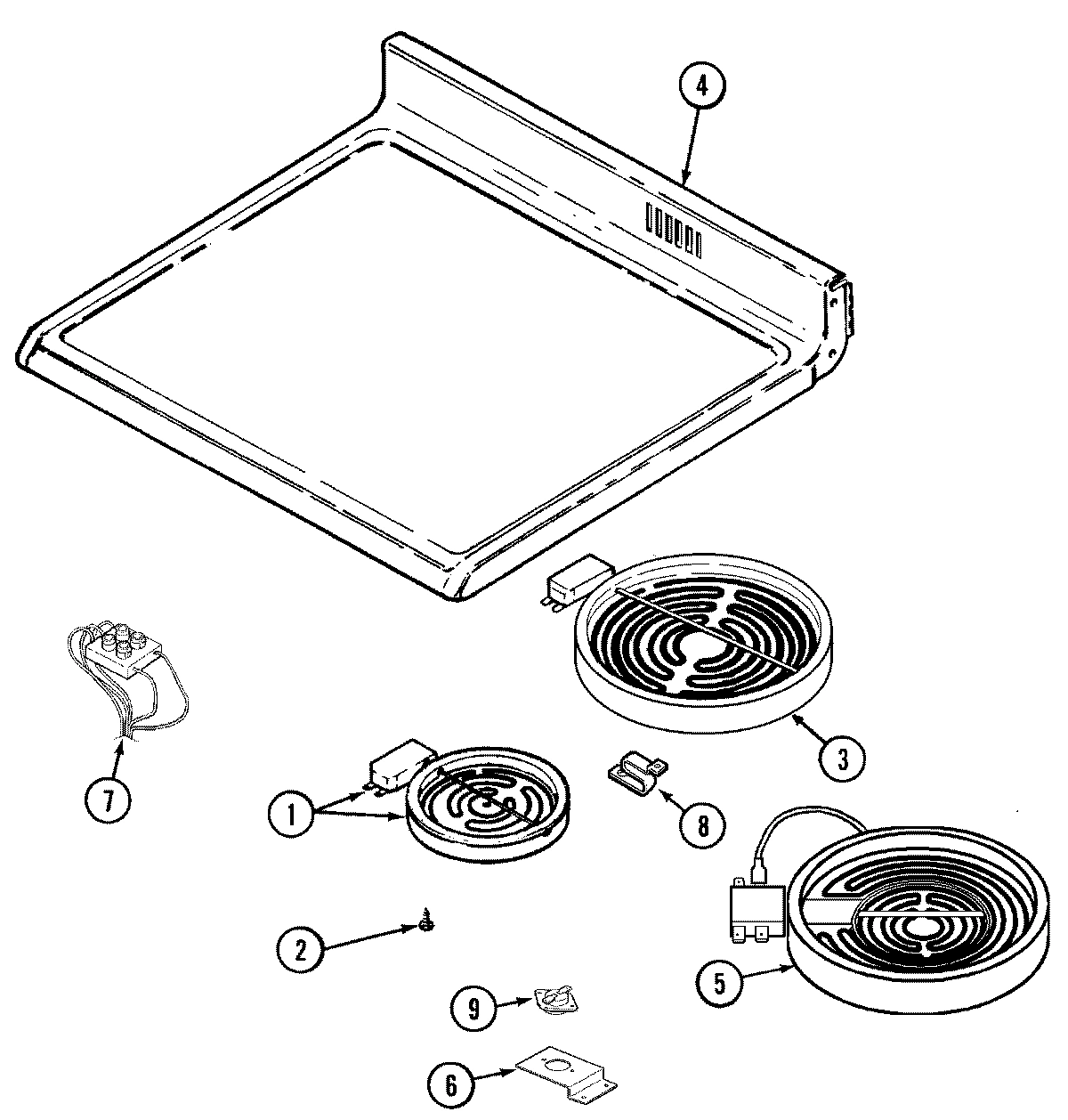

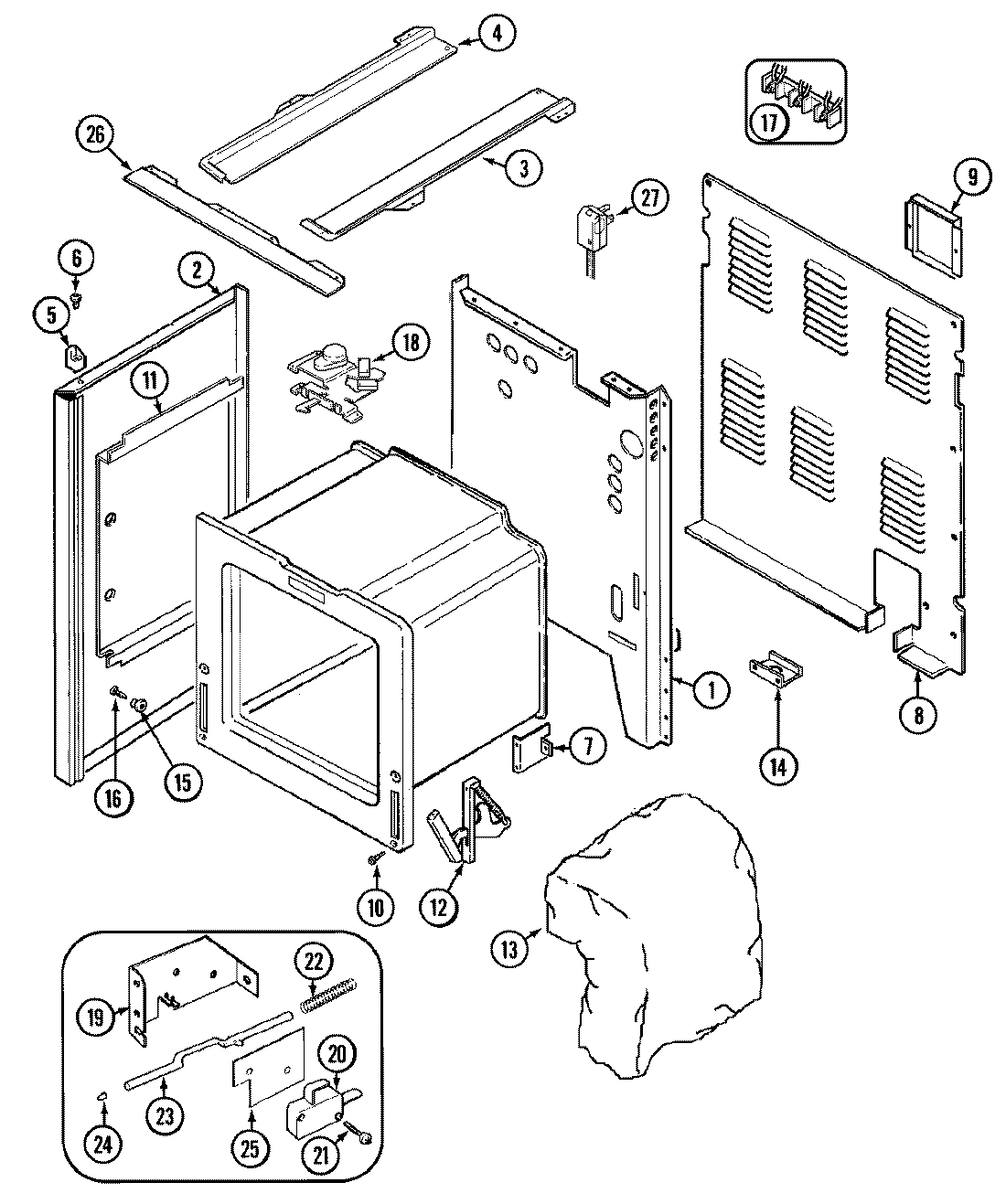

1

BACK, MAIN WPL 74001772 Contact Us For Availability

1

VENT BOX ASSEMBLY WPL 74003394 Contact Us For Availability

2

PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability

2

TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability

2

SCREW WPL 7101P34560 Contact Us For Availability

2

SUPPORT, BROIL ELEMENT WPL 74003563 Contact Us For Availability

3

W10823707 Whirlpool Range Radiant Surface Ele In Stock WPL W10823707 $144.85

3

W11676350 Whirlpool Broil Element Backorder WPL W11676350 $120.20

3

LIMITER WPL 74004494 Contact Us For Availability

3

LIMITER (8``) WPL 74002652 Contact Us For Availability

3

BOX, BURNER (RT) WPL 74003378 Contact Us For Availability

4

W11189172 Whirlpool Glide Drawer Backorder WPL W11189172 $11.24

4

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $38.16

4

TOP, MAIN (WHT GLASS/WHT TRM) WPL 71003075 Contact Us For Availability

4

CLEANER, ELCO WPL 8308P00260 Contact Us For Availability

4

BOX, BURNER (LT) WPL 74003379 Contact Us For Availability

5

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

5

W10823709 Whirlpool Range Dual Radiant Surfac In Stock WPL W10823709 $147.51

5

LIMITER (DUAL) WPL 74002176 Contact Us For Availability

5

ELEMENT, CERAN. DUAL WPL 74002666 Contact Us For Availability

5

LIMITER WPL 74002667 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

6

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

6

FRAME, GLASS WPL 74003644 Contact Us For Availability

6

BRACKET, SWITCH WPL 71003077 Contact Us For Availability

7

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $115.28

7

LIGHT, INDICATOR WPL 71003078 Contact Us For Availability

7

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74003393 Contact Us For Availability

8

INSULATION, SIDE WPL 74003646 Contact Us For Availability

8

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

9

WP7101P498-60 Whirlpool Screw Backorder WPL WP7101P498-60 $4.82

9

INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability

9

SWITCH, LIMIT WPL 71003076 Contact Us For Availability

9

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

10

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

10

BAFFLE, DOOR WPL 74003648 Contact Us For Availability

10

SCREW WPL 7101P11260 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

GLASS, DOOR WPL 74003649 Contact Us For Availability

RETAINER, INSULATION (SIDE) WPL 74003422 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

WP74011141 Whirlpool Oven Hinge Backorder WPL WP74011141 $138.74

RETAINER, GLASS WPL 74003650 Contact Us For Availability

RETAINER, BOTTOM INSULATION WPL 74003242 Contact Us For Availability

FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability

WP74003653 Whirlpool Door Trim In Stock WPL WP74003653 $115.09

INSULATION, OVEN WRAP WPL 74003381 Contact Us For Availability

COVER, BULB WPL 74003389 Contact Us For Availability

COVER, BULB WPL 7724P04760 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.46

SCREW (WHT) WPL 74001278 Contact Us For Availability

INSERT, DOOR TRIM (WHT) WPL 7728P09460 Contact Us For Availability

PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

HANDLE, DOOR (WHT) WPL 74003656 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

WP179051 Whirlpool Screw Backorder WPL WP179051 $4.82

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

TAPE, DBL. SIDED (WHT) WPL 71002092 Contact Us For Availability

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

HOUSING, BULB WPL 74003388 Contact Us For Availability

SCREW (1/2``-WHT) WPL 7101P37360 Contact Us For Availability

FRAME, DOOR (WHT) WPL 74003659 Contact Us For Availability

NUT WPL 7103P08260 Contact Us For Availability

ROLLER, DRAWER WPL 74003566 Contact Us For Availability

LATCH, DOOR LOCK WPL 74003559 Contact Us For Availability

INSULATION, LATCH WPL 74003560 Contact Us For Availability

RETAINER, INSULATION WPL 74003561 Contact Us For Availability

TAPE, FOIL (8.75`` X 1``) WPL 74003660 Contact Us For Availability

SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability

BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability

NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability

RETAINER, BULB COVER WPL 74003391 Contact Us For Availability

20

GLASS, DOOR (WHT) WPL 74003663 Contact Us For Availability

20

SWITCH WPL 74001802 Contact Us For Availability

20

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

21

TAPE, FOIL 29`` X 2`` WPL 74003664 Contact Us For Availability

21

SCREW WPL 912012 Contact Us For Availability

21

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

22

SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability

23

DRAWER, STORAGE WPL 74003618 Contact Us For Availability

23

ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability

23

BAFFLE, BROIL WPL 74003564 Contact Us For Availability

24

BUMPER, ROD WPL 74001631 Contact Us For Availability

24

EXTENSION, VENT WPL 3826W01445 Contact Us For Availability

25

PANEL, DRAWER (WHT) WPL 74003667 Contact Us For Availability

25

INSULATOR, SWITCH WPL 74001872 Contact Us For Availability

25

GASKET, VENT WPL 74003285 Contact Us For Availability

26

SCREW WPL 7101P07260 Contact Us For Availability

26

BRACKET, MAIN TOP WPL 74003384 Contact Us For Availability

26

RACK, HALF (FLUSH CONV. COVER) WPL 74003590 Contact Us For Availability

27

NUT, LOCK WPL 7103P13960 Contact Us For Availability

27

CORD, POWER WPL 7402P05060 Contact Us For Availability

28

TRIM, DRAWER (WHT) WPL 74003670 Contact Us For Availability

29

SPACER, RUBBER WPL 8010P08560 Contact Us For Availability

NI

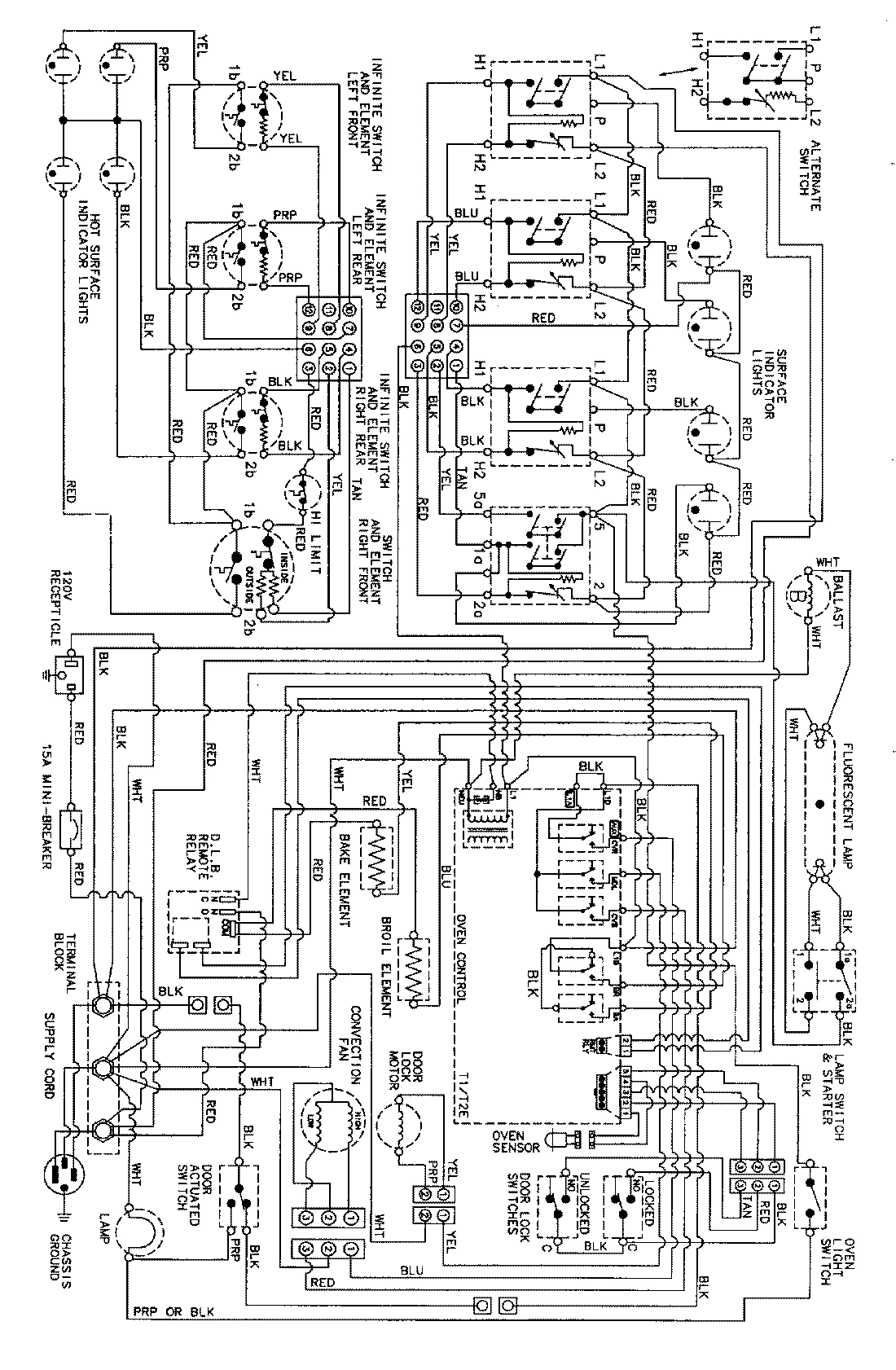

WIRING INFORMATION WPL 15002290 Contact Us For Availability
