Model Whirlpool JED8430ADQ ELECTRIC COOK-TOP – Common Parts &amp; Diagrams

1

BOTTOM, BURNER BOX WPL 74007640 Contact Us For Availability

1

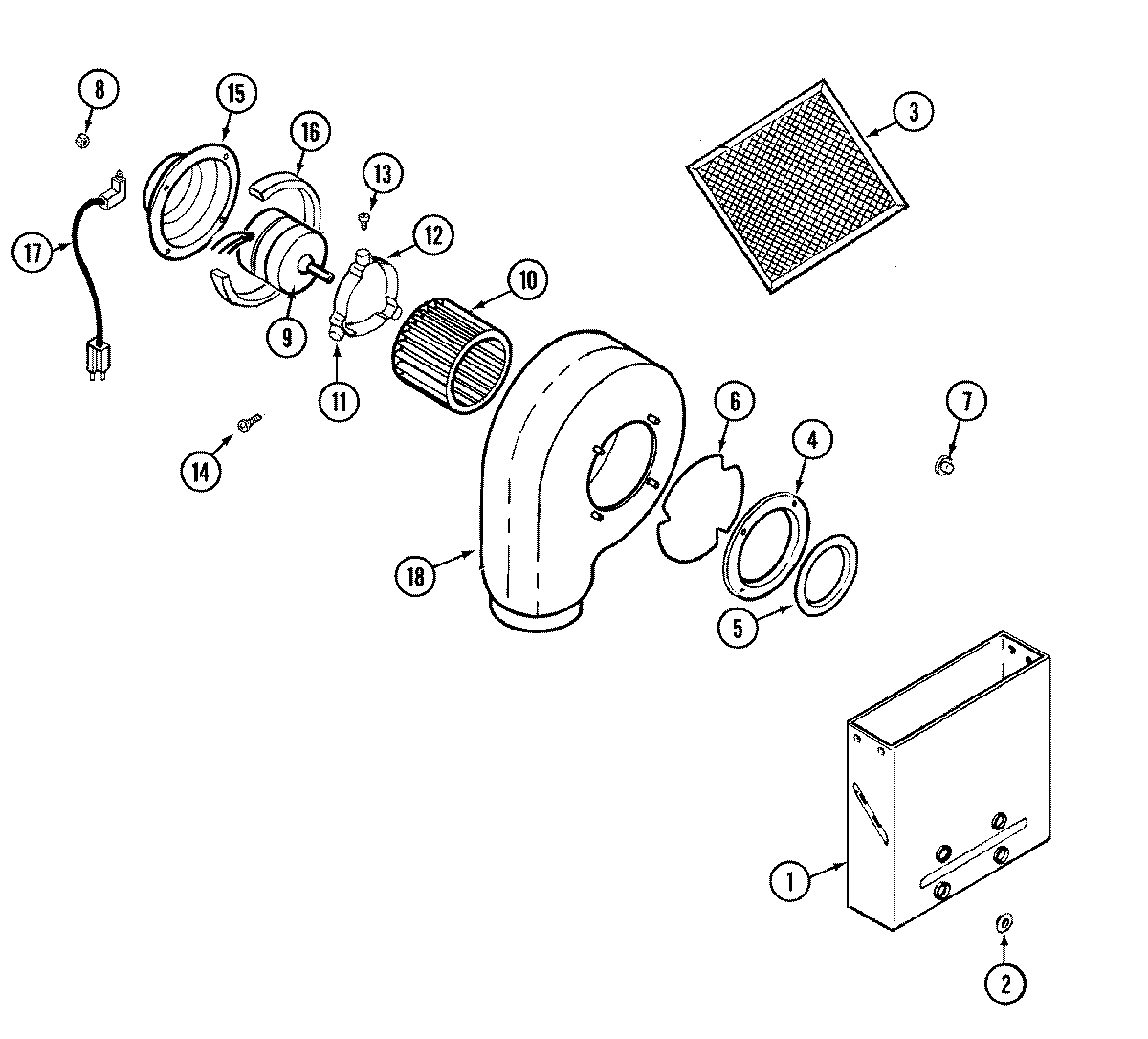

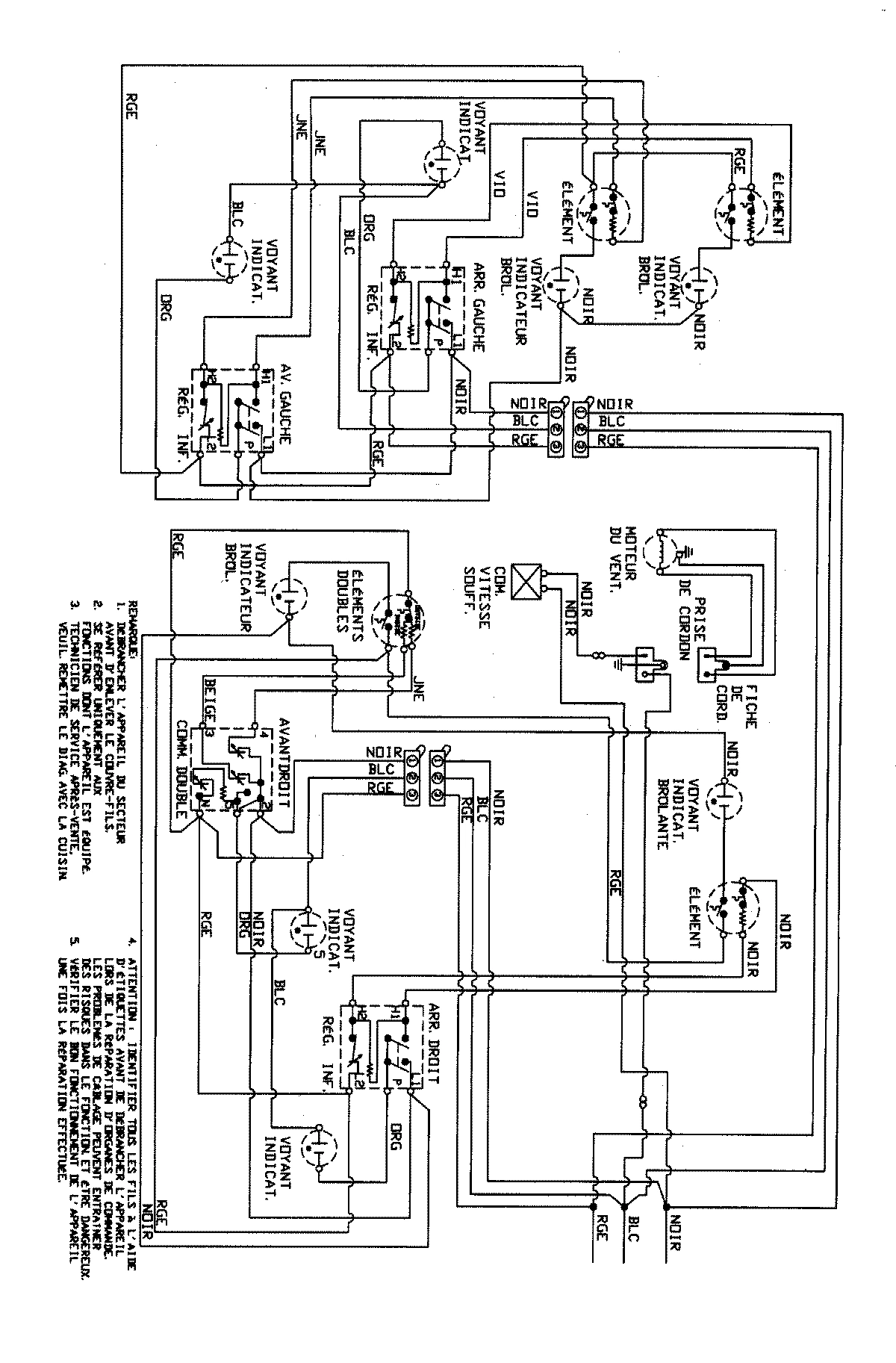

WIRING INFORMATION (FRC) WPL 15003118 Contact Us For Availability

1

PLENUM ASY WPL 74005989 Contact Us For Availability

1

TAPE, VINYL WPL 71003485 Contact Us For Availability

1

GLASS, TOP (BSQ) WPL 71003628 Contact Us For Availability

1

GLASS, TOP (BSQ) WPL 74007086 Contact Us For Availability

2

CORD, FAN RECEPTACLE WPL 71003476 Contact Us For Availability

2

PLUG, HOLE WPL Y706193 Contact Us For Availability

2

GRILL, AIR (BISQUE) WPL 74004918 Contact Us For Availability

3

WPY706012 Whirlpool Filter In Stock WPL WPY706012 $44.36

3

BRACKET, FILLER (FRONT) WPL 71003559 Contact Us For Availability

3

KNOB, FAN (BISQUE)----SUB WPL 74004919 Contact Us For Availability

4

W11208295 Whirlpool Control Knob Backorder WPL W11208295 $51.18

4

WP98008545 Whirlpool Screw Backorder WPL WP98008545 $11.88

4

BOX, JUNCTION WPL Y706173 Contact Us For Availability

4

COVER, JUNCTION BOX WPL Y706174 Contact Us For Availability

4

RING, INLET WPL Y704758 Contact Us For Availability

5

WPY706102 Whirlpool Grommet Backorder WPL WPY706102 $5.70

5

LIGHT, HOT WPL 71003486 Contact Us For Availability

5

RING, RESTRICTOR WPL Y704761 Contact Us For Availability

6

BRACKET, SWITCH PLATE WPL 74004940 Contact Us For Availability

6

HARNESS, SUPPLY WPL 71003473 Contact Us For Availability

6

HARNESS, INFINITE WPL 71003475 Contact Us For Availability

6

WIRE, INDICATOR WPL 71003629 Contact Us For Availability

6

HARNESS, ELEMENT (LT) WPL 71003630 Contact Us For Availability

6

HARNESS, ELEMENT (RT) WPL 71003631 Contact Us For Availability

6

HARNESS, SUPPLY WPL 74007084 Contact Us For Availability

7

PLATE, ELEMENT SUPPORT WPL 71003467 Contact Us For Availability

7

LOCKNUT CAP, W/NYLON INSERT WPL 702889 Contact Us For Availability

7

MANUAL, USE & CARE WPL 74005321 Contact Us For Availability

7

MANUAL, USE & CARE (FRCH) WPL 74005322 Contact Us For Availability

8

WP74009254 Whirlpool Fan Switch In Stock WPL WP74009254 $135.01

8

WPY707702 Whirlpool Locknut Backorder WPL WPY707702 $4.82

9

12002125 Whirlpool Range Oven Cooktop Dual In In Stock WPL 12002125 $51.45

9

W11088181 Whirlpool Surface Element Switch In Stock WPL W11088181 $70.95

9

WP74011242 Whirlpool Oven Infinite Switch In Stock WPL WP74011242 $60.81

9

MOTOR, BLOWER WPL 71001304 Contact Us For Availability

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $5.02

WPY707985 Whirlpool Wheel Assembly Backorder WPL WPY707985 $116.81

BOX, LIGHT WPL Y706061 Contact Us For Availability

GUARD, BLOWER WPL 71001534 Contact Us For Availability

11

WP71003558 Whirlpool Isolator Backorder WPL WP71003558 $7.84

11

BRACKET, FILLER (REAR) WPL 71003470 Contact Us For Availability

12

WP74005965 Whirlpool Knob Sleeve Backorder WPL WP74005965 $44.27

12

BAND, MOTOR WPL Y707393 Contact Us For Availability

74007134 Whirlpool Oven Spring Element Suppor Backorder WPL 74007134 $7.72

SCREW WPL 7101P34960 Contact Us For Availability

SCREW WPL 7101P32660 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

14

W10823704 Whirlpool Range Cooktop Radiant Sur In Stock WPL W10823704 $140.81

14

WP4159193 Whirlpool Screw Backorder WPL WP4159193 $5.01

15

COVER, MOTOR WPL Y704760 Contact Us For Availability

16

LIMITER WPL 74004494 Contact Us For Availability

16

FOAM, URETHANE WPL Y715957 Contact Us For Availability

17

W10823703 Whirlpool Surface Element Backorder WPL W10823703 $224.63

17

W10823707 Whirlpool Range Radiant Surface Ele In Stock WPL W10823707 $144.85

17

CORD, POWER (MOTOR) WPL Y702733 Contact Us For Availability

18

SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability

NI

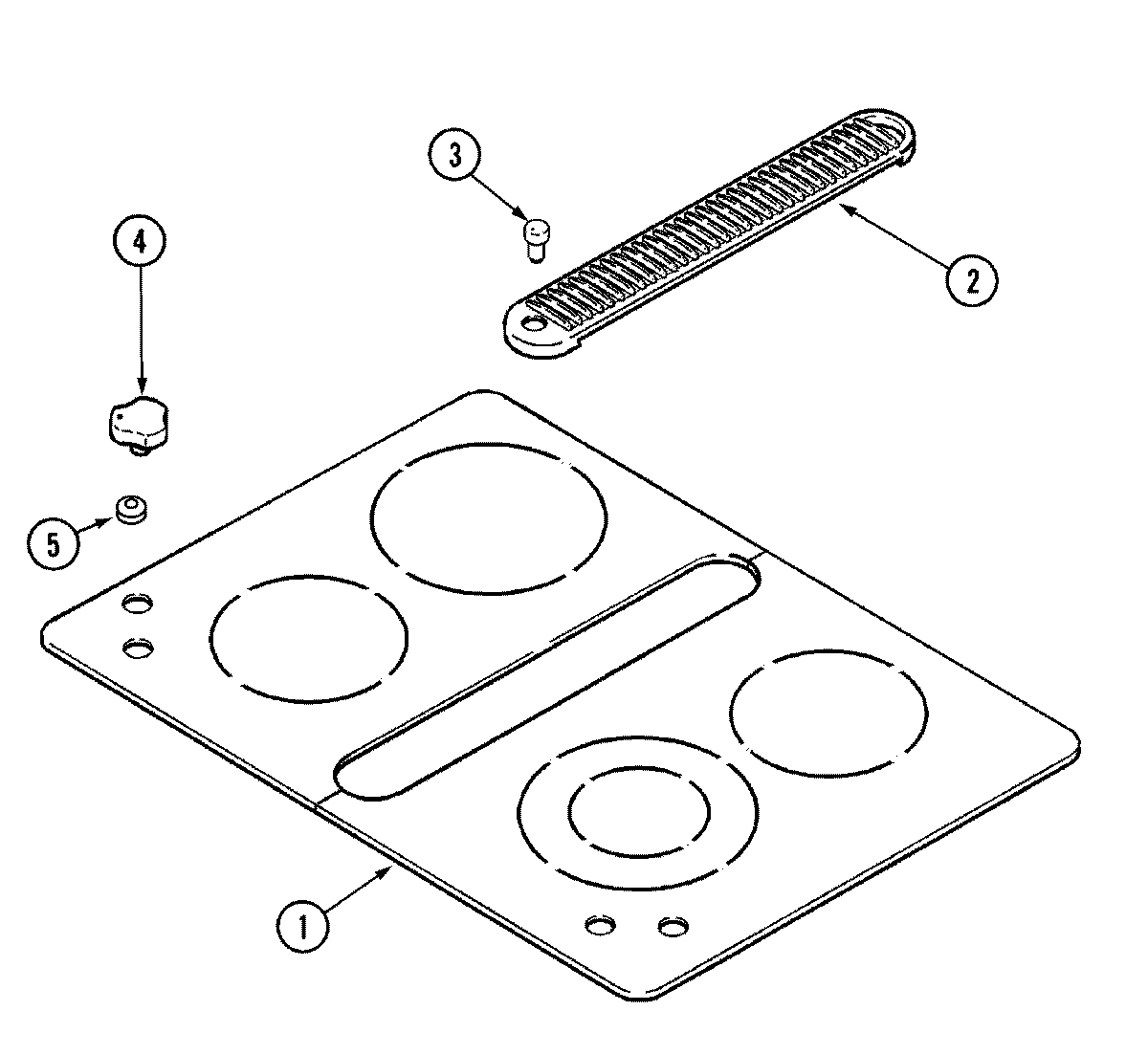

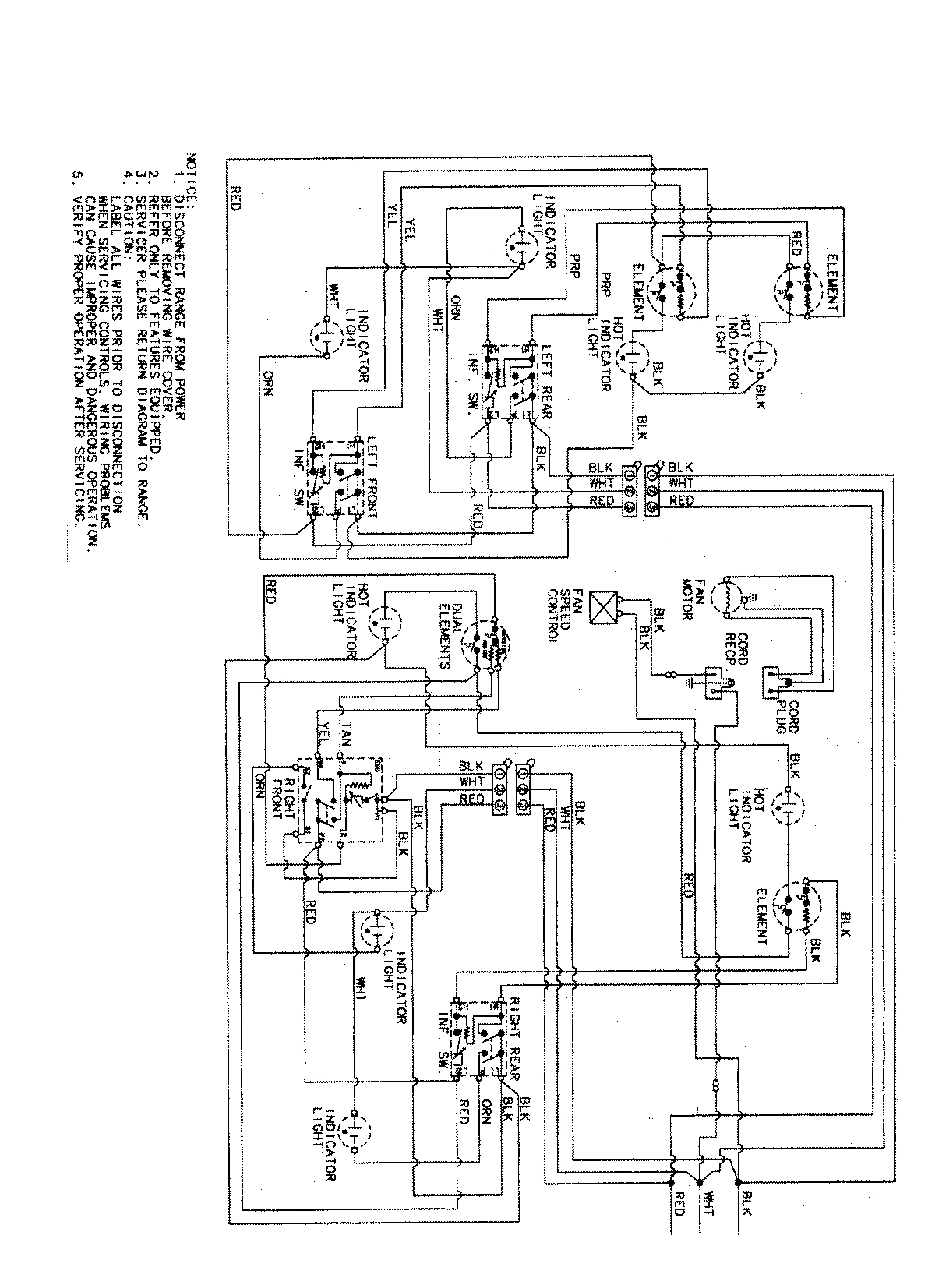

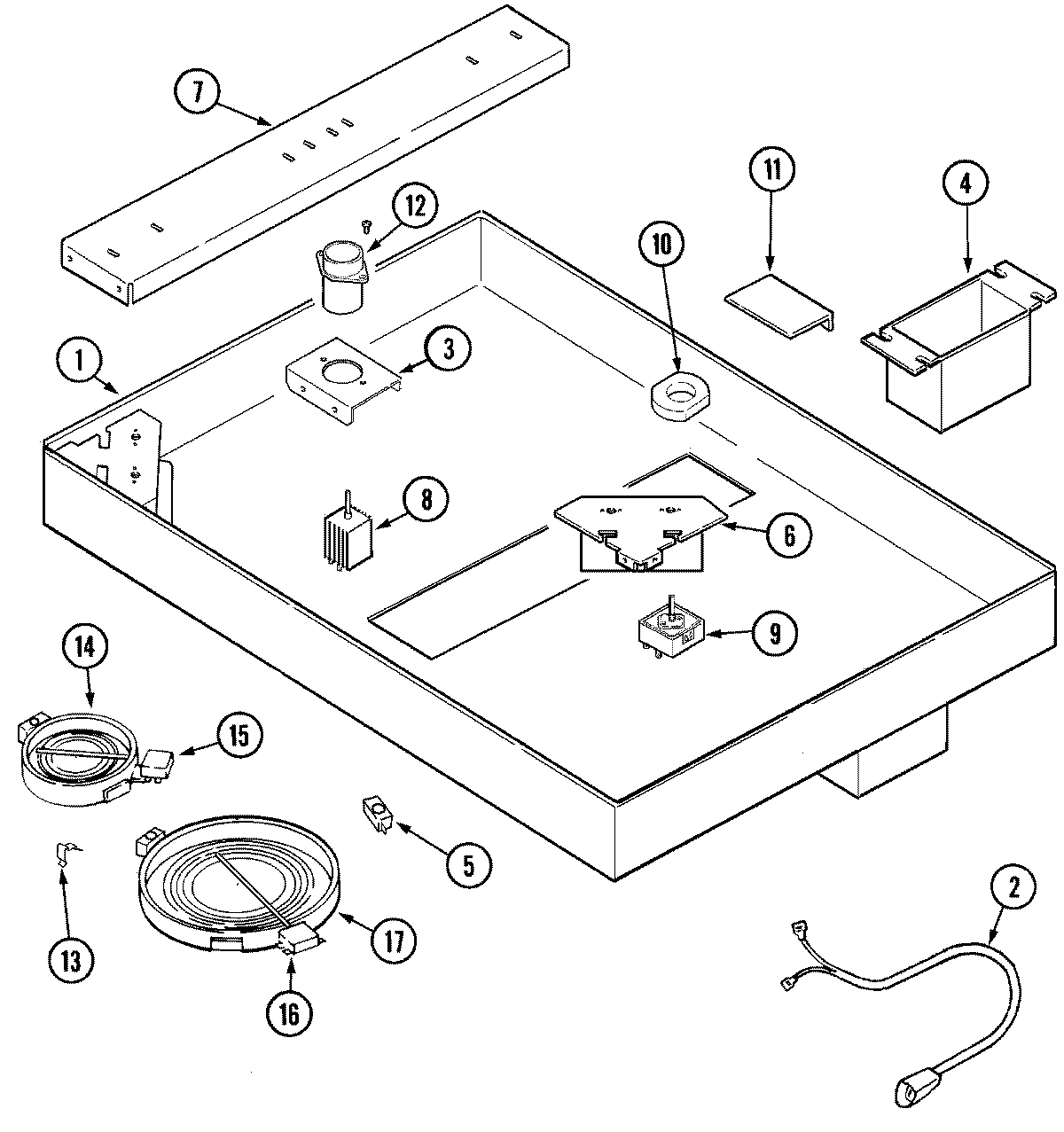

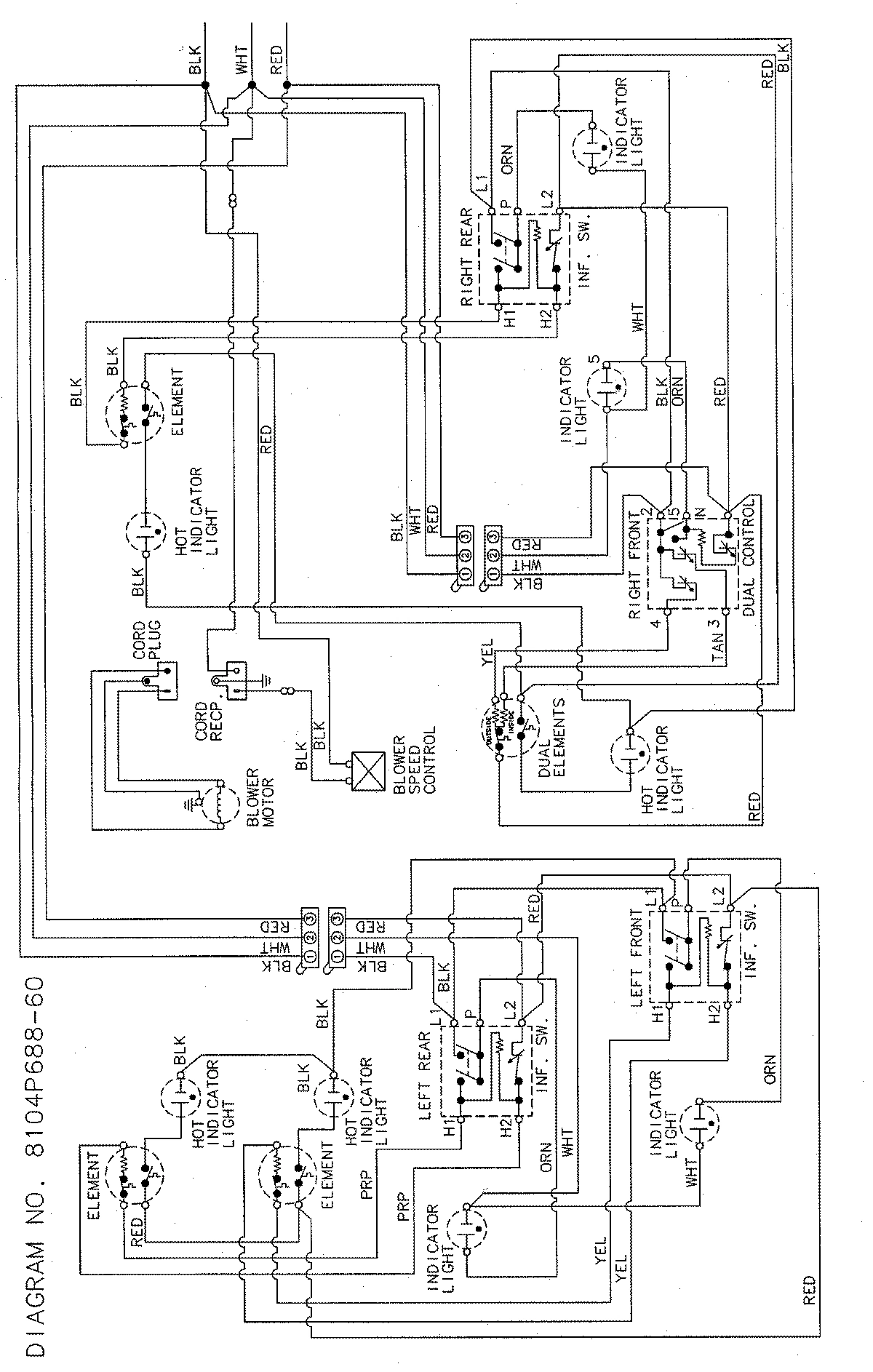

WIRING INFORMATION WPL 15002724 Contact Us For Availability

NI

WIRING INFORMATION WPL 15003117 Contact Us For Availability

NI

WIRING INFORMATION WPL 15003346 Contact Us For Availability
