Model Whirlpool JEC8536ADS ELECTRIC COOK-TOP – Common Parts & Diagrams

1

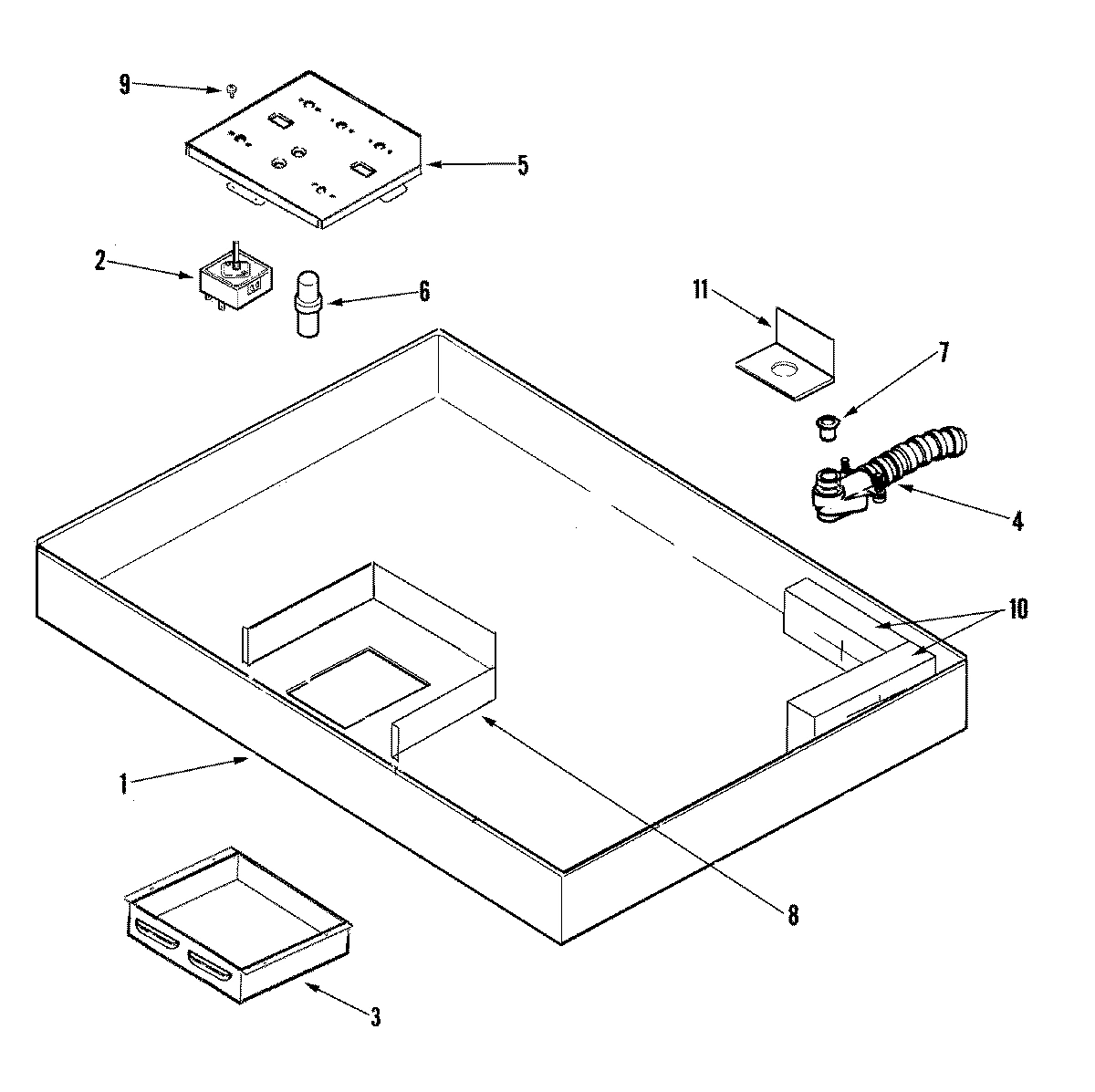

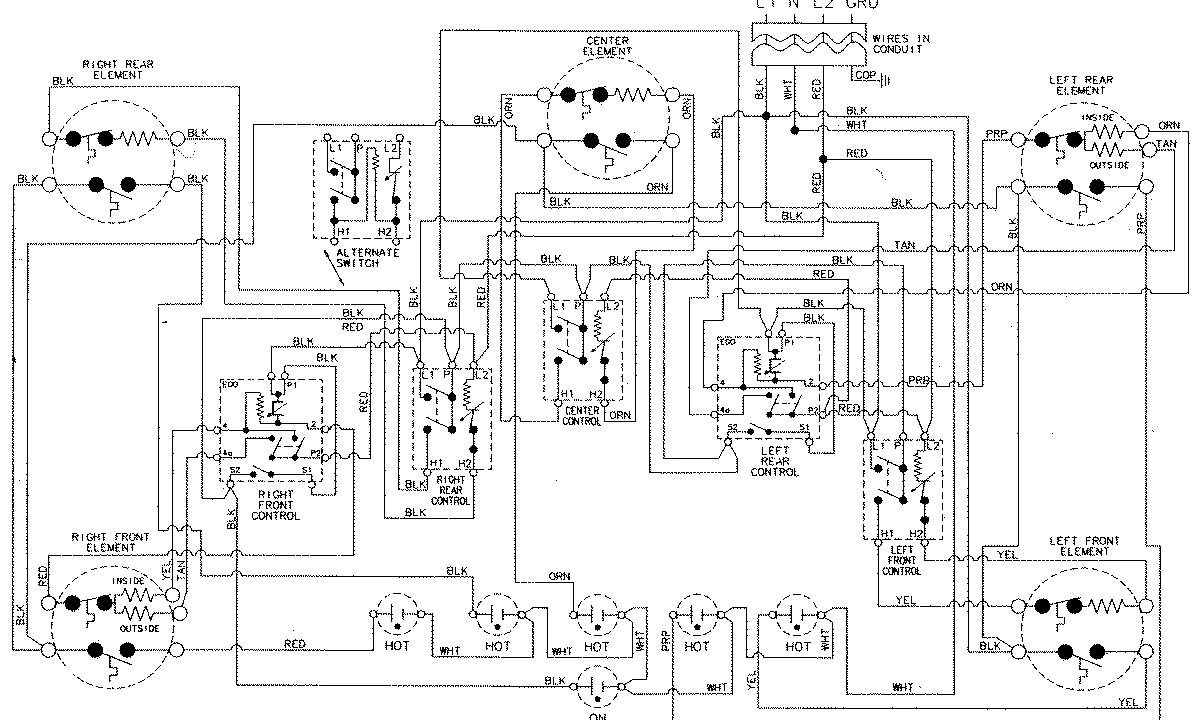

WIRING INFORMATION (FRCH)
WIRING INFORMATION (FRCH) WPL 15003714 Contact Us For Availability
View on Model
1
BOTTOM, BURNER BOX
BOTTOM, BURNER BOX WPL 74007850 Contact Us For Availability
View on Model
2
WIRING INFORMATION (FRC)
WIRING INFORMATION (FRC) WPL 15003192 Contact Us For Availability
View on Model
3
BAFFLE, BOTTOM
BAFFLE, BOTTOM WPL 74007858 Contact Us For Availability
View on Model
4
ELEMENT (6``OVAL)
ELEMENT (6``OVAL) WPL 74007852 Contact Us For Availability
View on Model
4
ELEMENT (6``)
ELEMENT (6``) WPL 74011004 Contact Us For Availability
View on Model
4
HARNESS/CONDUIT ASY
HARNESS/CONDUIT ASY WPL 74007851 Contact Us For Availability
View on Model
4
CONNECTOR, ANGLE
CONNECTOR, ANGLE WPL 74007891 Contact Us For Availability
View on Model
4
CONDUIT, 1/2`` FLEXIBLE (48``)
CONDUIT, 1/2`` FLEXIBLE (48``) WPL 74007892 Contact Us For Availability
View on Model
4
HARNESS/CONDUIT ASY
HARNESS/CONDUIT ASY WPL 74010992 Contact Us For Availability
View on Model
4
HARNESS, SWITCH (LT)
HARNESS, SWITCH (LT) WPL 74011000 Contact Us For Availability
View on Model
4
HARNESS, SWITCH (RT)
HARNESS, SWITCH (RT) WPL 74011001 Contact Us For Availability
View on Model
4
HARNESS, SWITCH (RT)
HARNESS, SWITCH (RT) WPL 74011003 Contact Us For Availability
View on Model
5
PLATE, SWITCH
PLATE, SWITCH WPL 74007856 Contact Us For Availability
View on Model
5
GASKET, SILICONE
GASKET, SILICONE WPL 74007936 Contact Us For Availability
View on Model
6
HOT LIGHT/WIRE HARNESS ASY
HOT LIGHT/WIRE HARNESS ASY WPL 74011007 Contact Us For Availability
View on Model
6
LIGHT, INDICATOR
LIGHT, INDICATOR WPL Y706125 Contact Us For Availability
View on Model
7
GROMMET, ANTI-SHORT
GROMMET, ANTI-SHORT WPL 74004222 Contact Us For Availability
View on Model
8
SUPPORT, ELEMENT
SUPPORT, ELEMENT WPL 74007845 Contact Us For Availability
View on Model
8
COVER, SWITCH PLATE
COVER, SWITCH PLATE WPL 74007935 Contact Us For Availability
View on Model
9
TRIM, STAINLESS (36`` FRT)
TRIM, STAINLESS (36`` FRT) WPL 74007942 Contact Us For Availability
View on Model
9
SCREW
SCREW WPL 7101P30960 Contact Us For Availability
View on Model
10
INSULATION, BURNER BOX
INSULATION, BURNER BOX WPL 74007899 Contact Us For Availability
View on Model
11
MANUAL, USE & CARE
MANUAL, USE & CARE WPL 74007564 Contact Us For Availability
View on Model
11
Manual, Use & Care
Manual, Use & Care WPL 8111P53260 Contact Us For Availability
View on Model
11
BRACKET, CONDUIT/HARNESS ASY.
BRACKET, CONDUIT/HARNESS ASY. WPL 74007893 Contact Us For Availability
View on Model
12
COOKTOP CLEANING CREME 4 OZ
COOKTOP CLEANING CREME 4 OZ WPL 20001080 Contact Us For Availability
View on Model
NI
WIRING INFORMATION
WIRING INFORMATION WPL 15003713 Contact Us For Availability
View on Model
NI
WIRING INFORMATION
WIRING INFORMATION WPL 15003191 Contact Us For Availability
View on Model
