Model Whirlpool JDS9860BDW DUEL FUEL RANGE – Common Parts &amp; Diagrams

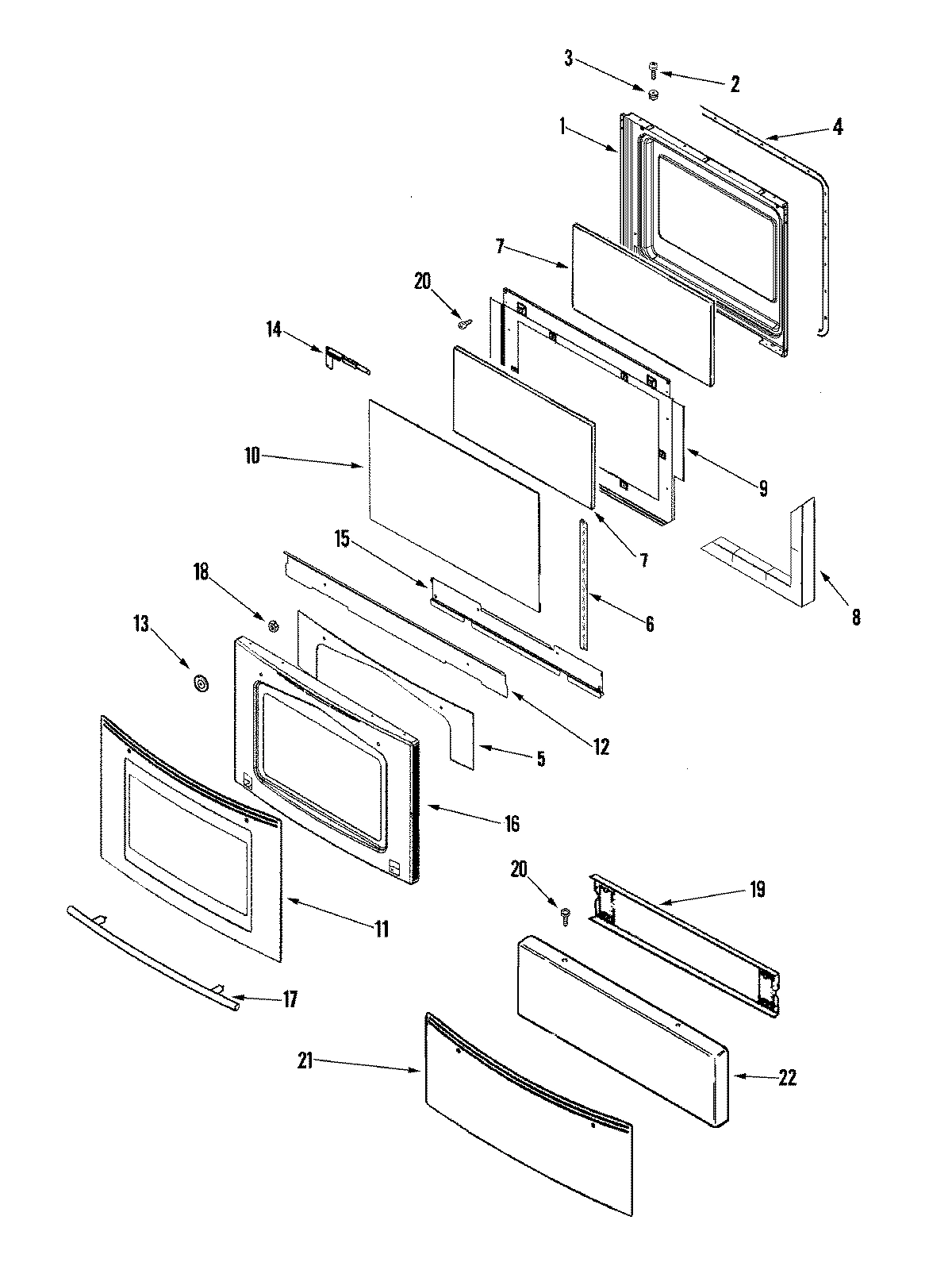

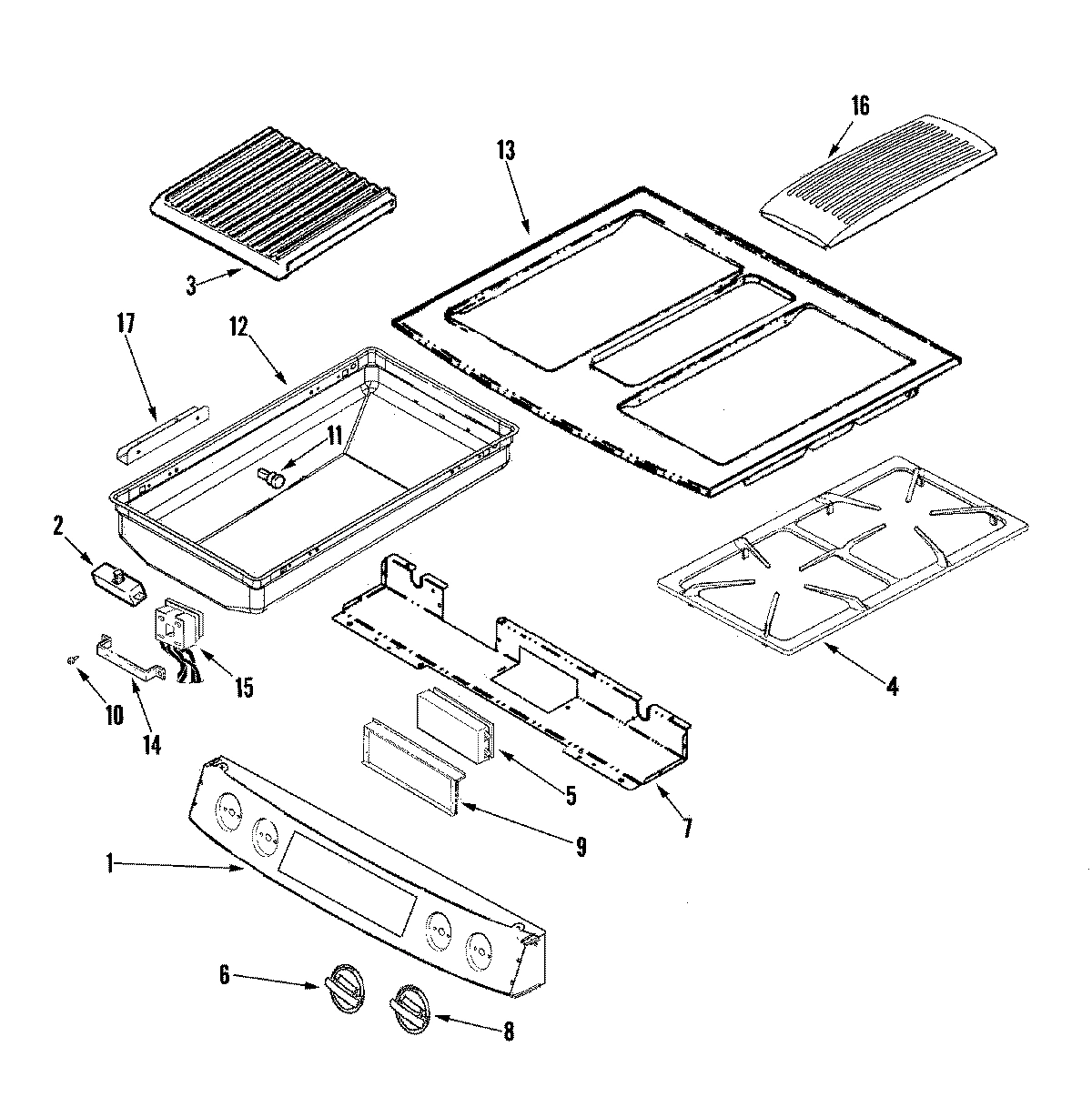

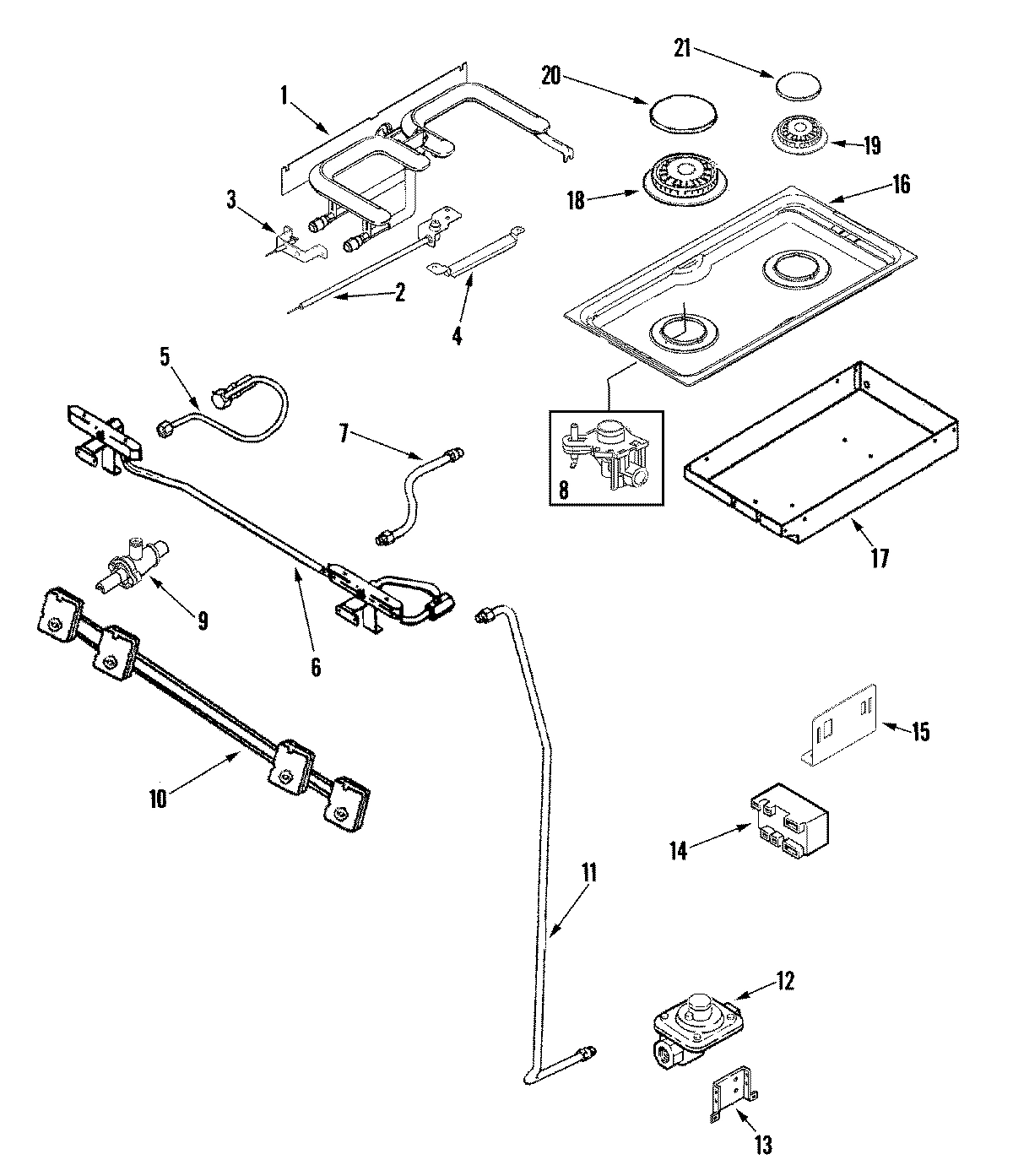

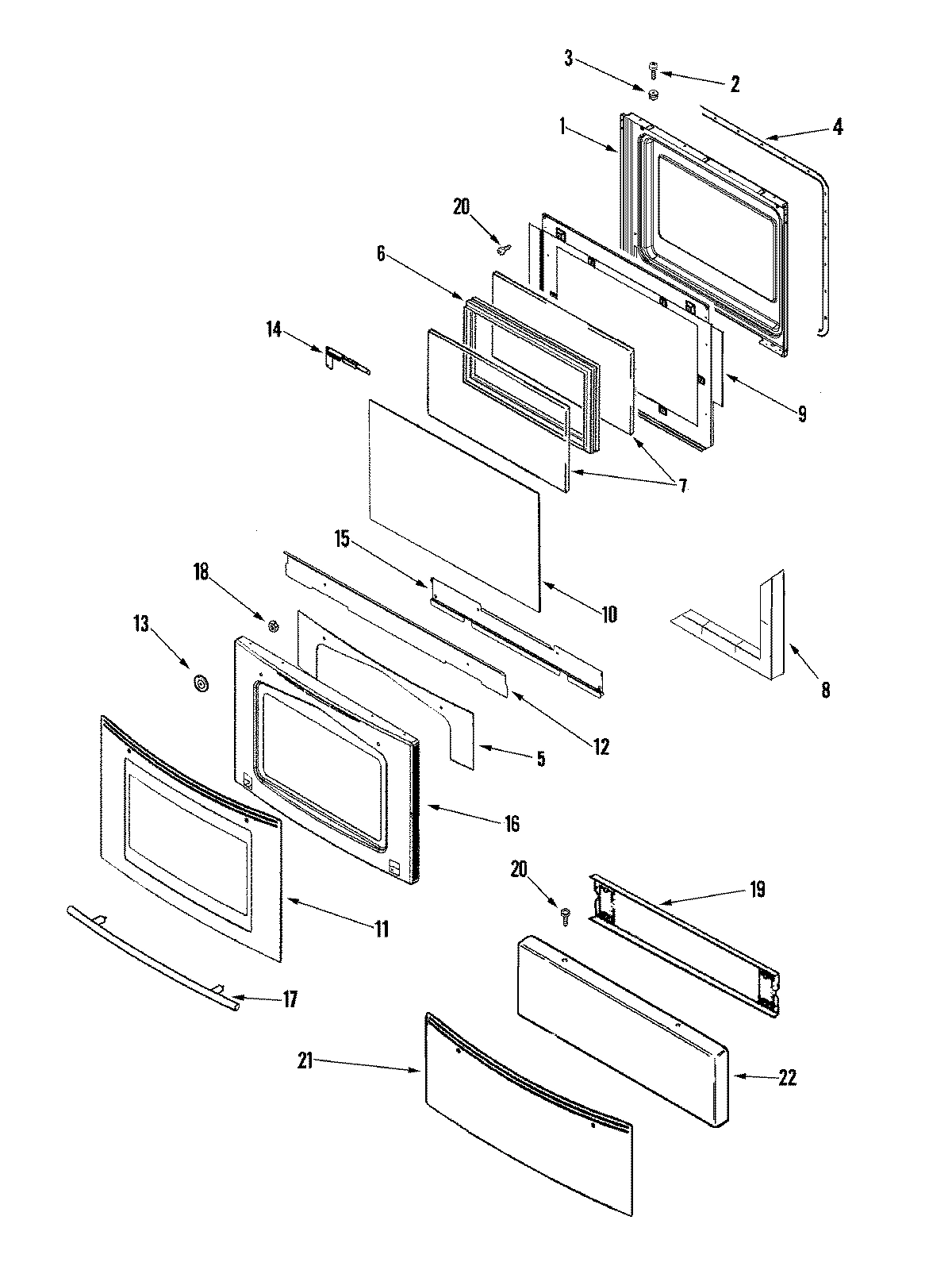

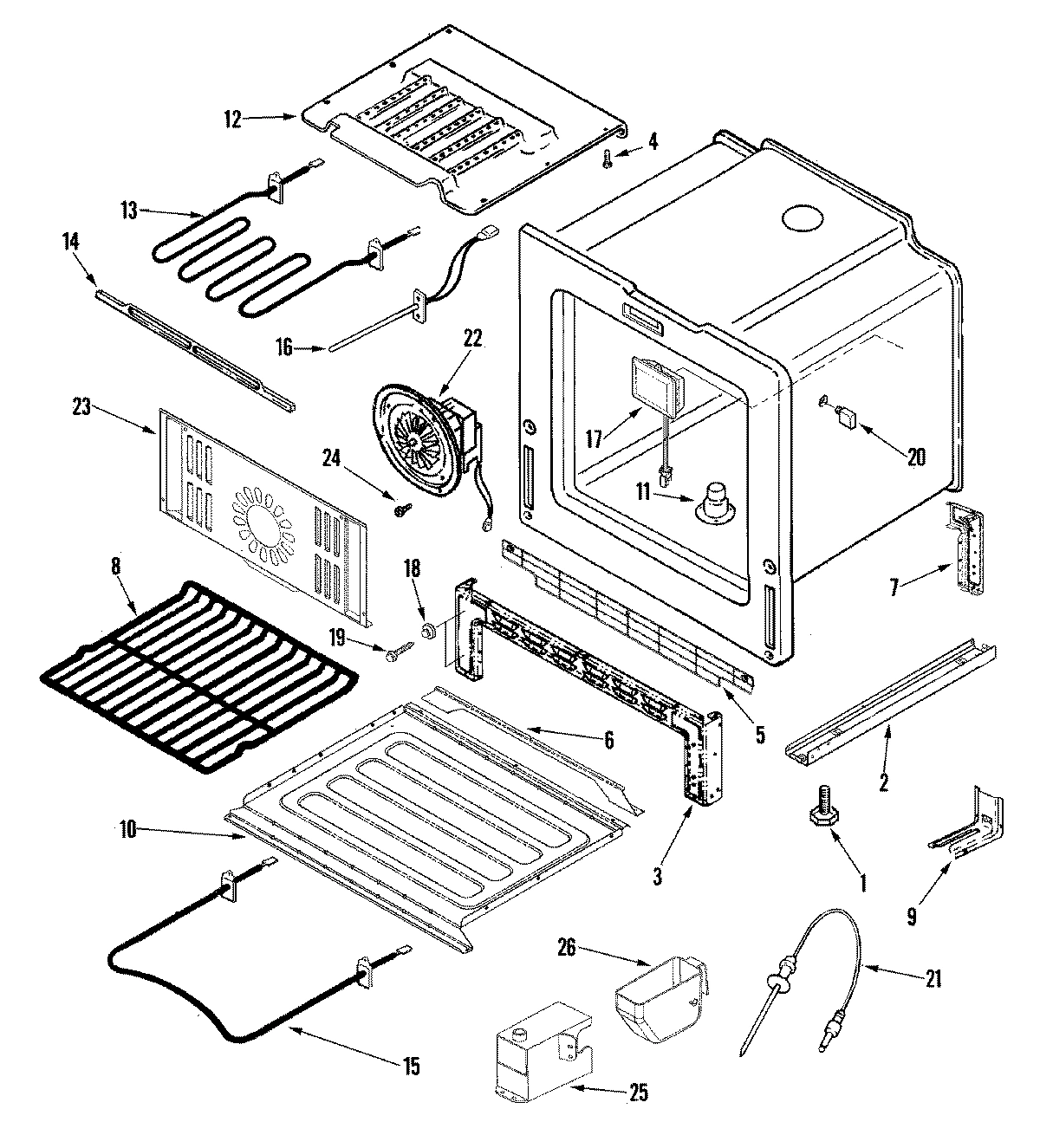

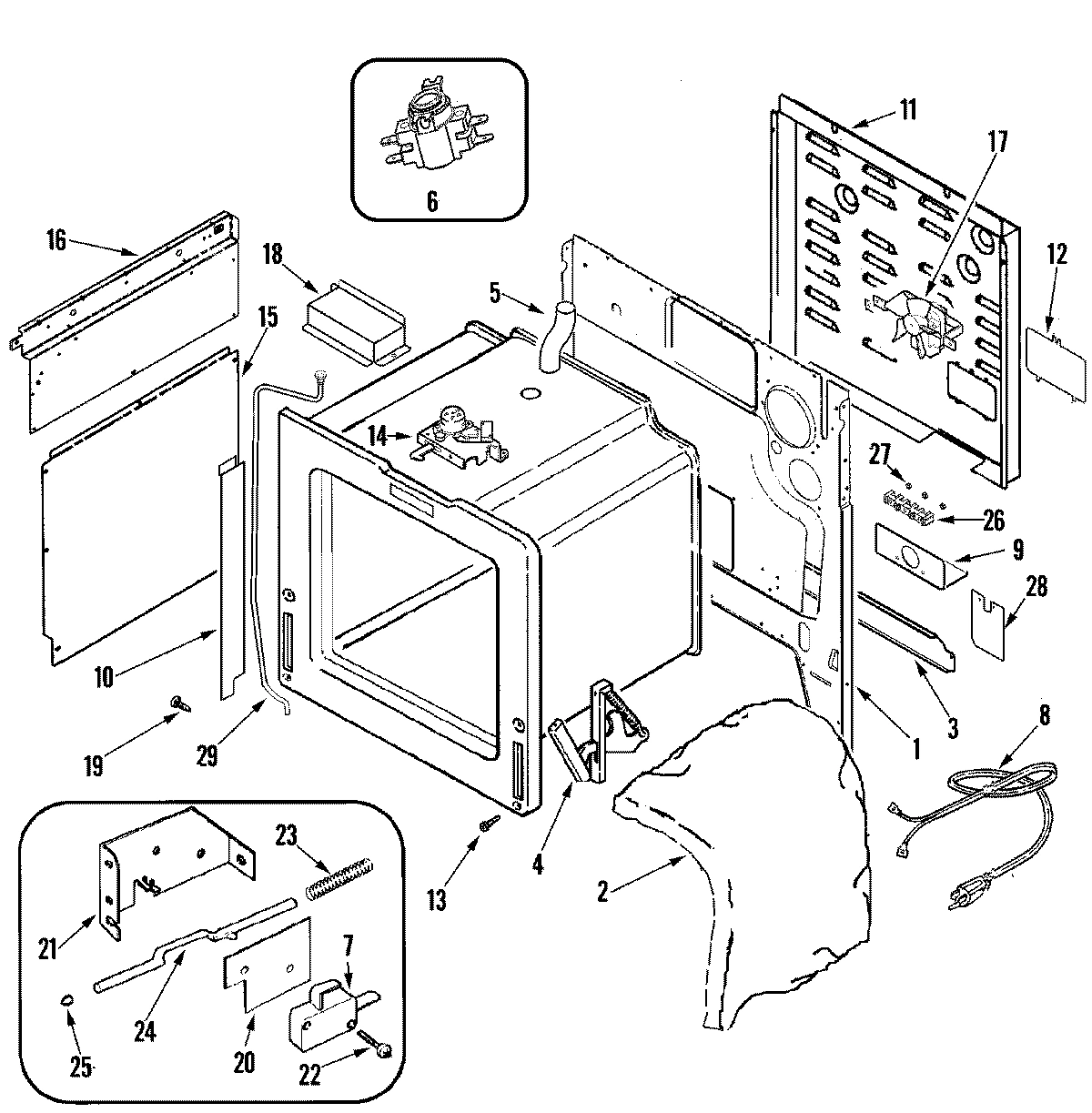

1

E-BURNER COMPLETE ASSEMBLY WPL 74010760 Contact Us For Availability

1

CONTROL PANEL/SWITCH ASY (WHT) WPL 74011591 Contact Us For Availability

1

LINING, DOOR WPL 74011456 Contact Us For Availability

1

LINING, DOOR WPL 74003642 Contact Us For Availability

1

SCREW, No.10-16X1/2`` (E-BNR) WPL 74011139 Contact Us For Availability

1

MANUAL, USE & CARE WPL 8113P53060 Contact Us For Availability

1

MANUAL, USE & CARE WPL 8113P75360 Contact Us For Availability

1

BACK, MAIN WPL 74011465 Contact Us For Availability

2

4020W035-80 Whirlpool Bottom PE Backorder WPL 4020W035-80 $80.93

2

WP74006072 Whirlpool Spark Electrode Backorder WPL WP74006072 $79.35

2

WP7450P012-60 Whirlpool Burner Top Backorder WPL WP7450P012-60 $111.22

2

WP98008544 Whirlpool Screw Assembly In Stock WPL WP98008544 $9.16

2

HARNESS, MAIN WPL 74011529 Contact Us For Availability

2

INSULATION, WRAPPER WPL 74010987 Contact Us For Availability

3

5171P537-60 Whirlpool Wire Harness Backorder WPL 5171P537-60 $107.38

3

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $6.85

3

WP74006073 Whirlpool Oven Igniter In Stock WPL WP74006073 $70.31

3

GRATE, GRILL WPL 71003267 Contact Us For Availability

3

PEDESTAL, FRONT WPL 74010882 Contact Us For Availability

3

EXTENSION, MAIN BACK WPL 74010815 Contact Us For Availability

4

74011142 Whirlpool Stove Range Oven Door Hing In Stock WPL 74011142 $86.64

4

W10173470 Whirlpool Wire Harness Backorder WPL W10173470 $60.78

4

W10841140 Whirlpool Dishwasher Adhesive In Stock WPL W10841140 $17.51

4

W10919249 Whirlpool Burner Grate Foot In Stock WPL W10919249 $7.61

4

WP67006908 Whirlpool Refrigerator Screw Backorder WPL WP67006908 $5.02

4

GRATE, CARTRIDGE (BLK) WPL 74011589 Contact Us For Availability

4

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

4

SHIELD, IGNITOR BRACKET WPL 74006071 Contact Us For Availability

5

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 $5.02

5

WP8507P232-60 Whirlpool Electronic Control Bo In Stock WPL WP8507P232-60 $292.76

5

HARNESS/BLOCK, SPARK (LT) WPL 74011519 Contact Us For Availability

5

TUBING, ORIFICE (LF) WPL 74011584 Contact Us For Availability

5

SHIELD, CONTROL WPL 74011524 Contact Us For Availability

5

INSULATION, DOOR WPL 74011509 Contact Us For Availability

5

TRIM, FRONT FRAME (BLK) WPL 74011482 Contact Us For Availability

5

TUBING, ORIFICE (LR) WPL 74011585 Contact Us For Availability

5

TUBE, VENT (UPR) WPL 74011486 Contact Us For Availability

6

7513P496-60 Whirlpool Manifold Pipe Backorder WPL 7513P496-60 $233.56

6

WP74011593 Whirlpool Stove Knob SMR Backorder WPL WP74011593 $31.57

6

SUPPORT, RETAINER WPL 74005825 Contact Us For Availability

6

FRAME, GLASS WPL 74003644 Contact Us For Availability

6

KIT, LP ORIFICE WPL 74011395 Contact Us For Availability

7

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $115.28

7

WP7450P108-60 Whirlpool Lite Switch Backorder WPL WP7450P108-60 $113.42

7

WP98008545 Whirlpool Screw Backorder WPL WP98008545 $11.88

7

SUPPORT, CONTROL PANEL WPL 74011531 Contact Us For Availability

7

PEDESTAL, REAR (RT) WPL 74011515 Contact Us For Availability

7

TUBING, BURNER (RF) WPL 74011586 Contact Us For Availability

7

TUBING, BURNER (RR) WPL 74011587 Contact Us For Availability

7

TEMPLATE (DD BLOWER) WPL 74011881 Contact Us For Availability

8

WPW10110378 Whirlpool Surface Igniter In Stock WPL WPW10110378 $45.40

8

WPW10220975 Whirlpool Knob Backorder WPL WPW10220975 $33.19

8

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $50.75

8

WPW10407678 Whirlpool Orifice Holder Backorder WPL WPW10407678 $88.63

8

WPW10407680 Whirlpool Orifice Holder Backorder WPL WPW10407680 $80.93

8

INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability

8

CORD, POWER (90C/4 WIRE) WPL 74011522 Contact Us For Availability

9

12002270 Whirlpool Valve Kit and Screw 16K Backorder WPL 12002270 $208.37

9

3601F373-51 Whirlpool Baffle Backorder WPL 3601F373-51 $195.78

9

3801F911-51 Whirlpool Bracket Backorder WPL 3801F911-51 $5.46

9

74011583 Whirlpool Range Mini Burner Valve Backorder WPL 74011583 $189.41

9

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

9

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

9

BRACKET, CONTROL WPL 74006129 Contact Us For Availability

9

SCREW WPL 7101P35260 Contact Us For Availability

9

BAFFLE, OVEN DOOR WPL 74011339 Contact Us For Availability

9

SCREW WPL 74009416 Contact Us For Availability

9

VALVE, 5K (MUELLER) WPL 74009451 Contact Us For Availability

74011582 Whirlpool Range Switch Harness Assem Backorder WPL 74011582 $143.59

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

GLASS, DOOR (INNER/COATED) WPL 74010231 Contact Us For Availability

RETAINER, INSULATION WPL 74005824 Contact Us For Availability

SHEILD, SIDE WPL 74011521 Contact Us For Availability

71001764 Whirlpool Locator PIN Backorder WPL 71001764 $7.46

Y052721 Whirlpool Nut Backorder WPL Y052721 $15.44

TUBE, SUPPLY WPL 74011471 Contact Us For Availability

GLASS ASY, DOOR (WHT) WPL 74011510 Contact Us For Availability

TUBE, VENT (LWR) WPL 74010808 Contact Us For Availability

PLATE, VENT COVER WPL 74010809 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

PAN, GRILL (LT) WPL 74006090 Contact Us For Availability

WASHER WPL Y704947 Contact Us For Availability

SHIELD, DOOR WPL 74011049 Contact Us For Availability

SHIELD, BROIL (30``) WPL 74008408 Contact Us For Availability

REGULATOR, PRESSURE WPL Y04100249 Contact Us For Availability

COVER, TERMINAL BLOCK WPL 74005264 Contact Us For Availability

WP4159193 Whirlpool Screw Backorder WPL WP4159193 $5.01

WP7406P430-60 Whirlpool Broil Element In Stock WPL WP7406P430-60 $144.92

WASHER, HANDLE WPL 74009194 Contact Us For Availability

TOP, MAIN (WHT) WPL 74011501 Contact Us For Availability

TOP, MAIN (WHT) WPL W10204446 Contact Us For Availability

BRACKET, SUPPORT WPL Y04100845 Contact Us For Availability

74010819 Whirlpool Latch Assembly Backorder WPL 74010819 $234.61

8215557 Whirlpool Gas Stove Range Oven Cookto In Stock WPL 8215557 $141.83

CLAMP, HOSE WPL Y702331 Contact Us For Availability

CLIP, TERMINAL BLOCK WPL 74006093 Contact Us For Availability

RETAINER, GLASS (RT) WPL 74011463 Contact Us For Availability

RETAINER, GLASS (LT) WPL 74011797 Contact Us For Availability

SUPPORT, BROIL ELEMENT WPL 74003563 Contact Us For Availability

RETAINER, GLASS (LT) WPL 74011503 Contact Us For Availability

RETAINER, GLASS (RT) WPL 74011504 Contact Us For Availability

Module, Spark (4+0) WPL 8212258 Contact Us For Availability

WPW10310274 Whirlpool Bake Element In Stock WPL WPW10310274 $87.70

DUCT, FLEXIBLE WPL Y702326 Contact Us For Availability

RETAINER, GLASS (LWR) WPL 74011464 Contact Us For Availability

RETAINER, DOOR GLASS WPL 74007215 Contact Us For Availability

Support, Spark Module WPL 3807F75245 Contact Us For Availability

SUPPORT, SPARK MODULE WPL 74007020 Contact Us For Availability

SHEILD, LOWER SIDE WPL 74010905 Contact Us For Availability

16

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

16

GRILL, AIR (BLK) WPL 74006061 Contact Us For Availability

16

TOP, CARTRIDGE (WHT) WPL 74011581 Contact Us For Availability

WP74008625 Whirlpool Door Handle Backorder WPL WP74008625 $195.02

WPW10586440 Whirlpool Blower Fan Backorder WPL WPW10586440 $228.42

LIGHT ASY, HAL0GEN WPL 74011220 Contact Us For Availability

PLENUM ASY. WPL 74011483 Contact Us For Availability

CLIP, J WPL Y700556 Contact Us For Availability

SCREW, BLACK WPL 7101P27060 Contact Us For Availability

SUPPORT, CARTRIDGE PAN WPL 74011599 Contact Us For Availability

BOTTOM, BURNER BOX (CARTRIDGE) WPL 74011466 Contact Us For Availability

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $5.30

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

BASE, BURNER (16K) WPL 74011473 Contact Us For Availability

COVER, DOOR LATCH WPL 74010845 Contact Us For Availability

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

WPW10406243 Whirlpool Burner Head Auxiliary 6 In Stock WPL WPW10406243 $19.56

SCREW WPL 74005401 Contact Us For Availability

SCREW, W/SHOULDER WPL 74007476 Contact Us For Availability

HANGER, ACCESS PANEL WPL 74011554 Contact Us For Availability

20

2801L037-80 Whirlpool Plenum Backorder WPL 2801L037-80 $84.56

20

CAP, BURNER (EX-LRG/BLK) WPL 74007750 Contact Us For Availability

20

INSULATOR WPL 74008264 Contact Us For Availability

WP7402P104-60 Whirlpool Power Cord Backorder WPL WP7402P104-60 $41.99

WP7430P038-60 Whirlpool Meat Probe Sensor In Stock WPL WP7430P038-60 $107.56

WP8284669 Whirlpool Burner Cap Backorder WPL WP8284669 $48.99

BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability

GLASS ASY, DRAWER (WHT) WPL 74011544 Contact Us For Availability

BLOWER ASSEMBLY WPL 74007501 Contact Us For Availability

CONVECTION FAN ASY. WPL 74011517 Contact Us For Availability

PANEL, DRAWER (WHT)-----S WPL 74011506 Contact Us For Availability

SCREW----NA WPL 22002368 Contact Us For Availability

23

WPW10186795 Whirlpool Convection Baffle Backorder WPL WPW10186795 $54.31

23

SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability

24

SCREW W/WASHER WPL 7101P12460 Contact Us For Availability

24

ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability

25

HOUSING, GREASE CUP WPL 74005826 Contact Us For Availability

25

BUMPER, ROD WPL 74001631 Contact Us For Availability

26

CUP, GREASE WPL 74005827 Contact Us For Availability

26

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

27

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

28

INSULATOR, POWER CORD WPL 74006364 Contact Us For Availability

29

WASHER, TEFLON WPL 702747 Contact Us For Availability

29

NUT, DRAIN TUBE WPL 702748 Contact Us For Availability

29

DRAIN, TUBE WPL 74005855 Contact Us For Availability

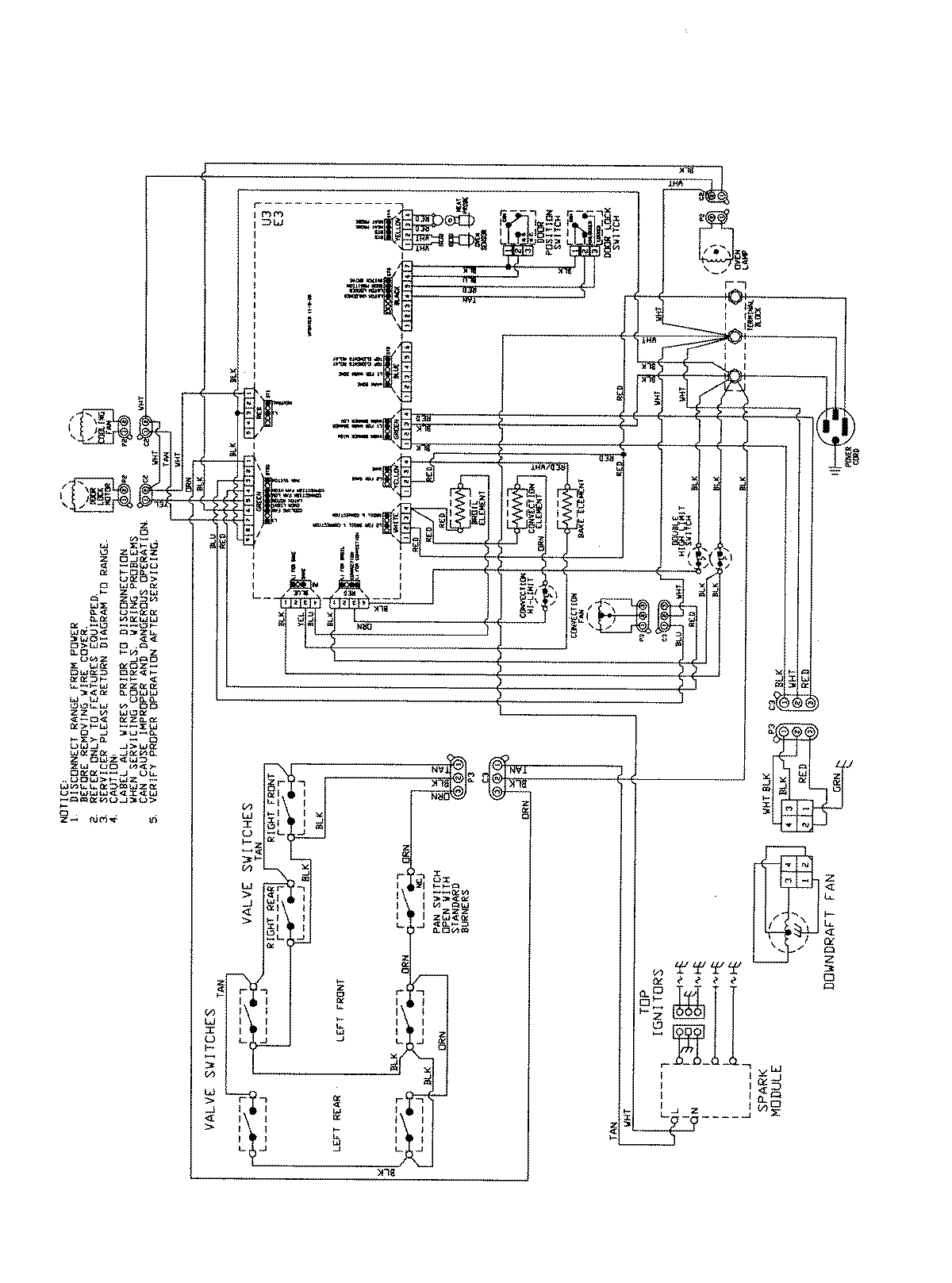

NI

WIRING INFORMATION WPL 15003900 Contact Us For Availability
