Model Whirlpool JDE2000A ELECTRIC DRYER – Common Parts & Diagrams
04 - TUMBLER

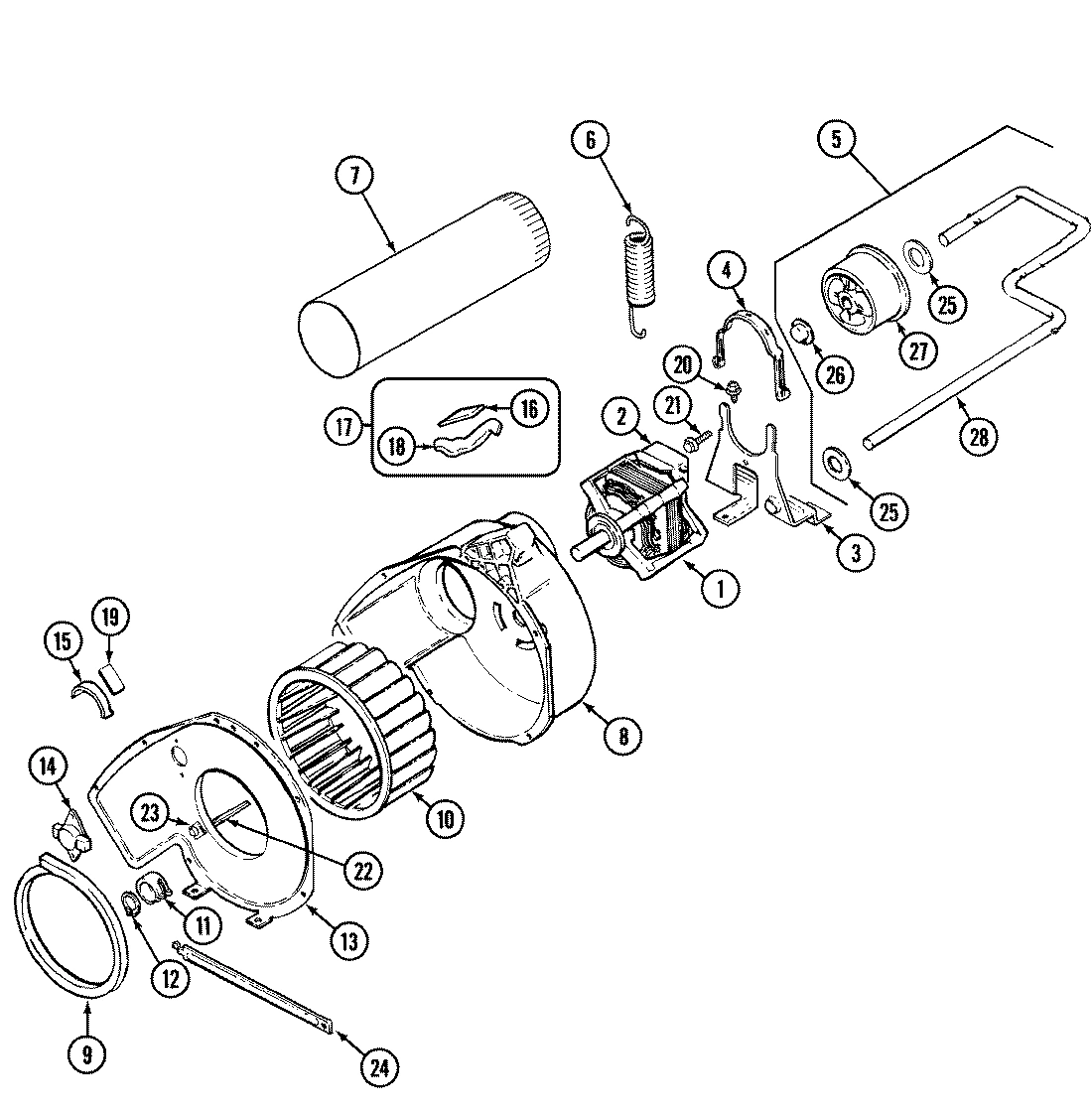

03 - MOTOR & DRIVE

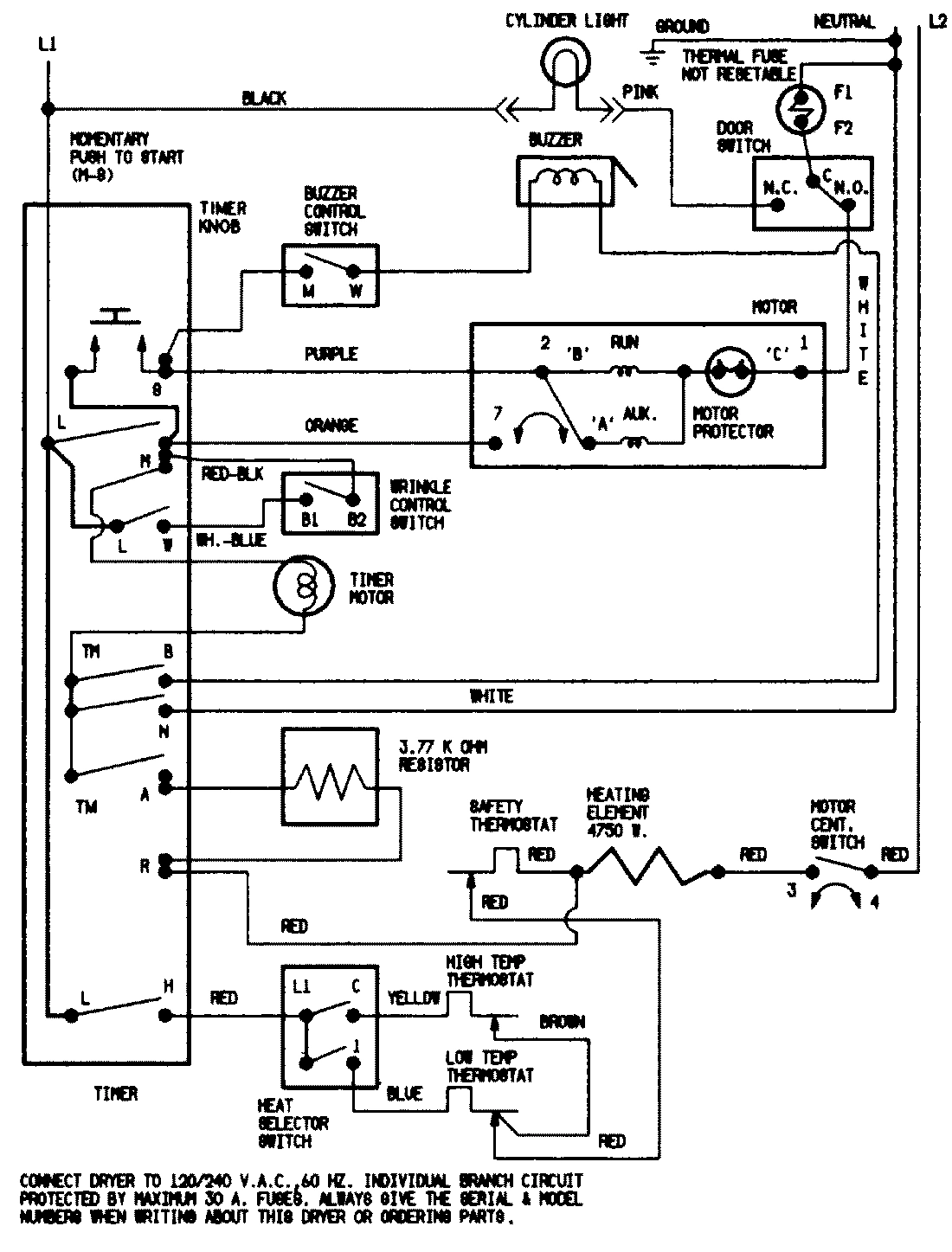

05 - WIRING INFORMATION

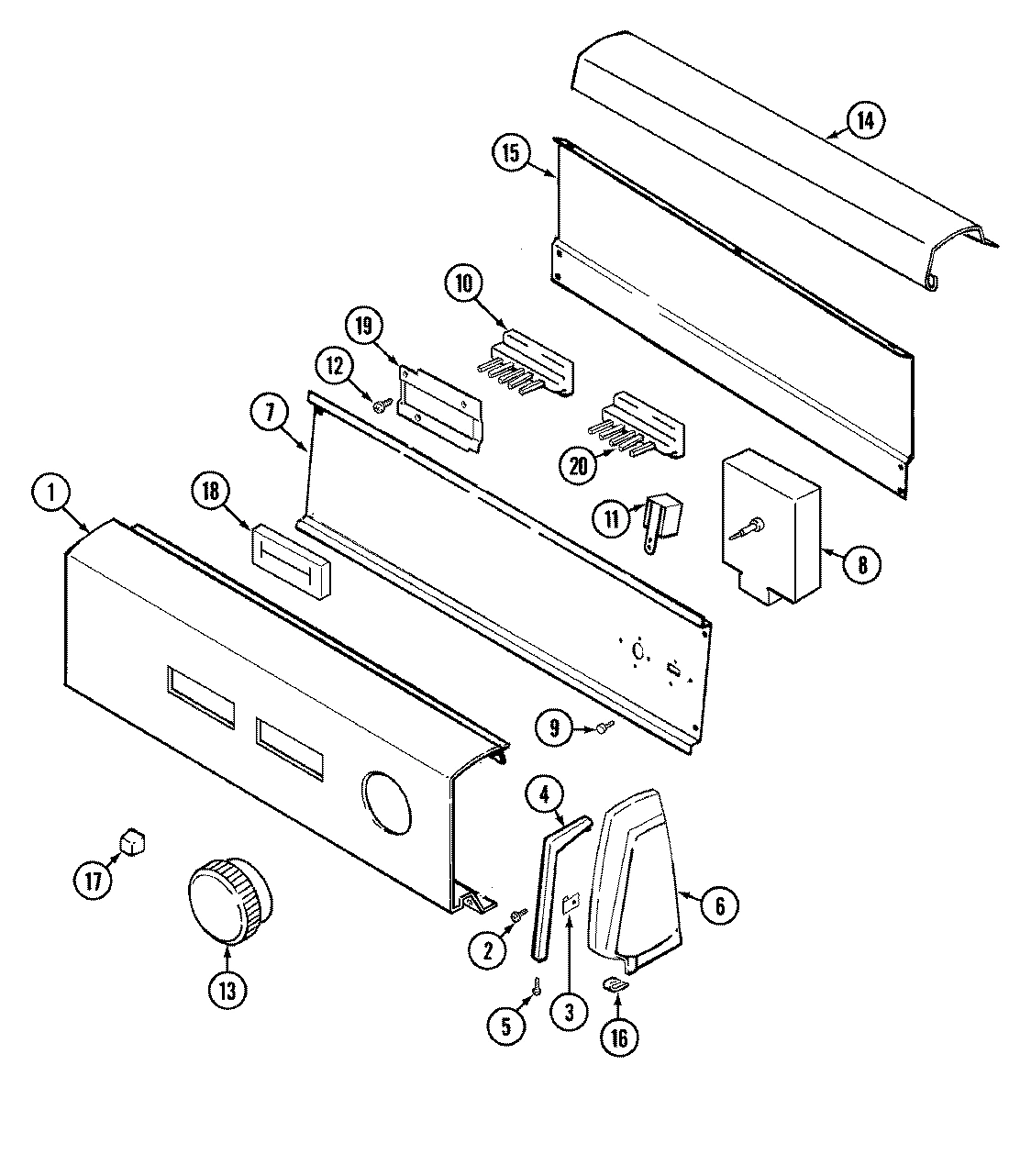

01 - CONTROL PANEL

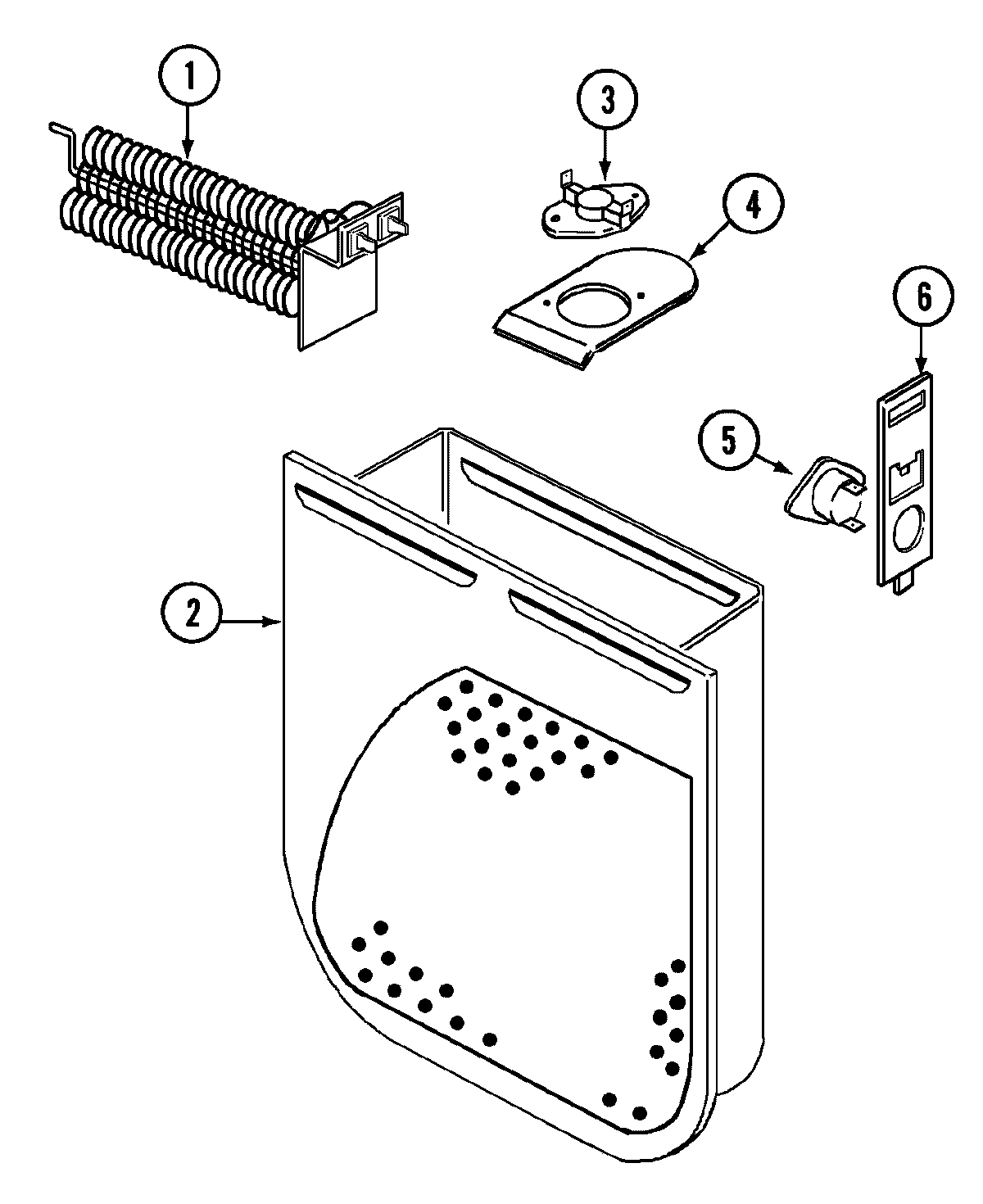

02 - HEATER
Common parts from model Whirlpool JDE2000A ELECTRIC DRYER
1
KIT, CTRL. PANEL W/KNOB (ALM) WPL 12001223 Contact Us For Availability
1
PANEL, CONTROL (ALM) WPL 31001198 Contact Us For Availability
1
SCREW WPL 257863 Contact Us For Availability
1
ELEMENT, HEATER WPL 531641 Contact Us For Availability
2
SEAL ASSY (WHITE) WPL 530281 Contact Us For Availability
2
SWITCH, MOTOR WPL 530693 Contact Us For Availability
2
SCREW WPL 257649 Contact Us For Availability
2
HEATER HOUSING ASSEMBLY WPL 531232 Contact Us For Availability
3
CYLINDER (W/BAFFLE) WPL 531250 Contact Us For Availability
3
SCREW WPL 257732 Contact Us For Availability
3
SPEEDCLIP, END CAP TO CTRL PNL WPL 257702 Contact Us For Availability
3
SCREW WPL 253083 Contact Us For Availability
3
THERMOSTAT, HI-LIMIT WPL 530771 Contact Us For Availability
4
SCREW WPL 257759 Contact Us For Availability
4
BAFFLE (WHT) WPL Y02100002 Contact Us For Availability
4
CLAMP, MOTOR WPL 530214 Contact Us For Availability
4
TRIM, ENDCAP (RT) (ALM) WPL 21001247 Contact Us For Availability
4
TRIM, ENDCAP (LT) (ALM) WPL 21001248 Contact Us For Availability
4
SCREW WPL 257741 Contact Us For Availability
4
BRACKET, THERMOSTAT WPL 530285 Contact Us For Availability
5
IDLER ASSY. WPL 532287 Contact Us For Availability
5
SCREW WPL 257760 Contact Us For Availability
5
FUSE KIT, THERMAL WPL LA1053 Contact Us For Availability
6
SCREW WPL 257101 Contact Us For Availability
6
SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability
6
SPRING, IDLER WPL 532209 Contact Us For Availability
6
CAP, END (ALM) (RT) WPL 21001069 Contact Us For Availability
6
CAP, END (ALM) (LT) WPL 21001070 Contact Us For Availability
6
BRACKET, THERMAL FUSE WPL 531181 Contact Us For Availability
7
ROLLER (REAR) WPL 31001096 Contact Us For Availability
7
DUCT, EXHAUST WPL 530134 Contact Us For Availability
7
SHIELD, CONTROL WPL 21001266 Contact Us For Availability
7
PAD, SHIELD WPL 31001193 Contact Us For Availability
8
SPACER WPL 257813 Contact Us For Availability
8
HOUSING, BLOWER WPL 531801 Contact Us For Availability
8
TIMER WPL 531816 Contact Us For Availability
8
RESISTOR ASSY. WPL 636743 Contact Us For Availability
9
WASHER WPL 257814 Contact Us For Availability
9
SEAL, BLOWER HOUSING WPL 530203 Contact Us For Availability
10
RING, RETAINING WPL 257854 Contact Us For Availability
10
SWITCH, TEMPERATURE WPL 31001234 Contact Us For Availability
10
SWITCH, TEMPERATURE WPL 531972 Contact Us For Availability
11
ROLLER WPL LA1008 Contact Us For Availability
11
CLAMP WPL 257823 Contact Us For Availability
11
BUZZER ASSY. WPL 531639 Contact Us For Availability
12
SCREW WPL 257952 Contact Us For Availability
12
BLOCK, TERMINAL WPL 531518 Contact Us For Availability
12
RING, RETAINING WPL 257855 Contact Us For Availability
12
SCREW WPL 257712 Contact Us For Availability
13
WASHER, FLAT WPL 253122 Contact Us For Availability
13
SCREW WPL 257435 Contact Us For Availability
13
COVER, BLOWER HOUSING WPL 531933 Contact Us For Availability
13
COVER, BLOWER HOUSING WPL 531934 Contact Us For Availability
13
KNOB & SKIRT ASSY. (ALM) WPL 31001197 Contact Us For Availability
14
NUT (No.10-32) WPL 250027 Contact Us For Availability
14
NUT (No.10-24) WPL 257808 Contact Us For Availability
14
SCREW WPL 252134 Contact Us For Availability
14
THERMOSTAT, LO-LIMIT (120/110) WPL 530170 Contact Us For Availability
14
THERMOSTAT, CONTROL (146/121) WPL 531107 Contact Us For Availability
14
COVER, CONTROL PANEL (ALM) WPL 21001244 Contact Us For Availability
15
STRAP, GROUND WPL 530965 Contact Us For Availability
15
SCREW, SEMS WPL 253457 Contact Us For Availability
15
GLIDE, TUMBLER (LT) WPL 532273 Contact Us For Availability
15
SHIELD, CONTROL PANEL (REAR) WPL 352688 Contact Us For Availability
16
BLADE-FAN WPL 531580 Contact Us For Availability
16
RH GLD CUSHION WPL 530724 Contact Us For Availability
16
SPEEDCLIP, END CAP TO TOP WPL 257851 Contact Us For Availability
17
CYL LIGHT BULB WPL 530570 Contact Us For Availability
17
PUSHBUTTON (ALM) WPL 21001118 Contact Us For Availability
18
LENS, BULB WPL 530174 Contact Us For Availability
18
GLIDE, TUMBLER (RT) WPL 532272 Contact Us For Availability
18
PAD, SWITCH WPL 353515 Contact Us For Availability
19
CLIP, PUSH-ON WPL 253562 Contact Us For Availability
19
CUSHION, TUMBLER GLIDE WPL 531684 Contact Us For Availability
19
SCREW WPL 253092 Contact Us For Availability
19
BRACKET, SWITCH WPL 336621 Contact Us For Availability
20
RACK, DRYING WPL 530772 Contact Us For Availability
20
SCREW WPL 257963 Contact Us For Availability
20
SWITCH, PUSHBUTTON WPL 31001202 Contact Us For Availability
20
SWITCH, PUSHBUTTON WPL 31001241 Contact Us For Availability
21
SCREW WPL 257674 Contact Us For Availability
21
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
21
MANUAL, USE & CARE WPL 31001221 Contact Us For Availability
22
GUIDE, VANE INLET WPL 531026 Contact Us For Availability
24
BRACE, TUMBLER SUPPORT WPL 531625 Contact Us For Availability
25
WASHER WPL 257815 Contact Us For Availability
26
PUSHNUT WPL 257957 Contact Us For Availability
27
PULLEY, IDLER WPL 531628 Contact Us For Availability
28
ARM, IDLER WPL 532250 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001524 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002537 Contact Us For Availability
× ![]()
