Model Whirlpool JDE1000A ELECTRIC DRYER – Common Parts & Diagrams

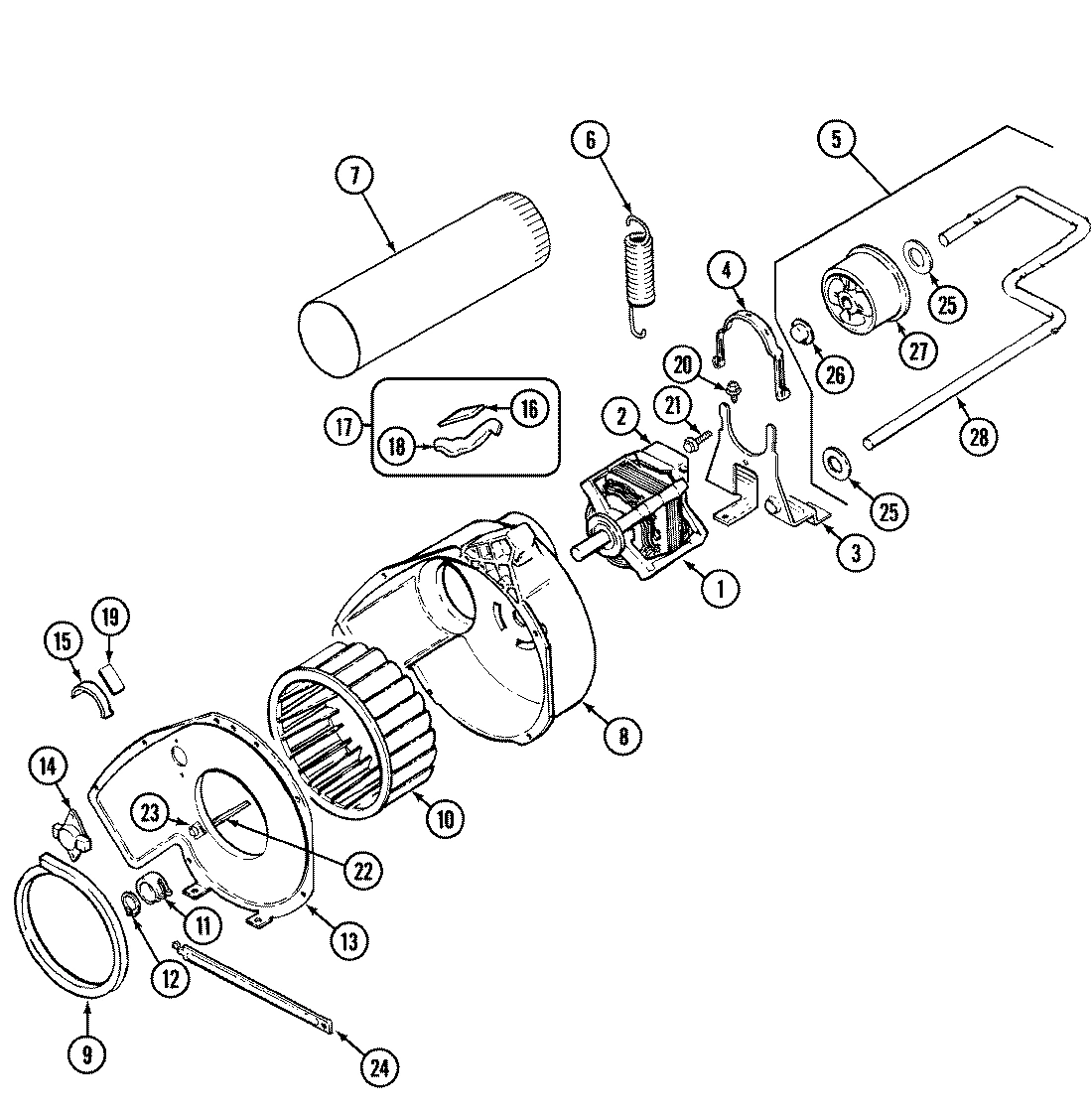

02 - MOTOR & DRIVE

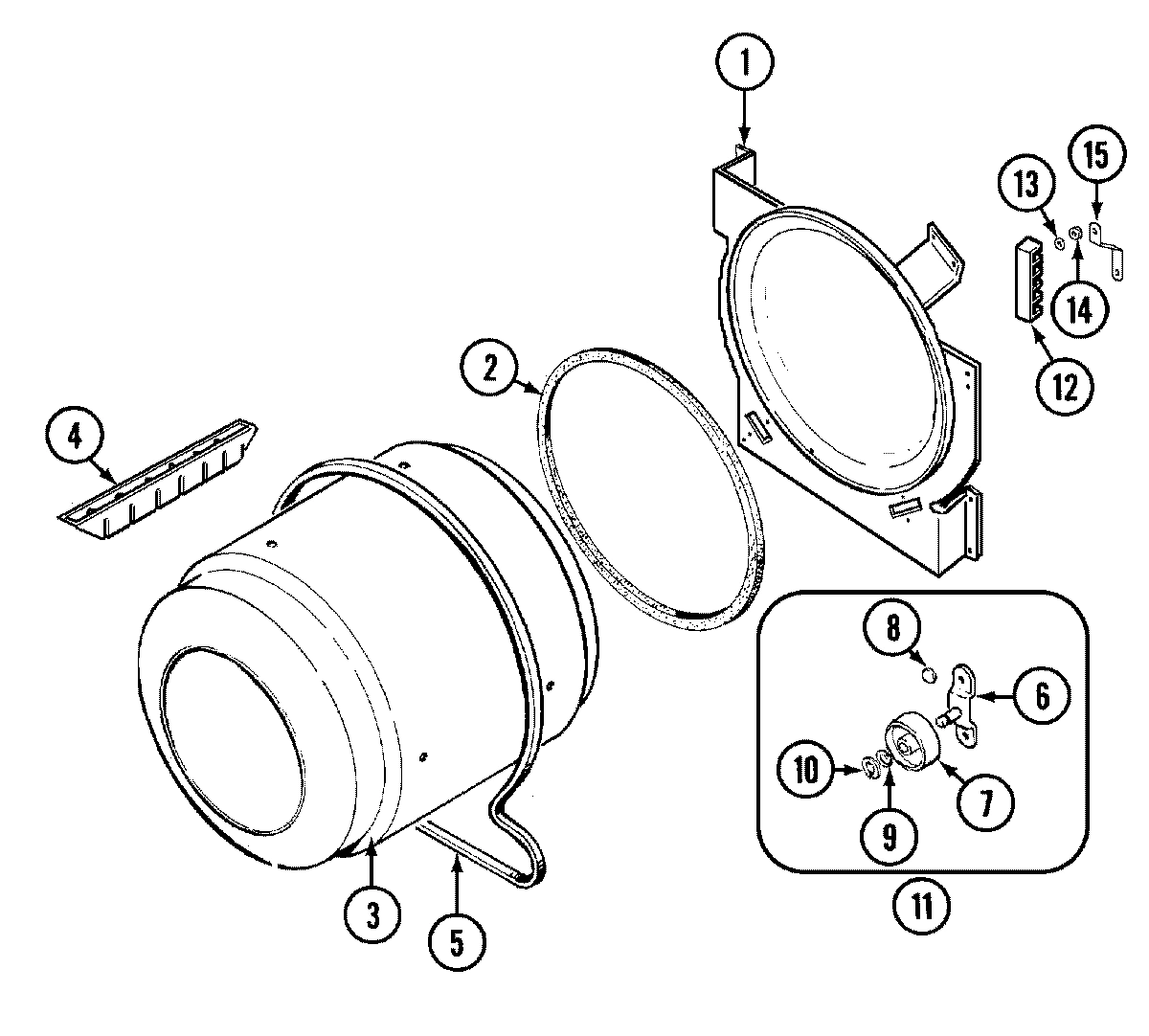

03 - TUMBLER

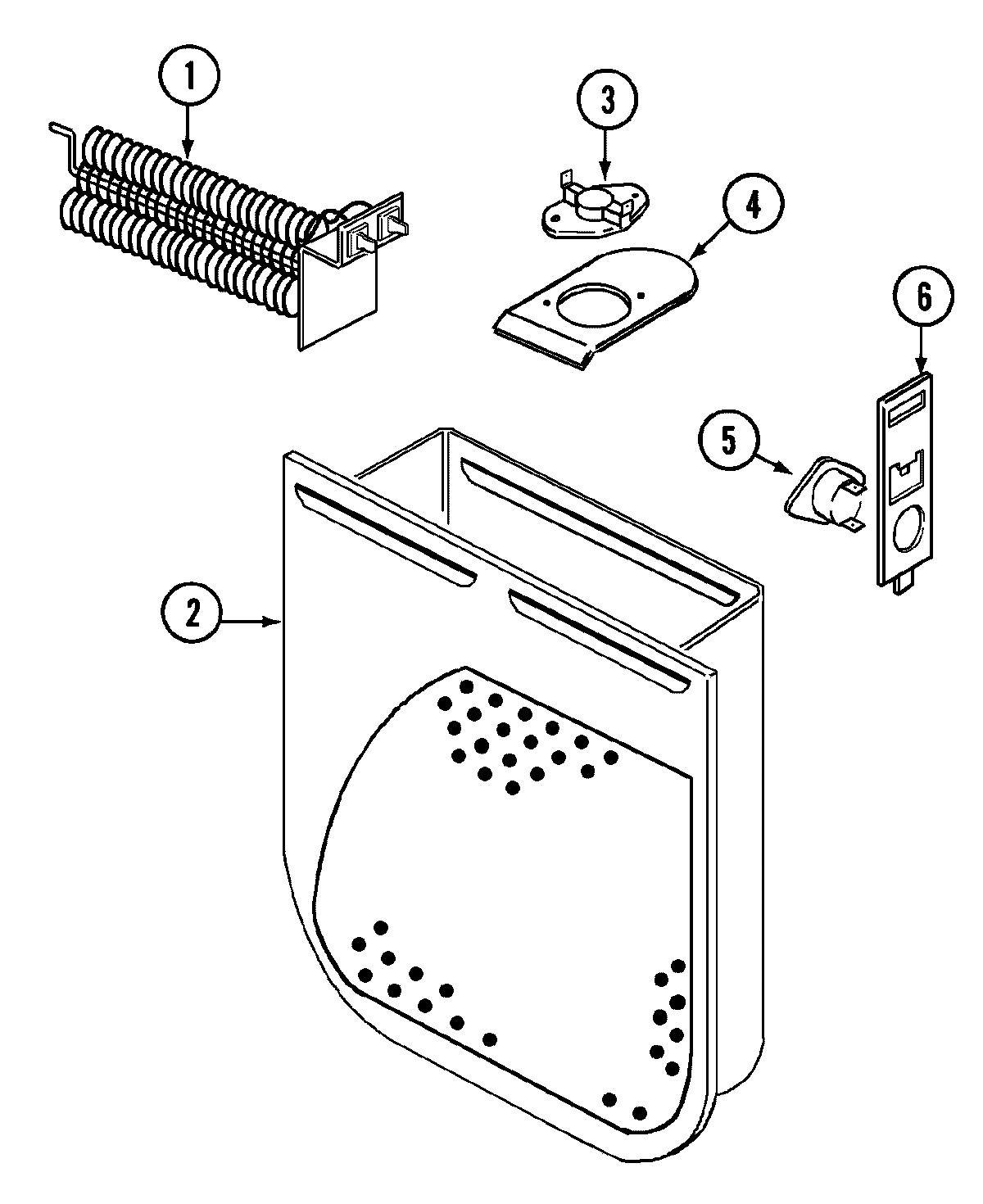

01 - HEATER

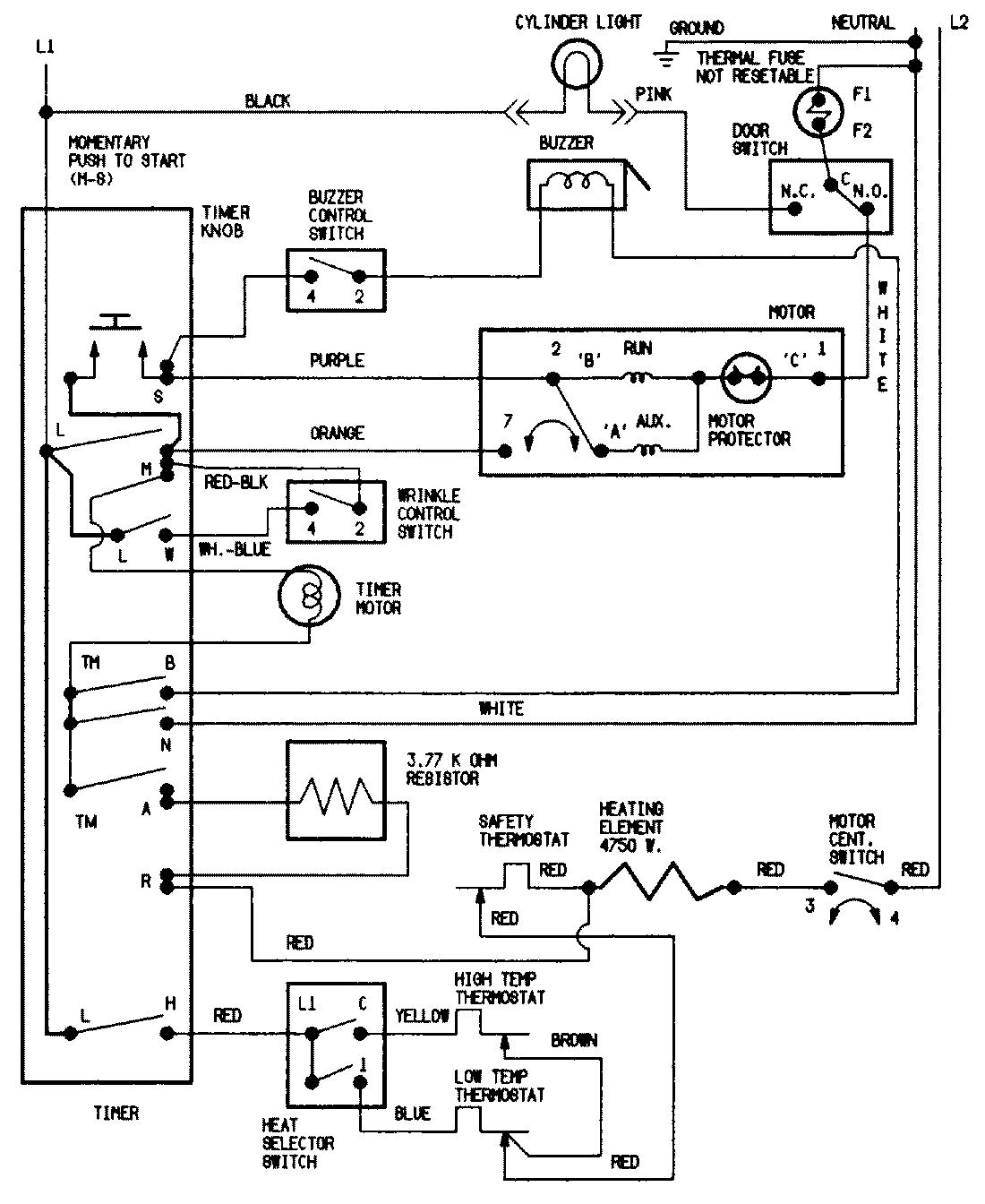

04 - WIRING INFORMATION
Common parts from model Whirlpool JDE1000A ELECTRIC DRYER
1
SCREW WPL 257733 Contact Us For Availability
1
DRYER BULKHEAD KIT WPL LA1054 Contact Us For Availability
1
SCREW WPL 257863 Contact Us For Availability
1
ELEMENT, HEATER WPL 531641 Contact Us For Availability
2
SEAL ASSY (WHITE) WPL 530281 Contact Us For Availability
2
HEATER HOUSING ASSEMBLY WPL 531232 Contact Us For Availability
3
SCREW WPL 257732 Contact Us For Availability
3
CYLINDER (W/BAFFLE) WPL 531250 Contact Us For Availability
3
SCREW WPL 253083 Contact Us For Availability
3
THERMOSTAT, HI-LIMIT WPL 530771 Contact Us For Availability
4
CLAMP, MOTOR WPL 530214 Contact Us For Availability
4
SCREW WPL 257759 Contact Us For Availability
4
BAFFLE (WHT) WPL Y02100002 Contact Us For Availability
4
SCREW WPL 257741 Contact Us For Availability
4
BRACKET, THERMOSTAT WPL 530285 Contact Us For Availability
5
IDLER ASSY. WPL 532287 Contact Us For Availability
5
FUSE KIT, THERMAL WPL LA1053 Contact Us For Availability
6
SPRING, IDLER WPL 532209 Contact Us For Availability
6
SCREW WPL 257101 Contact Us For Availability
6
SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability
6
BRACKET, THERMAL FUSE WPL 531181 Contact Us For Availability
7
DUCT, EXHAUST WPL 530134 Contact Us For Availability
7
ROLLER (REAR) WPL 31001096 Contact Us For Availability
8
HOUSING, BLOWER WPL 531801 Contact Us For Availability
8
SPACER WPL 257813 Contact Us For Availability
9
SEAL, BLOWER HOUSING WPL 530203 Contact Us For Availability
9
WASHER WPL 257814 Contact Us For Availability
10
RING, RETAINING WPL 257854 Contact Us For Availability
11
CLAMP WPL 257823 Contact Us For Availability
11
ROLLER WPL LA1008 Contact Us For Availability
12
RING, RETAINING WPL 257855 Contact Us For Availability
12
SCREW WPL 257952 Contact Us For Availability
12
BLOCK, TERMINAL WPL 531518 Contact Us For Availability
13
SCREW WPL 257435 Contact Us For Availability
13
COVER, BLOWER HOUSING WPL 531933 Contact Us For Availability
13
COVER, BLOWER HOUSING WPL 531934 Contact Us For Availability
13
WASHER, FLAT WPL 253122 Contact Us For Availability
14
SCREW WPL 252134 Contact Us For Availability
14
THERMOSTAT, LO-LIMIT (120/110) WPL 530170 Contact Us For Availability
14
THERMOSTAT, CONTROL (146/121) WPL 531107 Contact Us For Availability
14
NUT (No.10-32) WPL 250027 Contact Us For Availability
14
NUT (No.10-24) WPL 257808 Contact Us For Availability
15
GLIDE, TUMBLER (LT) WPL 532273 Contact Us For Availability
15
STRAP, GROUND WPL 530965 Contact Us For Availability
16
RH GLD CUSHION WPL 530724 Contact Us For Availability
18
GLIDE, TUMBLER (RT) WPL 532272 Contact Us For Availability
19
CUSHION, TUMBLER GLIDE WPL 531684 Contact Us For Availability
20
SCREW WPL 257963 Contact Us For Availability
21
SCREW WPL 257674 Contact Us For Availability
22
GUIDE, VANE INLET WPL 531026 Contact Us For Availability
23
SCREW, SEMS WPL 253457 Contact Us For Availability
24
BRACE, TUMBLER SUPPORT WPL 531625 Contact Us For Availability
25
WASHER WPL 257815 Contact Us For Availability
26
PUSHNUT WPL 257957 Contact Us For Availability
27
PULLEY, IDLER WPL 531628 Contact Us For Availability
28
ARM, IDLER WPL 532250 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001528 Contact Us For Availability
× ![]()
