Model Whirlpool JDB1050AWQ DISHWASHER – Common Parts &amp; Diagrams

1

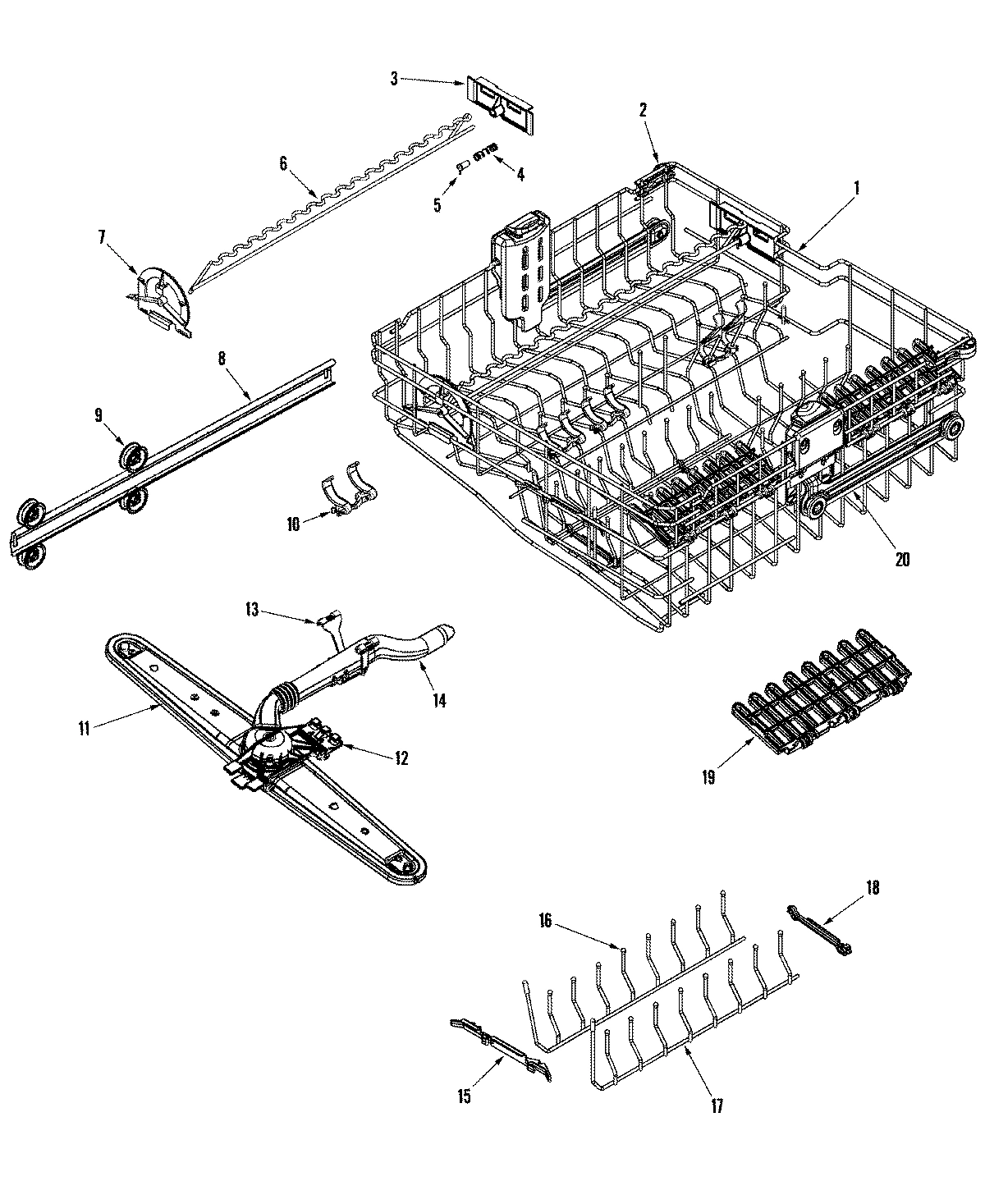

RACK ASSEMBLY (UPR) WPL 99002705 Contact Us For Availability

1

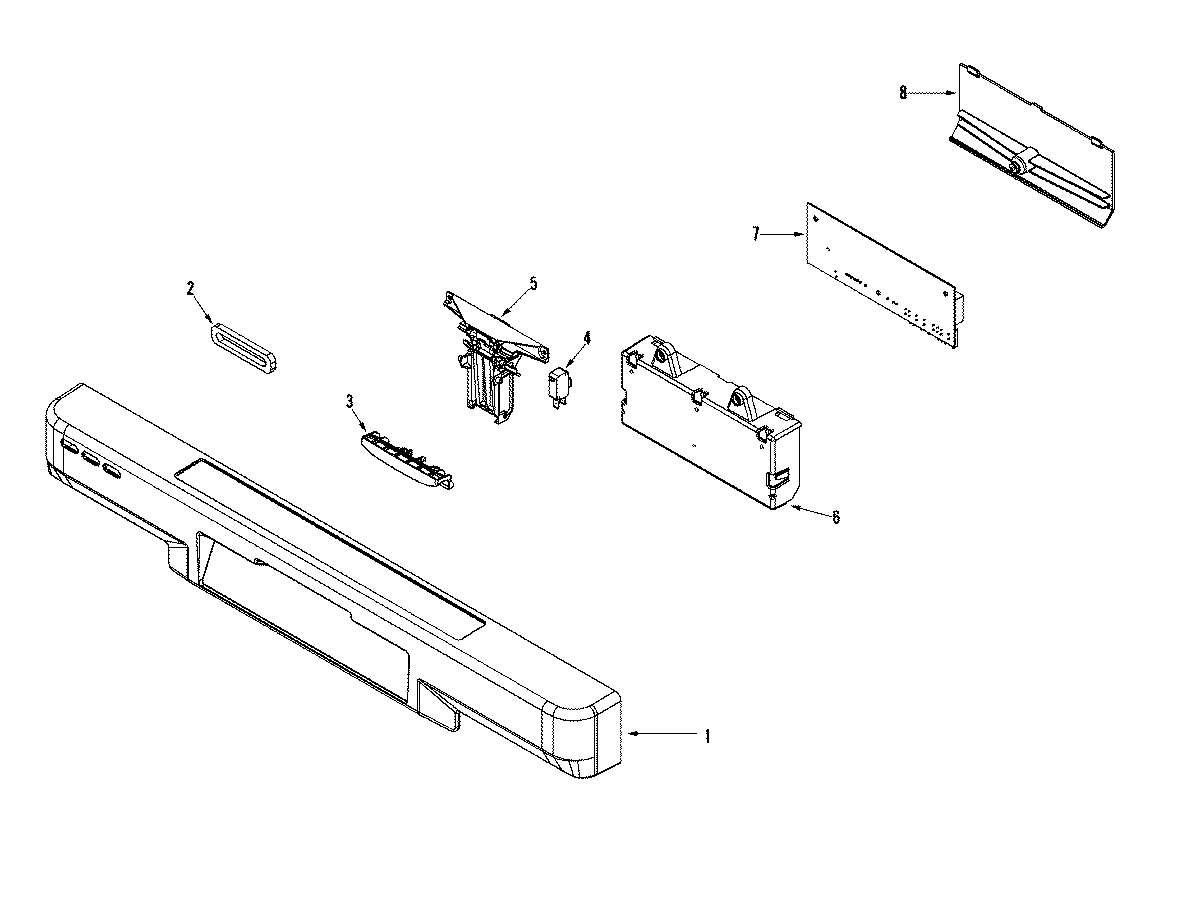

PANEL, CONTROL (BSQ) WPL 99002938 Contact Us For Availability

1

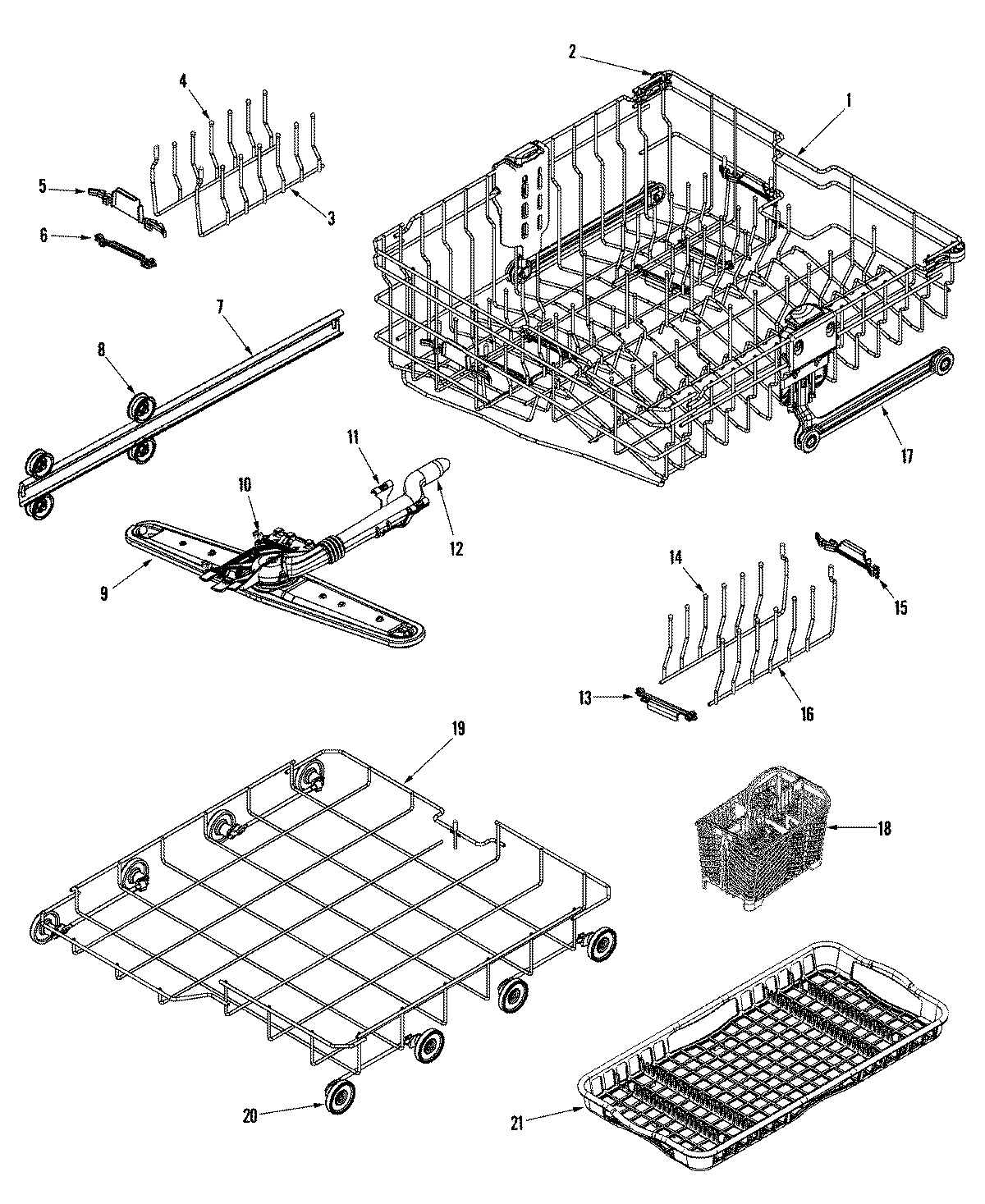

RACK ASSEMBLY (MIDDLE) WPL 99002727 Contact Us For Availability

1

BRACKET, WATER VALVE WPL 99002629 Contact Us For Availability

1

PANEL, DECO (W/DAMPER-BSQ) WPL 99002773 Contact Us For Availability

1

MANUAL, USE & CARE (JDB-3) WPL 99002914 Contact Us For Availability

2

W11082871 Whirlpool Dishwasher Inlet Valve In Stock WPL W11082871 $119.87

2

VENT SEAL, CONTROL PANEL WPL 99002931 Contact Us For Availability

2

SNUGGER, RACK WPL 99002853 Contact Us For Availability

2

VALVE, WATER WPL 99002628 Contact Us For Availability

2

VENT HOUSING ASSEMBLY WPL 99002673 Contact Us For Availability

2

TALL TUB SERVICE MANUAL WPL 16021814 Contact Us For Availability

3

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $5.02

3

WPW10130695 Whirlpool Dishwasher Door Latch A In Stock WPL WPW10130695 $36.61

3

VARILOCK (REAR) WPL 99002712 Contact Us For Availability

3

CROSSBRACE, HINGE WPL 99002604 Contact Us For Availability

3

SHIELD, RADIANT WPL 99002653 Contact Us For Availability

3

GUIDE, ENERGY WPL 99002932 Contact Us For Availability

3

GUIDE, ENERGY WPL 99003119 Contact Us For Availability

4

WPW10118637 Whirlpool Dishwasher Bracket Backorder WPL WPW10118637 $186.41

4

SPRING, VARILOCK WPL 99002715 Contact Us For Availability

4

SWITCH, DOOR WPL 99002751 Contact Us For Availability

4

SCREW WPL 99001075 Contact Us For Availability

4

BRACKET, HINGE (LT) WPL 99002929 Contact Us For Availability

4

SCREW WPL 99002666 Contact Us For Availability

4

MISC. PARTS PACKAGE WPL 99002854 Contact Us For Availability

5

WPW10275768 Whirlpool Door Latch In Stock WPL WPW10275768 $48.40

5

SCREW, DISCHARGE HOUSING WPL 99002664 Contact Us For Availability

5

CUP, VARILOCK WPL 99002714 Contact Us For Availability

5

LATCH, FOLD AWAY TINE (FRT) WPL 99002737 Contact Us For Availability

5

INLET, AIR/WATER WPL 99002645 Contact Us For Availability

5

SEAL, AIR/WATER INLET WPL 99002646 Contact Us For Availability

5

COVER, AIR/WATER INLET WPL 99002647 Contact Us For Availability

5

FOAM INSERT, AIR/WATER INLET WPL 99002867 Contact Us For Availability

5

FELT, AIR/WATER INLET WPL 99002954 Contact Us For Availability

5

FOAM BLOCK, AIR/WATER INLET WPL 99002955 Contact Us For Availability

5

INSULATION, DOOR WPL Y99002587 Contact Us For Availability

5

DISCHARGE HOUSING ASSY (UPR) WPL 99002677 Contact Us For Availability

5

TOE PANEL SPACER KIT (BSQ) WPL DAX3400AXN Contact Us For Availability

6

WP99002659 Whirlpool Impeller Backorder WPL WP99002659 $46.21

6

SUPPORT, VARILOCK WPL 99002713 Contact Us For Availability

6

SEAL, DOOR WPL 99002588 Contact Us For Availability

6

SCREW, IMPELLER WPL 99002660 Contact Us For Availability

6

TRIM STRIP KIT (WHT) WPL DAX3200AXE Contact Us For Availability

6

TRIM STRIP KIT (BSQ) WPL DAX3200AXN Contact Us For Availability

7

WP99002589 Whirlpool Dishwasher Door Seal Backorder WPL WP99002589 $51.39

7

WPW10192799 Whirlpool Dishwasher Accumulator In Stock WPL WPW10192799 $144.02

7

WPW10261227 Whirlpool Dishwasher Stop Assembl Backorder WPL WPW10261227 $4.82

7

VARILOCK (FRT) WPL 99002711 Contact Us For Availability

7

TRACK, RACK WPL 99002621 Contact Us For Availability

7

BOARD, CONTROL WPL 99002977 Contact Us For Availability

7

BOARD, CONTROL WPL 99003158 Contact Us For Availability

7

BRACKET, CABINET MOUNTING WPL 99002648 Contact Us For Availability

7

PUSHNUT, STAINLESS WPL 99002756 Contact Us For Availability

7

SCREW, STAINLESS PAN HEAD WPL 99002668 Contact Us For Availability

7

WOOD PANEL KIT (BLK) WPL DAX3090AXB Contact Us For Availability

7

WOOD PANEL KIT (BSQ) WPL DAX3090AXQ Contact Us For Availability

7

WOOD PANEL KIT (WHT) WPL DAX3090AXW Contact Us For Availability

8

WP99002644 Whirlpool Dishwasher Door Striker Backorder WPL WP99002644 $4.82

8

WP99002947 Whirlpool Tub Wheel In Stock WPL WP99002947 $7.80

8

WPY912798 Whirlpool Dishwasher Tub Washer Whe Backorder WPL WPY912798 $4.82

8

HOUSING, BOARD (TOP) WPL 99002575 Contact Us For Availability

8

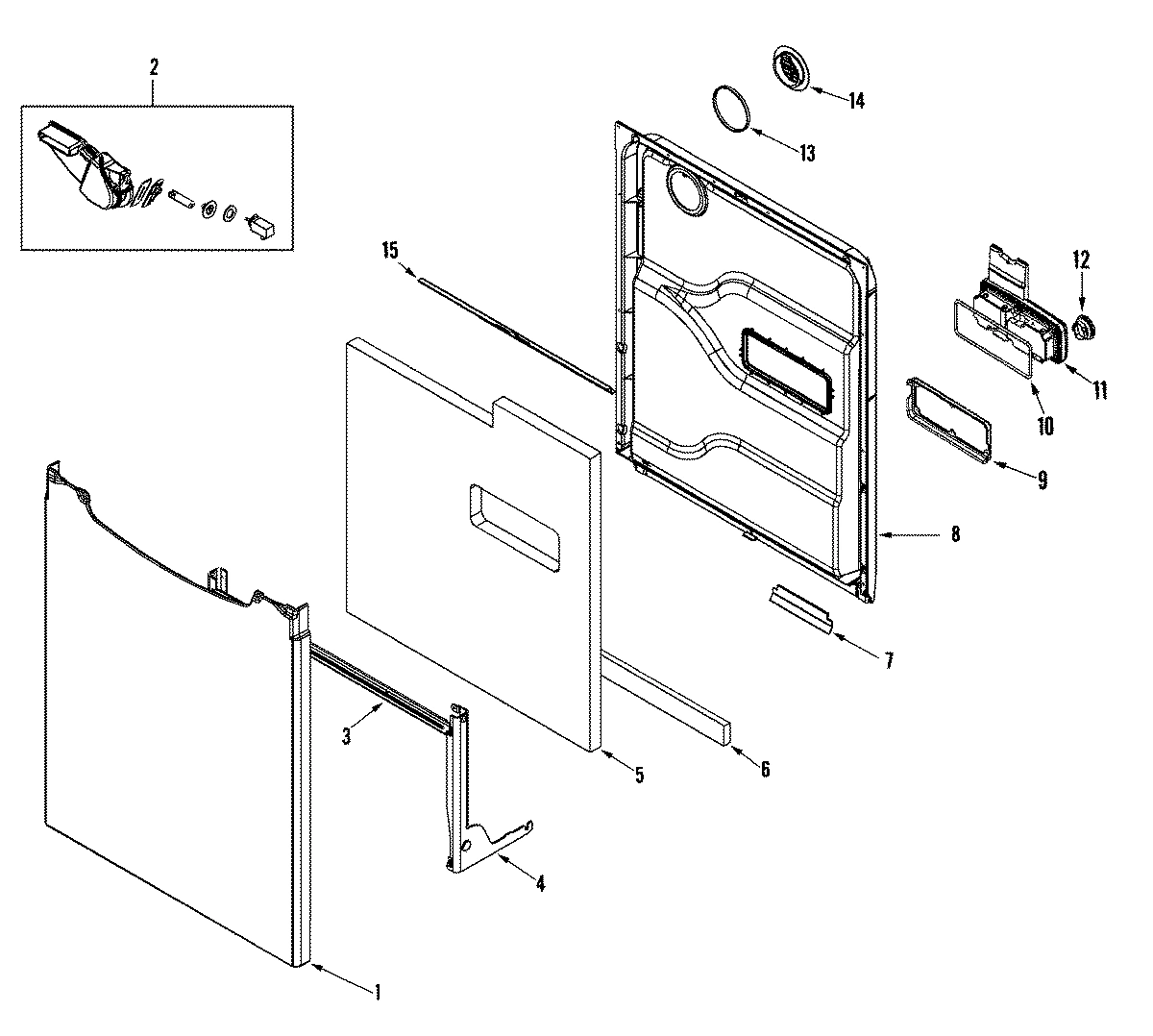

DOOR, INNER (W/DAMPER) WPL 99002776 Contact Us For Availability

8

DOOR, INNER (W/DAMPER) WPL 99002970 Contact Us For Availability

9

SCREW, TRUSS HEAD (10-18X.75) WPL 99002740 Contact Us For Availability

9

WIRE HARNESS, MICROPROCESSOR WPL 99002845 Contact Us For Availability

9

WIRE HARNESS, MICROPROCESSOR WPL 99002986 Contact Us For Availability

9

ARM, WASH (MIDDLE) WPL 99002739 Contact Us For Availability

9

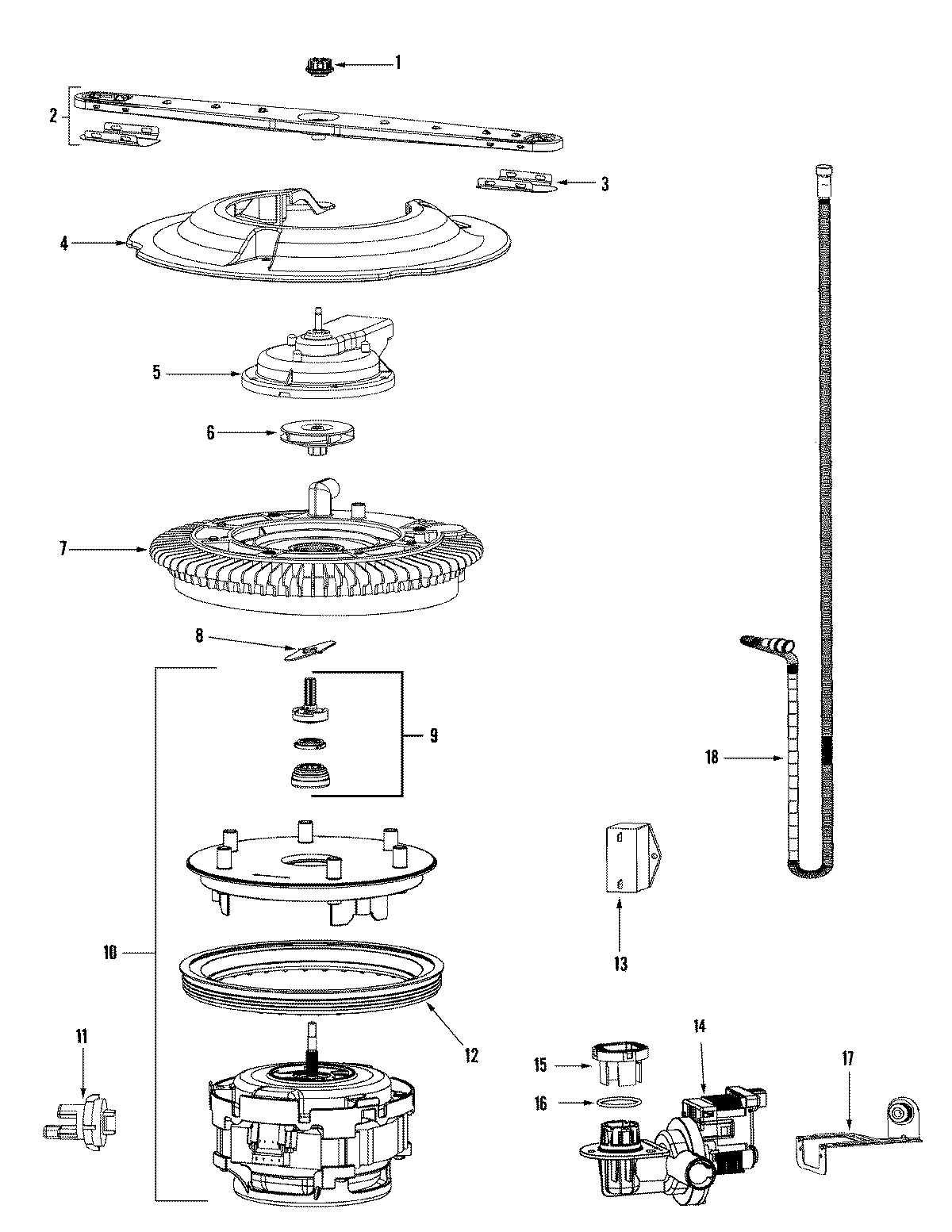

WASH MOTOR SEAL KIT WPL 99002760 Contact Us For Availability

9

WASH MOTOR SEAL KIT WPL 99002981 Contact Us For Availability

CLIP, CUP (BLUE) WPL 99002696 Contact Us For Availability

CLIP, MIDDLE MANIFOLD (FRT) WPL 99002732 Contact Us For Availability

SPRING, DOOR WPL 99002598 Contact Us For Availability

SEAL, BASE WPL 99002270 Contact Us For Availability

WASH MOTOR ASSY SEAL NOT INCL WPL 99002759 Contact Us For Availability

WASH MOTOR ASSY SEAL NOT INCL WPL 99002980 Contact Us For Availability

99002651 Whirlpool Dishwasher Turbidity Senso Backorder WPL 99002651 $14.02

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

WP99003446 Whirlpool Door Cable In Stock WPL WP99003446 $5.30

WPW10120019 Whirlpool Dishwasher Sensor Backorder WPL WPW10120019 $146.08

ARM, WASH (UPR) WPL 99002624 Contact Us For Availability

CLIP, MIDDLE MANIFOLD (BACK) WPL 99002758 Contact Us For Availability

RINSE AID/DETERGENT DISPENSER WPL 99002611 Contact Us For Availability

WP99002614 Whirlpool Dishwasher Rinse Knob Backorder WPL WP99002614 $14.02

CLIP, UPR WASH MANIFOLD (FRT) WPL 99002669 Contact Us For Availability

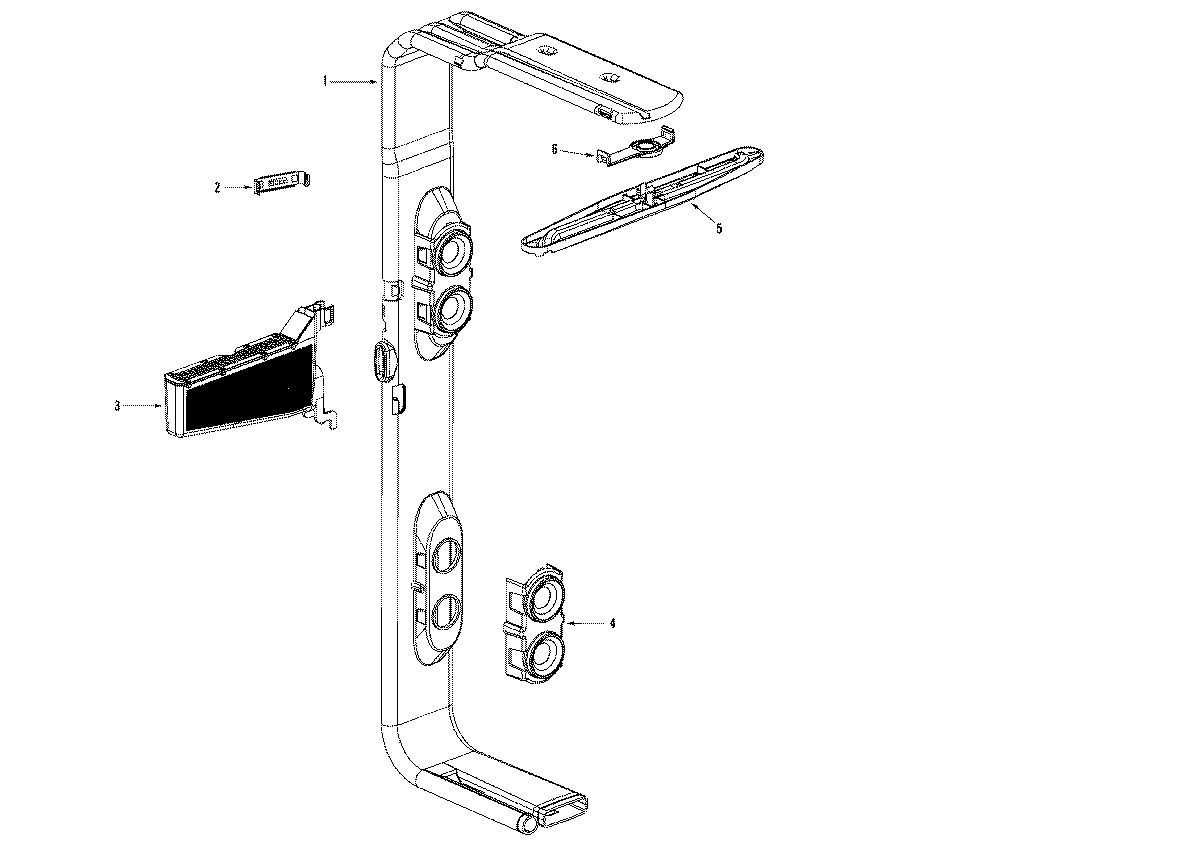

WASH MANIFOLD ASSY (MIDDLE) WPL 99002793 Contact Us For Availability

GASKET, PUMP WPL 99002663 Contact Us For Availability

WP99002735 Whirlpool Tine Clip In Stock WPL WP99002735 $4.54

BACKER, HINGE SEAL (LT) WPL 99002761 Contact Us For Availability

BACKER, HINGE SEAL (RT) WPL 99002762 Contact Us For Availability

SCREW 10-32X.400 (T-20 HEAD) WPL 99002601 Contact Us For Availability

BEZEL, DOOR VENT WPL 99002590 Contact Us For Availability

CAPACITOR, MOTOR WPL 99002665 Contact Us For Availability

WASH MANIFOLD ASSY (UPR) WPL 99002679 Contact Us For Availability

SUPPORT, HINGE (RT) WPL 99002927 Contact Us For Availability

SUPPORT, HINGE (LT) WPL 99002928 Contact Us For Availability

SEAL, DOOR VENT WPL 99002186 Contact Us For Availability

DRAIN PUMP ASSEMBLY WPL 99002750 Contact Us For Availability

FLAPPER, DRAIN PUMP VALVE WPL 99002815 Contact Us For Availability

WP99002710 Whirlpool Dishwasher Fold-Down Lat Backorder WPL WP99002710 $4.82

LATCH, FOLD AWAY TINE (REAR) WPL 99002736 Contact Us For Availability

REINFORCEMENT, INNER DOOR WPL 99002586 Contact Us For Availability

FLAPPER, DRAIN FILTER WPL 99003058 Contact Us For Availability

TINE, FOLD AWAY (LT) WPL 99002708 Contact Us For Availability

SEE NOTE FOR RIGHT TINE ORDER REAR TINE ASS WPL Y00000000 Contact Us For Availability

SHOULDER BOLT, CABLE BRACKET WPL 99002609 Contact Us For Availability

O-RING, DRAIN PUMP WPL 99002857 Contact Us For Availability

TINE, FOLD AWAY (RT) WPL 99002707 Contact Us For Availability

ADJUSTER, RACK (LT) WPL 99002782 Contact Us For Availability

ADJUSTER, RACK (RT) WPL 99002783 Contact Us For Availability

BRACKET, CABLE WPL 99002607 Contact Us For Availability

SCREW, DRAIN PUMP MOUNTING WPL 99002657 Contact Us For Availability

BRKT, DRAIN PUMP (W/GROMMET) WPL 99002752 Contact Us For Availability

6-918651 Whirlpool Silverware Basket Backorder WPL 6-918651 $45.93

WP99002652 Whirlpool Drain Hose In Stock WPL WP99002652 $95.29

WP99002709 Whirlpool Tine Pivot Clip In Stock WPL WP99002709 $4.56

COVER, SPLIT/FIT BASKET WPL 99002731 Contact Us For Availability

BRACKET, JUNCTION BOX SUPPORT WPL 99002637 Contact Us For Availability

WPW10143258 Whirlpool Dishwasher Leg Leveler Backorder WPL WPW10143258 $9.90

CAP, RACK (DARK GRAY) WPL 99002905 Contact Us For Availability

SHELF, CUP (UPR-SHORT) WPL 99002716 Contact Us For Availability

PAN RACK ASSEMBLY WPL 99002728 Contact Us For Availability

PAN RACK ASSEMBLY WPL 99002962 Contact Us For Availability

20

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

20

WP99002780 Whirlpool Lower Wheel Assembly In Stock WPL WP99002780 $9.74

20

COVER, JUNCTION BOX WPL 99002638 Contact Us For Availability

21

BASKET, UTILITY WPL 99002748 Contact Us For Availability

21

FLOAT WPL 99002630 Contact Us For Availability

22

SWITCH, FLOAT WPL 99002631 Contact Us For Availability

23

PLATE, SWITCH MOUNTING WPL 99002632 Contact Us For Availability

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.82

CLAMP, HARNESS WPL 99002855 Contact Us For Availability

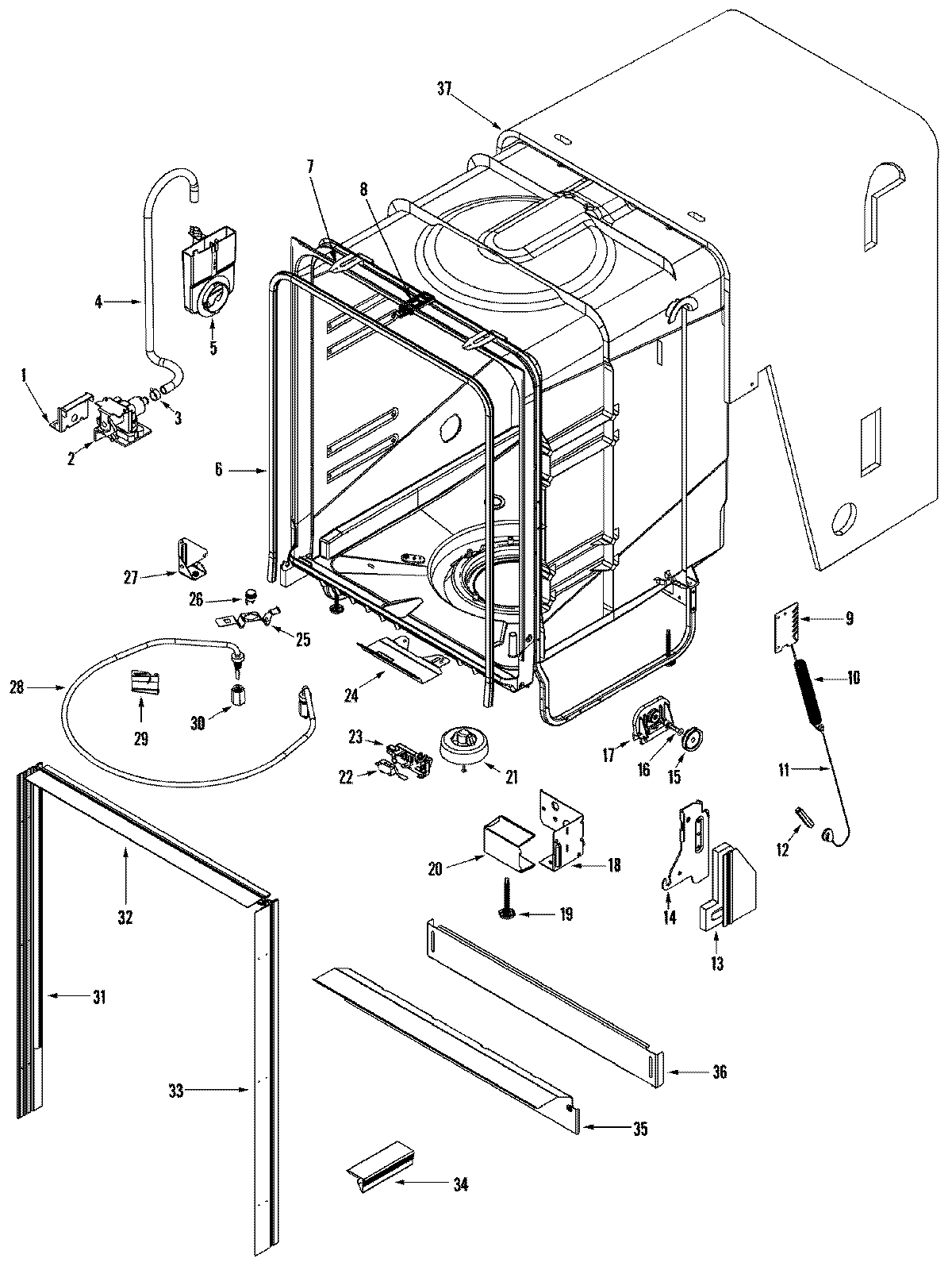

SHIELD, TUB WPL 99002856 Contact Us For Availability

CLIP, TINNERMAN WPL 99002858 Contact Us For Availability

25

CLIP, THERMOSTAT WPL 99002634 Contact Us For Availability

26

THERMOSTAT, LIMITING WPL 99002633 Contact Us For Availability

27

BRACKET, SUPPORT (LT) WPL 99002636 Contact Us For Availability

28

W10283681 Whirlpool Dishwasher Heater Backorder WPL W10283681 $97.52

28

G WPL 99002973 Contact Us For Availability

29

WP6-917262 Whirlpool Dishwasher Heater Bracke Backorder WPL WP6-917262 $104.46

30

WPL 99002627 WPL 99002627 Contact Us For Availability

30

WPL 99002972 WPL 99002972 Contact Us For Availability

30

WPL Y913079 WPL Y913079 Contact Us For Availability

31

WPL 99002690 WPL 99002690 Contact Us For Availability

32

WPL 99002723 WPL 99002723 Contact Us For Availability

33

WPL 99002692 WPL 99002692 Contact Us For Availability

33

WPL 99002691 WPL 99002691 Contact Us For Availability

34

WPL 99002702 WPL 99002702 Contact Us For Availability

35

WPL 99002861 WPL 99002861 Contact Us For Availability

36

WPL 99002114 WPL 99002114 Contact Us For Availability

36

WPL 99002698 WPL 99002698 Contact Us For Availability

36

WPL 99002767 WPL 99002767 Contact Us For Availability

37

WPW10223013 Whirlpool Dishwasher Insulation P Backorder WPL WPW10223013 $59.09

37

WPL 99002640 WPL 99002640 Contact Us For Availability

NI

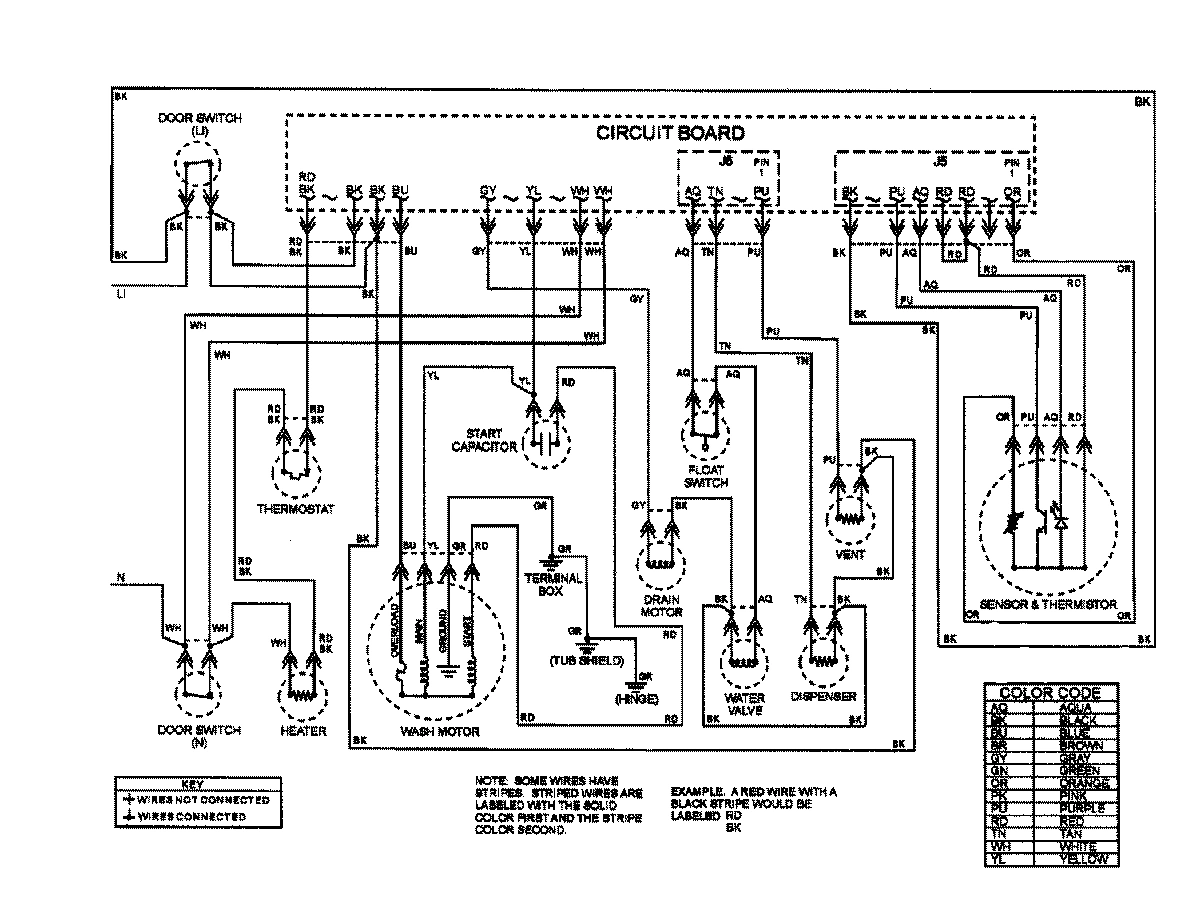

WIRING INFORMATION WPL 15003043 Contact Us For Availability

NI

WIRING INFORMATION WPL 15003316 Contact Us For Availability
