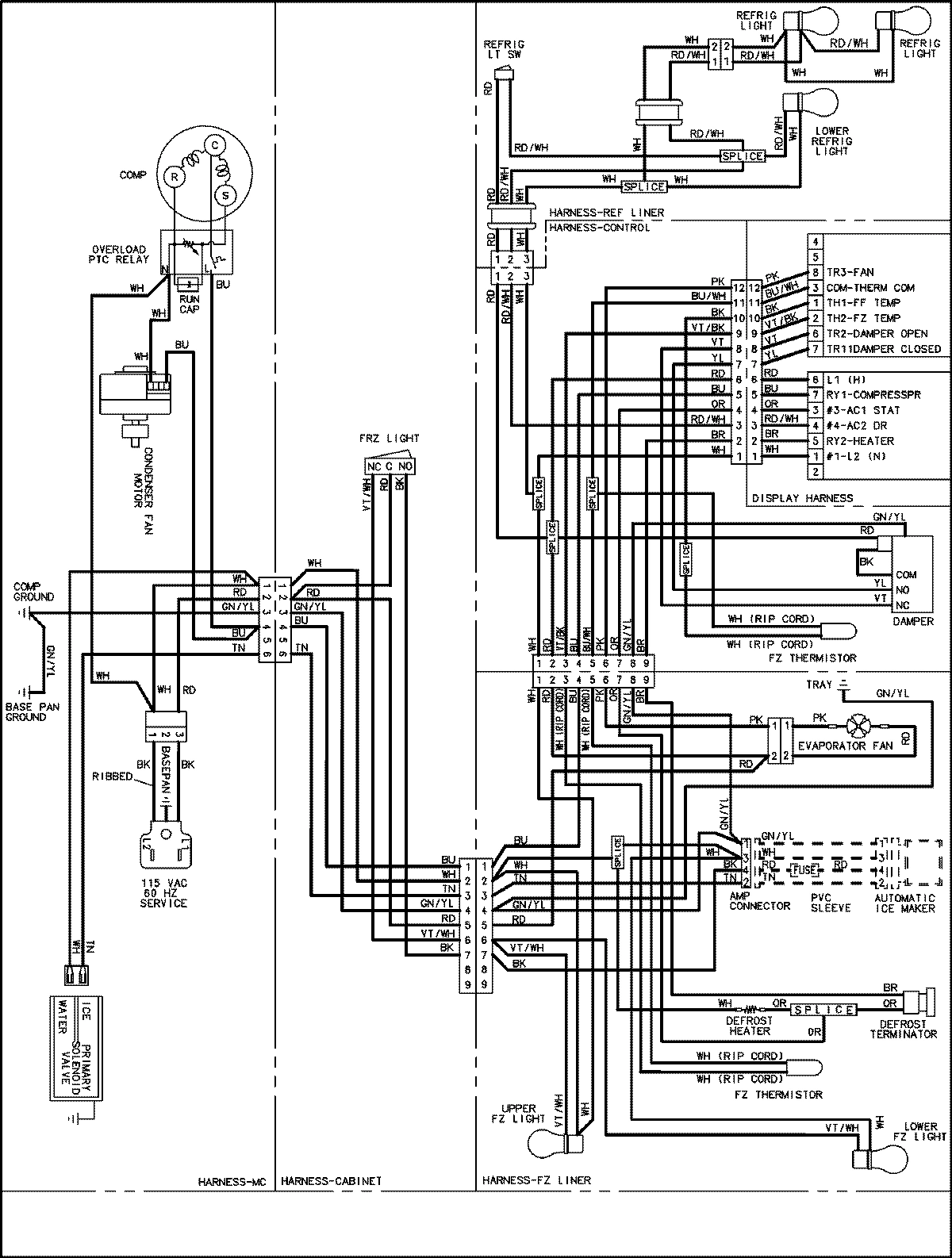

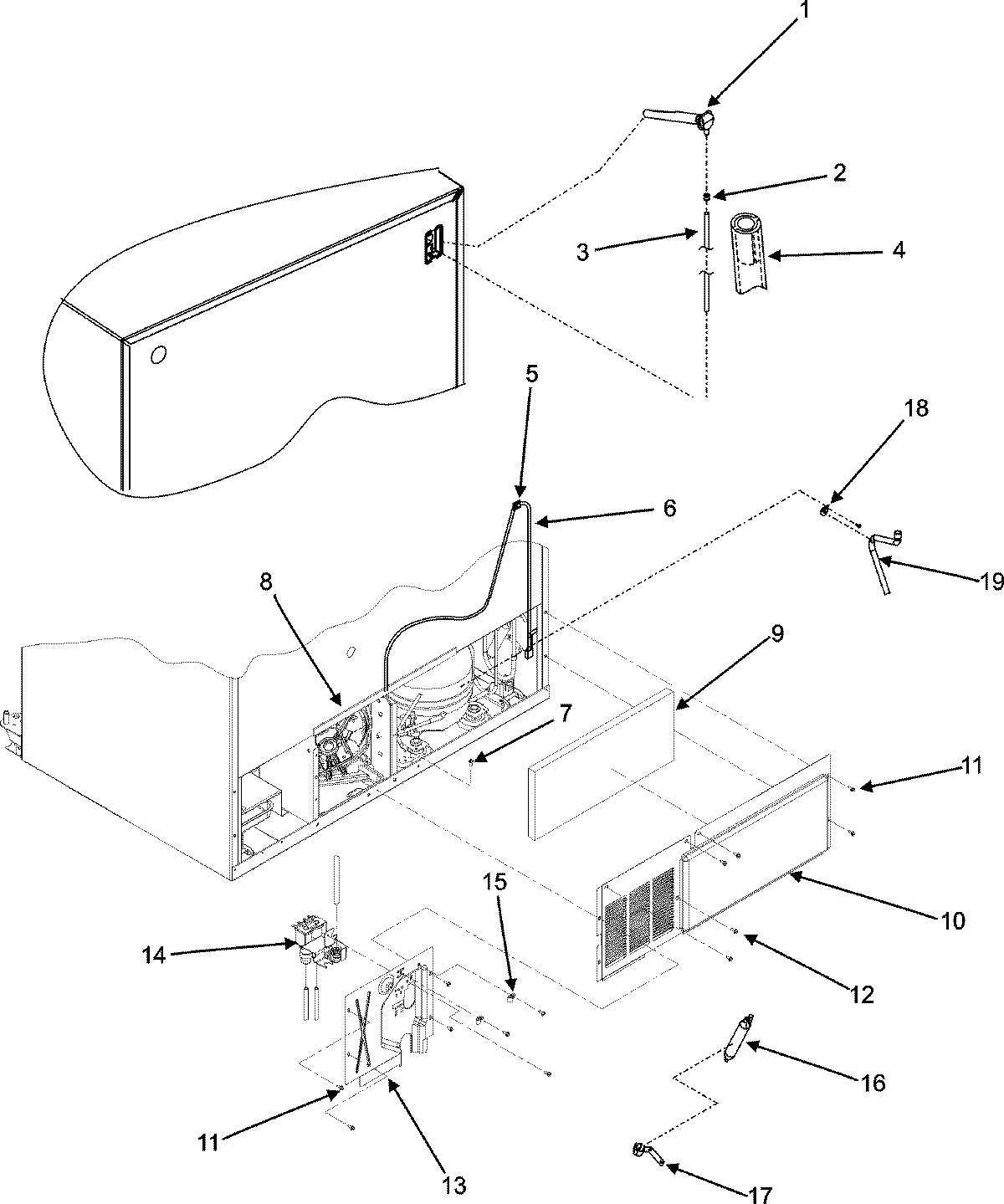

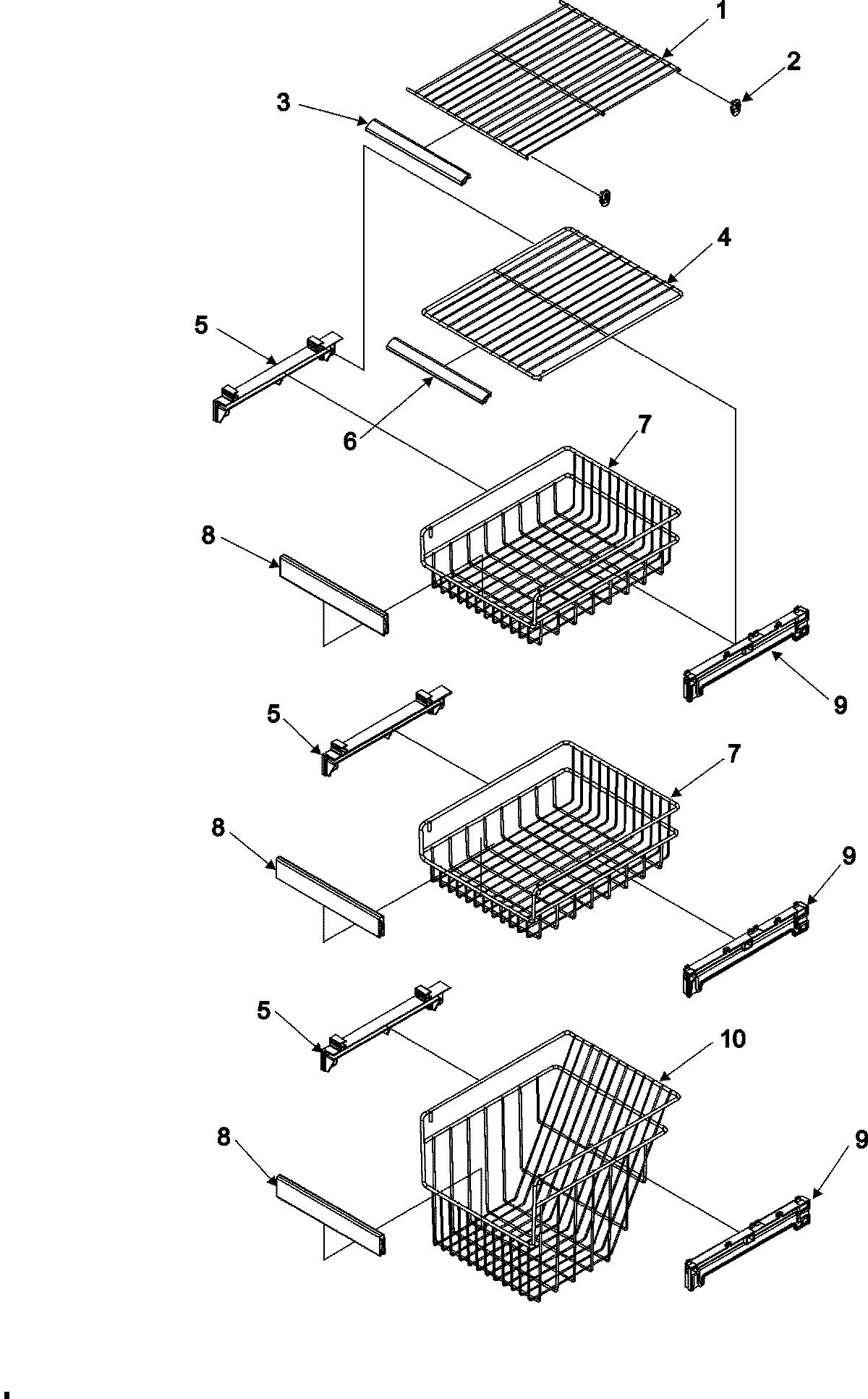

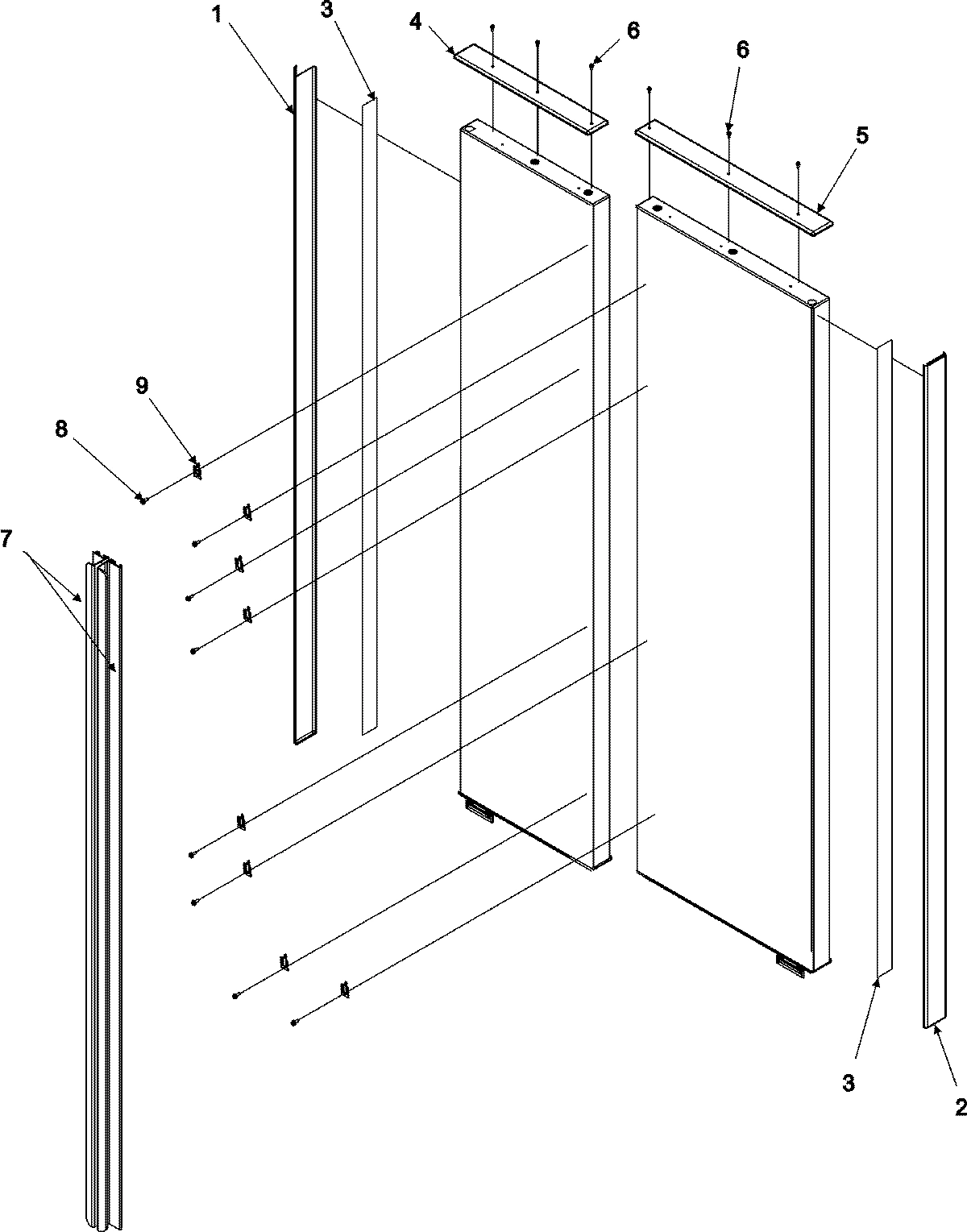

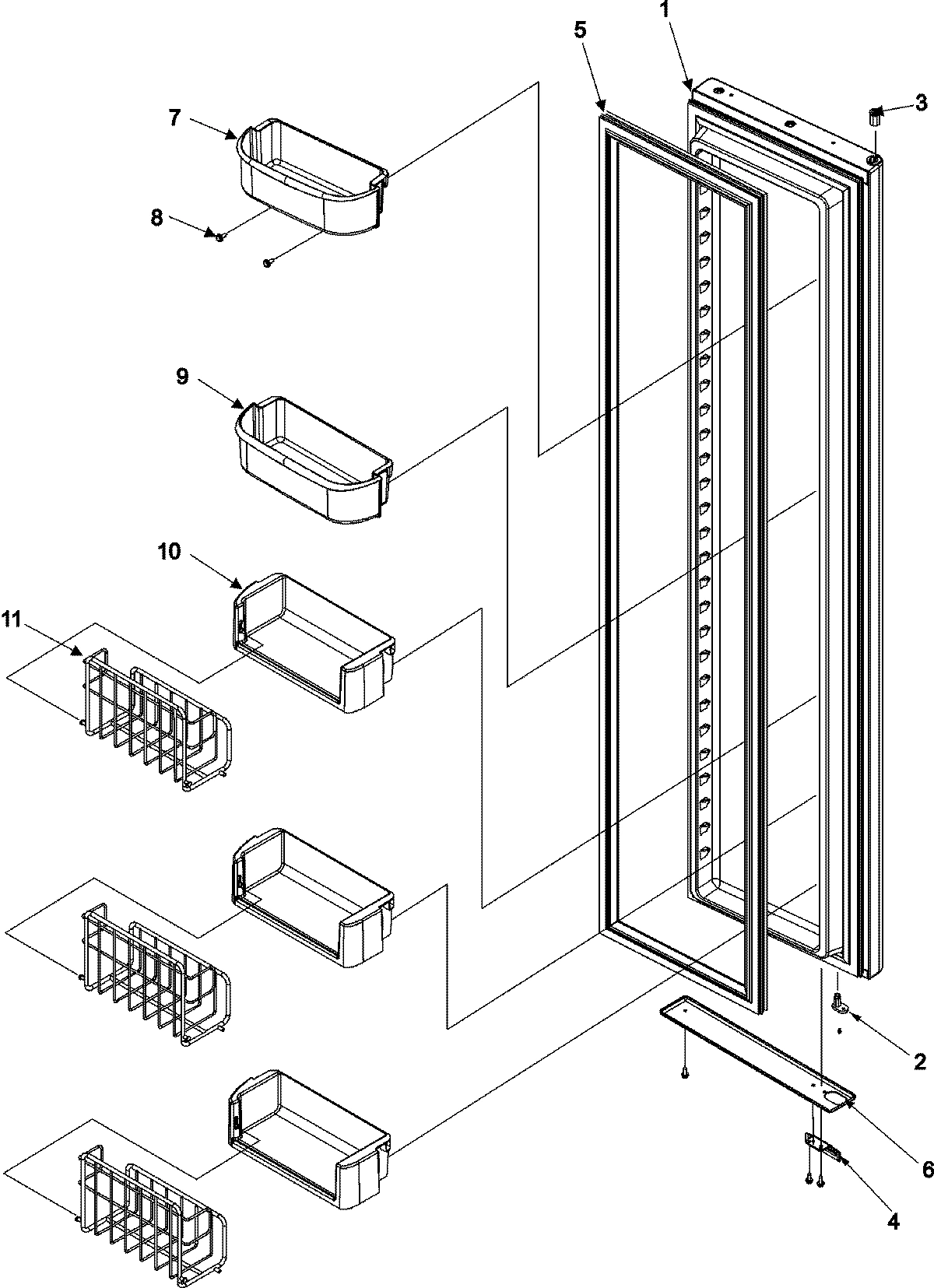

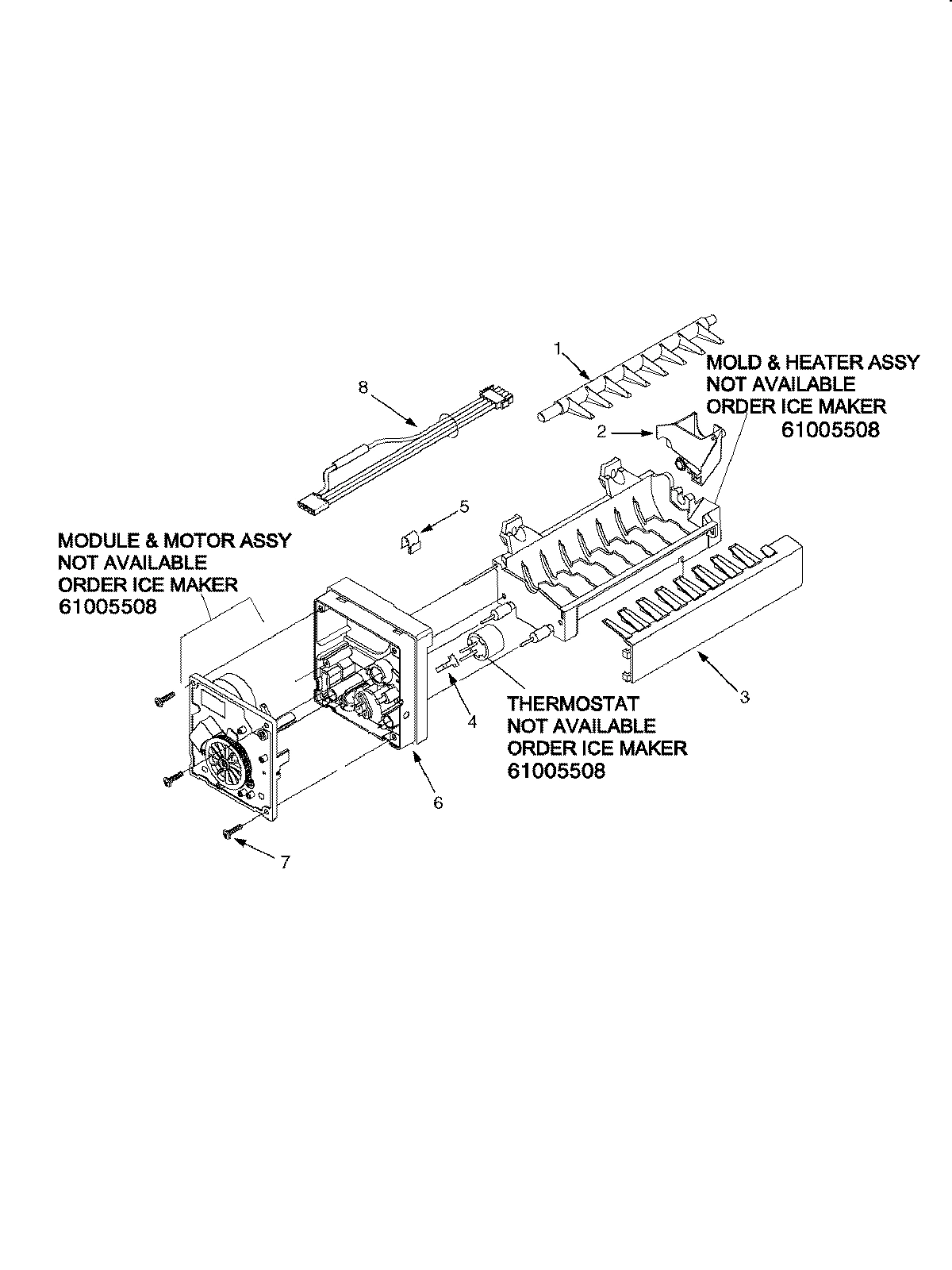

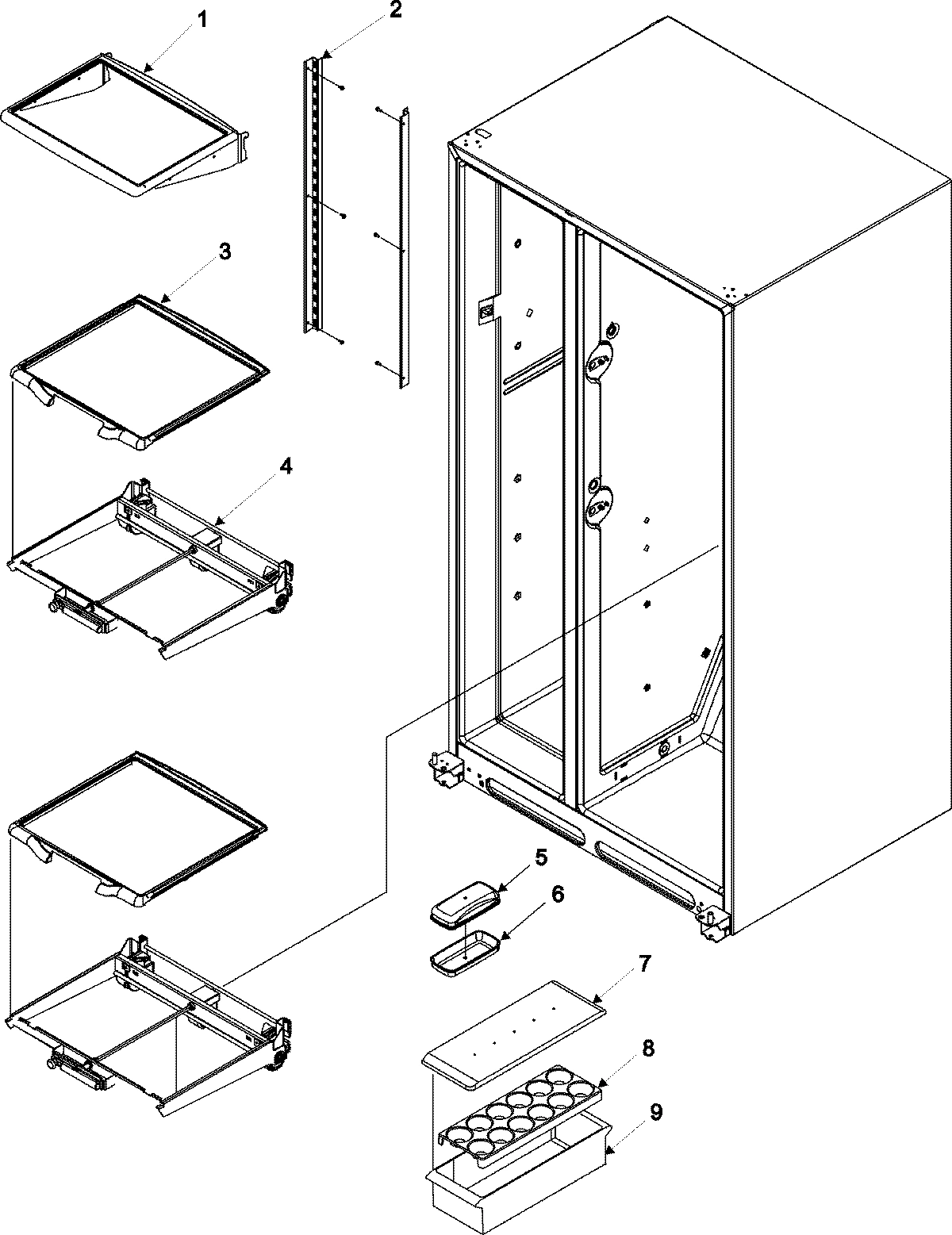

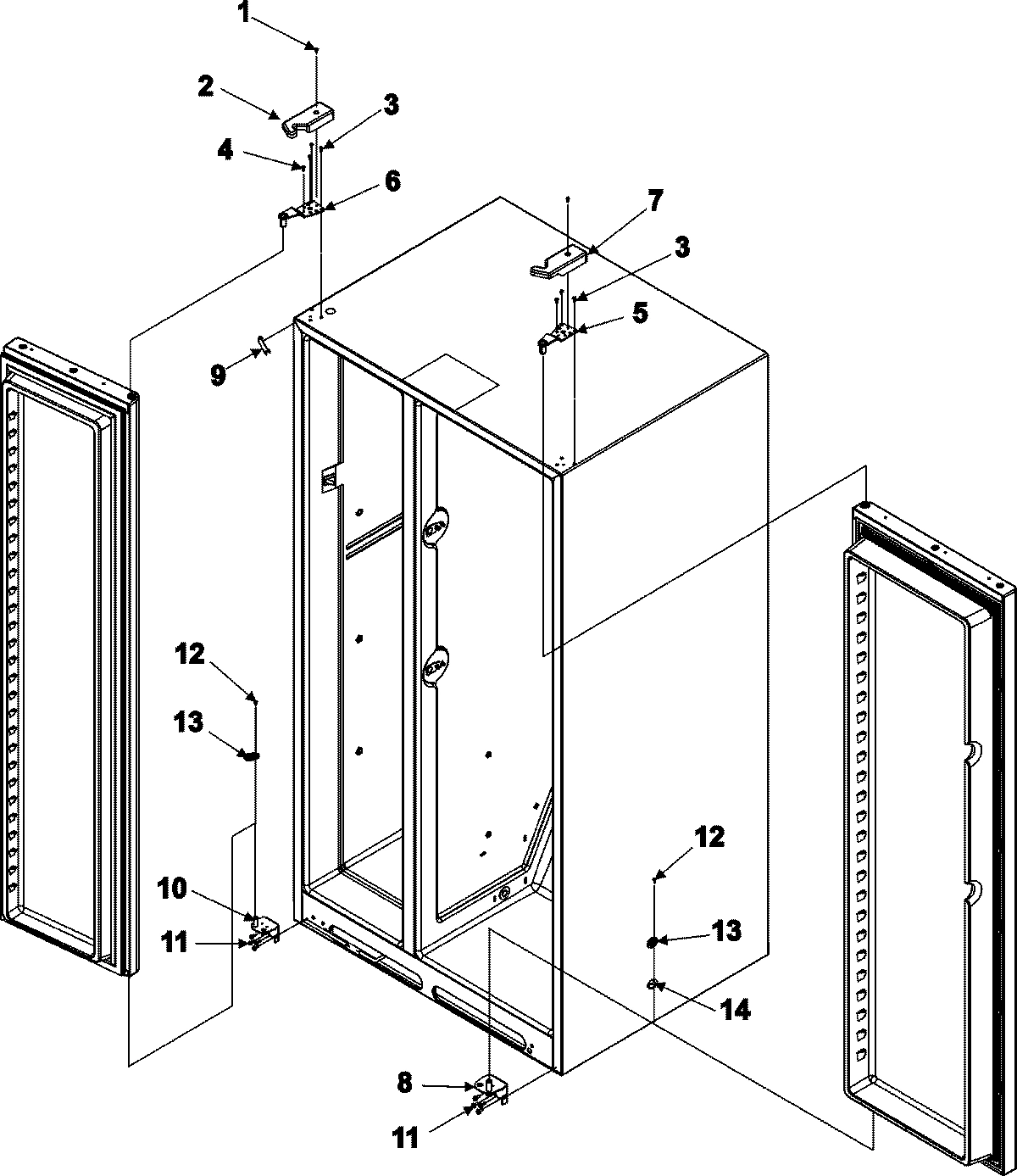

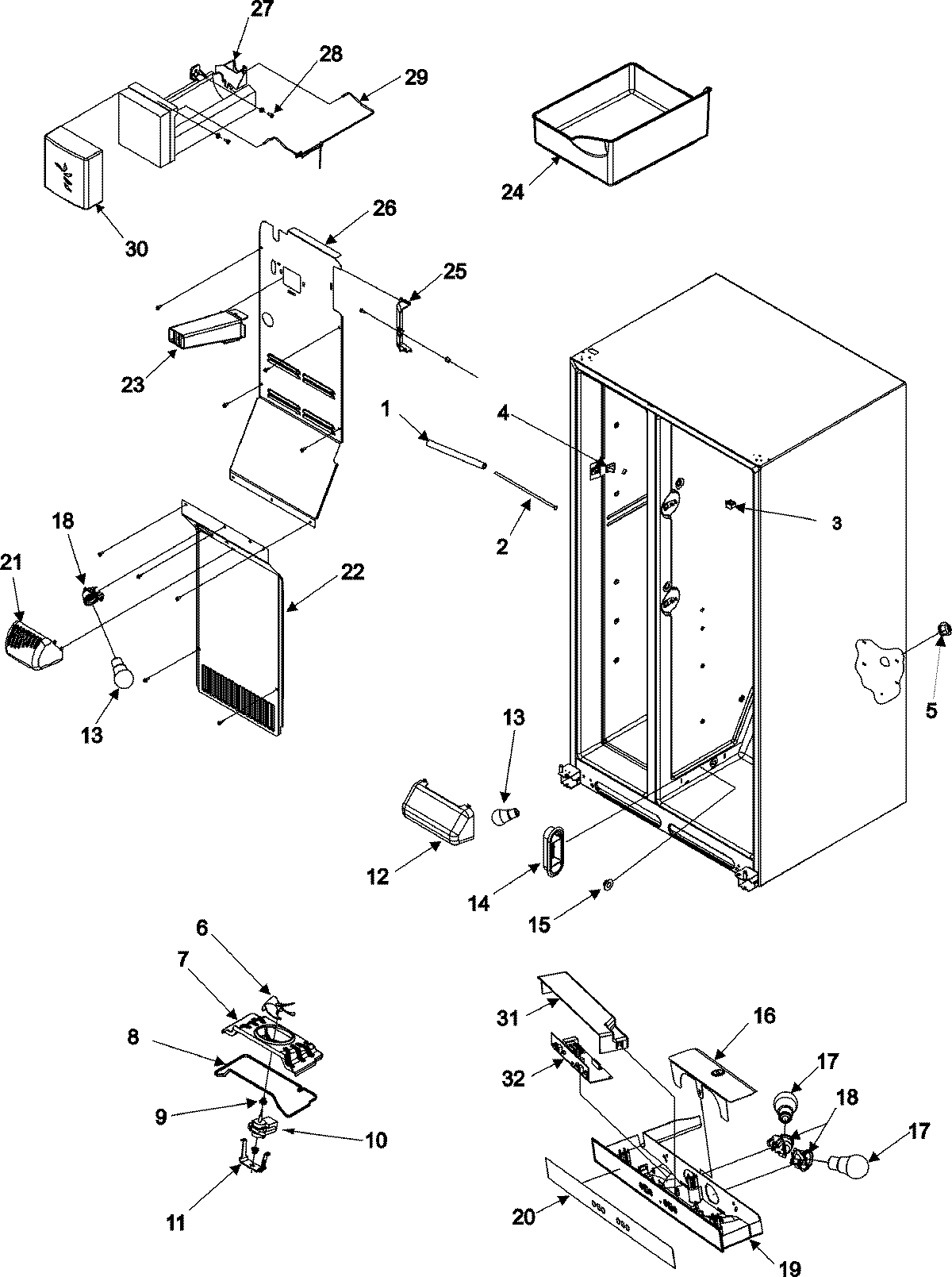

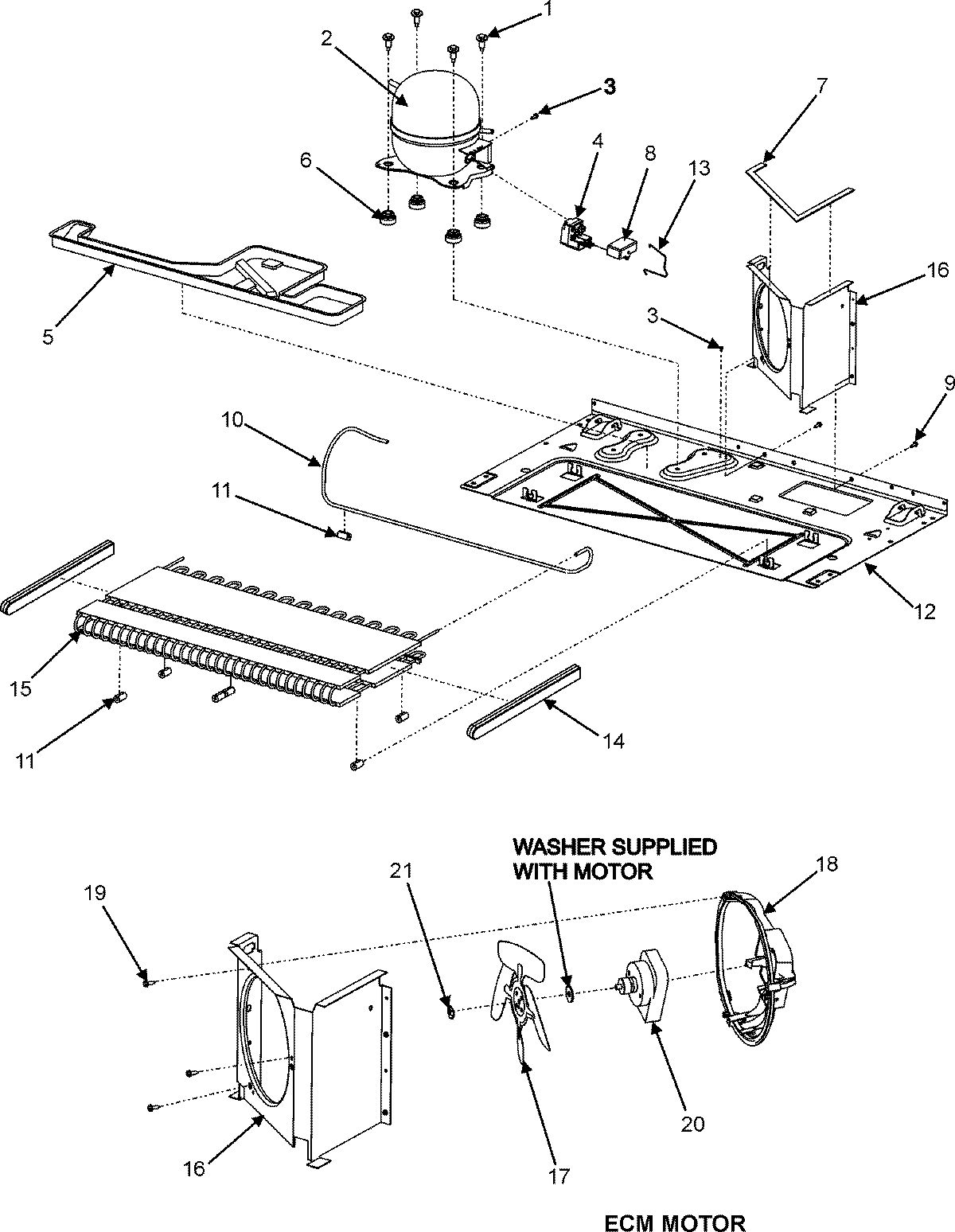

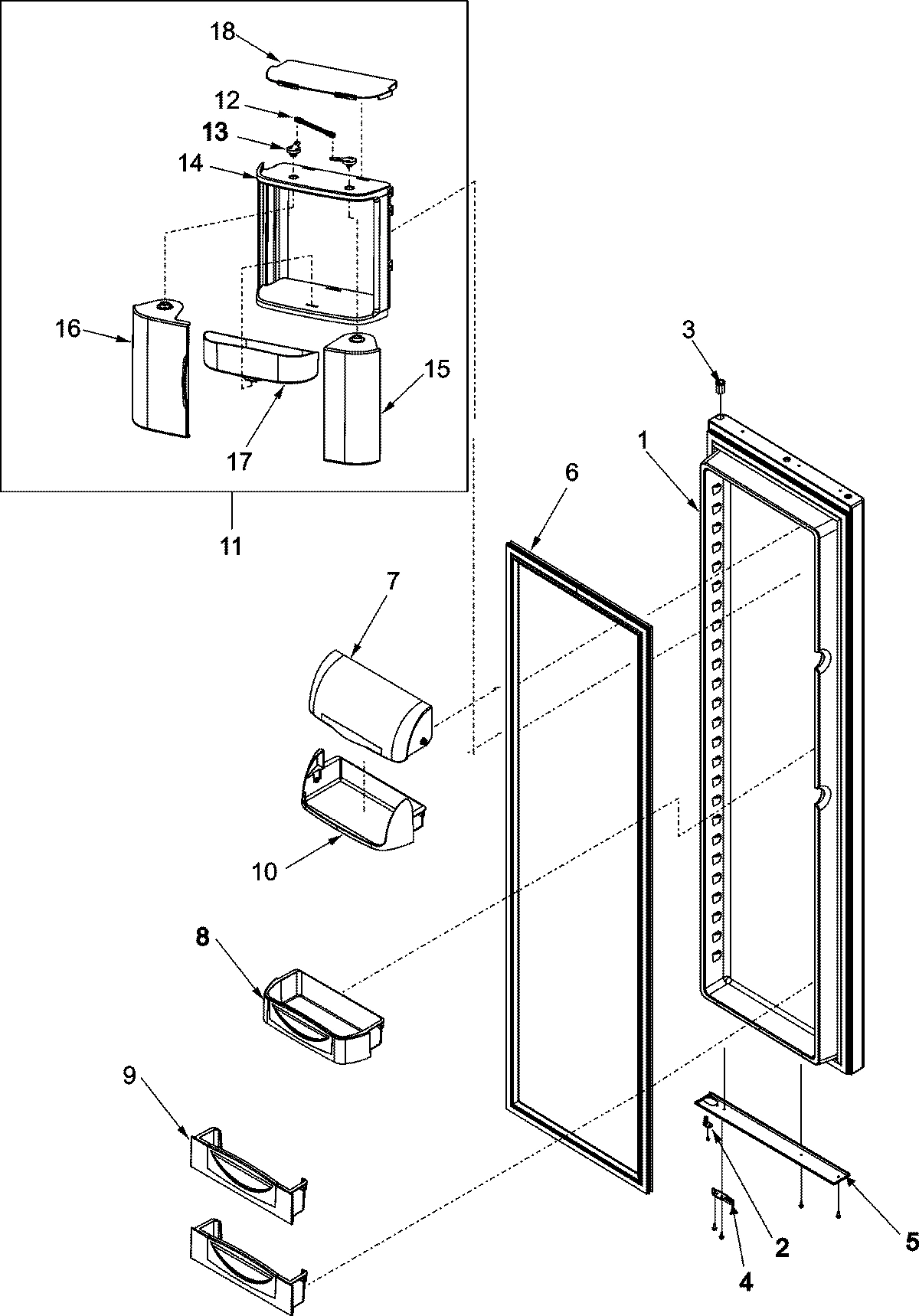

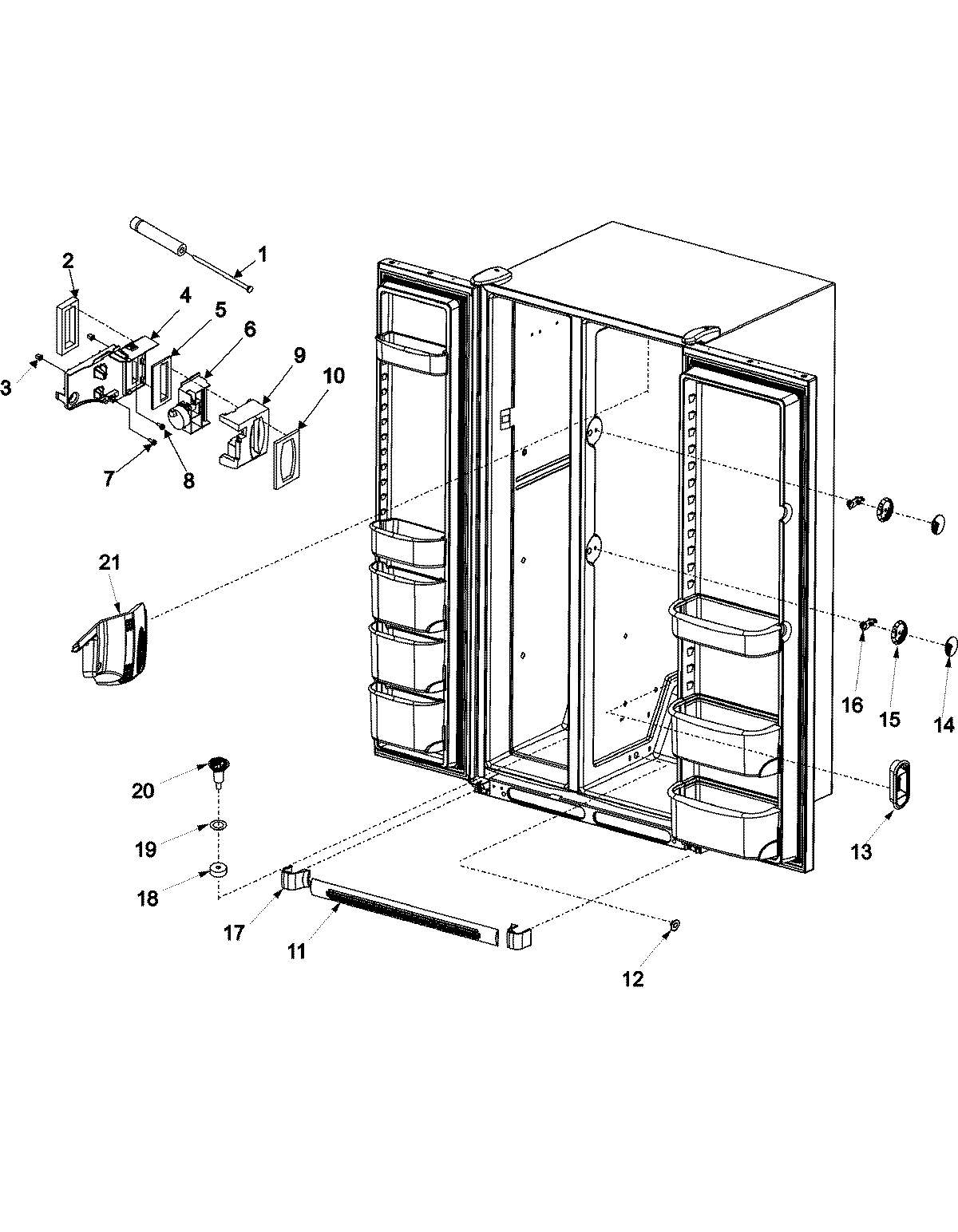

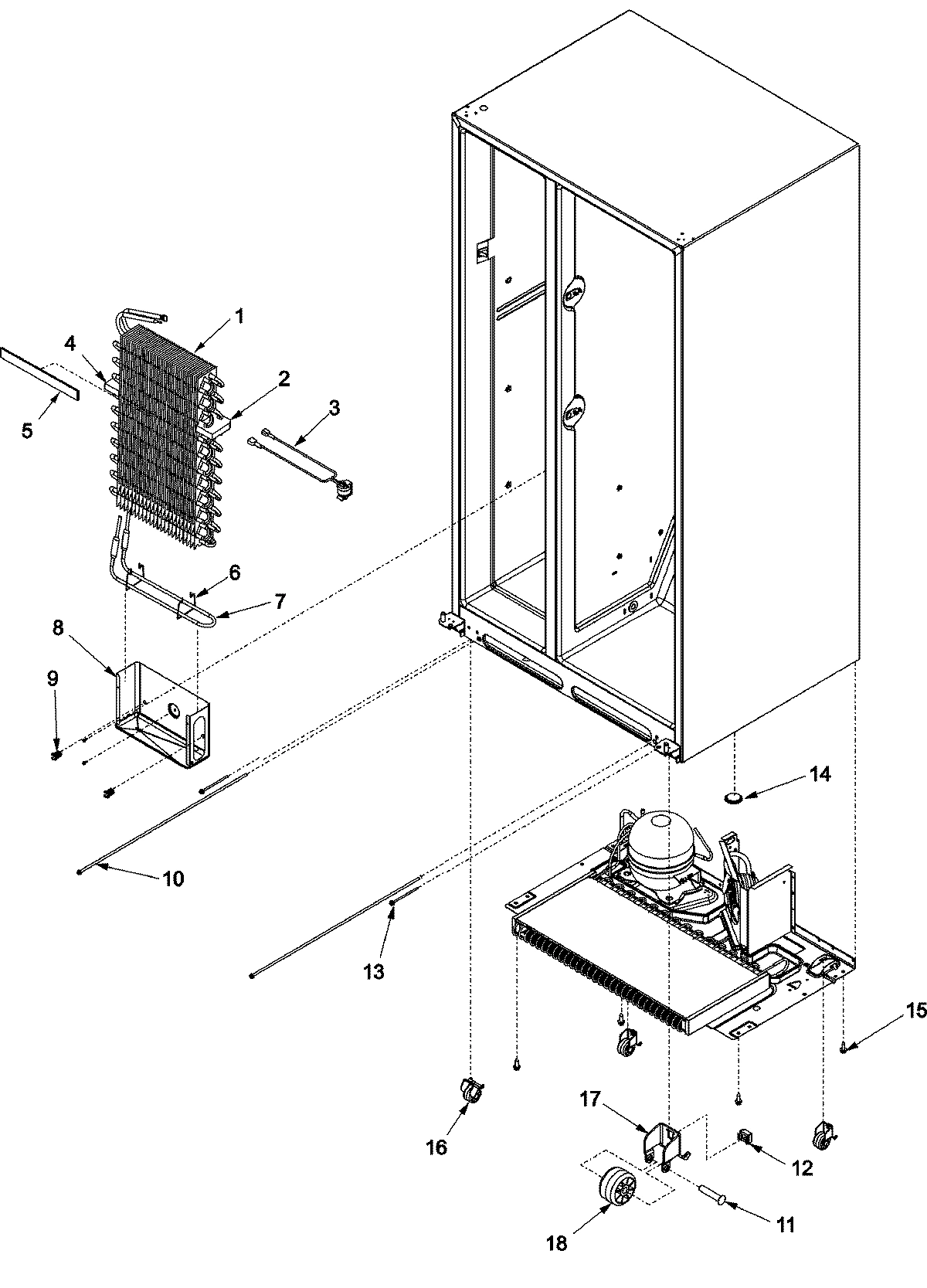

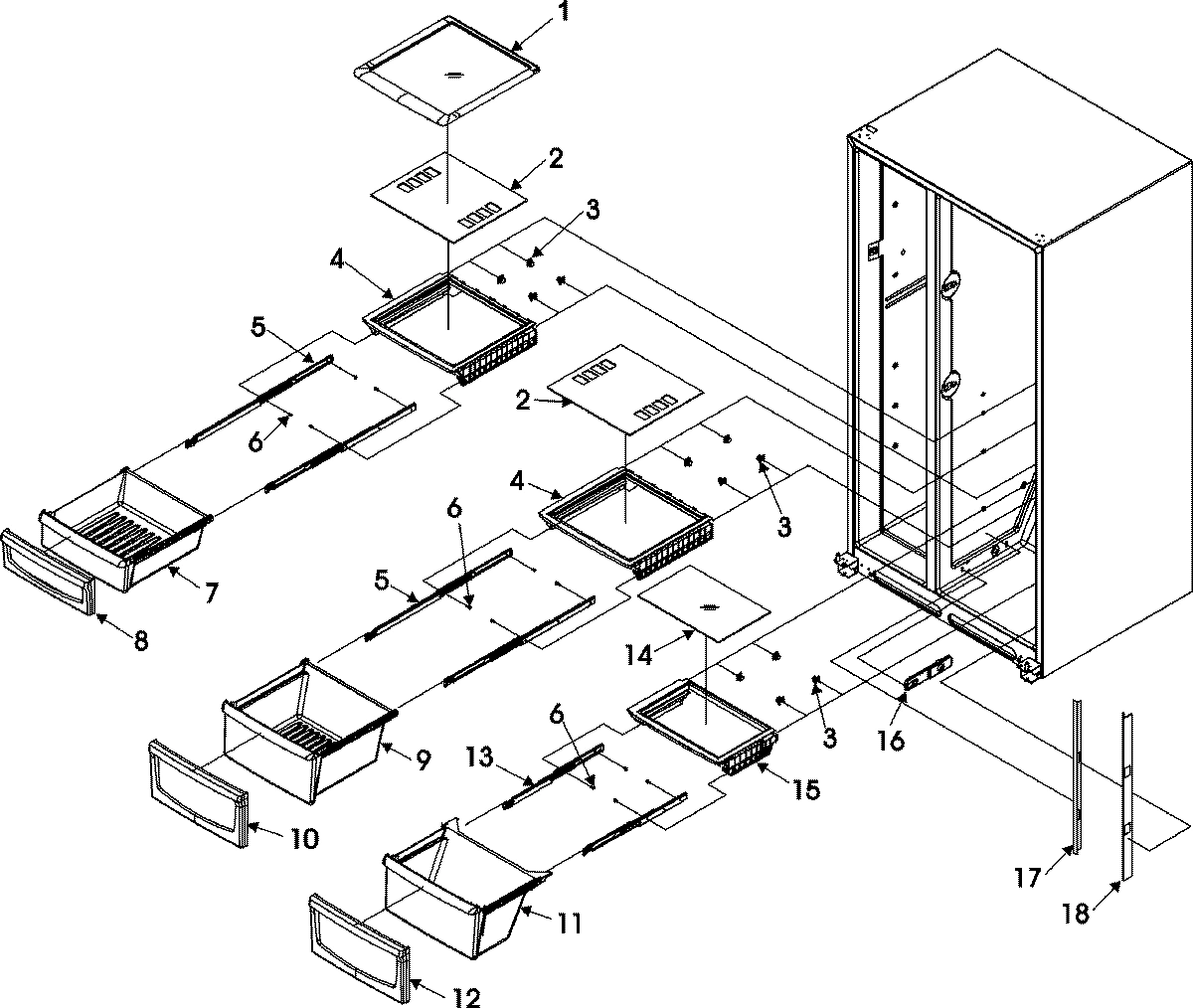

Model Whirlpool JCB2282HTB REFRIGERATOR – Common Parts &amp; Diagrams

1

DOOR ASSY., REF. FOAM (BLK) WPL 67003812 Contact Us For Availability

1

INSULATION, TUBING WPL 67002219 Contact Us For Availability

1

DOOR ASSY., FRZ. FOAM (BLK) WPL 67004620 Contact Us For Availability

1

EVAPORATOR, SXS WPL 12676401 Contact Us For Availability

1

SHELF, UPR FRZ WPL 67003895 Contact Us For Availability

1

SCREW, SHLDR WPL M0221523 Contact Us For Availability

1

PLUG, BUTTON WPL 67002417 Contact Us For Availability

1

TRIM, VERT FZ (STNLS) WPL 12638301S Contact Us For Availability

1

EJECTOR, ICE WPL 951011 Contact Us For Availability

1

SVC MAN, SXS WPL 16022689 Contact Us For Availability

1

TECH SHT, SXS WPL 16023091 Contact Us For Availability

1

MANUAL, USE AND CARE WPL 67004494 Contact Us For Availability

1

TAG, ENERGY WPL 67004614 Contact Us For Availability

1

SHELF, GLIDE WPL 67004527 Contact Us For Availability

1

SHELF, CRISPER TOP WPL 67004130 Contact Us For Availability

2

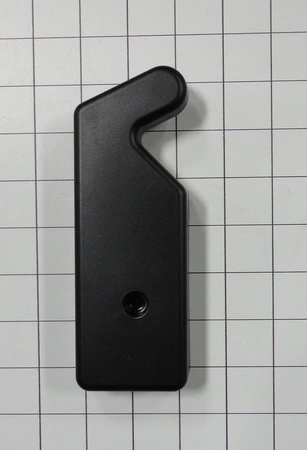

W10217485 Whirlpool Refrigerator Cover Backorder WPL W10217485 $13.91

2

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $390.16

2

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

2

TIE WIRE WPL M0322202 Contact Us For Availability

2

BLOCK, AIR COIL (RT) WPL 12590102 Contact Us For Availability

2

PLUG, FRZ SHELF SUPPORT WPL C8973701 Contact Us For Availability

2

SUPPORT, FRZ SHELF WPL C8973801 Contact Us For Availability

2

GASKET, DAMPER WPL 67004031 Contact Us For Availability

2

TRIM, VERT REF (STNLS) WPL 12638302S Contact Us For Availability

2

INLET, WATER WPL 951001 Contact Us For Availability

2

RAIL, SHELF ADJ WPL 67003838 Contact Us For Availability

2

BARRIER, CRISPER SHELF WPL 67004484 Contact Us For Availability

3

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $31.88

3

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $20.12

3

W11291138 Whirlpool Refrigerator Door Switch In Stock WPL W11291138 $25.73

3

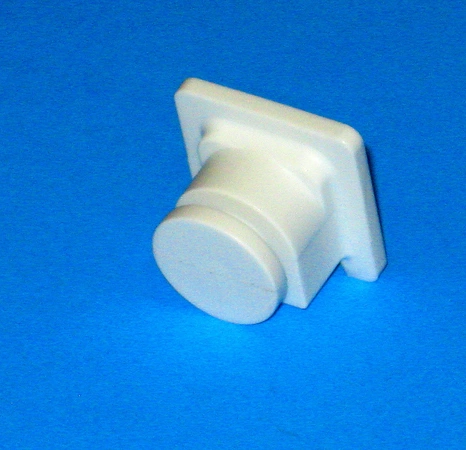

WP12603701 Whirlpool Refrigerator Support In Stock WPL WP12603701 $7.14

3

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $5.02

3

WP67004757 Whirlpool Refrigerator Thermostat In Stock WPL WP67004757 $66.62

3

BUSHING, DOOR (BLK) WPL 10961002 Contact Us For Availability

3

GROMMET, SCREW WPL M0580205 Contact Us For Availability

3

BUSHING, DOOR (BLK) WPL 12395501B Contact Us For Availability

3

TRIM, BASKET/SHELF WPL 12314102 Contact Us For Availability

3

TAPE DOUBLE BACK (ROLL)K WPL M0275178 Contact Us For Availability

3

STRIPPER, ICE WPL 951021 Contact Us For Availability

3

SHELF, ELEVATOR WPL 67004528 Contact Us For Availability

4

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $57.90

4

W11214483 Whirlpool Refrigerator Screw Backorder WPL W11214483 $8.89

4

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $27.54

4

WP67004531 Whirlpool Refrigerator Frame Backorder WPL WP67004531 $139.91

4

STOP, DOOR (BLK) WPL 12636401B Contact Us For Availability

4

BLOCK, AIR COIL (LT) WPL 12590101 Contact Us For Availability

4

SHELF, LWR FRZ. WPL 67004316 Contact Us For Availability

4

BRACKET, ELEC CONTROL WPL 67004447 Contact Us For Availability

4

TRIM, TOP FZ DR (STNLS) WPL 12626505S Contact Us For Availability

4

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

4

FRAME ASSY., ELEVATOR SHELF WPL 67004483 Contact Us For Availability

5

12626910ED Whirlpool Refrigerator Door Hinge Backorder WPL 12626910ED $83.53

5

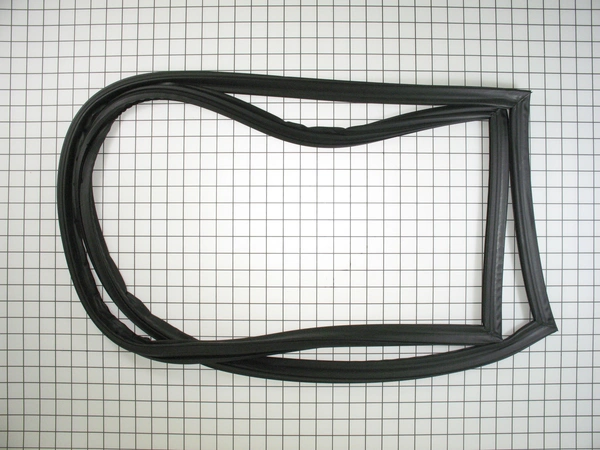

W10133491 Whirlpool Refrigerator Gasket Backorder WPL W10133491 $231.22

5

WP12579803 Whirlpool Refrigerator Drain Pan Backorder WPL WP12579803 $207.03

5

TRIM, BTM REF DOOR (STNLS) WPL 67004202 Contact Us For Availability

5

GASKET, FOAM WPL 67002226 Contact Us For Availability

5

SLIDE, BASKET (LT) WPL 67004533 Contact Us For Availability

5

GASKET, DAMPER WPL 12582801 Contact Us For Availability

5

TRIM, TOP REF DR (STNLS) WPL 12626502S Contact Us For Availability

5

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

5

SCREW, BRACKET WPL 951081 Contact Us For Availability

5

LID, BUTTER TRAY WPL 67004405 Contact Us For Availability

5

GLIDE, CRISPER FRAME WPL 67004489 Contact Us For Availability

6

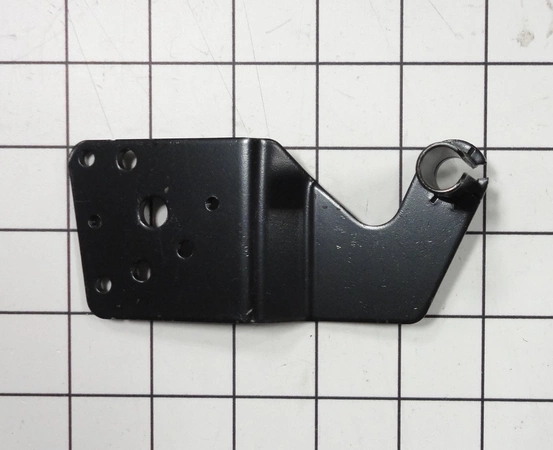

12626911ED Whirlpool Refrigerator Door Hinge Backorder WPL 12626911ED $61.44

6

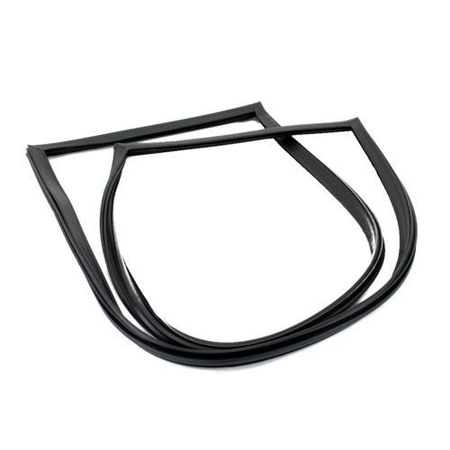

W10840101 Whirlpool Refrigerator FIP Gasket Backorder WPL W10840101 $231.26

6

W11245710 Whirlpool Refrigerator Screw Backorder WPL W11245710 $8.89

6

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

6

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $24.18

6

WP67003903 Whirlpool Refrigerator Damper Cont In Stock WPL WP67003903 $116.26

6

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $6.02

6

TRIM, BTM FRZ DOOR (STNLS) WPL 67004201 Contact Us For Availability

6

TRIM, BASKET/SHELF WPL 12314101 Contact Us For Availability

6

SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability

6

TRAY, BUTTER WPL 67004404 Contact Us For Availability

6

SCREW WPL M0213129 Contact Us For Availability

7

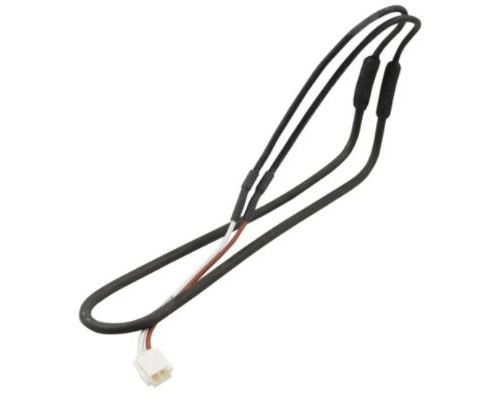

WP67004188 Whirlpool Heater Defrost Assembly In Stock WPL WP67004188 $86.65

7

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

7

WP98165 Whirlpool Screw In Stock WPL WP98165 $4.82

7

DOOR, DAIRY WPL 67001325 Contact Us For Availability

7

SHROUD, EVAP WPL 67004491 Contact Us For Availability

7

BUCKET-CONV FZ DR WPL 12664901 Contact Us For Availability

7

BASKET-22 SM FZ WPL 67004534 Contact Us For Availability

7

HANDLE, DOOR WPL 67004459 Contact Us For Availability

7

SCREW WPL 951061 Contact Us For Availability

7

LID, UTILITY WPL 10436404 Contact Us For Availability

7

PAN, SM CRISPER WPL 67004532 Contact Us For Availability

7

COVER, TOP HINGE (RT-BLK) WPL 12629801B Contact Us For Availability

8

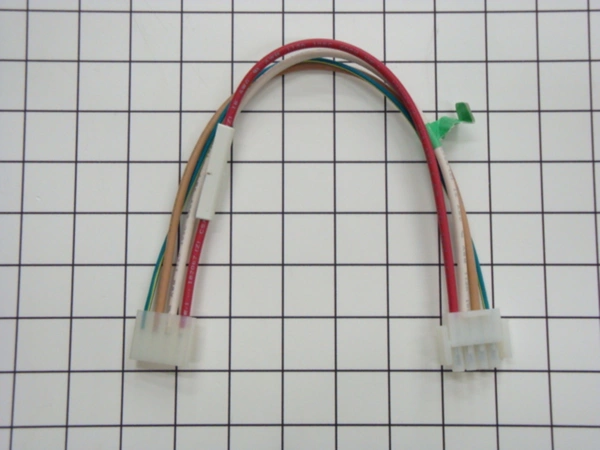

W10146387 Whirlpool Refrigerator Wire Harness Backorder WPL W10146387 $95.81

8

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $20.55

8

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $3.49

8

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $47.85

8

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

8

BUCKET ASSY., REF. DOOR WPL 67004540 Contact Us For Availability

8

GASKET WPL 67001508 Contact Us For Availability

8

SCREW, TC WPL 67003334 Contact Us For Availability

8

TRAY, EVAP DRIP WPL 12558101WD Contact Us For Availability

8

TRIM, FZ BASKET WPL 67004252 Contact Us For Availability

8

SCREW WPL M0216539 Contact Us For Availability

8

TRAY, EGG WPL 10436506 Contact Us For Availability

8

FRONT, SM CRISPER PAN WPL 67004425 Contact Us For Availability

9

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $14.02

9

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $36.01

9

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $4.82

9

FIBER, ACOUSTIC WPL 67003796 Contact Us For Availability

9

BUCKET ASSY., REF. DOOR WPL 67004498 Contact Us For Availability

9

BUCKET, LWR FZ DR WPL 12557501 Contact Us For Availability

9

CLIP, EVAPORATOR WPL 10623003 Contact Us For Availability

9

SLIDE, BASKET (RT) WPL 67004535 Contact Us For Availability

9

INSUL, DAMPER WPL 67003828 Contact Us For Availability

9

CLIP WPL 12315101 Contact Us For Availability

9

BIN, UTILITY WPL 10423131 Contact Us For Availability

12002744 Whirlpool Refrigerator Evaporator Fa In Stock WPL 12002744 $89.08

TRAY, DAIRY WPL 67002304 Contact Us For Availability

FRAME, TILT BASKET WPL 67004475 Contact Us For Availability

SCREW, ADJUSTING (ROD) WPL 10093315 Contact Us For Availability

BASKET-22 LW FZ WPL 67004536 Contact Us For Availability

TUBE, DISCHARGE WPL 67002236 Contact Us For Availability

GASKET, CONTROL COVER WPL 12582901 Contact Us For Availability

FRONT, LG CRISPER PAN WPL 67004115 Contact Us For Availability

HINGE, BOTTOM (LT-BLK) WPL 12636901ED Contact Us For Availability

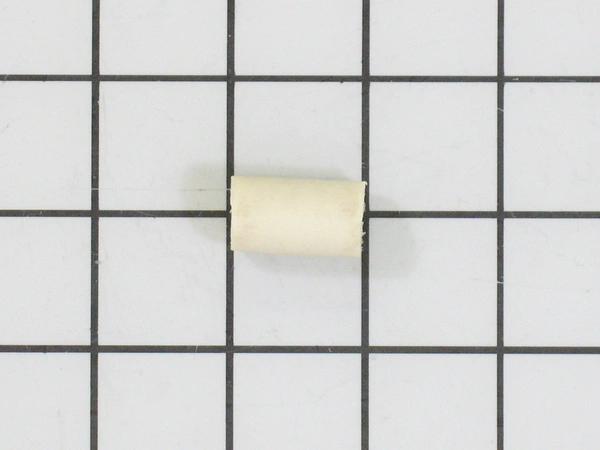

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $14.02

WP67005633 Whirlpool Refrigerator Bracket Backorder WPL WP67005633 $4.82

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $4.82

CHILLER ASSY. WPL 67004539 Contact Us For Availability

BASKET, TILT WPL 67004474 Contact Us For Availability

RIVET WPL M1205302 Contact Us For Availability

CLIP, TOE GRILLE WPL 12627302 Contact Us For Availability

PAN, MEAT WPL 67004206 Contact Us For Availability

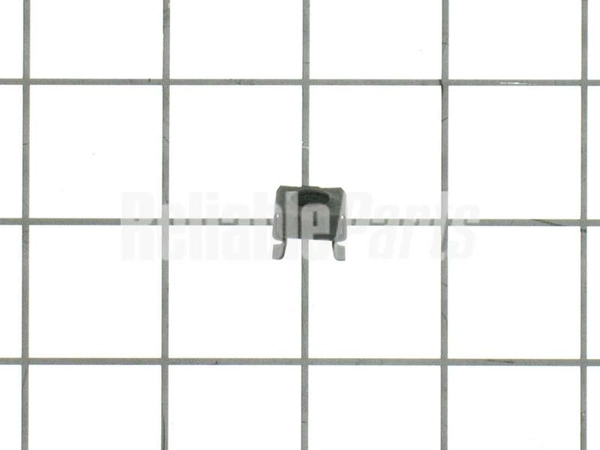

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $33.41

LINKAGE, CTR CHILLER WPL 67002292 Contact Us For Availability

SHIELD, CRISPER LIGHT WPL 67001507 Contact Us For Availability

PLUG, AIR TUNNEL WPL 67003018 Contact Us For Availability

PAN, BASE WPL 67001512 Contact Us For Availability

FRONT, MEAT PAN WPL 67004426 Contact Us For Availability

SCREW, TC WPL M0220431 Contact Us For Availability

67005620 Whirlpool Refrigerator Glide CRI Backorder WPL 67005620 $227.37

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.67

R0181181 Whirlpool Refrigerator Door Closer C In Stock WPL R0181181 $4.60

LINKAGE, CHILLER WPL 67002293 Contact Us For Availability

GRILLE, RETURN AIR WPL 12634801 Contact Us For Availability

STRAP, BALE WPL 12576801 Contact Us For Availability

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $8.39

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.83

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $76.87

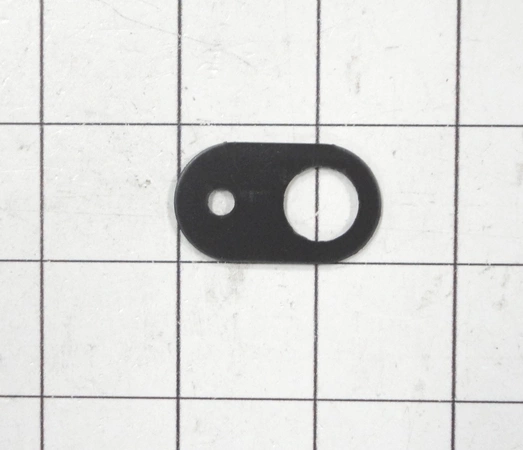

WP67005716 Whirlpool Refrigerator Shim Backorder WPL WP67005716 $4.82

FRAME, LARGE CHILLER WPL 67002294 Contact Us For Availability

GRILLE, CHILLER CONT-JA WPL 67004525 Contact Us For Availability

GLASS, MEAT SHELF WPL 67004132 Contact Us For Availability

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $7.06

WP67006131 Whirlpool Refrigerator Condenser Backorder WPL WP67006131 $240.21

DOOR, LARGE CHILLER (RT) WPL 67002297 Contact Us For Availability

SCREW WPL 67001510 Contact Us For Availability

BLOCK-EPS COND WPL 67002235 Contact Us For Availability

CONTROL, CHILLER WPL 67002225 Contact Us For Availability

FRAME, MEAT SHELF WPL 67004247 Contact Us For Availability

HINGE, BOTTOM (RT-BLK) WPL 12636902ED Contact Us For Availability

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $96.34

DOOR, LG CHILLER (LT) WPL 67004542 Contact Us For Availability

REFLECTOR, LIGHT WPL 67004157 Contact Us For Availability

ROLLER BRACKET ASSY WPL 67002227 Contact Us For Availability

SHROUD, CONDENSER FAN WPL 67001090 Contact Us For Availability

CLIP, CHILLER CONTROL WPL 67002827 Contact Us For Availability

CONTROL, TEMP. WPL 67004529 Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $36.93

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $6.61

WP12587601 Whirlpool Refrigerator Condenser B Backorder WPL WP12587601 $89.06

CLIP, DRIER WPL 10547002 Contact Us For Availability

TRAY, CHILLER WPL 67002296 Contact Us For Availability

COVER, LWR HINGE (BLK) WPL 12630301B Contact Us For Availability

PILLAR (LT) WPL 67004170 Contact Us For Availability

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $8.33

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $6.52

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $5.02

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $6.02

CLAMP WPL M0102303 Contact Us For Availability

COVER, CHILLER WPL 67002291 Contact Us For Availability

BRKT, ECM COND MOTOR WPL 67003644 Contact Us For Availability

PILLAR (RT) WPL 67004171 Contact Us For Availability

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $5.02

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $7.11

TUBE, DRAIN WPL 12580401 Contact Us For Availability

HOUSING, CONTROL WPL 67004479 Contact Us For Availability

HEATER/HARNESS-FZ WPL 67004321 Contact Us For Availability

20

OVERLAY, CONTROL JA WPL 67004497 Contact Us For Availability

20

MOTOR, CONDENSER FAN (ECM) WPL 12628701 Contact Us For Availability

20

FUNNEL, DRAIN WPL 12456901 Contact Us For Availability

21

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

21

SHIELD, FZ LIGHT WPL 67004135 Contact Us For Availability

21

COVER, ELEC CONTROL WPL 67004027 Contact Us For Availability

22

COVER, EVAP WPL 67004192 Contact Us For Availability

22

HARNESS, CONTROL WPL 67004526 Contact Us For Availability

22

HARNESS, MC WPL 67004019 Contact Us For Availability

23

DUCT, QUICK ICE WPL 67003581 Contact Us For Availability

24

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $140.55

25

COVER, SUPPLY AIR WPL 12583101 Contact Us For Availability

26

BACK, INNER FZ WPL 67004382 Contact Us For Availability

27

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $100.10

28

SCREW SHOULDER WPL M0238833 Contact Us For Availability

29

ASSY, IM ARM/WIRE WPL 12671401 Contact Us For Availability

30

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

32

WPW10503278 Whirlpool Refrigerator Electronic In Stock WPL WPW10503278 $209.77

NI

WIRING INFORMATION WPL 15003550 Contact Us For Availability
