Model Maytag JB36NXFXLW05 REFRIGERATOR – Common Parts & Diagrams

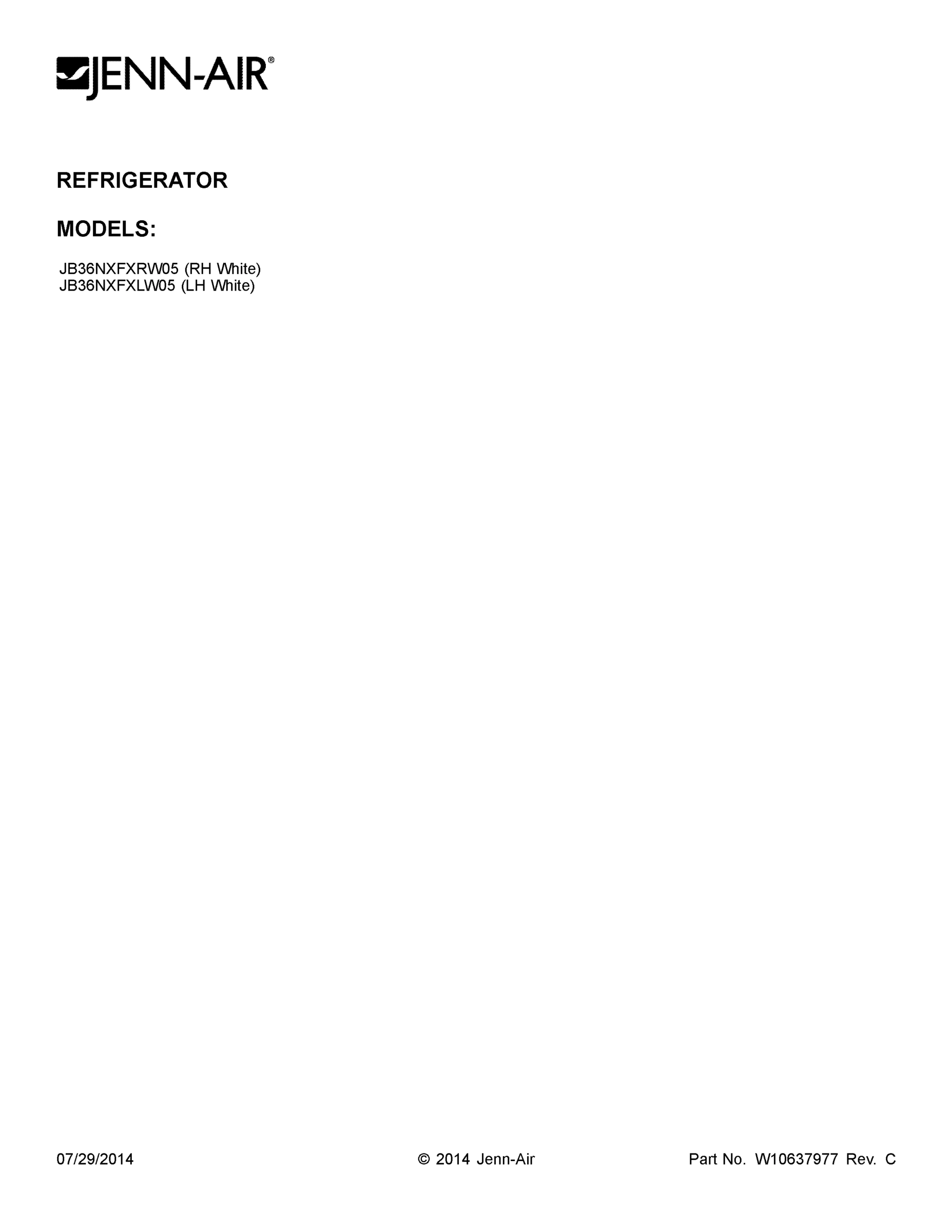

01 - COVER SHEET

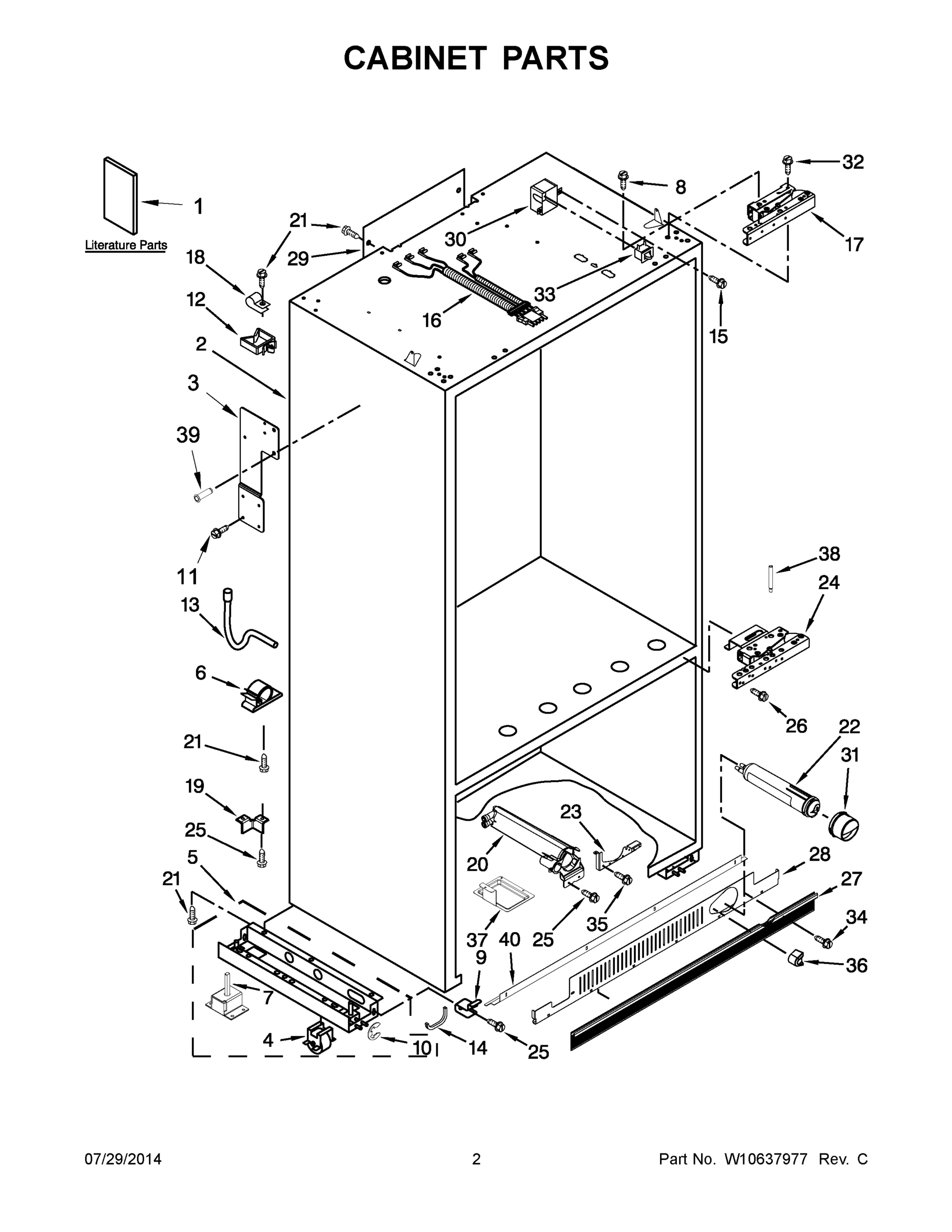

02 - CABINET PARTS

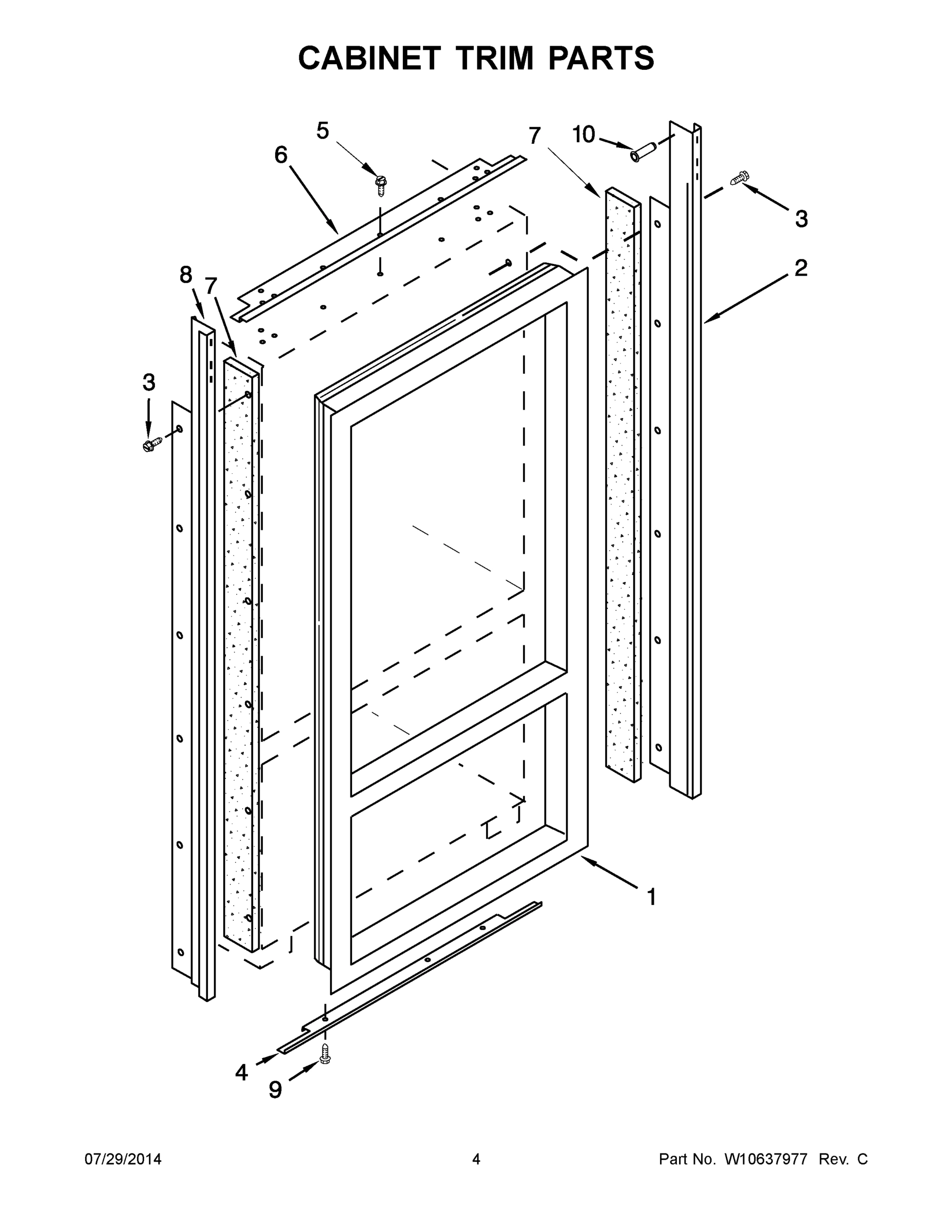

03 - CABINET TRIM PARTS

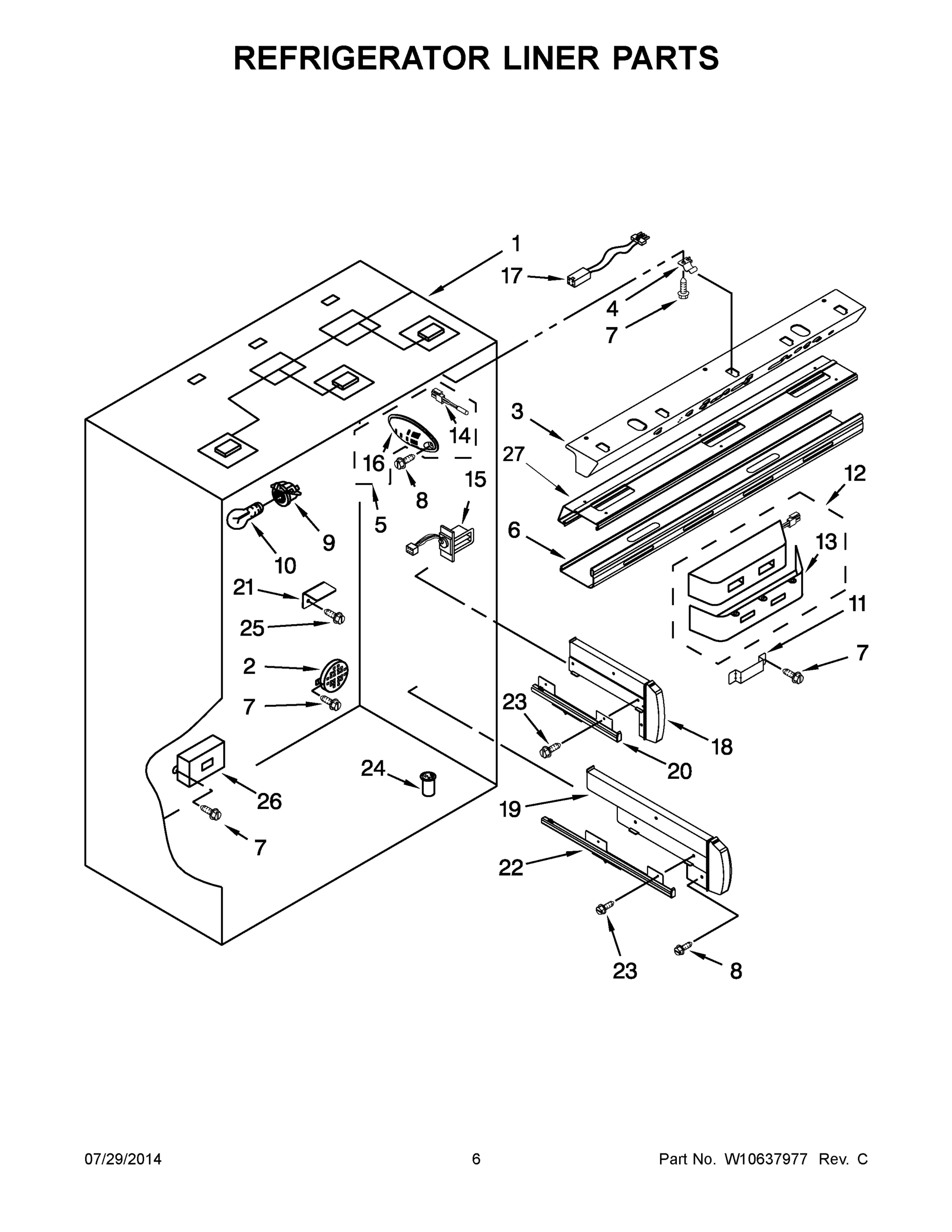

04 - REFRIGERATOR LINER PARTS

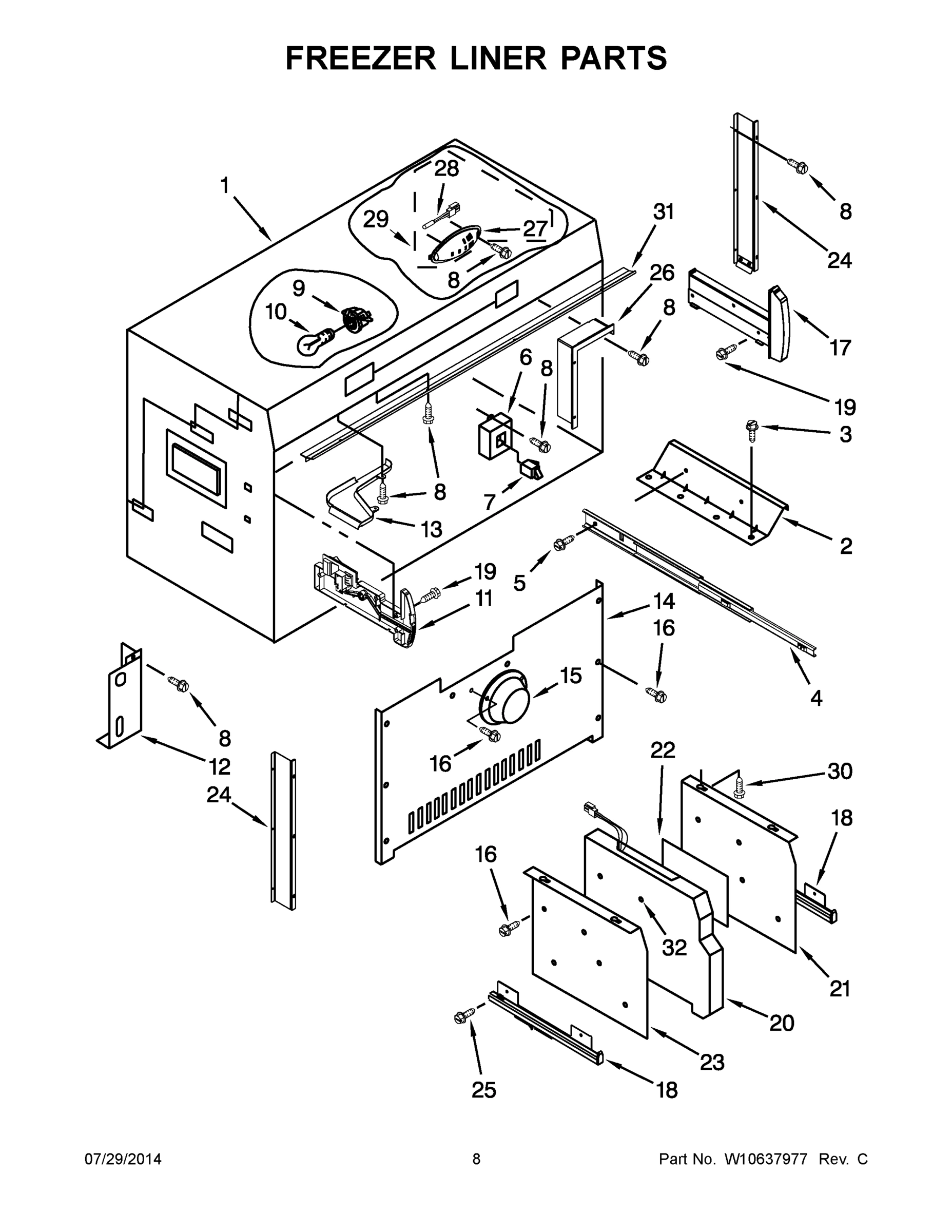

05 - FREEZER LINER PARTS

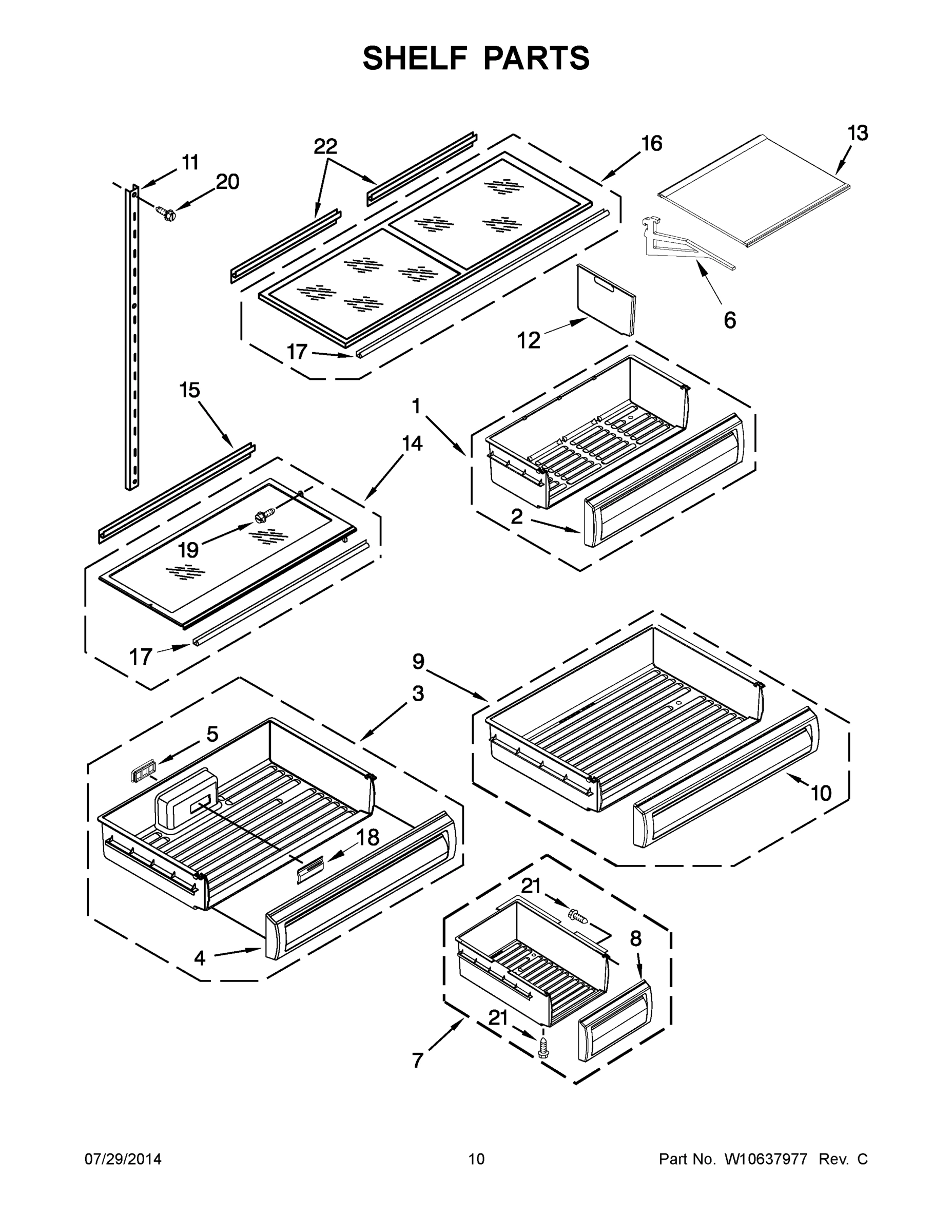

06 - SHELF PARTS

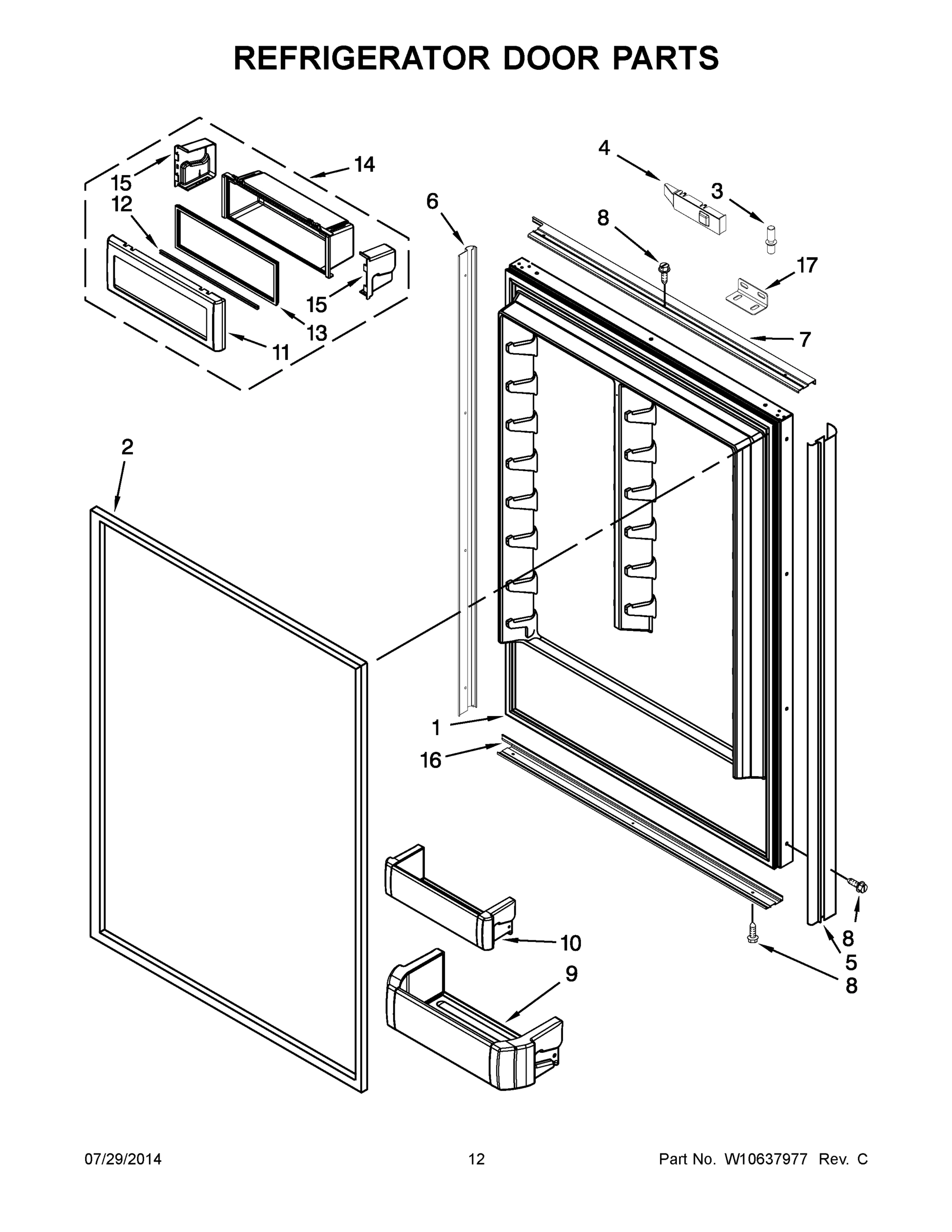

07 - REFRIGERATOR DOOR PARTS

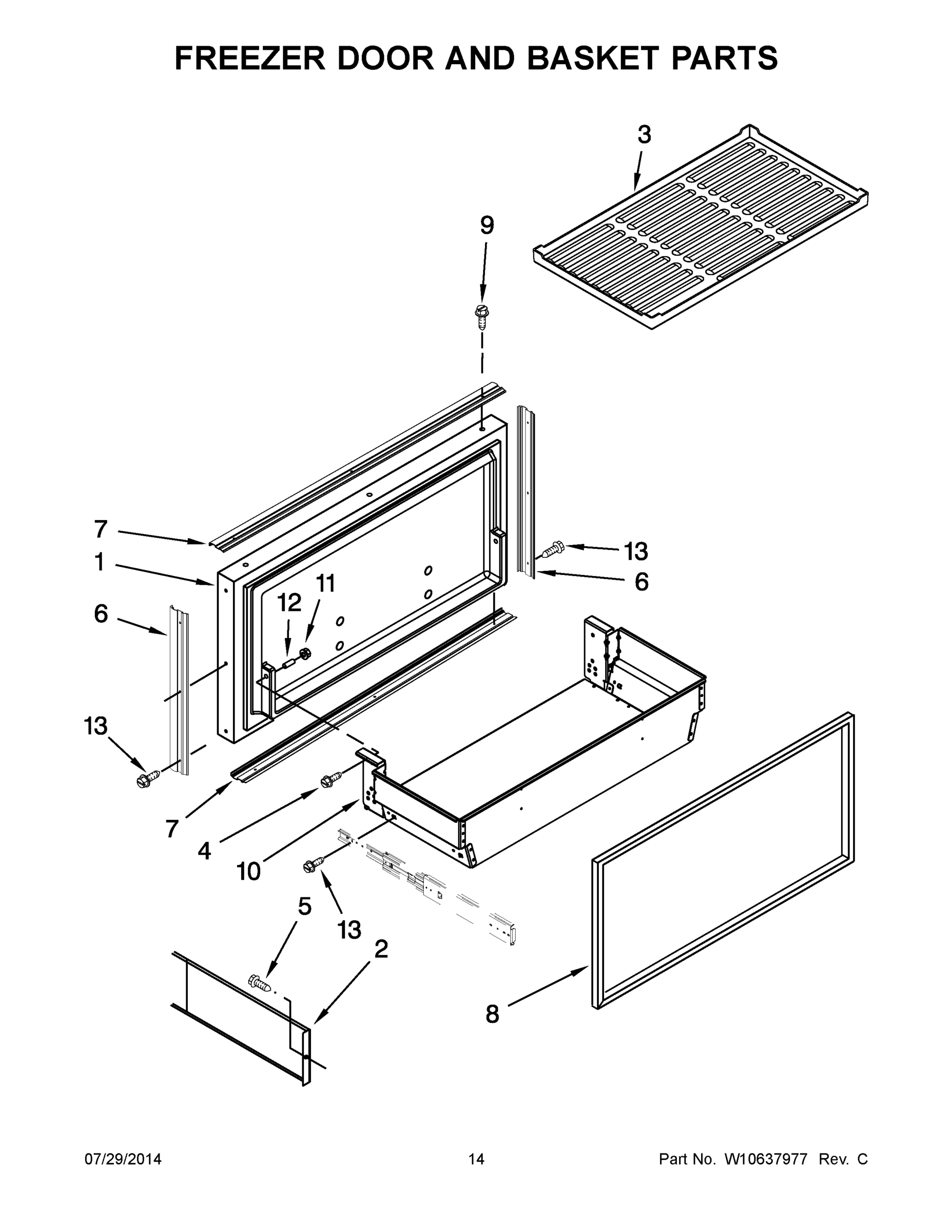

08 - FREEZER DOOR AND BASKET PARTS

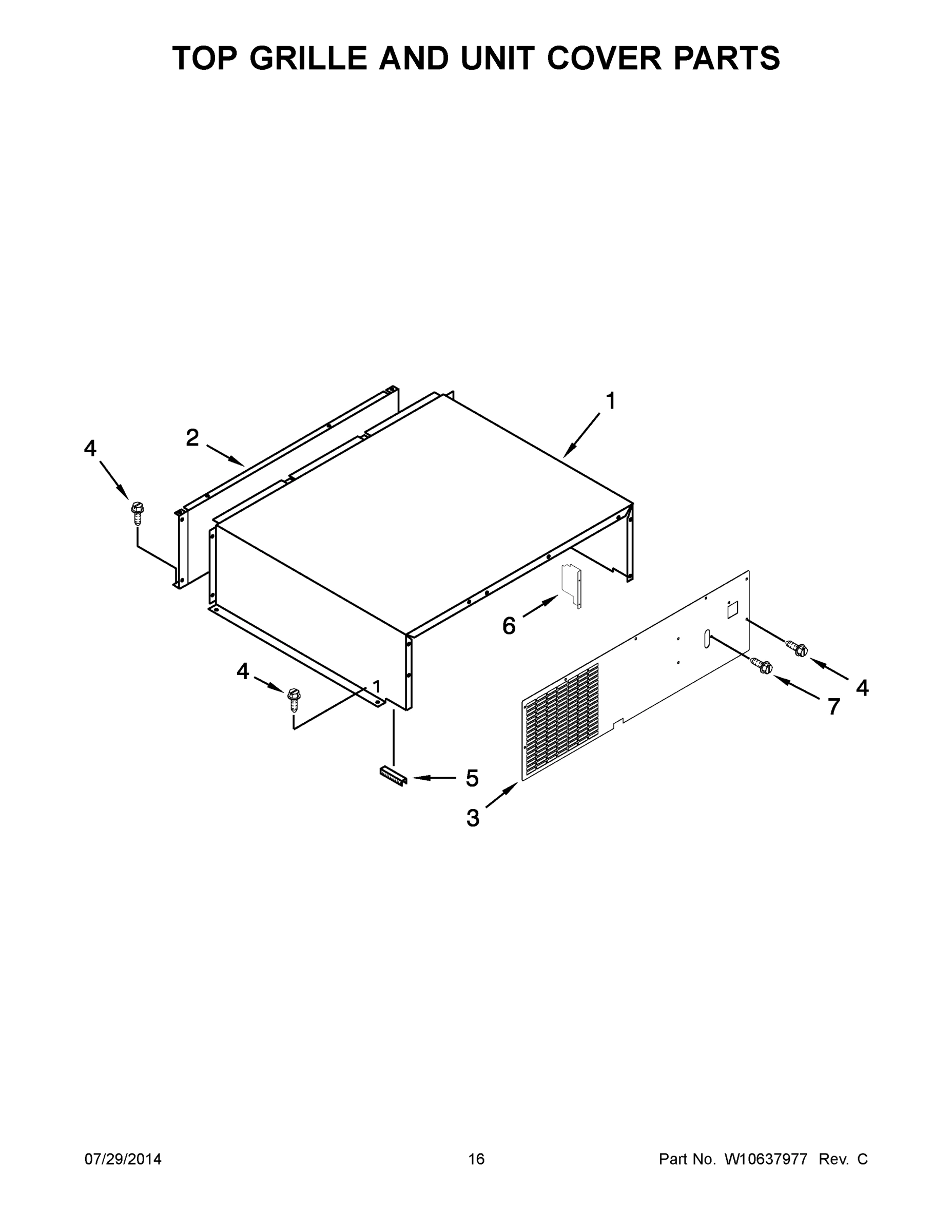

09 - TOP GRILLE AND UNIT COVER PARTS

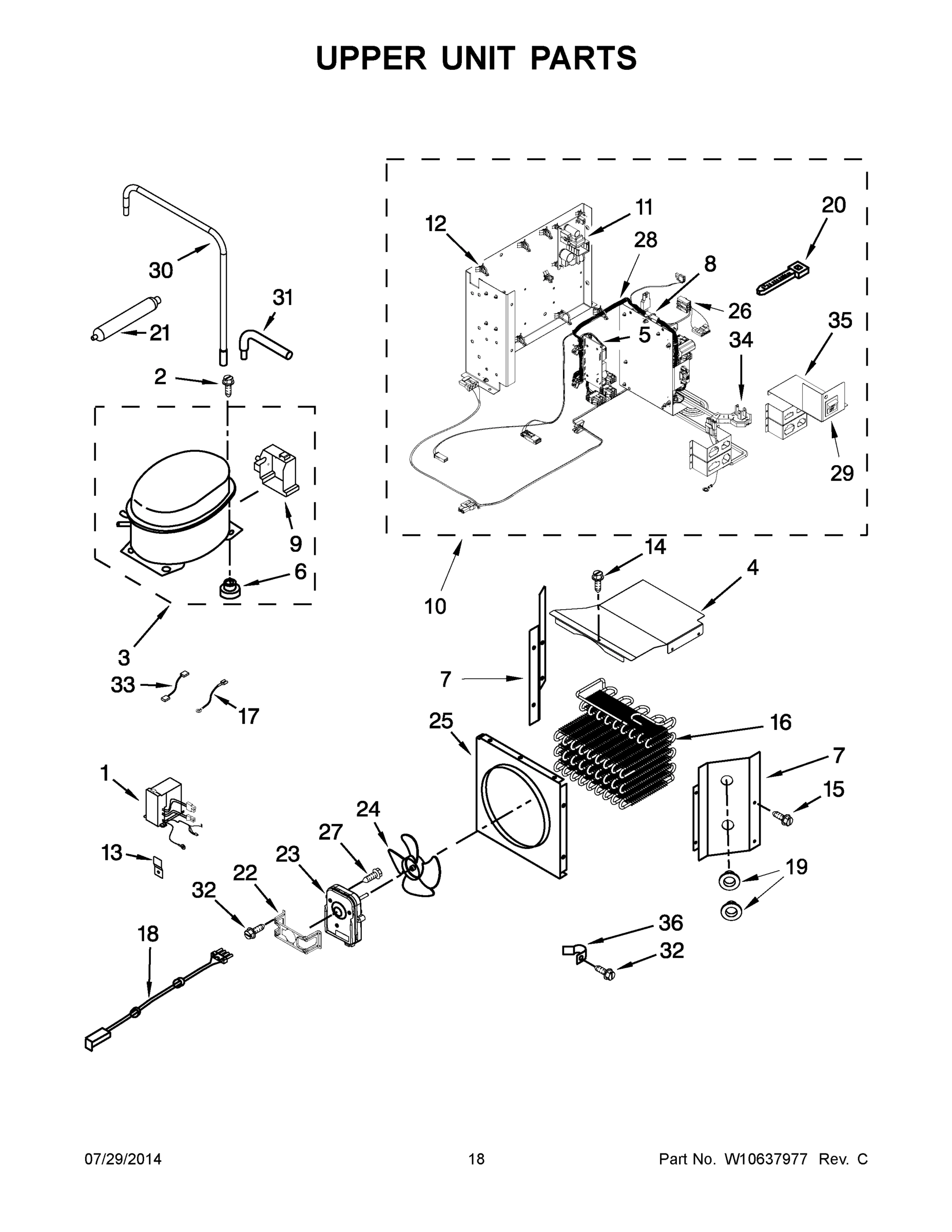

10 - UPPER UNIT PARTS

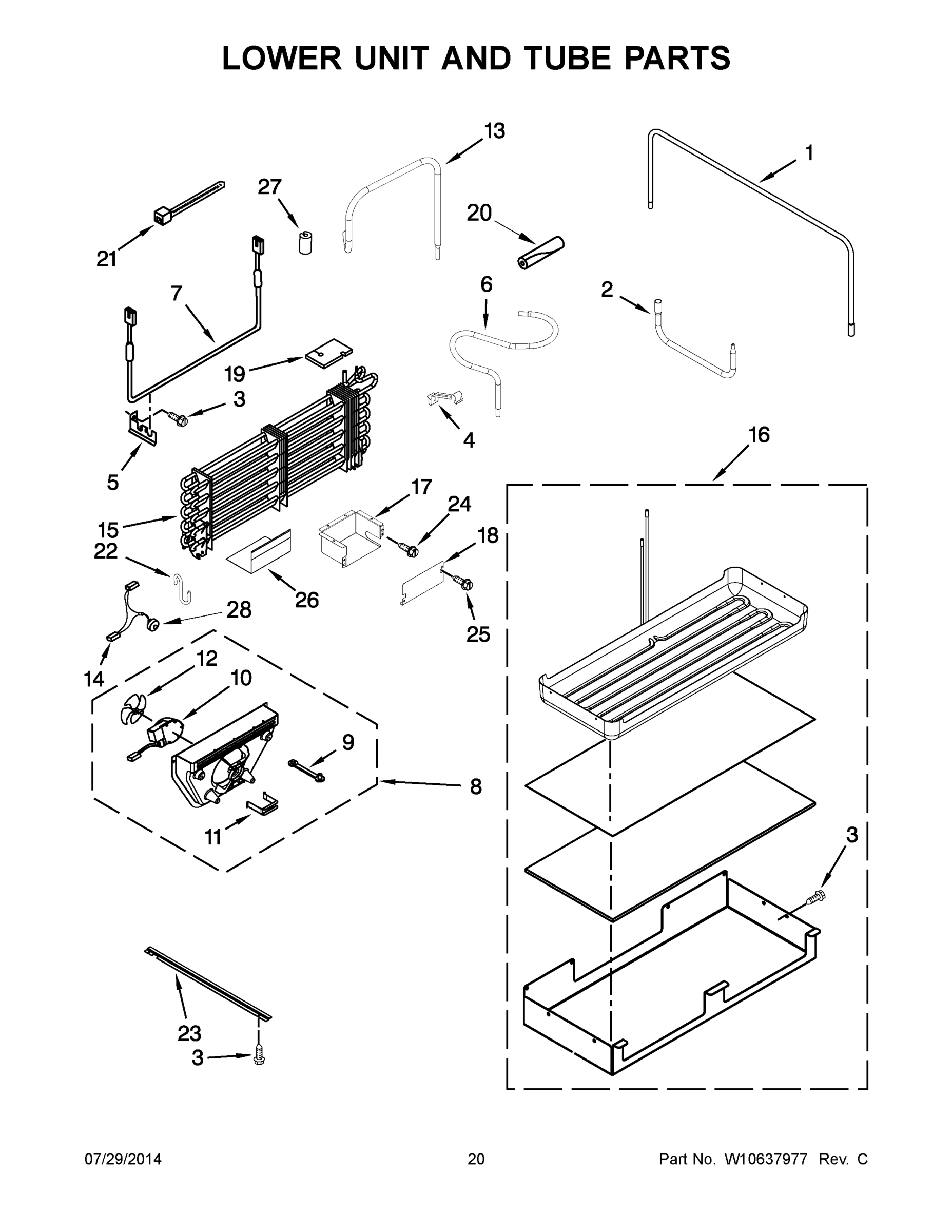

11 - LOWER UNIT AND TUBE PARTS

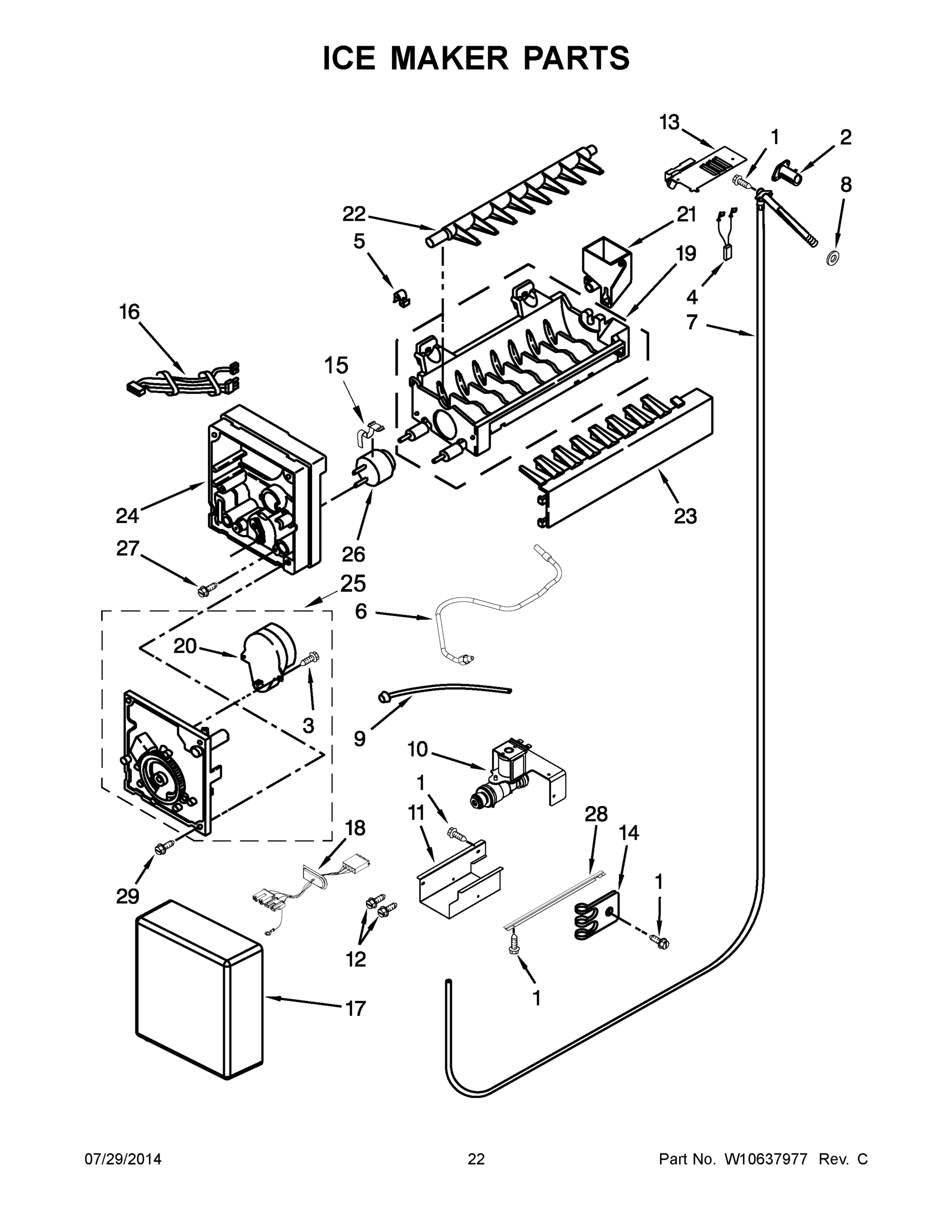

12 - ICE MAKER PARTS
13 - OPTIONAL PARTS
Common parts from model Maytag JB36NXFXLW05 REFRIGERATOR
1
USE AND CARE GUIDE MAY W10303991 Contact Us For Availability
1
MAY W10141596 MAY W10141596 Contact Us For Availability
1
ASSEMBLY , CRISPER PAN MAY W10407629 Contact Us For Availability
1
DOOR, REFRIGERATOR (INCLUDES ITEM 2) (RIGHT H MAY W10138410 Contact Us For Availability
1
DOOR, FREEZER MAY W10259062 Contact Us For Availability
1
MAY W10624563 MAY W10624563 Contact Us For Availability
1
ASSEMBLY, INVERTER BOX MAY W10449006 Contact Us For Availability
1
MAY W10546784 MAY W10546784 Contact Us For Availability
1A
MAY W10246774 MAY W10246774 Contact Us For Availability
1A
DOOR, REFRIGERATOR (INCLUDES ITEM 2) (LEFT HA MAY W10202908 Contact Us For Availability
1B
SERVICE AND WIRING SHEET MAY W10483326 Contact Us For Availability
1C
MAY W10234145 MAY W10234145 Contact Us For Availability
1D
MAY 2317840 MAY 2317840 Contact Us For Availability
1E
MAY W10379137 MAY W10379137 Contact Us For Availability
2
TRIM, CABINET SIDE RIGHT HAND (BLACK) MAY W10344544 Contact Us For Availability
2
MAY 2317004 MAY 2317004 Contact Us For Availability
2
SUPPORT, DRAWER SLIDE MAY W10423553 Contact Us For Availability
2
MAY 2256374 MAY 2256374 Contact Us For Availability
2
MAY W10694215 MAY W10694215 Contact Us For Availability
2
MAY 2317101 MAY 2317101 Contact Us For Availability
2
MAY 2256466 MAY 2256466 Contact Us For Availability
2
MAY 489373 MAY 489373 Contact Us For Availability
2
MAY W10388653 MAY W10388653 Contact Us For Availability
2
MAY 2221240 MAY 2221240 Contact Us For Availability
2A
TRIM, CABINET SIDE LEFT HAND (BLACK) MAY W10344547 Contact Us For Availability
3
BRACKET, GRILLE (RIGHT HAND) MAY W10188500 Contact Us For Availability
3
SCREW MAY 1163283 Contact Us For Availability
3
ASSEMBLY, CONTROL BOX MAY W10269709 Contact Us For Availability
3
MAY W10061370 MAY W10061370 Contact Us For Availability
3
ASSEMBLY, DELI PAN MAY W10407636 Contact Us For Availability
3
MAY W10234194 MAY W10234194 Contact Us For Availability
3
MAY W10168937 MAY W10168937 Contact Us For Availability
3
COVER, UNIT (FRONT) MAY W10272180 Contact Us For Availability
3
COMPRESSOR MAY 2223801 Contact Us For Availability
3
SCREW MAY 486194 Contact Us For Availability
3A
BRACKET, GRILLE (LEFT HAND) MAY W10188499 Contact Us For Availability
4
MAY W10138054 MAY W10138054 Contact Us For Availability
4
TRIM, CABINET (BOTTOM) MAY W10188504 Contact Us For Availability
4
MAY 2317000 MAY 2317000 Contact Us For Availability
4
MAY W10423551 MAY W10423551 Contact Us For Availability
4
MAY 2257548 MAY 2257548 Contact Us For Availability
4
MAY W10197748 MAY W10197748 Contact Us For Availability
4
SCREW MAY W10135775 Contact Us For Availability
4
COVER, CONDENSER TOP MAY W10525175 Contact Us For Availability
4
MAY 2307944 MAY 2307944 Contact Us For Availability
4
MAY W10482373 MAY W10482373 Contact Us For Availability
4A
MAY W10197766 MAY W10197766 Contact Us For Availability
5
MAY W10138423 MAY W10138423 Contact Us For Availability
5
MAY 8533929 MAY 8533929 Contact Us For Availability
5
MAY 2307810 MAY 2307810 Contact Us For Availability
5
TRIM, HANDLE DOOR (RIGHT HAND) MAY W10202604 Contact Us For Availability
5
MAY W10135792 MAY W10135792 Contact Us For Availability
5
GROMMET, FLEXIBLE MAY 2215910 Contact Us For Availability
5
CONTROL, ELECTRONIC MAY W10184634 Contact Us For Availability
5
BRACKET, MOUNTING MAY 2307945 Contact Us For Availability
5
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
5A
MAY W10279275 MAY W10279275 Contact Us For Availability
5A
TRIM, HANDLE DOOR (LEFT HAND) MAY W10188556 Contact Us For Availability
6
MAY W10663352 MAY W10663352 Contact Us For Availability
6
TRIM, CABINET (TOP) (RIGHT HAND) MAY W10202875 Contact Us For Availability
6
MAY 2309270 MAY 2309270 Contact Us For Availability
6
COVER, SWITCH MAY W10234211 Contact Us For Availability
6
MAY W10187549 MAY W10187549 Contact Us For Availability
6
TRIM, HINGE SIDE DOOR MAY W10202602 Contact Us For Availability
6
TRIM, SIDE DOOR MAY W10203452 Contact Us For Availability
6
DIVIDER, TOP GRILLE AIR MAY W10251186 Contact Us For Availability
6
GROMMET MAY 1100826 Contact Us For Availability
6
TUBE, OIL TRAP SUCTION MAY W10306442 Contact Us For Availability
6
MAY W10296807 MAY W10296807 Contact Us For Availability
6A
TRIM, CABINET (TOP) (LEFT HAND) MAY W10202877 Contact Us For Availability
7
LEVELER, ADJUSTABLE MAY 2005032 Contact Us For Availability
7
MAY W10656773 MAY W10656773 Contact Us For Availability
7
MAY 2005925 MAY 2005925 Contact Us For Availability
7
ASSEMBLY, ICE PAN MAY 2306174 Contact Us For Availability
7
TRIM, TOP DOOR (RIGHT HAND) MAY W10167365 Contact Us For Availability
7
TRIM, TOP AND BOTTOM DOOR MAY W10203448 Contact Us For Availability
7
MAY W10525179 MAY W10525179 Contact Us For Availability
7
MAY 2268393 MAY 2268393 Contact Us For Availability
7
MAY 2317847 MAY 2317847 Contact Us For Availability
7A
TRIM, TOP DOOR (LEFT HAND) MAY W10217464 Contact Us For Availability
7A
MAY W10525177 MAY W10525177 Contact Us For Availability
8
MAY W10142233 MAY W10142233 Contact Us For Availability
8
TRIM, CABINET SIDE RIGHT HAND (BLACK) MAY W10344559 Contact Us For Availability
8
FRONT, ICE PAN MAY 2306175 Contact Us For Availability
8
MAY W10694217 MAY W10694217 Contact Us For Availability
8
MAY W10200659 MAY W10200659 Contact Us For Availability
8
ASSEMBLY, SCROLL MAY W10321092 Contact Us For Availability
8
GASKET, SEAL MAY 1106508 Contact Us For Availability
8A
TRIM, CABINET SIDE LEFT HAND (BLACK) MAY W10344549 Contact Us For Availability
9
MAY 2307640 MAY 2307640 Contact Us For Availability
9
MAY W10191429 MAY W10191429 Contact Us For Availability
9
MAY 2327512 MAY 2327512 Contact Us For Availability
9
MAY W10323749 MAY W10323749 Contact Us For Availability
9
SCREW (STAINLESS) MAY 8281250 Contact Us For Availability
9
MAY 2215676 MAY 2215676 Contact Us For Availability
9
MAY W10321090 MAY W10321090 Contact Us For Availability
9
MAY W10437853 MAY W10437853 Contact Us For Availability
10
RING, RETAINER MAY 2006841 Contact Us For Availability
10
MAY W10121451 MAY W10121451 Contact Us For Availability
10
BULB, LIGHT MAY 2326255 Contact Us For Availability
10
FRONT, FREEZER PAN MAY 2268383 Contact Us For Availability
10
MAY W10323603 MAY W10323603 Contact Us For Availability
10
ASSEMBLY, FREEZER BASKET MAY W10258182 Contact Us For Availability
10
MAY W10528459 MAY W10528459 Contact Us For Availability
10
MAY W10436861 MAY W10436861 Contact Us For Availability
10
MAY 2307650 MAY 2307650 Contact Us For Availability
11
MAY 2317917 MAY 2317917 Contact Us For Availability
11
ASSEMBLY, ICE MAKER SWITCH MAY W10321131 Contact Us For Availability
11
LADDER, SHELF (SIDE) MAY W10213472 Contact Us For Availability
11
LID, UTILITY MAY 2309255 Contact Us For Availability
11
MAY 2207454 MAY 2207454 Contact Us For Availability
11
CONTROL, ELECTRONIC MAY W10356040 Contact Us For Availability
11
MAY W10260421 MAY W10260421 Contact Us For Availability
11
SHIELD, VALVE ELECTRICAL MAY W10129653 Contact Us For Availability
11A
LADDER, SHELF (CENTER) MAY W10246602 Contact Us For Availability
12
CLIP, WIRE MAY W10129069 Contact Us For Availability
12
MAY W10001250 MAY W10001250 Contact Us For Availability
12
ASSEMBLY, DIFFUSER MAY 2320523 Contact Us For Availability
12
MAY 2306187 MAY 2306187 Contact Us For Availability
12
DIVIDER, CRISPER MAY 2256474 Contact Us For Availability
12
RAIL, UTILITY MAY 2309256 Contact Us For Availability
12
MAY W10001190 MAY W10001190 Contact Us For Availability
12
MAY 2203075 MAY 2203075 Contact Us For Availability
12
MAY 2169142 MAY 2169142 Contact Us For Availability
13
MAY 2314064 MAY 2314064 Contact Us For Availability
13
COVER, DIFFUSER MAY 2320519 Contact Us For Availability
13
MAY 2317006 MAY 2317006 Contact Us For Availability
13
MAY W10198700 MAY W10198700 Contact Us For Availability
13
MAY 2309257 MAY 2309257 Contact Us For Availability
13
MAY W10109030 MAY W10109030 Contact Us For Availability
13
MAY 2256328 MAY 2256328 Contact Us For Availability
13
MAY W10404239 MAY W10404239 Contact Us For Availability
13
MAY 2221231 MAY 2221231 Contact Us For Availability
14
MAY 2307584 MAY 2307584 Contact Us For Availability
14
SCREW MAY 487415 Contact Us For Availability
14
MAY 2268380 MAY 2268380 Contact Us For Availability
14
MAY W10203635 MAY W10203635 Contact Us For Availability
14
MAY W10323044 MAY W10323044 Contact Us For Availability
14
ASSEMBLY, BI-METAL WIRE MAY W10482185 Contact Us For Availability
14
MAY 2208136 MAY 2208136 Contact Us For Availability
15
ASSEMBLY, AIR BAFFLE MAY 2221296 Contact Us For Availability
15
COVER, FAN MAY 2317829 Contact Us For Availability
15
GASKET, REAR (DELI COVER) MAY 2309399 Contact Us For Availability
15
END CAP, UTILITY BIN (RIGHT HAND) MAY W10323172 Contact Us For Availability
15
MAY 1157158 MAY 1157158 Contact Us For Availability
15
ASSEMBLY, EVAPORATOR MAY W10195923 Contact Us For Availability
15
MAY 2315522 MAY 2315522 Contact Us For Availability
15A
END CAP, UTILITY BIN (LEFT HAND) MAY W10323173 Contact Us For Availability
16
ASSEMBLY, LIGHT SWITCH WIRE (RIGHT HAND) MAY W10209506 Contact Us For Availability
16
SCREW (STAINLESS) MAY 487539 Contact Us For Availability
16
MAY W10183749 MAY W10183749 Contact Us For Availability
16
TRIM, BOTTOM DOOR (RIGHT HAND) MAY W10167371 Contact Us For Availability
16
MAY W10591457 MAY W10591457 Contact Us For Availability
16
ASSEMBLY, DRAIN PAN MAY W10281063 Contact Us For Availability
16
MAY W10508673 MAY W10508673 Contact Us For Availability
16A
ASSEMBLY, LIGHT SWITCH WIRE (LEFT HAND) MAY W10209520 Contact Us For Availability
16A
TRIM, BOTTOM DOOR (LEFT HAND) MAY W10202901 Contact Us For Availability
17
HINGE, TOP (RIGHT HAND) MAY W10167397 Contact Us For Availability
17
MAY W10209498 MAY W10209498 Contact Us For Availability
17
MAY 2306106 MAY 2306106 Contact Us For Availability
17
GASKET, COVER (FRONT) MAY 2309397 Contact Us For Availability
17
BRACKET, PANEL MOUNTING MAY W10199955 Contact Us For Availability
17
MAY W10495645 MAY W10495645 Contact Us For Availability
17
MAY W10309012 MAY W10309012 Contact Us For Availability
17
MAY W10289690 MAY W10289690 Contact Us For Availability
17A
HINGE, TOP (LEFT HAND) MAY W10167398 Contact Us For Availability
18
MAY W10331955 MAY W10331955 Contact Us For Availability
18
SPACER, CRISPER (LEFT HAND) MAY 2309411 Contact Us For Availability
18
MAY 2306117 MAY 2306117 Contact Us For Availability
18
DEFLECTOR, AIR MAY 2317939 Contact Us For Availability
18
ASSEMBLY, CONDENSER FAN WIRE MAY 2310207 Contact Us For Availability
18
MAY W10321048 MAY W10321048 Contact Us For Availability
18
ASSEMBLY, WATER VALVE WIRE MAY W10279393 Contact Us For Availability
18A
SPACER, CRISPER (RIGHT HAND) MAY 2309410 Contact Us For Availability
18A
MAY 2306116 MAY 2306116 Contact Us For Availability
19
MAY 2006617 MAY 2006617 Contact Us For Availability
19
SPACER, DELI (LEFT HAND) MAY 2268411 Contact Us For Availability
19
MAY W10141645 MAY W10141645 Contact Us For Availability
19
MAY W10587113 MAY W10587113 Contact Us For Availability
19
MAY 2306180 MAY 2306180 Contact Us For Availability
19
ASSEMBLY, MOLD AND HEATER (ALSO ORDER 542638) MAY 628228 Contact Us For Availability
19A
SPACER, DELI (RIGHT HAND) MAY 2268412 Contact Us For Availability
20
MAY W10121140 MAY W10121140 Contact Us For Availability
20
SLIDE, CRISPER PAN (LEFT HAND) MAY 2302952 Contact Us For Availability
20
DIVIDER, FREEZER BINS MAY W10290822 Contact Us For Availability
20
MAY 2006475 MAY 2006475 Contact Us For Availability
20
MAY W10405530 MAY W10405530 Contact Us For Availability
20A
SLIDE, CRISPER PAN (RIGHT HAND) MAY 2302953 Contact Us For Availability
21
MAY 2302788 MAY 2302788 Contact Us For Availability
21
SUPPORT, SLIDE (RIGHT HAND) MAY 2306104 Contact Us For Availability
21
SCREW MAY 488886 Contact Us For Availability
21
TIE, WIRE MAY 2155774 Contact Us For Availability
21
MAY W10175593 MAY W10175593 Contact Us For Availability
21
MAY W10435665 MAY W10435665 Contact Us For Availability
22
FILTER, WATER MAY W10121146 Contact Us For Availability
22
SLIDE, DELI PAN (LEFT HAND) MAY 2302956 Contact Us For Availability
22
MAY 2317927 MAY 2317927 Contact Us For Availability
22
COVER, GASKET (REAR) MAY 2309398 Contact Us For Availability
22
MAY W10414681 MAY W10414681 Contact Us For Availability
22
MAY 2317920 MAY 2317920 Contact Us For Availability
22
MAY 627843 MAY 627843 Contact Us For Availability
22A
SLIDE, DELI PAN (RIGHT HAND) MAY 2302957 Contact Us For Availability
23
MAY W10674648 MAY W10674648 Contact Us For Availability
23
SCREW MAY W10001160 Contact Us For Availability
23
SUPPORT, SLIDE (LEFT HAND) MAY 2306105 Contact Us For Availability
23
MAY 2188875 MAY 2188875 Contact Us For Availability
23
MAY 2320554 MAY 2320554 Contact Us For Availability
23
STRIPPER, ICE MAY W10122563 Contact Us For Availability
24
HINGE, BOTTOM MAY W10136731 Contact Us For Availability
24
BODY, VALVE TUBE MAY 2171931 Contact Us For Availability
24
BRACKET, EVAPORATOR COVER (LEFT HAND) MAY 2320512 Contact Us For Availability
24
MAY W10139483 MAY W10139483 Contact Us For Availability
24
SUPPORT, HOUSING MAY 2195914 Contact Us For Availability
24A
BRACKET, EVAPORATOR COVER (RIGHT HAND) MAY 2327339 Contact Us For Availability
25
MAY 488163 MAY 488163 Contact Us For Availability
25
MAY W10415670 MAY W10415670 Contact Us For Availability
25
SCREW MAY 304392 Contact Us For Availability
25
ASSEMBLY, MODULE AND MOTOR MAY 626691 Contact Us For Availability
26
DIFFUSER, CRISPER (COMPLETE) MAY 2268249 Contact Us For Availability
26
ASSEMBLY, AIR RETURN BRACKET MAY W10121940 Contact Us For Availability
26
HARNESS, AC UNIT MAY W10209462 Contact Us For Availability
26
MAY W10321050 MAY W10321050 Contact Us For Availability
26
THERMOSTAT MAY 627985 Contact Us For Availability
27
SKIRT, GRILLE (BOTTOM) MAY W10188547 Contact Us For Availability
27
MAY 2317105 MAY 2317105 Contact Us For Availability
27
MAY 2324970 MAY 2324970 Contact Us For Availability
27
MAY W10146359 MAY W10146359 Contact Us For Availability
27
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
27
MAY W10001280 MAY W10001280 Contact Us For Availability
28
MAY W10189196 MAY W10189196 Contact Us For Availability
28
MAY 2188820 MAY 2188820 Contact Us For Availability
28
HARNESS, DC UNIT MAY W10209460 Contact Us For Availability
28
BI-METAL, DEFROST MAY 2321803 Contact Us For Availability
28
MAY 2320559 MAY 2320559 Contact Us For Availability
29
MAY W10426957 MAY W10426957 Contact Us For Availability
29
ASSEMBLY, THERMISTOR MAY 2317844 Contact Us For Availability
29
SWITCH, POWER DISCONNECT MAY 2266802 Contact Us For Availability
29
MAY 489276 MAY 489276 Contact Us For Availability
30
MAY W10167341 MAY W10167341 Contact Us For Availability
30
SCREW (STAINLESS) MAY 8533928 Contact Us For Availability
30
MAY W10624944 MAY W10624944 Contact Us For Availability
30A
MAY W10167387 MAY W10167387 Contact Us For Availability
31
MAY 2260518B MAY 2260518B Contact Us For Availability
31
ASSEMBLY, AIR DEFLECTOR MAY W10135431 Contact Us For Availability
31
MAY W10528578 MAY W10528578 Contact Us For Availability
32
MAY 8533913 MAY 8533913 Contact Us For Availability
32
LENS, RECEIVER MAY 2198643 Contact Us For Availability
33
MAY W10483905 MAY W10483905 Contact Us For Availability
34
MAY W10005050 MAY W10005050 Contact Us For Availability
34
MAY 2310196 MAY 2310196 Contact Us For Availability
35
MAY W10209446 MAY W10209446 Contact Us For Availability
36
MAY 2260503B MAY 2260503B Contact Us For Availability
36
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
37
MAY 2318189 MAY 2318189 Contact Us For Availability
38
MAY W10234202 MAY W10234202 Contact Us For Availability
40
TRIM, GRILLE (TOP) MAY W10250961 Contact Us For Availability
100
MAY W10277450 MAY W10277450 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
MAY REFDEODOR MAY REFDEODOR Contact Us For Availability
NI
MAY W10234156 MAY W10234156 Contact Us For Availability
NI
KITCHEN AND APPLIANCE CLEANER MAY W10355010 Contact Us For Availability
NI
STAINLESS STEEL CLEANER MAY W10355016 Contact Us For Availability
NI
STAINLESS STEEL CLEANING WIPES MAY W10355049 Contact Us For Availability
NI
TEMPLATE, WOOD PANELS BM (LEFT) MAY W10488115 Contact Us For Availability
NI
MAY W10489178 MAY W10489178 Contact Us For Availability
NI
MAY W10553982 MAY W10553982 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MAY 20000008 MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY OZ. ENAMEL, BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY OZ. BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
× ![]()
