Model Whirlpool IMH16XSQ1 Microwave Oven 1.6 Cu. Ft. – Common Parts & Diagrams

Template, Upper
Template, Upper WPL 8206002 Contact Us For Availability
View on Model
H.V. Wire Assy
H.V. Wire Assy WPL 8206415 Contact Us For Availability
View on Model
Miscellaneous
Miscellaneous WPL ARI152752A Contact Us For Availability
View on Model
Grnd Wire, Filter
Grnd Wire, Filter WPL W10107760 Contact Us For Availability
View on Model
Main Harness
Main Harness WPL W10163434 Contact Us For Availability
View on Model
Hdlmp/TT Wire Assy
Hdlmp/TT Wire Assy WPL W10163435 Contact Us For Availability
View on Model
Ground Wire Assy
Ground Wire Assy WPL W10163438 Contact Us For Availability
View on Model
1
Cover, Inlet Includes Nails and Bushings
Cover, Inlet Includes Nails and Bushings WPL 8206389 Contact Us For Availability
View on Model
1
Deflector, Air
Deflector, Air WPL 8206340 Contact Us For Availability
View on Model
1
Cook Guide Label
Cook Guide Label WPL 8206005 Contact Us For Availability
View on Model
1
Install, Instruct.
Install, Instruct. WPL 8206588 Contact Us For Availability
View on Model
1
U & C Guide
U & C Guide WPL W10110892 Contact Us For Availability
View on Model
1
Tech Sheet, French
Tech Sheet, French WPL W10132033 Contact Us For Availability
View on Model
1
Tech Sheet, English
Tech Sheet, English WPL W10132038 Contact Us For Availability
View on Model
1

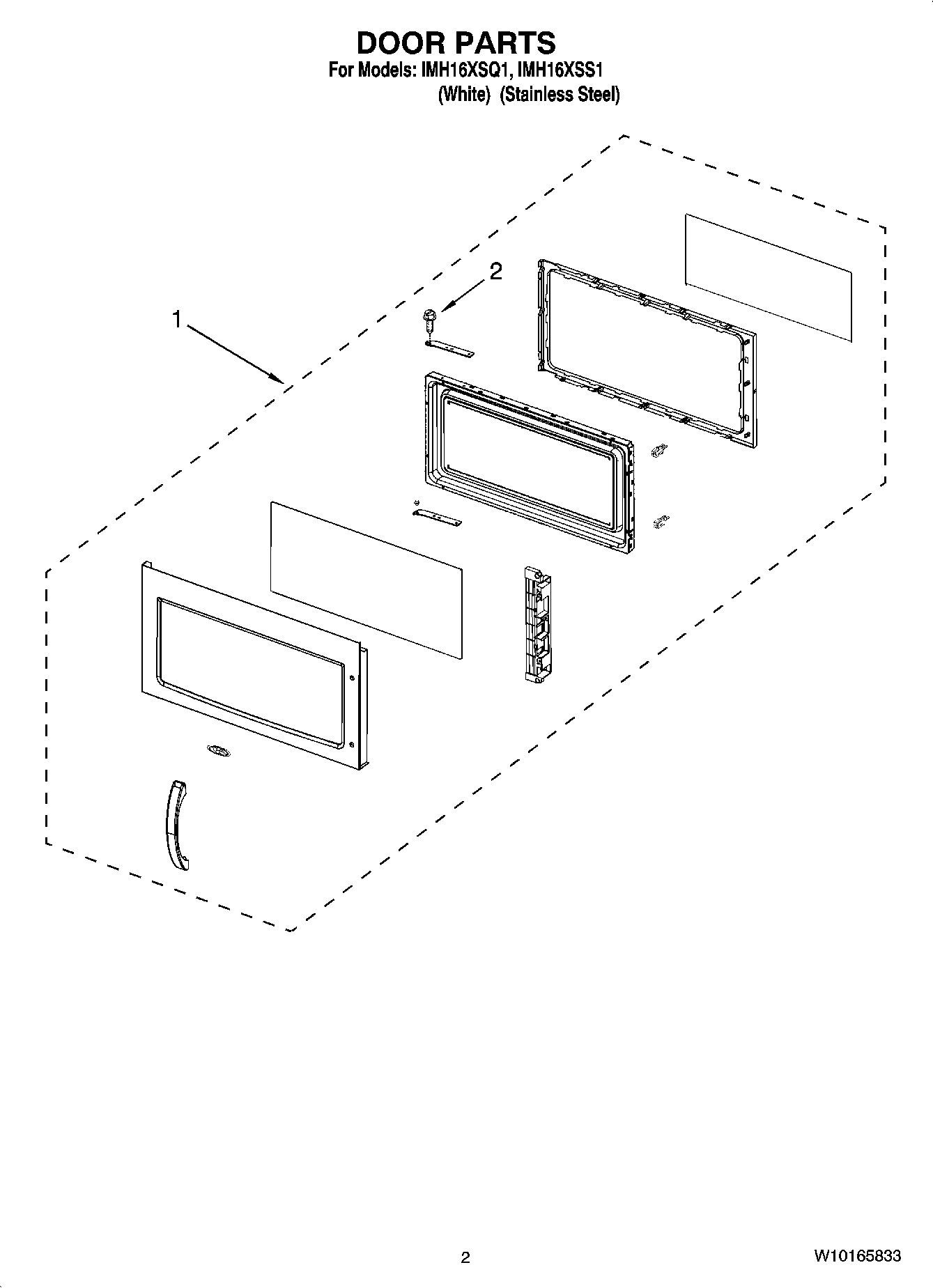

COMPLETE DOOR (White Model)
COMPLETE DOOR (White Model) WPL W10113982 Contact Us For Availability
View on Model
1
COMPLETE DOOR (Stainless Model)
COMPLETE DOOR (Stainless Model) WPL W10113983 Contact Us For Availability
View on Model
2

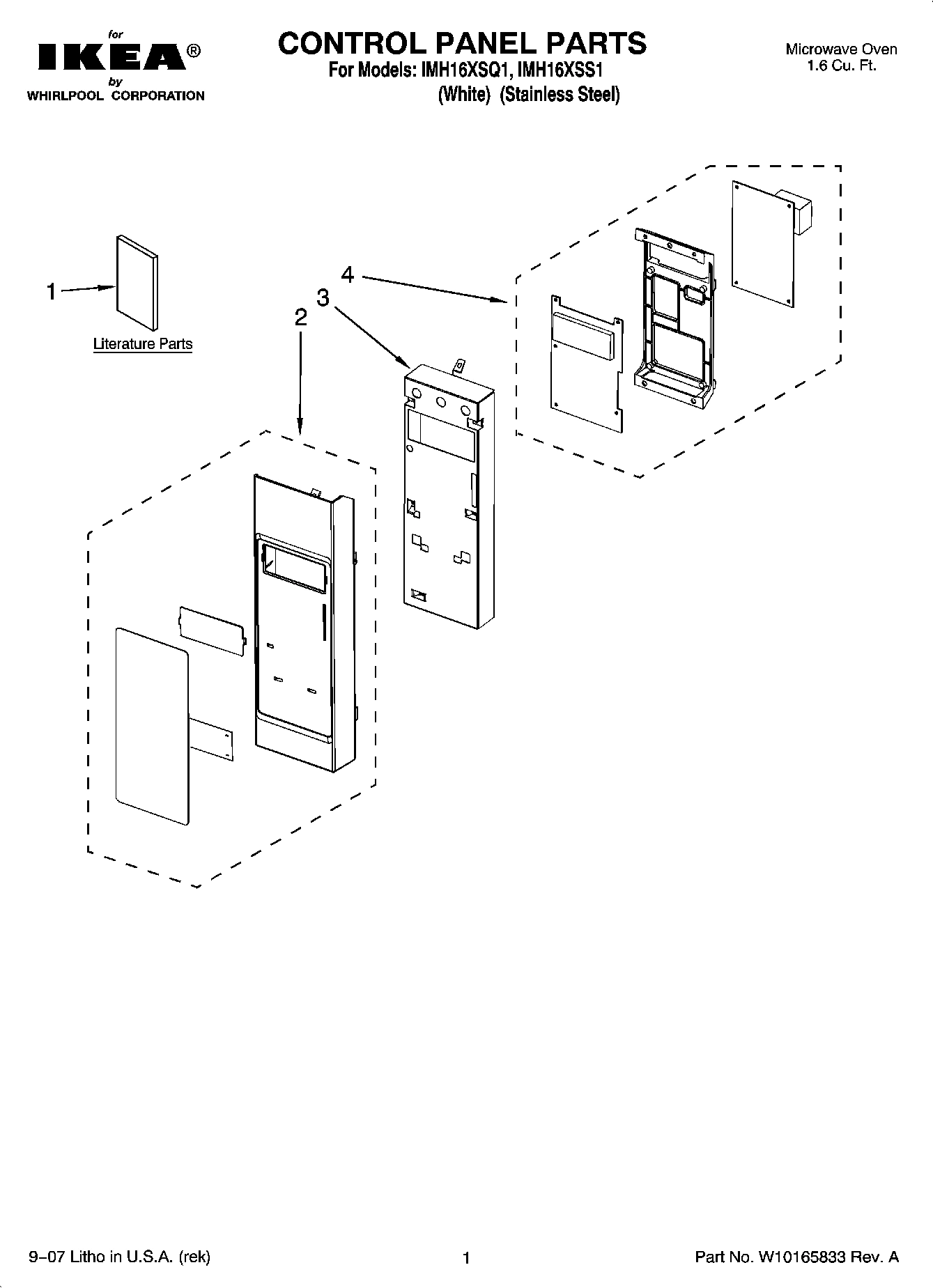

Panel Asy, Control Includes Lens and Membrane
Panel Asy, Control Includes Lens and Membrane WPL W10165831 Contact Us For Availability
View on Model
2
Panel Asy, Control Includes Lens and Membrane
Panel Asy, Control Includes Lens and Membrane WPL W10165832 Contact Us For Availability
View on Model
3
Bracket, Control
Bracket, Control WPL W10156814 Contact Us For Availability
View on Model
4

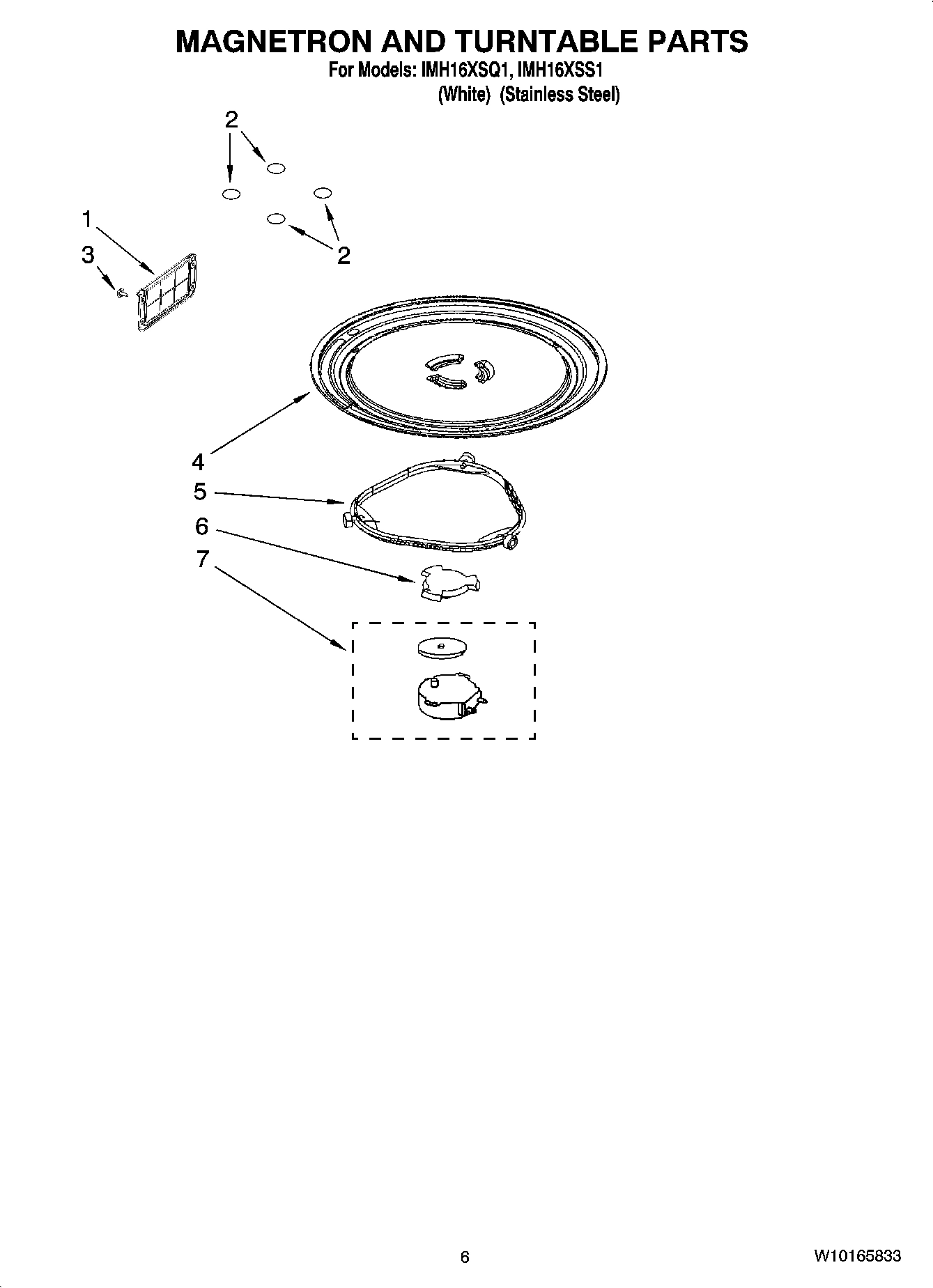

Turntable
Turntable WPL 4393799 Contact Us For Availability
View on Model
4
Microcomputer
Microcomputer WPL W10165830 Contact Us For Availability
View on Model
4
Cover, Side Inlet
Cover, Side Inlet WPL W10163433 Contact Us For Availability
View on Model

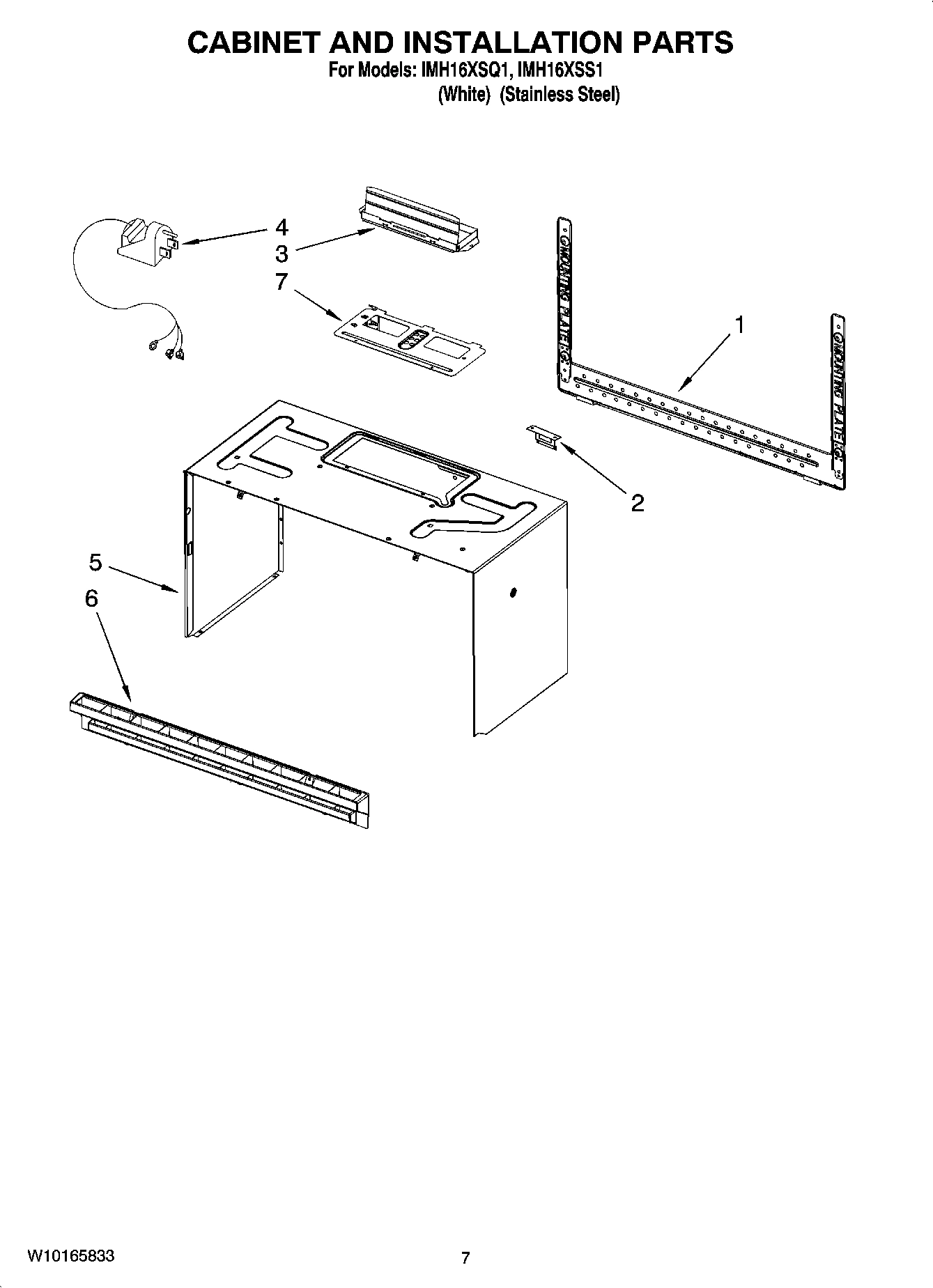

5
Case, Outer (White)
Case, Outer (White) WPL W10163417 Contact Us For Availability
View on Model
5
Case, Outer (Black)
Case, Outer (Black) WPL W10163418 Contact Us For Availability
View on Model
5

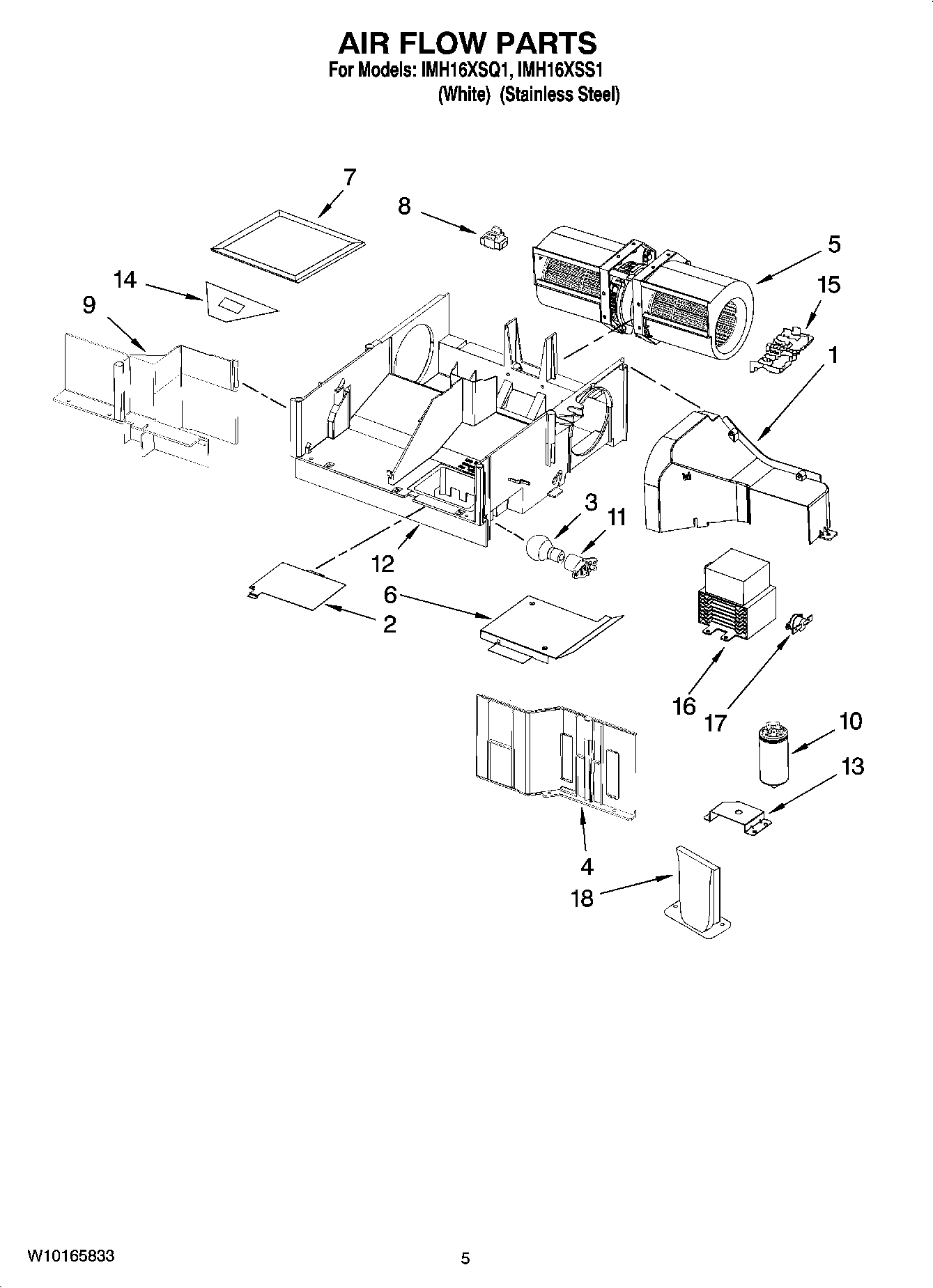

Motor, Fan Assy
Motor, Fan Assy WPL W10113981 Contact Us For Availability
View on Model
6
Grille, Vent (White Model)
Grille, Vent (White Model) WPL W10111339 Contact Us For Availability
View on Model
6
Grille, Vent (Stainless Model)
Grille, Vent (Stainless Model) WPL W10111340 Contact Us For Availability
View on Model
7
Plate, Damper
Plate, Damper WPL W10157207 Contact Us For Availability
View on Model

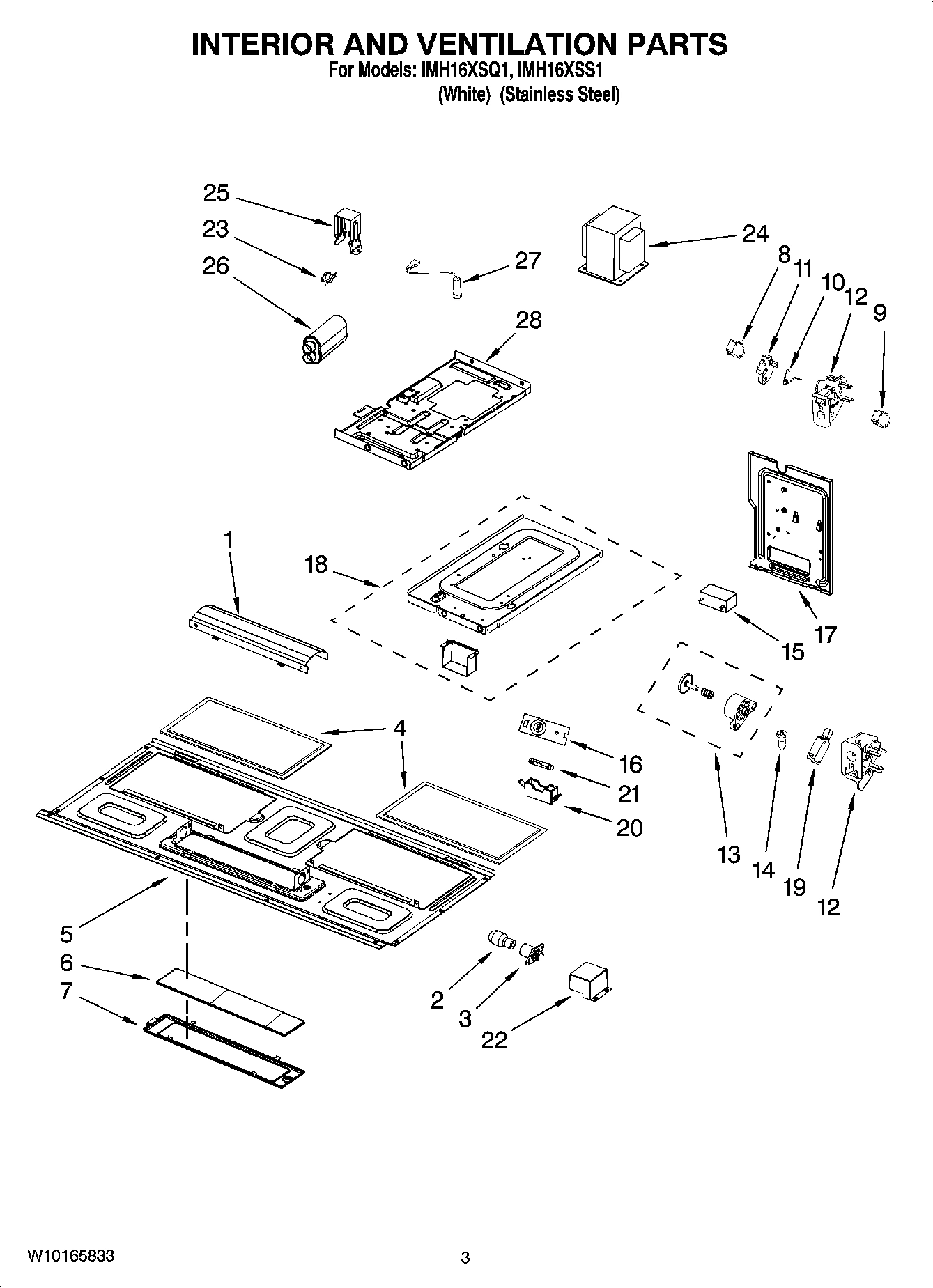

9
Air Guide
Air Guide WPL W10138800 Contact Us For Availability
View on Model
10
Filter
Filter WPL 8206624 Contact Us For Availability
View on Model
11
Holder, Lamp
Holder, Lamp WPL 8169539 Contact Us For Availability
View on Model
12
Base Plate, Air Guide
Base Plate, Air Guide WPL W10138799 Contact Us For Availability
View on Model
13
Brkt-Mntg, Filter
Brkt-Mntg, Filter WPL W10156815 Contact Us For Availability
View on Model
14
Socket, Motor Wire
Socket, Motor Wire WPL W10139750 Contact Us For Availability
View on Model
15
Cover, Terminal
Cover, Terminal WPL W10110598 Contact Us For Availability
View on Model
18
Plate, Water Proof
Plate, Water Proof WPL W10164716 Contact Us For Availability
View on Model
28
Chassis
Chassis WPL W10163420 Contact Us For Availability
View on Model
