Model Whirlpool GY396LXGB3 ELECTRIC RANGE – Common Parts & Diagrams
04 - OVEN CHASSIS
01 - COOKTOP, LITERATURE

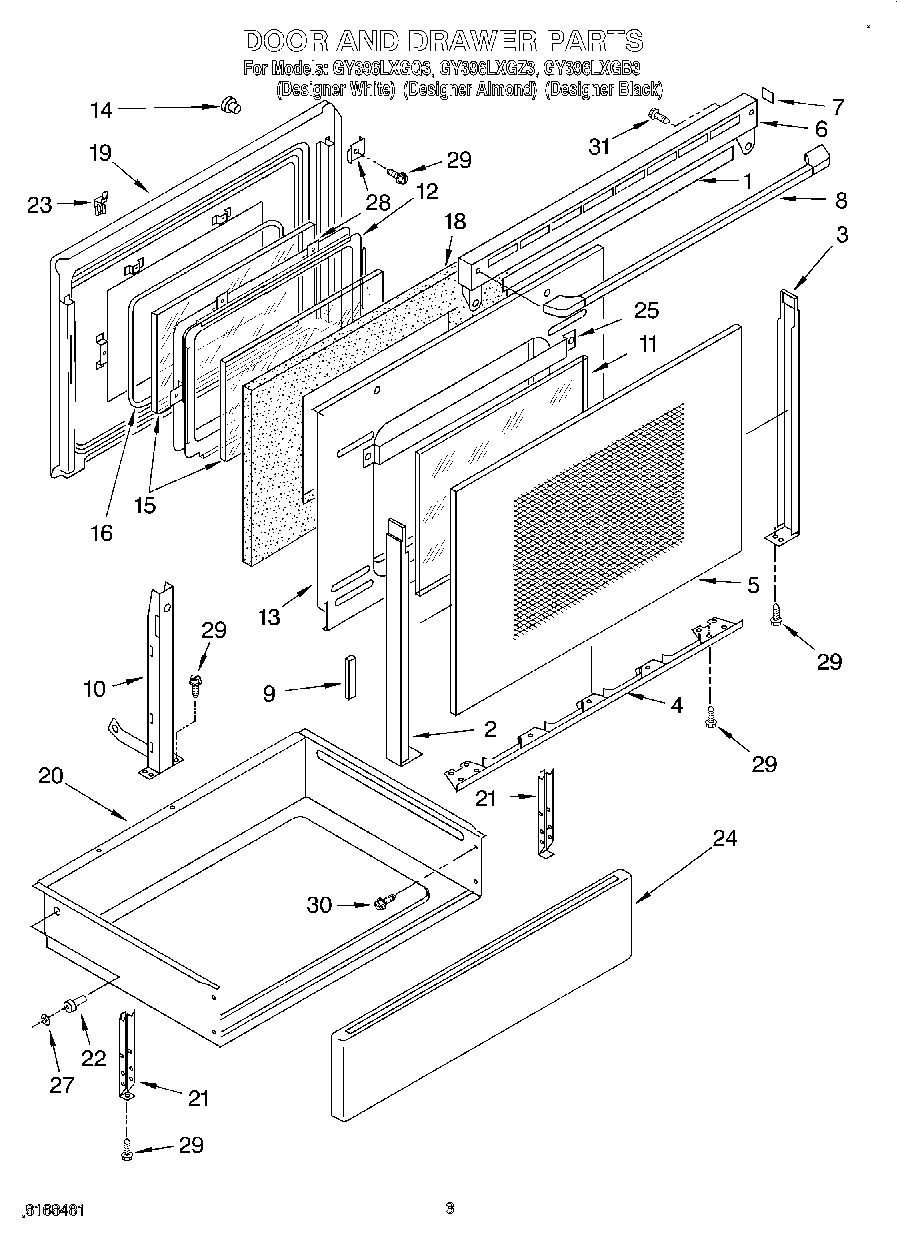

03 - DOOR AND DRAWER

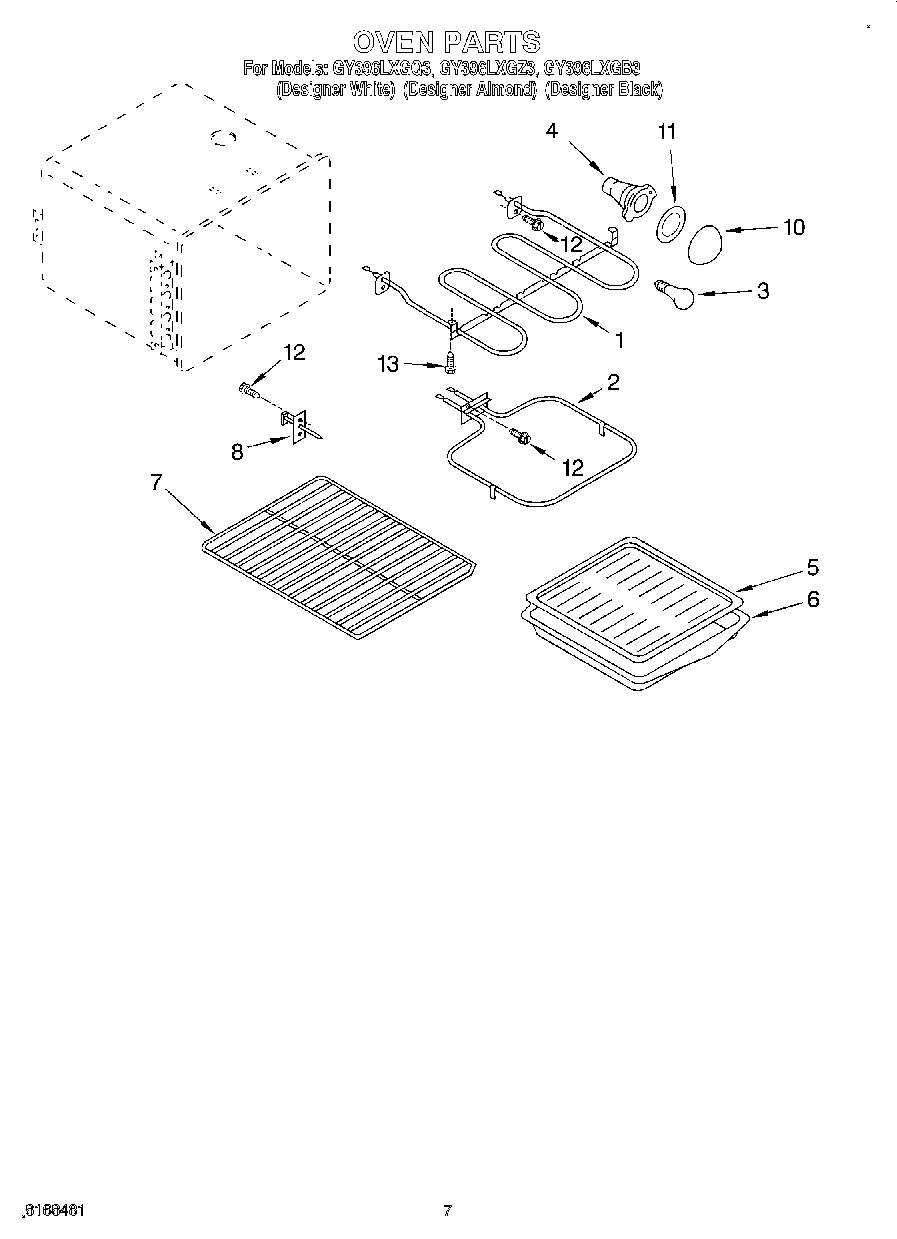

05 - OVEN

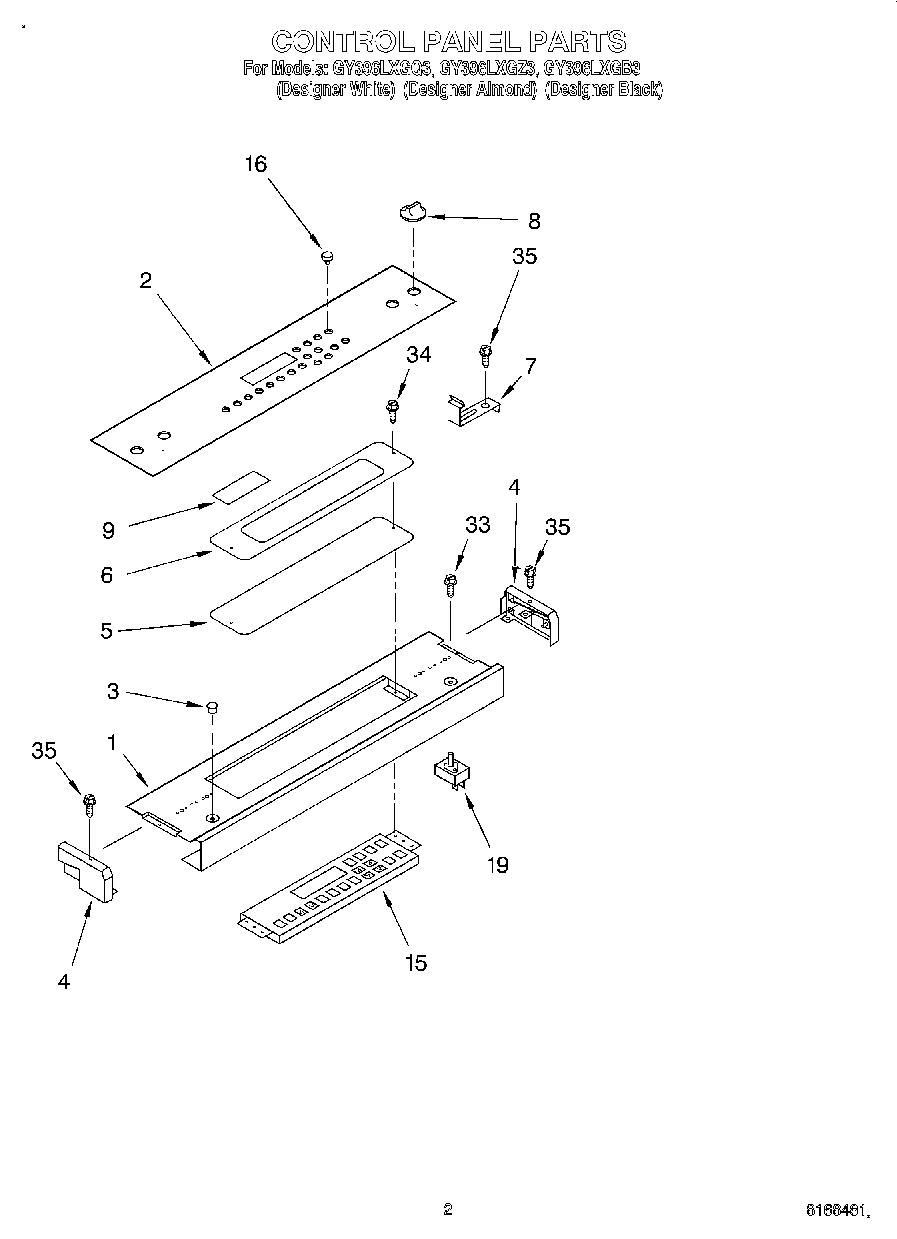

02 - CONTROL PANEL
Common parts from model Whirlpool GY396LXGB3 ELECTRIC RANGE
1
Element, Broil WPL 9750211 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT9752912 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT9752913 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT9752914 Contact Us For Availability
1
Literature Parts (Back Cover Trim Instruction WPL LIT9753268 Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9753426 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT9753911 Contact Us For Availability
1
Gasket, Door Vent WPL 9781659 Contact Us For Availability
1
Panel, Control (Black) WPL 9752897PB Contact Us For Availability
1
Panel, Control (Almond) WPL 9752897PT Contact Us For Availability
1
Panel, Control (White) WPL 9752897PW Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Trim, Side (2) WPL 9752890 Contact Us For Availability
2
Trim, Door-Left (Black) WPL 9750631PB Contact Us For Availability
2
Trim, Door-Left (Almond) WPL 9750631PT Contact Us For Availability
2
Trim, Door-Left (White) WPL 9750631PW Contact Us For Availability
2
Glass-Console (Black) WPL 9752899CB Contact Us For Availability
2
Glass-Console (Almond) WPL 9752899CT Contact Us For Availability
2
Glass-Console (White) WPL 9752899CW Contact Us For Availability
3
Trim, Back WPL 9752889 Contact Us For Availability
3
Trim, Door-Right (Black) WPL 9750632PB Contact Us For Availability
3
Trim, Door-Right (Almond) WPL 9750632PT Contact Us For Availability
3
Trim, Door-Right (White) WPL 9750632PW Contact Us For Availability
3
Lens, Indic. (2) WPL 9780799 Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom (Almond) WPL 9781209PT Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
4
(End Cap Right) (Black) WPL 9781888FB Contact Us For Availability
4
(End Cap Right) (Almond) WPL 9781888FT Contact Us For Availability
4
End Cap Left (Black) WPL 9781889FB Contact Us For Availability
4
End Cap Left (Almond) WPL 9781889FT Contact Us For Availability
5
Support, Element WPL 9752892 Contact Us For Availability
5
Glass, Door Front (Black) WPL 9781694PB Contact Us For Availability
5
Glass, Door Front (Almond) WPL 9781694PT Contact Us For Availability
5
Glass, Door Front (White) WPL 9781694PW Contact Us For Availability
5
Gasket, Cover WPL 9753504 Contact Us For Availability
6
Sleeve, Vent WPL 9752869 Contact Us For Availability
6
Vent, Door (Black) WPL 9753498GB Contact Us For Availability
6
Vent, Door (Almond) WPL 9753498GT Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Cover, Control WPL 9752955 Contact Us For Availability
7
Rack, Standard (2) WPL 9750498 Contact Us For Availability
7
Brace, Support WPL 9781553 Contact Us For Availability
7
Seal, Door WPL 9781490 Contact Us For Availability
7
Clip, Glass (2) WPL 9752906 Contact Us For Availability
8
Sensor WPL 8053344 Contact Us For Availability
8
Knobs, Control (4) (Black) WPL 9752405FB Contact Us For Availability
8
Bracket, Pivot WPL 9751629 Contact Us For Availability
8
Washer, Privot WPL 9752003 Contact Us For Availability
8
Handle, Door (Black) WPL 9752701PB Contact Us For Availability
8
Handle, Door (Almond) WPL 9752701PT Contact Us For Availability
8
Handle, Door (White) WPL 9752701PW Contact Us For Availability
8
Knobs, Control (4) (Almond) WPL 9752405FT Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Label-WPSI Control WPL 9753503 Contact Us For Availability
10
Door Switch (Oven Light) WPL 9781580 Contact Us For Availability
10
Hot Light WPL 9781936 Contact Us For Availability
11
Baffle, Glass WPL 9781592 Contact Us For Availability
12
Frame, Glass WPL 9781602 Contact Us For Availability
12
Screw WPL 9781509 Contact Us For Availability
13
WPL W10355051 No Longer Available
13
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
13
WPL 799344 WPL 799344 Contact Us For Availability
13
WPL 9751745 WPL 9751745 Contact Us For Availability
13
Lock Washer No.10 WPL 424238 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
13
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
13
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
13
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
13
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
13
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
13
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
13
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
13
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
13
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
13
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
13
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
13
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
13
Grease WPL 261582 Contact Us For Availability
13
Coffee WPL 261886 Contact Us For Availability
13
New Avocado WPL 261888 Contact Us For Availability
13
Harvest Gold WPL 261890 Contact Us For Availability
13
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
13
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
13
WPL 799832 WPL 799832 Contact Us For Availability
13
WPL 9750744 WPL 9750744 Contact Us For Availability
13
WPL 9751868 WPL 9751868 Contact Us For Availability
13
WPL 9753267PB WPL 9753267PB Contact Us For Availability
13
WPL 9753267PT WPL 9753267PT Contact Us For Availability
13
WPL 9753267PW WPL 9753267PW Contact Us For Availability
13
WPL 9753757 WPL 9753757 Contact Us For Availability
13
WPL 9781767 WPL 9781767 Contact Us For Availability
13
WPL 9781845 WPL 9781845 Contact Us For Availability
13
WPL 9781934 WPL 9781934 Contact Us For Availability
13
WPL 978883 WPL 978883 Contact Us For Availability
15
Control, Range WPL 9753633 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Rod, Small Ceran Element WPL 9781460 Contact Us For Availability
16
Cooktop, Ceran (Black) WPL 9752896CB Contact Us For Availability
16
Cooktop, Ceran (Almond) WPL 9752896CT Contact Us For Availability
16
Cooktop, Ceran (White) WPL 9752896CW Contact Us For Availability
16
Knob, Timer (18) (Black) WPL 9752547FB Contact Us For Availability
16
Knob, Timer (18) (Almond) WPL 9752547FT Contact Us For Availability
16
Knob, Timer (18) (White) WPL 9752547FW Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
18
Rod, Large Ceran Element WPL 9781459 Contact Us For Availability
18
Insulation, Door WPL 9754006 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Infinite Switch (1700W) WPL 9750644 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
23
Retainer, Door WPL 9750676 Contact Us For Availability
24
Front, Drawer (Black) WPL 9750168PB Contact Us For Availability
24
Front, Drawer (Almond) WPL 9750168PT Contact Us For Availability
24
Front, Drawer (White) WPL 9750168PW Contact Us For Availability
25
Channel, Heat WPL 9750693 Contact Us For Availability
26
Solenoid WPL 9752409 Contact Us For Availability
28
Spacer, Door WPL 9781502 Contact Us For Availability
30
Screw WPL 9780272 Contact Us For Availability
34
Screw WPL 423247 Contact Us For Availability
38
Screw WPL 98884 Contact Us For Availability
41
Screw WPL 422222 Contact Us For Availability
43
Screw WPL 9750887 Contact Us For Availability
44
Nut WPL 9750888 Contact Us For Availability
45
Clip WPL 313660 Contact Us For Availability
45
Strap, Ground WPL 3169573 Contact Us For Availability
47
Block, Balance WPL 9753413 Contact Us For Availability
× ![]()
