Model Whirlpool GW395LEGT6 SLIDE IN GAS RANGE – Common Parts & Diagrams
01 - COOKTOP, LITERATURE

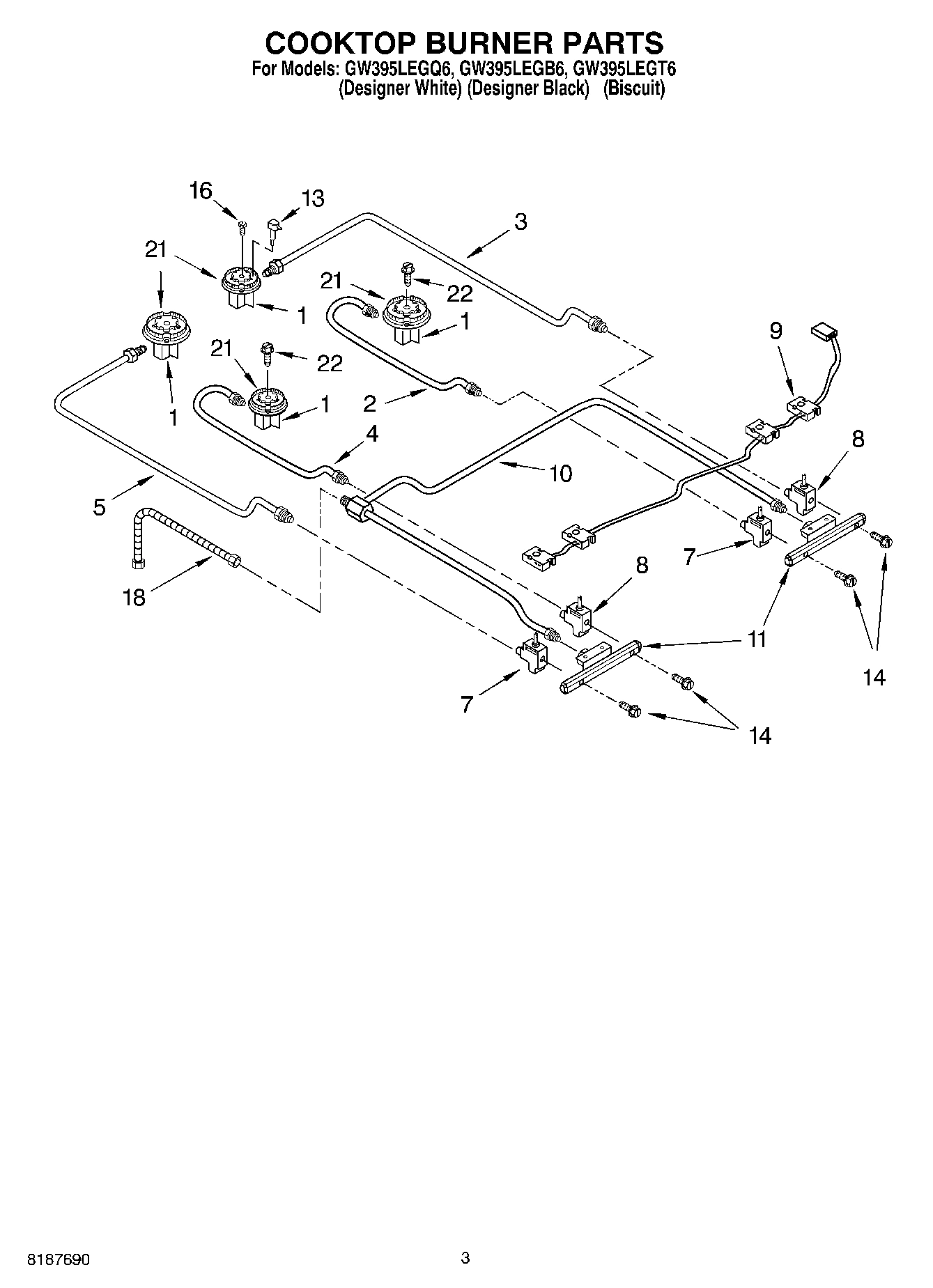

03 - COOKTOP BURNER

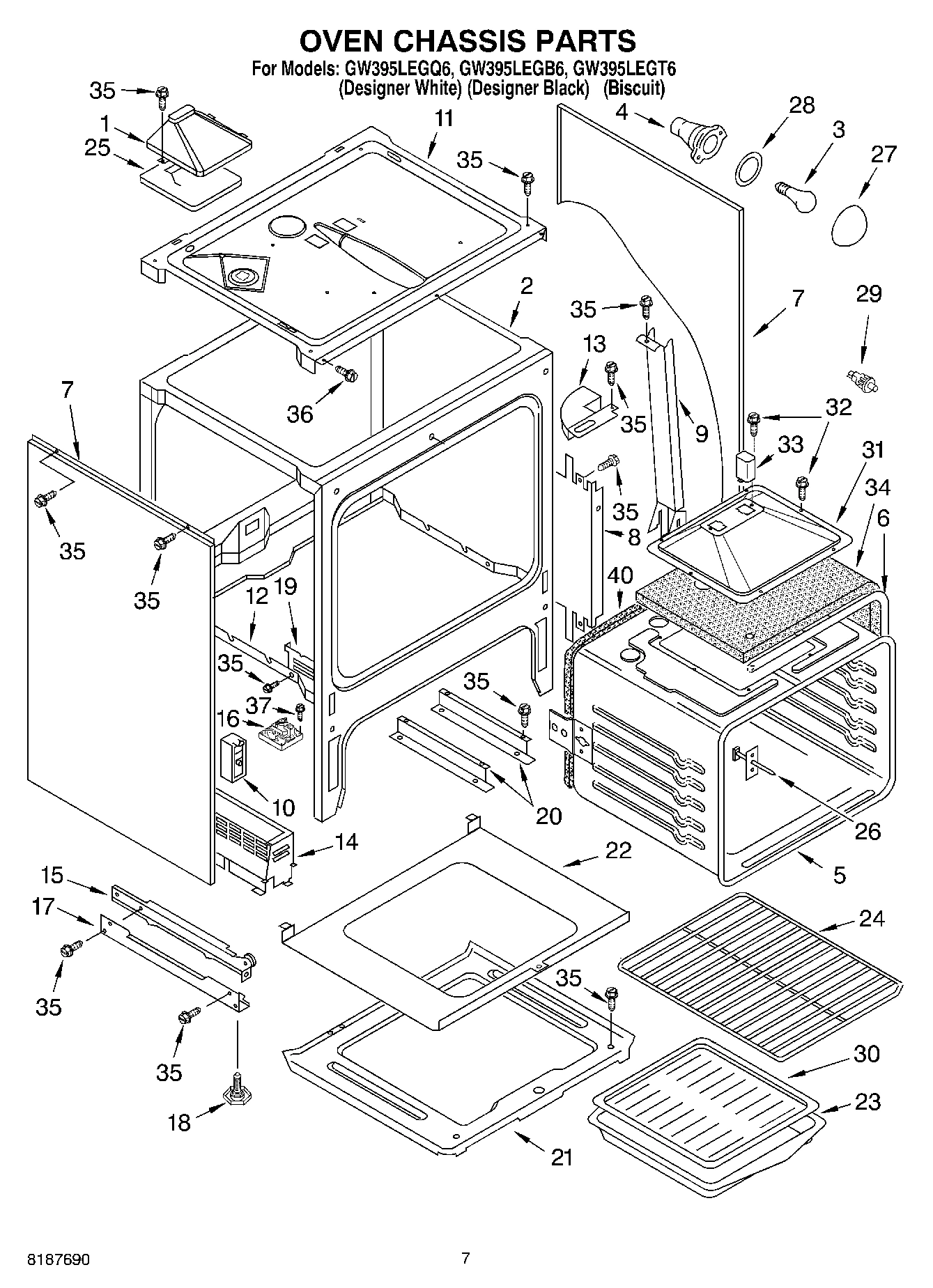

06 - OVEN CHASSIS

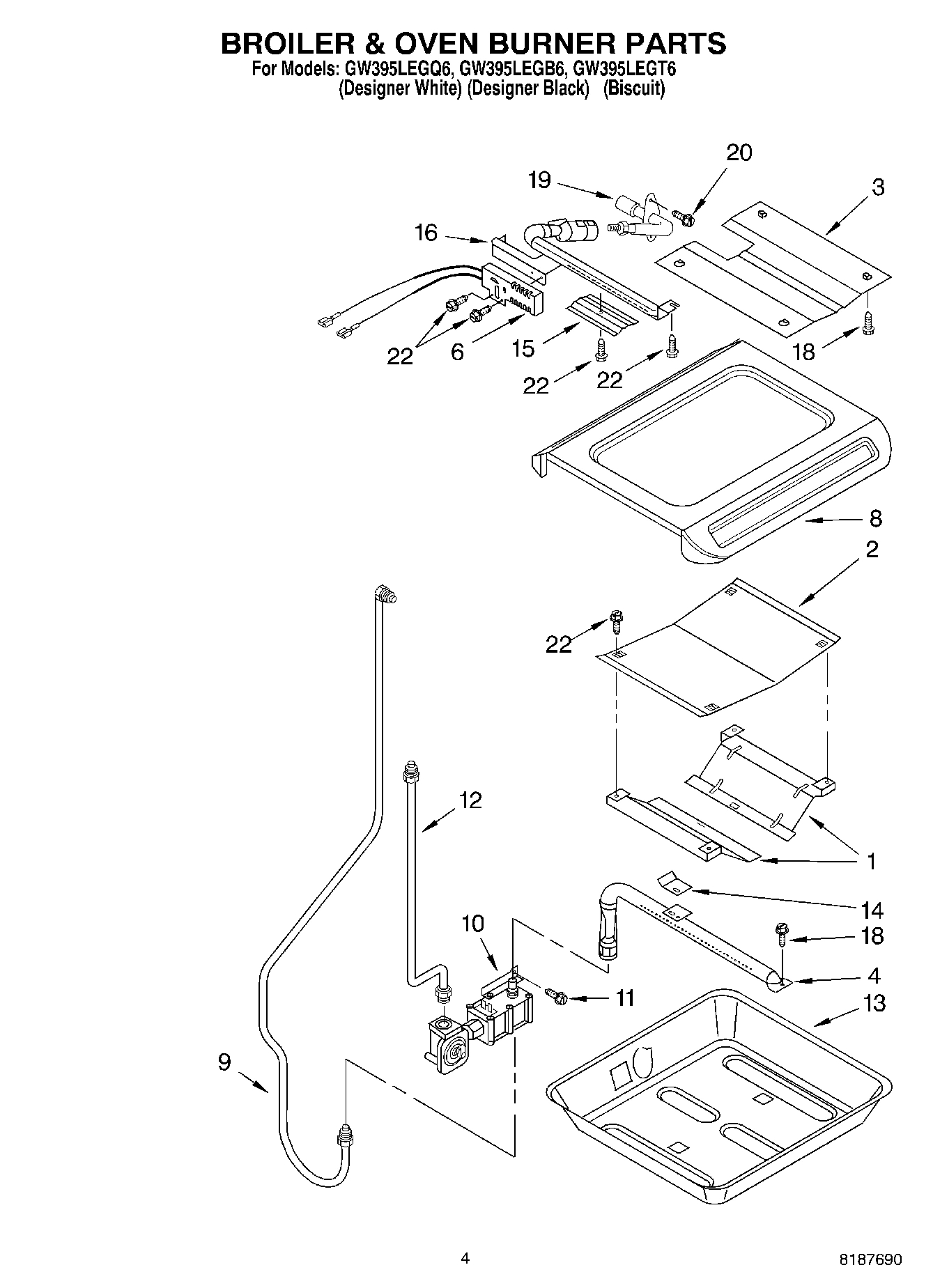

04 - BROILER AND OVEN BURNER

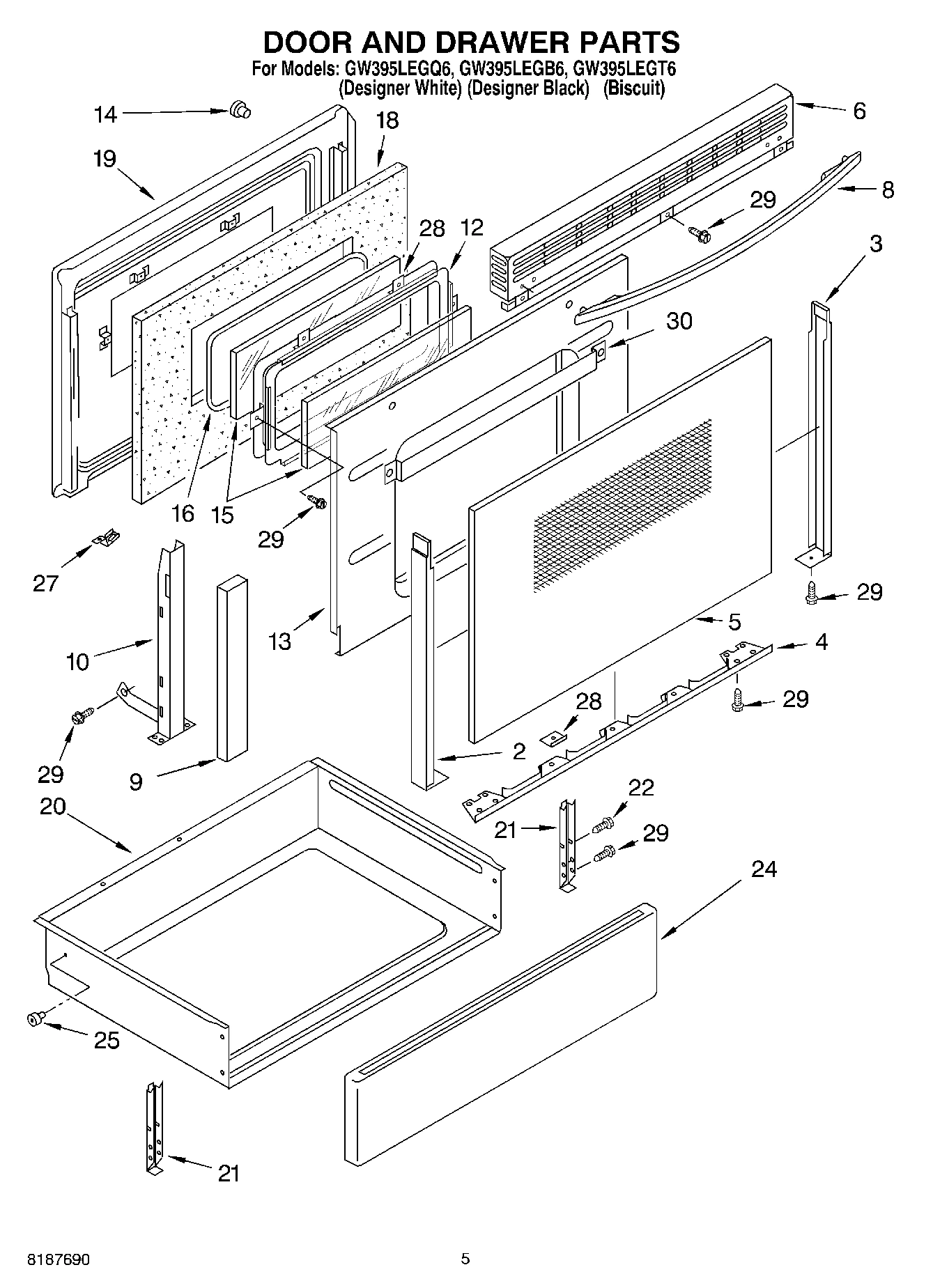

05 - DOOR AND DRAWER

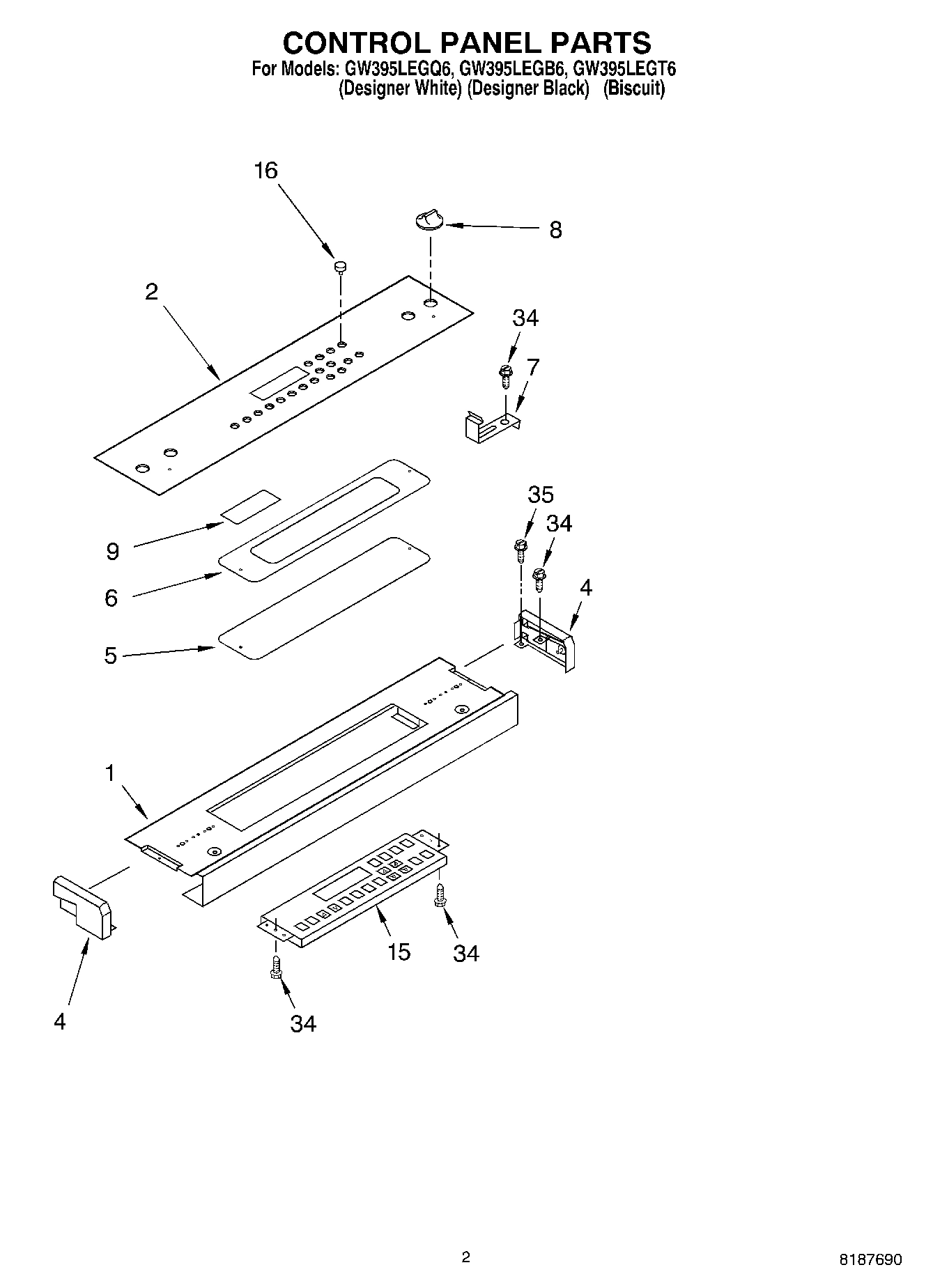

02 - CONTROL PANEL

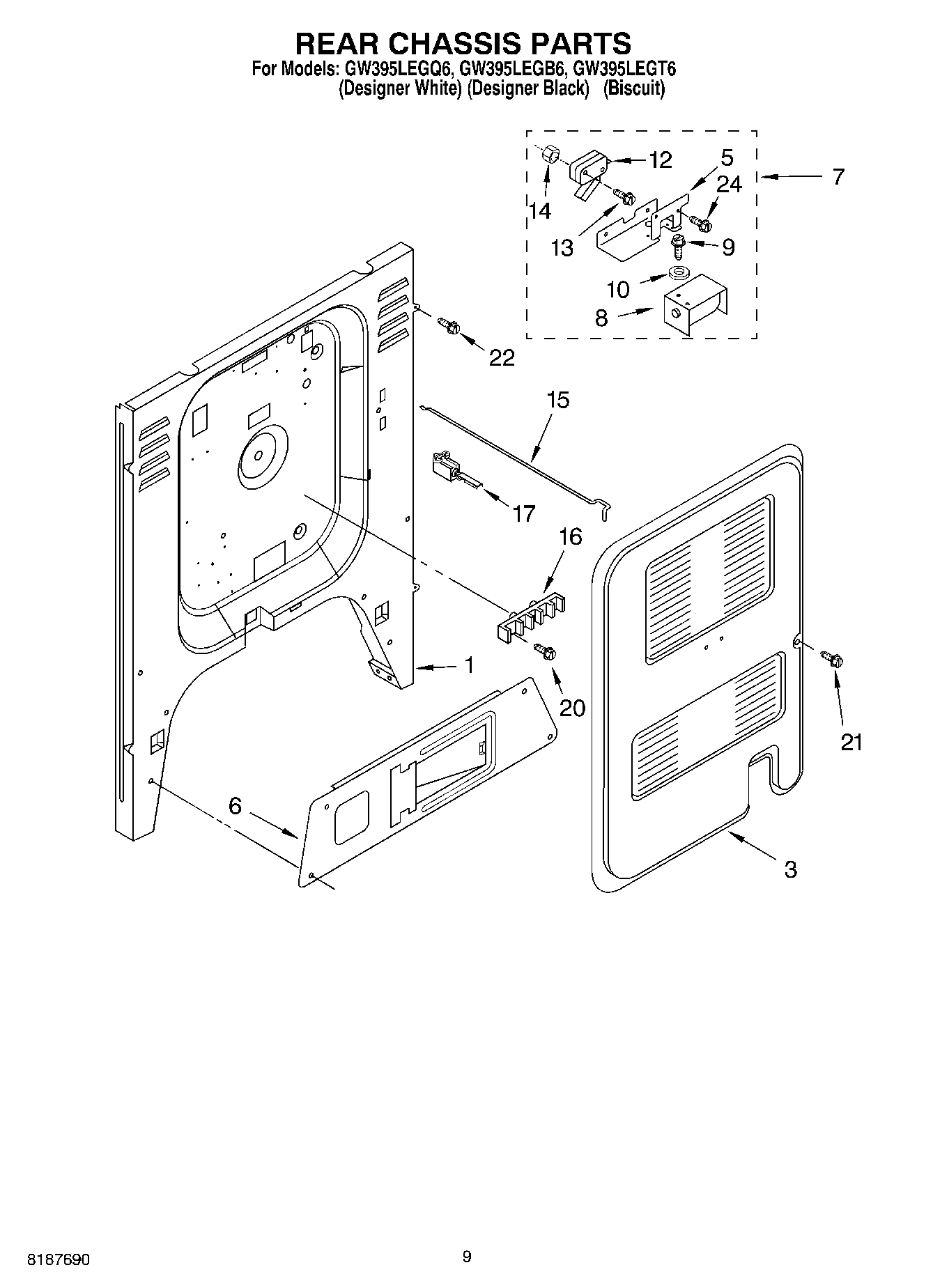

07 - REAR CHASSIS
Common parts from model Whirlpool GW395LEGT6 SLIDE IN GAS RANGE
1
Burner Base w/Orifice (Small (2)) WPL 9782447 Contact Us For Availability
1
Shield, Oven (2) WPL 9752737 Contact Us For Availability
1
Panel, Control (Black) WPL 9752897PB Contact Us For Availability
1
Panel, Control (Biscuit) WPL 9752897PC Contact Us For Availability
1
Panel, Control (White) WPL 9752897PW Contact Us For Availability
1
Back panel, Chassis WPL 9751051 Contact Us For Availability
2
Flame Shield, Bake WPL 9752738 Contact Us For Availability
2
Trim, Door-Left (Black) WPL 9782003PB Contact Us For Availability
2
Trim, Door-Left (Biscuit) WPL 9782003PC Contact Us For Availability
2
Trim, Door-Left (White) WPL 9782003PW Contact Us For Availability
2
Glass-Console (Black) WPL 9752901CB Contact Us For Availability
2
Glass-Console (Biscuit) WPL 9752901CC Contact Us For Availability
2
Glass-Console (White) WPL 9752901CW Contact Us For Availability
3
Shield, Flame WPL 9752980 Contact Us For Availability
3
Trim, Door-Right (Black) WPL 9782004PB Contact Us For Availability
3
Trim, Door-Right (Biscuit) WPL 9782004PC Contact Us For Availability
3
Trim, Door-Right (White) WPL 9782004PW Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
4
Burner, Bake WPL 9751367 Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom (Biscuit) WPL 9781209PC Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
4
End Cap Left (Black) WPL 9781888FB Contact Us For Availability
4
End Cap Left (Biscuit) WPL 9781888FC Contact Us For Availability
4
End Cap Left (Black) WPL 9781889FB Contact Us For Availability
4
End Cap Left (Biscuit Right) WPL 9781889FC Contact Us For Availability
5
Glass, Door (Black) WPL 9781694PB Contact Us For Availability
5
Glass, Door (Biscuit) WPL 9781694PC Contact Us For Availability
5
Glass, Door (White) WPL 9781694PW Contact Us For Availability
5
Gasket, Cover WPL 9753504 Contact Us For Availability
5
Bracket, Lock WPL 9750526 Contact Us For Availability
6
Vent, Door (Black) WPL 9753498GB Contact Us For Availability
6
Vent, Door (Biscuit) WPL 9753498GC Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Vent, Door (Seal, Door Vent Side) WPL 9781490 Contact Us For Availability
6
Vent, Door (Gasket, Door Vent) WPL 9781659 Contact Us For Availability
6
Cover, Control WPL 9752955 Contact Us For Availability
6
Bracket, Regulator Valve WPL 9751500 Contact Us For Availability
7
Cap, Burner Large (Grey) WPL 3191899 Contact Us For Availability
7
Clip, Glass (2) WPL 9752906 Contact Us For Availability
7
Oven Lock Assembly (Includes Key No.17) WPL 9752404 Contact Us For Availability
8
Solenoid WPL 9752409 Contact Us For Availability
8
Pan, Oven Bottom WPL 9752736GM Contact Us For Availability
8
Handle, Door (Black) WPL 9752701PB Contact Us For Availability
8
Handle, Door (Biscuit) WPL 9752701PC Contact Us For Availability
8
Handle, Door (White) WPL 9752701PW Contact Us For Availability
8
Knobs, Control (4) (Biscuit) WPL 9753990FC Contact Us For Availability
9
Tubing, Broil WPL 9782105 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Label-WPSI Control WPL 9753503 Contact Us For Availability
9
Screw WPL 422222 Contact Us For Availability
10
Washer WPL 424238 Contact Us For Availability
11
Burner Box WPL 9752975 Contact Us For Availability
11
Screw, 1/4-20x1/2 WPL 776593 Contact Us For Availability
12
Retainer, Insulation WPL 9752735 Contact Us For Availability
12
Tubing, Valve WPL 9781015 Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
12
Switch, Interlock WPL 9750965 Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
13
Pan Support, Bake WPL 9752734 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
13
Screw, (2) WPL 9750887 Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
14
Bracket, Bake WPL 9751600 Contact Us For Availability
14
Nut (2) WPL 9750888 Contact Us For Availability
15
Control, Range WPL 9753639 Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Drawer Rail, Left 10 x 3/8 WPL 9750223 Contact Us For Availability
15
Deflector, Broil WPL 9753409 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
16
Knob, Timer (18) (White) WPL 9781954FW Contact Us For Availability
16
Knob, Timer (18) (Black) WPL 9781954FB Contact Us For Availability
16
Knob, Timer (18) (Biscuit) WPL 9781954FC Contact Us For Availability
16
Orifice, Burner (Small Base, 6K) WPL 9753928 Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
16
Burner, Broil WPL 9752981 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
17
Single Position Device (Not Serviced) WPL 9752462 Contact Us For Availability
18
Thermostat, SPST WPL 341196 Contact Us For Availability
18
Screw, 10-24 x 1/2 WPL 9751644 Contact Us For Availability
18
Insulation WPL 9754006 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Hinge, Receiver WPL 9782005 Contact Us For Availability
19
Fitting, Broiler WPL 9752984 Contact Us For Availability
20
Support Rail, Pan WPL 9781904 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
20
Screw WPL 98884 Contact Us For Availability
21
Shield, Drawer WPL 9782051 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Plate, Reflectance WPL 9782050 Contact Us For Availability
22
Screw, No.10 x 3/8 WPL 9751643 Contact Us For Availability
22
Screw (4) 10 x 1/2 WPL 9780272 Contact Us For Availability
22
Screw WPL 423247 Contact Us For Availability
24
Glass Cleaner WPL W10355051 No Longer Available
24
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
24
Rack, Standard (2) WPL 9750498 Contact Us For Availability
24
WPL 9753054 WPL 9753054 Contact Us For Availability
24
PAI WPL 799344 Contact Us For Availability
24
WPL 9752717 WPL 9752717 Contact Us For Availability
24
Front, Drawer (Black) WPL 9782108PB Contact Us For Availability
24
Front, Drawer (Biscuit) WPL 9782108PC Contact Us For Availability
24
Front, Drawer (White) WPL 9782108PW Contact Us For Availability
24
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
24
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
24
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
24
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
24
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
24
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
24
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
24
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
24
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
24
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
24
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
24
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
24
Grease WPL 261582 Contact Us For Availability
24
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
24
WPL 799832 WPL 799832 Contact Us For Availability
24
WPL 9750221 WPL 9750221 Contact Us For Availability
24
WPL 9750744 WPL 9750744 Contact Us For Availability
24
WPL 9751164 WPL 9751164 Contact Us For Availability
24
WPL 9751323 WPL 9751323 Contact Us For Availability
24
WPL 9751868 WPL 9751868 Contact Us For Availability
24
WPL 9753267PB WPL 9753267PB Contact Us For Availability
24
WPL 9753267PC WPL 9753267PC Contact Us For Availability
24
WPL 9753267PW WPL 9753267PW Contact Us For Availability
24
WPL 9754289 WPL 9754289 Contact Us For Availability
24
WPL 9755256 WPL 9755256 Contact Us For Availability
24
WPL 9781055 WPL 9781055 Contact Us For Availability
24
WPL 9782111 WPL 9782111 Contact Us For Availability
24
WPL 9782344 WPL 9782344 Contact Us For Availability
24
WPL 9782345 WPL 9782345 Contact Us For Availability
24
WPL 9782454 WPL 9782454 Contact Us For Availability
24
WPL 978883 WPL 978883 Contact Us For Availability
25
Insulation, Vent WPL 9782385 Contact Us For Availability
26
Sensor, Oven WPL 9782081 Contact Us For Availability
27
Retainer, Panel WPL 9750676 Contact Us For Availability
28
Retainer, Glass WPL 9781502 Contact Us For Availability
29
Door Switch WPL 9781580 Contact Us For Availability
30
Channel, Heat WPL 9750693 Contact Us For Availability
30
Insulation, Drawer Rear WPL 9754005 Contact Us For Availability
31
Vent, Burner Box WPL 9752978 Contact Us For Availability
33
Extension, Vent Box WPL 9753067 Contact Us For Availability
34
Insulation, Wrap WPL 9754004 Contact Us For Availability
34
Screw WPL 9780271 Contact Us For Availability
36
Screw, No.8 x 3/8 WPL 9780275 Contact Us For Availability
37
Screw, No.8 x 1 WPL 9751808 Contact Us For Availability
40
Insulation, Back WPL 9754011 Contact Us For Availability
× ![]()
