Model Whirlpool GR450LXHB0 30`` ELECTRIC RANGE – Common Parts & Diagrams
02 - CONTROL PANEL

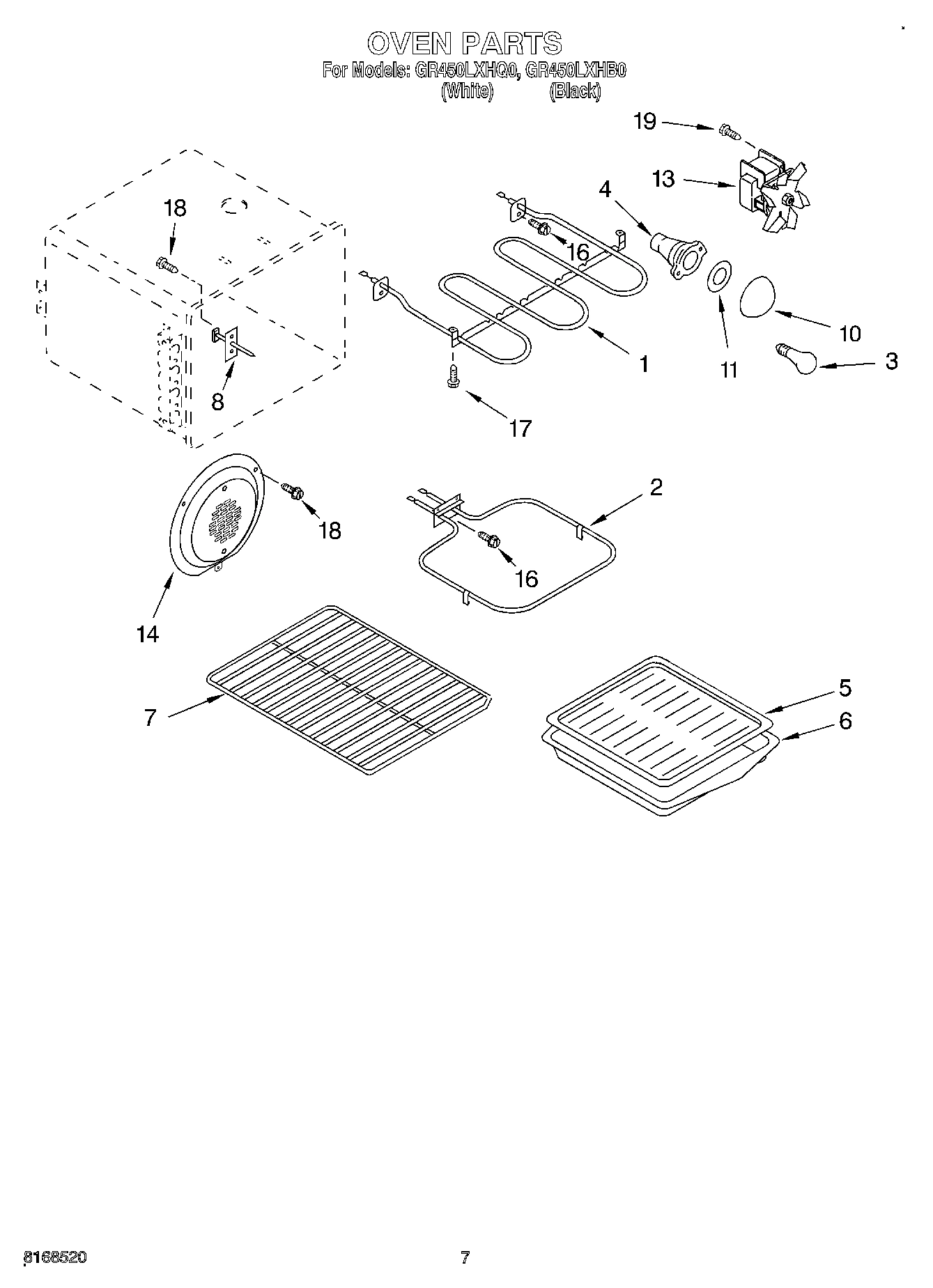

05 - OVEN, OPTIONAL

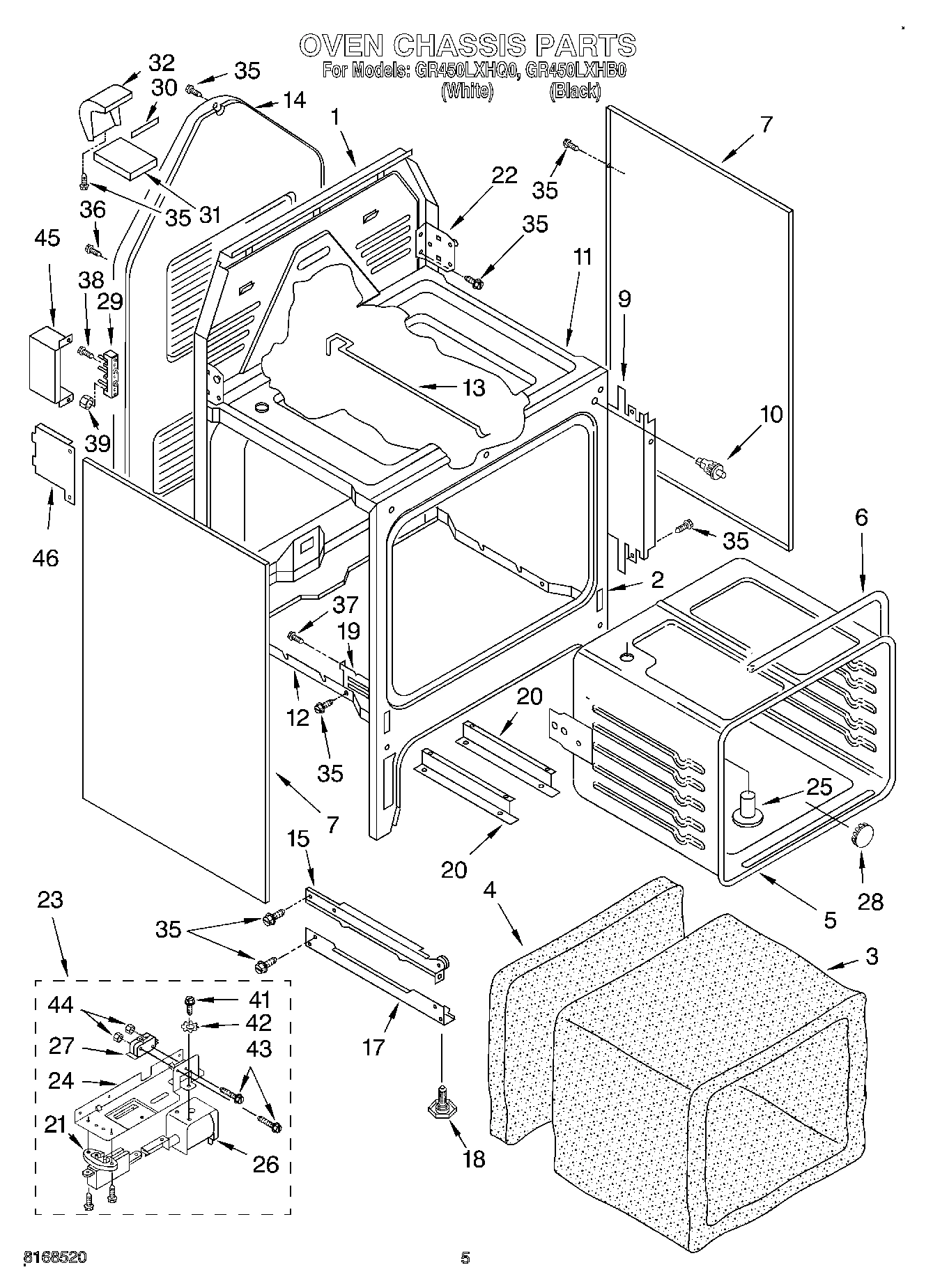

04 - OVEN CHASSIS

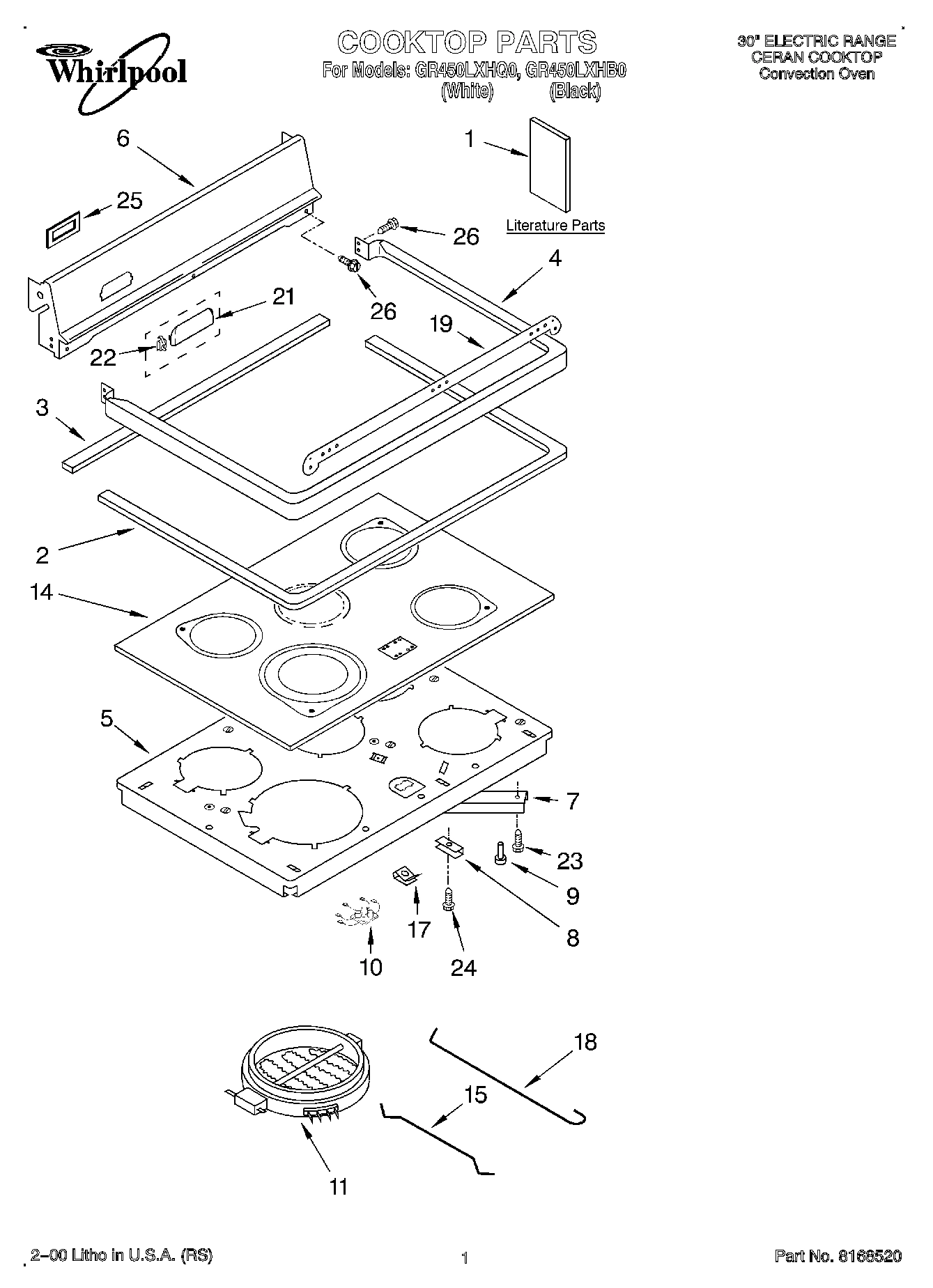

01 - COOKTOP, LITERATURE

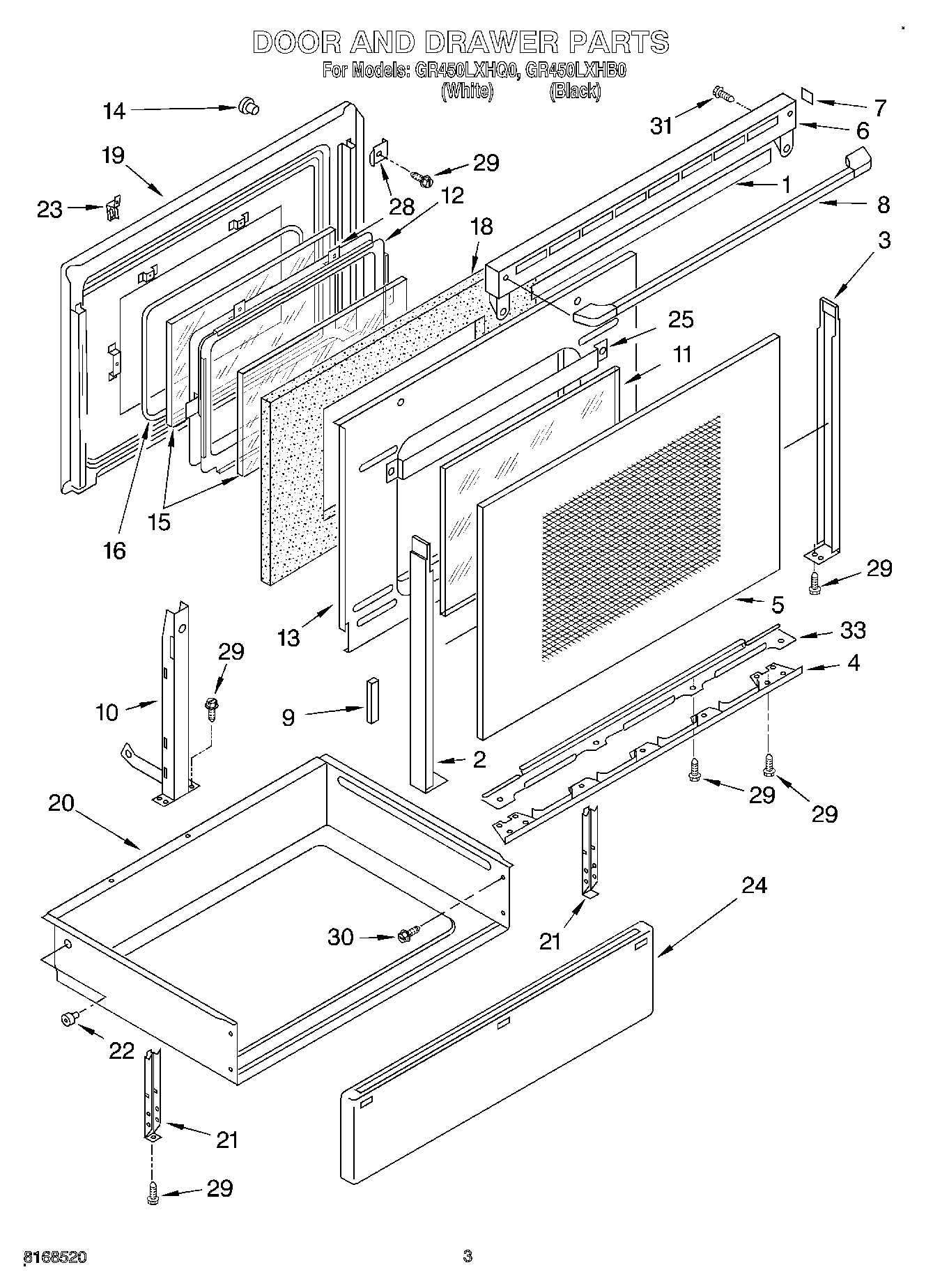

03 - DOOR AND DRAWER
Common parts from model Whirlpool GR450LXHB0 30`` ELECTRIC RANGE
1
Element, Broil WPL 9750211 Contact Us For Availability
1
Main Chassis, Back WPL 9750146 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9752776 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT9753984 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT9754119 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT9754122 Contact Us For Availability
1
Gasket, Door Vent WPL 9781659 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
2
Trim, Door-Left (Black) WPL 9750631PB Contact Us For Availability
2
Trim, Door-Left (White) WPL 9750631PW Contact Us For Availability
3
Insulation, Wrap WPL 9754000 Contact Us For Availability
3
Rear Gasket WPL 9781614 Contact Us For Availability
3
Trim, Door-Right (Black) WPL 9750632PB Contact Us For Availability
3
Trim, Door-Right (White) WPL 9750632PW Contact Us For Availability
4
Insulation, Rear WPL 9754011 Contact Us For Availability
4
Frame, Cooktop (Black) WPL 9750456PB Contact Us For Availability
4
Frame, Cooktop (White) WPL 9750456PW Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
5
Oven Liner WPL 9754249GM Contact Us For Availability
5
Support, Element WPL 9753674 Contact Us For Availability
5
Glass, Door Front (Black) WPL 9781694PB Contact Us For Availability
5
Glass, Door Front (White) WPL 9781694PW Contact Us For Availability
6
Gasket, Oven WPL 3191649 Contact Us For Availability
6
Back Splash (Black) WPL 9752337GB Contact Us For Availability
6
Back Splash (White) WPL 9752337GW Contact Us For Availability
6
Vent, Door (Black) WPL 9753498GB Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
7
Oven, Side Panel (Black) WPL 9781907PB Contact Us For Availability
7
Oven, Side Panel (White) WPL 9781907PW Contact Us For Availability
7
Brace, Support WPL 9753675 Contact Us For Availability
7
Seal, Door WPL 9781490 Contact Us For Availability
8
Sensor WPL 8053344 Contact Us For Availability
8
Knobs, Control (Black) WPL 9752405FB Contact Us For Availability
8
Support Clips (4) WPL 9753691 Contact Us For Availability
8
Handle, Door (Black) WPL 9752701PB Contact Us For Availability
8
Handle, Door (White) WPL 9752701PW Contact Us For Availability
9
Shield, Insulation WPL 9780664 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
10
Door Switch (Oven Light) WPL 9781580 Contact Us For Availability
10
Hot Light WPL 9781935 Contact Us For Availability
11
Light Indicator WPL 313102 Contact Us For Availability
11
Burner Box WPL 9750478 Contact Us For Availability
11
Baffle, Glass WPL 9781592 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
13
Fan Assembly WPL 9781543 Contact Us For Availability
13
Rod, Lock WPL 9750523 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
14
Panel, Rear WPL 9750150 Contact Us For Availability
14
Cooktop, Ceran (Black) WPL 9754088CB Contact Us For Availability
14
Cooktop, Ceran (White) WPL 9754088CW Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
15
Rod, Small Ceran Element WPL 9781460 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Rod, Large Ceran Element WPL 9781459 Contact Us For Availability
18
Insulation, Door WPL 9754006 Contact Us For Availability
19
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
WPL 799344 WPL 799344 Contact Us For Availability
19
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
19
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
19
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
19
Grease WPL 261582 Contact Us For Availability
19
Coffee WPL 261886 Contact Us For Availability
19
New Avocado WPL 261888 Contact Us For Availability
19
Harvest Gold WPL 261890 Contact Us For Availability
19
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
19
Clip, Ground Strap WPL 313660 Contact Us For Availability
19
Strap, Ground WPL 3169573 Contact Us For Availability
19
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
19
WPL 72108 WPL 72108 Contact Us For Availability
19
WPL 799832 WPL 799832 Contact Us For Availability
19
WPL 9750744 WPL 9750744 Contact Us For Availability
19
WPL 9752771 WPL 9752771 Contact Us For Availability
19
WPL 9753680 WPL 9753680 Contact Us For Availability
19
WPL 9753682 WPL 9753682 Contact Us For Availability
19
WPL 9753687 WPL 9753687 Contact Us For Availability
19
WPL 9754085 WPL 9754085 Contact Us For Availability
19
WPL 9781930 WPL 9781930 Contact Us For Availability
19
WPL 978883 WPL 978883 Contact Us For Availability
19
Receiver, Hinge (R or L) WPL 9750149 Contact Us For Availability
19
Guard, Wire WPL 9780585 Contact Us For Availability
20
Support Rail WPL 9781904 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
21
Single Position Device (Not Serviced) WPL 9752462 Contact Us For Availability
21
Cover, Vent (Black) WPL 9753040CB Contact Us For Availability
21
Cover, Vent (White) WPL 9753040CW Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Clip, Vent Cover WPL 3149190 Contact Us For Availability
22
Hinge, Cktp.-Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.-Right WPL 9750416 Contact Us For Availability
23
Oven Lock Assembly (Includes No.21) WPL 9752404 Contact Us For Availability
23
Retainer, Door WPL 9750676 Contact Us For Availability
24
Bracket, Lock WPL 9750526 Contact Us For Availability
24
Screw WPL 423248 Contact Us For Availability
24
Front, Drawer (Black) WPL 9750168PB Contact Us For Availability
24
Front, Drawer (White) WPL 9750168PW Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
25
Gasket WPL 9750767 Contact Us For Availability
25
Channel, Heat WPL 9750693 Contact Us For Availability
26
Screw WPL 3149333 Contact Us For Availability
26
Solenoid WPL 9752409 Contact Us For Availability
26
Spring, Warm Zone Element WPL 9753677 Contact Us For Availability
27
Switch, Interlock WPL 9750965 Contact Us For Availability
28
Plug, Button WPL 9780578 Contact Us For Availability
28
Spacer, Door (9) WPL 9781502 Contact Us For Availability
30
Screw WPL 9780272 Contact Us For Availability
31
Cover, Vent WPL 9750393 Contact Us For Availability
32
Cover, Back WPL 9750394 Contact Us For Availability
33
Deflector, Steam WPL 9781771 Contact Us For Availability
36
Screw WPL 9780275 Contact Us For Availability
38
Screw WPL 98884 Contact Us For Availability
41
Screw WPL 422222 Contact Us For Availability
42
Washer WPL 424238 Contact Us For Availability
43
Screw WPL 9750887 Contact Us For Availability
44
Nut WPL 9750888 Contact Us For Availability
45
Box, Terminal WPL 9752344 Contact Us For Availability
46
Cover, Terminal Box WPL 9752345 Contact Us For Availability
× ![]()
