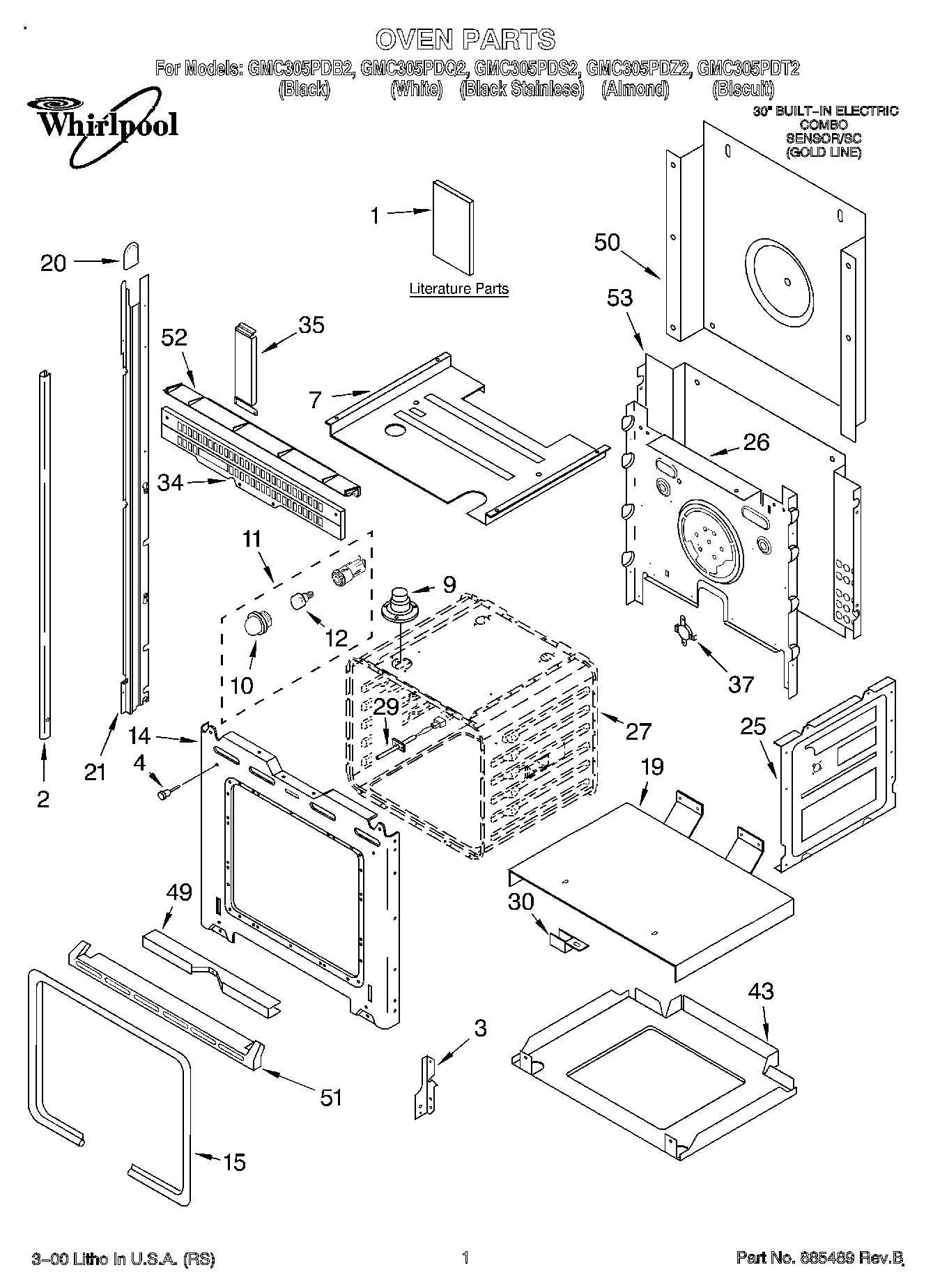

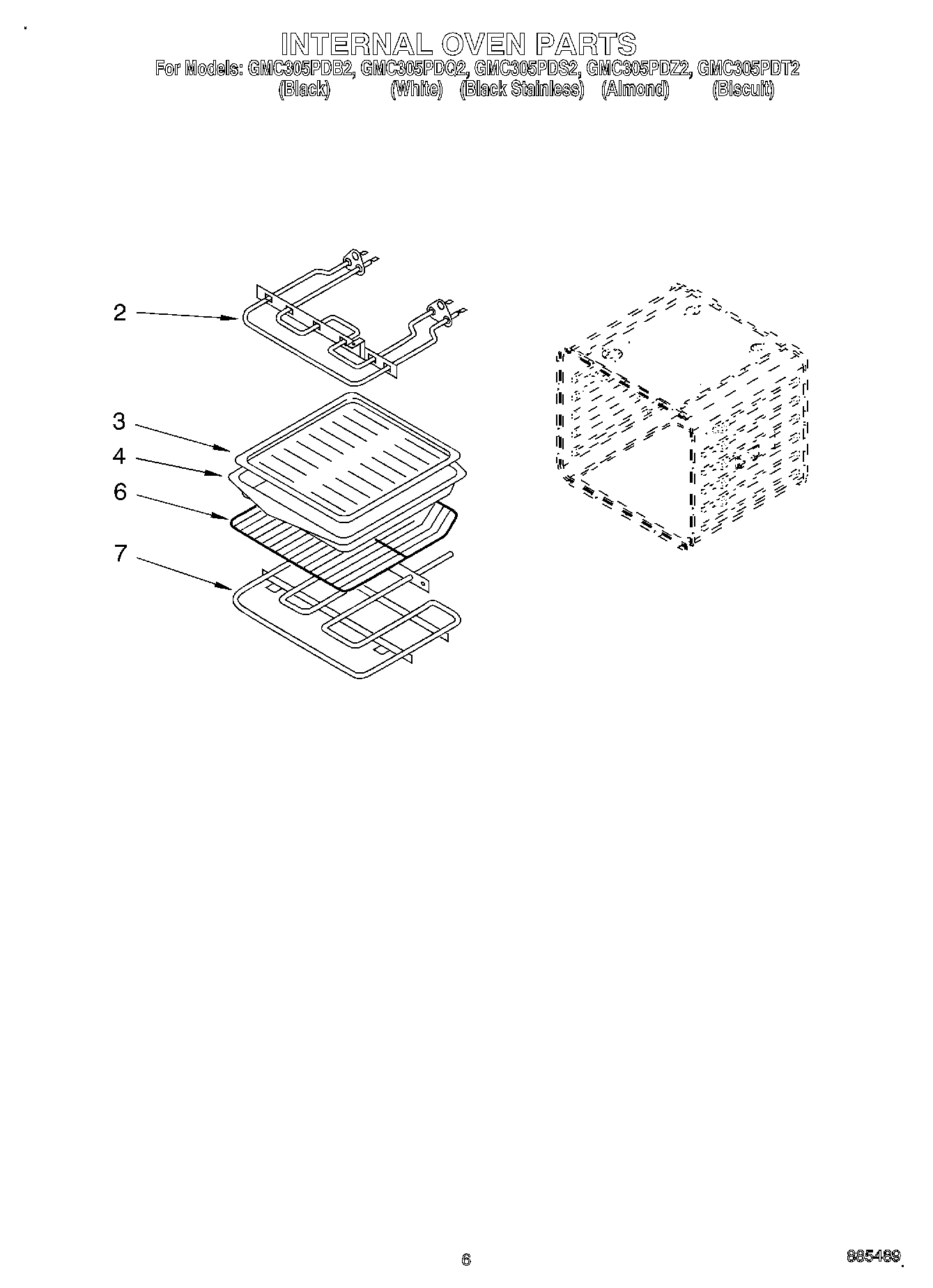

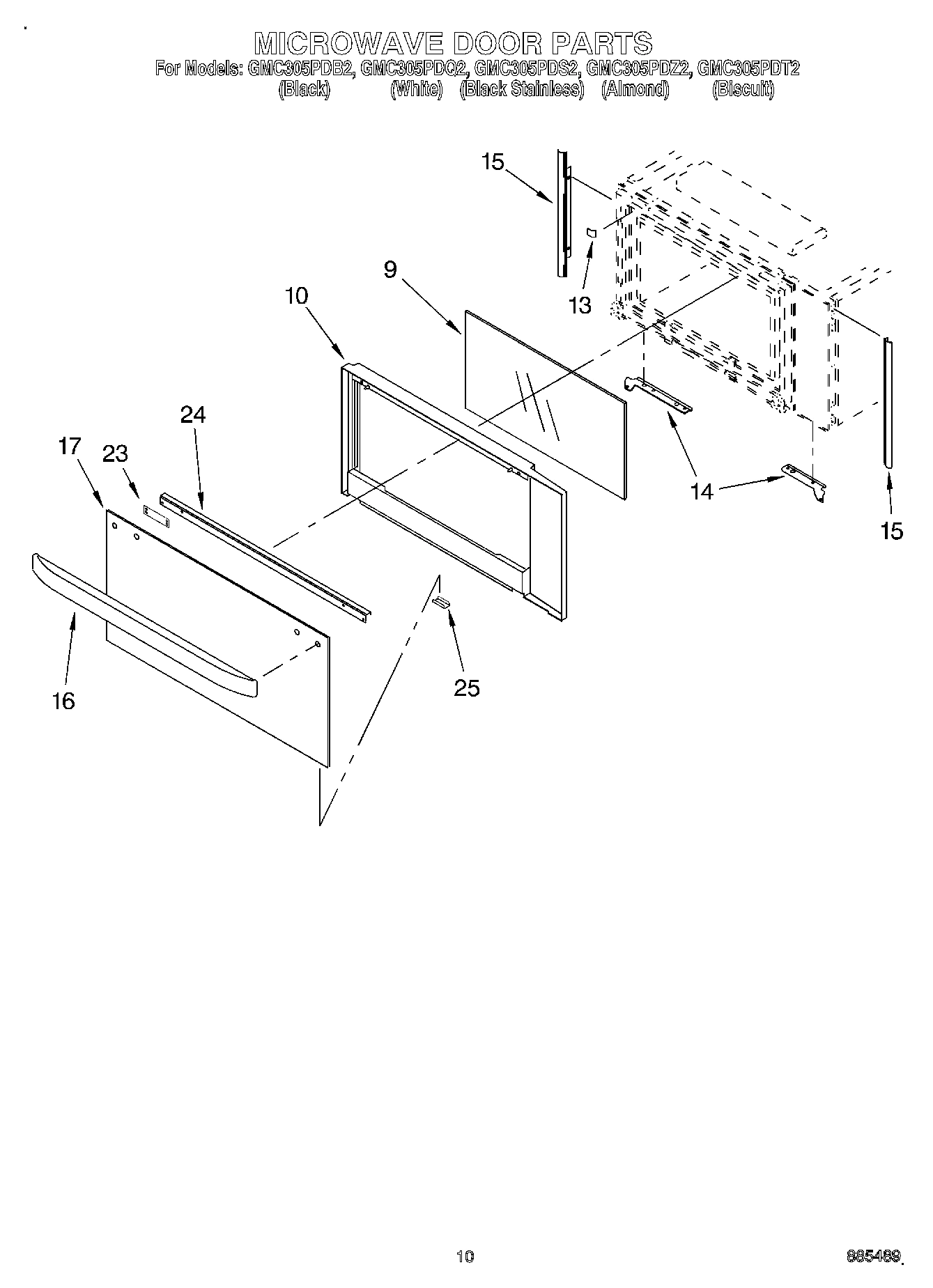

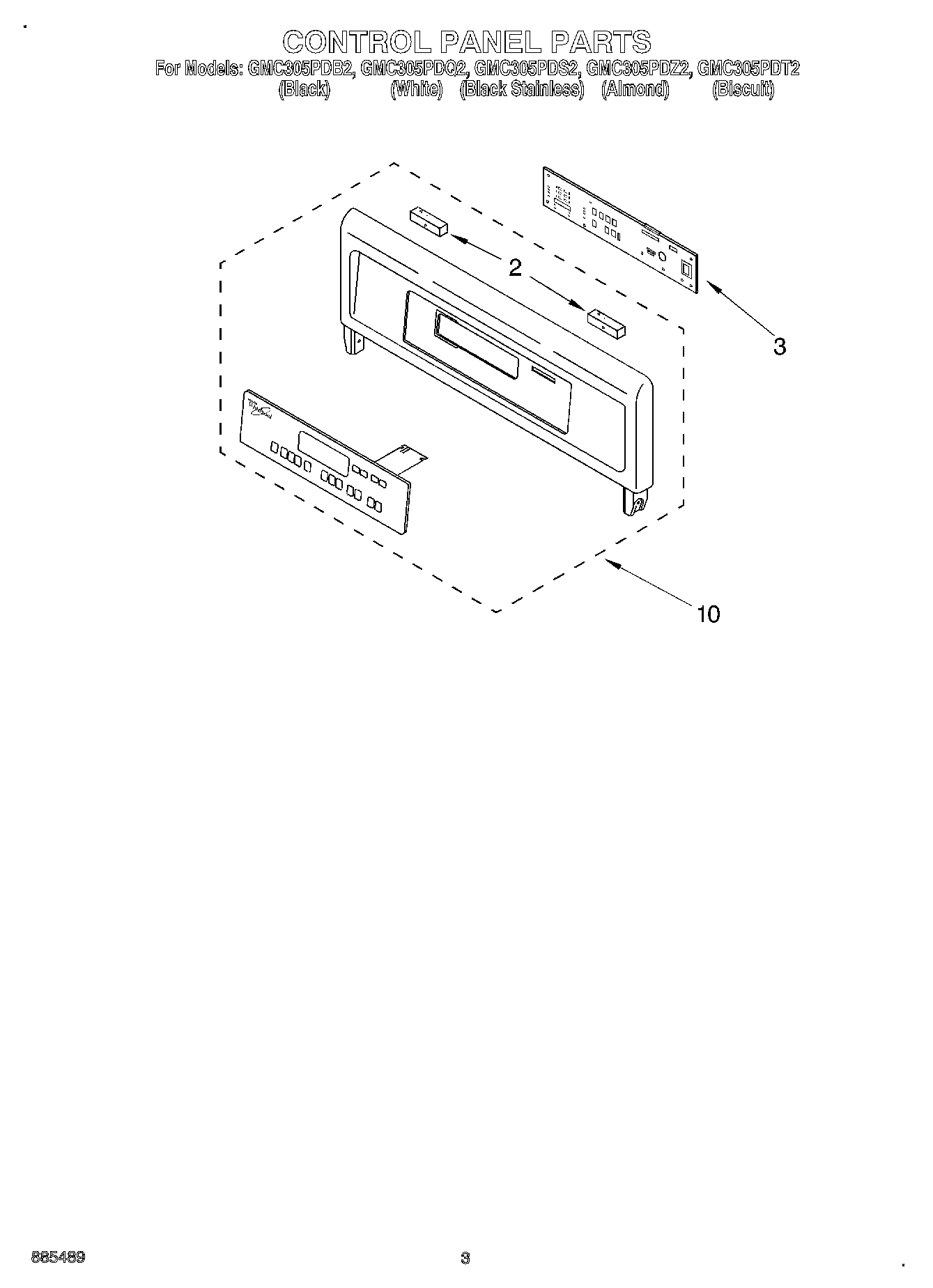

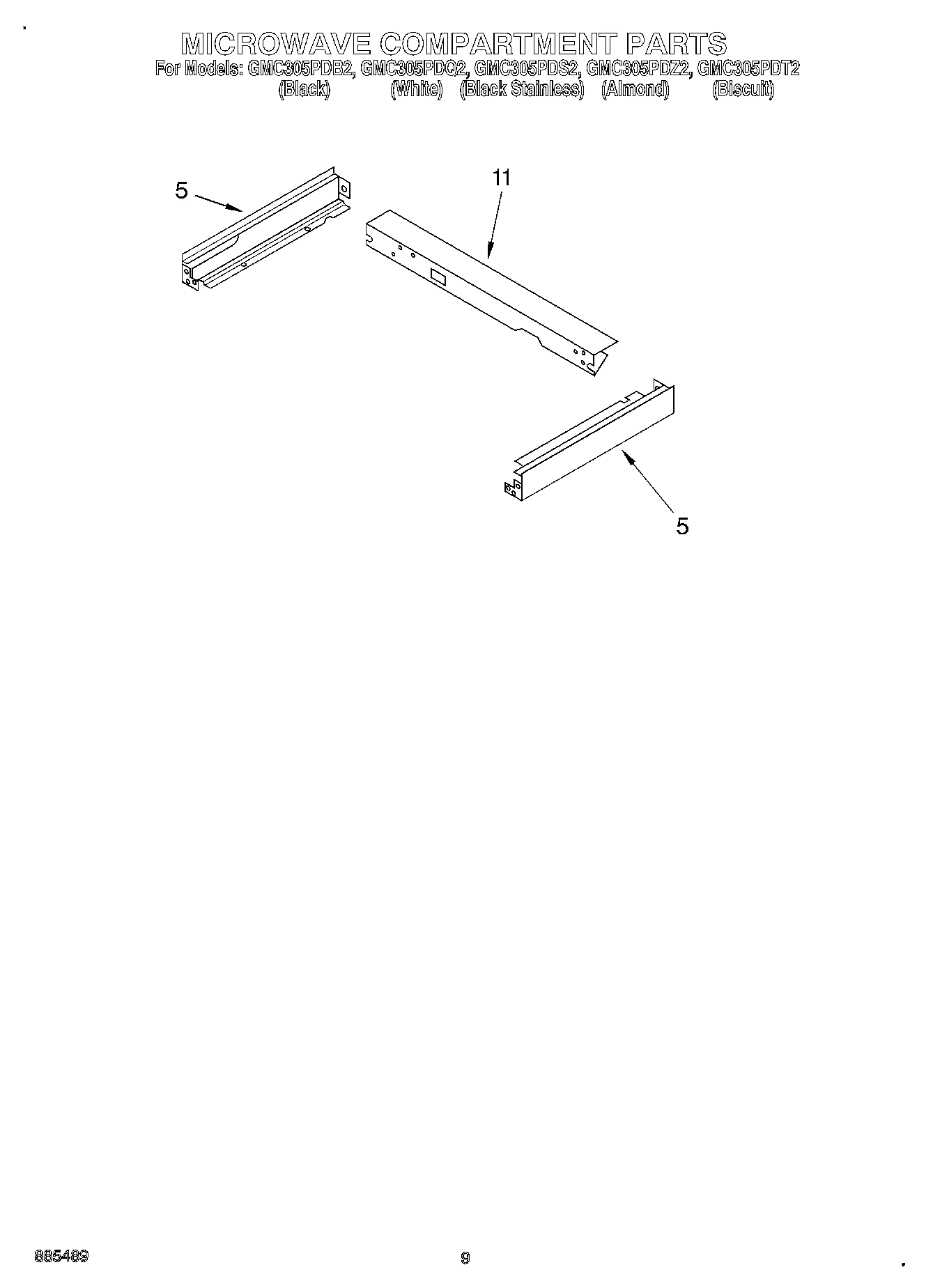

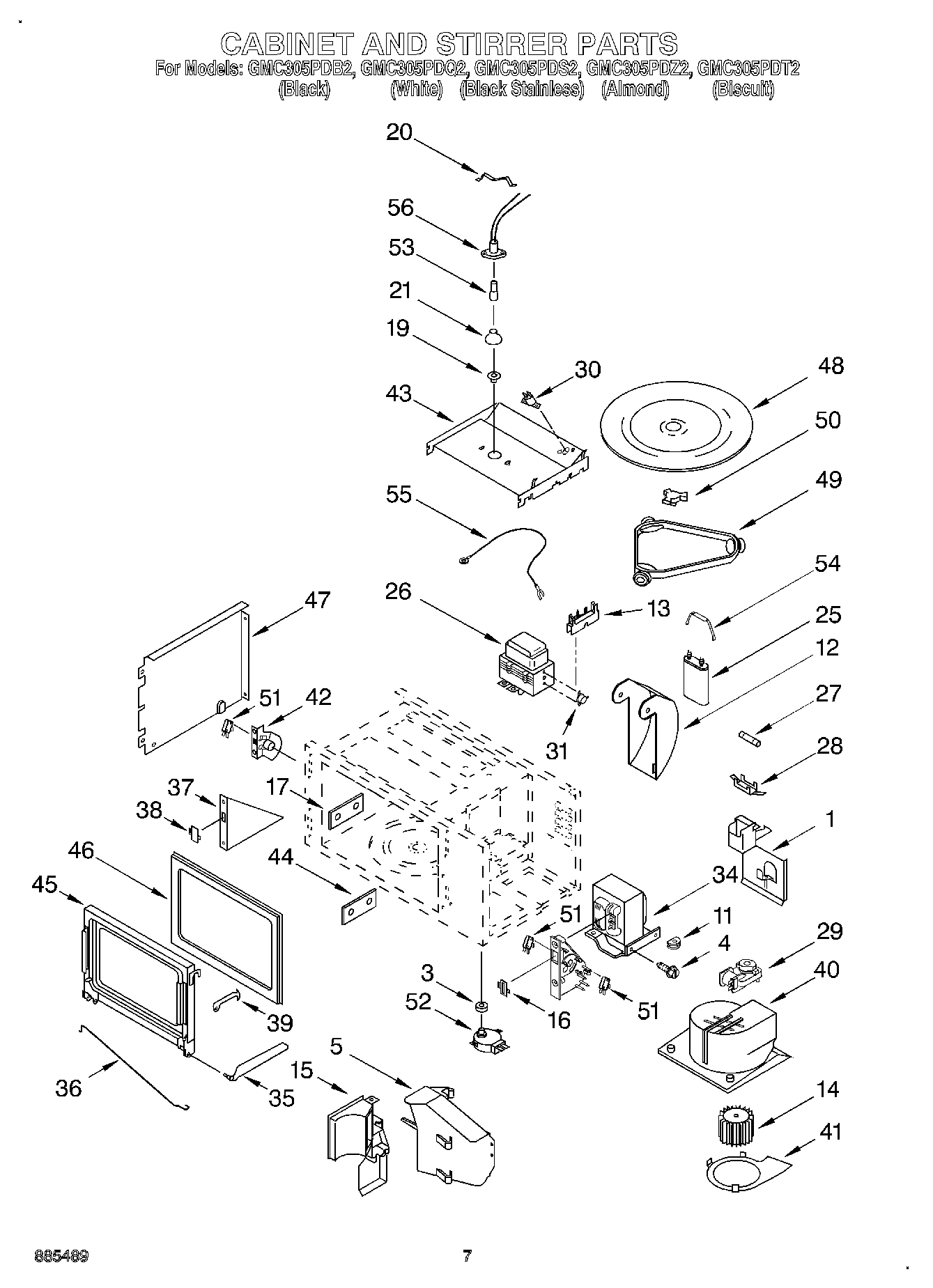

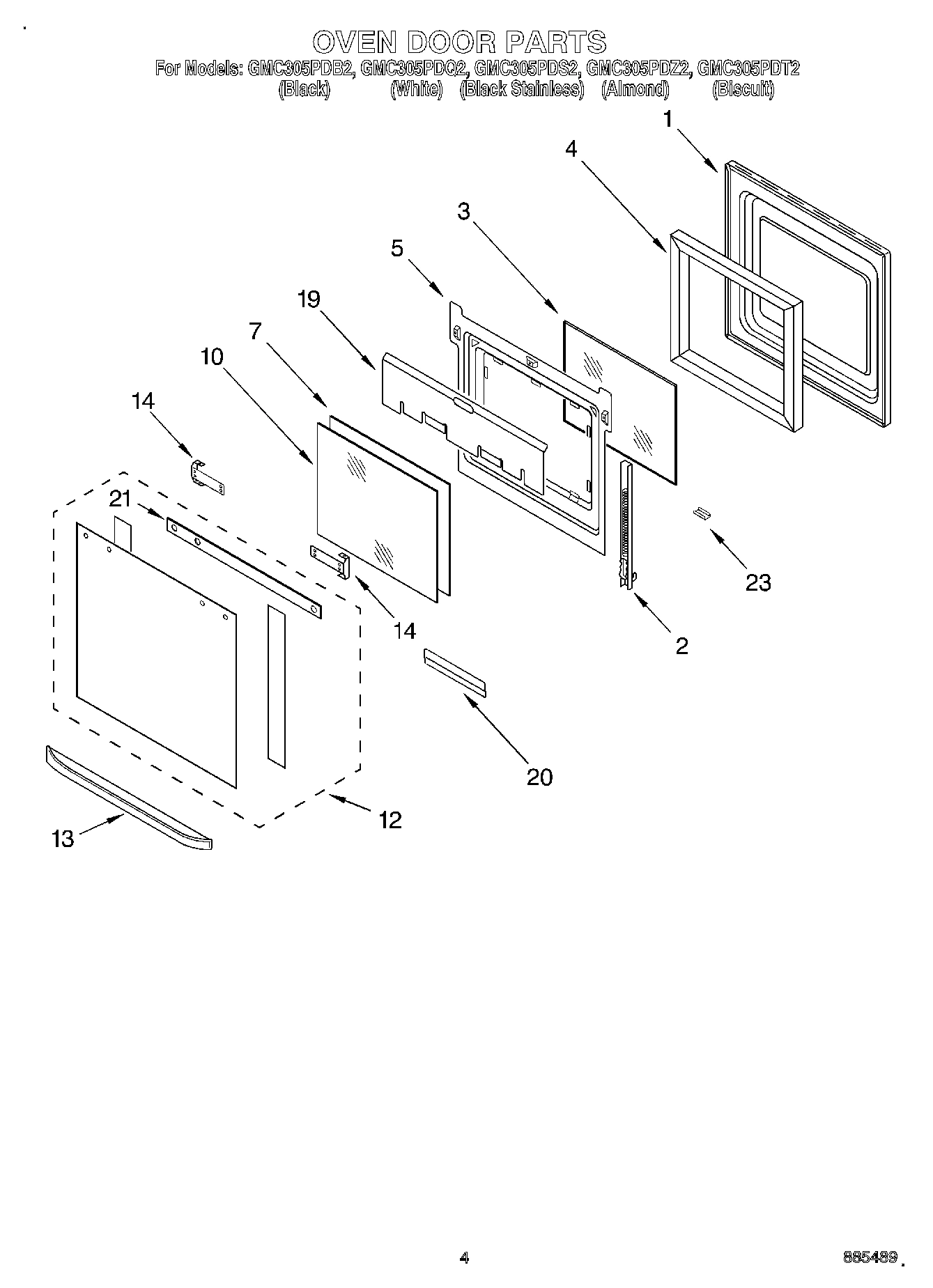

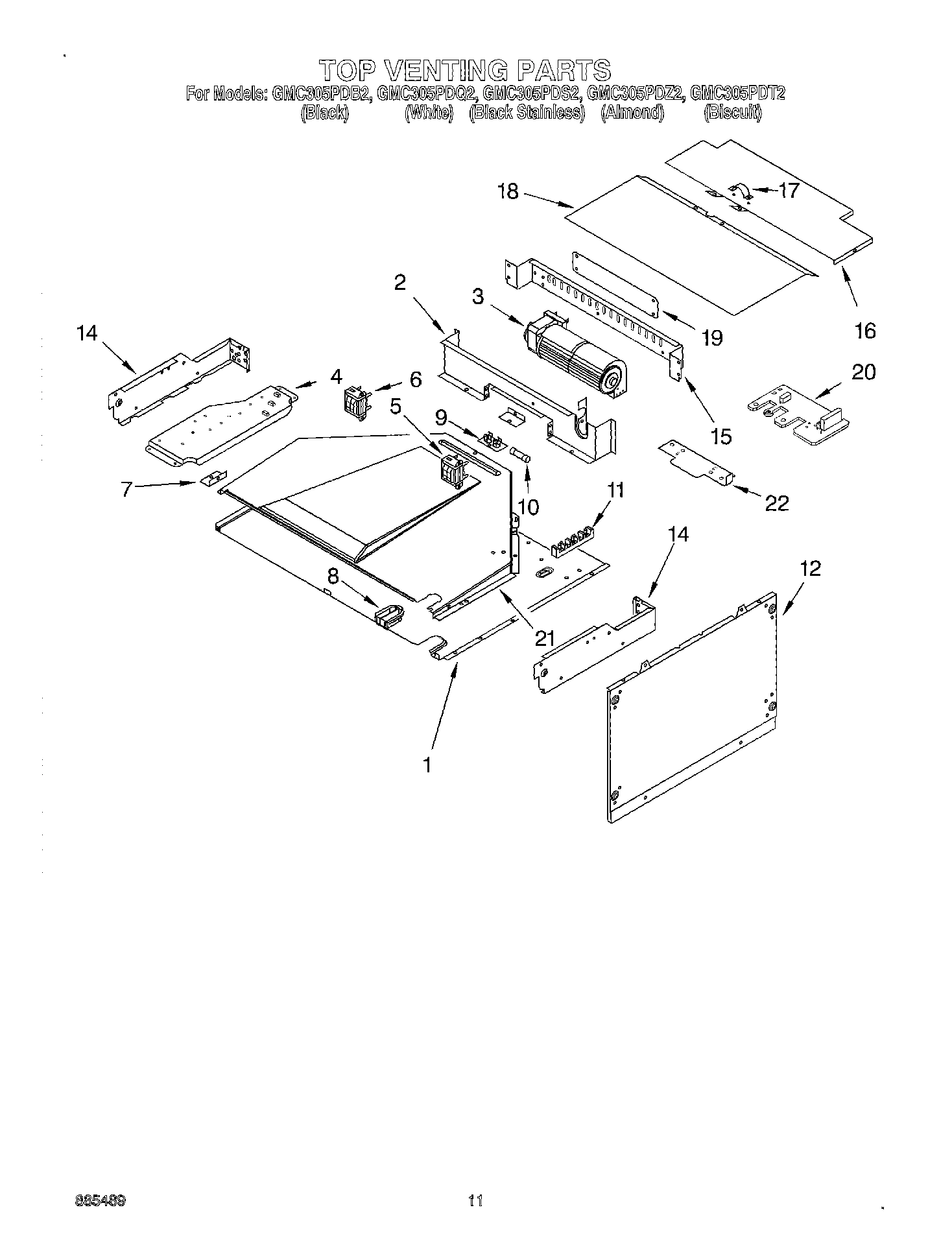

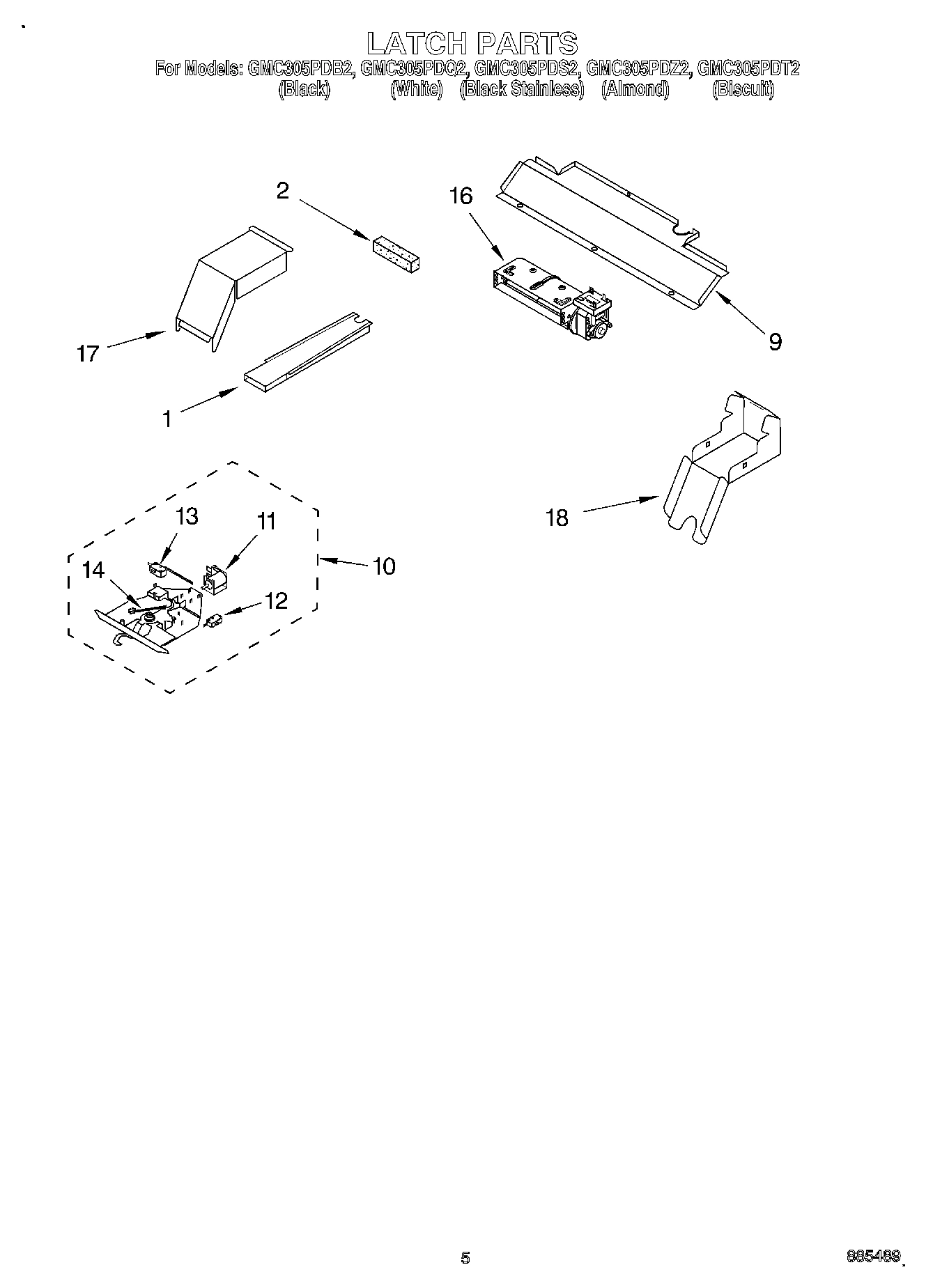

Model Whirlpool GMC305PDQ2 BUILT-ELECTRIC COMBO – Common Parts &amp; Diagrams

1

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $4.82

1

WP9759413 Whirlpool Door Liner Backorder WPL WP9759413 $214.40

1

Screw WPL 4449040 Contact Us For Availability

1

Cover, Top WPL 4450378 Contact Us For Availability

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $4.82

2

WP4455524 Whirlpool Door Hinge In Stock WPL WP4455524 $41.71

2

WP4455525 Whirlpool Oven Door Hinge In Stock WPL WP4455525 $56.99

2

WP9760767 Whirlpool Range Wall Oven Broil Ele In Stock WPL WP9760767 $113.99

2

Baffle, Blower WPL 4448935 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $44.99

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $139.99

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $4.82

3

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $249.93

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $14.02

4

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $117.06

4

Plate, Mounting WPL 4451789 Contact Us For Availability

5

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $196.56

5

Retainer, Glass WPL 4451671 Contact Us For Availability

5

Support Rails (Right Side) WPL 4452551 Contact Us For Availability

5

Support Rails (Left Side) WPL 4452552 Contact Us For Availability

6

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $110.69

6

Transformer, Control WPL 4451891 Contact Us For Availability

7

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $55.99

7

Bracket, Duct WPL 4450027 Contact Us For Availability

8

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

8

Grommet WPL 4449964 Contact Us For Availability

9

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $59.08

9

Glass, Middle WPL 4450834 Contact Us For Availability

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $142.57

WP8303556 Whirlpool Microwave Door Frame In Stock WPL WP8303556 $153.95

WPW10017410 Whirlpool Fuse In Stock WPL WPW10017410 $14.70

Latch Assembly WPL 4451896 Contact Us For Availability

11

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $14.85

11

Rear Channel WPL 4452548 Contact Us For Availability

WP9759074 Whirlpool Outer Door Glass Backorder WPL WP9759074 $285.53

WP9759641 Whirlpool Outer Door Glass Backorder WPL WP9759641 $232.55

Duct, Inlet WPL 4375260 Contact Us For Availability

Door Glass (White Model) WPL 4452066 Contact Us For Availability

Assy, Door Glass (Almond Model) WPL 4452067 Contact Us For Availability

Door Glass (Biscuit) WPL 4452859 Contact Us For Availability

Side, Combo WPL 4452559 Contact Us For Availability

13

Handle, Door (Biscuit) WPL 4452860 Contact Us For Availability

13

Tape, Foam WPL 4450265 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $49.39

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $49.39

Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability

Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability

Bracket, Handle WPL 4450813 Contact Us For Availability

15

Filler, Side (Right Side) WPL 4449083 Contact Us For Availability

15

Filler, Side (Left) WPL 4449086 Contact Us For Availability

15

Back, Control WPL 4452244 Contact Us For Availability

Handle, Door (Black) WPL 4448854 Contact Us For Availability

Handle, Door (White) WPL 4448855 Contact Us For Availability

Handle, Door (Almond) WPL 4448856 Contact Us For Availability

Cover, Top Rear WPL 4450551 Contact Us For Availability

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $13.22

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.06

Glass, Outer (Black Model) WPL 4450382 Contact Us For Availability

Glass, Outer (White Model) WPL 4450383 Contact Us For Availability

Glass, Outer (Almond Model) WPL 4450384 Contact Us For Availability

18

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $6.68

18

WP4452367 Whirlpool Top Cover Backorder WPL WP4452367 $48.97

19

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $68.68

19

Shield, Heat WPL 4450362 Contact Us For Availability

19

Plate, Cover WPL 4452247 Contact Us For Availability

20

W10465869 Whirlpool Microwave Spring Backorder WPL W10465869 $65.38

20

WP4451985 Whirlpool Noise Filter Board In Stock WPL WP4451985 $103.99

20

Retainer, Glass-Clip WPL 4451668 Contact Us For Availability

21

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $58.43

21

Seal, Door Top WPL 4451674 Contact Us For Availability

21

Duct, Exhaust WPL 4451634 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $12.46

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

261900 Whirlpool Microwave Spray Backorder WPL 261900 $30.44

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $8.89

4450950 Whirlpool Oven Conduit Backorder WPL 4450950 $203.08

4455191 Whirlpool Oven Mounting Plate In Stock WPL 4455191 $7.98

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

814381 Whirlpool Pin In Stock WPL 814381 $4.82

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $15.84

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $4.82

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $34.73

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Filler Kit (Bl) WPL 4378944 Contact Us For Availability

Filler Kit (Wh) WPL 4378945 Contact Us For Availability

Filler Kit (Al) WPL 4378946 Contact Us For Availability

Grown (M/W) WPL 4450831 Contact Us For Availability

Harness, Main WPL 4451874 Contact Us For Availability

Harness, Latch WPL 4451926 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

WPL 591014 WPL 591014 Contact Us For Availability

23

Retainer, Glass (Biscuit) WPL 4452119 Contact Us For Availability

23

Spacer WPL 4451055 Contact Us For Availability

24

Bracket, Handle WPL 4452331 Contact Us For Availability

24

Screw WPL 4451040 Contact Us For Availability

WP4375020 Whirlpool High Voltage Capacitor In Stock WPL WP4375020 $155.99

RETAINER, GLASS CLIP (BLACK) WPL 4450863 Contact Us For Availability

RETAINER,GLASS CLIP (WHITE) WPL 4450864 Contact Us For Availability

Retainer, Glass-Clip (Almond) WPL 4450865 Contact Us For Availability

26

W10245183 Whirlpool Microwave Magnetron In Stock WPL W10245183 $208.53

27

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $16.58

28

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $57.37

29

4375278 Whirlpool Microwave Primary Fan Motor Backorder WPL 4375278 $178.49

29

Sensor WPL 4451665 Contact Us For Availability

30

Thermostat WPL 4375279 Contact Us For Availability

31

WP4375079 Whirlpool Microwave Thermostat In Stock WPL WP4375079 $58.99

34

WP4375286 Whirlpool Microwave Transformer In Stock WPL WP4375286 $247.99

34

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $4.82

35

WP4375323 Whirlpool Microwave Door Hinge In Stock WPL WP4375323 $86.89

35

WP4375324 Whirlpool Microwave Door Hinge In Stock WPL WP4375324 $60.88

36

WP4451009 Whirlpool Microwave Spring In Stock WPL WP4451009 $91.46

37

Bracket, Hinge (Left) WPL 4375327 Contact Us For Availability

37

Bracket, Hinge (Right) WPL 4375328 Contact Us For Availability

38

Inlet WPL 4375329 Contact Us For Availability

39

Strap, Door WPL 4375330 Contact Us For Availability

40

Fan Cap WPL 4375333 Contact Us For Availability

41

Fan Cap Bottom WPL 4375334 Contact Us For Availability

42

W10727408 Whirlpool Microwave Switch In Stock WPL W10727408 $145.75

43

Isolation Plate WPL 4375337 Contact Us For Availability

44

Cover Plate WPL 4375338 Contact Us For Availability

45

Plate, Door WPL 4375339 Contact Us For Availability

46

Inner Frame WPL 4375340 Contact Us For Availability

47

Side Plate (Left) WPL 4375341 Contact Us For Availability

47

Side Plate (Right) WPL 4375342 Contact Us For Availability

48

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $65.99

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $4.82

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $4.82

49

Ring Assembly WPL 4375344 Contact Us For Availability

50

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $7.99

50

WP8183788 Whirlpool Microwave Turn Shaft Backorder WPL WP8183788 $21.49

51

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $52.99

51

Trim, Bottom (Black) WPL 4448477 Contact Us For Availability

52

W10642989 Whirlpool Microwave Oven Turntable In Stock WPL W10642989 $88.84

53

WPW10440740 Whirlpool Microwave Light Bulb In Stock WPL WPW10440740 $17.99

54

WPW10687786 Whirlpool Microwave Diode In Stock WPL WPW10687786 $16.57

55

Cable WPL 4375350 Contact Us For Availability

56

Holder, Lamp WPL 4375351 Contact Us For Availability
