Model GLRS267ZCQ3 – Common Parts & Diagrams
01 - COVER

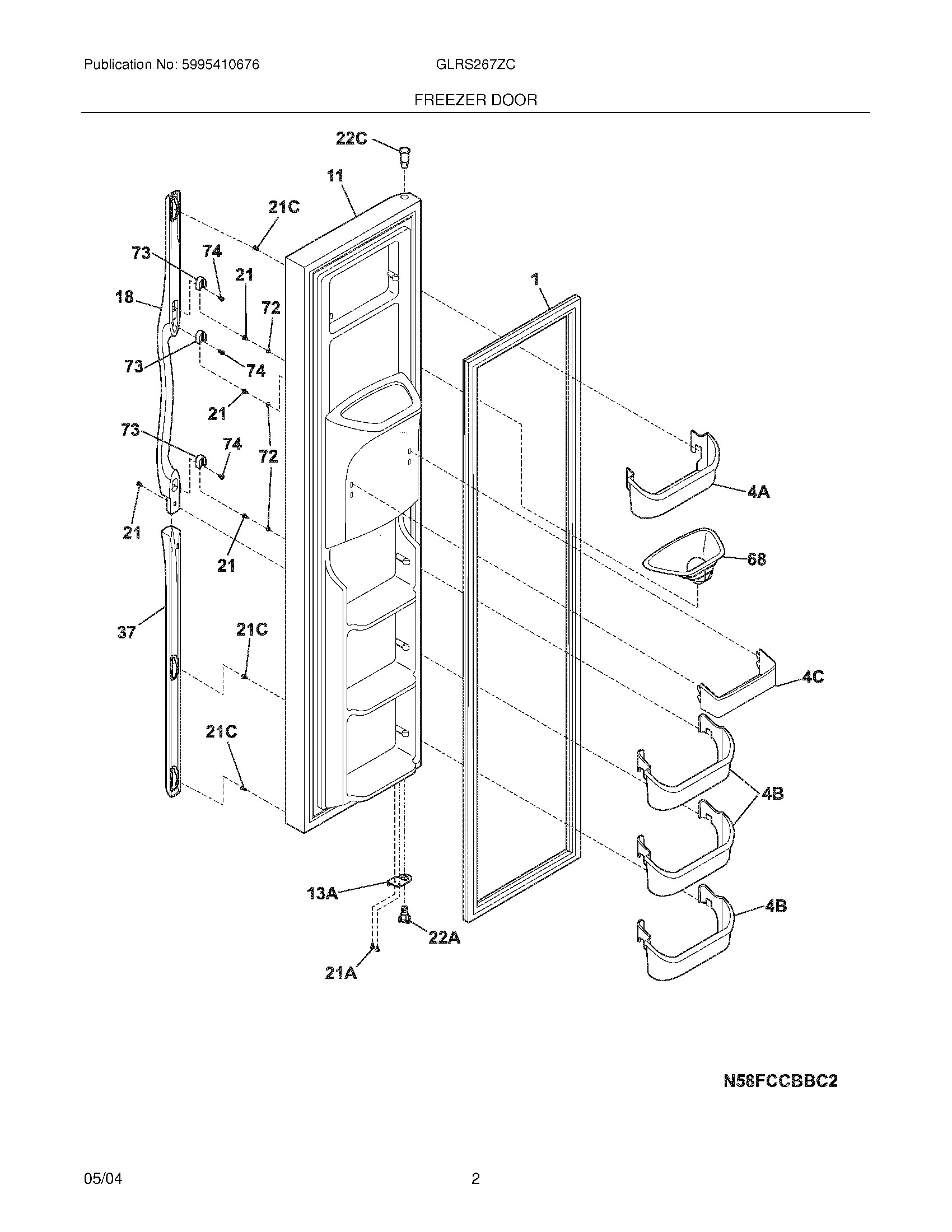

03 - FREEZER DOOR

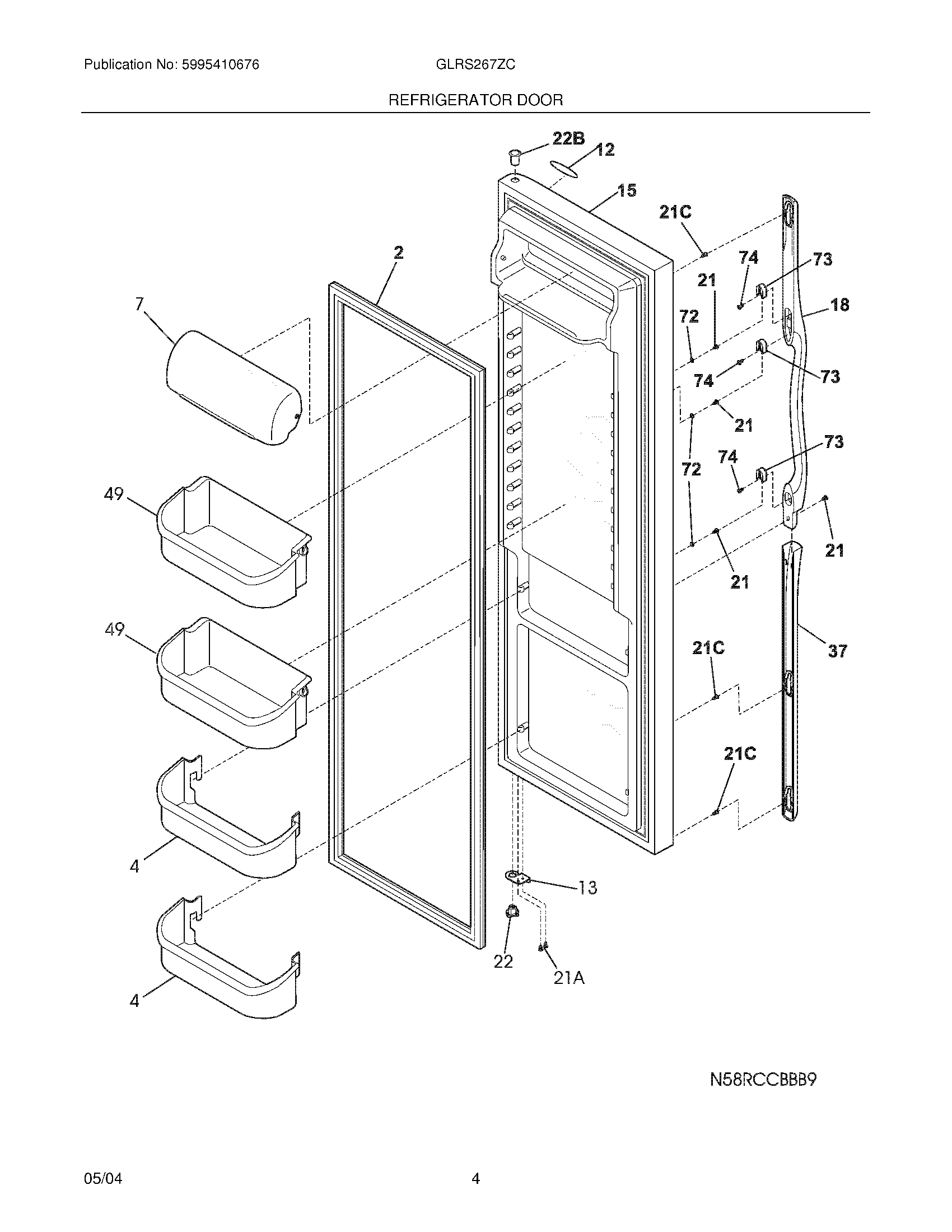

05 - REFRIGERATOR DOOR
07 - CABINET

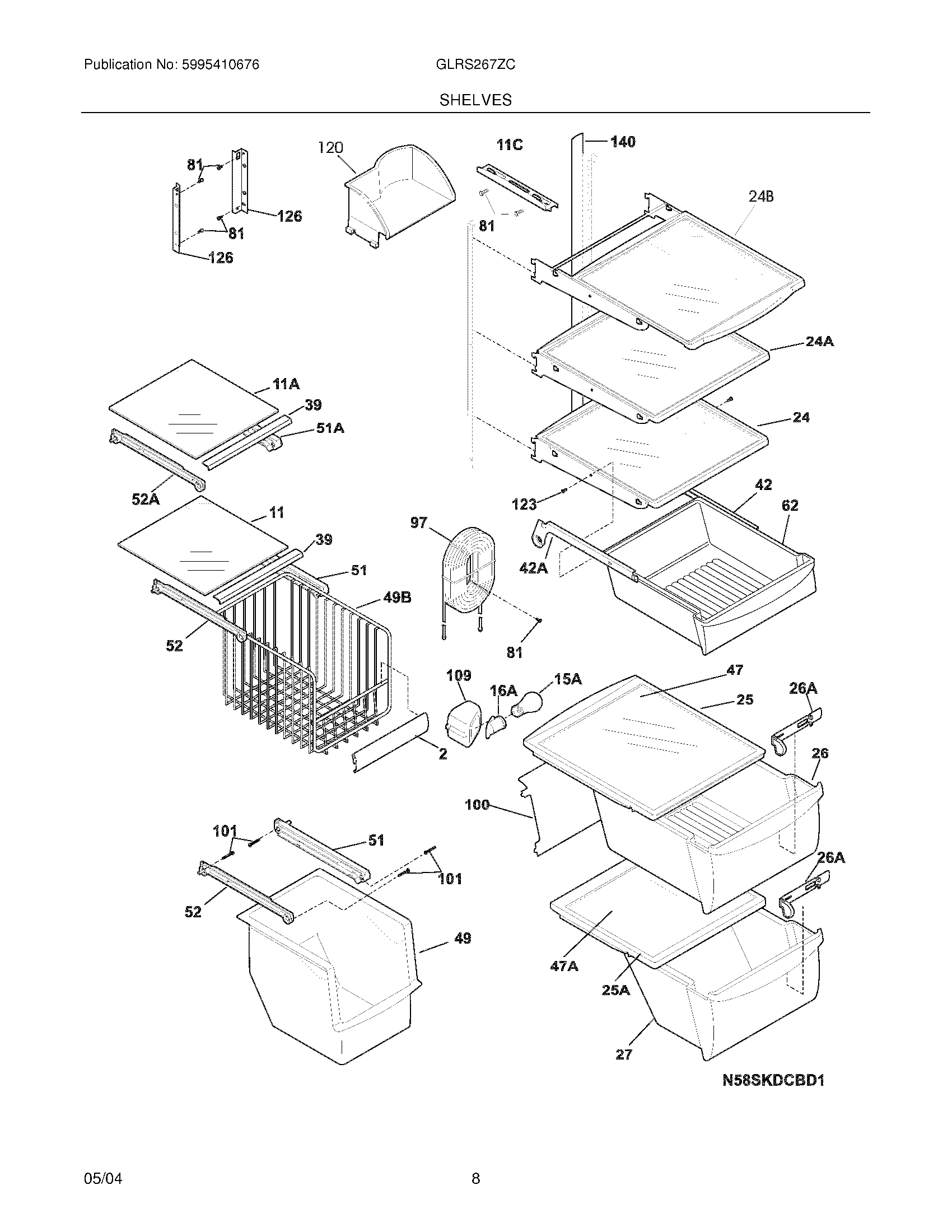

09 - SHELVES

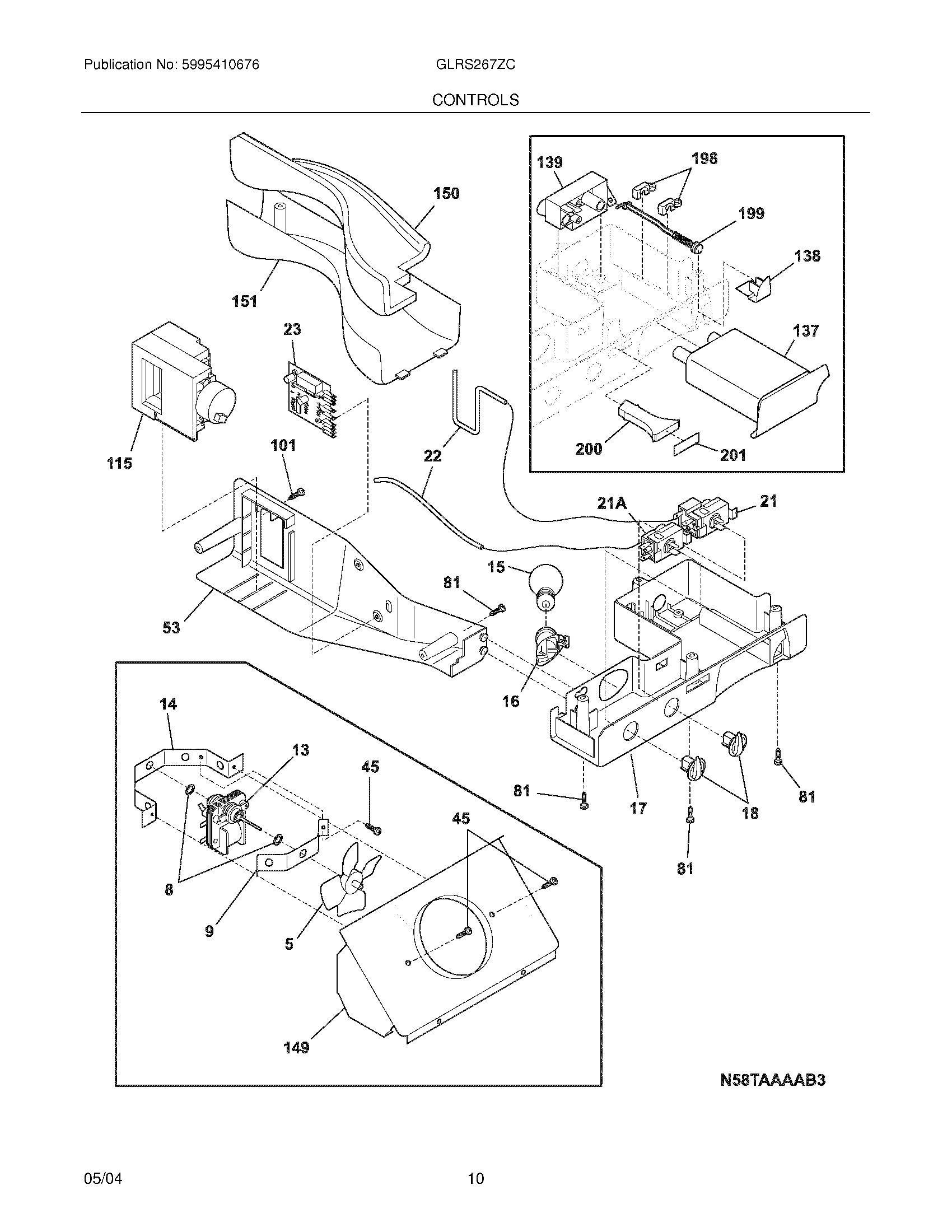

11 - CONTROLS
13 - SYSTEM

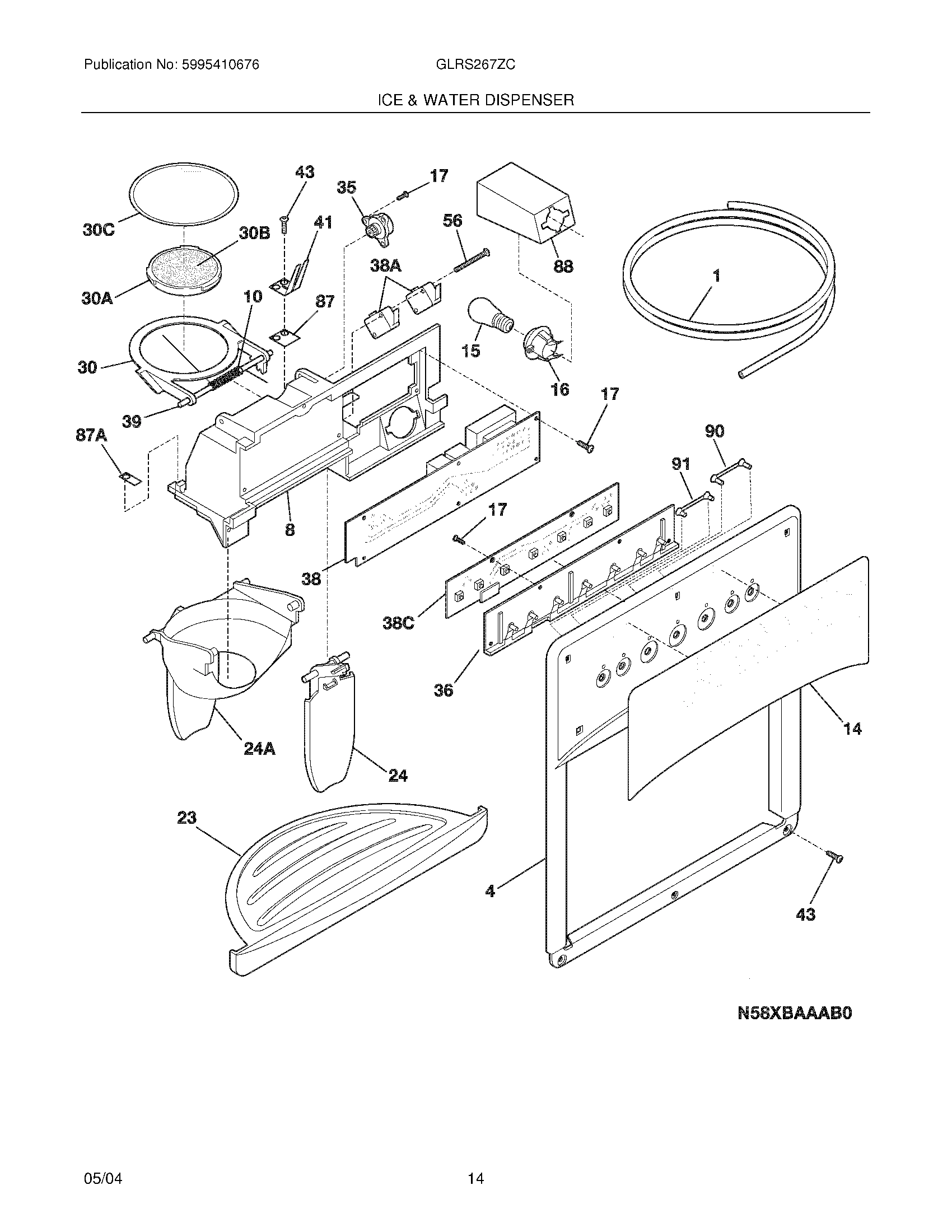

15 - ICE & WATER DISPENSER

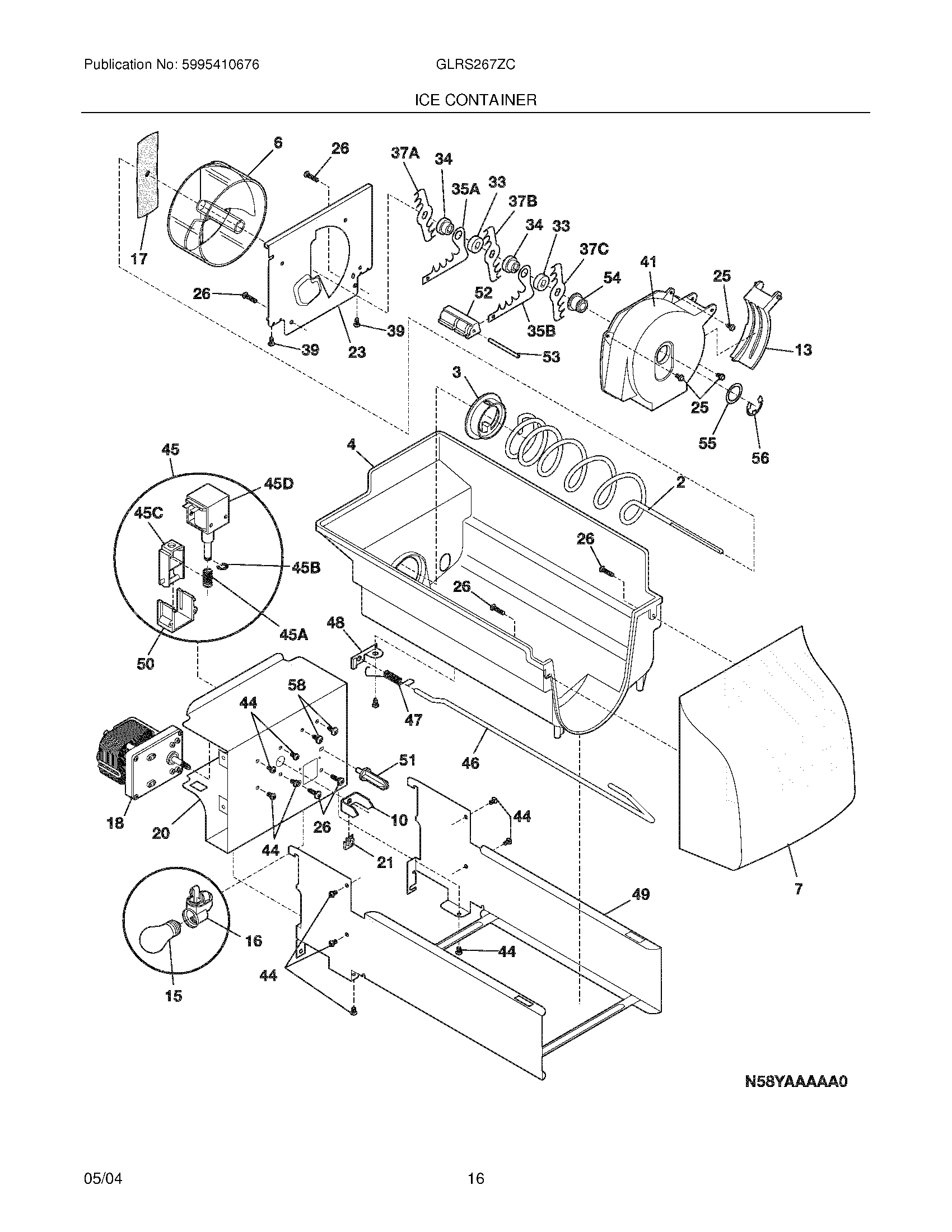

17 - ICE CONTAINER
19 - ICE MAKER
20 - WIRING SCHEMATIC
21 - WIRING DIAGRAM
