Model Whirlpool GH9184XLQ0 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

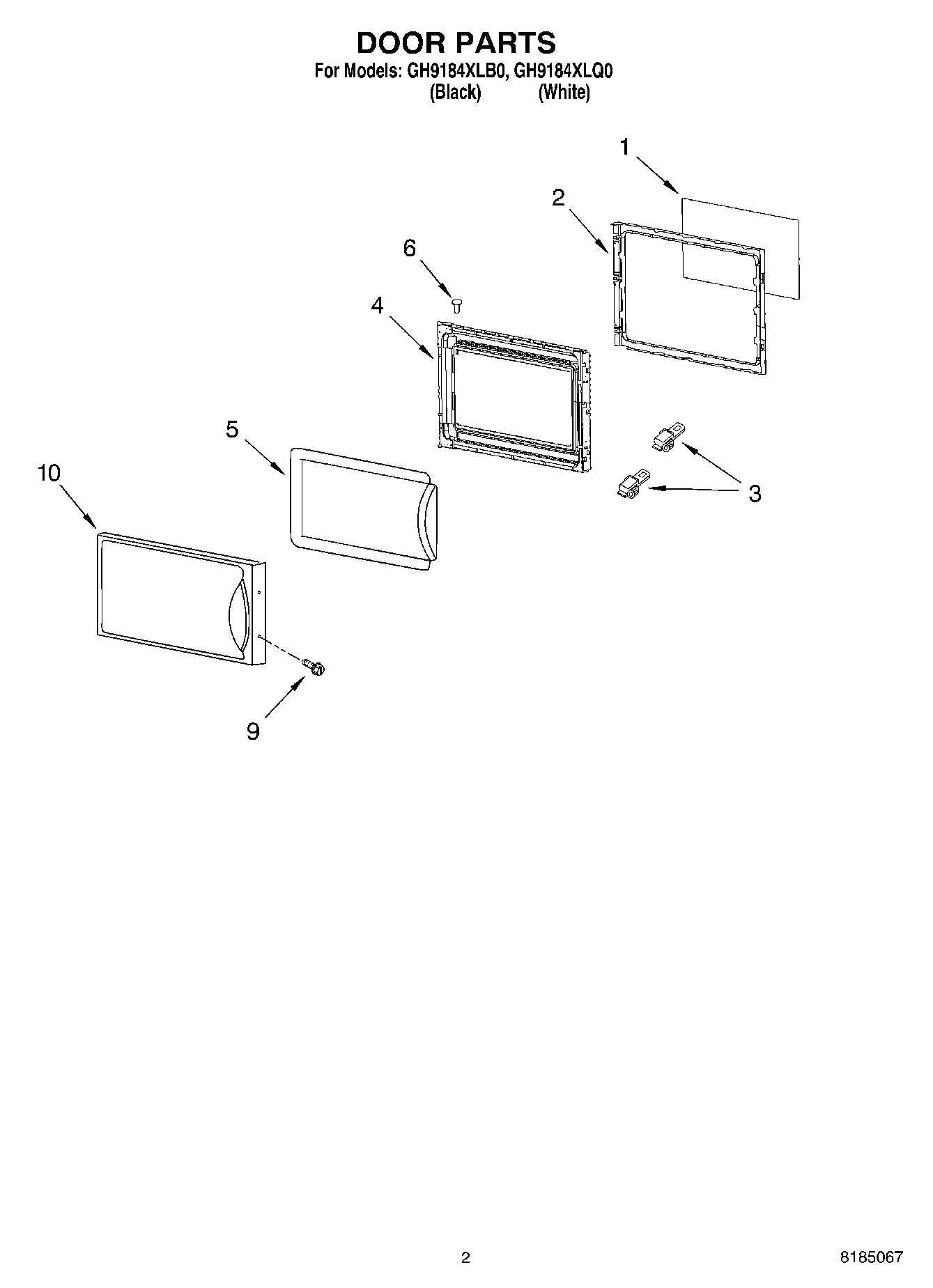

02 - DOOR PARTS

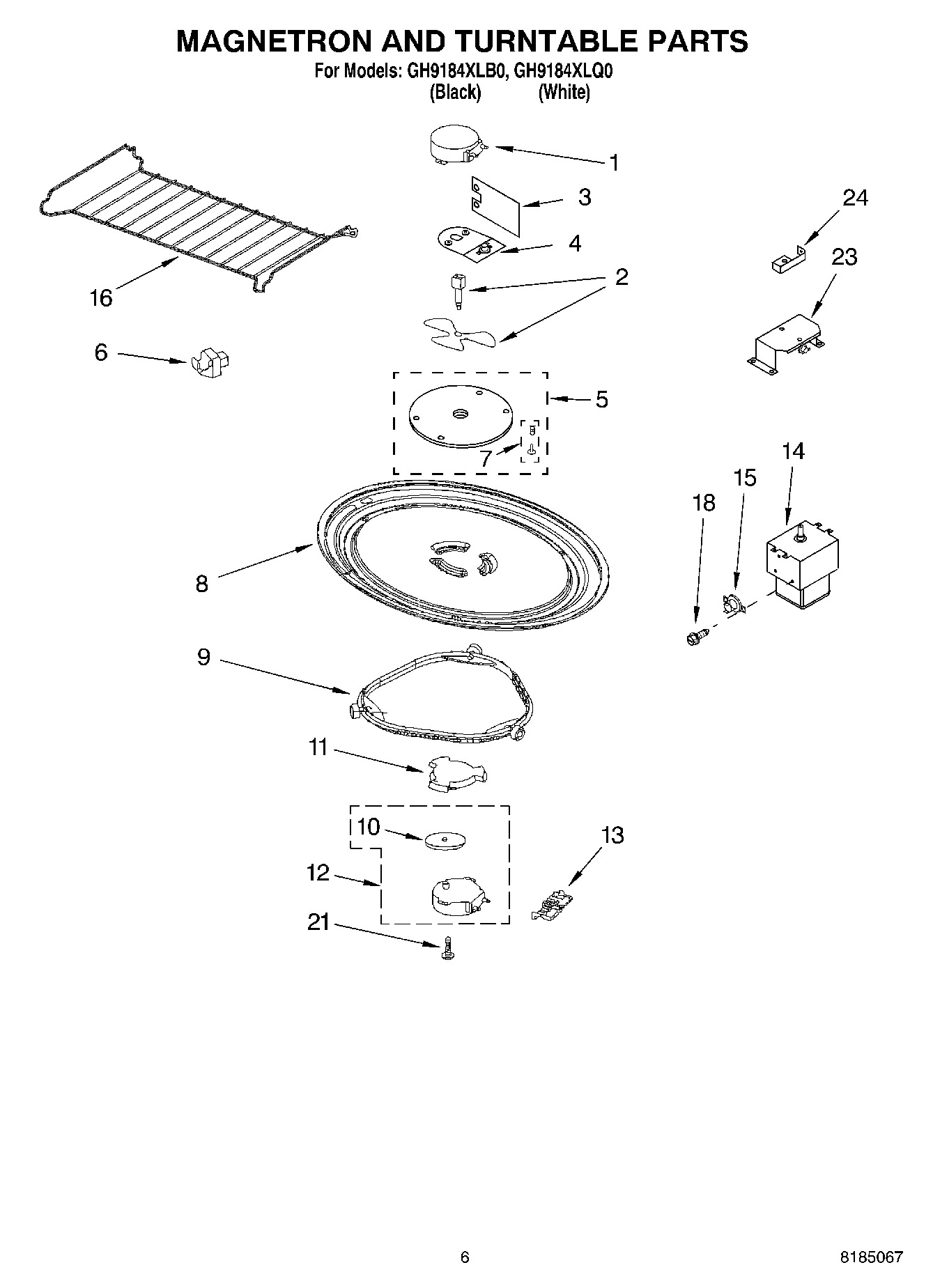

05 - MAGNETRON AND TURNTABLE PARTS

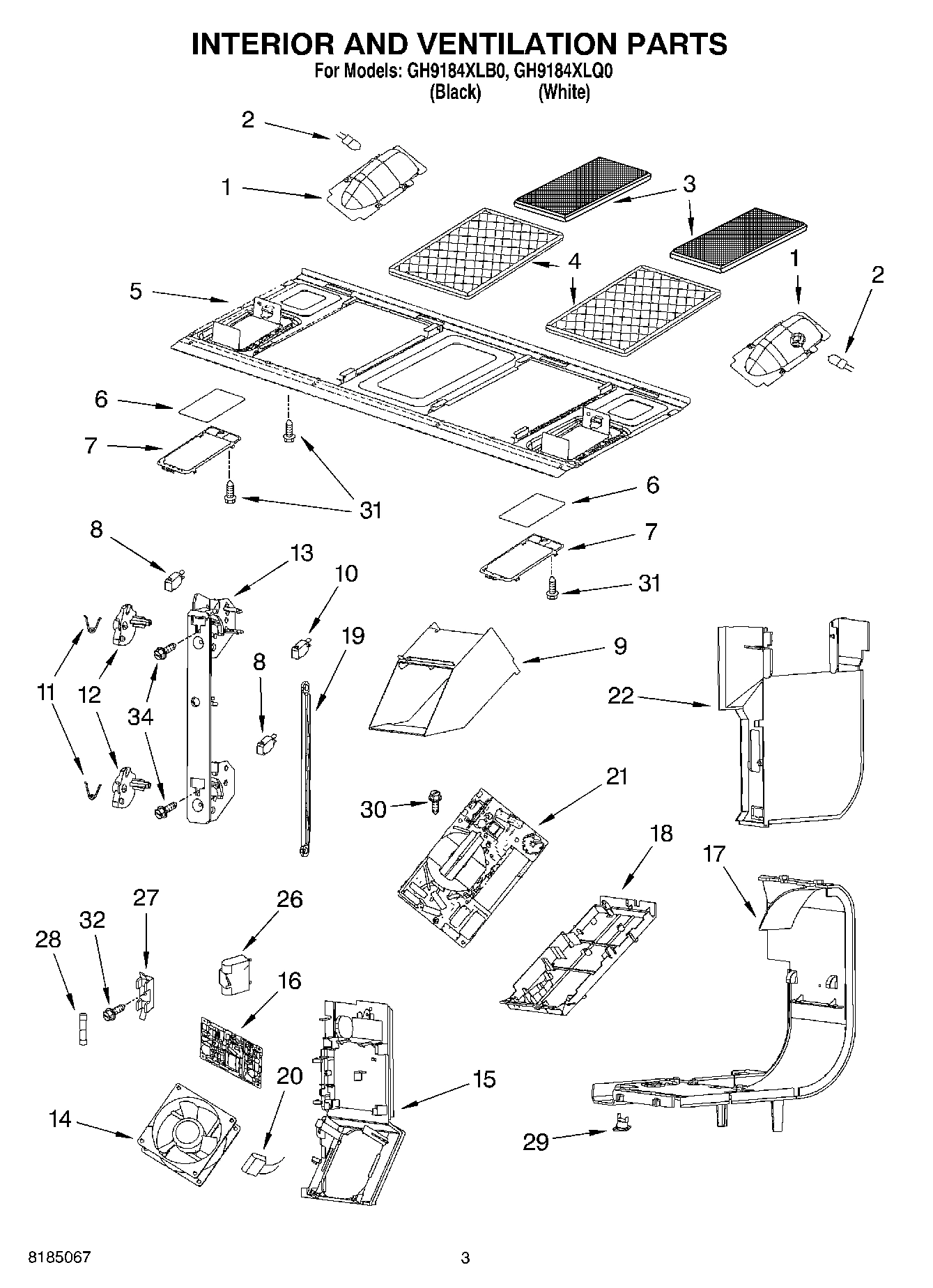

03 - INTERIOR AND VENTILATION PARTS

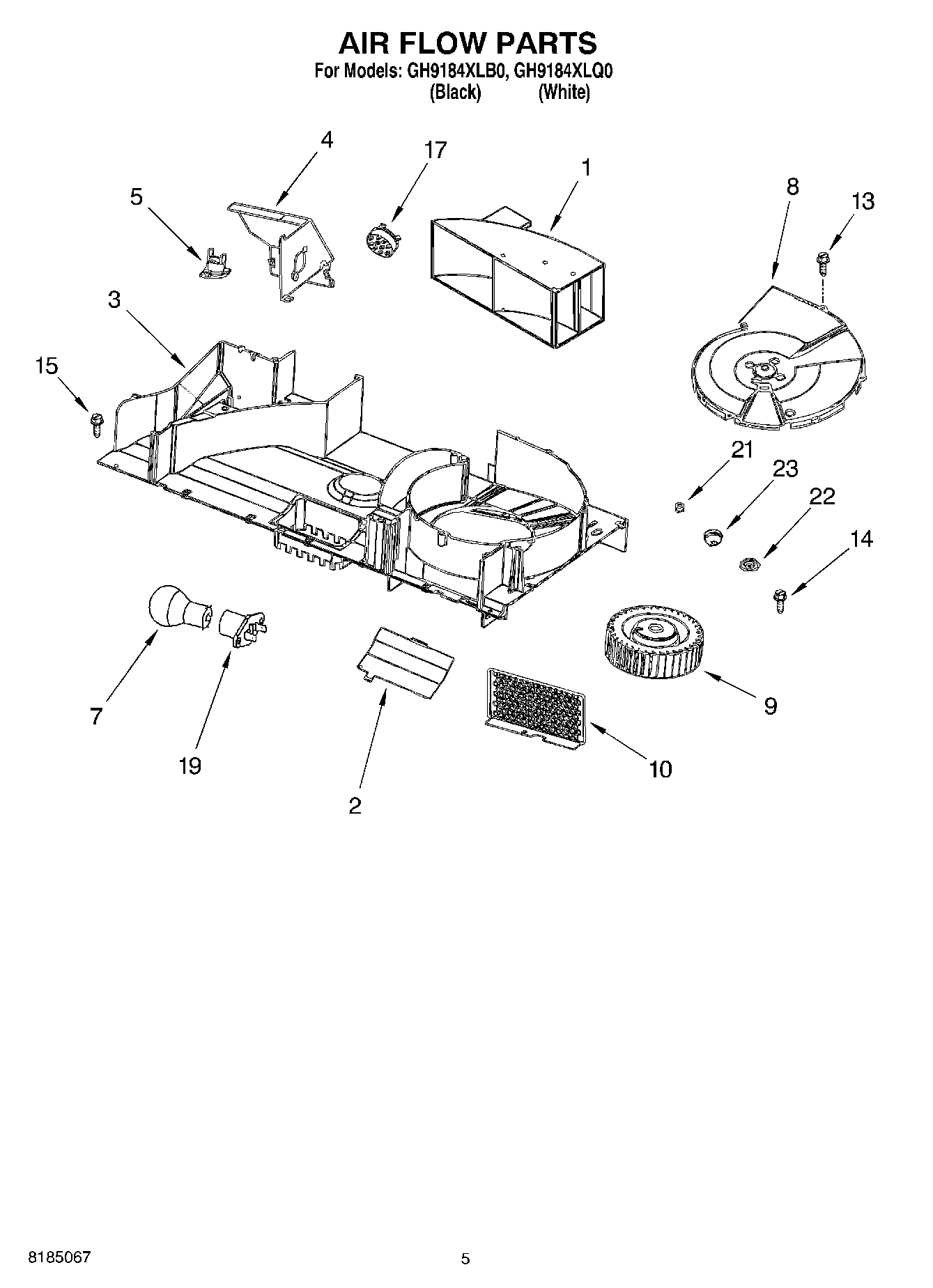

04 - AIR FLOW PARTS

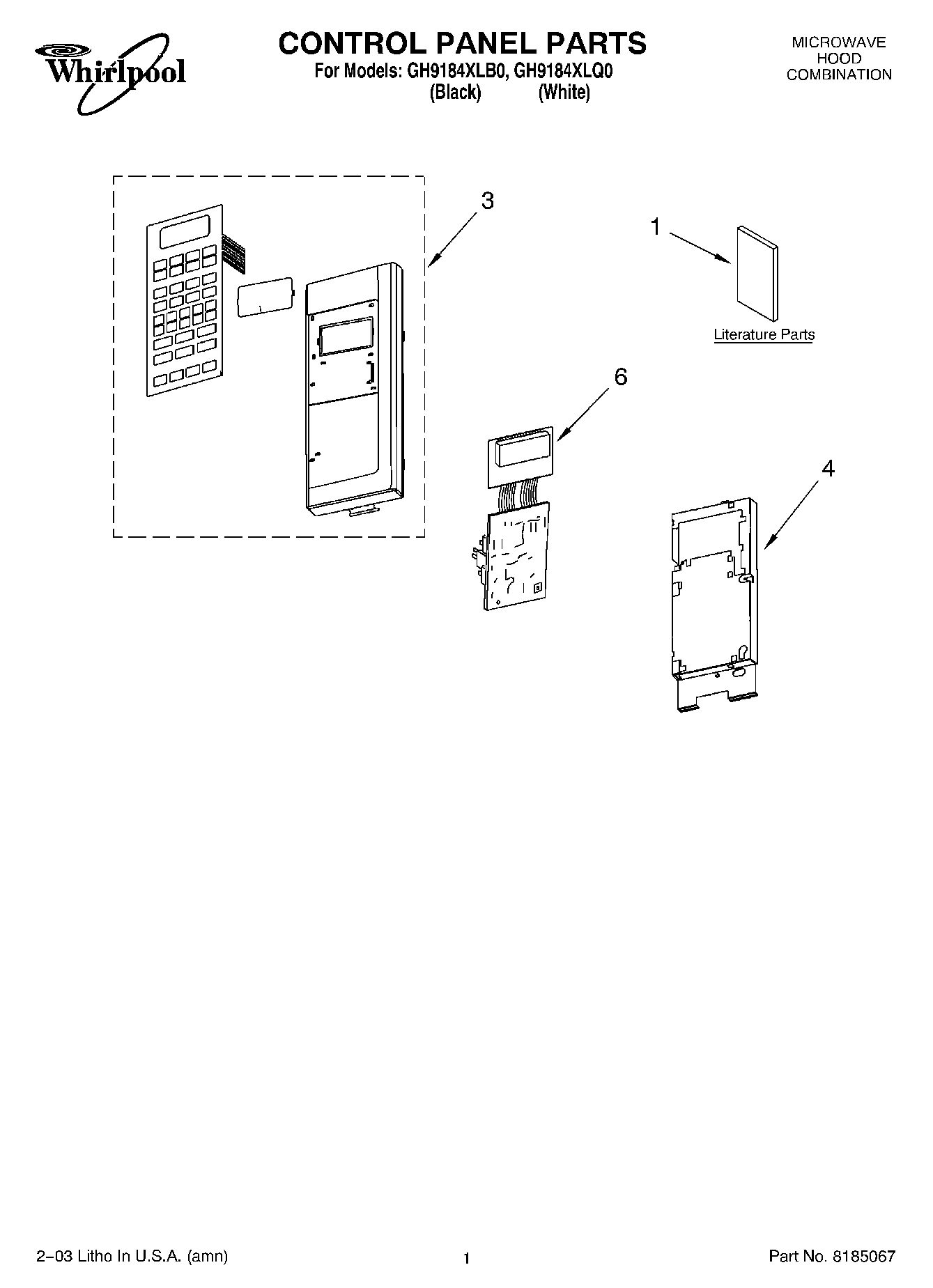

01 - CONTROL PANEL PARTS

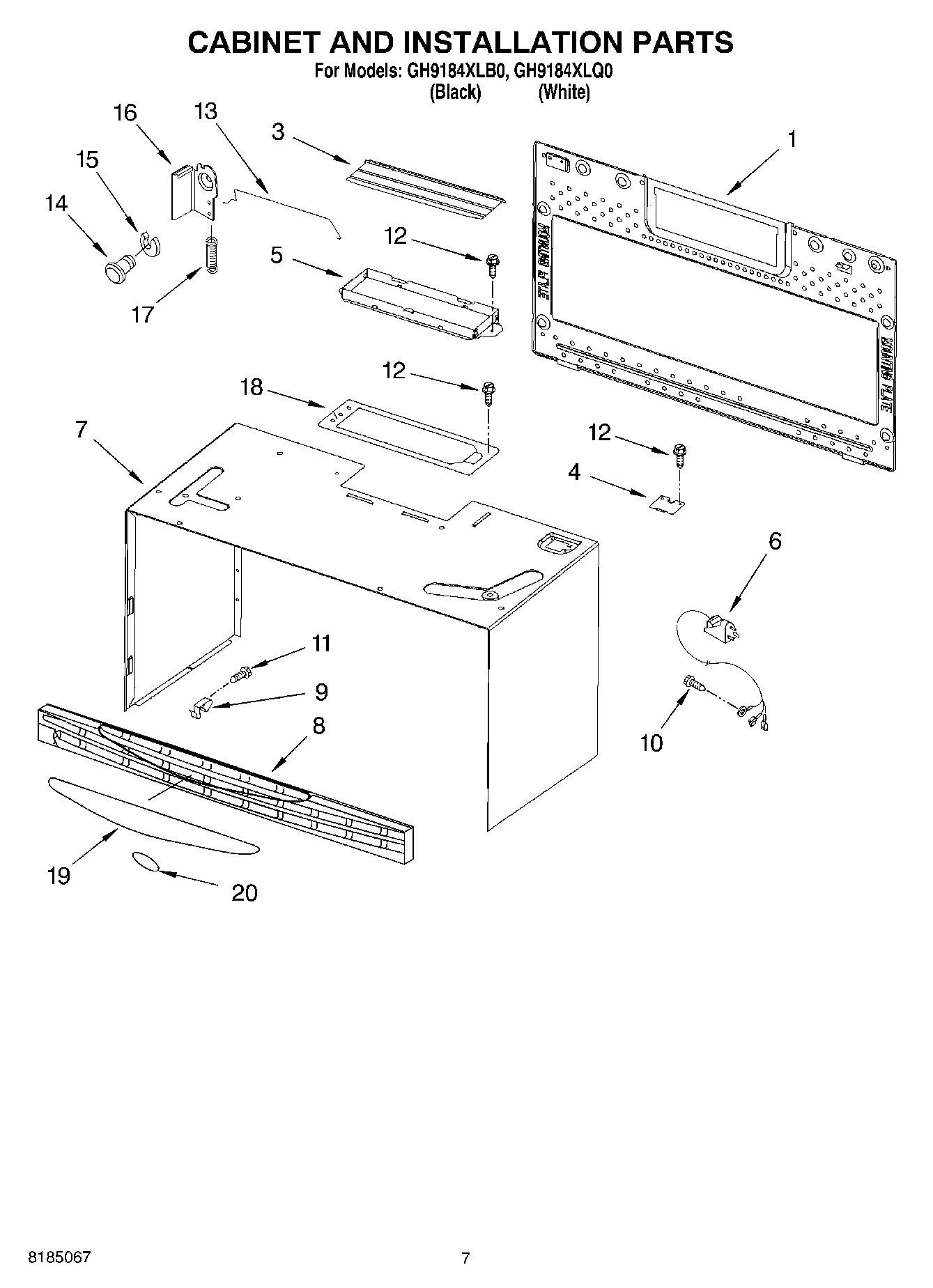

06 - CABINET AND INSTALLATION PARTS
Common parts from model Whirlpool GH9184XLQ0 MICROWAVE HOOD COMBINATION
1
Reflector, Lamp (Right) WPL 8184132 Contact Us For Availability
1
Reflector, Lamp (Left) WPL 8184194 Contact Us For Availability
1
Deflector, Air WPL 8184667 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT8183962 Contact Us For Availability
1
Literature Parts (Instructn, Install) WPL LIT8184059 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8184636 Contact Us For Availability
1
Literature Parts (U & C Guide) WPL LIT8184733 Contact Us For Availability
1
Plate, Mounting WPL 8184106 Contact Us For Availability
2
Cover, Lamp WPL 8184885 Contact Us For Availability
3
Duct, Air WPL 8185350 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8184244 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8184246 Contact Us For Availability
4
Bracket, Thermostat WPL 8184136 Contact Us For Availability
4
Bracket, Control WPL 8184920 Contact Us For Availability
4
Lid, Power Cord WPL 8184897 Contact Us For Availability
5
Thermostat WPL 8183999 Contact Us For Availability
5
Plate, Bottom WPL 8184193 Contact Us For Availability
6
Pivot, Door WPL 8184922 Contact Us For Availability
6
Glass, Lamp WPL 8184888 Contact Us For Availability
6
Microcomputer WPL 8184248 Contact Us For Availability
6
Cord, Power WPL 8184101 Contact Us For Availability
7
Holder, Glass WPL 8184889 Contact Us For Availability
7
Case, Outer (White) WPL 8184159 Contact Us For Availability
7
Case, Outer (Black) WPL 8184162 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Cover, Fan WPL 8184884 Contact Us For Availability
8
Grille, Vent (White) WPL 8184671 Contact Us For Availability
8
Grille, Vent (Black) WPL 8184673 Contact Us For Availability
9
Cover, Inverter WPL 8184124 Contact Us For Availability
9
Motor, Fan Assy WPL 8184876 Contact Us For Availability
10
Shield WPL 8184130 Contact Us For Availability
11
Screw WPL 8169475 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
12
Plate, Cam WPL 8184121 Contact Us For Availability
13
Support, Interlock WPL 8184892 Contact Us For Availability
13
Rod WPL 8184135 Contact Us For Availability
14
Fan, DC 12 Volt WPL 8184875 Contact Us For Availability
14
SCREW WPL 8184198 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
15
Screw WPL 8169474 Contact Us For Availability
15
Thermostat WPL 8183994 Contact Us For Availability
15
Housing, Fan WPL 8184894 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
16
Inverter 40 W WPL 8184874 Contact Us For Availability
16
Catch WPL 8169321 Contact Us For Availability
17
Bracket, Holder WPL 8185032 Contact Us For Availability
17
Humidity, Sensor WPL 4393808 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
18
Holder, Inverter WPL 8184670 Contact Us For Availability
18
Plate, Damper WPL 8169697 Contact Us For Availability
19
Rod-Locking Link WPL 8184122 Contact Us For Availability
19
Holder, Lamp WPL 8184926 Contact Us For Availability
19
Plate, Grille (White) WPL 8185073 Contact Us For Availability
19
Plate, Grille (Black) WPL 8185074 Contact Us For Availability
20
Capacitor, 125 V WPL 8184093 Contact Us For Availability
20
Installation, Hardware WPL 8169659 Contact Us For Availability
20
Template, Upper WPL 8183985 Contact Us For Availability
20
Template, Wall WPL 8183987 Contact Us For Availability
20
Plate, Name WPL 8185076 Contact Us For Availability
20
Miscellaneous WPL ARI65425A3 Contact Us For Availability
21
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
22
Plate, Side WPL 8185031 Contact Us For Availability
22
Plate, Damper WPL 4393874 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
24
Bracket, Plug WPL 8184669 Contact Us For Availability
26
Capacitor WPL 8184204 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183998 Contact Us For Availability
30
SCREW WPL 8184199 Contact Us For Availability
32
SCREW WPL 8184200 Contact Us For Availability
× ![]()
