Model Whirlpool GH9176XMT0 Microwave Oven 1.8 Cu. Ft. – Common Parts & Diagrams

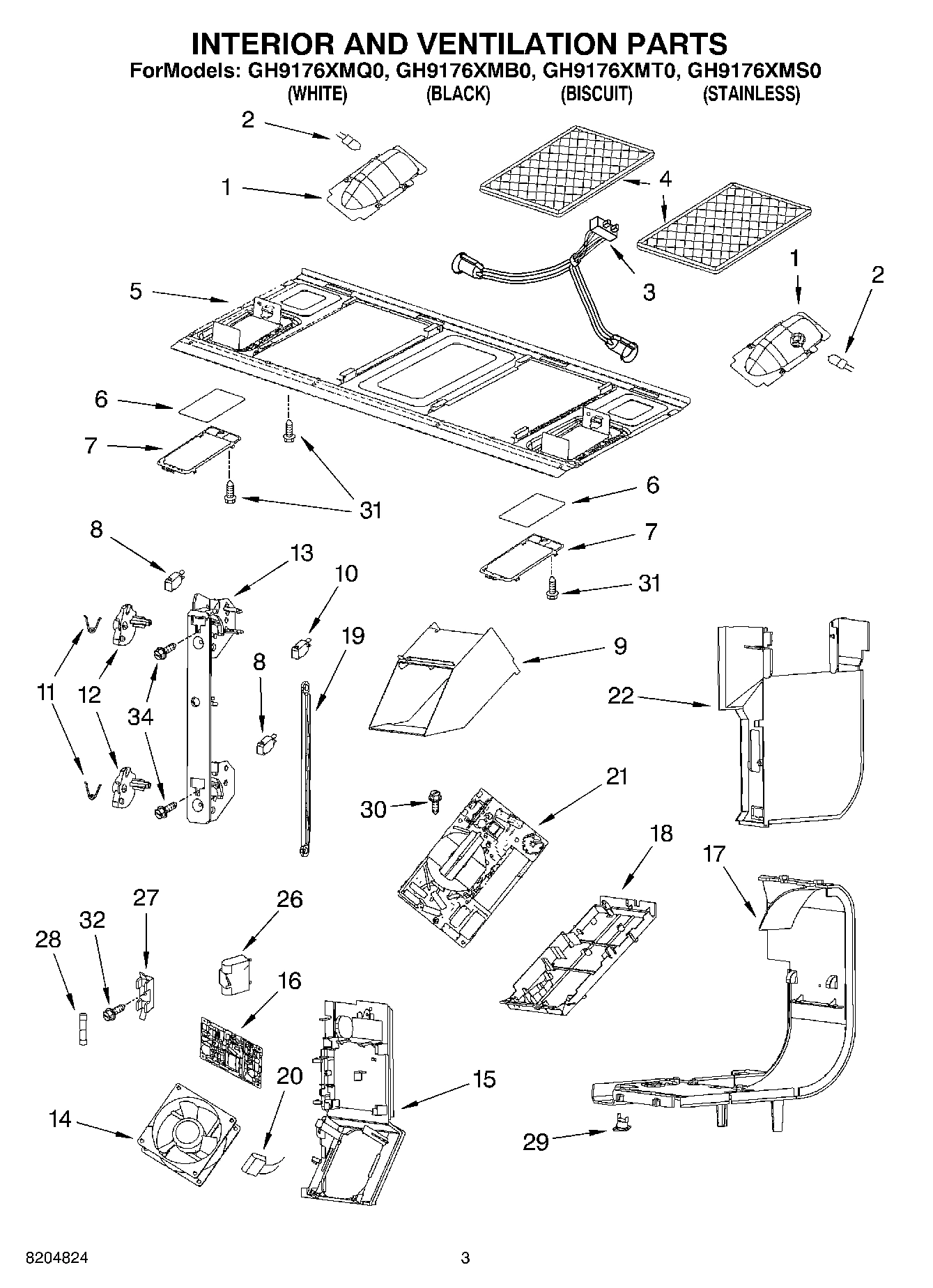

03 - INTERIOR AND VENTILATION PARTS

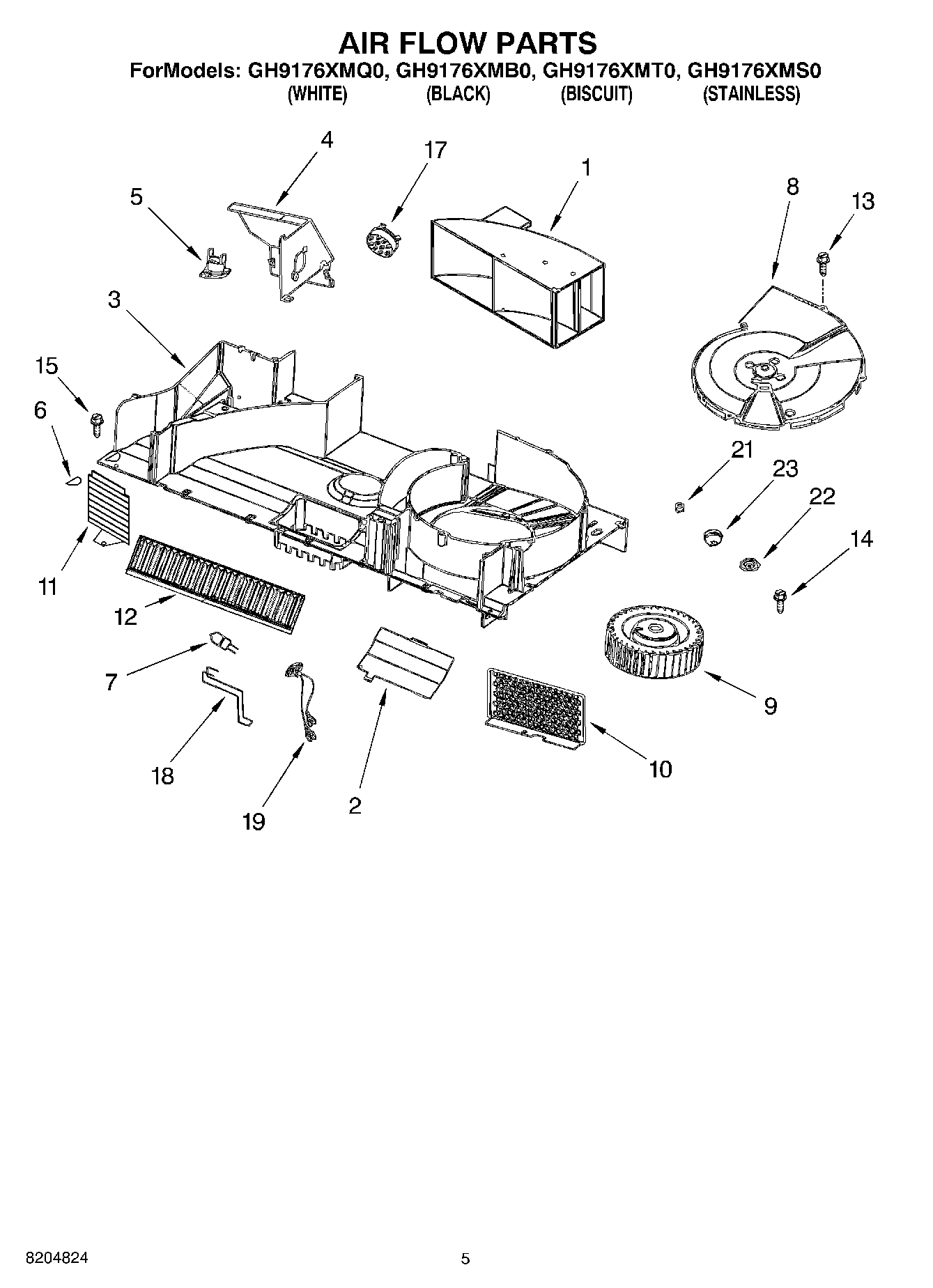

04 - AIR FLOW PARTS

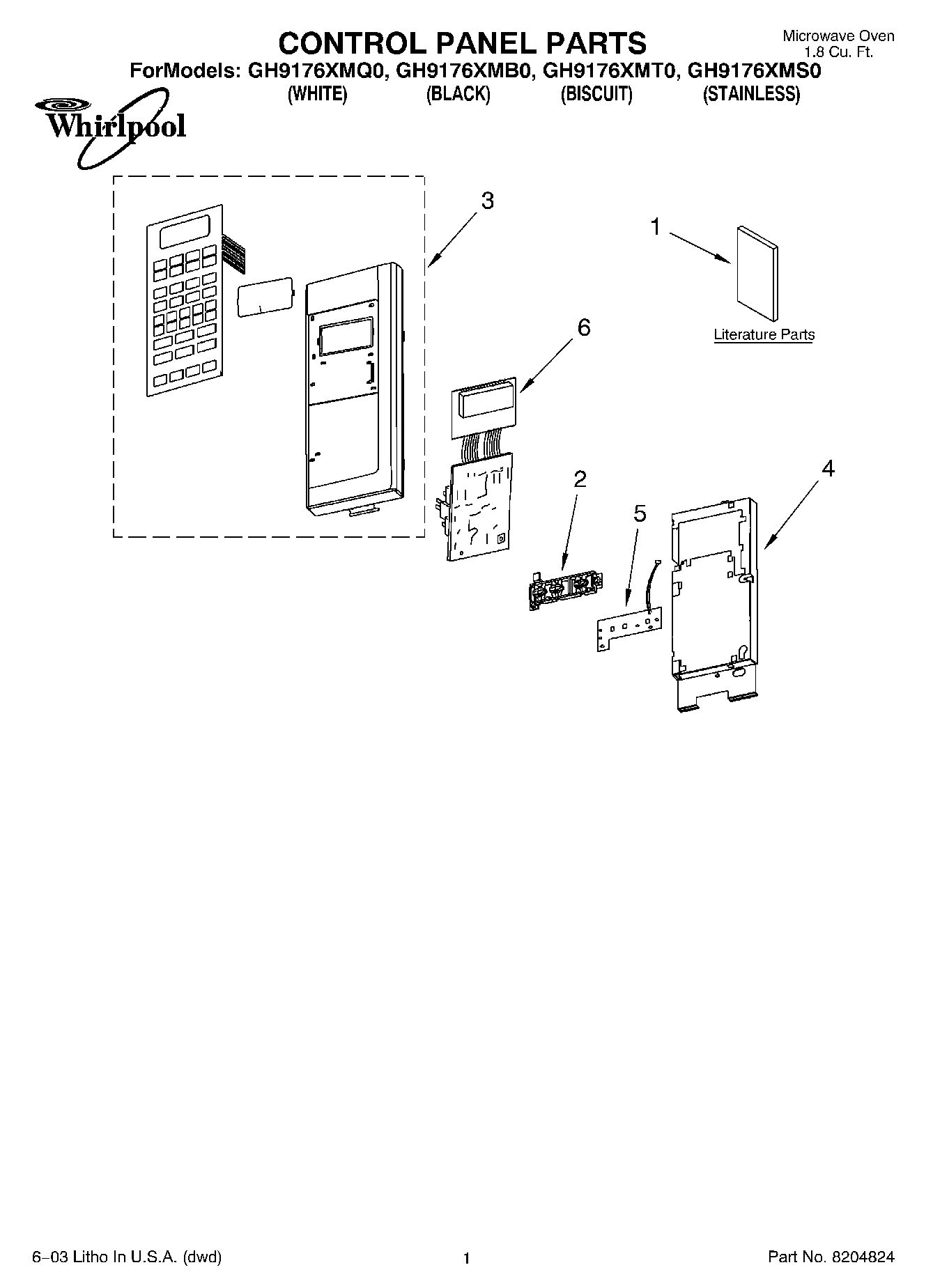

01 - CONTROL PANEL PARTS

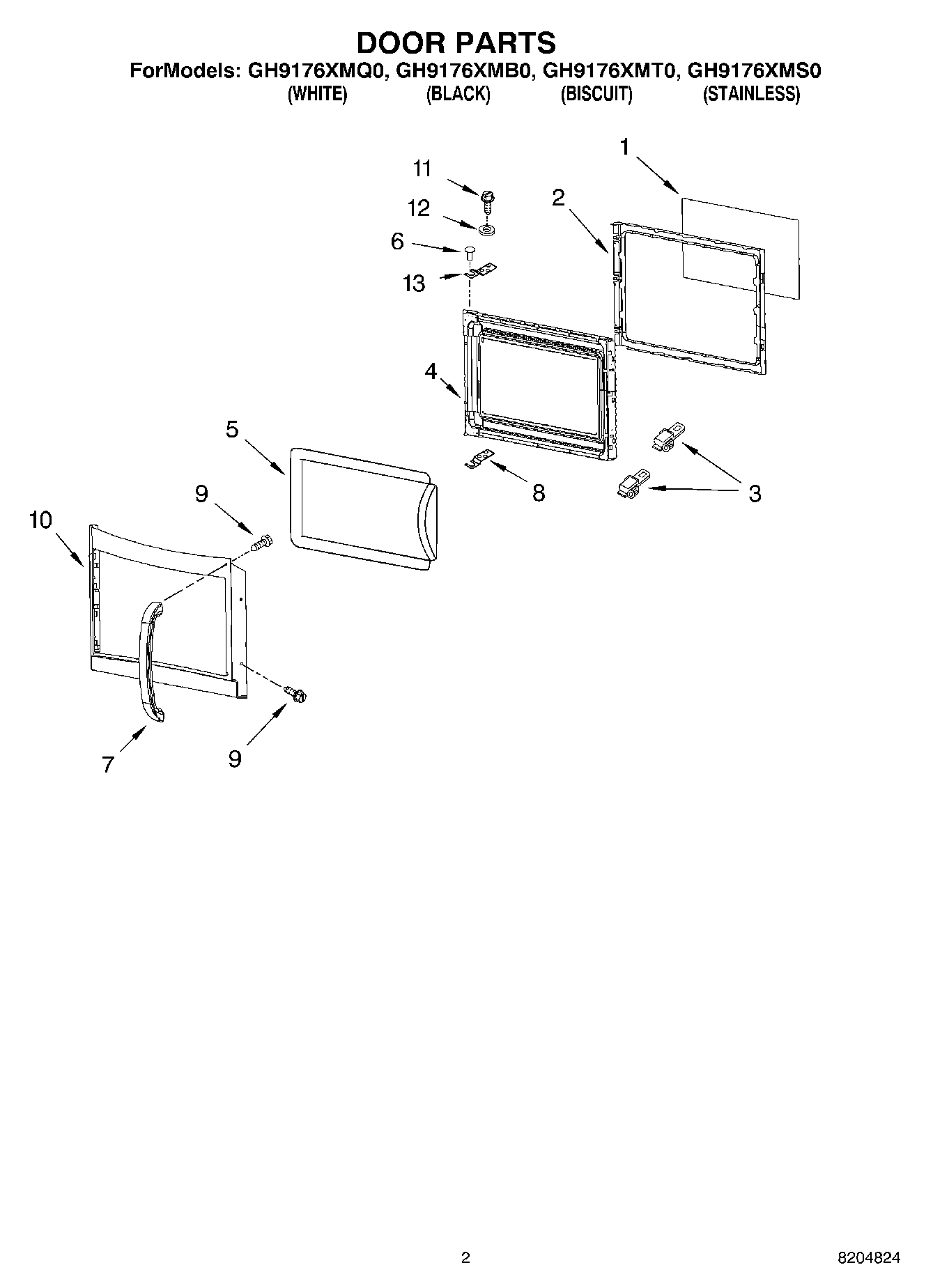

02 - DOOR PARTS

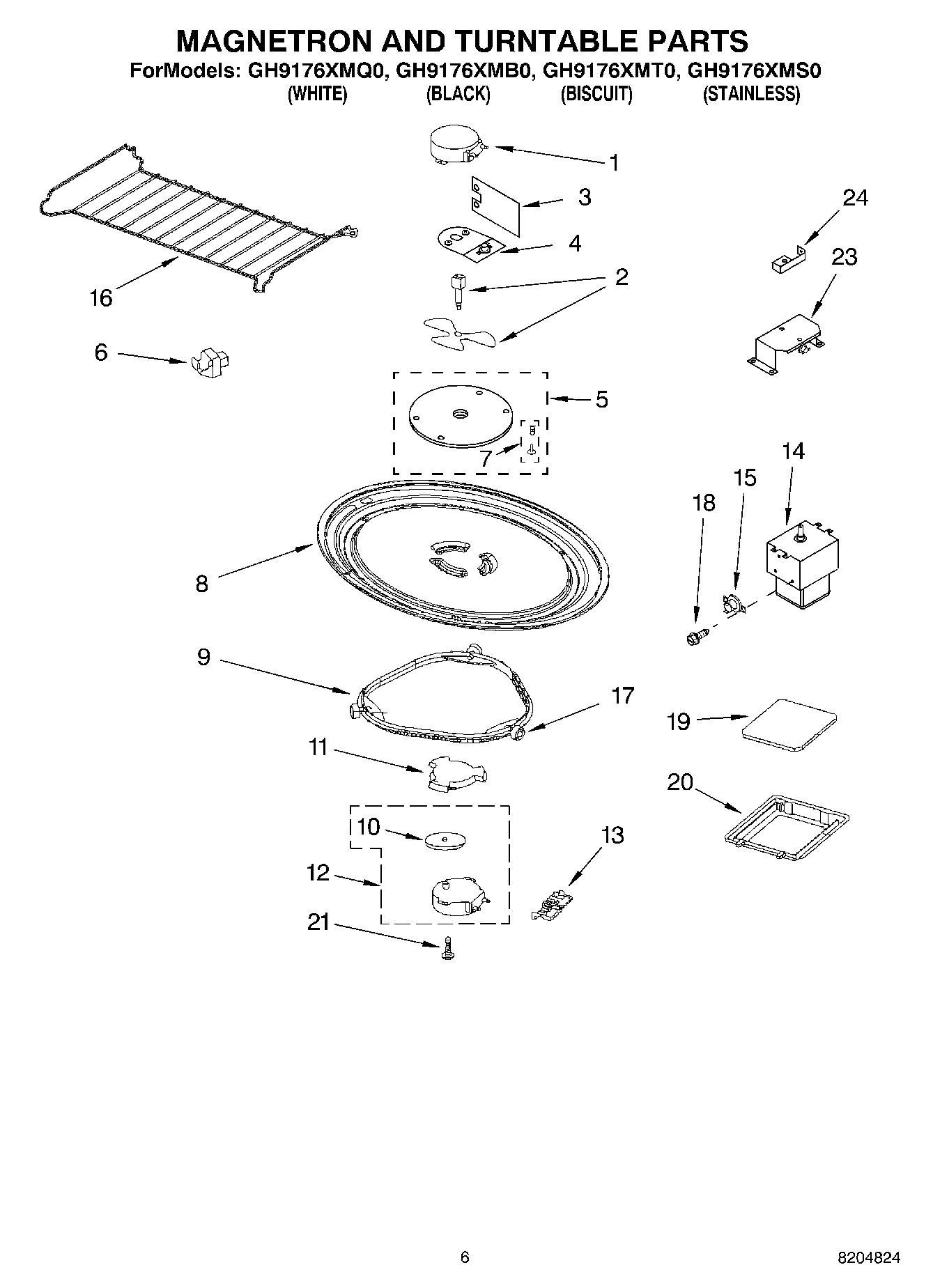

05 - MAGNETRON AND TURNTABLE PARTS

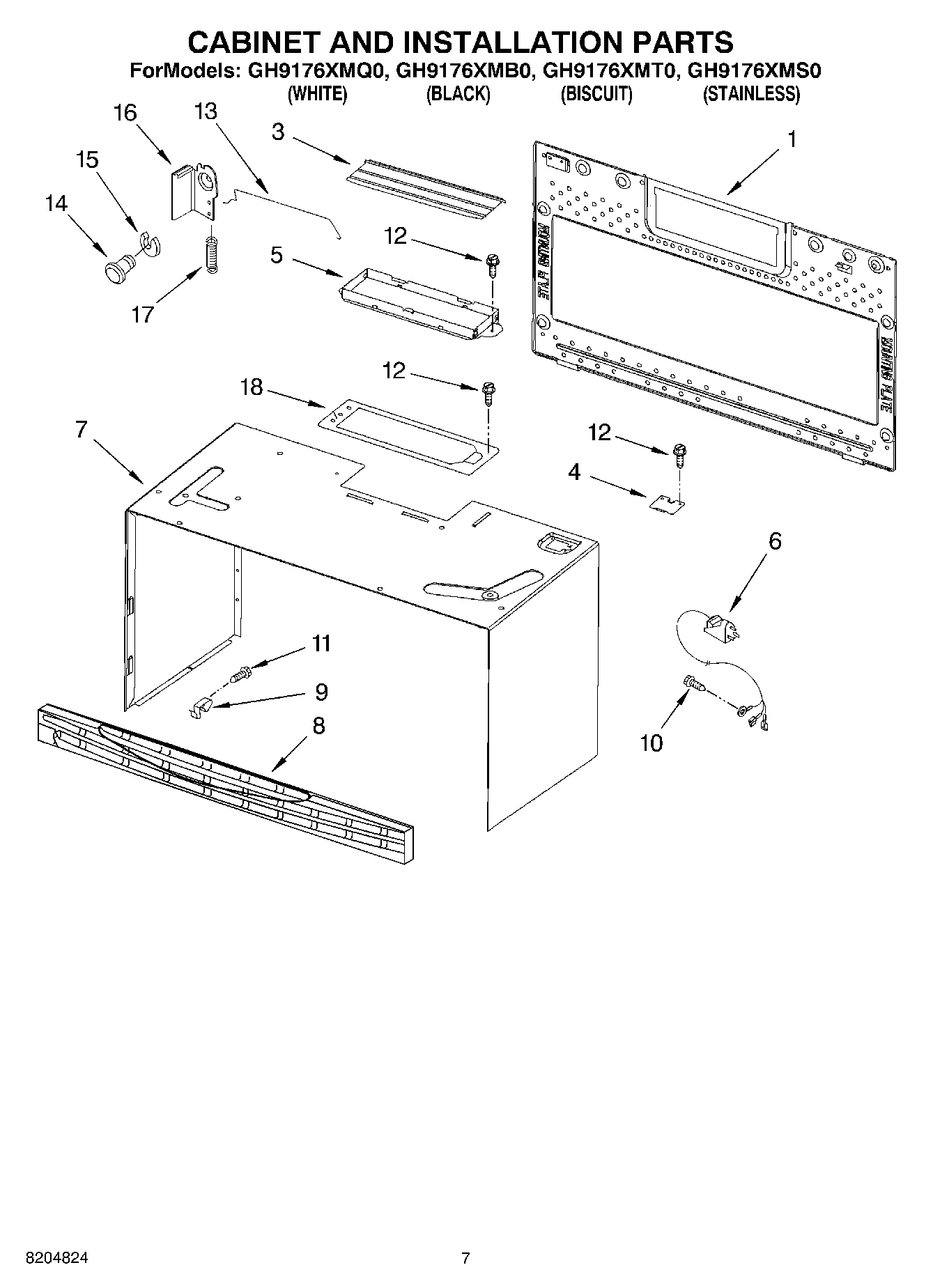

06 - CABINET AND INSTALLATION PARTS
Common parts from model Whirlpool GH9176XMT0 Microwave Oven 1.8 Cu. Ft.
1
Reflector, Lamp (Right) WPL 8184132 Contact Us For Availability
1
Reflector, Lamp (Left) WPL 8184194 Contact Us For Availability
1
Literature Parts (Instructn, Install) WPL LIT8184059 Contact Us For Availability
1
Literature Parts (U & C Guide) WPL LIT8185468 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8185469 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT8185470 Contact Us For Availability
1
Film, Back Included with 4 WPL ARI65393A9 Contact Us For Availability
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
1
Plate, Mounting WPL 8184106 Contact Us For Availability
2
Button, Control (White) WPL 8184110 Contact Us For Availability
2
Button, Control (Biscuit) WPL 8184182 Contact Us For Availability
2
Button, Control (Black/Stainless) WPL 8184183 Contact Us For Availability
2
Frame, Inner WPL 8204680 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8184633 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8204818 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8204819 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8204820 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8204821 Contact Us For Availability
3
Latch, Door WPL 8184113 Contact Us For Availability
3
Shield, Nomex WPL 8184485 Contact Us For Availability
4
Bracket, Control WPL 8184920 Contact Us For Availability
4
Body Asy, Door Includes 1 (White) WPL 8204807 Contact Us For Availability
4
Body Asy, Door Includes 1 (Black/Stainless) WPL 8204808 Contact Us For Availability
4
Body Asy, Door Includes 1 (Biscuit) WPL 8204809 Contact Us For Availability
4
Thermostat/Bracket WPL 8184585 Contact Us For Availability
4
Lid, Power Cord WPL 8184897 Contact Us For Availability
5
Thermostat WPL 8183999 Contact Us For Availability
5
Keyboard Assy WPL 8204823 Contact Us For Availability
5
Glass, Outer Plast Included with 10 WPL ARI65394A8 Contact Us For Availability
5
Cover, Inlet Includes Nails and Bushings WPL 8185059 Contact Us For Availability
6
Pivot, Door WPL 8184922 Contact Us For Availability
6
Microcomputer WPL 8204825 Contact Us For Availability
6
Cord, Power WPL 8184898 Contact Us For Availability
7
Handle, Door (White) WPL 8185187 Contact Us For Availability
7
Handle, Door (Biscuit) WPL 8185438 Contact Us For Availability
7
Handle, Door (Stainless) WPL 8204796 Contact Us For Availability
7
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
7
Case, Outer (White) WPL 8184899 Contact Us For Availability
7
Case, Outer (Black) WPL 8184900 Contact Us For Availability
7
Case, Outer (Biscuit) WPL 8184901 Contact Us For Availability
7
Case, Outer (Stainless) WPL 8185029 Contact Us For Availability
8
Turntable WPL 4393799 Contact Us For Availability
8
Grille, Vent (White) WPL 8184118 Contact Us For Availability
8
Grille, Vent (Biscuit) WPL 8184170 Contact Us For Availability
8
Grille, Vent (Black) WPL 8184171 Contact Us For Availability
8
Lower Hinge WPL 8204678 Contact Us For Availability
8
Grille, Vent (Stainless) WPL 8184169 Contact Us For Availability
10
Shield WPL 8184130 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (White) WPL 8204810 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Stainless) WPL 8204811 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Biscuit) WPL 8204812 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Black) WPL 8204813 Contact Us For Availability
11
Screw WPL 8169475 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
Shield WPL 8204790 Contact Us For Availability
12
Filter, Fan Hood WPL 8190268 Contact Us For Availability
13
Support, Interlock WPL 8185189 Contact Us For Availability
13
Upper Hinge WPL 8204679 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
13
Rod WPL 8184135 Contact Us For Availability
14
Fan, DC 12 Volt WPL 8184875 Contact Us For Availability
14
SCREW WPL 8184198 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
15
Thermostat WPL 8183994 Contact Us For Availability
15
Screw WPL 8169474 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
16
Catch WPL 8169321 Contact Us For Availability
17
Wheel (3) WPL 4393861 Contact Us For Availability
17
Humidity, Sensor WPL 4393808 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
18
Spring WPL 8169647 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
18
Installation, Hardware WPL 8169659 Contact Us For Availability
18
Plate, Damper WPL 8169697 Contact Us For Availability
18
Template, Upper WPL 8183985 Contact Us For Availability
18
Template, Wall WPL 8183987 Contact Us For Availability
18
Miscellaneous WPL ARI65395A4 Contact Us For Availability
19
Rod-Locking Link WPL 8185190 Contact Us For Availability
19
Holder, Lamp WPL 8204669 Contact Us For Availability
19
Glass, Lamp WPL 8169499 Contact Us For Availability
20
Frame, Glass WPL 8169646 Contact Us For Availability
21
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
22
Plate, Damper WPL 8204674 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
23
Thermostat/Bracket WPL 8184586 Contact Us For Availability
24
Bracket, Plug WPL 8184669 Contact Us For Availability
29
Thermostat WPL 8183998 Contact Us For Availability
× ![]()
