Model Whirlpool GH7208XRB2 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

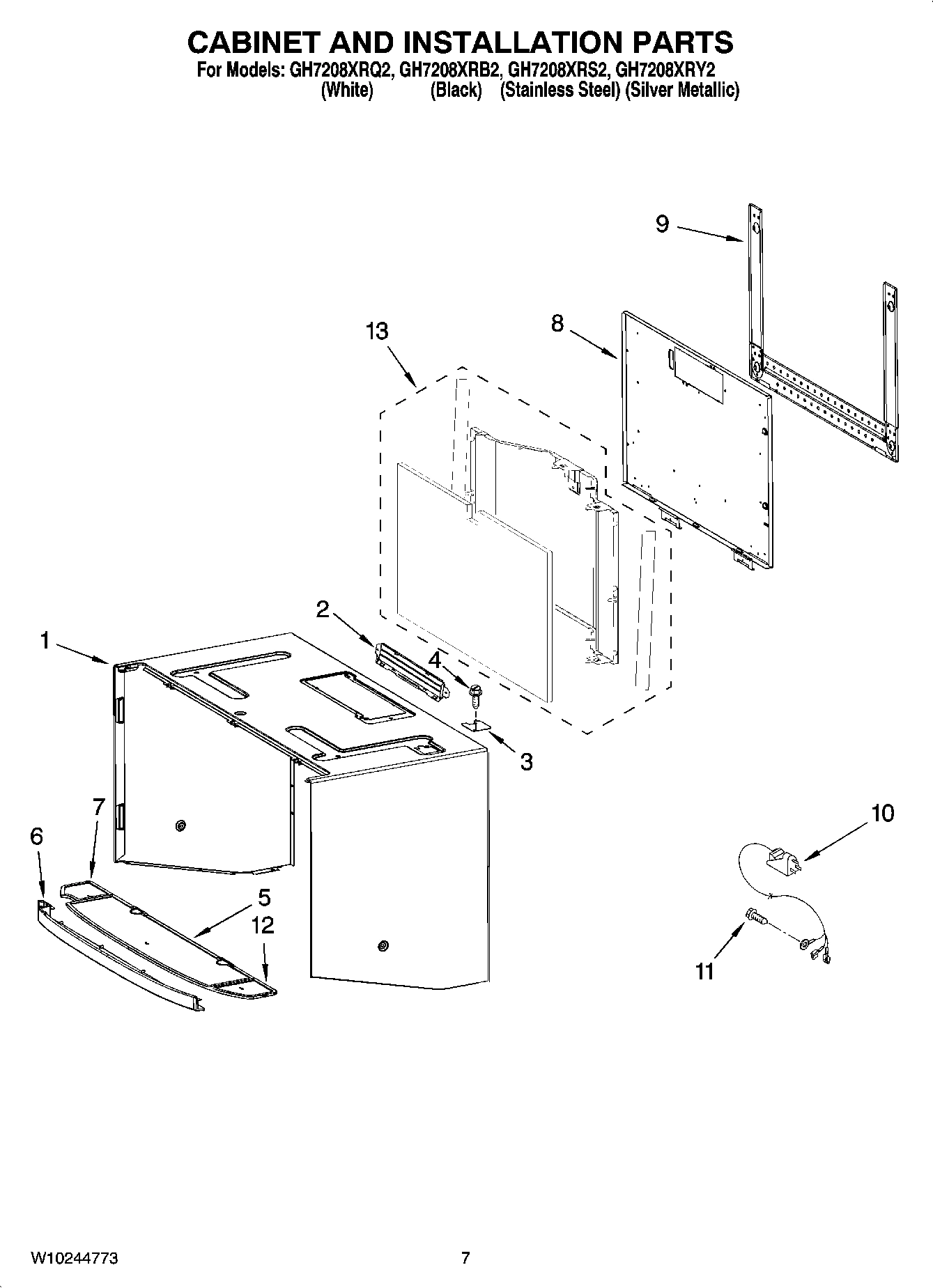

06 - CABINET AND INSTALLATION PARTS

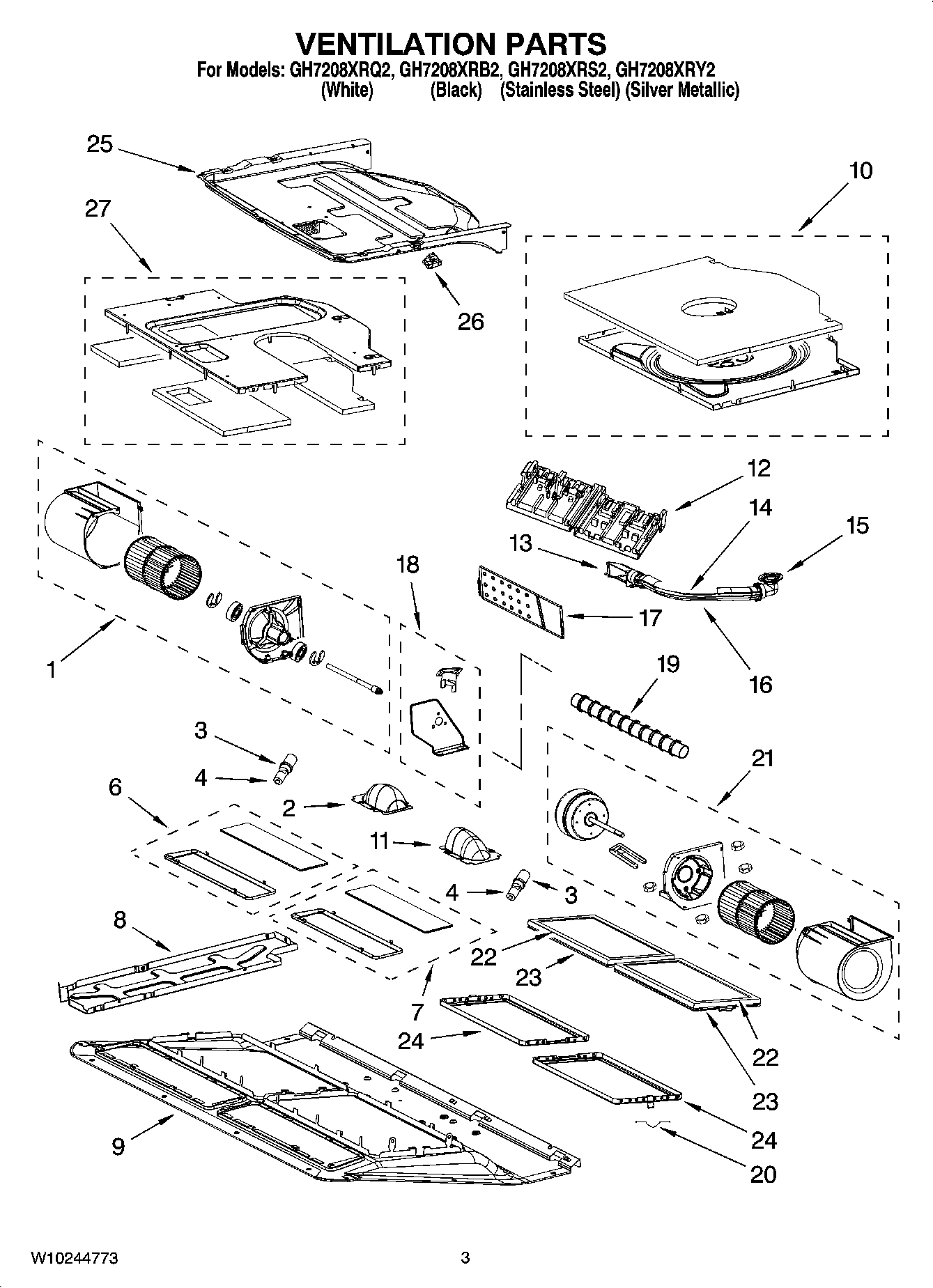

03 - VENTILATION PARTS

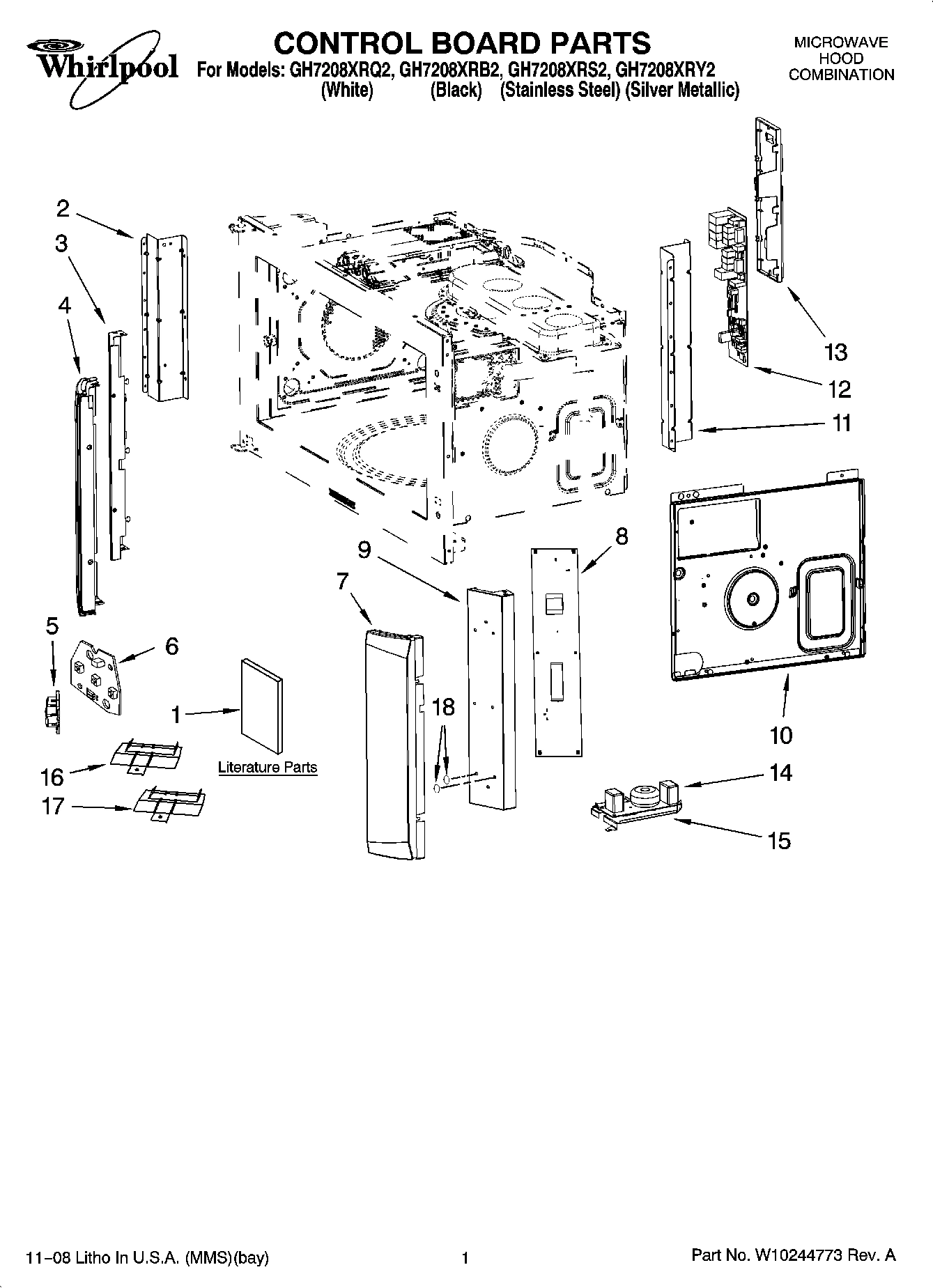

01 - CONTROL BOARD PARTS

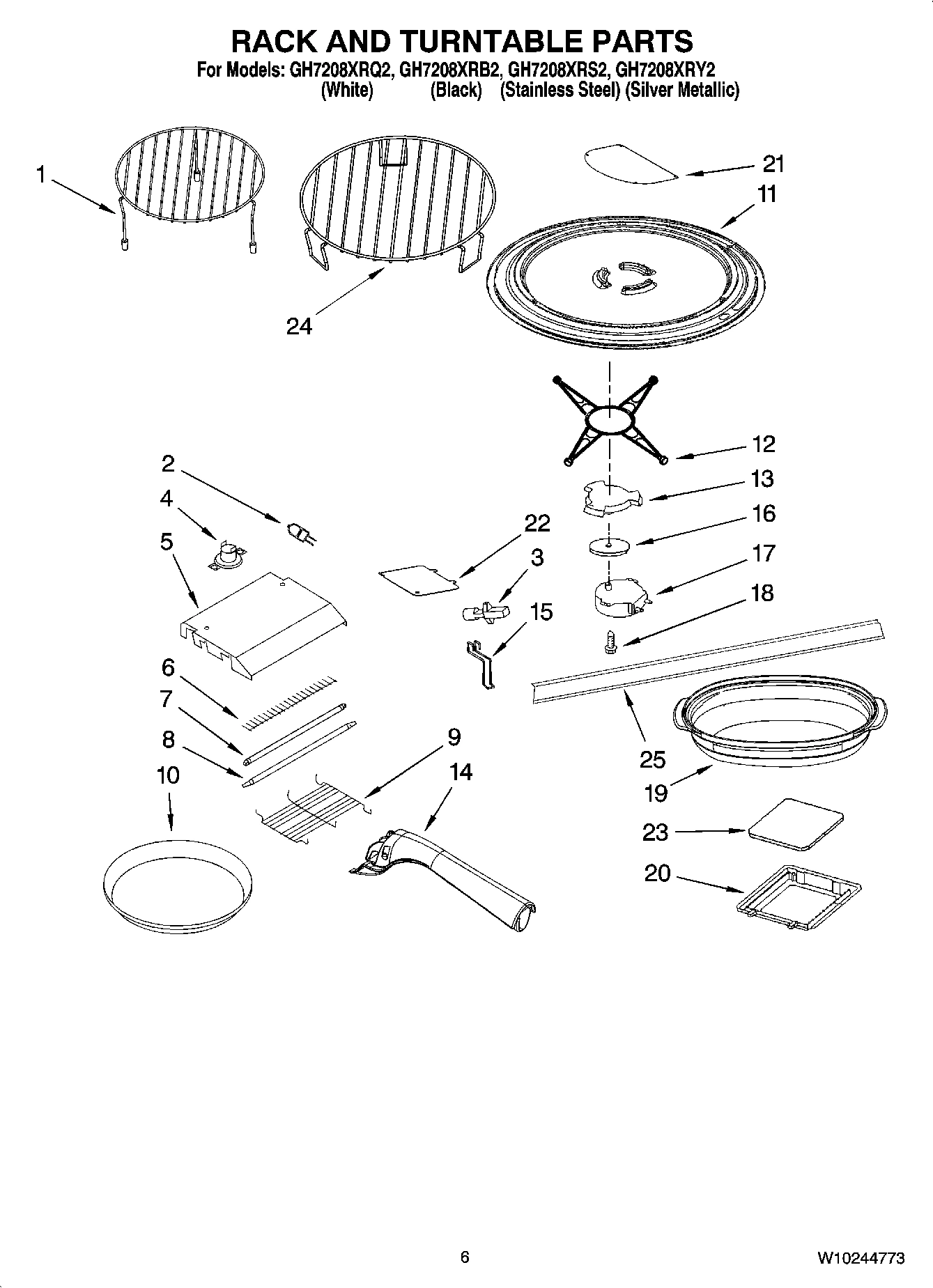

05 - RACK AND TURNTABLE PARTS

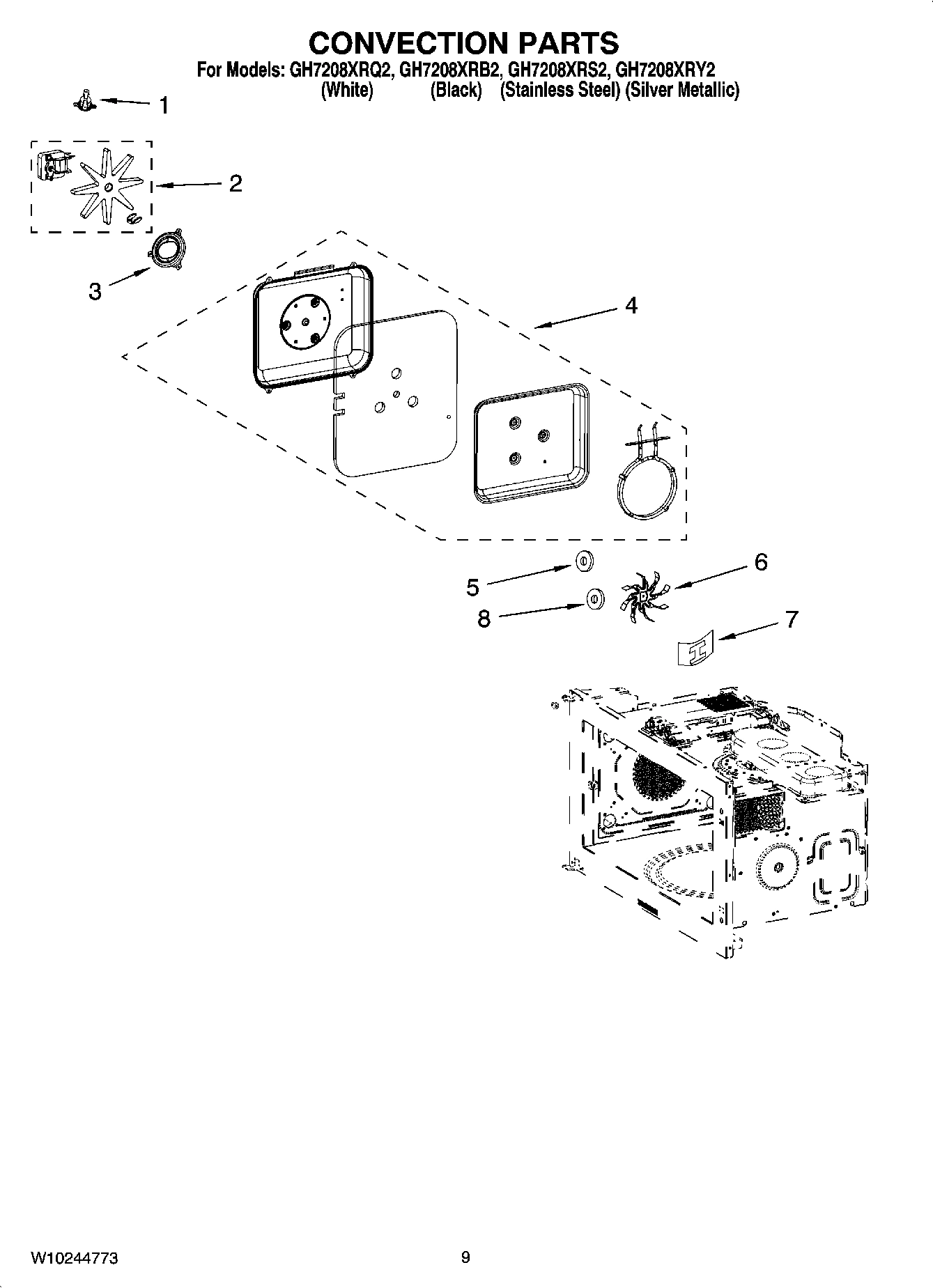

07 - CONVECTION PARTS

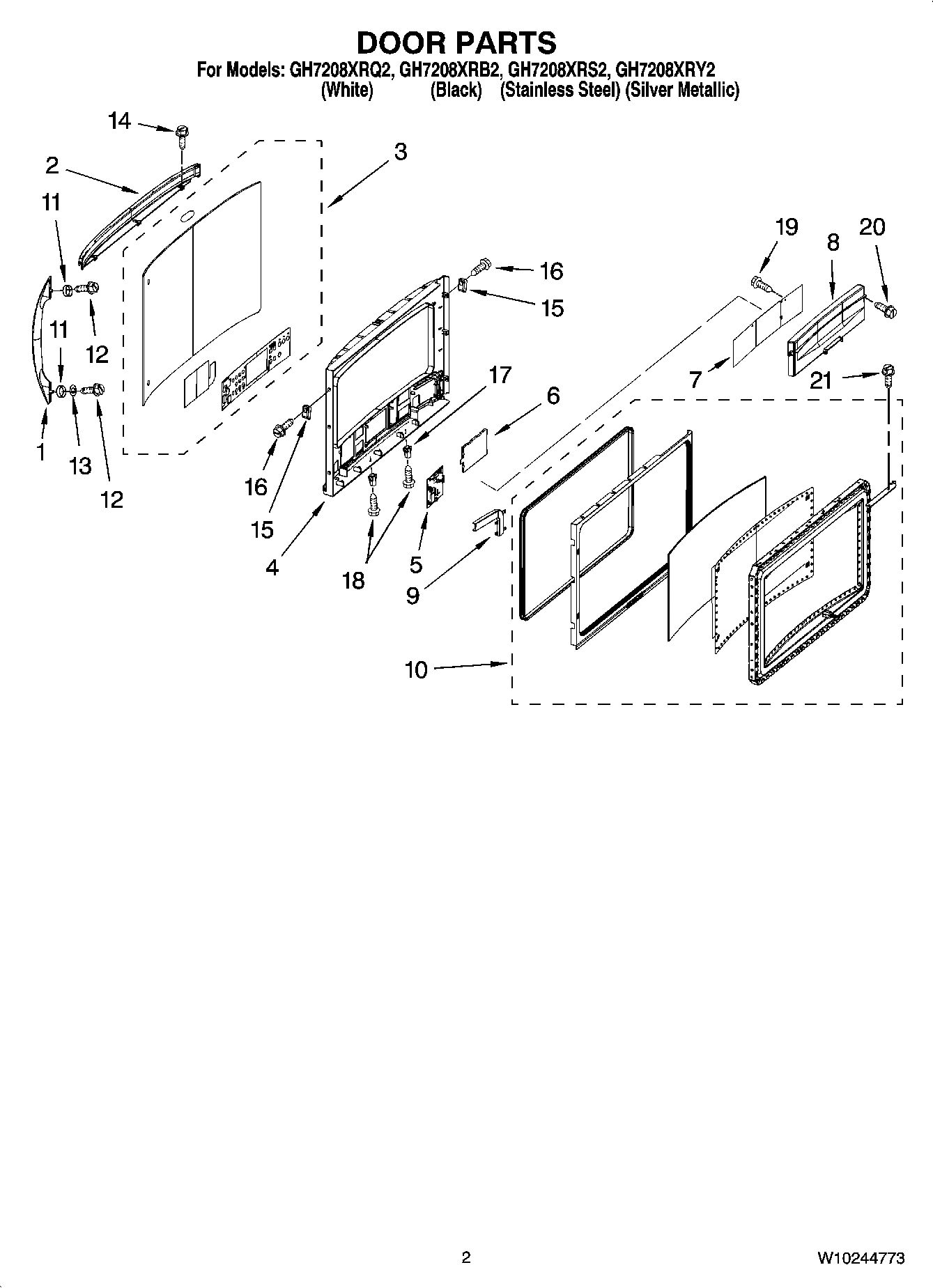

02 - DOOR PARTS

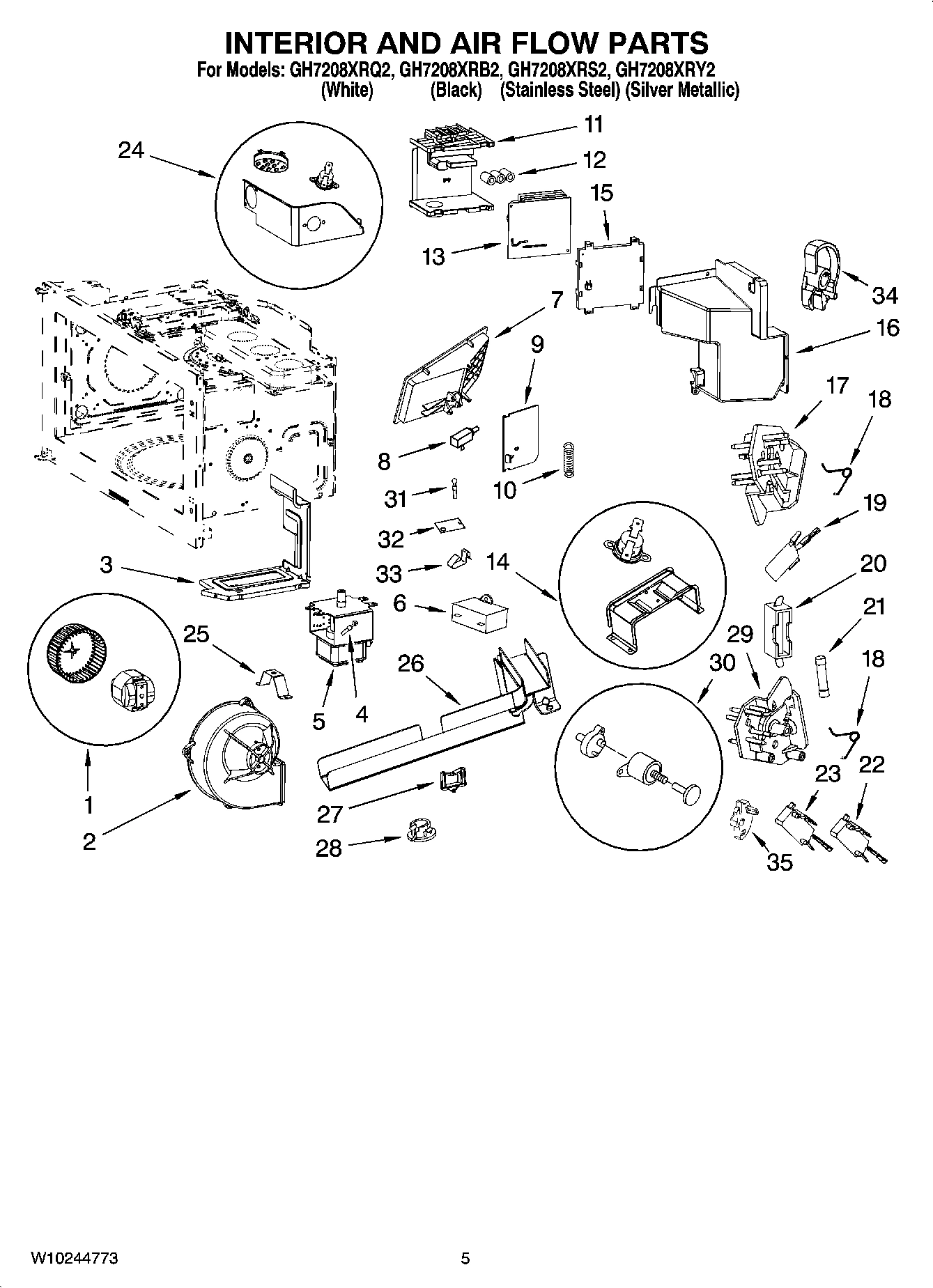

04 - INTERIOR AND AIR FLOW PARTS
Common parts from model Whirlpool GH7208XRB2 MICROWAVE HOOD COMBINATION
Installation, Hardware WPL 8205979 Contact Us For Availability
1
Handle (Universal Silver) WPL 8206123 Contact Us For Availability
1
Housing, Blower (Left) WPL 8206092 Contact Us For Availability
1
Handle (White) WPL W10244764 Contact Us For Availability
1
Handle (Black) WPL 8206121 Contact Us For Availability
2
Trim, Door (White) WPL 8206144 Contact Us For Availability
2
Reflector, Lamp (Left) WPL 8184194 Contact Us For Availability
2
Impeller Assy WPL 8206069 Contact Us For Availability
2
Trim, Door (Stainless Steel) WPL 8206147 Contact Us For Availability
2
Trim, Door (Black) WPL W10115583 Contact Us For Availability
2
Housing, Fan WPL 8206076 Contact Us For Availability
3
Door Control Assy (Black/Stainless) WPL 8206149 Contact Us For Availability
3
Door Control Assy (White) WPL 8206148 Contact Us For Availability
3
Door Control Assy (Universal Silver) WPL W10115584 Contact Us For Availability
3
Holder, Lamp WPL W10113781 Contact Us For Availability
3
Bracket, Motor WPL W10115572 Contact Us For Availability
3
Plate, Divider WPL 8206077 Contact Us For Availability
4
Heater Assembly WPL 8206071 Contact Us For Availability
4
Outer Door Frame (White) WPL W10115585 Contact Us For Availability
4
Outer Door Frame (Stainless Steel) WPL 8206160 Contact Us For Availability
4
Outer Door Frame (Black) WPL W10115586 Contact Us For Availability
5
Washer WPL 8206073 Contact Us For Availability
5
Board, User (Interface) WPL W10233387 Contact Us For Availability
6
Motor, Capacitor WPL 8206080 Contact Us For Availability
6
Support, Vent Screen (White) WPL 8206011 Contact Us For Availability
6
Support, Vent Screen (Universal Silver) WPL 8206016 Contact Us For Availability
6
Fan Wheel WPL 8206074 Contact Us For Availability
6
LCD Module WPL W10244767 Contact Us For Availability
7
Vent Screen (Left) WPL 8206207 Contact Us For Availability
7
Plate, Spring Lock WPL W10115575 Contact Us For Availability
7
Deflector, Air Guide WPL 8206163 Contact Us For Availability
7
Housing, Valve WPL W10244757 Contact Us For Availability
8
Control Board, (Relay) WPL 8206602 Contact Us For Availability
8
Washer, Adjustable WPL W10115573 Contact Us For Availability
8
Air Guide WPL W10115590 Contact Us For Availability
9
Plate, Bottom WPL W10222517 Contact Us For Availability
9
Cover, Protector WPL 8205239 Contact Us For Availability
9
Cable Cover, Door WPL W10115591 Contact Us For Availability
9
Lid, Valve WPL W10244758 Contact Us For Availability
10
Inner Door WPL 8206139 Contact Us For Availability
10
Spring, Valve WPL 8206084 Contact Us For Availability
11
Reflector, Lamp (Right) WPL 8184132 Contact Us For Availability
11
Gasket (2) WPL 8206166 Contact Us For Availability
11
Cover, Inverter WPL 8206085 Contact Us For Availability
12
Board, Relay WPL 8206603 Contact Us For Availability
12
Ring, Turntable WPL 8206222 Contact Us For Availability
12
Vent Screen WPL 8206206 Contact Us For Availability
12
Screw (2) WPL 8206167 Contact Us For Availability
12
Ferrite Ring WPL 8206086 Contact Us For Availability
14
Screw (3) WPL 4393827 Contact Us For Availability
15
Holder, Filter WPL 8206060 Contact Us For Availability
15
Holder, Inverter WPL 8206089 Contact Us For Availability
15
Clip, Cavity Lamp WPL 8206034 Contact Us For Availability
15
Spacer, Side (6) WPL 8206170 Contact Us For Availability
16
Resistor (50W) WPL W10113782 Contact Us For Availability
16
Air Guide, Magnetron WPL 8206494 Contact Us For Availability
17
Motor, Turntable WPL W10143959 Contact Us For Availability
17
Spacer, Bottom (2) WPL 8206178 Contact Us For Availability
18
Spring, Interlock WPL 8206091 Contact Us For Availability
18
Support & Base Thermostat Assy WPL 8206212 Contact Us For Availability
19
Connector Shaft WPL 8206263 Contact Us For Availability
19
Screw (2) WPL 8169478 Contact Us For Availability
20
Holder, Fuse WPL W10117908 Contact Us For Availability
20
Spring (4) WPL 8206499 Contact Us For Availability
20
Frame, Glass WPL 8169646 Contact Us For Availability
21
Housing, Blower (Right) WPL 8206112 Contact Us For Availability
21
Cover, Inlet WPL 8206066 Contact Us For Availability
22
Lid, Lamp WPL 8206476 Contact Us For Availability
23
Glass, Lamp WPL W10189668 Contact Us For Availability
24
Humidity Sensor & Thermostat Assy WPL 8206026 No Longer Available
24
Spring, Hook WPL W10113792 Contact Us For Availability
24
Rack, Convection WPL 8205995 Contact Us For Availability
25
Deflector, Air WPL 8205980 Contact Us For Availability
25
Support, Air Guide WPL 8206031 Contact Us For Availability
26
Protector, Wire WPL 8206477 Contact Us For Availability
27
Clip, Saddle WPL 8206037 Contact Us For Availability
30
Piston Assembly WPL 8206210 Contact Us For Availability
31
Sensor, Temperature WPL 8206023 Contact Us For Availability
32
Cover WPL 8206224 Contact Us For Availability
34
CAM PLATE, UPPER WPL W10113786 Contact Us For Availability
35
CAM PLATE, LOWER WPL W10244759 Contact Us For Availability
× ![]()
