Model Whirlpool GH6177XPB0 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

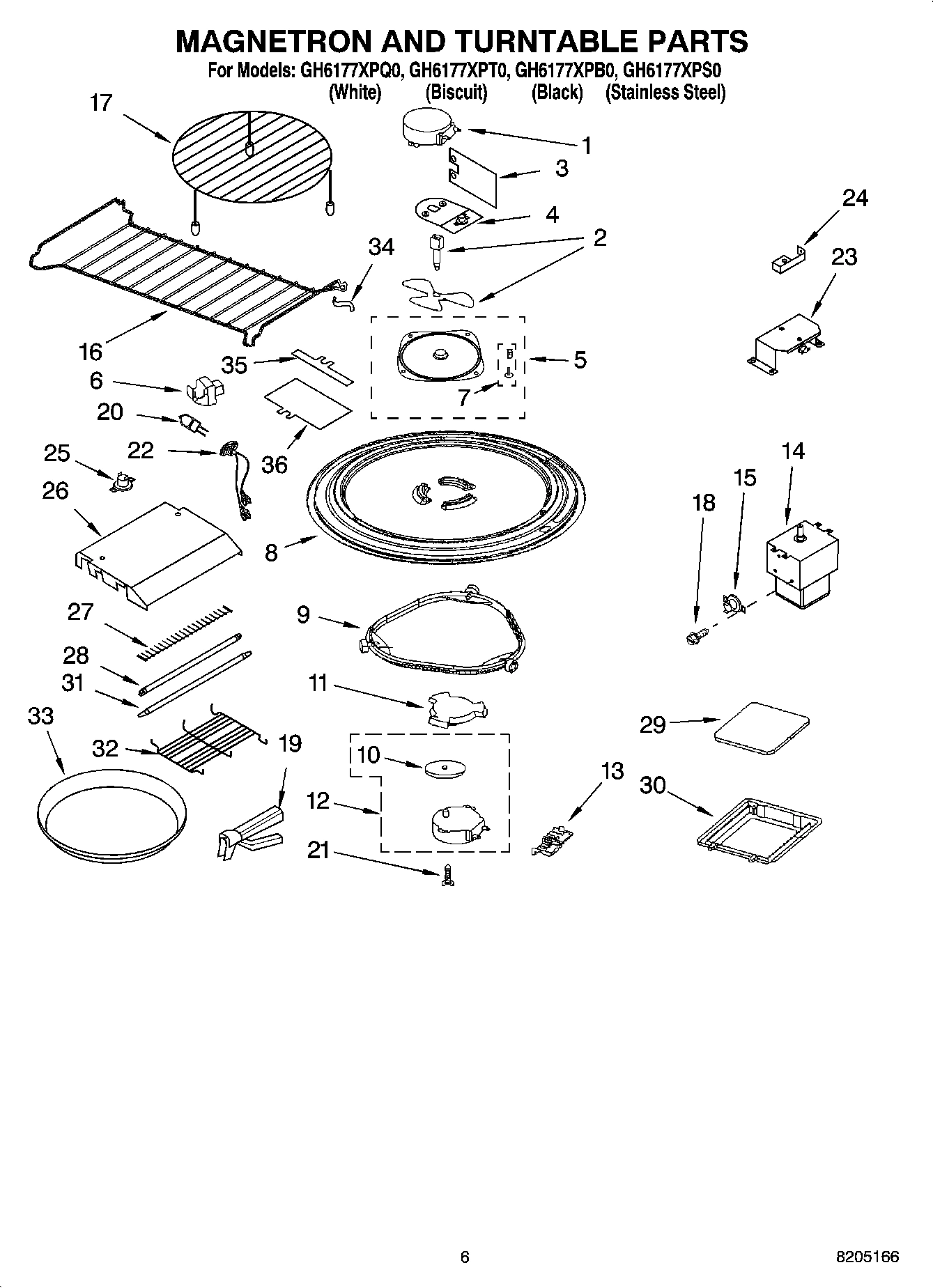

05 - MAGNETRON AND TURNTABLE PARTS

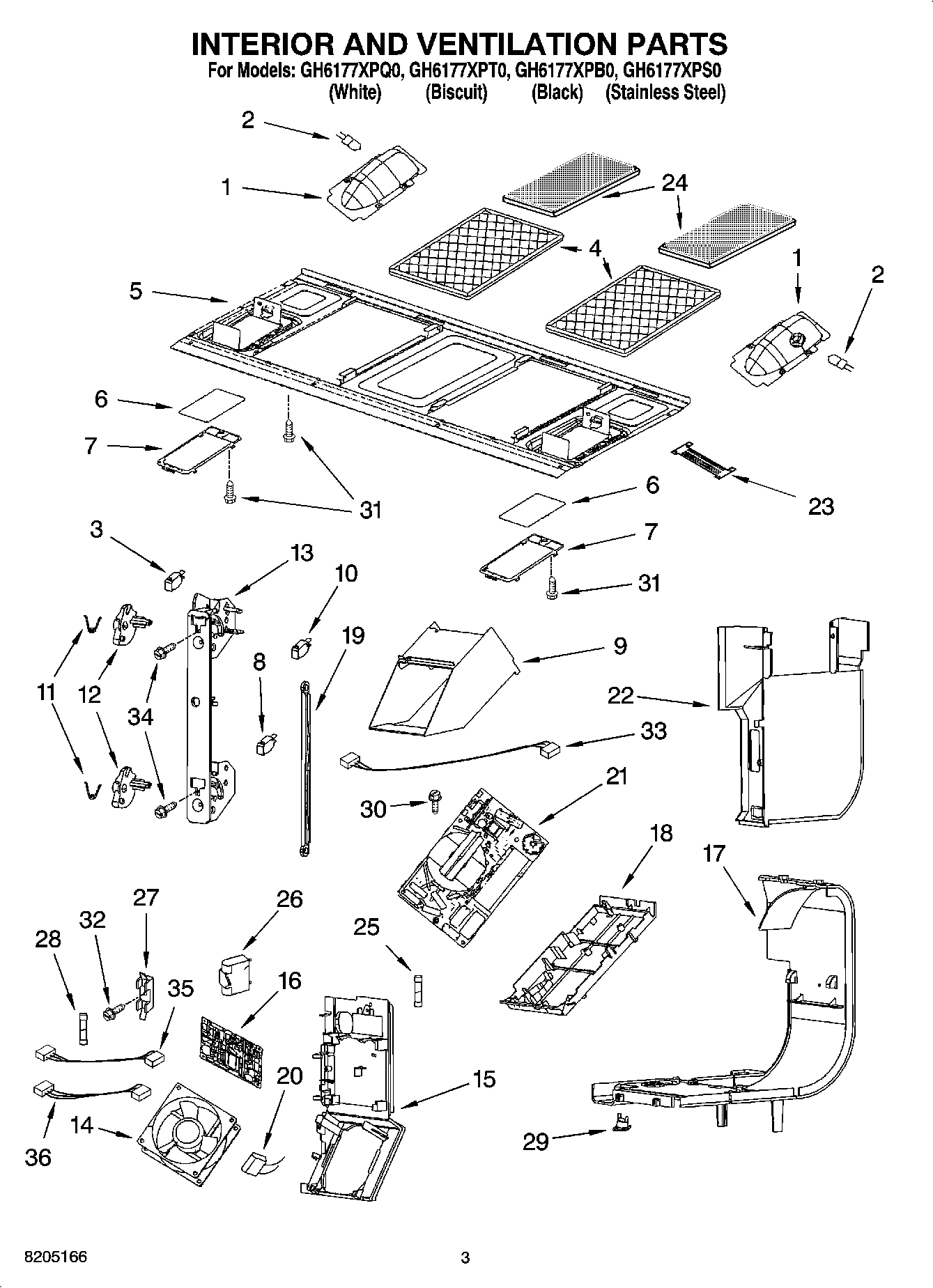

03 - INTERIOR AND VENTILATION PARTS

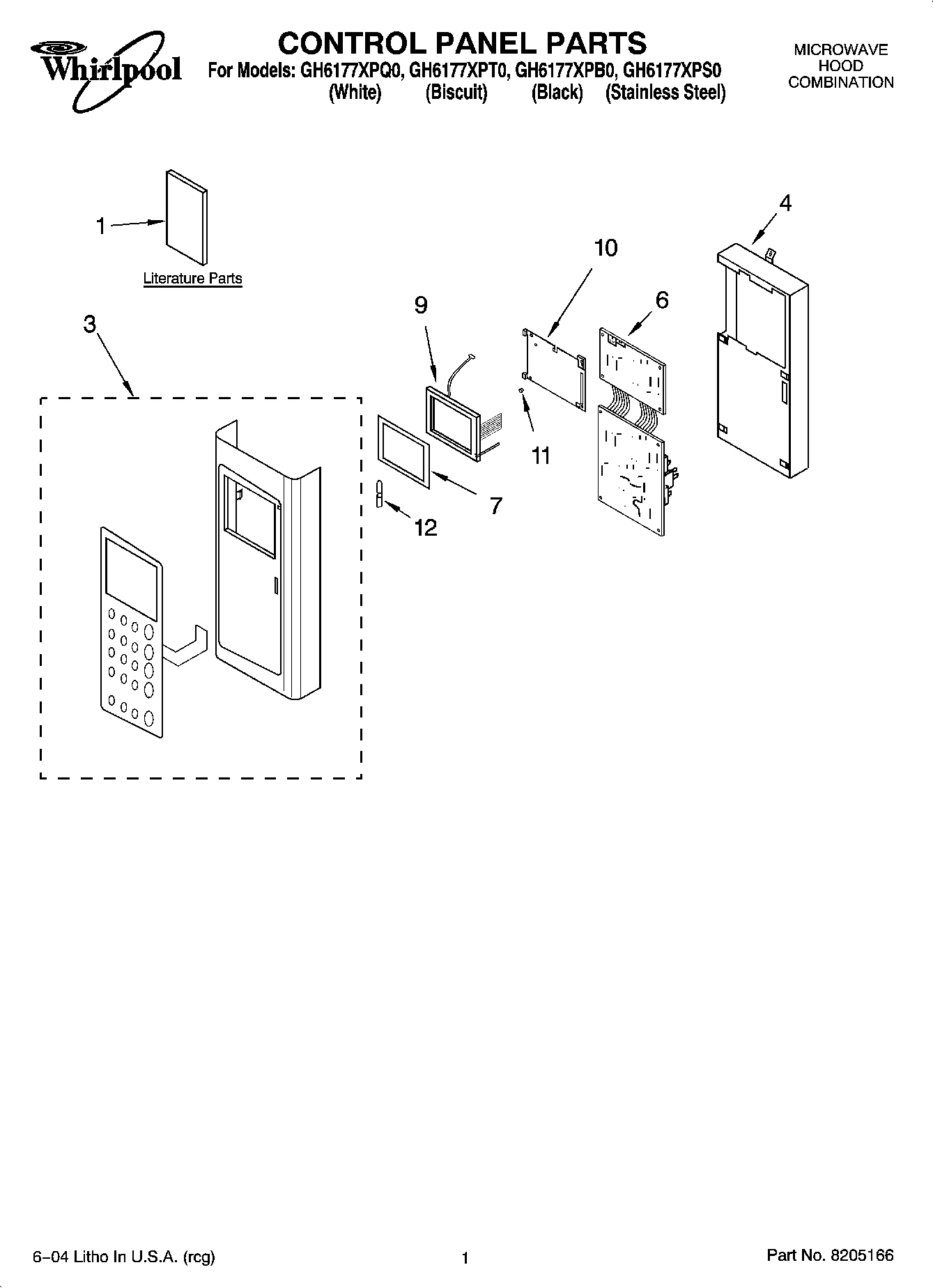

01 - CONTROL PANEL PARTS

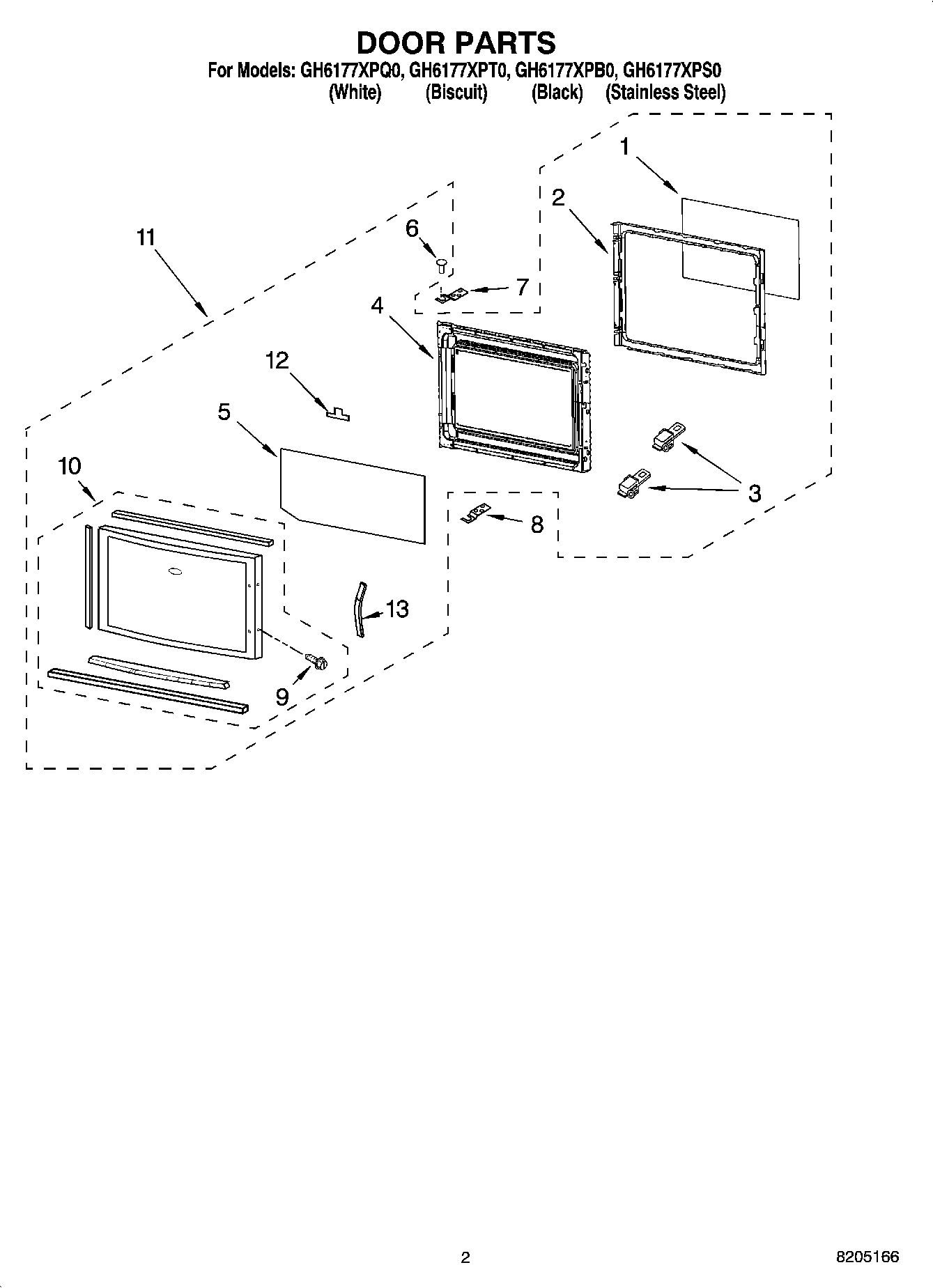

02 - DOOR PARTS

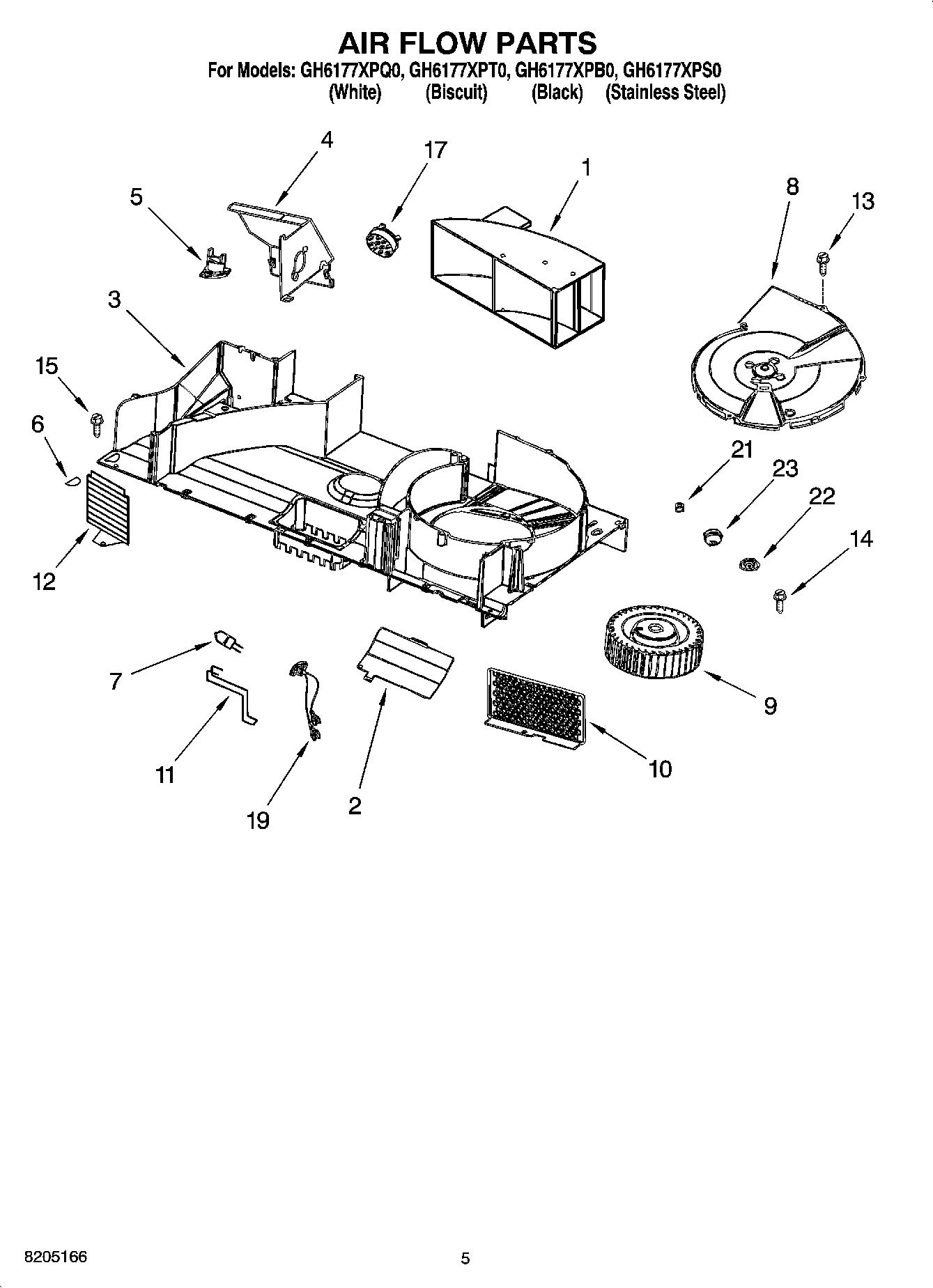

04 - AIR FLOW PARTS

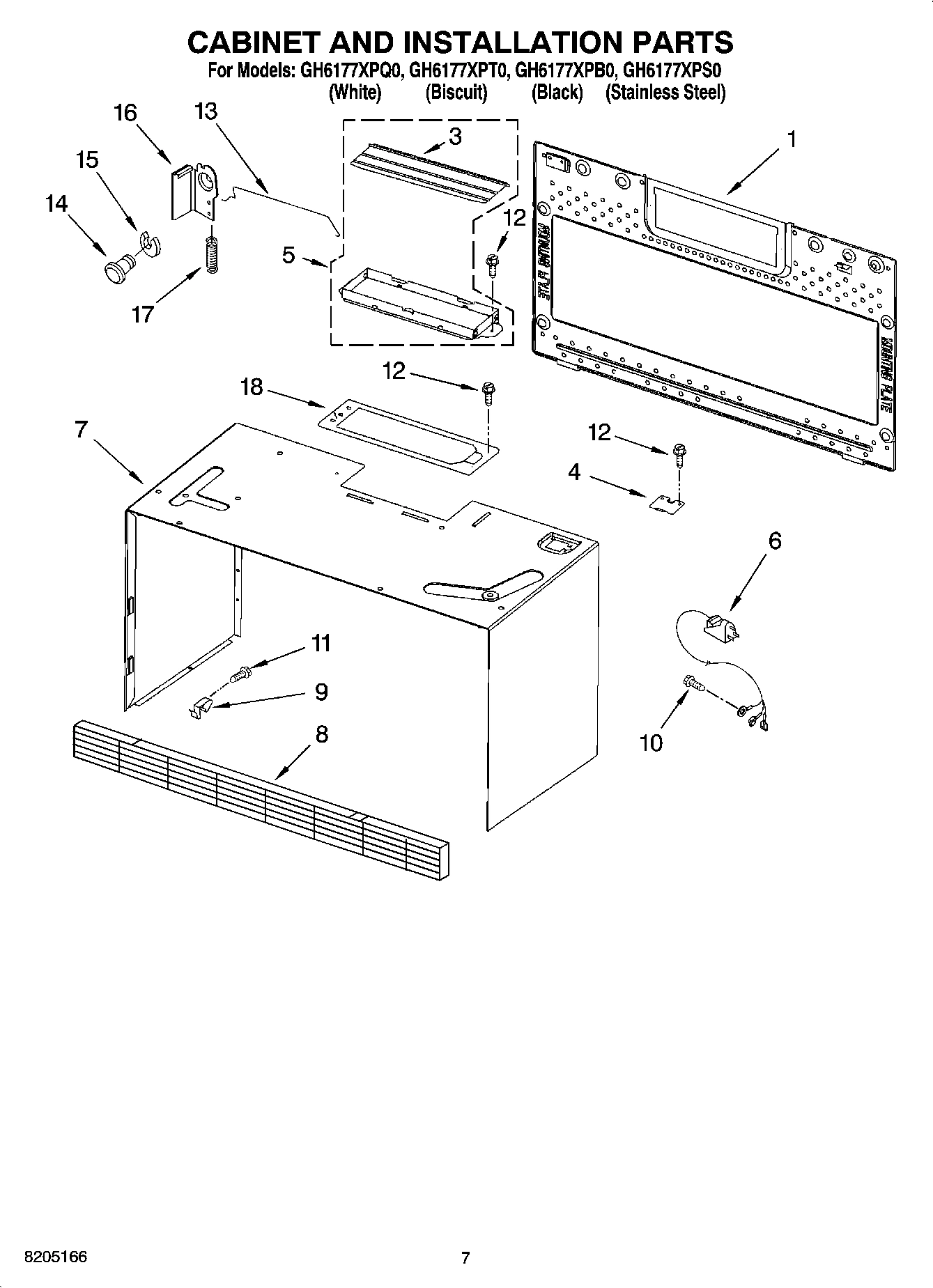

06 - CABINET AND INSTALLATION PARTS
Common parts from model Whirlpool GH6177XPB0 MICROWAVE HOOD COMBINATION
1
Reflector, Lamp (Right) WPL 8184132 Contact Us For Availability
1
Reflector, Lamp (Left) WPL 8184194 Contact Us For Availability
1
Installation Instructions WPL 8184059 Contact Us For Availability
1
Cook Guide Label WPL 8184891 Contact Us For Availability
1
Cook Book WPL 8204711 Contact Us For Availability
1
Tech Sheet WPL 8204913 Contact Us For Availability
1
Use & Care Guide WPL 8204924 Contact Us For Availability
1
Film, Back Included with 4 WPL ARI148877A Contact Us For Availability
1
Deflector, Air WPL 8184667 Contact Us For Availability
1
Plate, Mounting WPL 8184895 Contact Us For Availability
2
Frame, Inner WPL 8204680 Contact Us For Availability
2
Cover, Lamp WPL 8184885 Contact Us For Availability
3
Control Panel Assembly (Black) WPL 8205233 Contact Us For Availability
3
Control Panel Assembly (White) WPL 8205232 Contact Us For Availability
3
Control Panel Assembly (Biscuit) WPL 8205234 Contact Us For Availability
3
Control Panel Assembly (Stainless Steel) WPL 8205235 Contact Us For Availability
3
Latch, Door WPL 8184113 Contact Us For Availability
3
Duct, Air WPL 8184886 Contact Us For Availability
4
Bracket, Control WPL 8205238 Contact Us For Availability
4
Body Asy, Door Includes 1 (White) WPL 8185035 Contact Us For Availability
4
Body Asy, Door Includes 1 (Biscuit) WPL 8185037 Contact Us For Availability
4
Body Asy, Door Includes 1 (Black) WPL 8185038 Contact Us For Availability
4
Bracket, Thermostat WPL 8204789 Contact Us For Availability
4
Lid, Power Cord WPL 8184897 Contact Us For Availability
5
Thermostat WPL 8183999 Contact Us For Availability
5
Plate, Bottom WPL 8205366 Contact Us For Availability
5
Glass, Outer WPL 8205219 Contact Us For Availability
6
Pivot, Door WPL 8184922 Contact Us For Availability
6
Glass, Lamp WPL 8184141 Contact Us For Availability
6
Microcomputer WPL 8205237 Contact Us For Availability
6
Air Guide Cover WPL 8204676 Contact Us For Availability
6
Cord, Power WPL 8184898 Contact Us For Availability
7
Holder, Glass WPL 8184889 Contact Us For Availability
7
Ring, Rubber WPL 8184913 Contact Us For Availability
7
Hinge, Upper WPL 8204679 Contact Us For Availability
7
Case, Outer (White) WPL 8205207 Contact Us For Availability
7
Case, Outer (Black) WPL 8205212 Contact Us For Availability
7
Case, Outer (Biscuit) WPL 8205213 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Hinge, Lower WPL 8204678 Contact Us For Availability
8
Cover, Fan WPL 8184884 Contact Us For Availability
8
Grille, Vent (Biscuit) WPL 8205216 Contact Us For Availability
8
Grille, Vent (Stainless Steel) WPL 8205217 Contact Us For Availability
9
Cover, Inverter WPL 8184124 Contact Us For Availability
9
LCD Assembly WPL 8184914 Contact Us For Availability
9
Motor, Fan Assy WPL 8184876 Contact Us For Availability
10
Bracket, LCD WPL 8184915 Contact Us For Availability
10
Frame Asy, Outer (White) WPL 8205220 Contact Us For Availability
10
Frame Asy, Outer (Black) WPL 8205221 Contact Us For Availability
10
Frame Asy, Outer (Biscuit) WPL 8205222 Contact Us For Availability
10
Frame Asy, Outer (Stainless Steel) WPL 8205223 Contact Us For Availability
10
Shield WPL 8204754 Contact Us For Availability
11
Screw WPL 8169475 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
Bushing, Rubber WPL 8185058 Contact Us For Availability
11
Complete Door (White) WPL 8205228 Contact Us For Availability
11
Complete Door (Black) WPL 8205229 Contact Us For Availability
11
Complete Door (Biscuit) WPL 8205230 Contact Us For Availability
11
Complete Door (Stainless Steel) WPL 8205231 Contact Us For Availability
11
Spring WPL 8169647 Contact Us For Availability
12
Plate, Cam WPL 8205211 Contact Us For Availability
12
Sensor, Light Lens WPL 8205236 Contact Us For Availability
12
Bracket, Door Glass WPL 8205218 Contact Us For Availability
12
Shield WPL 8204790 Contact Us For Availability
13
Support, Interlock WPL 8185189 Contact Us For Availability
13
Handle (White) WPL 8205224 Contact Us For Availability
13
Handle (Biscuit) WPL 8205225 Contact Us For Availability
13
Handle (Stainless Steel) WPL 8205227 Contact Us For Availability
13
Rod WPL 8184135 Contact Us For Availability
14
Fan, DC 12 Volt WPL 8184875 Contact Us For Availability
14
SCREW WPL 8184198 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
15
Screw WPL 8169474 Contact Us For Availability
15
Housing, Fan WPL 8184894 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
16
Inverter 40 W WPL 8204989 Contact Us For Availability
16
Catch WPL 8185033 Contact Us For Availability
17
Grill WPL 8184862 Contact Us For Availability
17
Bracket, Holder WPL 8185032 Contact Us For Availability
17
Humidity, Sensor WPL 4393808 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
18
Holder, Inverter WPL 8184670 Contact Us For Availability
18
Installation, Hardware WPL 8169659 Contact Us For Availability
18
Template, Wall WPL 8183987 Contact Us For Availability
18
Wire Harness (Includes Light Sockets) WPL 8184603 Contact Us For Availability
18
Template, Upper WPL 8184781 Contact Us For Availability
18
Plate, Damper WPL 8184902 Contact Us For Availability
18
Miscellaneous WPL ARI148878A Contact Us For Availability
19
Rod-Locking Link WPL 8185190 Contact Us For Availability
19
Holder, Lamp WPL 8204669 Contact Us For Availability
20
Capacitor, 125 V WPL 8184093 Contact Us For Availability
21
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
22
Plate, Damper WPL 8204674 Contact Us For Availability
22
Plate, Side WPL 8185031 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
23
Cable WPL 8184887 Contact Us For Availability
25
Fuse (2) 4 Amp/250 Volt WPL 8184579 Contact Us For Availability
26
Capacitor WPL 8184204 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183998 Contact Us For Availability
30
Frame, Glass WPL 8169646 Contact Us For Availability
30
SCREW WPL 8184199 Contact Us For Availability
32
SCREW WPL 8184200 Contact Us For Availability
35
Ribbon Cable (P27 To CN153 On 40 W Inverter) WPL 8205021 Contact Us For Availability
36
Ribbon Cable (P4 To CN151 On 40 W Inverter) WPL 8205022 Contact Us For Availability
× ![]()
