Model Whirlpool GH5184XPB3 MICROWAVE OVEN 1.8 Cu. Ft. – Common Parts & Diagrams

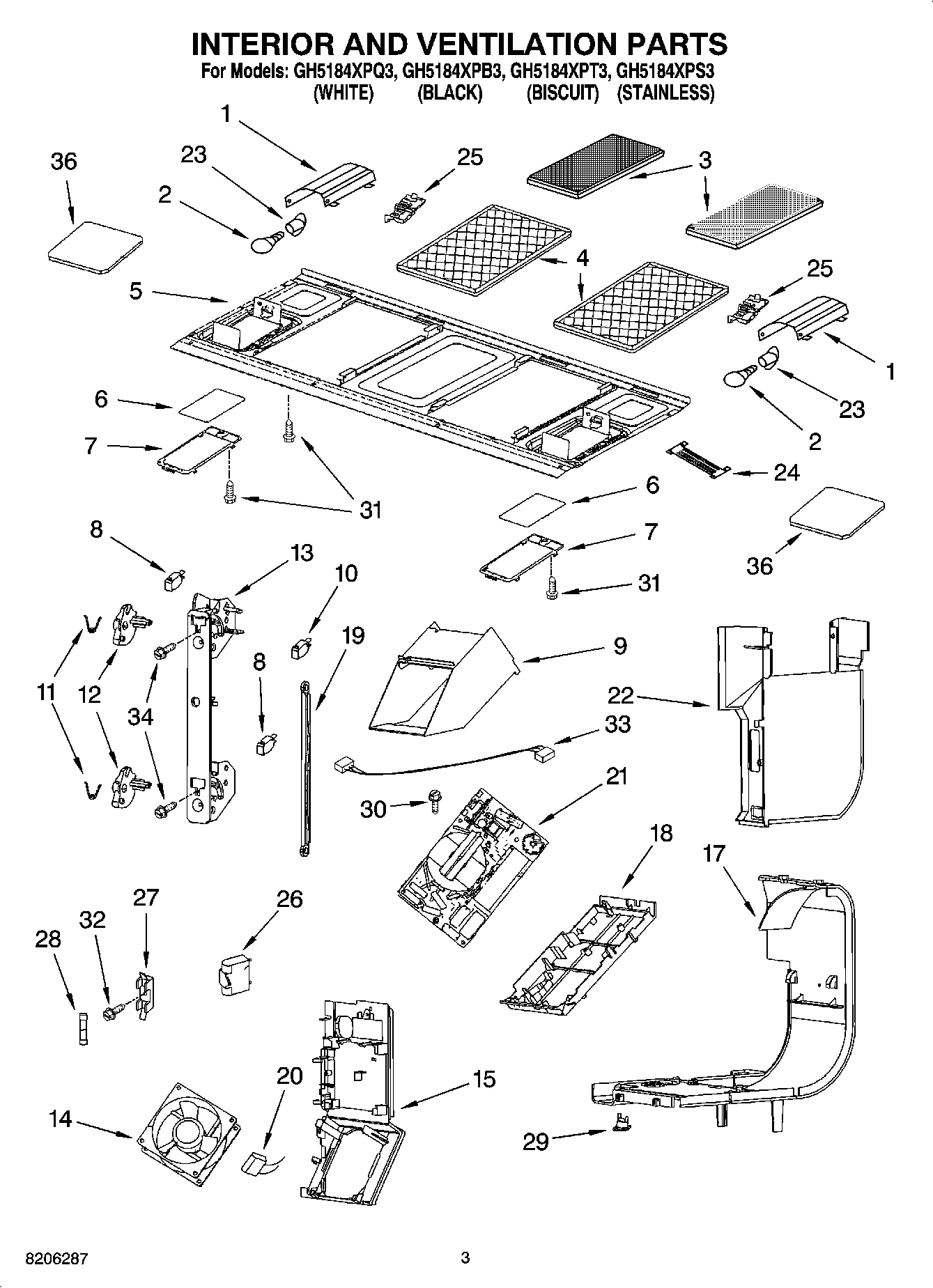

03 - INTERIOR AND VENTILATION PARTS

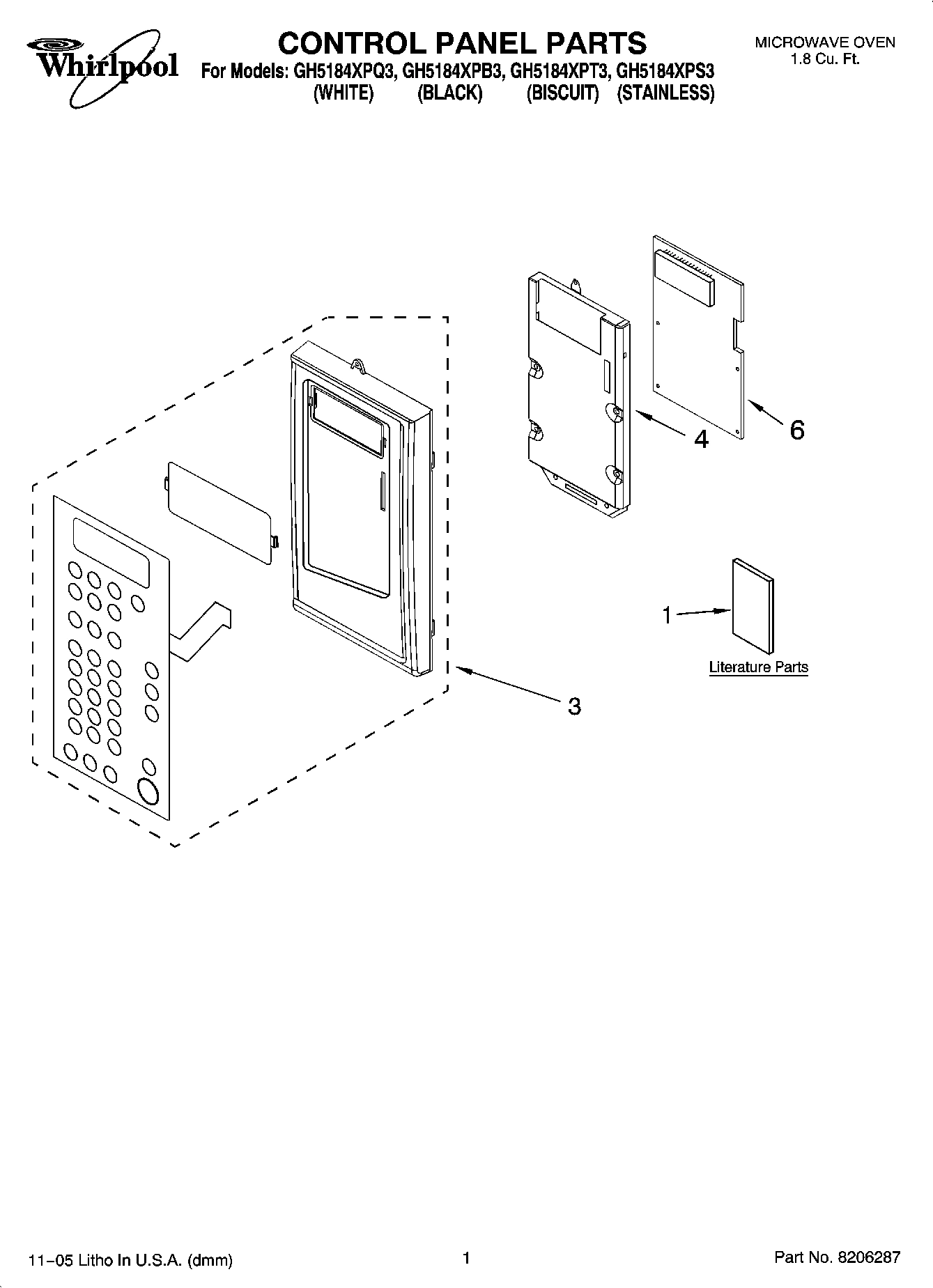

01 - CONTROL PANEL PARTS

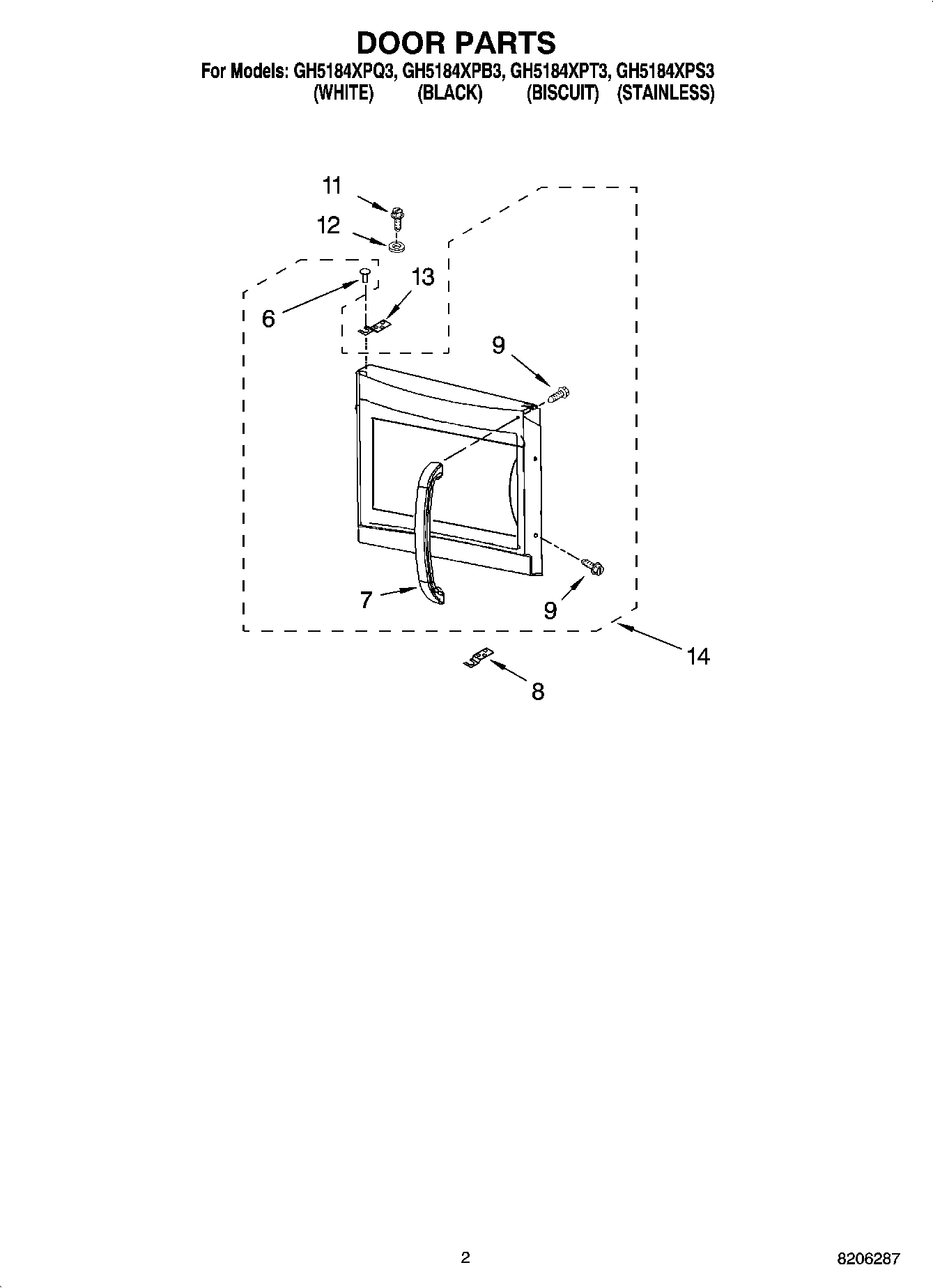

02 - DOOR PARTS

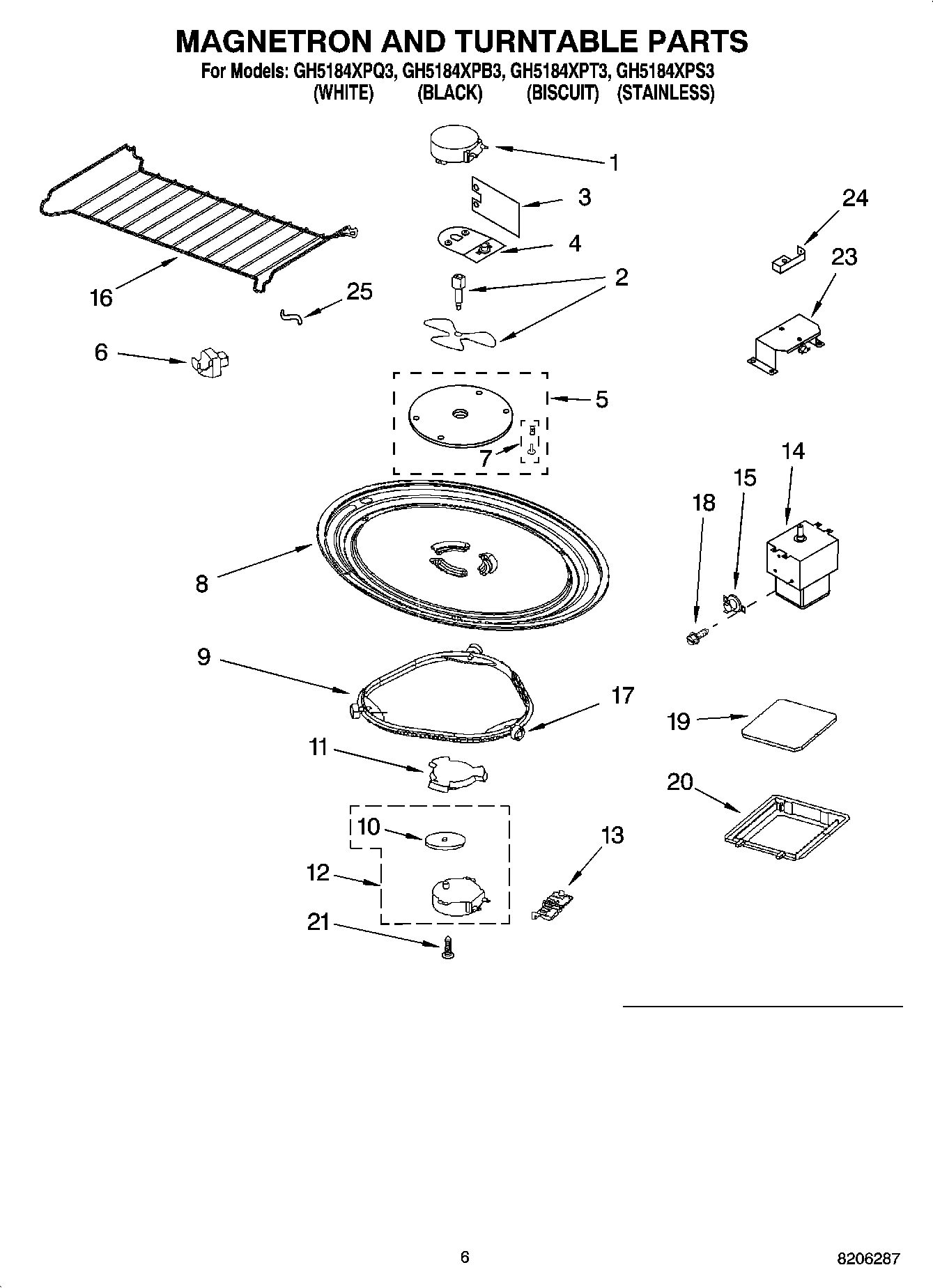

05 - MAGNETRON AND TURNTABLE PARTS

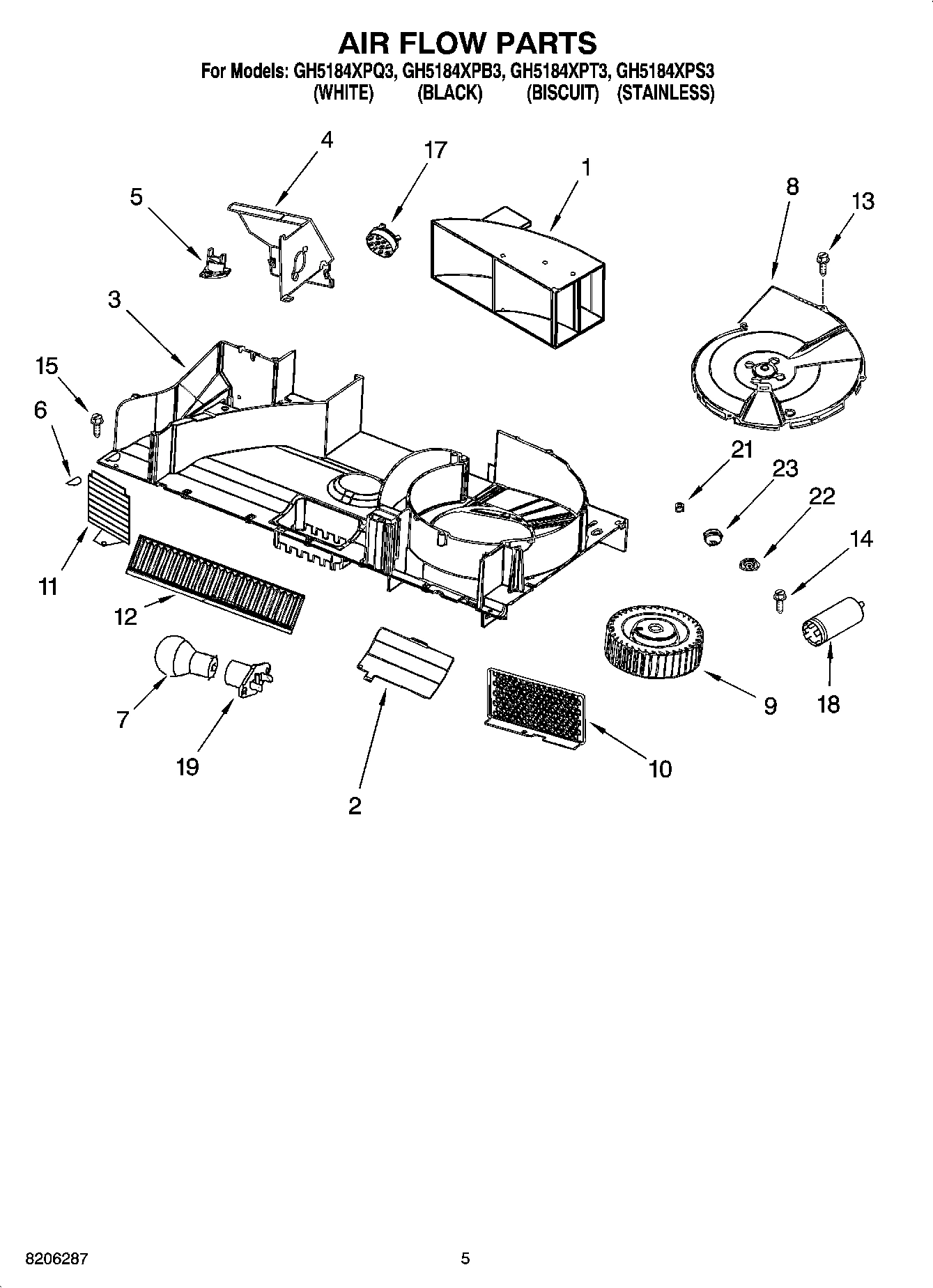

04 - AIR FLOW PARTS

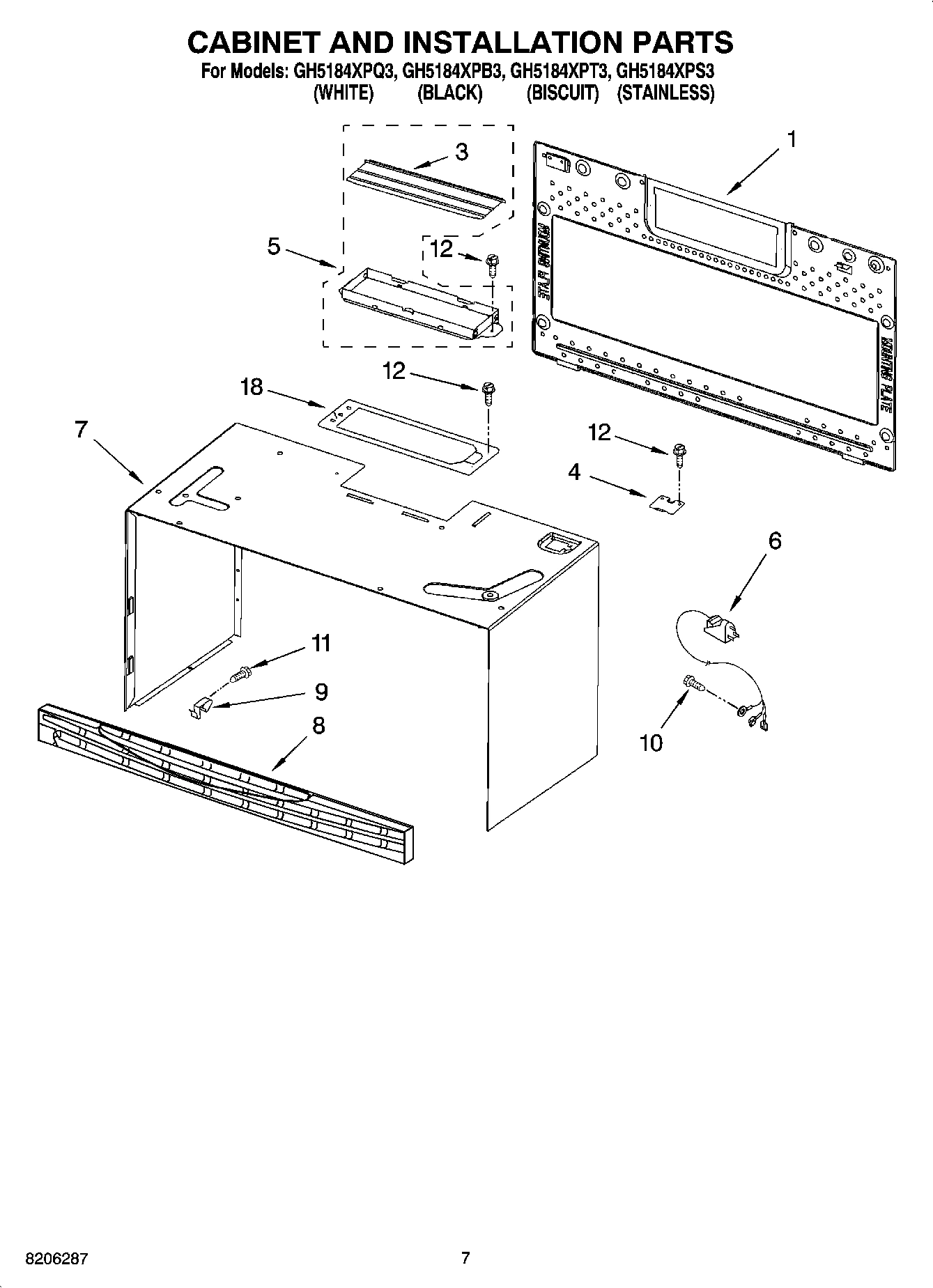

06 - CABINET AND INSTALLATION PARTS
Common parts from model Whirlpool GH5184XPB3 MICROWAVE OVEN 1.8 Cu. Ft.
1
U & C Guide WPL 8205973 Contact Us For Availability
1
Motor, Stirrer WPL 8205044 Contact Us For Availability
1
Deflector, Air WPL 8184667 Contact Us For Availability
1
Plate, Mounting WPL 8206172 Contact Us For Availability
2
Stirrer Shaft/Blade WPL 8205202 Contact Us For Availability
2
Cover, Lamp WPL 8184925 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8205417 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8205418 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8205419 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8205420 Contact Us For Availability
3
Duct, Air WPL 8185350 Contact Us For Availability
4
Bracket, Control WPL 8205378 Contact Us For Availability
4
Thermostat/Bracket WPL 8184585 Contact Us For Availability
4
Bracket, Thermostat WPL 8204789 Contact Us For Availability
4
Lid, Power Cord WPL 8184897 Contact Us For Availability
5
Cover, Inlet Includes Nails and Bushings WPL 8184604 Contact Us For Availability
5
Thermostat WPL 8183999 Contact Us For Availability
6
Hook, Rack (4) WPL 8204662 Contact Us For Availability
6
Pivot, Door WPL 8184922 Contact Us For Availability
6
Microcomputer WPL 8205421 Contact Us For Availability
6
Cover WPL 8204676 Contact Us For Availability
6
Cord, Power WPL 8184898 Contact Us For Availability
7
Handle, Door (White) WPL 8205224 Contact Us For Availability
7
Handle, Door (Biscuit) WPL 8205225 Contact Us For Availability
7
Handle, Door (Stainless) WPL 8205227 Contact Us For Availability
7
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
7
Case, Outer (White) WPL 8205207 Contact Us For Availability
7
Case, Outer (Black) WPL 8205212 Contact Us For Availability
7
Case, Outer (Biscuit) WPL 8205213 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Lower Hinge WPL 8204678 Contact Us For Availability
8
Cover, Fan WPL 8184884 Contact Us For Availability
8
Grille, Vent (Biscuit) WPL 8205216 Contact Us For Availability
8
Grille, Vent (Stainless) WPL 8205217 Contact Us For Availability
9
Motor, Fan Assy WPL 8184876 Contact Us For Availability
10
Shield WPL 8204754 Contact Us For Availability
11
Screw WPL 8169475 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
Shield WPL 8204790 Contact Us For Availability
12
Filter, Fan Hood WPL 8190268 Contact Us For Availability
13
Support, Interlock WPL 8185189 Contact Us For Availability
13
Upper Hinge WPL 8204679 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
14
Fan, DC 12 Volt WPL 8184875 Contact Us For Availability
14
Complete Door (Black) WPL 8205414 Contact Us For Availability
14
Complete Door (Biscuit) WPL 8205415 Contact Us For Availability
14
Complete Door (White) WPL 8205413 Contact Us For Availability
14
Complete Door (Stainless) WPL 8205416 Contact Us For Availability
14
SCREW WPL 8184198 Contact Us For Availability
15
Thermostat WPL 8183994 Contact Us For Availability
15
Screw WPL 8169474 Contact Us For Availability
16
Rack WPL 8184052 Contact Us For Availability
17
Wheel (3) WPL 4393861 Contact Us For Availability
17
Humidity, Sensor WPL 4393808 Contact Us For Availability
18
Installation, Hardware WPL 8205947 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
18
Filter WPL 8205853 Contact Us For Availability
18
Plate, Damper WPL 8169697 Contact Us For Availability
18
Template, Upper WPL 8184781 Contact Us For Availability
18
Miscellaneous WPL ARI148860A Contact Us For Availability
19
Rod-Locking Link WPL 8185190 Contact Us For Availability
19
Glass, Lamp WPL 8169499 Contact Us For Availability
19
Holder, Lamp WPL 8184926 Contact Us For Availability
20
Frame, Glass WPL 8169646 Contact Us For Availability
21
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
22
Plate, Damper WPL 8204674 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
23
Thermostat/Bracket WPL 8184586 Contact Us For Availability
24
Bracket, Plug WPL 8184669 Contact Us For Availability
29
Thermostat WPL 8183998 Contact Us For Availability
× ![]()
