Model Whirlpool GH5176XPQ1 MICROWAVE OVEN – Common Parts & Diagrams

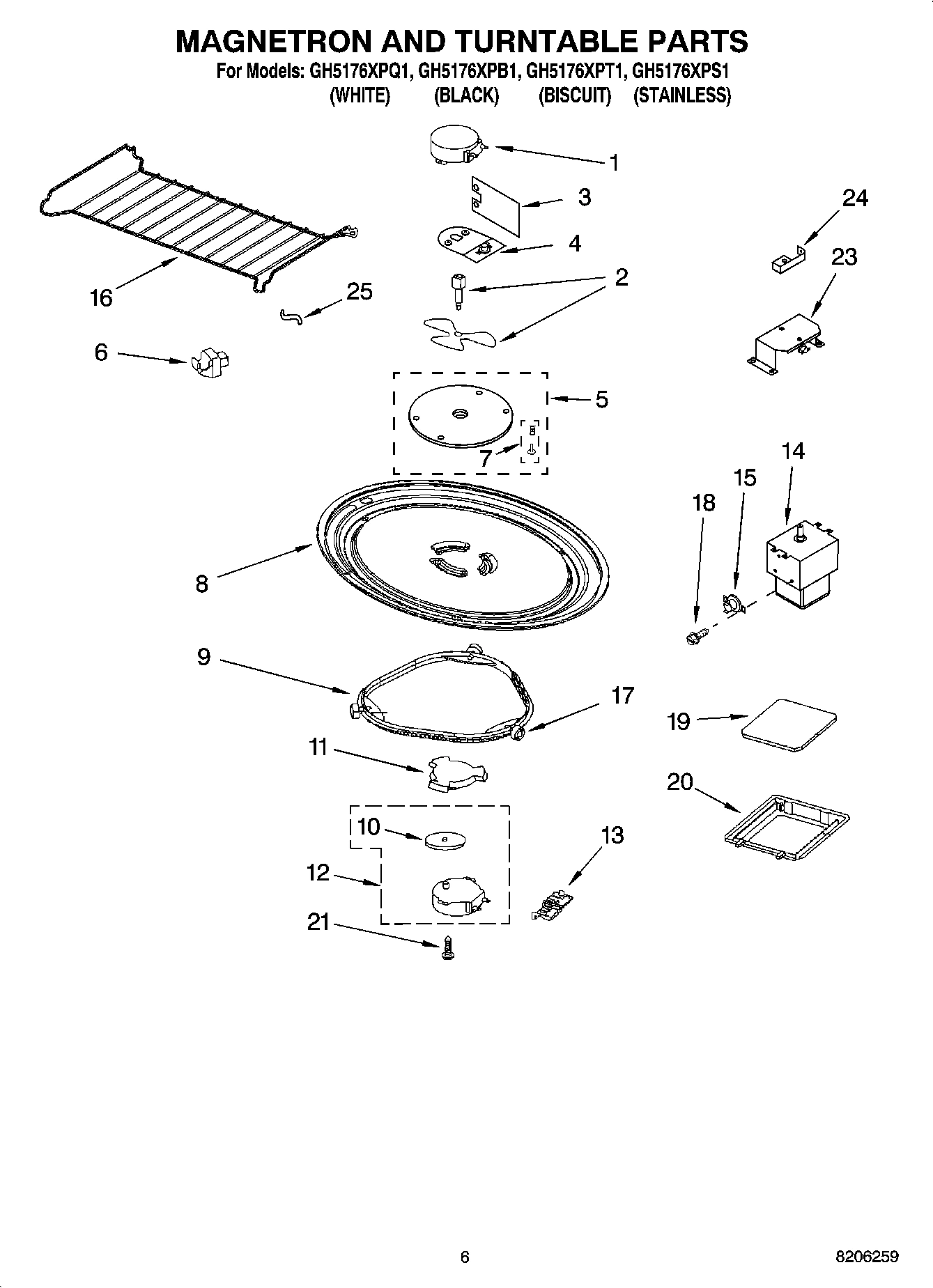

05 - MAGNETRON AND TURNTABLE PARTS

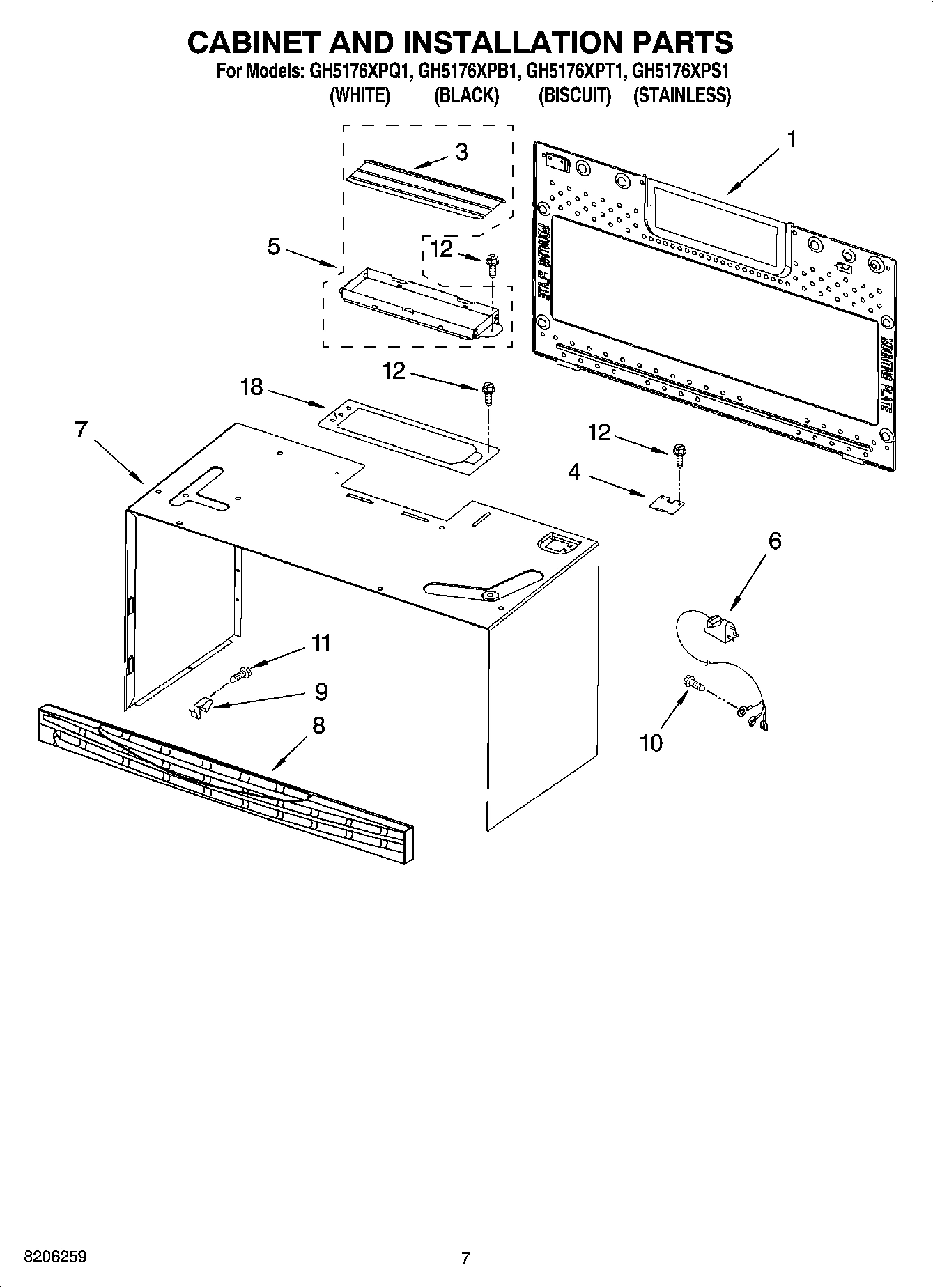

06 - CABINET AND INSTALLATION PARTS

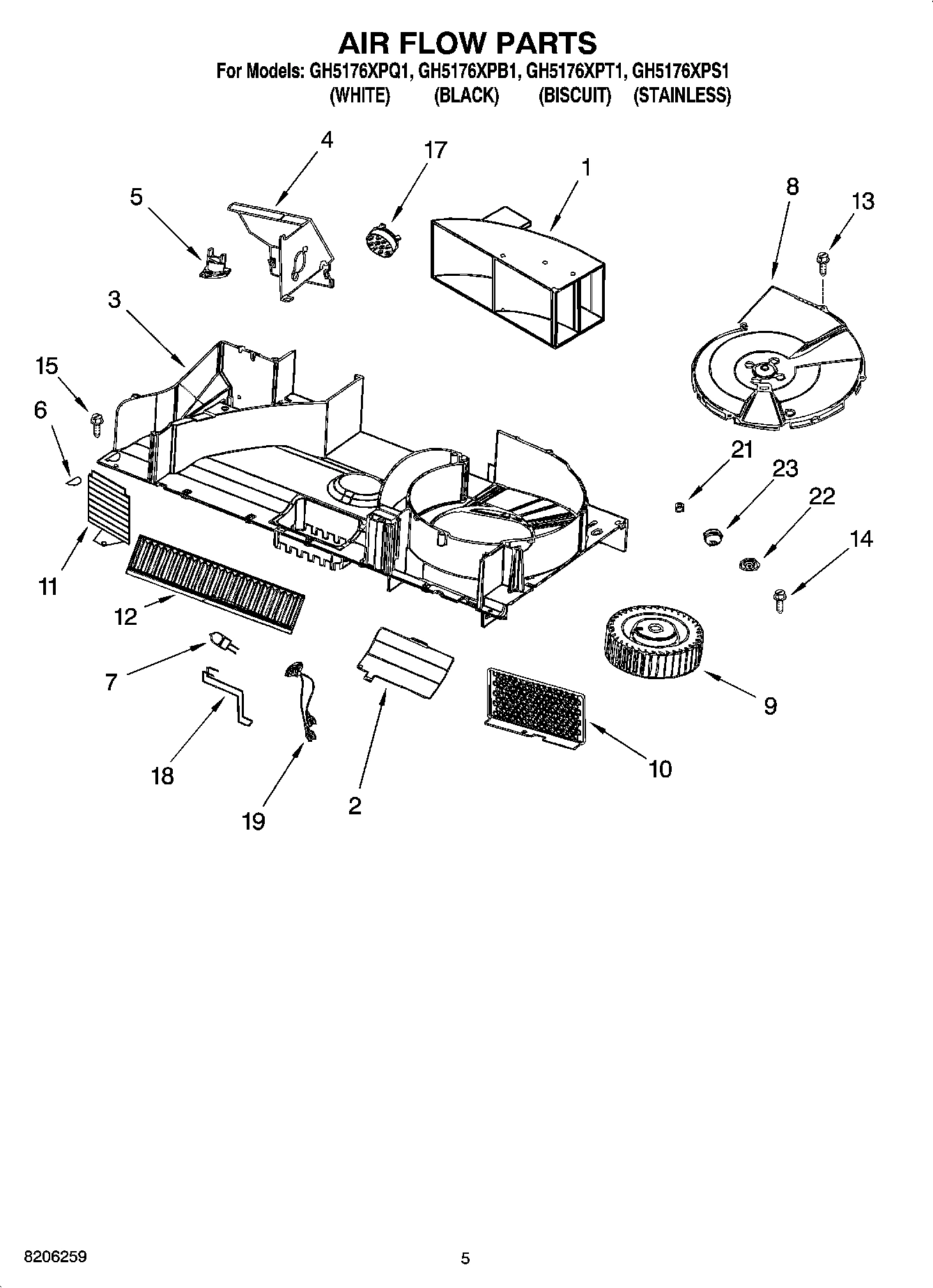

04 - AIR FLOW PARTS

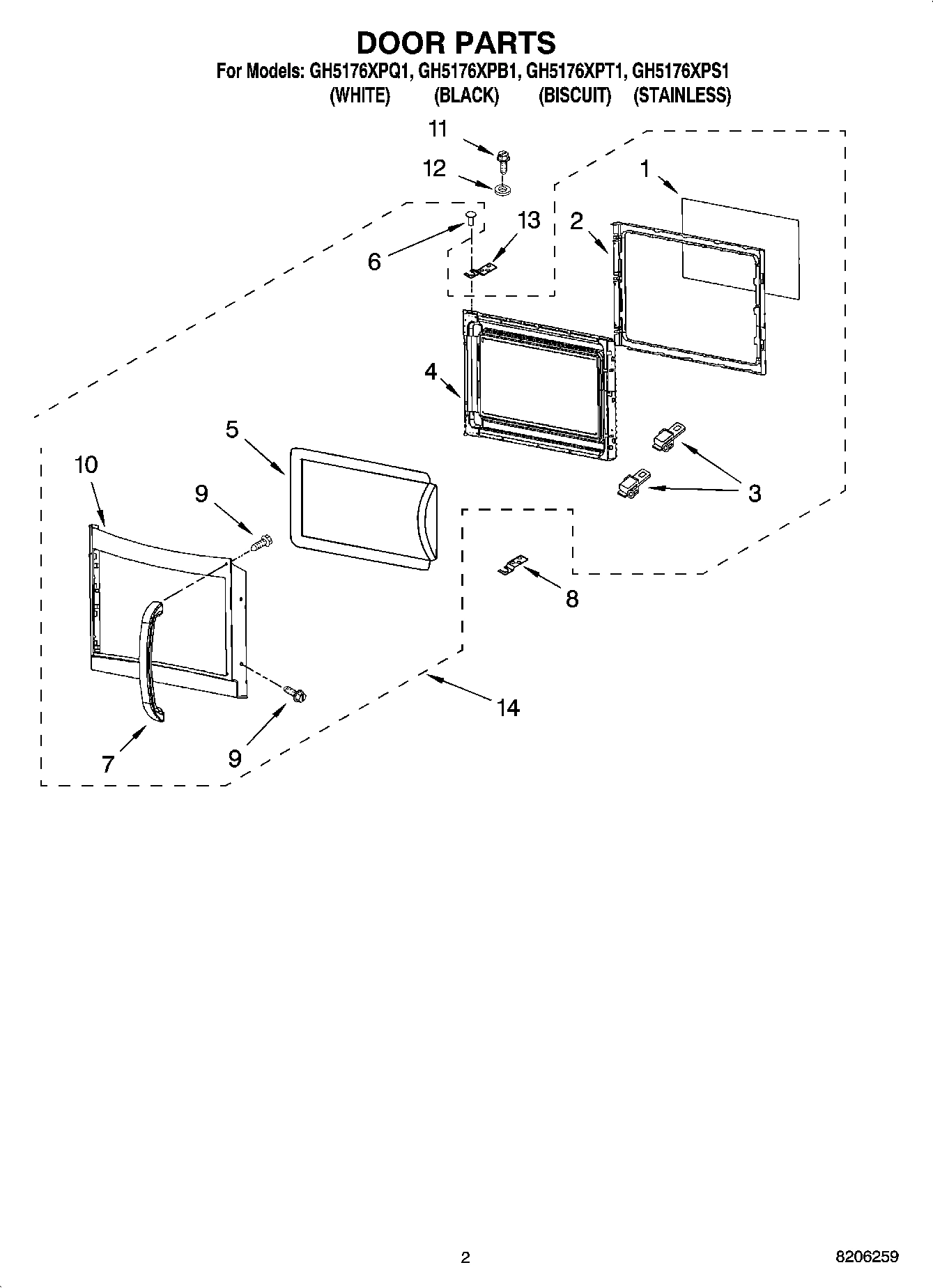

02 - DOOR PARTS

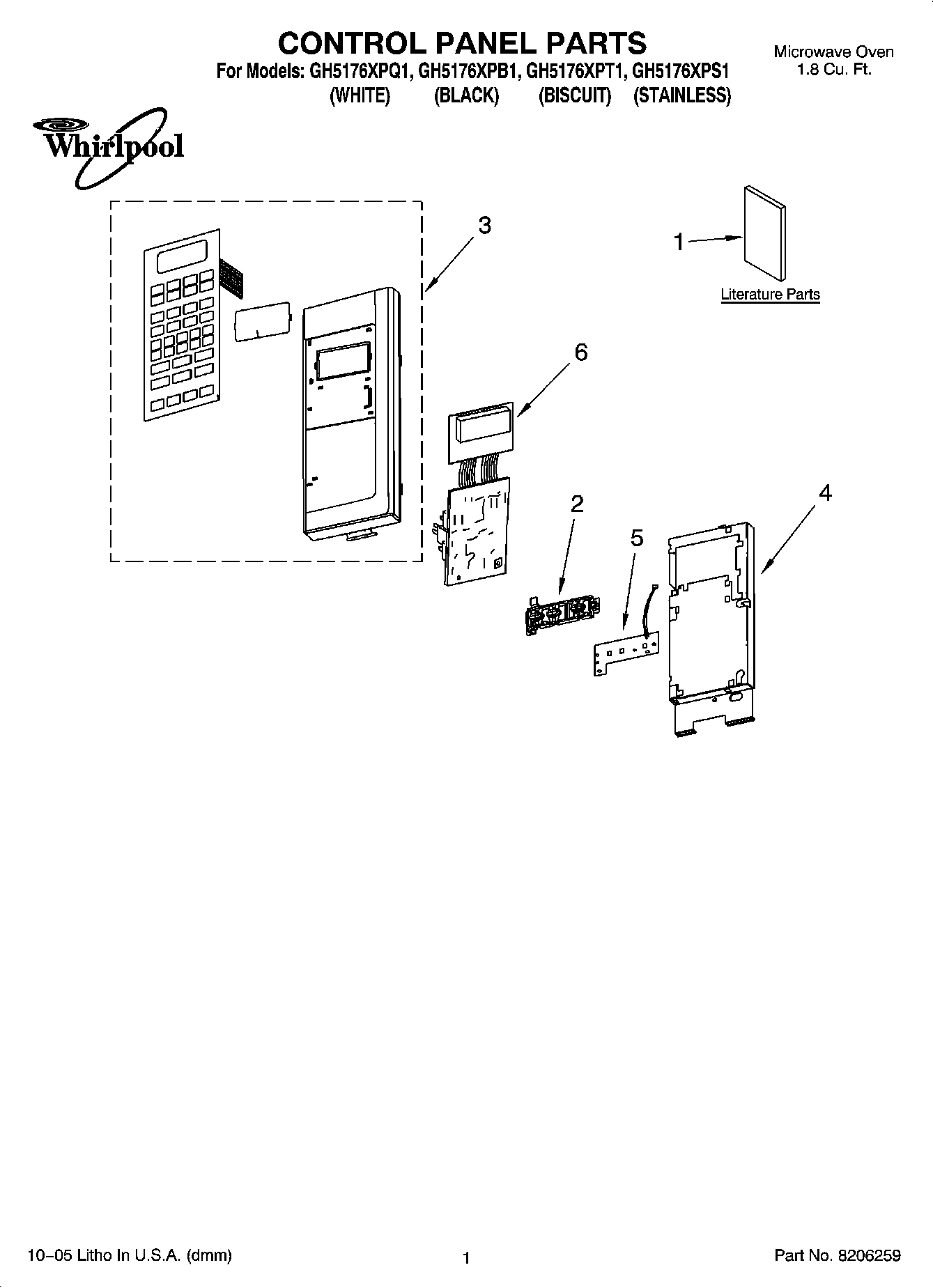

01 - CONTROL PANEL PARTS

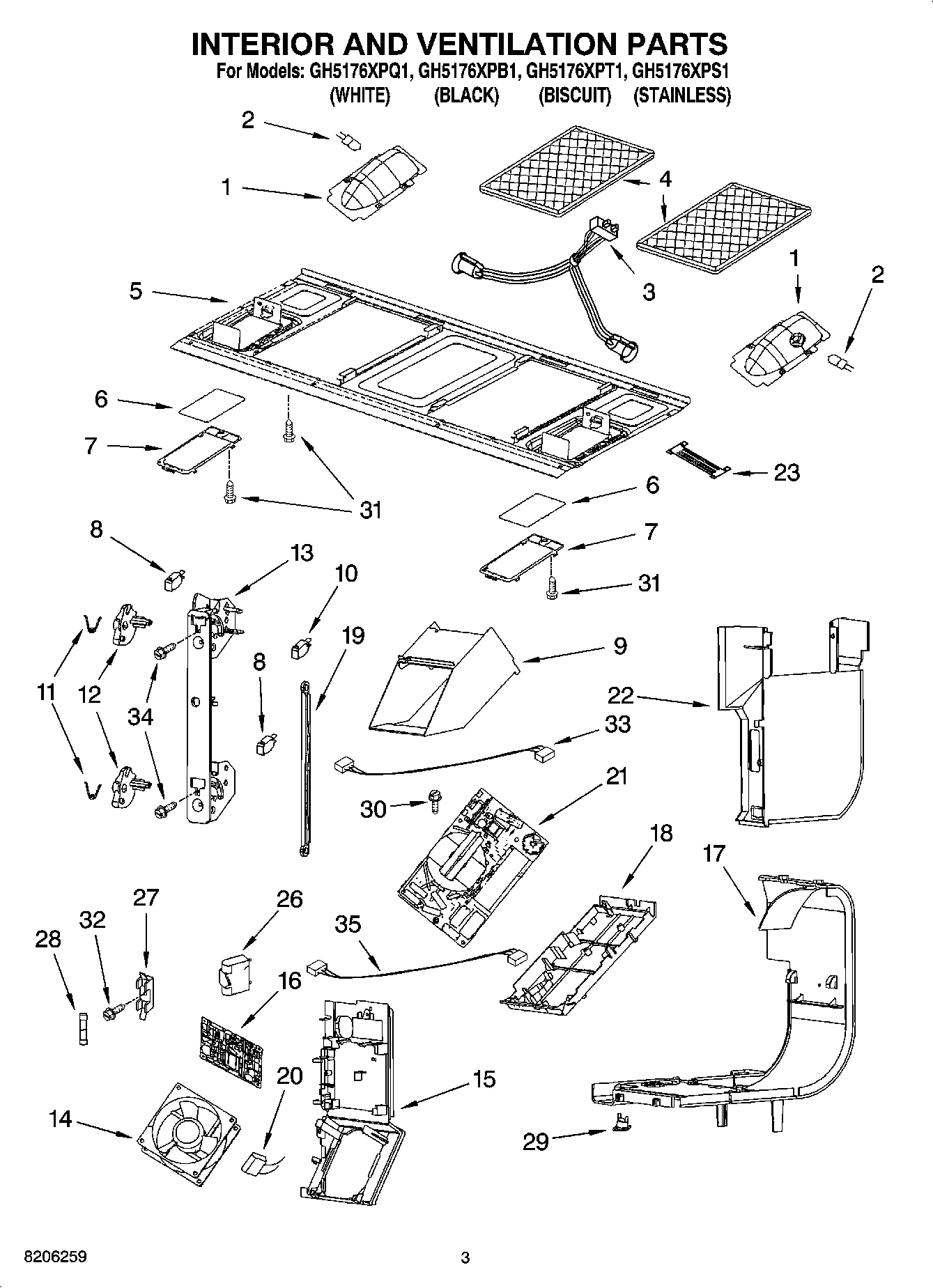

03 - INTERIOR AND VENTILATION PARTS
Common parts from model Whirlpool GH5176XPQ1 MICROWAVE OVEN
Microwave Oven 1.8 Cu. Ft. WPL ARI65201A4 Contact Us For Availability
1
Reflector, Lamp (Right) WPL 8184132 Contact Us For Availability
1
Reflector, Lamp (Left) WPL 8184194 Contact Us For Availability
1
Deflector, Air WPL 8184667 Contact Us For Availability
1
Film, Back Included with 4 WPL ARI65202A6 Contact Us For Availability
1
Cook Guide Label WPL 8185470 Contact Us For Availability
1
Tech Sheet WPL 8204761 Contact Us For Availability
1
U & C Guide WPL 8204923 Contact Us For Availability
1
Instructn, Install WPL 8205139 Contact Us For Availability
2
Cover, Lamp WPL 8184925 Contact Us For Availability
2
Frame, Inner WPL 8204680 Contact Us For Availability
2
Button, Control (White) WPL 8184110 Contact Us For Availability
2
Button, Control (Biscuit) WPL 8184182 Contact Us For Availability
2
Button, Control (Black/Stainless) WPL 8184183 Contact Us For Availability
3
Wire Assy WPL 8184603 Contact Us For Availability
3
Duct, Air WPL 8185350 Contact Us For Availability
3
Latch, Door WPL 8184113 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8205311 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8205312 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8205313 Contact Us For Availability
3
Panel Asy, Control Includes Lens and Membrane WPL 8205314 Contact Us For Availability
4
Bracket, Thermostat WPL 8204789 Contact Us For Availability
4
Body Asy, Door Includes 1 (White) WPL 8204807 Contact Us For Availability
4
Body Asy, Door Includes 1 (Black/Stainless) WPL 8204808 Contact Us For Availability
4
Body Asy, Door Includes 1 (Biscuit) WPL 8204809 Contact Us For Availability
4
Bracket, Control WPL 8204997 Contact Us For Availability
5
Thermostat WPL 8183999 Contact Us For Availability
5
Glass, Outer Plast Included with 10 WPL ARI65203A8 Contact Us For Availability
5
Keyboard Assy WPL 8205078 Contact Us For Availability
5
Plate, Bottom WPL 8204960 Contact Us For Availability
6
Pivot, Door WPL 8184922 Contact Us For Availability
6
Cover WPL 8204676 Contact Us For Availability
6
Microcomputer WPL 8204825 Contact Us For Availability
6
Glass, Lamp WPL 8184141 Contact Us For Availability
7
Handle, Door (Stainless) WPL 8204796 Contact Us For Availability
7
Handle, Door (White) WPL 8205308 Contact Us For Availability
7
Handle, Door (Biscuit) WPL 8205309 Contact Us For Availability
7
Holder, Glass WPL 8184889 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Grille, Vent (White) WPL 8205245 Contact Us For Availability
8
Grille, Vent (Black) WPL 8205248 Contact Us For Availability
8
Cover, Fan WPL 8184884 Contact Us For Availability
8
Lower Hinge WPL 8204678 Contact Us For Availability
9
Motor, Fan Assy WPL 8184876 Contact Us For Availability
9
Cover, Inverter WPL 8184124 Contact Us For Availability
10
Shield WPL 8204754 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (White) WPL 8204810 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Stainless) WPL 8204811 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Biscuit) WPL 8204812 Contact Us For Availability
10
Frame Asy, Outer Includes 5 (Black) WPL 8204813 Contact Us For Availability
11
Screw WPL 8169475 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
Shield WPL 8204790 Contact Us For Availability
12
Filter, Fan Hood WPL 8190268 Contact Us For Availability
12
Plate, Cam WPL 8205211 Contact Us For Availability
13
Support, Interlock WPL 8185189 Contact Us For Availability
13
Upper Hinge WPL 8204679 Contact Us For Availability
14
Fan, DC 12 Volt WPL 8184875 Contact Us For Availability
14
SCREW WPL 8184198 Contact Us For Availability
14
Complete Door (White) WPL 8204814 Contact Us For Availability
14
Complete Door (Stainless) WPL 8204815 Contact Us For Availability
14
Complete Door (Biscuit) WPL 8204816 Contact Us For Availability
14
Complete Door (Black) WPL 8204817 Contact Us For Availability
15
Thermostat WPL 8183994 Contact Us For Availability
15
Screw WPL 8169474 Contact Us For Availability
15
Housing, Fan WPL 8184894 Contact Us For Availability
16
Inverter 40 W WPL 8204961 Contact Us For Availability
17
Wheel (3) WPL 4393861 Contact Us For Availability
17
Humidity, Sensor WPL 4393808 Contact Us For Availability
17
Bracket, Holder WPL 8185032 Contact Us For Availability
18
Installation, Hardware WPL 8205947 Contact Us For Availability
18
Miscellaneous WPL ARI65204A5 Contact Us For Availability
18
Spring WPL 8169647 Contact Us For Availability
18
Holder, Inverter WPL 8184670 Contact Us For Availability
19
Rod-Locking Link WPL 8185190 Contact Us For Availability
19
Holder, Lamp WPL 8204669 Contact Us For Availability
20
Frame, Glass WPL 8169646 Contact Us For Availability
20
Capacitor, 125 V WPL 8184093 Contact Us For Availability
21
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
22
Plate, Damper WPL 8204674 Contact Us For Availability
22
Plate, Side WPL 8185031 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
23
Cable WPL 8184887 Contact Us For Availability
26
Capacitor WPL 8184092 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183998 Contact Us For Availability
30
SCREW WPL 8184199 Contact Us For Availability
32
SCREW WPL 8184200 Contact Us For Availability
35
Ribbon Cable (P3 to CN151 40 W Inverter) WPL 8205015 Contact Us For Availability
× ![]()
